TOYOTA MIRAI 2023 Owners Manual

5219-2. Customization
Owners Manual_USA_M62064_en
9
Vehicle specifications

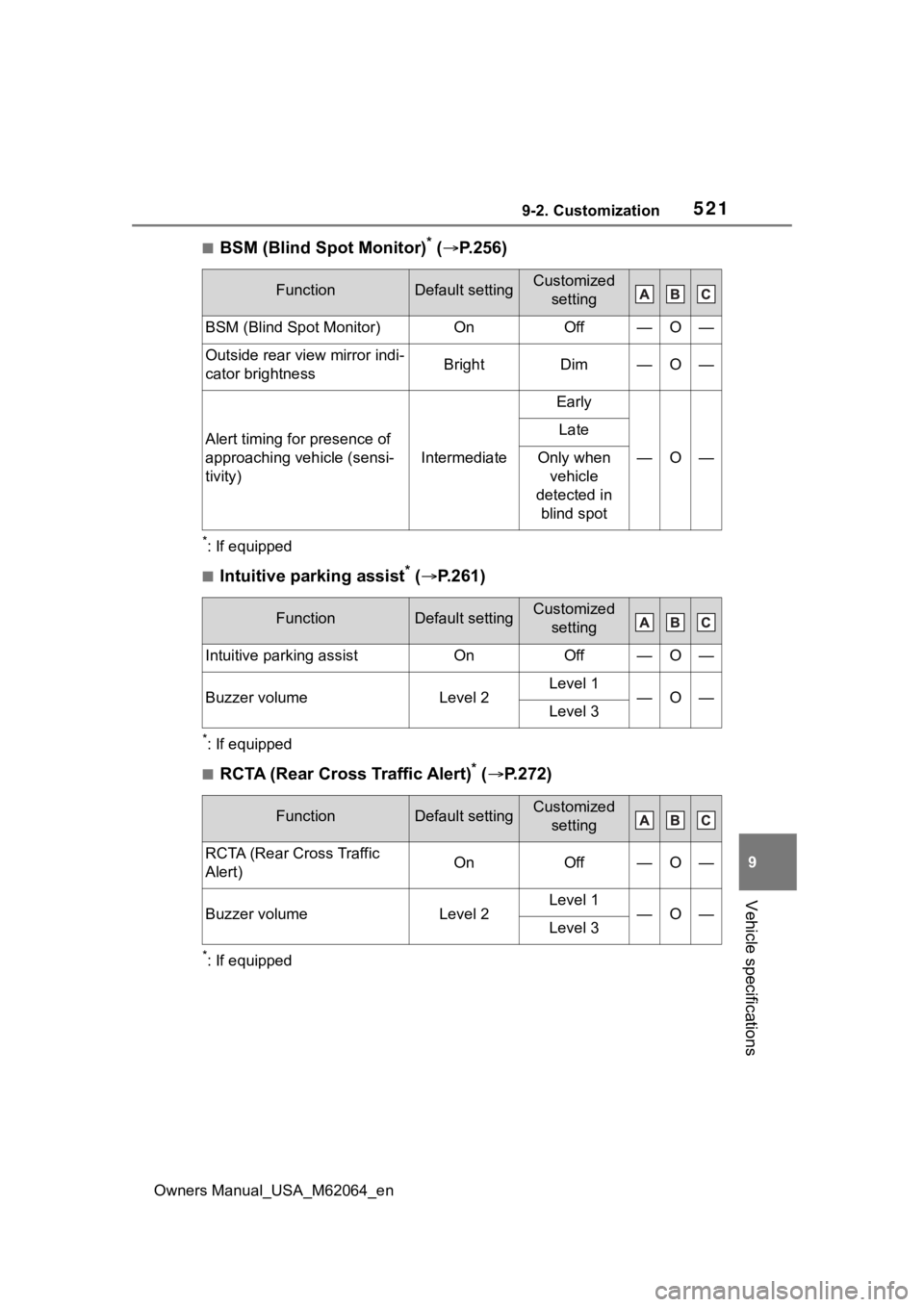

■BSM (Blind Spot Monitor)* (  P.256)
*: If equipped
■Intuitive parking assist* ( P.261)
*: If equipped
■RCTA (Rear Cross Traffic Alert)* ( P.272)
*: If equipped
FunctionDefault settingCustomized
setting
BSM (Blind Spot Monitor)OnOff—O—
Outside rear view mirror indi-
cator brightnessBrightDim—O—
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—
Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
Intuitive parking assistOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3
FunctionDefault settingCustomized setting
RCTA (Rear Cross Traffic
Alert)OnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3

5229-2. Customization
Owners Manual_USA_M62064_en

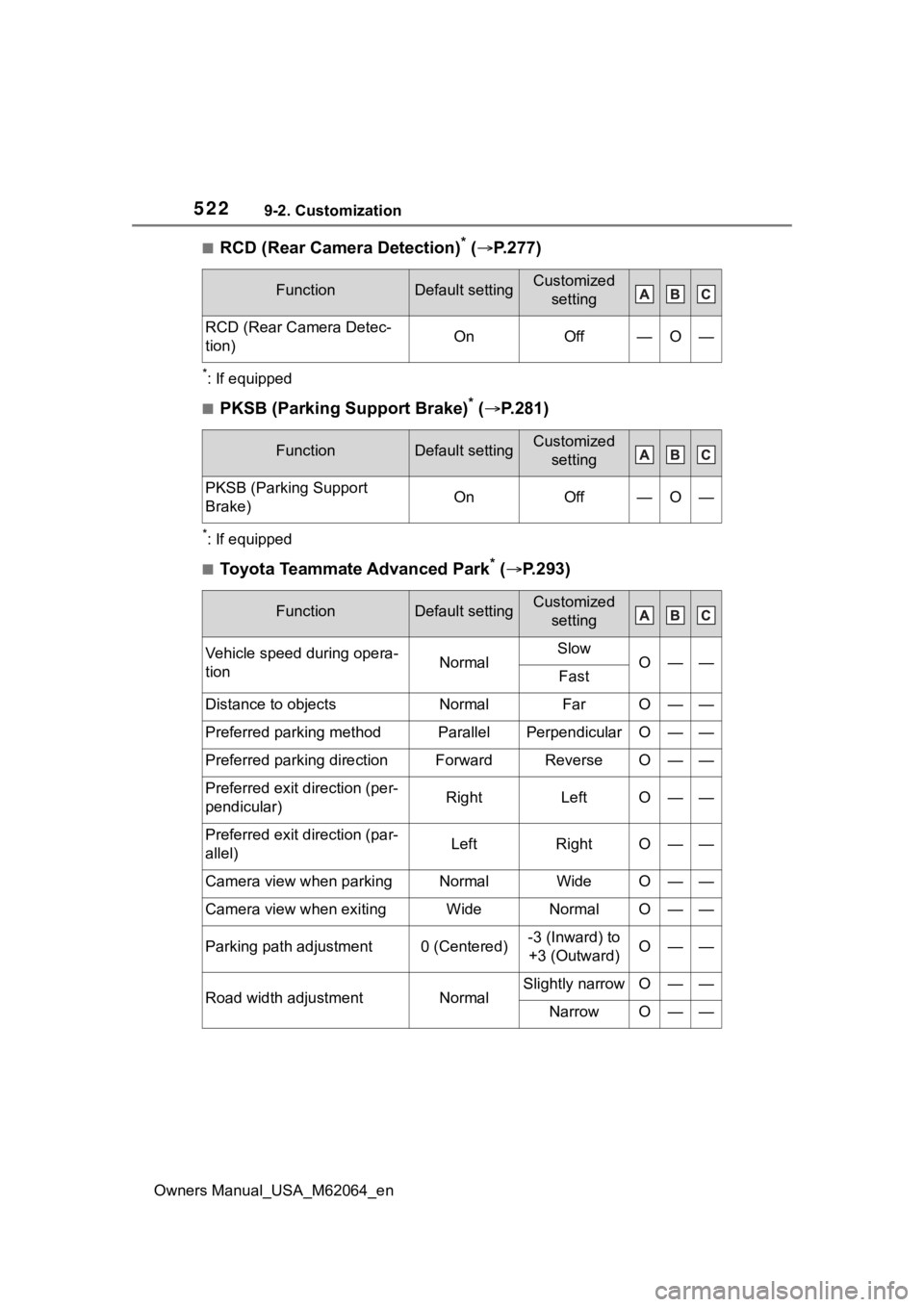

■RCD (Rear Camera Detection)* ( P.277)
*: If equipped
■PKSB (Parking Support Brake)* ( P.281)
*: If equipped
■Toyota Teammate Advanced Park* ( P.293)
FunctionDefault settingCustomized
setting
RCD (Rear Camera Detec-
tion)OnOff—O—
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake)OnOff—O—
FunctionDefault settingCustomized setting
Vehicle speed during opera-
tionNormalSlowO——Fast
Distance to objectsNormalFarO——
Preferred parking methodParallelPerpendicularO——
Preferred parking directionForwardReverseO——
Preferred exit direction (per-
pendicular)RightLeftO——
Preferred exit direction (par-
allel)LeftRightO——
Camera view when parkingNormalWideO——
Camera view when exitingWideNormalO——
Parking path adjustment0 (Centered)-3 (Inward) to +3 (Outward)O——
Road width adjustmentNormalSlightly narrowO——
NarrowO——

5239-2. Customization
Owners Manual_USA_M62064_en
9
Vehicle specifications
*: If equipped
■Automatic air conditioning system ( P.333, 340)
■Seat heater*/seat ventilators* ( P.351)
*: If equipped

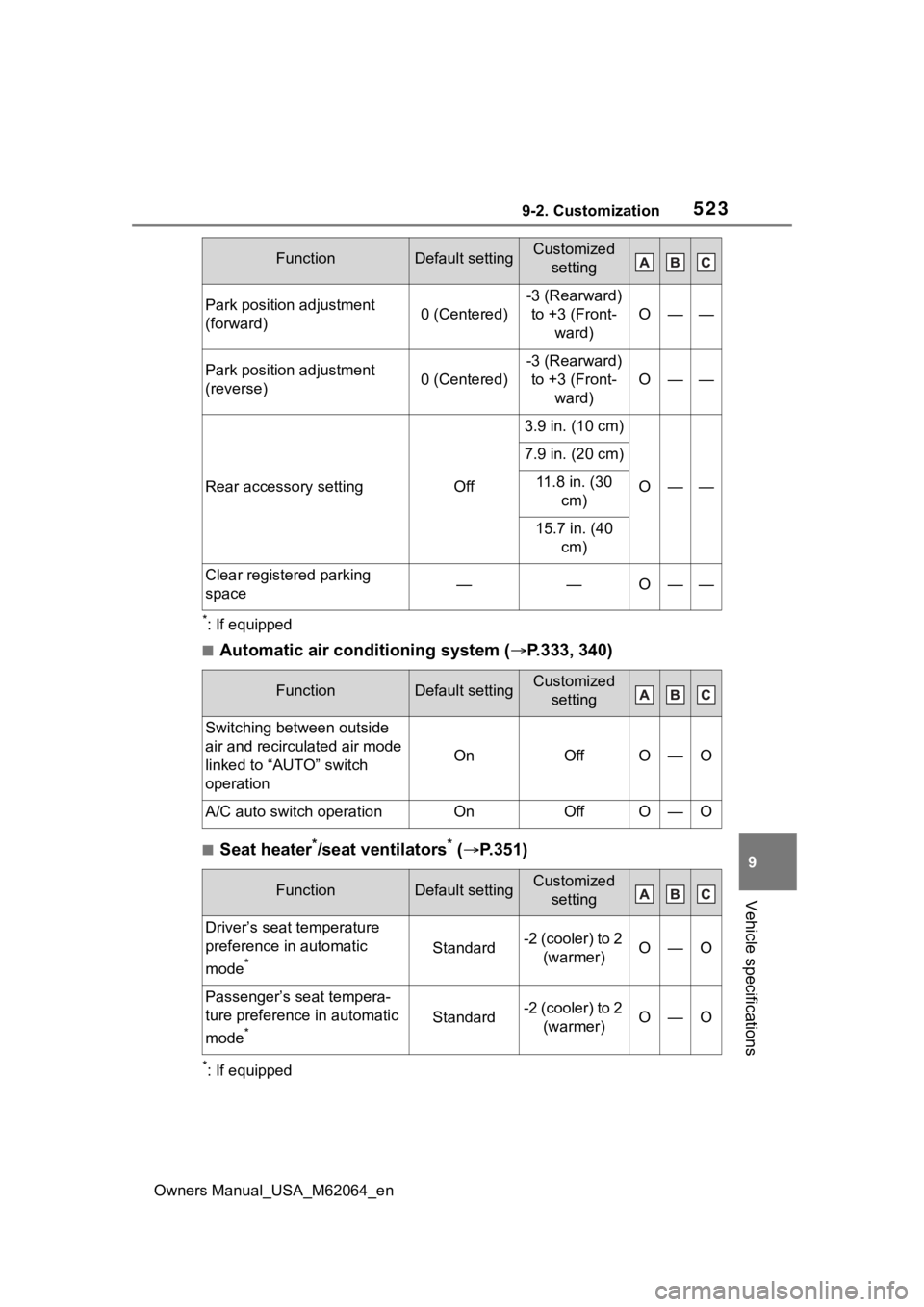

Park position adjustment
(forward)0 (Centered)
-3 (Rearward)
to +3 (Front- ward)
O——
Park position adjustment
(reverse)0 (Centered)
-3 (Rearward) to +3 (Front- ward)
O——
Rear accessory settingOff
3.9 in. (10 cm)
O——
7.9 in. (20 cm)
11.8 in. (30 cm)
15.7 in. (40 cm)
Clear registered parking
space——O——
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air mode
linked to “AUTO” switch
operation
OnOffO—O
A/C auto switch operationOnOffO—O
FunctionDefault settingCustomized setting
Driver’s seat temperature
preference in automatic
mode
*Standard-2 (cooler) to 2 (warmer)O—O
Passenger’s seat tempera-
ture preference in automatic
mode
*Standard-2 (cooler) to 2 (warmer)O—O
FunctionDefault settingCustomized setting

5249-2. Customization
Owners Manual_USA_M62064_en

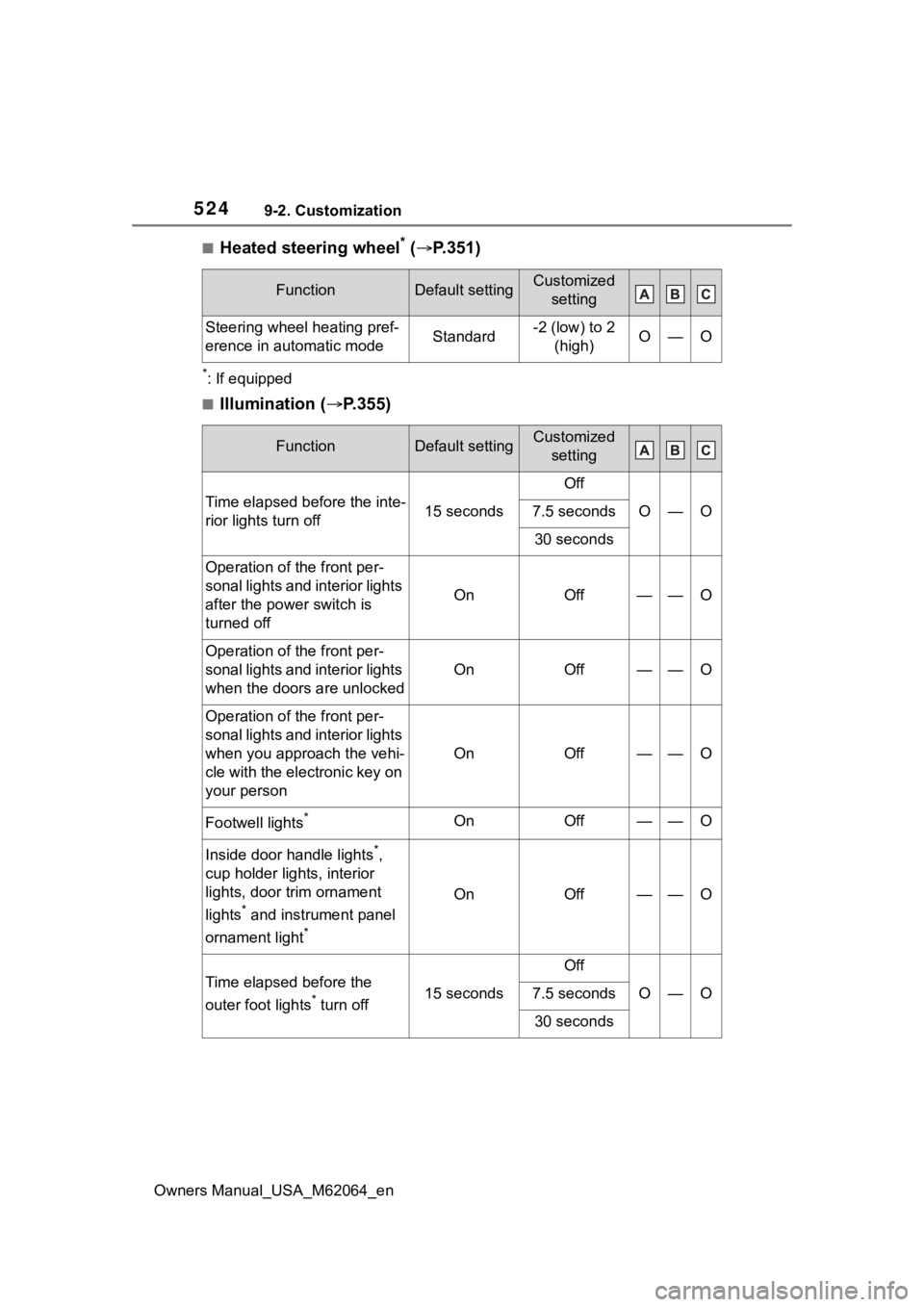

■Heated steering wheel* ( P.351)
*: If equipped
■Illumination ( P.355)
FunctionDefault settingCustomized
setting
Steering wheel heating pref-
erence in automatic modeStandard-2 (low) to 2 (high)O—O
FunctionDefault settingCustomized setting
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation of the front per-
sonal lights and interior lights
after the powe r switch is
turned off
OnOff——O
Operation of the front per-
sonal lights and interior lights
when the doors are unlocked
OnOff——O
Operation of the front per-
sonal lights and interior lights
when you appro ach the vehi-
cle with the electronic key on
your person
OnOff——O
Footwell lights*OnOff——O
Inside door handle lights*,
cup holder lights, interior
lights, door trim ornament
lights
* and instrument panel
ornament light
*
OnOff——O
Time elapsed before the
outer foot lights
* turn off15 seconds
Off
O—O7.5 seconds
30 seconds

5259-2. Customization
Owners Manual_USA_M62064_en
9
Vehicle specifications
*: If equipped
■Toyota Teammate Advanced Drive*
Refer to “Toyota Teammate Advanced Drive OWNER’S MANUAL” at
Toyota.com.
*: If equipped
■Vehicle customization
●When the smart key system is off,
the entry unlock function cannot
be customized.
●When the doors remain closed
after unlocking the doors and the
timer activated automatic door
lock function activates, signals will
be generated in accordance with
the operation bu zzer volume and
operational signal (Emergency
flashers) function settings.
●Some settings can be changed
using a switch or the multimedia
system. If a setting is changed
using a switch, the changed set-
ting will not be reflected on the
multimedia system until the power
switch is turned off and then to
ON.
Operation of the outer foot
lights
* when you approach
the vehicle wit h the elec-
tronic key on your personOnOff——O
Operation of the outer foot
lights
* when the doors are
unlockedOnOff——O
FunctionDefault settingCustomized setting

5269-3. Initialization
Owners Manual_USA_M62064_en
9-3.Initialization

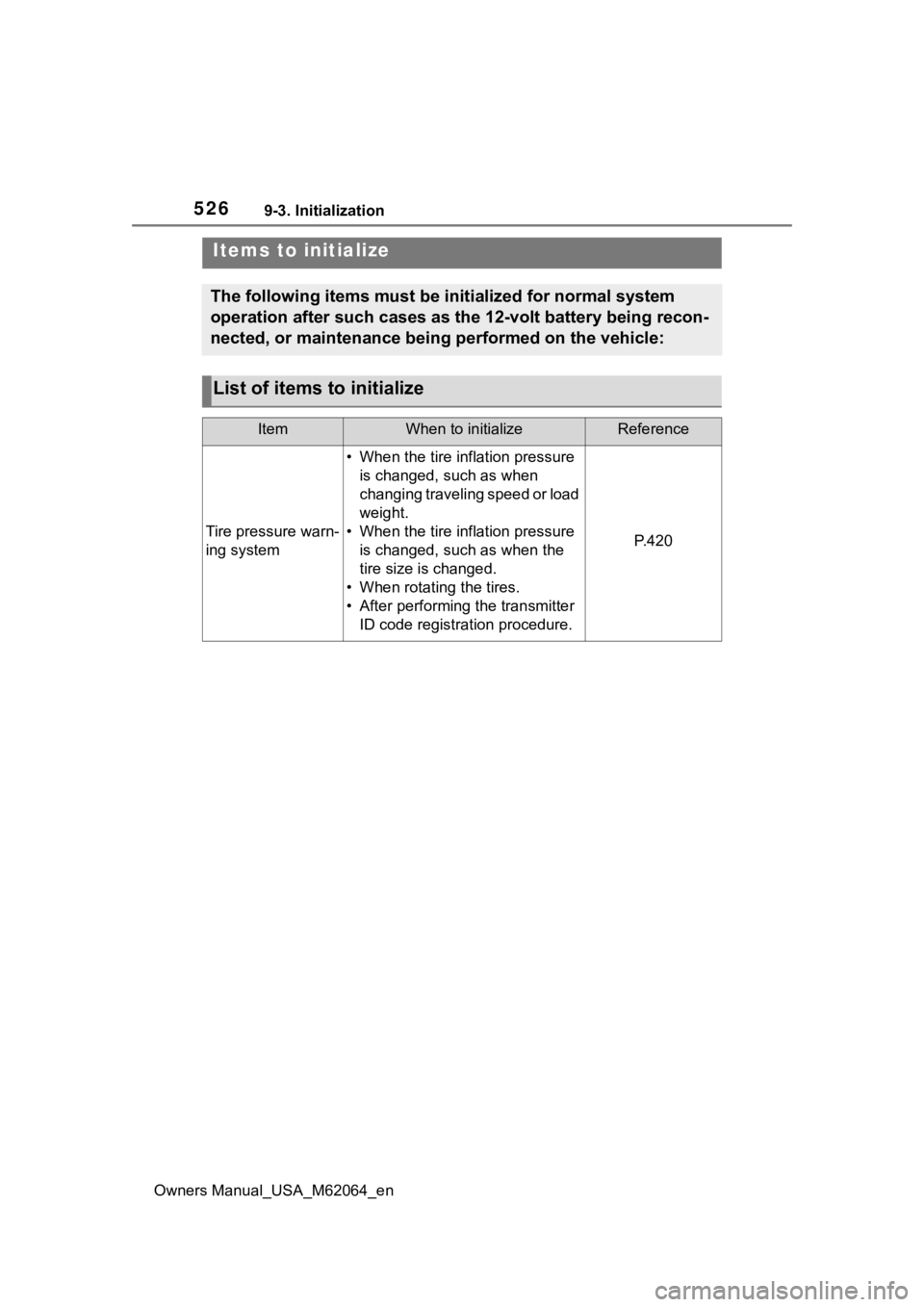

Items to initialize
The following items must be initialized for normal system
operation after such cases as the 12-volt battery being recon-
nected, or maintenance being performed on the vehicle:
List of items to initialize
ItemWhen to initializeReference
Tire pressure warn-
ing system
• When the tire inflation pressure is changed, such as when
changing traveling speed or load
weight.
• When the tire inflation pressure is changed, such as when the
tire size is changed.
• When rotating the tires.
• After performing the transmitter
ID code registration procedure.
P.420

527
Owners Manual_USA_M62064_en
10
10
For owners
For owners
10-1.For ownersReporting safety defects for U.S. owners............... 528
Reporting safety defects for Canadian owners ...... 528
Seat belt instructions for Canadian owners (in
French) ...................... 529
SRS airbag instructions for Canadian owners (in
French) ...................... 530
Headlight aim instructions for Canadian owners (in
French) ...................... 537

52810-1. For owners
Owners Manual_USA_M62064_en
10-1.For owners

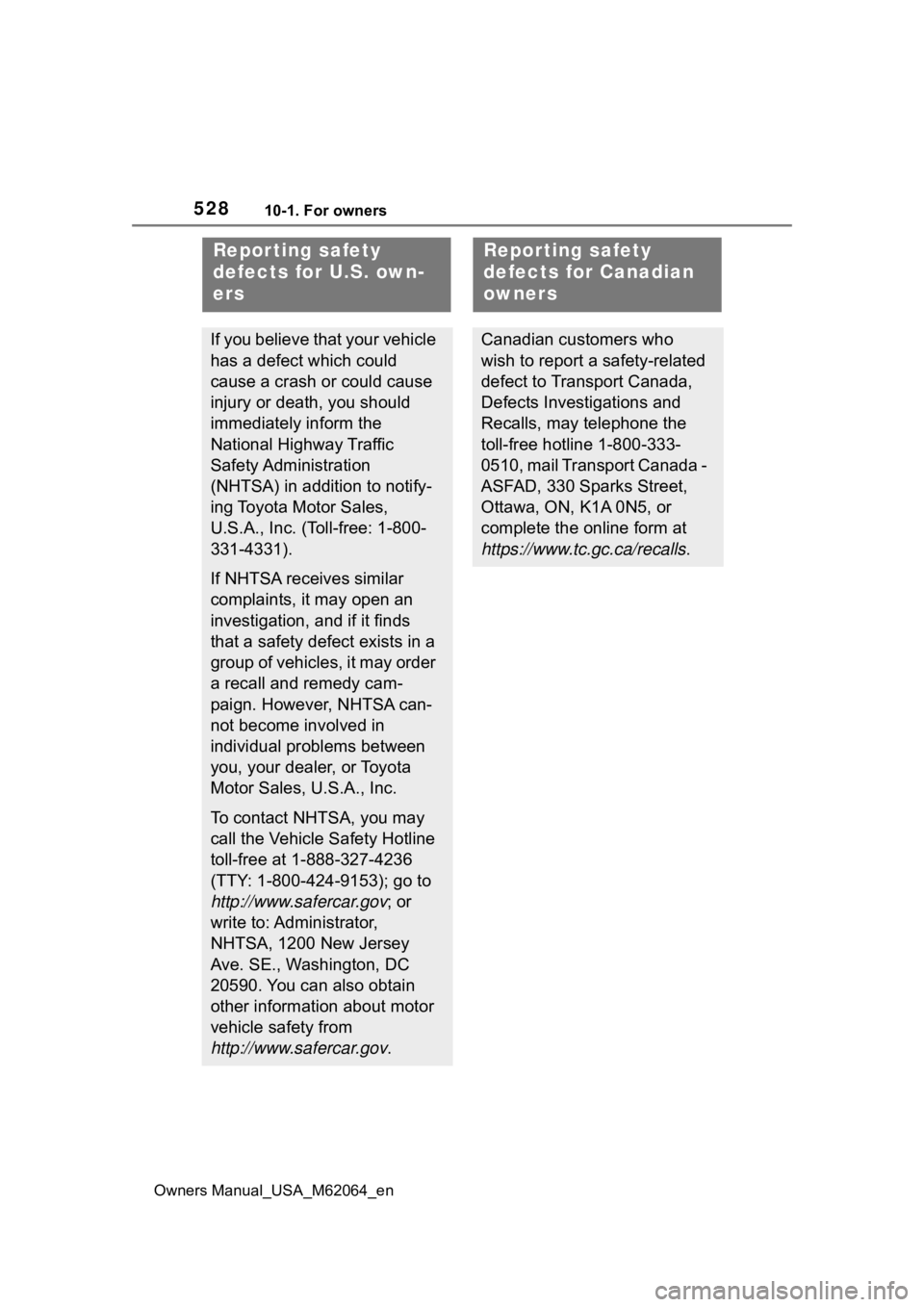

Repor ting safety
defects for U.S. own-
ers
If you believe that your vehicle
has a defect which could
cause a crash or could cause
injury or death, you should
immediately inform the
National Highway Traffic
Safety Administration
(NHTSA) in addition to notify-
ing Toyota Motor Sales,
U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar
complaints, it may open an
investigation, and if it finds
that a safety defect exists in a
group of vehicles, it may order
a recall and remedy cam-
paign. However, NHTSA can-
not become involved in
individual problems between
you, your dealer, or Toyota
Motor Sales, U.S.A., Inc.
To contact NHTSA, you may
call the Vehicle Safety Hotline
toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov; or
write to: Administrator,
NHTSA, 1200 New Jersey
Ave. SE., Washington, DC
20590. You can also obtain
other information about motor
vehicle safety from
http://www.safercar.gov .
Reporting safety
defects for Canadian
owners
Canadian customers who
wish to report a safety-related
defect to Transport Canada,
Defects Investigations and
Recalls, may telephone the
toll-free hotline 1-800-333-
0510, mail Transport Canada -
ASFAD, 330 Sparks Street,
Ottawa, ON, K1A 0N5, or
complete the online form at
https://www.tc.gc.ca/recalls .

52910-1. For owners
Owners Manual_USA_M62064_en
10
For owners
 Tirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre
entièrement l’épaule; elle ne
doit cependant pas toucher le
cou ni glisser de l’épaule.
 Placez la ceinture abdominale
le plus bas possible sur les
hanches.
 Réglez la position du dossier.
Tenez-vous assis bien au
fond du siège, le dos droit.
 Ne vrillez pas la ceinture de
sécurité.
■Manipulation des ceintures
de sécurité
Avec un chiffon ou une éponge,
nettoyez à l’aide d’un savon
doux et de l’eau tiède. Vérifiez
aussi les ceintures régulière-
ment pour vous assurer qu’elles
ne présentent pas d’usure
excessive, d’effilochage ou de
coupures.
Seat belt instructions
for Canadian owners
(in French)
The following is a French
explanation of seat belt
instructions extracted from
the seat belt section in this
manual.
See the seat belt section for
more detailed seat belt
instructions in English.
Utilisation adéquate des
ceintures de sécurité
Entretien et nettoyage
AVERTISSEMENT
■Dommages et usure de la
ceinture de sécurité
Vérifiez périodiquement le sys-
tème de ceintures de sécurité.
Vérifiez qu’il n’y a pas de cou-
pures, d’effilochures ni de pièces
desserrées. N’utilisez pas une
ceinture de sécurité endommagée
avant qu’elle ne soit remplacée.
Les ceintures de sécurité endom-
magées ne peuvent pas protéger
les occupants contre les bless-
ures graves, voire mortelles.

53010-1. For owners
Owners Manual_USA_M62064_en
■Emplacement des coussins gonflables SRS
Coussins gonflables SRS avantCoussin gonflable SRS du conducteur/coussin gonflable SRS du
passager avant
Peuvent aider à protéger la tête et la poitrine du conducteur e t du
passager avant contre les im pacts avec des composants
intérieurs
Coussins gonflables SRS de protection des genoux
Peuvent aider à protéger le conducteur et le passager avant
SRS airbag instructions for Canadian owners (in
French)
The following is a French explanation of SRS airbag instruc-
tions extracted from the SRS airbag section in this manual.
See the SRS airbag section for more detailed SRS airbag instruc -
tions in English.
Système de coussins gonflables SRS
