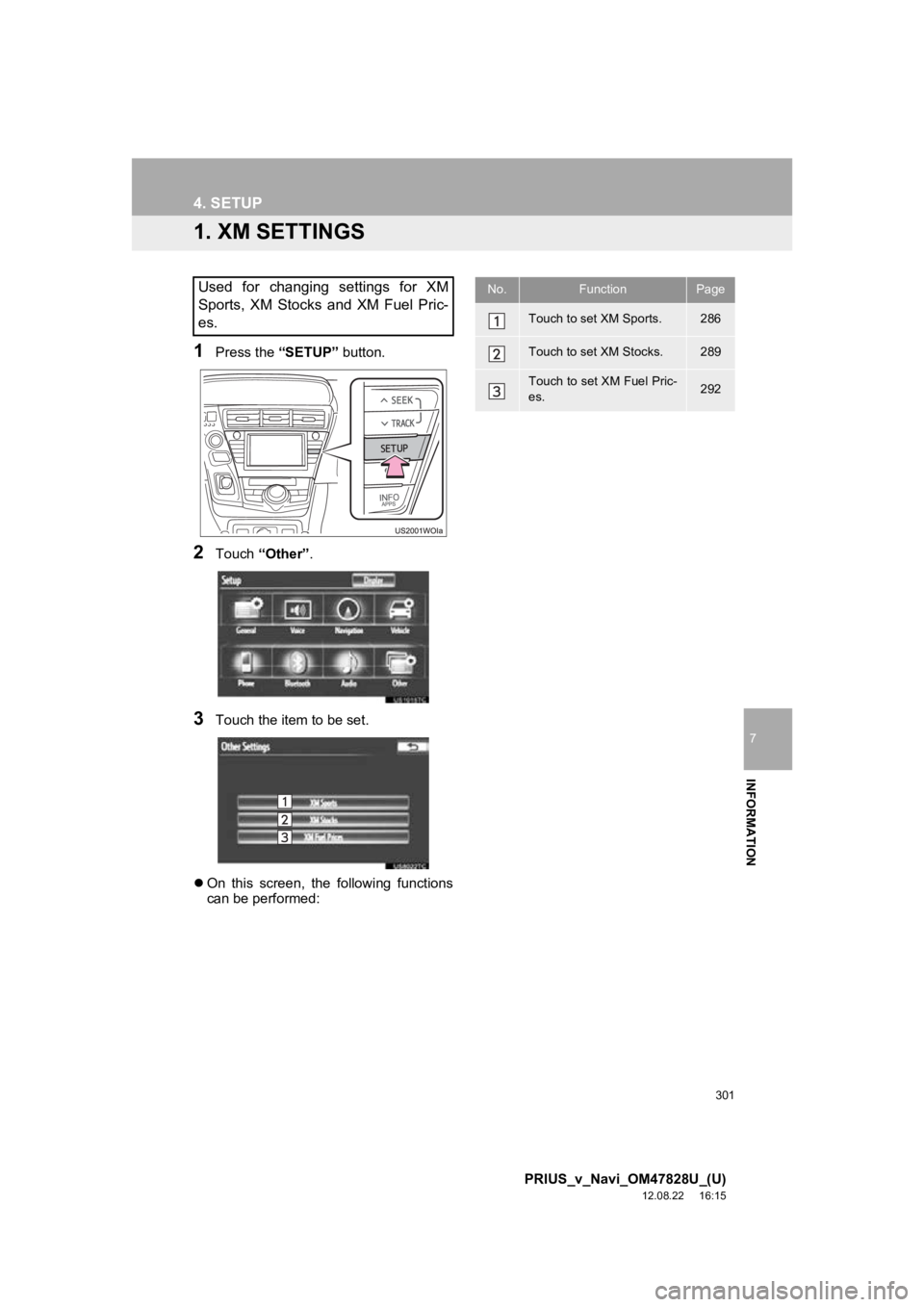

4. SETUP
1. XM SETTINGS
1Press the “SETUP” button.
2Touch “Other” .
3Touch the item to be set.
 On this screen, the following functions
can be performed:
Used for changing settings for XM
Sports, XM Stocks and XM Fuel Pric-
es.No.FunctionPage
Touch to set XM Sports.286
Touch to set XM Stocks.289
Touch to set XM Fuel Pric-
es.292

302
4. SETUP
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15

8
303
1
2
3
4
5
6
7
8
9
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15

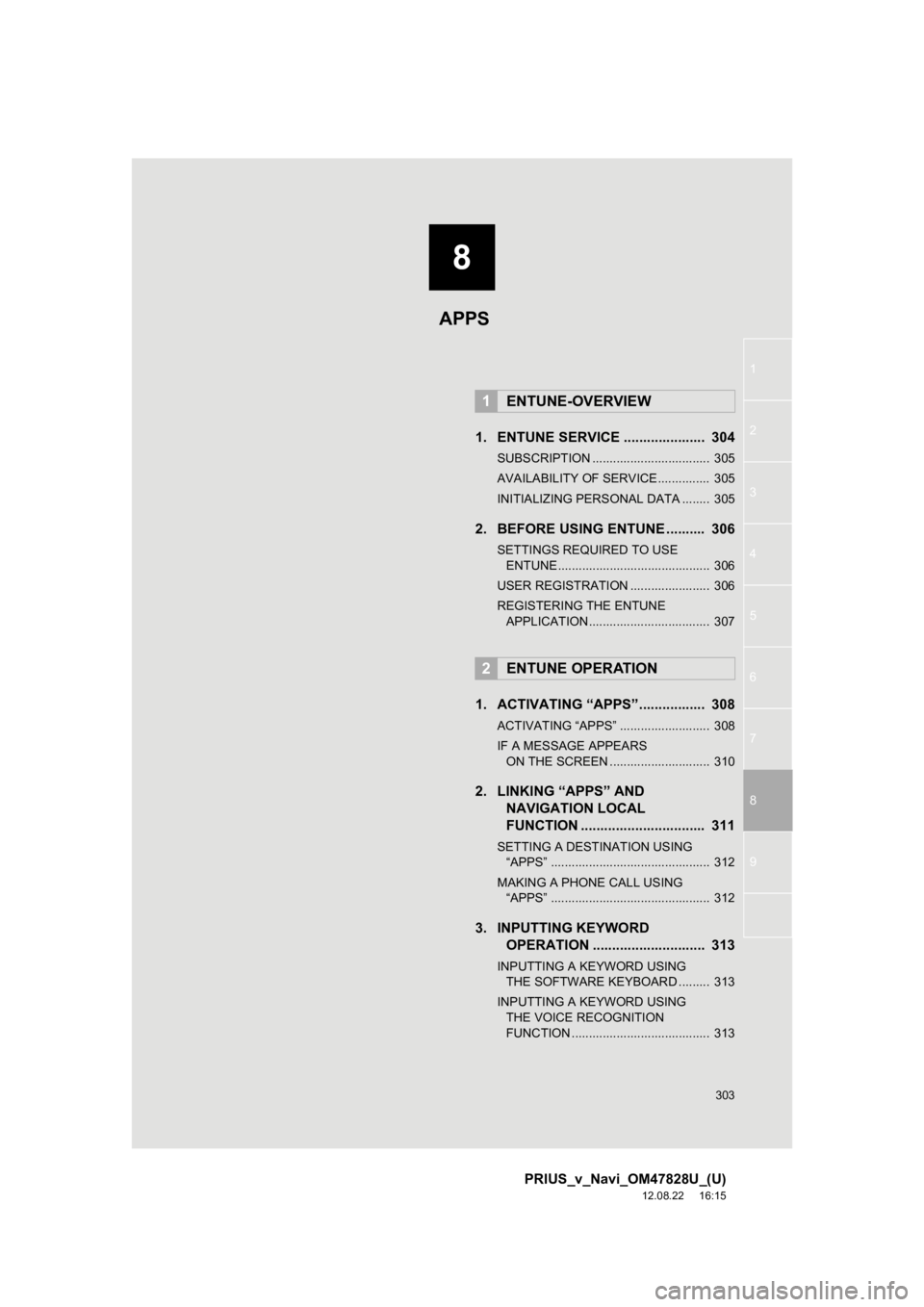

1. ENTUNE SERVICE ..................... 304
SUBSCRIPTION .................................. 305
AVAILABILITY OF SERVICE............... 305
INITIALIZING PERSONAL DATA ........ 305
2. BEFORE USING ENTUNE .......... 306
SETTINGS REQUIRED TO USE ENTUNE ............................................ 306
USER REGISTRATION ....................... 306
REGISTERING THE ENTUNE APPLICATION ................................... 307
1. ACTIVATING “APPS”.. ............... 308
ACTIVATING “APPS” .......................... 308
IF A MESSAGE APPEARS
ON THE SCREEN ............................. 310
2. LINKING “APPS” AND NAVIGATION LOCAL
FUNCTION ...... ....................... ... 311
SETTING A DESTINATION USING
“APPS” .............................................. 312
MAKING A PHONE CALL USING “APPS” .............................................. 312
3. INPUTTING KEYWORD OPERATION ............................. 313
INPUTTING A KEYWORD USING
THE SOFTWARE KEYBOARD ......... 313
INPUTTING A KEYWORD USING THE VOICE RECOGNITION
FUNCTION ........................................ 313
1ENTUNE-OVERVIEW
2ENTUNE OPERATION
APPS

304
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15

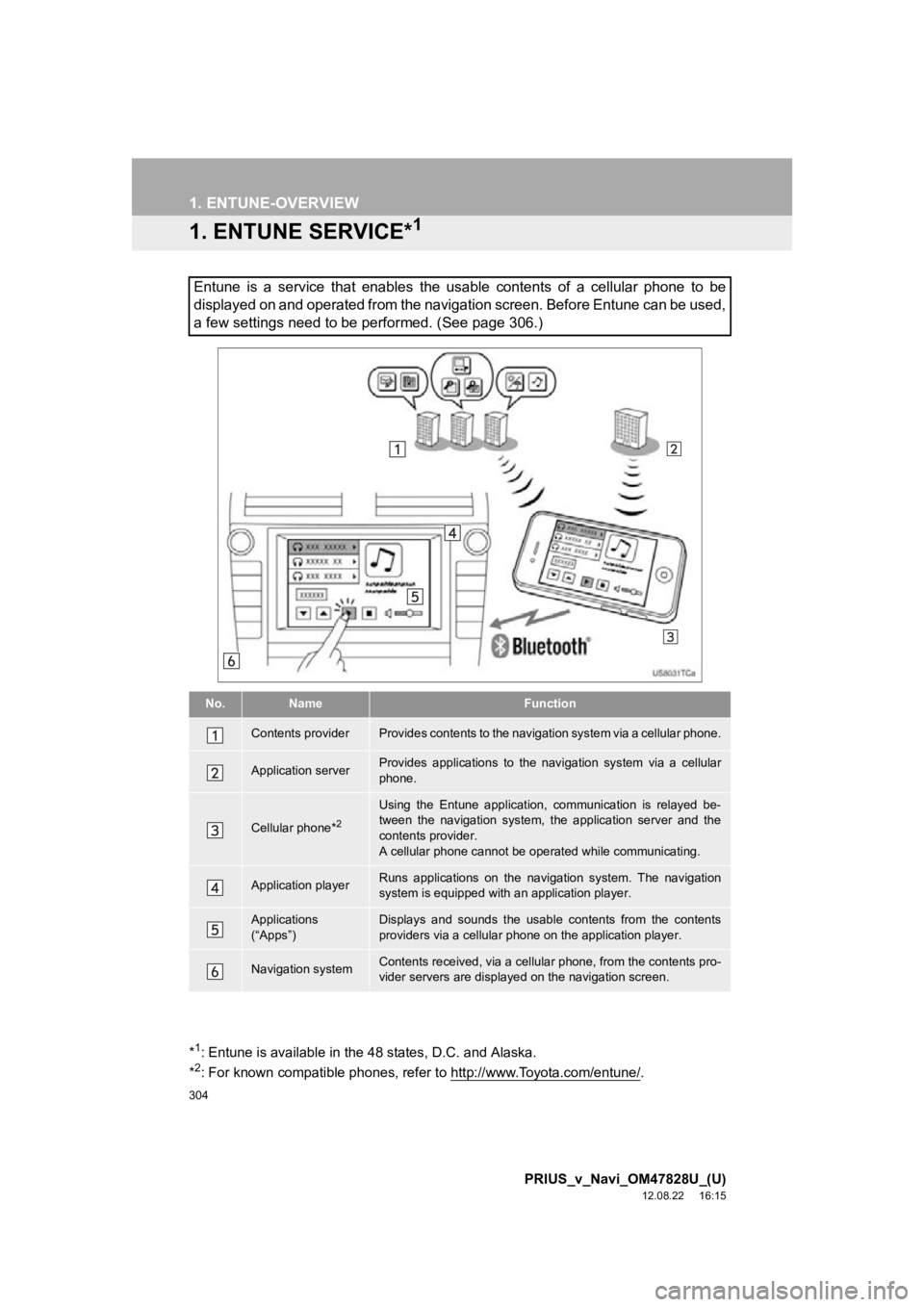

1. ENTUNE-OVERVIEW
1. ENTUNE SERVICE*1
Entune is a service that enables the usable contents of a cellular phone to be
displayed on and operated from the navigation screen. Before Entune can be used,
a few settings need to be performed. (See page 306.)
No.NameFunction
Contents providerProvides contents to the navigation system via a cellular phone.
Application serverProvides applications to the navigation system via a cellular
phone.
Cellular phone*2
Using the Entune application, communication is relayed be-
tween the navigation system, the application server and the
contents provider.
A cellular phone cannot be operated while communicating.
Application playerRuns applications on the navigation system. The navigation
system is equipped with an application player.
Applications
(“Apps”)Displays and sounds the usabl e contents from the contents
providers via a cellular p hone on the application player.
Navigation systemContents received, via a cellular phone, from the contents pro-
vider servers are display ed on the navigation screen.
*1: Entune is available in the 48 states, D.C. and Alaska.
*2: For known compatible phones, refer to http://www.Toyota.com/entune/.

8
APPS
305
1. ENTUNE-OVERVIEW
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15
Entune will be available on a 3 year trial
period included upon purchase of a new
vehicle. User registration is required to
start using the service. (See page 307.)
 When 3 years have elapsed after purchas-
ing a new vehicle, a fee will be charged to
renew the contract.*
 Services requiring a separate contract can
also be used.*
*: For details, refer to http://
www.Toyota.com/entune/ or call 1-800-
331-4331.
 Entune is available in the 48 states, D.C.
and Alaska. 
The following personal data can be
deleted and returned to their default set-
tings:
• Downloaded contents
• Radio stations that were listened to
• Input history
SUBSCRIPTION
AVAILABILITY OF SERVICE
INFORMATION
●When using Entune, depending on the
details of your cellular phone contract,
data usage fees may apply. Confirm
data usage fees before using this ser-
vice.
● In this section, the required operations
to activate “Apps”, connect a cellular
phone to the navigation system and reg-
istration steps for Entune are explained.
For details regarding Entune operations
and each of the “Apps”, refer to http://
www.Toyota.com/entune/.
INITIALIZING PERSONAL
DATA
The personal data used in “Apps” can
be reset. (See “DELETING PERSON-
AL DATA” on page 51.)
INFORMATION
● Once initialized, data will be erased. Pay
close attention when initializing the data.

306
1. ENTUNE-OVERVIEW
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15
2. BEFORE USING ENTUNE
Perform the settings in the following order.
In order to use Entune, the following set-
tings must first be performed:
User registration with the service contract
(See page 306.)
 Download the Entune application onto
your cellular phone, and login to the appli-
cation. (See page 307.)
 Register the cellular phone that the
Entune application was downloaded to
with the navigation system. (See page
307.)
 Register a Bluetooth
® phone with the
hands-free system. (For detailed informa-
tion about registration and settings, see
“Bluetooth
® SETTINGS” on page 177.)
1Perform user registration from the des-
ignated web address.
SETTINGS REQUIRED TO
USE ENTUNE
1User registration
2Download the Entune application to
your cellular phone.
3Register the cellular phone with the
navigation system.
USER REGISTRATION
When purchasing the vehicle, an email
address is registered at your Toyota
dealer. If your email address was not
registered at your Toyota dealer, your
email address can be registered at the
Entune website. A user registration
guidance email containing a web ad-
dress will be sent.

8
APPS
307
1. ENTUNE-OVERVIEW
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15
1Download the Entune application using
your cellular phone.
2Run the Entune application on your
cellular phone.
3Enter a user name and password into
the Entune application. Login to the ap-
plication.
REGISTERING THE ENTUNE
APPLICATION
INFORMATION
●“Apps” can only be used when the
Entune application has been down-
loaded to your cellular phone and the
application is running.
● If your email address was not registered
at your Toyota dealer when the vehicle
was purchased, an email address can
be registered at http://www.Toyota.com/
entune/.
● Entune operational procedures can also
be confirmed by visiting http://
www.Toyota.com/entune/.
● In order to use “Apps”, it is necessary to
run the Entune application, enter your
user name and password and display
the main menu on the cellular phone.
● An iPhone cannot be connected via
Bluetooth
® and USB connection at the
same time. However, it is possible to
recharge an iPhone while using Entune
by connecting via USB. The system
uses the connection method that was
used last. Therefore, if connected via
USB after Bluetooth
® connection, it is
necessary to reconnect the iPhone via
Bluetooth
®.

308
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15

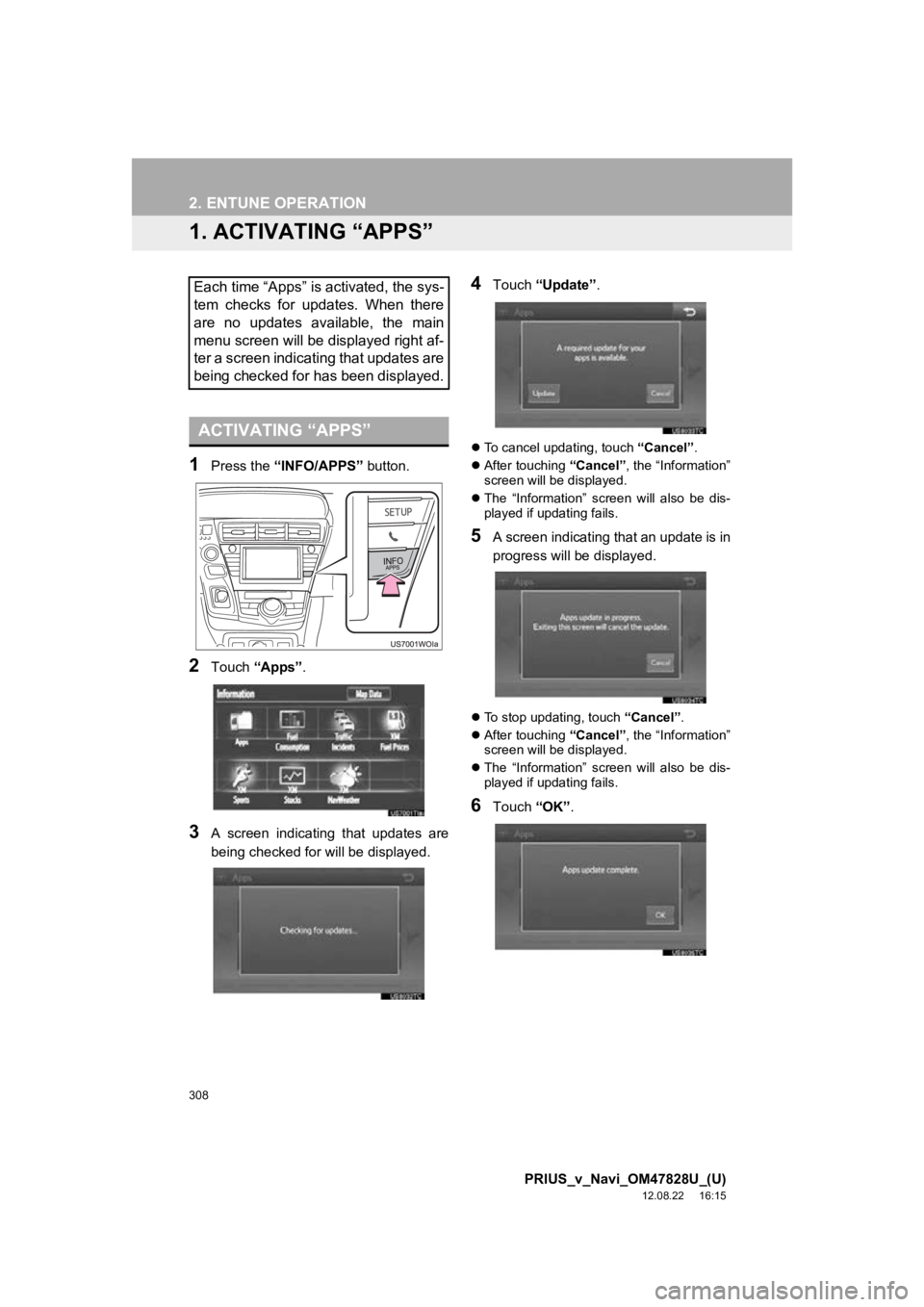

2. ENTUNE OPERATION
1. ACTIVATING “APPS”
1Press the “INFO/APPS” button.
2Touch “Apps” .
3A screen indicating that updates are
being checked for will be displayed.
4Touch “Update” .
To cancel updating, touch “Cancel”.
 After touching “Cancel”, the “Information”
screen will be displayed.
 The “Information” screen will also be dis-
played if updating fails.
5A screen indicating that an update is in
progress will be displayed.
To stop updating, touch “Cancel”.
 After touching “Cancel”, the “Information”
screen will be displayed.
 The “Information” screen will also be dis-
played if updating fails.
6Touch “OK”.
Each time “Apps” is activated, the sys-
tem checks for updates. When there
are no updates available, the main
menu screen will be displayed right af-
ter a screen indicating that updates are
being checked for has been displayed.
ACTIVATING “APPS”

8
APPS
309
2. ENTUNE OPERATION
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15
7When updating is complete, the main
menu screen will be displayed.
The screen shown above is only an exam-
ple. The actual screen may be different.
 For details about the function and service
of each application displayed in the main
menu, refer to http://www.Toyota.com/
entune/.

310
2. ENTUNE OPERATION
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15

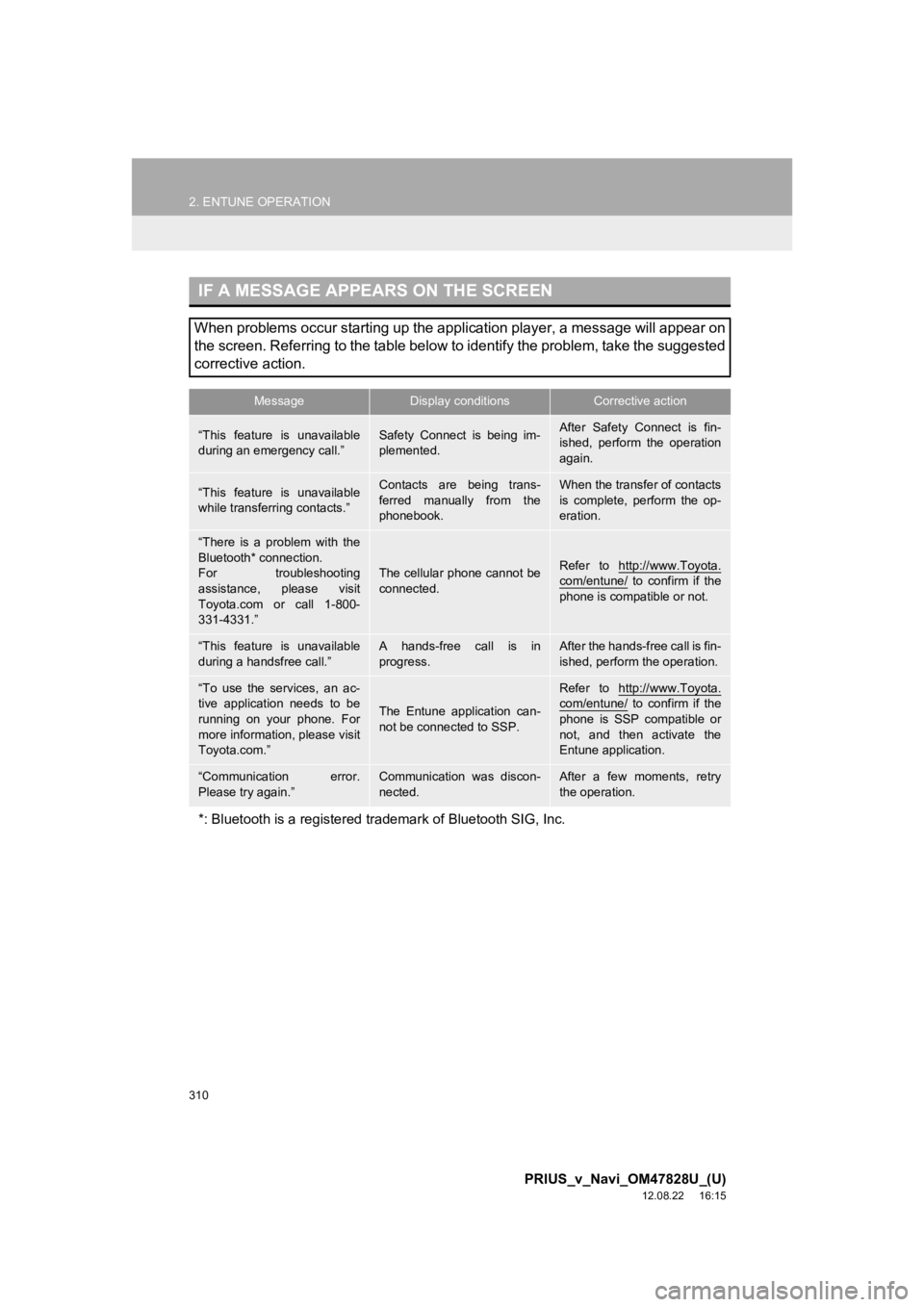

IF A MESSAGE APPEARS ON THE SCREEN
When problems occur starting up the application player, a message will appear on
the screen. Referring to the table below to identify the problem, take the suggested
corrective action.
MessageDisplay conditionsCorrective action
“This feature is unavailable
during an emergency call.”Safety Connect is being im-
plemented.After Safety Connect is fin-
ished, perform the operation
again.
“This feature is unavailable
while transferring contacts.”Contacts are being trans-
ferred manually from the
phonebook.When the transfer of contacts
is complete, perform the op-
eration.
“There is a problem with the
Bluetooth* connection.
For troubleshooting
assistance, please visit
Toyota.com or call 1-800-
331-4331.”
The cellular phone cannot be
connected.Refer to http://www.Toyota.
com/entune/ to confirm if the
phone is compatible or not.
“This feature is unavailable
during a handsfree call.”A hands-free call is in
progress.After the hands-free call is fin-
ished, perform the operation.
“To use the services, an ac-
tive application needs to be
running on your phone. For
more information, please visit
Toyota.com.”
The Entune application can-
not be connected to SSP.
Refer to http://www.Toyota.com/entune/ to confirm if the
phone is SSP compatible or
not, and then activate the
Entune application.
“Communication error.
Please try again.”Communication was discon-
nected.After a few moments, retry
the operation.
*: Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.
