TOYOTA RAIZE 2023 Owners Manual

1293-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
⚫When the remaining battery becomes lo w, a warning buzzer will sound from
inside the vehicle when the engine is stopped. ( ➞P. 394)
⚫To prevent significant battery drainage, do not store the electronic key within
1 m (3.3 ft.) from the following electr onic devices that are known to emit a
magnetic field.
⦁ TV
⦁ Audio system
⦁ Personal computers
⦁ AC adapters
⦁ Mobile phones, cordless phones, and chargers
⦁ Desk lamps
⦁ Medical electronic devices such as lo w-frequency electric therapy equip-
ment
⦁ Liquid crystal display
⦁ Motors
⦁ Induction cookers
⚫Do not leave electronic keys inside or near the vehicle. Since the electronic
key and the vehicle are constantly communicating with one another, it
speeds up the battery draining. When they enter in the constant communi-
cation state, the indicator of the electro nic key starts blinking. Keep the elec-
tronic key away from the vehic le until the indicator turns off.
⚫If you do not plan on using the electr onic key for a long time, set the key to
the battery-saving mode to mini mize battery consumption. (➞P. 125)
⬛Running out of the battery
➞P. 3 4 4
⬛Functions configurable by Toyota dealers
Toyota dealers can deactivate the key-free system.
(List of customizable features: ➞ P. 430)
⬛When the key-free system was deactivated by a Toyota dealer
⚫Locking and unlocking doors: The doors can be locked and unlocked using
the wireless function or the emergency key. ( ➞P. 133, 406)
⚫Starting the engine and swit ching the engine switch mode: ➞ P. 4 0 6
⚫Stopping the engine: ➞P. 1 8 5
RAIZE_OM_General_BZ358E.book 129 ページ ２０２２年５月１７日　火曜日　午後１時５９分

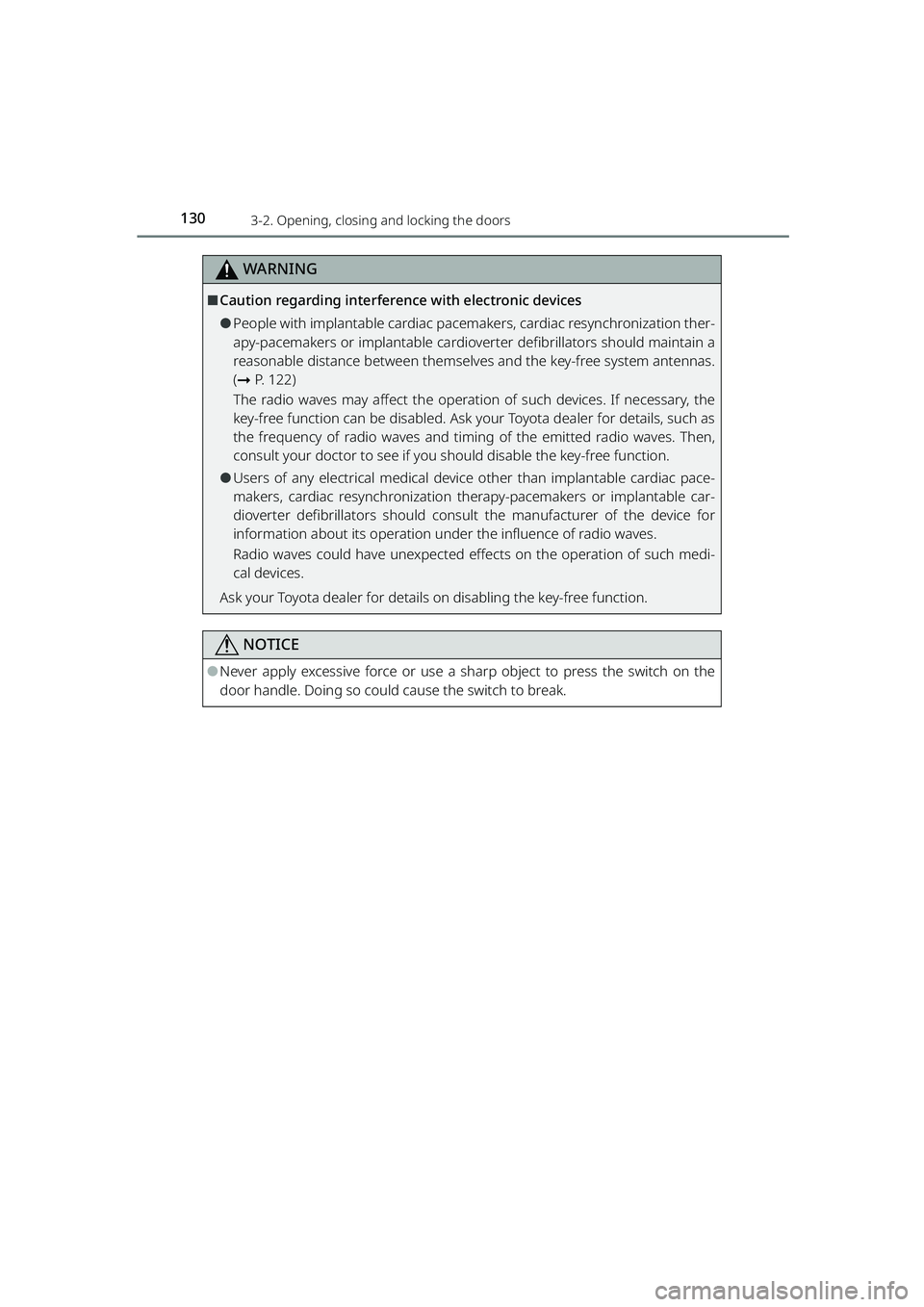

1303-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
WARNING
⬛Caution regarding interference with electronic devices
⚫People with implantable cardiac pacema kers, cardiac resynchronization ther-
apy-pacemakers or implantable cardiovert er defibrillators should maintain a
reasonable distance between themselves and the key-free system antennas.
( ➞ P. 122)
The radio waves may affect the operation of such devices. If necessary, the
key-free function can be disabled. Ask your Toyota dealer for details, such as
the frequency of radio waves and timi ng of the emitted radio waves. Then,
consult your doctor to see if you should disable the key-free function.
⚫Users of any electrical medical device other than implantable cardiac pace-
makers, cardiac resynchronization ther apy-pacemakers or implantable car-
dioverter defibrillators should consult the manufacturer of the device for
information about its operation un der the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medi-
cal devices.
Ask your Toyota dealer for details on disabling the key-free function.
NOTICE
⚫Never apply excessive force or use a sh arp object to press the switch on the
door handle. Doing so could cause the switch to break.
RAIZE_OM_General_BZ358E.book 130 ページ ２０２２年５月１７日　火曜日　午後１時５９分

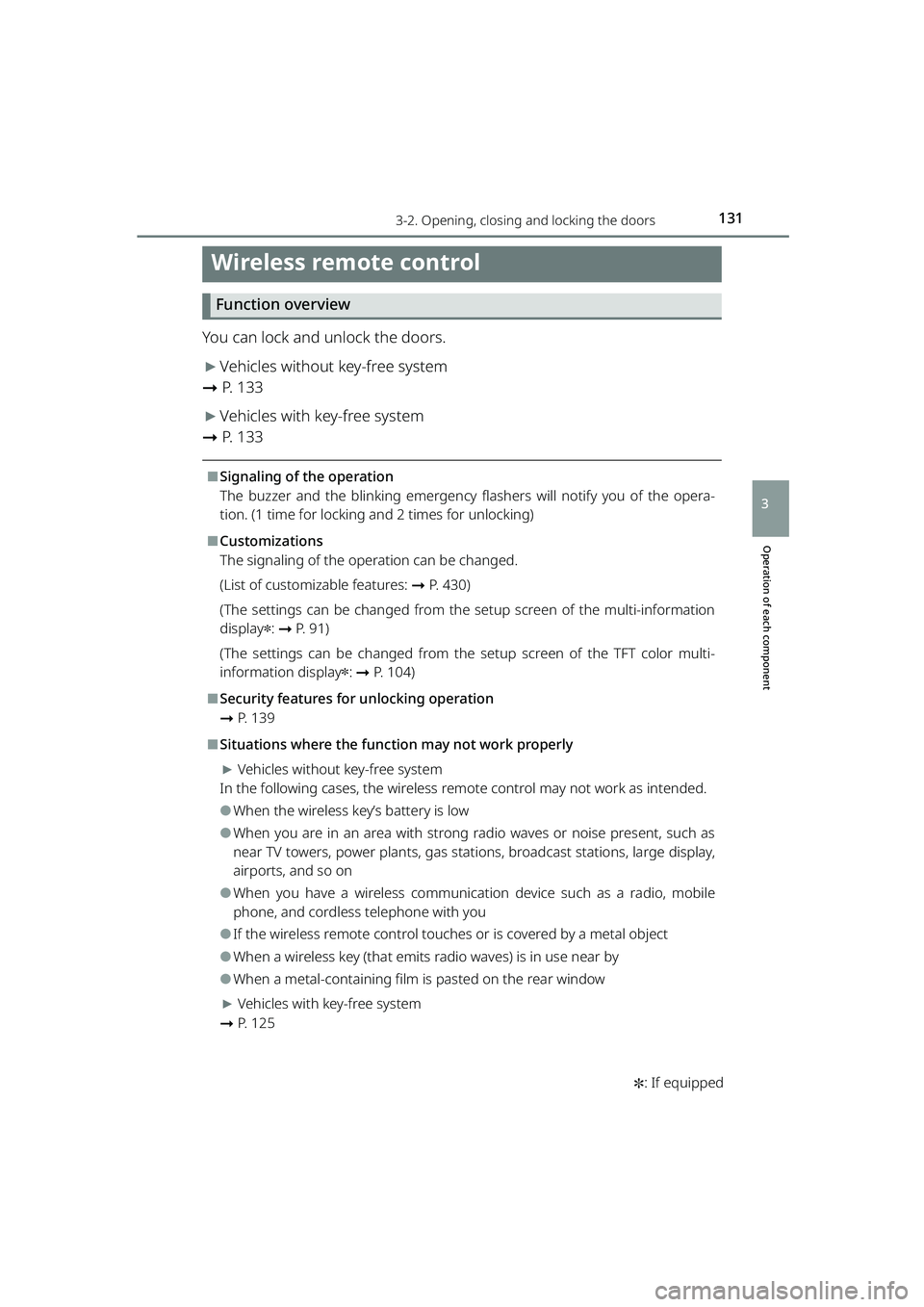

1313-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E ✽
: If equipped
Operation of each component
3
Wireless remote control
Function overview
You can lock and unlock the doors.
▶Vehicles without key-free system
➞ P. 1 3 3
▶Vehicles with key-free system
➞ P. 1 3 3
⬛Signaling of the operation
The buzzer and the blinking emergency flashers will notify you of the opera-
tion. (1 time for locking and 2 times for unlocking)
⬛Customizations
The signaling of the operation can be changed.
(List of customizable features: ➞ P. 430)
(The settings can be changed from the setup screen of the multi-information
display
✽: ➞ P. 9 1 )
(The settings can be changed from the setup screen of the TFT color multi-
information display
✽: ➞ P. 104)
⬛Security features for unlocking operation
➞ P. 1 3 9
⬛Situations where the function may not work properly
▶Vehicles without key-free system
In the following cases, the wireless remote control may not work as intended.
⚫When the wireless key’s battery is low
⚫When you are in an area with strong radio waves or noise present, such as
near TV towers, power plants, gas stat ions, broadcast stations, large display,
airports, and so on
⚫When you have a wireless communication device such as a radio, mobile
phone, and cordless telephone with you
⚫If the wireless remote control touches or is covered by a metal object
⚫When a wireless key (that emits radio waves) is in use near by
⚫When a metal-containing film is pasted on the rear window
▶Vehicles with key-free system
➞ P. 1 2 5
RAIZE_OM_General_BZ358E.book 131 ページ ２０２２年５月１７日　火曜日　午後１時５９分

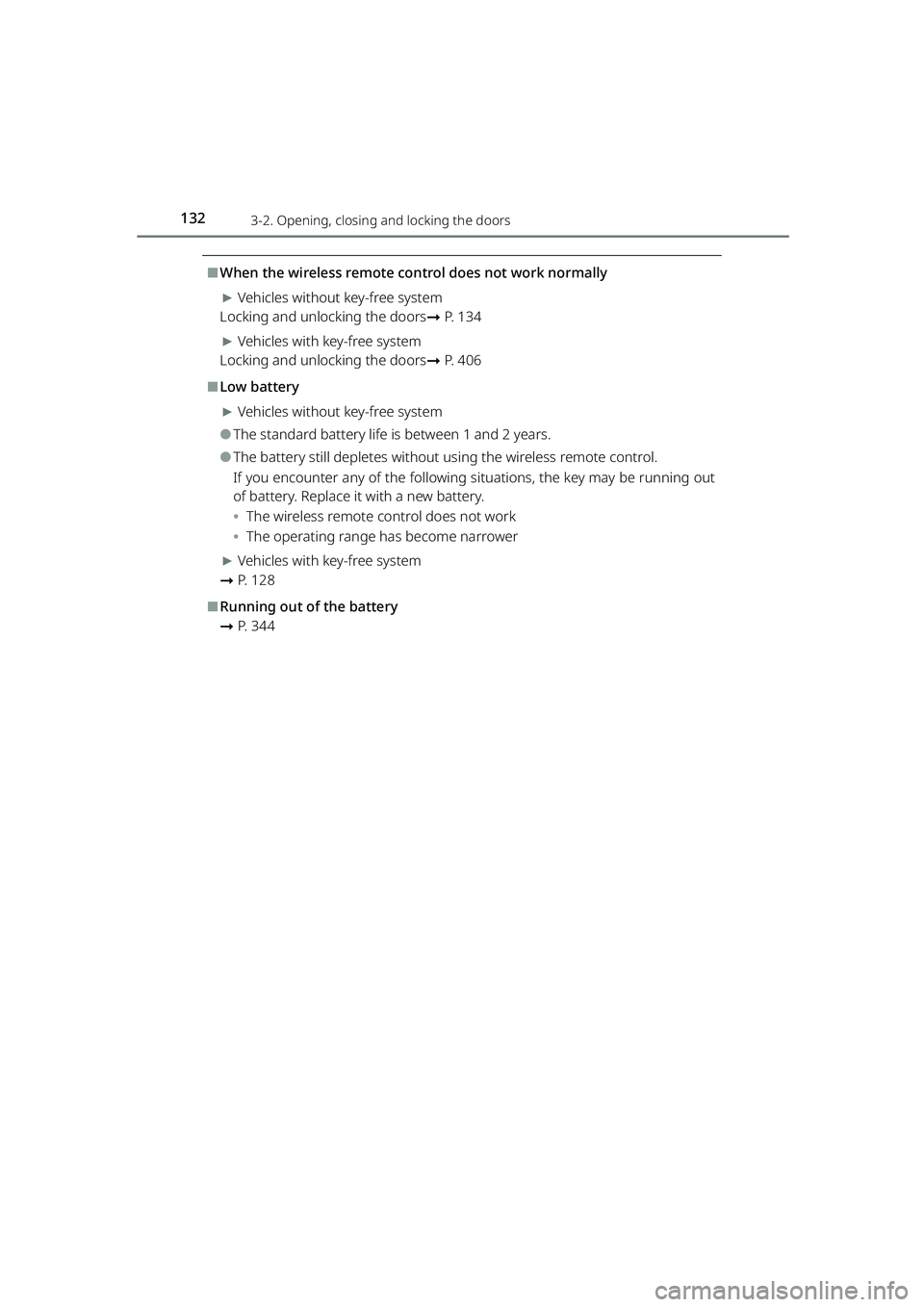

1323-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
⬛When the wireless remote control does not work normally
▶Vehicles without key-free system
Locking and unlocking the doors ➞P. 1 3 4
▶Vehicles with key-free system
Locking and unlocking the doors ➞P. 4 0 6
⬛Low battery
▶Vehicles without key-free system
⚫The standard battery life is between 1 and 2 years.
⚫The battery still depletes without using the wireless remote control.
If you encounter any of the following situations, the key may be running out
of battery. Replace it with a new battery.
⦁ The wireless remote control does not work
⦁ The operating range has become narrower
▶Vehicles with key-free system
➞ P. 1 2 8
⬛Running out of the battery
➞P. 3 4 4
RAIZE_OM_General_BZ358E.book 132 ページ ２０２２年５月１７日　火曜日　午後１時５９分

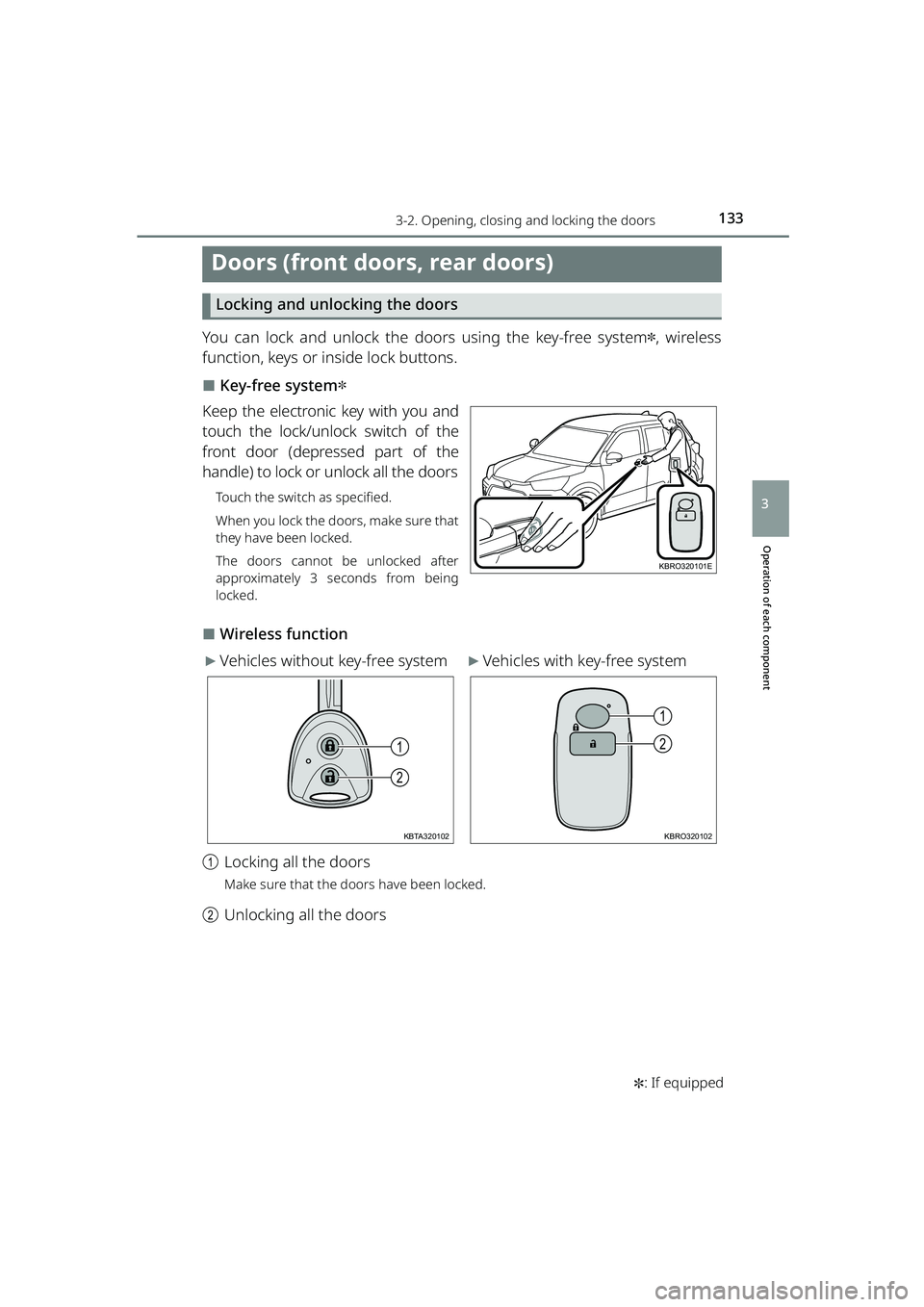

1333-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E ✽
: If equipped
Operation of each component
3
Doors (front doors, rear doors)
Locking and unloc king the doors
You can lock and unlock the doors using the key-free system✽, wireless
function, keys or inside lock buttons.
⬛Key-free system✽
Keep the electronic key with you and
touch the lock/unlock switch of the
front door (depressed part of the
handle) to lock or unlock all the doors
Touch the switch as specified.
When you lock the doors, make sure that
they have been locked.
The doors cannot be unlocked after
approximately 3 seconds from being
locked.
⬛Wireless function
▶Vehicles without key-free system▶Vehicles with key-free system
a Locking all the doors
Make sure that the doors have been locked.
bUnlocking all the doors
KBRO320101E
1
2
KBTA320102
1
2
KBRO320102
RAIZE_OM_General_BZ358E.book 133 ページ ２０２２年５月１７日　火曜日　午後１時５９分

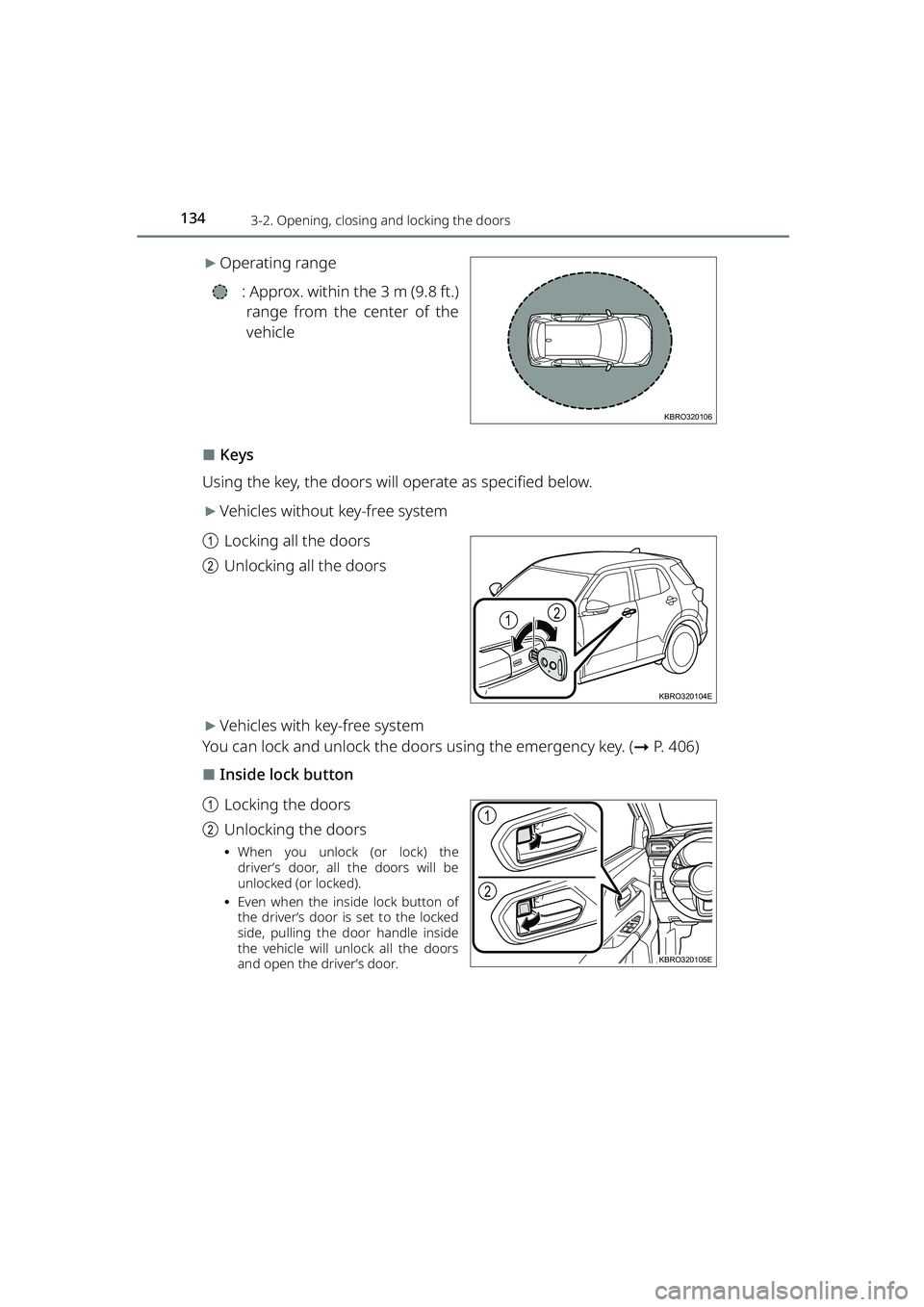

1343-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
▶Operating range
: Approx. within the 3 m (9.8 ft.)range from the center of the
vehicle
⬛Keys
Using the key, the doors will operate as specified below.
▶Vehicles without key-free system
a Locking all the doors
b Unlocking all the doors
▶Vehicles with key-free system
You can lock and unlock the doors using the emergency key. ( ➞P. 406)
⬛Inside lock button
a Locking the doors
b Unlocking the doors
⦁When you unlock (or lock) the
driver’s door, all the doors will be
unlocked (or locked).
⦁ Even when the inside lock button of
the driver’s door is set to the locked
side, pulling the door handle inside
the vehicle will unlock all the doors
and open the driver’s door.
KBRO320106
12
KBRO320104E
1
2
KBRO320105E
RAIZE_OM_General_BZ358E.book 134 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1353-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
When locking the driver’s seat fr om outside without using the key
aMove the inside lock button to the locked side
b Close the door while pulling the door handle
▶Vehicles without key-free system
When the key is inserted to the engine switch, the doors will not be
locked.
▶Vehicles with key-free system
When the engine switch is “ACC” or “ON”, or when the electronic key is
left inside the vehicle, the doors will not be locked.
In some cases, the key is not detected correctly, causing the doors to get locked.
Child-protector lock
When set to the locked side, the rear
doors will not open from inside the
vehicle.
a Unlock
b Lock
This feature prevents children from
opening the rear door from inside the
vehicle. Set both rear doors to the
locked side.
2
1
KBRO320107E
RAIZE_OM_General_BZ358E.book 135 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1363-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Auto lock and unlock function
This function automatically locks or unlocks all the doors according to the
vehicle condition.
You can set and cancel the following functions.
▶Auto lock function
▶Auto unlock function (by default, this function is disabled.)
FunctionDescription
Speed linked door locking
function (Default setting)When the vehicle speed becomes approx. 20 km/h
(12 mph) or faster, all the doors will be locked.
Shift-linked auto lock (con-
tinuously variable transmis-
sion vehicles only)All the doors will be locked by moving the shift
lever from the P position while the engine is run-
ning.
FunctionDescription
Engine switch “OFF”-linked
auto unlockAll the doors will be unlock ed by turning the engine
switch to “ACC” or “OFF” after driving at approxi-
mately 20 km/h (12 mph) or faster.
Shift-linked auto unlock
(continuously variable trans-
mission vehicles only)All the doors will be unlocked by moving the shift
lever to P.
RAIZE_OM_General_BZ358E.book 136 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1373-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
⬛How to switch the auto lock function
When you complete each step listed below, the auto lock function will
switch in the order of a, b , and c.
a Speed linked door locking function
b Shift-linked auto lock function (conti nuously variable transmission vehi-
cles only)
c Function disabled
a Set the vehicle to the following
state
⦁Turn off the front position
lights
⦁ Turn the engine switch to “OFF”
⦁ Close all the doors
⦁ Move the inside lock button of
the driver’s door to the locked
side
b Turn the engine switch to “ACC” (Within 5 seconds after this, perform
c)
c Turn on and off the front position lights (within 5 seconds after this,
perform d)
d Move the inside lock button of the driver’s door to the unlocked side
Once the switchover is complete, all the doors will be locked within
approximately 3 seconds after the inside lock button of the driver’s door is
set to the unlocked side.
If you stop the operation without fini shing to the end, try again from the
beginning.
KBRO320108E
RAIZE_OM_General_BZ358E.book 137 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1383-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E ✽
: If equipped
⬛How to switch the auto unlock function
When you complete each step listed below, the auto unlock function will
switch in the order of a, b , and c.
a Function disabled
b Shift-linked auto unlock (continuously variable transmission vehicles
only)
c Engine switch “OFF”-linked auto unlock
a Set the vehicle to the following
state
⦁Turn off the front position
lights
⦁ Turn the engine switch to “OFF”
⦁ Close all the doors
⦁ Move the inside lock button of
the driver’s door to the
unlocked side
b Turn the engine switch to “ACC” (Within 5 seconds after this, perform
c)
c Turn on and off the front position lights (within 5 seconds after this,
perform d)
d Move the inside lock button of th e driver’s door to the locked side
Once the switchover is complete, all the doors will be unlocked within
approximately 3 seconds after the inside lock button of the driver’s door is
set to the locked side.
If you stop the operation without fini shing to the end, try again from the
beginning.
⬛When the alarm✽ is set
If you unlock and open the door withou t using the key-free system or wireless
remote control, the alarm will be activat ed. When that happens, stop the alarm
immediately. ( ➞P. 7 4 )
⬛Impact detection door lock release system
When the vehicle receives a strong impact on the front, back, right, and left
side, all the doors will be unlocked.
This system will not be activated depend ing on the degree of the impact or the
type of accident.
KBRO320109E
RAIZE_OM_General_BZ358E.book 138 ページ ２０２２年５月１７日　火曜日　午後１時５９分
