TOYOTA RAV4 2020 Owners Manual (in English)

6919-2. Customization
9
Vehicle specifications

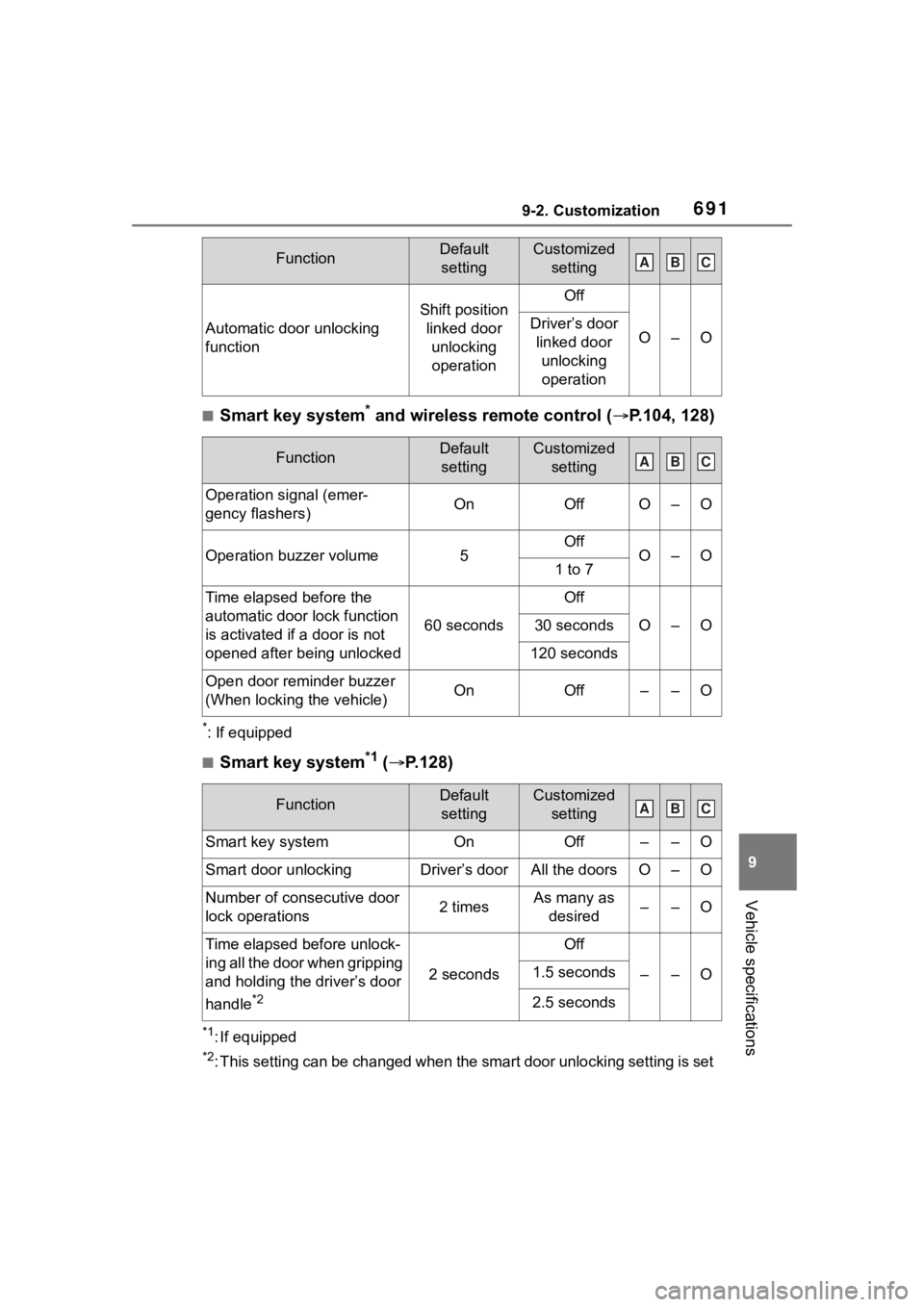

■Smart key system* and wireless remote control (P.104, 128)
*: If equipped
■Smart key system*1 ( P.128)
*1: If equipped
*2: This setting can be changed when the smart door unlocking sett ing is set
Automatic door unlocking
function
Shift position
linked door unlocking operationOff
O–ODriver’s door linked door unlocking operation
FunctionDefault settingCustomized setting
Operation signal (emer-
gency flashers)OnOffO–O
Operation buzzer volume5OffO–O1 to 7
Time elapsed before the
automatic door lock function
is activated if a door is not
opened after being unlocked
60 seconds
Off
O–O30 seconds
120 seconds
Open door reminder buzzer
(When locking the vehicle)OnOff––O
FunctionDefault settingCustomized setting
Smart key systemOnOff––O
Smart door unlockingDriver’s doorAll the doorsO–O
Number of consecutive door
lock operations2 timesAs many as desired––O
Time elapsed before unlock-
ing all the door when gripping
and holding the driver’s door
handle
*2
2 seconds
Off
––O1.5 seconds
2.5 seconds
FunctionDefaultsettingCustomized settingABC
ABC
ABC

6929-2. Customization
to “Driver’s door”.

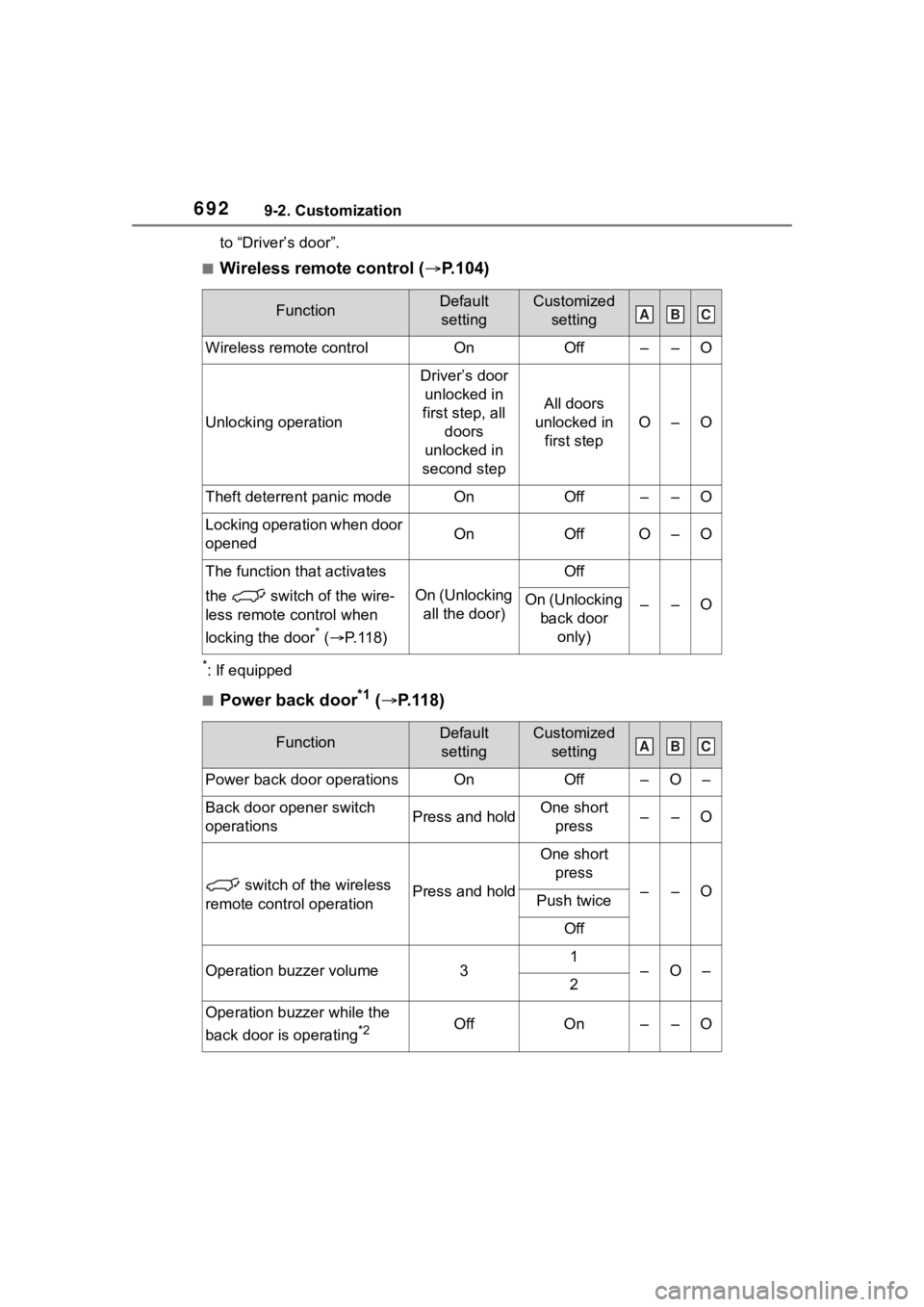

■Wireless remote control (P.104)
*: If equipped
■Power back door*1 ( P.118)
FunctionDefault
settingCustomized setting
Wireless remote controlOnOff––O
Unlocking operation
Driver’s door unlocked in
first step, all doors
unlocked in
second step
All doors
unlocked in first step
O–O
Theft deterrent panic modeOnOff––O
Locking operation when door
openedOnOffO–O
The function that activates
the switch of the wire-
less remote control when
locking the door
* ( P.118)
On (Unlocking
all the door)
Off
––OOn (Unlocking back door only)
FunctionDefault settingCustomized setting
Power back door operationsOnOff–O–
Back door opener switch
operationsPress and holdOne short press––O
switch of the wireless
remote control operationPress and hold
One short press
––OPush twice
Off
Operation buzzer volume31–O–2
Operation buzzer while the
back door is operating
*2OffOn––O
ABC
ABC

6939-2. Customization
9
Vehicle specifications
*1: If equipped
*2: The operation buzzer that sounds when the back door begins to operate
cannot be turned off.
*3: The open position is set by the power back door switch. ( P.127)
*4: When the towing hitch is installed, kick sensor does not work.

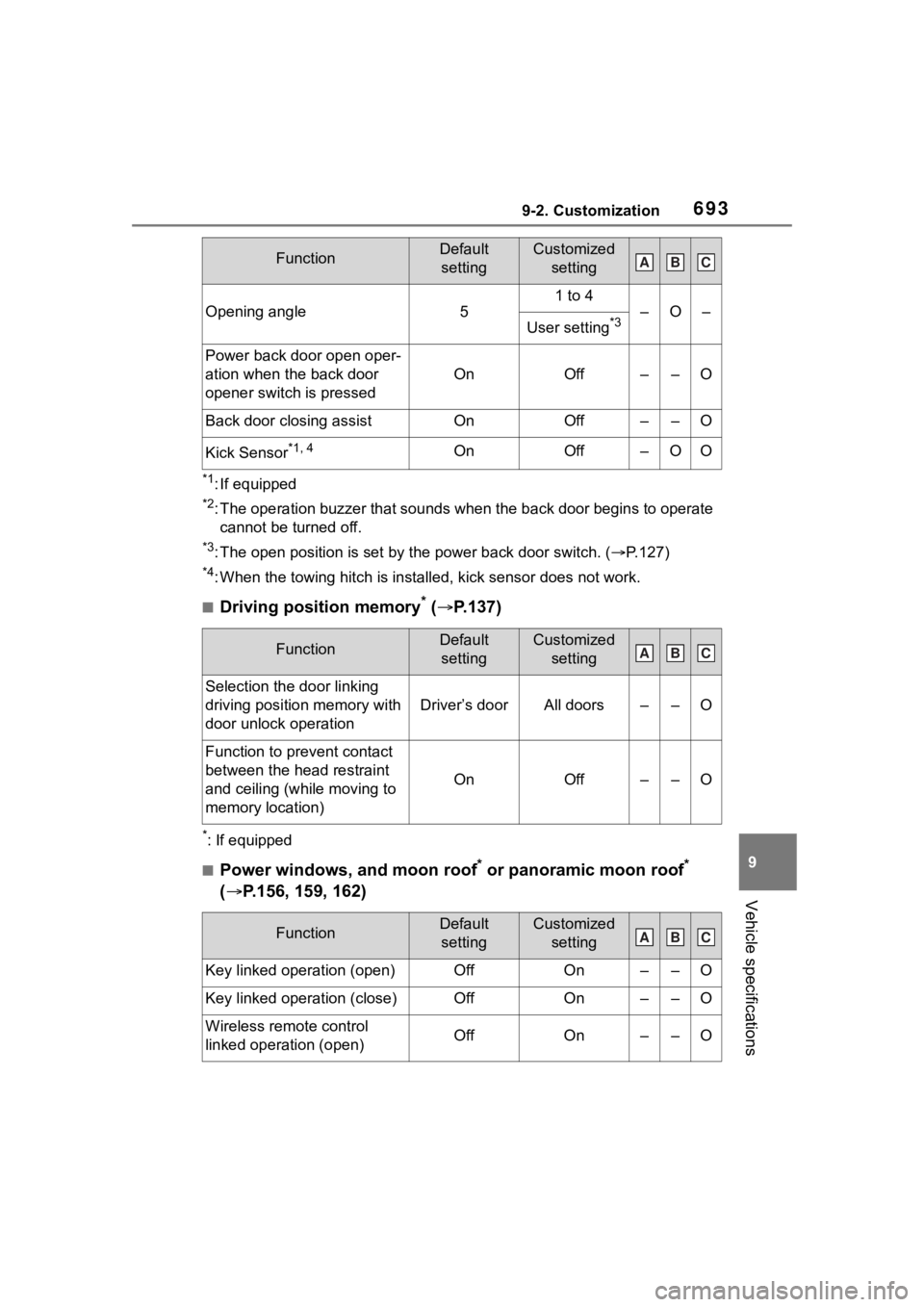

■Driving position memory* ( P.137)
*: If equipped
■Power windows, and moon roof* or panoramic moon roof*
( P.156, 159, 162)
Opening angle5
1 to 4
–O–
User setting*3
Power back door open oper-
ation when the back door
opener switch is pressed
OnOff––O
Back door closing assistOnOff––O
Kick Sensor*1, 4OnOff–OO
FunctionDefault
settingCustomized setting
Selection the door linking
driving position memory with
door unlock operation
Driver’s doorAll doors––O
Function to prevent contact
between the head restraint
and ceiling (while moving to
memory location)
OnOff––O
FunctionDefault settingCustomized setting
Key linked operation (open)OffOn––O
Key linked operation (close)OffOn––O
Wireless remote control
linked operation (open)OffOn––O
FunctionDefault settingCustomized settingABC
ABC
ABC

6949-2. Customization
*: If equipped

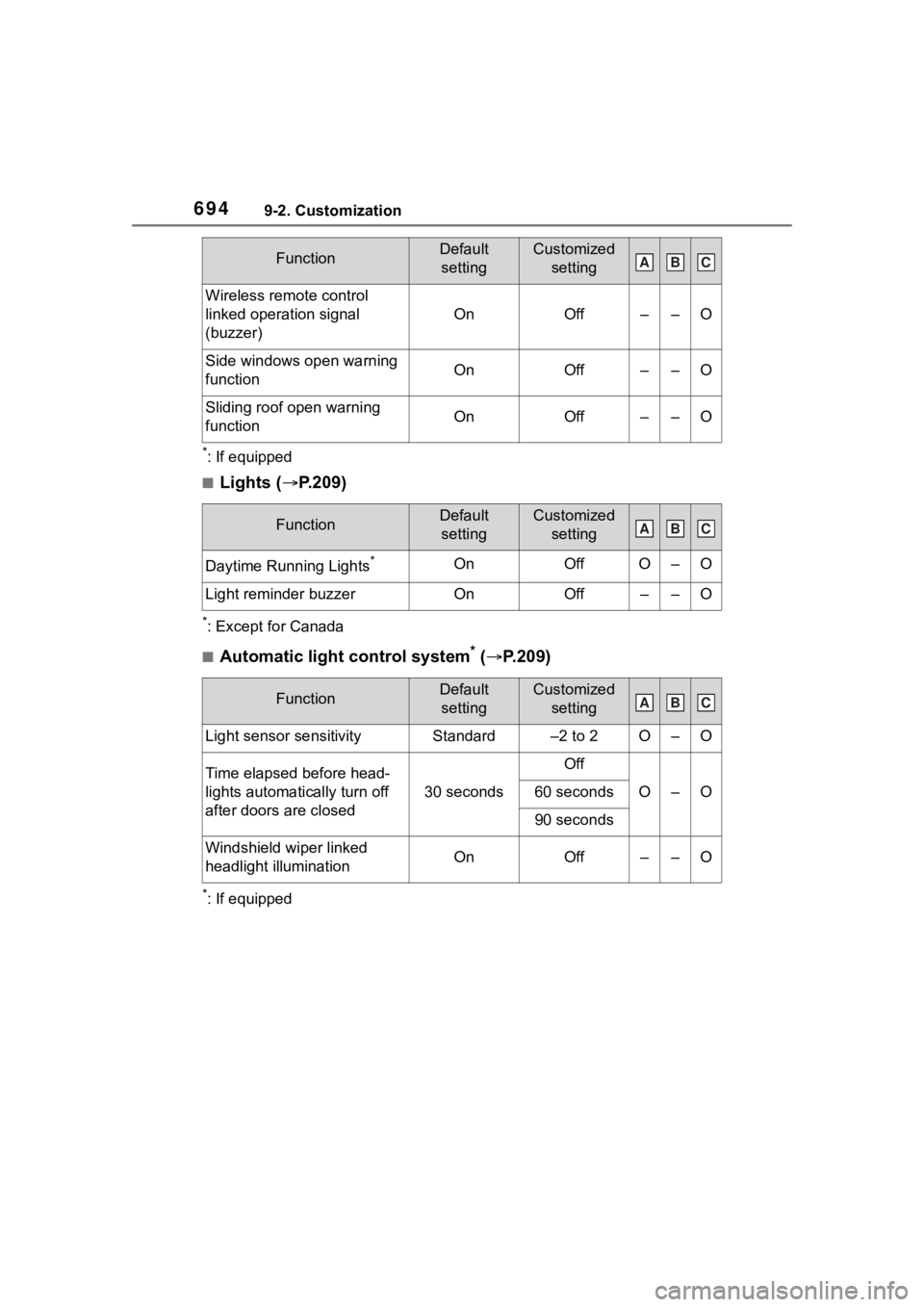

■Lights (P.209)
*: Except for Canada
■Automatic light control system* ( P.209)
*: If equipped
Wireless remote control
linked operation signal
(buzzer)
OnOff––O
Side windows open warning
functionOnOff––O
Sliding roof open warning
function OnOff––O
FunctionDefault
settingCustomized setting
Daytime Running Lights*OnOffO–O
Light reminder buzzerOnOff––O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard–2 to 2O–O
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
O–O60 seconds
90 seconds
Windshield wiper linked
headlight illuminationOnOff––O
FunctionDefault settingCustomized settingABC
ABC
ABC

6959-2. Customization
9
Vehicle specifications

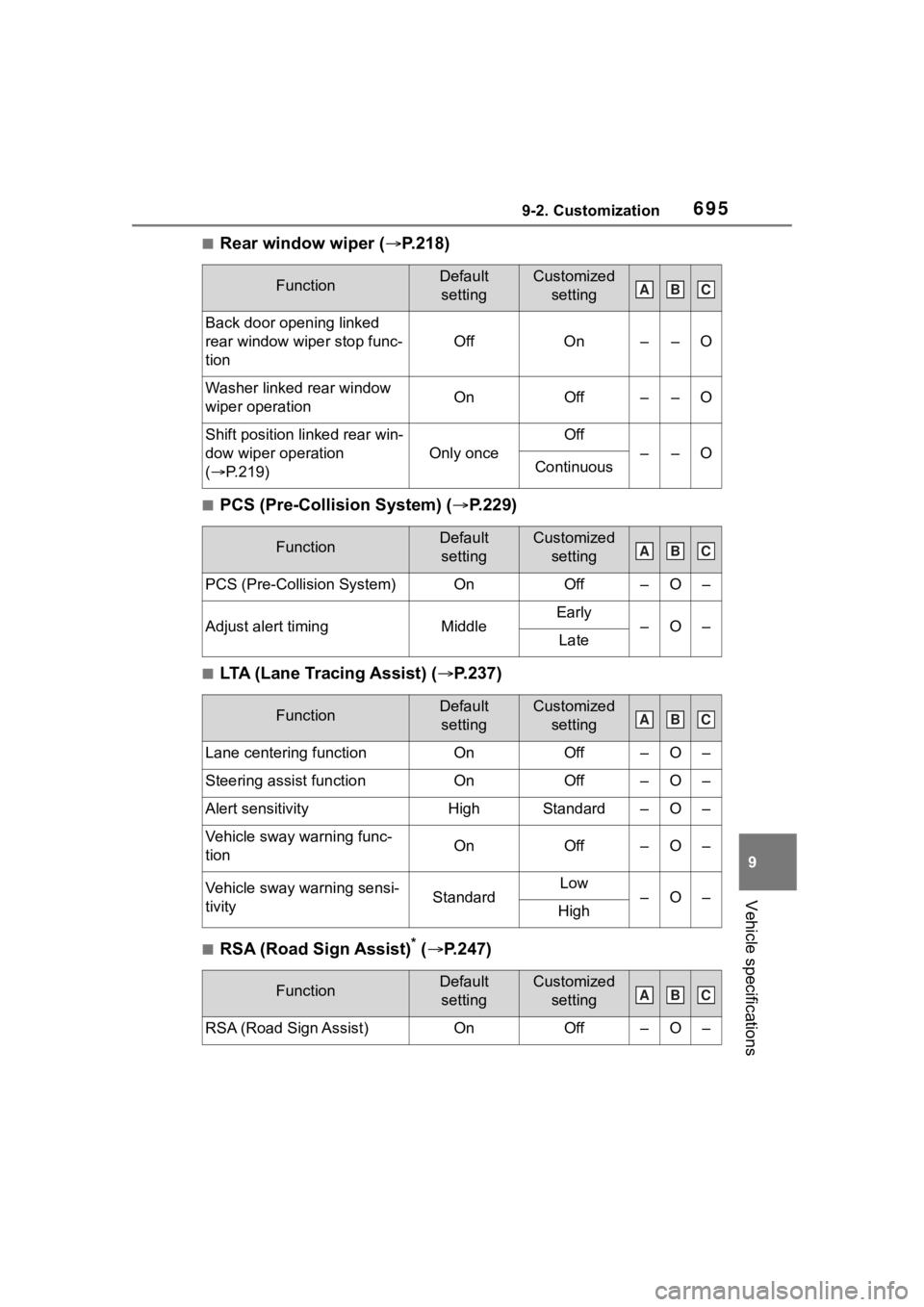

■Rear window wiper (P.218)
■PCS (Pre-Collision System) ( P.229)
■LTA (Lane Tracing Assist) (P.237)
■RSA (Road Sign Assist)* ( P.247)
FunctionDefault
settingCustomized setting
Back door opening linked
rear window wiper stop func-
tion
OffOn––O
Washer linked rear window
wiper operationOnOff––O
Shift position linked rear win-
dow wiper operation
(  P.219)
Only once
Off
––OContinuous
FunctionDefault
settingCustomized setting
PCS (Pre-Collision System)OnOff–O–
Adjust alert timingMiddleEarly–O–Late
FunctionDefault settingCustomized setting
Lane centering functionOnOff–O–
Steering assist functionOnOff–O–
Alert sensitivityHighStandard–O–
Vehicle sway warning func-
tionOnOff–O–
Vehicle sway warning sensi-
tivityStandardLow–O–High
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)OnOff–O–
ABC
ABC
ABC
ABC

6969-2. Customization
*: If equipped

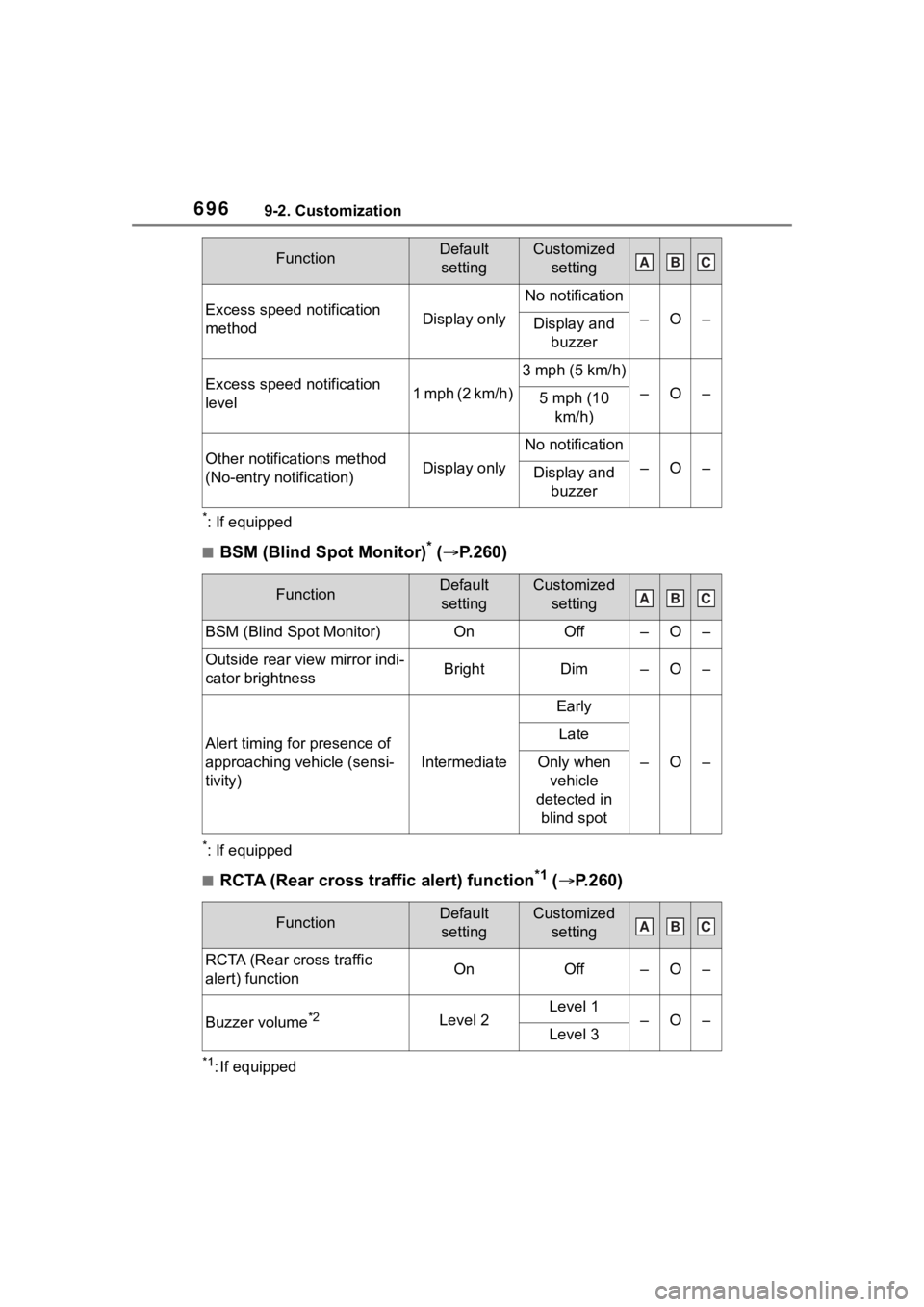

■BSM (Blind Spot Monitor)* ( P.260)
*: If equipped
■RCTA (Rear cross traffic alert) function*1 ( P.260)
*1: If equipped
Excess speed notification
methodDisplay only
No notification
–O–Display and
buzzer
Excess speed notification
level1 mph (2 km/h)
3 mph (5 km/h)
–O–5 mph (10 km/h)
Other notifications method
(No-entry notification)Display only
No notification
–O–Display and buzzer
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff–O–
Outside rear view mirror indi-
cator brightnessBrightDim–O–
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
–O–
Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
RCTA (Rear cross traffic
alert) functionOnOff–O–
Buzzer volume*2Level 2Level 1–O–Level 3
FunctionDefault settingCustomized settingABC
ABC
ABC

6979-2. Customization
9
Vehicle specifications
*2: This setting is linked with the buzzer volume of the intuitive parking
assist.

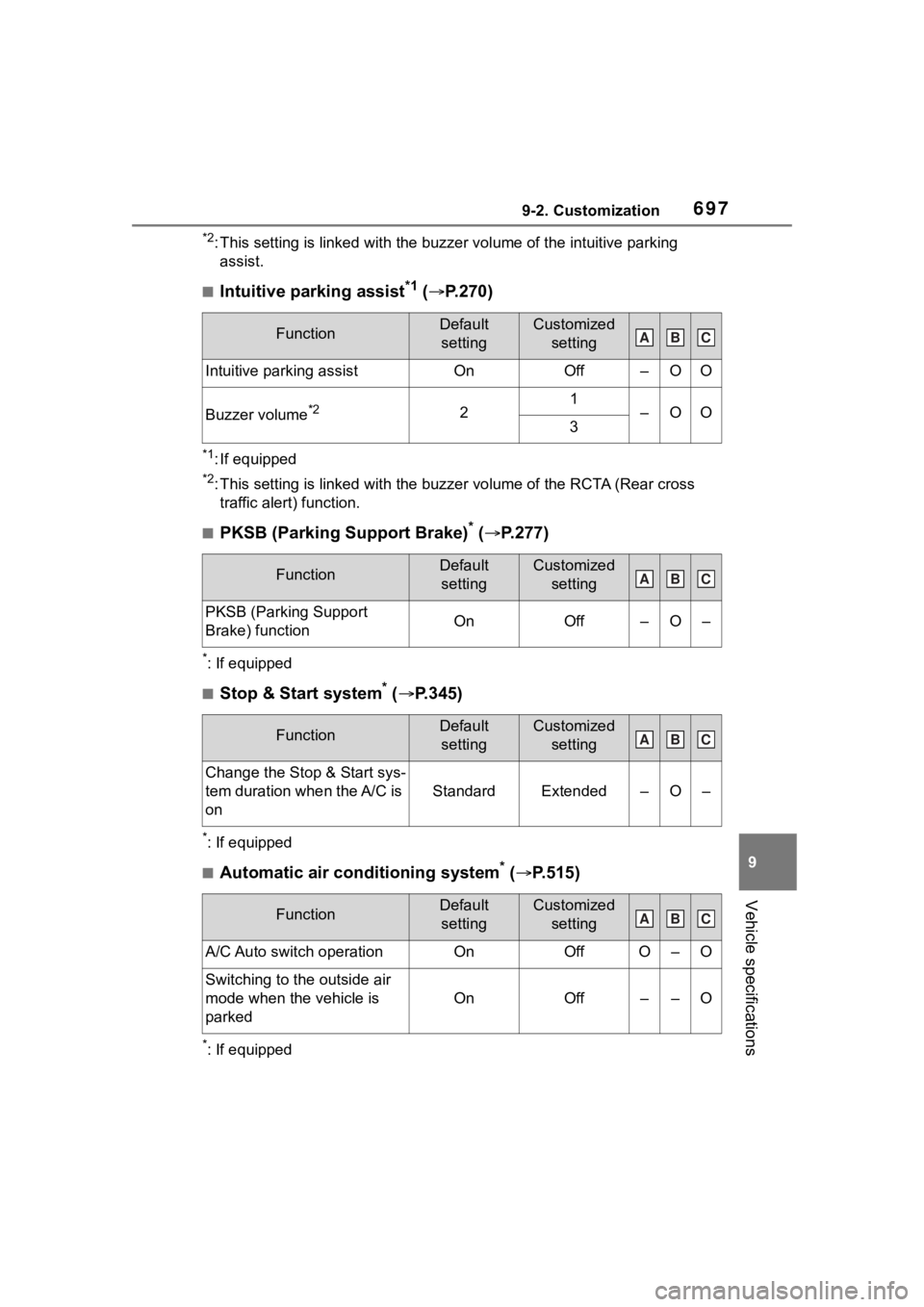

■Intuitive parking assist*1 (  P.270)
*1: If equipped
*2: This setting is linked with the buzzer volume of the RCTA (Rear cross
traffic alert) function.
■PKSB (Parking Support Brake)* (  P.277)
*: If equipped
■Stop & Start system* ( P.345)
*: If equipped
■Automatic air conditioning system* ( P.515)
*: If equipped
FunctionDefault
settingCustomized setting
Intuitive parking assistOnOff–OO
Buzzer volume*221–OO3
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake) functionOnOff–O–
FunctionDefault settingCustomized setting
Change the Stop & Start sys-
tem duration when the A/C is
on
StandardExtended–O–
FunctionDefault settingCustomized setting
A/C Auto switch operationOnOffO–O
Switching to t he outside air
mode when the vehicle is
parked
OnOff––O
ABC
ABC
ABC
ABC

6989-2. Customization
■Illumination (P.525)
*1: Vehicles with smart key system only
*2: If equipped
■Vehicle customization
●When the speed linked door locking function and shift position linked door
locking function are both on, th e door lock operates as follows .
• If the vehicle is started with a ll the doors locked, the speed linked door
locking function would not operate.
• If the vehicle is started with any door unlocked, the speed li nked door lock-
ing function will operate.
• When shifting the shift lever t o any position other than P, all the doors will
be locked.
●When the smart key system is off , the selecting door to unlock cannot be
customized.
●When the doors remain closed after unlocking the doors and the auto-
matic door lock function is ac tivated, the signals will be gene rated in
accordance with the Operation si gnal (buzzer) and the Operation signal
(emergency flashers) settings.
FunctionDefault
settingCustomized setting
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O–O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff––O
Operation when the doors
are unlockedOnOff––O
Operation when you
approach the vehicle with the
electronic key on your per-
son
*1
OnOff––O
Footwell lighting*2OnOff––O
ABC

6999-3. Initialization
9
Vehicle specifications
9-3.Initialization
*1: If equipped
*2: Vehicles with Audio Plus or Premium Audio, refer to “NAVIGATION AND
MULTIMEDIA SYSTEM OWNER’S MANUAL”.

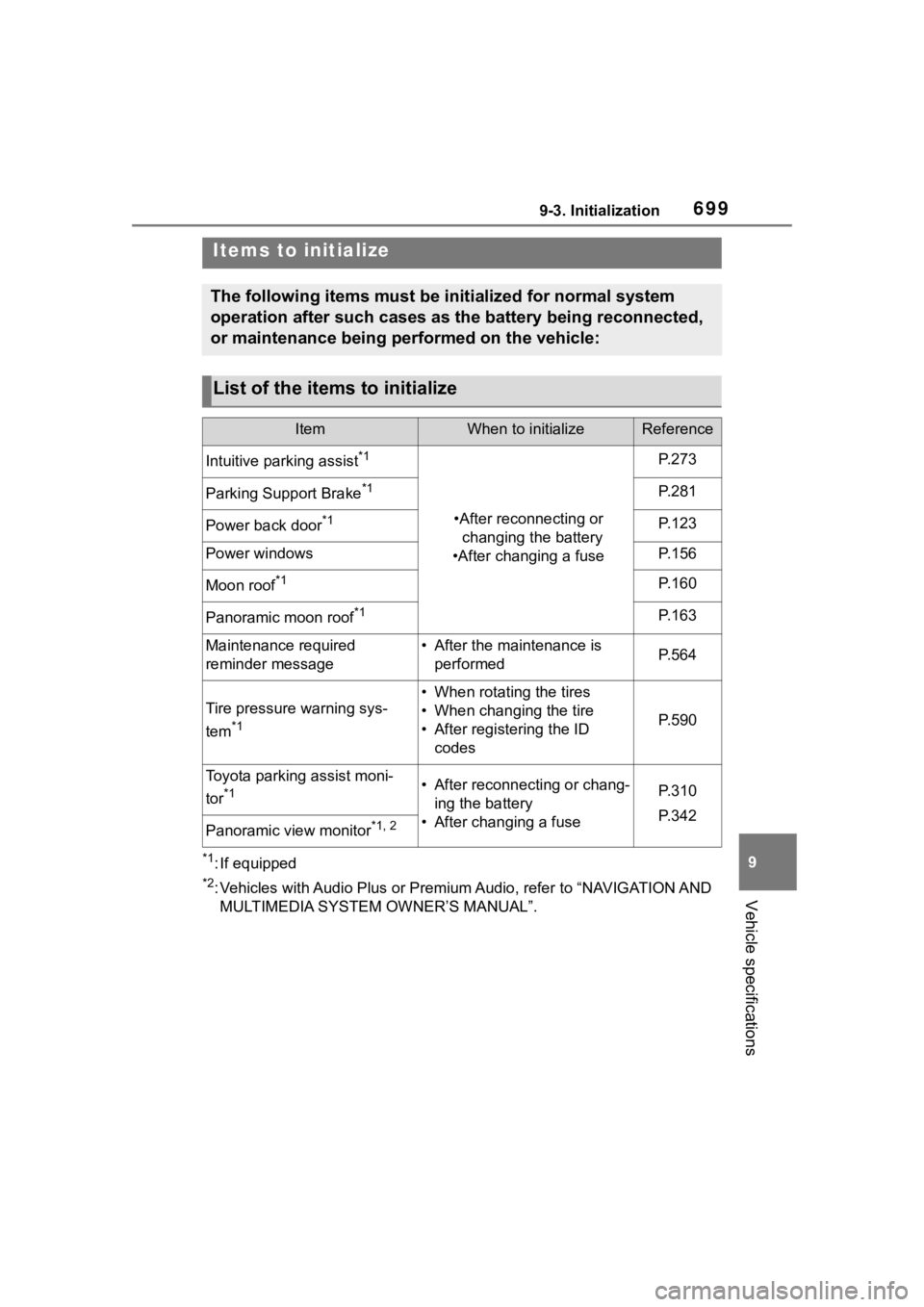

Items to initialize
The following items must be initialized for normal system
operation after such cases as the battery being reconnected,
or maintenance being performed on the vehicle:
List of the items to initialize
ItemWhen to initializeReference
Intuitive parking assist*1
•After reconnecting or changing the battery
•After changing a fuse
P.273
Parking Support Brake*1P.281
Power back door*1P.123
Power windowsP.156
Moon roof*1P.160
Panoramic moon roof*1P.163
Maintenance required
reminder message• After the maintenance is performedP.564
Tire pressure warning sys-
tem
*1
• When rotating the tires
• When changing the tire
• After registering the ID codes
P.590
Toyota parking assist moni-
tor
*1• After reconnecting or chang-ing the battery
• After changing a fuseP.310
P.342
Panoramic view monitor*1, 2

7009-3. Initialization
