1-2. Child safety
For safety and security
WARNING
■When installing a child restraint
system
For safety reasons , always install a child restraint system in a rear seat. In
the event that the rear seat cannot be
used, the front seat can be used as long as the airbag manual on-off sys-
tem is set to “OFF”.
If the airbag manual on-off system is
left on, the strong impact of the airbag deployment (inflation) may cause
serious injury or even death.
■When a child restr aint system is
not installed on the front passen -
ger seat
Ensure that the airbag manual on-off
system is set to “ON”.
If it is left off, the airbag may not deploy in the even t of an accident,
which may result in serious injury or
even death.
Riding with children
Observe the following precau -
tions when children are in the
vehicle.
Use a child restraint system
appropriate for the child, until
the child becomes large
enough to properly wear the
vehicle’s seat belt.
 It is recommended that chil-
dren sit in the rear seats to
avoid accidental contact with
the shift lever, wiper switch,
etc.
 Use the rear door child-protec-
tor lock or the window lock
switch to avoi d children open-
ing the door while driving or
operating the power window
accidentally. ( →P.209, 293)
 Do not let small children oper-
ate equipment which may
catch or pinch body parts,
such as the power window,
hood, back door, seats, etc.

501-2. Child safety
Points to remember: P.51
When using a child restraint sys -
tem: P.52
Child restraint system compatibility
for each seating position: P.54
Child restraint system installation
method: P.60
• Fixed with a seat belt: P.61
WARNING
■When children are in the vehicle
Never leave children unattended in
the vehicle, and never allow children to have or use the key.
Children may be able to start the vehi -
cle or shift the vehi cle into neutral. There is also a danger that children
may injure themselves by playing with
the side windows, panoramic moon
roof (if equipped) or other features of the vehicle. In addition, heat build-up
or extremely cold temperatures inside
the vehicle can be fatal to children.
Child restraint systems
Before installing a child
restraint system in the vehicle,
there are precautions that need
to be observed, different types
of child restrai nt systems, as
well as installation methods,
etc., written in this manual.
 Use a child restraint system
when riding with a small child
that cannot properly use a seat
belt. For the child’s safety,
install the child restraint sys -
tem to a rear seat. Be sure to
follow the installation method
that is in the operation manual
enclosed with the restraint sys -
tem.
 The use of a Toyota genuine
child restraint system is rec -
ommended, as it is safer to
use in this vehicle. Toyota gen -
uine child restraint systems
are made specifically for
Toyota vehicles. They can be
purchased at a Toyota dealer.
Table of contents

51
1
1-2. Child safety
For safety and security
• Fixed with an ISOFIX lower
anchorage: P.62
• Using a top tether anchorage:
P.63
 Prioritize and observe the warn-
ings, as well as the laws and reg -
ulations for child restraint
systems.
 Use a child restraint system until
the child becomes large enough
to properly wear the vehicle’s
seat belt.
 Choose a child restraint system
appropriate to the age and size
of the child.
 Note that not all child restraint
systems can fit in all vehicles.
Before using or purchasing a
child restraint system, check the
compatibility of the child restraint
system with seat positions.
( →P.54)
Points to remember
WARNING
■When a child is riding
Observe the following precautions.
Failure to do so may result in death or
serious injury.
●For effective protection in automo -
bile accidents and sudden stops, a child must be properly restrained,
using a seat belt or child restraint
system which is corre ctly installed. For installation details, refer to the
operation manual enclosed with the
child restraint system. General installation instructions are pro -
vided in this manual.
●Toyota strongly urges the use of a proper child restraint system that
conforms to the weight and size of
the child, installed on the rear seat. According to accident statistics, the
child is safer when properly
restrained in the rear seat than in the front seat.
●Holding a child in your or someone else’s arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed against the windshield or between
the holder and the interior of the
vehicle.
■Handling the child restraint sys -
tem
If the child restra int system is not
properly fixed in place, the child or
other passengers may be seriously injured or even killed in the event of
sudden braking, sudden swerving, or
an accident.
●If the vehicle were to receive a
strong impact from an accident, etc., it is possible that the child
restraint system has damage that is
not readily visible. In such cases, do not reuse the restraint system.
●Depending on the child restraint system, installation may be difficult
or impossible. In those cases,
check whether the child restraint system is suitable f or installment in
the vehicle ( →P.54). Be sure to
install and observe the usage rules after carefully reading the child
restraint system fixing method in
this manual, as we ll as the opera- tion manual enclosed with the child
restraint system.
●Keep the child restraint system properly secured on the seat even if
it is not in use. Do not store the
child restraint syst em unsecured in the passenger compartment.

521-2. Child safety

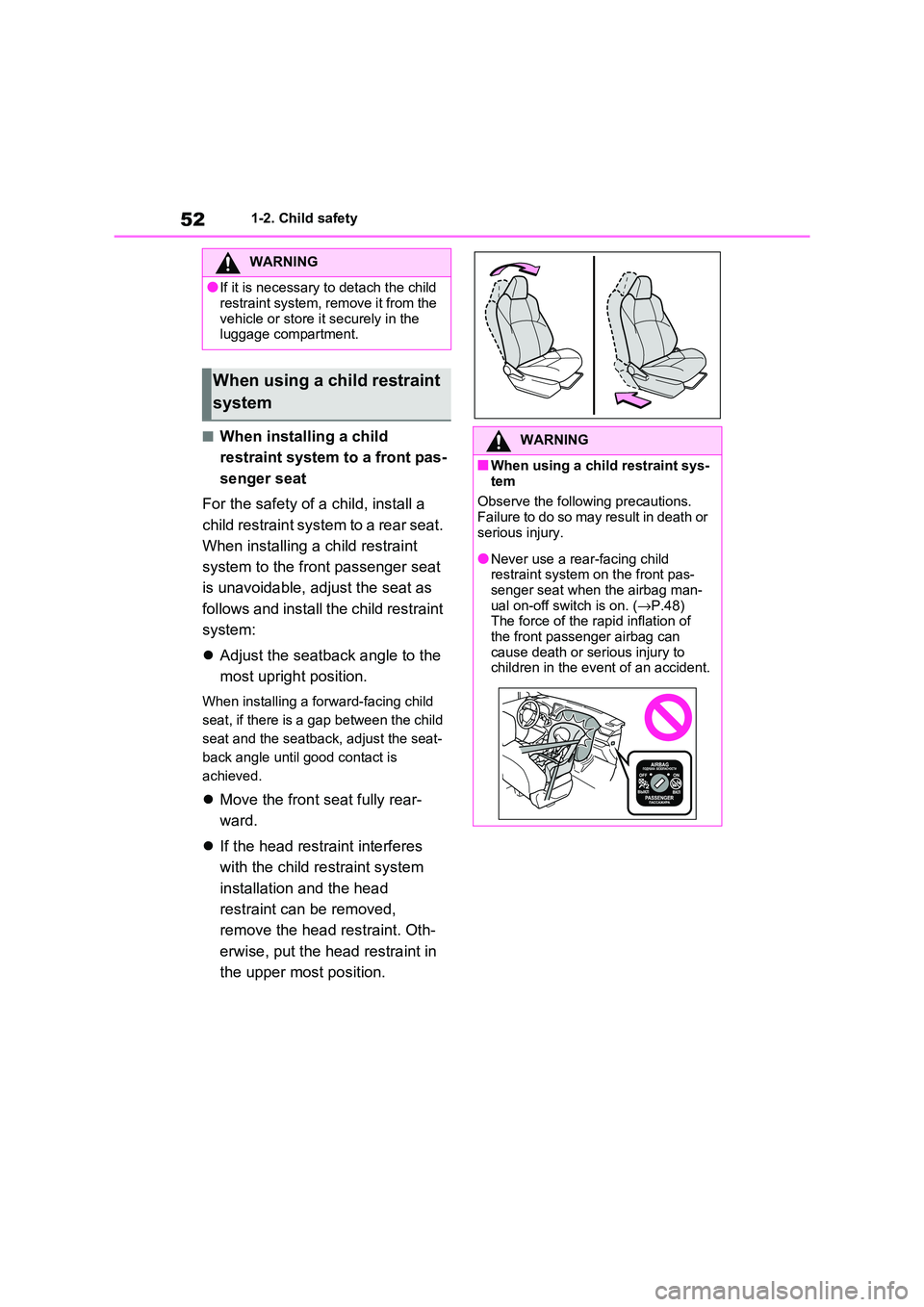

■When installing a child
restraint system to a front pas -
senger seat
For the safety of a child, install a
child restraint system to a rear seat.
When installing a child restraint
system to the front passenger seat
is unavoidable, adjust the seat as
follows and install the child restraint
system:
 Adjust the seatback angle to the
most upright position.
When installing a forw ard-facing child
seat, if there is a gap between the child
seat and the seatback, adjust the seat -
back angle until good contact is
achieved.
 Move the front seat fully rear-
ward.
 If the head restraint interferes
with the child re straint system
installation and the head
restraint can be removed,
remove the head restraint. Oth -
erwise, put the head restraint in
the upper most position.
WARNING
●If it is necessary t o detach the child
restraint system, remove it from the
vehicle or store it securely in the luggage compartment.
When using a child restraint
system
WARNING
■When using a child restraint sys -
tem
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Never use a rear-facing child restraint system on the front pas-
senger seat when the airbag man -
ual on-off switch is on. ( →P.48) The force of the rapid inflation of
the front passenger airbag can
cause death or serious injury to children in the eve nt of an accident.

53
1
1-2. Child safety
For safety and security
WARNING

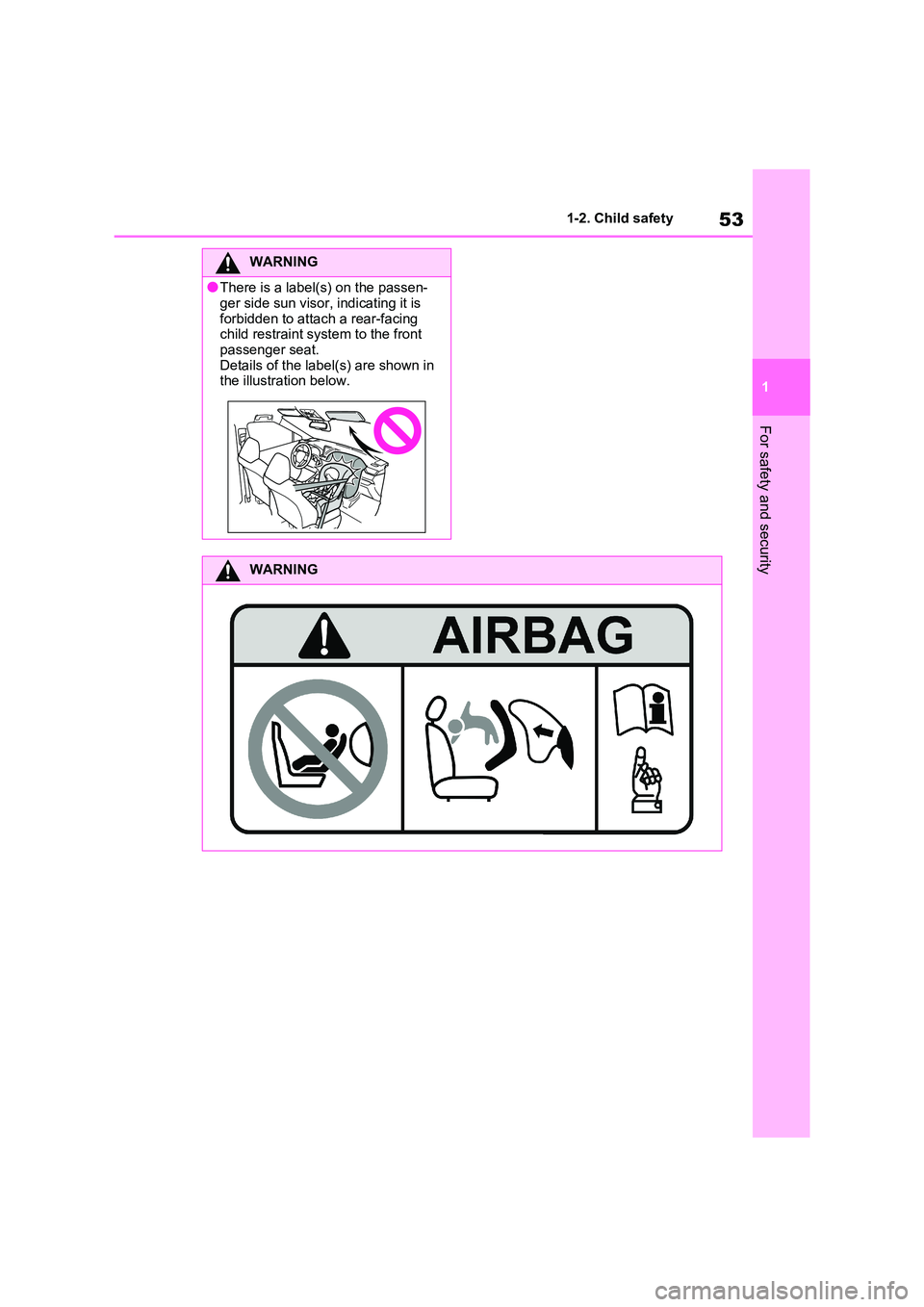

●There is a label(s) on the passen -
ger side sun visor , indicating it is
forbidden to atta ch a rear-facing child restraint sys tem to the front
passenger seat.
Details of the label(s) are shown in the illustration below.
WARNING

541-2. Child safety
■Child restraint system compat-
ibility for each seating posi -
tion
Compatibility of each seating posi -
tion with child re straint systems
( →P.56) displays the type of child
restraint systems that can be used
and possible seating positions for
installation using symbols. Also, the
recommended child restraint sys -
tem that is suitab le for your child
can be selected.
Otherwise, check [Recommended
child restraint systems and Com -
patibility table] for recommended
WARNING
●Only put a forward-facing child
restraint system o n the front seat
when unavoidable. When installing a forward-facing child restraint on
the front passenger seat, move the
seat as far back as possible. Failing to do so may result in death or seri -
ous injury if the airbags deploy
(inflate).
●Do not allow t he child to lean
his/her head or any part of his/her
body against the door or the area of the seat, front or rear pillars, or roof
side rails from which the SRS side
airbags or SRS curtain shield air - bags deploy even if the child is
seated in the child restraint system.
It is dangerous if the SRS side air - bags and curtain shield airbags
inflate, and the impact could cause
death or serious i njury to the child.
●When a junior seat is installed,
always ensure that the shoulder belt is positioned across the center
of the child’s shoulder. The belt
should be kept away from the child’s neck, but not so that it could
fall off the child’s shoulder.
●Use a child restraint system suit - able to the age and size of the child
and install it to the rear seat.
●If the driver’s sea t interferes with
the child restra int system and pre-
vents it from be ing attached cor- rectly, attach the child restraint
system to the right-hand rear seat
(left-hand drive vehicles) or the left- hand rear seat (right-hand drive
vehicles).
●Adjust the front passenger seat so
that it does not i nterfere with the
child restraint system.
Child restraint system com -
patibility for each seating
position

55
1
1-2. Child safety
For safety and security
child restraint systems. ( →P.58)
Check the selected child restraint
system together with the following
[Before confirming the compatibility
of each seating po sition with child
restraint systems].
■Before confirming the compat -
ibility of each seating position
with child restraint systems
1 Checking the child restraint sys-
tem standards.
Use a child restraint system that
conforms to UN(ECE) R44*1 or
UN(ECE) R129*1, 2.
The following approval mark is
displayed on child restraint sys -
tems which are conformed.
Check for an approval mark
attached to the child restraint
system.
Example of the dis played regulation
Number
UN(ECE) R44 approval mark*3
The weight range of the child
who is applic able for an
UN(ECE) R44 approval mark is
indicated.
UN(ECE) R129 approval mark*3
The height range of the child
who is applicable as well as
available weights for an
UN(ECE) R129 approval mark
is indicated.
2 Checking the category of the
child restraint system.
Check the approval mark of the
child restraint system for which
of the following categories the
child restraint system is suitable.
Also, if there a re any uncertain-
ties, check the user’s guide
included with the child restraint
system or contact the retailer of
the child restraint system.
• “universal”
• “semi-universal”
• “restricted”
• “vehicle specific”
*1: UN(ECE) R44 and UN(ECE) R129
are U.N. regulations for child
restraint systems.
*2: The child restraint systems men -
tioned in the table may not be avail -
able outside of the EU area.
*3: The displayed mark may differ
A
B

561-2. Child safety
depending on the product.
■Compatibility of each seating
position with child restraint
systems
Left-hand drive vehicles
Right-hand drive vehicles
*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install -
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the seat -
back angle until good contact is
achieved.
*1, 2, 3*4
*2, 3
*2, 3
*2, 3
Suitable for fixed with vehicle
seat belt “unive rsal” category
child restraint system.
Suitable for child restraint sys -
tems given on recommended
child restraint systems and
compatibility table ( →P.58).
Suitable for i-Size and ISOFIX
child restraint system.
Includes a top tether anchorage
point.
Never use a rear-facing child
restraint system on the front
passenger seat when the air -
bag manual on-off switch is on.

57
1
1-2. Child safety
For safety and security
*3: If the head restraint interferes with
your child restrai nt system, and the
head restraint can be removed,
remove the head restraint.
Otherwise, put the head restraint in
the upper most position.
*4: Use only a front-facing child restraint
system when the airbag manual on-
off switch is on.
■Detail information for child r estraint systems installation
ISOFIX child restraint systems a re divided into different “fixture”. The child
restraint system can be used in the seating positions for “fixt ure” mentioned
in the table above. For kind of “ fixture” relation, confirm the following table.
If your child restraint system has no kind of “fixture” (or if you cannot find
information in the tab le below), please refer to the child restraint system
“vehicle list” for compatibilit y information or ask the retailer of your child
seat.
Seating position
Seat position numberAirbag manual on-
off switch
ONOFF
Seating position suitable for
universal belted (Yes/No)
Yes
Forward
facing
only
YesYesYesYes
i-Size seating position
(Yes/No)NoNoYesNoYes
Seating position suitable for
lateral fixture (L1/L2/No)NoNoNoNoNo
Suitable rearward facing fix -
ture (R1/R2X/R2/R3/No)NoNoR1, R2X,
R2, R3NoR1, R2X,
R2, R3
Suitable forward facing fixture
(F2X/F2/F3/No)NoNoF2X, F2,
F3NoF2X, F2,
F3
Suitable junior seat fixture
(B2/B3/No)NoNoB2, B3NoB2, B3

581-2. Child safety
■Recommended child restraint systems and Compatibility table
FixtureDescription
F3Full-height, forward-facing child restraint systems
F2Reduced-height forward-facing child restraint systems
F2XReduced-height forward-facing child restraint systems
R3Full-size, rearward-facing child restraint systems
R2Reduced-size, rearward-facing child restraint systems
R2XReduced-size, rearward-facing child restraint systems
R1Rearward-facing infant seat
L1Left lateral-facing (carrycot) infant seat
L2Right lateral-facing (carrycot) infant seat
B2Junior seat
B3Junior seat
Mass groups
Recommended
Child Restraint
System
Seating position
Airbag manual on-
off switch
ONOFF
0, 0+
Up to 13 kg
(28 lb.)
G0+, BABY SAFE
PLUS (Yes/No)NoYesYesYesYes
G0+ BABY SAFE
PLUS with SEAT
BELT FIXATION,
BASE PLATFORM
(Yes/No)
NoYesYesYesYes
I
9 to 18 kg
(20 to 39 lb.)
TOYOTA DUO
PLUS (Yes/No)
Yes
Belt fix
only
Yes
Belt fix
only
Yes
Yes
Belt fix
only
Yes
