ECO mode TOYOTA RAV4 PLUG-IN HYBRID 2021 Repair Manual

609
8
8-2. Steps to take in an emergency
When trouble arises
a malfunction, as the hybrid system
will start normally on the second attempt.
●The power switch mode is memorized by the vehicle. When the 12-volt bat-
tery is reconnected , the system will
return to the mode it was in before the 12-volt battery was discharged.
Before disconnecting the 12-volt bat -
tery, turn the power switch off. If you are unsure what mode the
power switch was in before the 12-volt
battery discharged, be especially careful when reconnecting the 12-volt
battery.
■When replacing the 12-volt battery
●Use a 12-volt battery that conforms to
European regulations.
●Use a 12-volt batt ery that the case
size is same as the previous one
(LN2), 20 hours rate capacity (20HR) is equivalent (55Ah ) or greater, and
performance rating (CCA) is equiva -
lent (345A) or greater. • If the sizes differ, the 12-volt battery
cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehi -
cle is not used is a short time, the 12-
volt battery may discharge and hybrid system may not be able to start.
●Use a ventilation type calcium battery
●Use a 12-volt battery with a handle. If
a 12-volt battery without a handle is used, removal is more difficult.
●When removing the 12-volt battery: → P.508
●After replacing, firmly attach the fol- lowing items to the exhaust hole of the
12-volt battery.
• Use the exhaust hose that was
attached to the 12-volt battery before replacing and confirm that it is firmly
connected to the hole section of the
vehicle. • Use the exhaust hole plug included
with the new 12-volt battery or the one
installed on the battery prior to the replacement. (Depending on the new
12-volt battery installed, the exhaust
hole may be plugged.)
For details, consult any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Exhaust hole
Exhaust hose
Hole section of the vehicle
●The terminals can be connected to the
body side when the negative terminal of the 12-volt batte ry is disconnected,
as shown in the illustration.
WARNING
■When removing the battery ter -
minals
Always remove the negative (-) termi-
nal first. If the posi tive (+) terminal
contacts any metal in the surrounding area when the positiv e (+) terminal is
removed, a spark m ay occur, leading
to a fire in addition to electrical shocks and death or serious injury.
A
B
C

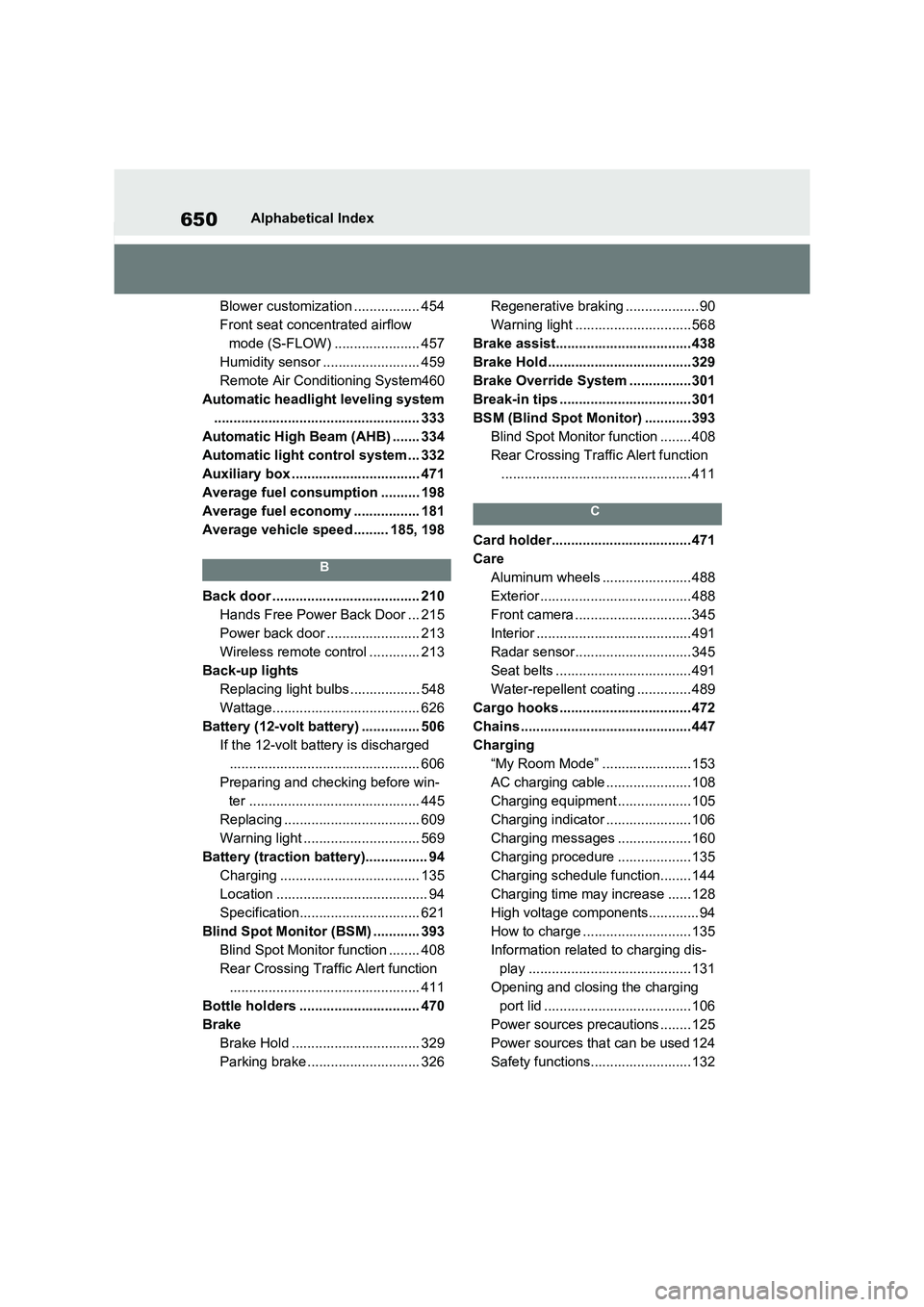

650Alphabetical Index
Blower customization ................. 454
Front seat concent rated airflow
mode (S-FLOW) ...................... 457
Humidity sensor ......................... 459
Remote Air Conditioning System460
Automatic headlight leveling system
..................................................... 333
Automatic High Beam (AHB) ....... 334
Automatic light control system ... 332
Auxiliary box ................................. 471
Average fuel consumption .......... 198
Average fuel economy ................. 181
Average vehicle speed ......... 185, 198
B
Back door ........ .............................. 210
Hands Free Power Back Door ... 215
Power back door ........ ................ 213
Wireless remote con trol ............. 213
Back-up lights
Replacing light bulbs .................. 548
Wattage...................................... 626
Battery (12-volt batte ry) ............... 506
If the 12-volt batt ery is discharged
................................................. 606
Preparing and c hecking before win-
ter ............................................ 445
Replacing ................................... 609
Warning light .............................. 569
Battery (tracti on battery)................ 94
Charging .................................... 135
Location ....................................... 94
Specification............................... 621
Blind Spot Monitor (BSM) ............ 393
Blind Spot Monitor function ........ 408
Rear Crossing Traff ic Alert function
................................................. 411
Bottle holders ............................... 470
Brake
Brake Hold ................................. 329
Parking brake ............................. 326
Regenerative braking ................... 90
Warning light ..............................568
Brake assist...................................438
Brake Hold .....................................329
Brake Override System ................301
Break-in tips .................................. 301
BSM (Blind Spot Monitor) ............393
Blind Spot Monitor function ........ 408
Rear Crossing Traffic Alert function
.................................................411
C
Card holder.................................... 471
Care
Aluminum wheels .......................488
Exterior ....................................... 488
Front camera ..............................345
Interior ........................................491
Radar sensor..............................345
Seat belts ...................................491
Water-repellent coating .............. 489
Cargo hooks .................................. 472
Chains ............................................447
Charging
“My Room Mode” .......................153
AC charging cable ...................... 108
Charging equipment ................... 105
Charging indicator ...................... 106
Charging messages ................... 160
Charging procedure ................... 135
Charging schedule function........ 144
Charging time may increase ...... 128
High voltage components............. 94
How to charge ............................ 135
Information related to charging dis -
play .......................................... 131
Opening and closing the charging
port lid ......................................106
Power sources precautions ........ 125
Power sources that can be used 124
Safety functions..........................132

652Alphabetical Index
Cruise control ............................. 388
Drive information ........................ 185
Driving information ..................... 181
Dynamic radar cruise control with
full-speed range ....................... 376
Energy monitor........................... 195
Head-up display ...... ................... 191
LTA (Lane-Tracing Assist) ......... 368
Multi-information disp lay ............ 179
Parking Support Brake function . 422
Pre-collision warning . ................. 355
RCTA ......................................... 393
RSA (Road Sign Assist) ............. 373
Toyota parking assi st-sensor ..... 414
Warning messages .... ................ 578
Do-it-yourself maintenance . 494, 496
Door lock
Back door ................................... 210
Side doors .................................. 205
Smart entry & start system......... 223
Wireless remote con trol ............. 203
Doors
Automatic door locking and unlock -
ing system .... ........................... 209
Back door ................................... 210
Door glasses .............................. 291
Door lock .................................... 205
Open door warning buzzer......... 208
Outside rear view mirrors ........... 289
Rear door child-protectors ......... 209
Side doors .................................. 205
Double locking system .................. 77
Drive information .......................... 185
Driver’s seat belt r eminder light.. 575
Driver’s seat position memory .... 273
Driving position memory ............ 273
Memory recall function ............... 274
Drive-start control ........................ 301
Driving
Break-in tips ............................... 301
Correct posture ............................ 33
Driving mode select switch.........434
Plug-in hybrid vehicle driving tips . 99
Procedures ................................. 300
Winter drive tips ......................... 445
Driving information display .........181
Driving mode select switch .........434
Driving position memory .............273
Memory recall function ...............274
Driving support system information
display .........................................184
Dynamic radar cruise control with
full-speed range
Function .....................................376
Warning message ...................... 578
E
eCall ................................................. 65
ECB (Electronically Controlled Brake
System) ....................................... 438
Eco drive mode .............................434
E-Four (Electronic On-Demand AWD
system) .......... ..............................439
Elapsed time.................................. 185
Electric motor
Location........................................ 84
Specification ............................... 620
Electric Power Steering (EPS)
Function .....................................438
Warning light ..............................570
Electronically Cont rolled Brake Sys-
tem (ECB) .................................... 438
Electronic key
Battery-saving function...............224
If the electronic key does not operate
properly .................................... 604
Replacing the battery ................. 543
Electronic sunshade.....................294
Jam protection function .............. 295
Operation ...................................294
Emergency, in case of
If a warning buzzer sounds ........ 568

653Alphabetical Index
If a warning light turns on ........... 568
If a warning message is displayed
................................................. 578
If the 12-volt batt ery is discharged
................................................. 606
If the electronic key does not operate
properly .................................... 604
If the fuel filler door cannot be
opened..................................... 603
If the hybrid system will not start 601
If the vehicle is trapped in rising
water ........................................ 561
If you have a flat tire........... 582, 593
If you lose your keys .................. 603
If you think something is wrong.. 566
If your vehicle becomes stuck .... 615
If your vehicle has to be stopped in
an emergency .......................... 560
If your vehicle needs to be towed
................................................. 563
If your vehicle overheats ............ 611
Emergency brake signal .............. 439
Emergency flashers ..................... 560
Emergency tire puncture repair kit
..................................................... 582
Energy monitor ............................. 195
Engine
Compartment ............................. 501
Exhaust gas precautions.............. 47
Hood .......................................... 498
How to start the hybrid system... 317
Identification number.................. 619
If the hybrid system will not start 601
If your vehicle has to be stopped in
an emergency .......................... 560
Overheating ............................... 611
Power switch .............................. 317
Engine coolant
Capacity ................ ..................... 622
Checking .................................... 503
High coolant temperature warning
light .......................................... 569
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
Engine coolant temperature gauge
..................................................... 174
Engine oil
Capacity .....................................621
Checking .................................... 501
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
EPS (Electric Power Steering)
Function .....................................438
Warning light ..............................570
EV/HV mode selection switch........ 86
EV driving range ...........................102
EV mode .......................................... 85
Exhaust gas precautions ............... 47
Extended Headlight Lighting system
..................................................... 333
F
Flat tire ...................................582, 593
Tire pressure war ning system ....511
Floor mats ....................................... 32
Fluid
Brake .......................................... 624
Hybrid transmission.................... 623
Rear differential ..........................624
Washer ....................................... 505
Fog lights
Replacing light bulbs ..................548
Switch.........................................337
Wattage ......................................626
Footwell lights............................... 465
Front fog lights
Replacing light bulbs ..................548
Switch.........................................337
Wattage ......................................626
Front passenger’s seat belt reminder

660Alphabetical Index
Side doors ..................................... 205
Side mirrors .................................. 289
Adjustment ................................. 289
BSM (Blind Spot Monitor) .......... 393
Folding ....................................... 290
Outside rear view mirror defoggers
................................................. 454
Side turn signal lights
Replacing light bulbs .................. 548
Turn signal lever ........................ 325
Side windows................................ 291
Smart entry & start system .......... 223
Antenna location ................ 211, 223
Entry functions ........................... 205
Starting the hybrid system ......... 317
Warning message ...................... 578
Snow tires ..................................... 445
Spare tire
Storage location ......................... 594
Spark plug ..................................... 623
Specifications ............................... 618
Speed limiter ................................. 391
Speedometer................................. 174
Sport mode ................................... 434
SRS airbags .................................... 39
Steering lock
Column lock release .................. 318
Steering lock system warning mes -
sage ......................................... 318
Steering wheel
Adjustment ................................. 278
Heated steering wheel ............... 462
Meter control switches ............... 180
Stop lights
Replacing light bulbs .................. 548
Storage feature ............................. 468
Storage precautions .. ................... 469
Stuck
If the vehicle beco mes stuck ...... 615
Suggestion function ..................... 189
Sunshade ...................................... 294
Sun visors .....................................476
Switches
“ODO TRIP” switch .................... 178
AUTO EV/HV mode switch .......... 86
Automatic High Beam switch ..... 334
Brake hold switch .......................329
Cruise control .............................388
Digital Rear-view Mirror control
switches ...................................280
Door lock switch ......................... 208
Driving mode select switch.........434
Driving position memory switches
.................................................273
Dynamic radar cruise control with
full-speed range .......................377
Electronic sunshade switch ........ 294
Emergency flashers switch ........ 560
EV/HV mode selection switch ...... 86
Fog light switch ..........................337
Fuel filler door ope ner switch ..... 343
Heated steering wheel ...............462
Ignition switch (po wer switch) ....317
Intrusion sensor and tilt sensor can -
cel switch ................................... 79
Light switch ................................332
LTA switch.................................. 367
Meter control switches ...............180
Outside rear view mirror switches
.................................................289
Paddle shift switches..........323, 324
Panoramic moon roof switches .. 294
Parking brake switch ..................326
Power back door switch .............214
Power switch ..............................317
Power window switc h ................. 291
Rear window and outside rear view
mirror defoggers switch............454
Rear window wiper and washer
switch ....................................... 340
Seat heater switches ..................463
Seat ventilators switches............463
