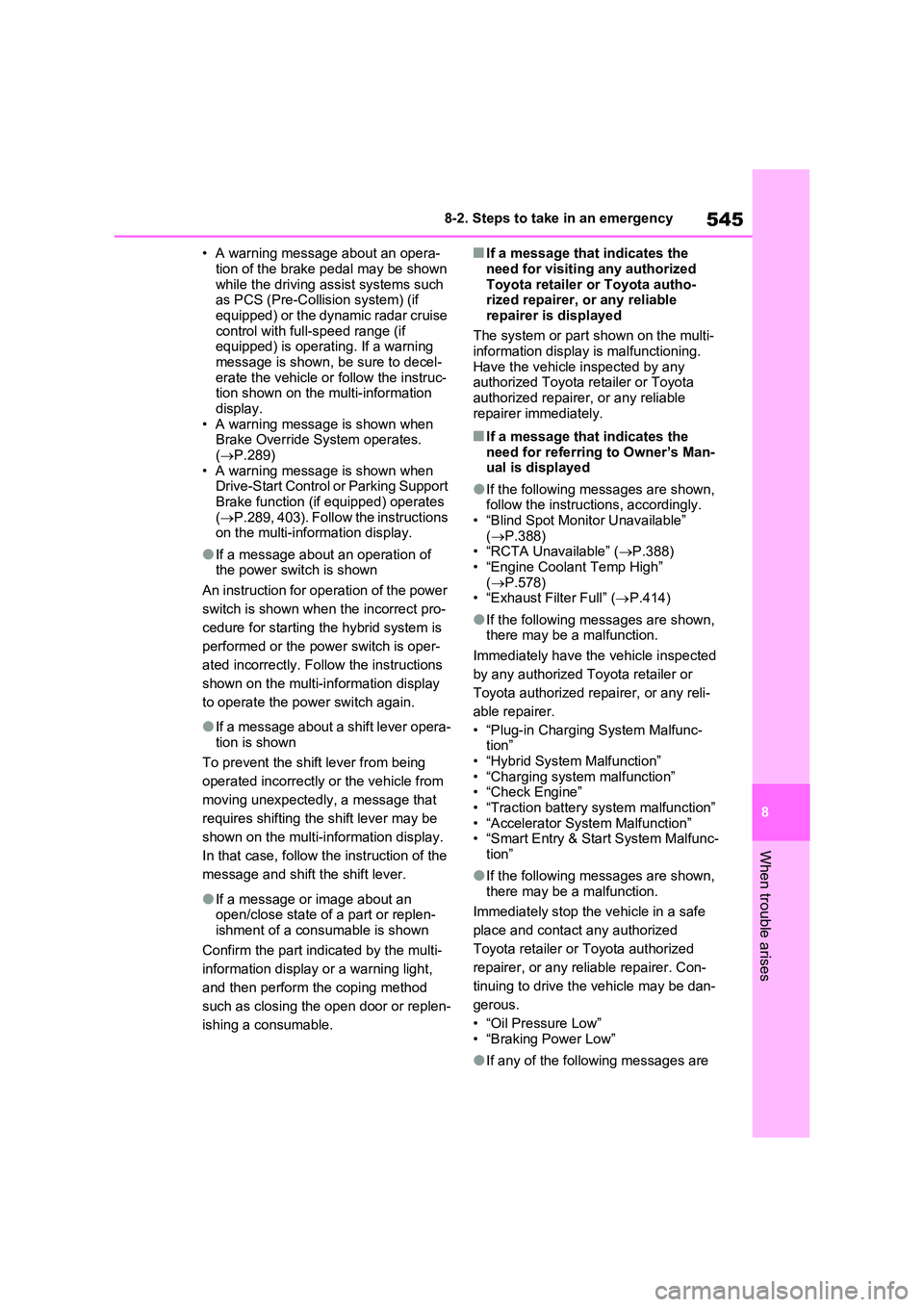

8-2. Steps to take in an emergency
When trouble arises
• A warning message about an opera-
tion of the brake pedal may be shown while the driving assist systems such as PCS (Pre-Collision system) (if
equipped) or the dynamic radar cruise control with full-speed range (if equipped) is operating. If a warning
message is shown, be sure to decel- erate the vehicle or follow the instruc-tion shown on the multi-information
display. • A warning message is shown when Brake Override System operates.
( P.289) • A warning message is shown when Drive-Start Control or Parking Support
Brake function (if equipped) operates ( P.289, 403). Follow the instructions on the multi-information display.
●If a message about an operation of the power switch is shown
An instruction for operation of the power
switch is shown when the incorrect pro-
cedure for starting the hybrid system is
performed or the power switch is oper-
ated incorrectly. Follow the instructions
shown on the multi-information display
to operate the power switch again.
●If a message about a shift lever opera- tion is shown
To prevent the shift lever from being
operated incorrectly or the vehicle from
moving unexpectedly, a message that
requires shifting the shift lever may be
shown on the multi-information display.
In that case, follow the instruction of the
message and shift the shift lever.
●If a message or image about an open/close state of a part or replen-
ishment of a consumable is shown
Confirm the part indicated by the multi-
information display or a warning light,
and then perform the coping method
such as closing the open door or replen-
ishing a consumable.
■If a message that indicates the
need for visiting any authorized Toyota retailer or Toyota autho-rized repairer, or any reliable
repairer is displayed
The system or part shown on the multi- information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
■If a message that indicates the need for referring to Owner’s Man-ual is displayed
●If the following messages are shown, follow the instructions, accordingly.
• “Blind Spot Monitor Unavailable” ( P.388) • “RCTA Unavailable” ( P.388)
• “Engine Coolant Temp High” ( P.578) • “Exhaust Filter Full” ( P.414)
●If the following messages are shown, there may be a malfunction.
Immediately have the vehicle inspected
by any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
• “Plug-in Charging System Malfunc- tion”• “Hybrid System Malfunction”
• “Charging system malfunction” • “Check Engine”• “Traction battery system malfunction”
• “Accelerator System Malfunction” • “Smart Entry & Start System Malfunc-tion”
●If the following messages are shown, there may be a malfunction.
Immediately stop the vehicle in a safe
place and contact any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer. Con-
tinuing to drive the vehicle may be dan-
gerous.
•“Oil Pressure Low” • “Braking Power Low”
●If any of the following messages are

547
8
8-2. Steps to take in an emergency
When trouble arises
12-volt battery.

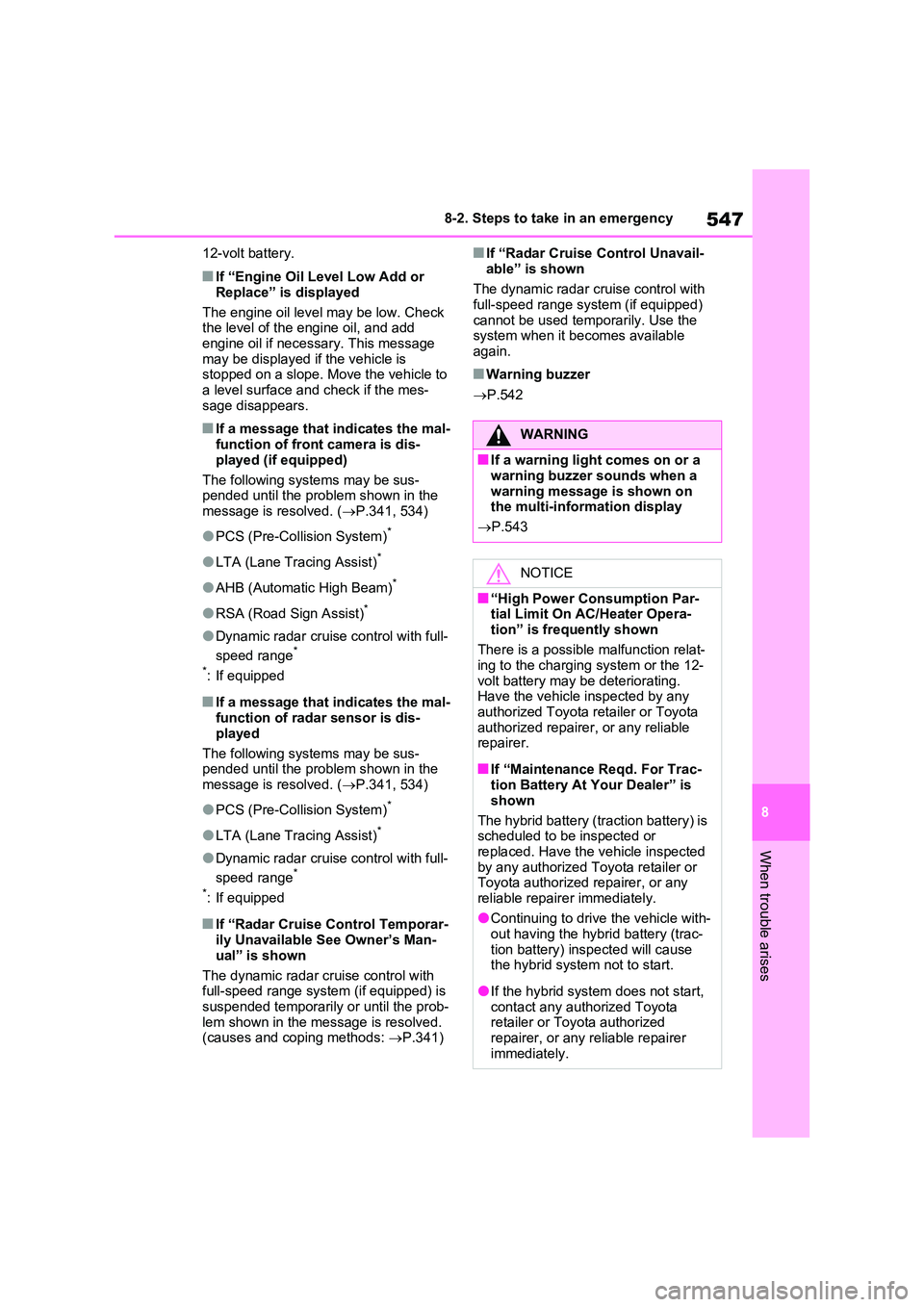

■If “Engine Oil Level Low Add or
Replace” is displayed
The engine oil level may be low. Check the level of the engine oil, and add
engine oil if necessary. This message may be displayed if the vehicle is stopped on a slope. Move the vehicle to
a level surface and check if the mes- sage disappears.
■If a message that indicates the mal-function of front camera is dis-
played (if equipped)
The following systems may be sus- pended until the problem shown in the
message is resolved. ( P.341, 534)
●PCS (Pre-Collision System)*
●LTA (Lane Tracing Assist)*
●AHB (Automatic High Beam)*
●RSA (Road Sign Assist)*
●Dynamic radar cruise control with full-
speed range*
*: If equipped
■If a message that indicates the mal- function of radar sensor is dis-
played
The following systems may be sus- pended until the problem shown in the
message is resolved. ( P.341, 534)
●PCS (Pre-Collision System)*
●LTA (Lane Tracing Assist)*
●Dynamic radar cruise control with full-
speed range*
*: If equipped
■If “Radar Cruise Control Temporar- ily Unavailable See Owner’s Man-
ual” is shown
The dynamic radar cruise control with full-speed range system (if equipped) is
suspended temporarily or until the prob- lem shown in the message is resolved. (causes and coping methods: P.341)
■If “Radar Cruise Control Unavail-
able” is shown
The dynamic radar cruise control with full-speed range system (if equipped)
cannot be used temporarily. Use the system when it becomes available again.
■Warning buzzer
 P.542
WARNING
■If a warning light comes on or a warning buzzer sounds when a
warning message is shown on the multi-information display
 P.543
NOTICE
■“High Power Consumption Par- tial Limit On AC/Heater Opera-
tion” is frequently shown
There is a possible malfunction relat- ing to the charging system or the 12-
volt battery may be deteriorating. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■If “Maintenance Reqd. For Trac-tion Battery At Your Dealer” is
shown
The hybrid battery (traction battery) is scheduled to be inspected or
replaced. Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer immediately.
●Continuing to drive the vehicle with- out having the hybrid battery (trac-
tion battery) inspected will cause the hybrid system not to start.
●If the hybrid system does not start, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately.
