547
8
8-2. Steps to take in an emergency
When trouble arises
12-volt battery.
■If “Engine Oil Level Low Add or
Replace” is displayed
The engine oil level may be low. Check the level of the engine oil, and add
engine oil if necessary. This message may be displayed if the vehicle is stopped on a slope. Move the vehicle to
a level surface and check if the mes- sage disappears.
■If a message that indicates the mal-function of front camera is dis-
played (if equipped)
The following systems may be sus- pended until the problem shown in the
message is resolved. ( P.341, 534)
●PCS (Pre-Collision System)*
●LTA (Lane Tracing Assist)*
●AHB (Automatic High Beam)*
●RSA (Road Sign Assist)*
●Dynamic radar cruise control with full-
speed range*
*: If equipped
■If a message that indicates the mal- function of radar sensor is dis-
played
The following systems may be sus- pended until the problem shown in the
message is resolved. ( P.341, 534)
●PCS (Pre-Collision System)*
●LTA (Lane Tracing Assist)*
●Dynamic radar cruise control with full-
speed range*
*: If equipped
■If “Radar Cruise Control Temporar- ily Unavailable See Owner’s Man-
ual” is shown
The dynamic radar cruise control with full-speed range system (if equipped) is
suspended temporarily or until the prob- lem shown in the message is resolved. (causes and coping methods: P.341)
■If “Radar Cruise Control Unavail-
able” is shown
The dynamic radar cruise control with full-speed range system (if equipped)
cannot be used temporarily. Use the system when it becomes available again.
■Warning buzzer
 P.542
WARNING
■If a warning light comes on or a warning buzzer sounds when a
warning message is shown on the multi-information display
 P.543
NOTICE
■“High Power Consumption Par- tial Limit On AC/Heater Opera-
tion” is frequently shown
There is a possible malfunction relat- ing to the charging system or the 12-
volt battery may be deteriorating. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■If “Maintenance Reqd. For Trac-tion Battery At Your Dealer” is
shown
The hybrid battery (traction battery) is scheduled to be inspected or
replaced. Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer immediately.
●Continuing to drive the vehicle with- out having the hybrid battery (trac-
tion battery) inspected will cause the hybrid system not to start.
●If the hybrid system does not start, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately.

5548-2. Steps to take in an emergency

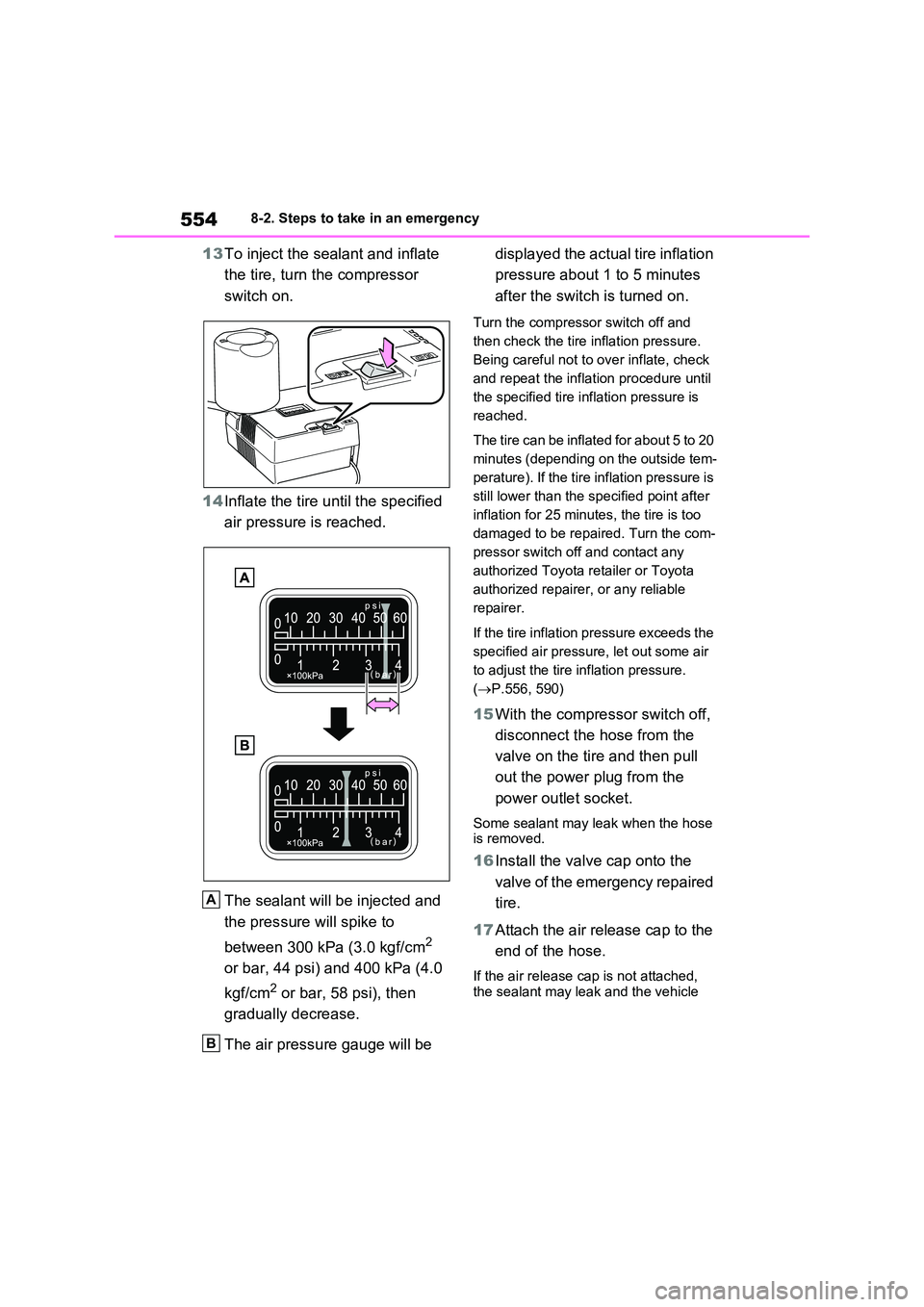

13To inject the sealant and inflate
the tire, turn the compressor
switch on.
14 Inflate the tire until the specified
air pressure is reached.
The sealant will be injected and
the pressure will spike to
between 300 kPa (3.0 kgf/cm2
or bar, 44 psi) and 400 kPa (4.0
kgf/cm2 or bar, 58 psi), then
gradually decrease.
The air pressure gauge will be
displayed the actual tire inflation
pressure about 1 to 5 minutes
after the switch is turned on.
Turn the compressor switch off and
then check the tire inflation pressure.
Being careful not to over inflate, check
and repeat the inflation procedure until
the specified tire inflation pressure is
reached.
The tire can be inflated for about 5 to 20
minutes (depending on the outside tem-
perature). If the tire inflation pressure is
still lower than the specified point after
inflation for 25 minutes, the tire is too
damaged to be repaired. Turn the com-
pressor switch off and contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
If the tire inflation pressure exceeds the
specified air pressure, let out some air
to adjust the tire inflation pressure.
( P.556, 590)
15With the compressor switch off,
disconnect the hose from the
valve on the tire and then pull
out the power plug from the
power outlet socket.
Some sealant may leak when the hose is removed.
16 Install the valve cap onto the
valve of the emergency repaired
tire.
17 Attach the air release cap to the
end of the hose.
If the air release cap is not attached, the sealant may leak and the vehicle
A
B

5728-2. Steps to take in an emergency

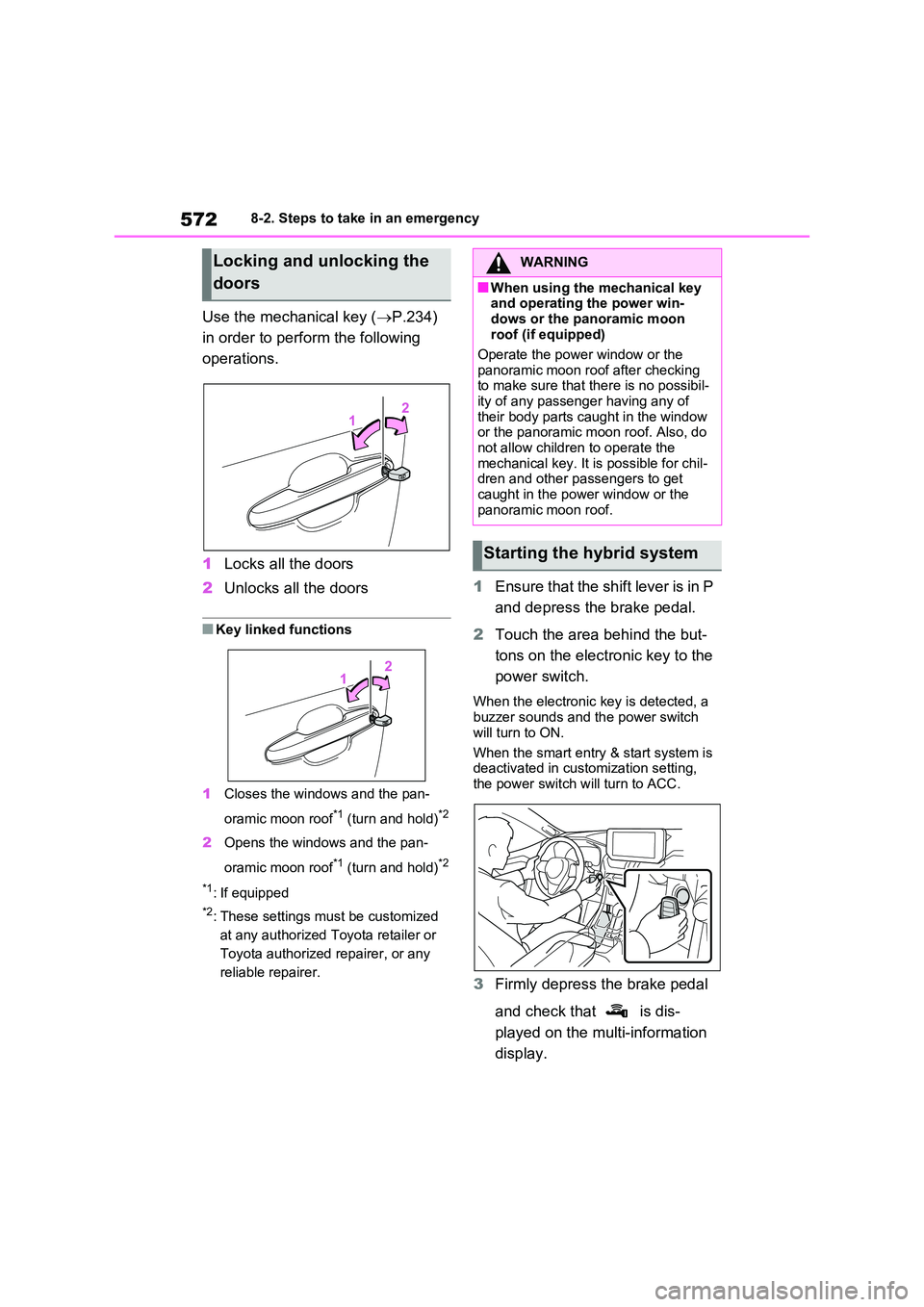

Use the mechanical key (P.234)
in order to perform the following
operations.
1 Locks all the doors
2 Unlocks all the doors
■Key linked functions
1 Closes the windows and the pan-
oramic moon roof*1 (turn and hold)*2
2 Opens the windows and the pan-
oramic moon roof*1 (turn and hold)*2
*1: If equipped
*2: These settings must be customized
at any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
1 Ensure that the shift lever is in P
and depress the brake pedal.
2 Touch the area behind the but-
tons on the electronic key to the
power switch.
When the electronic key is detected, a buzzer sounds and the power switch
will turn to ON.
When the smart entry & start system is deactivated in customization setting,
the power switch will turn to ACC.
3 Firmly depress the brake pedal
and check that is dis-
played on the multi-information
display.
Locking and unlocking the
doors
WARNING
■When using the mechanical key and operating the power win-
dows or the panoramic moon roof (if equipped)
Operate the power window or the
panoramic moon roof after checking to make sure that there is no possibil-ity of any passenger having any of
their body parts caught in the window or the panoramic moon roof. Also, do not allow children to operate the
mechanical key. It is possible for chil- dren and other passengers to get caught in the power window or the
panoramic moon roof.
Starting the hybrid system

5788-2. Steps to take in an emergency
■If the high coolant temperature
warning light comes on,
flashes or “Engine Coolant
Temp High Stop in a Safe
Place See Owner’s Manual” is
shown on the multi-informa-
tion display
1 Stop the vehicle in a safe place
and turn off the air conditioning
system, and then stop the hybrid
system.
2 If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.
NOTICE
■When handling jumper cables
When connecting the jumper cables,
ensure that they do not become entangled in the cooling fan, etc.
■To prevent damaging the vehicle
The exclusive jump starting terminal is to be used when charging the 12-
volt battery from another vehicle in an emergency. It cannot be used to jump start another vehicle.
If your vehicle overheats
The following may indicate that
your vehicle is overheating.
 The high coolant temperature
warning light ( P.183) comes
on or flashes, or a loss of
hybrid system power is experi-
enced. (For example, the vehi-
cle speed does not increase.)
 “Engine Coolant Temp High
Stop in a Safe Place See
Owner’s Manual” or “Hybrid
System Overheated Output
Power Reduced” is shown on
the multi-information display.
 Steam comes out from under
the hood.
Correction procedures

5808-2. Steps to take in an emergency
8Check if “Engine Coolant Temp
High Stop in a Safe Place See
Owner’s Manual” is shown on
the multi-information display.
If the message does not disap-
pear:
Stop the hybrid system and con-
tact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
If the message is not displayed:
Have the vehicle inspected at
the nearest authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
■If “Hybrid System Overheated
Output Power Reduced” is
shown on the multi-informa-
tion display
1 Stop the vehicle in a safe place.
2 Stop the hybrid system and
carefully lift the hood.
3 After the hybrid system has
cooled down, inspect the hoses
and radiator core (radiator) for
any leaks.
Radiator
Cooling fan
If a large amount of coolant leaks,
immediately contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
4 The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
5 Add coolant if necessary.
Water can be used in an emergency if power control unit coolant is unavail-able.
If water was added in an emergency, have the vehicle inspected at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer as soon as possible.
6 After stopping the hybrid system
and waiting for 5 minutes or
more, start the hybrid system
A
B
A
B
C

581
8
8-2. Steps to take in an emergency
When trouble arises
again and check the multi-infor-
mation display.
If the message does not disappear:
Stop the hybrid system and contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer. If the message is not displayed: The hybrid system temperature has
dropped and the vehicle may be driven normally. However, if the message appears again
frequently, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under
the hood, do not open the hood until the steam has subsided. The engine compartment may be very
hot.
●After the hybrid system has been
turned off, check that the “READY” indicator is off.When the hybrid system is operat-
ing, the gasoline engine may auto- matically start, or the cooling fan may suddenly operate even if the
gasoline engine stops. Do not touch or approach rotating parts such as the fan, which may lead to fingers
or clothing (especially a tie, a scarf or a muffler) getting caught, result-ing in serious injury.
●Do not loosen the coolant reservoir cap while the hybrid system and
radiator are hot. High temperature steam or coolant could spray out.
NOTICE
■When adding engine/power con-trol unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool coolant to a hot hybrid
system too quickly can cause dam- age to the hybrid system.
■To prevent damage to the cool-ing system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust, etc.).
●Do not use any coolant additive.

5889-1. Specifications
in cold weather.
• The 16 in 0W-16 indicates the
viscosity characteristic of the oil
when the oil is at high tempera-
ture. An oil with a higher viscos-
ity (one with a higher value) may
be better suited if the vehicle is
operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-16” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certi-
fication Mark is displayed on the front of
the container.
*: The coolant capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
A
B
Cooling system
Capacity*
Gasoline
engine7.4 L (7.8 qt., 6.5 Imp. qt.)
Power con-
trol unit2.0 L (2.1 qt., 1.8 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.

5949-2. Customization
9-2.Customiz ation
■Changing using the Multime-
dia Display
1Select on the main menu.
2Select “Vehicle customize”.
3Select the item to change the
settings of from the list.
Various setting can be changed.
Refer to the list of settings that can
be changed for details.
For functions that can be turned
on/off, select (ON)/
(OFF).
The settings, such as the volume
and sensor sensitivity can be
changed by dragging the round
icon on the display.
■Changing using the multi-
information display (with 7-
inch display)
1Press or of the meter
control switches and select .
2Press or of the meter
control switches, select the item.
3To switch the function on and
off, press to switch to the
desired setting.
4To perform detailed setting of
functions that support detailed
settings, press and hold and
display the setting screen.
The method of performing detailed set-
ting differs for each screen. Please
refer to the advice sentence displayed
on the screen.
To go back to the previous screen or
exit the customize mode, press .
■Changing using the multi-
information display (with 12.3-
inch display)
1Press and hold to display
the cursor on the content display
area (center) of the multi-infor-
mation display.
2Press or of the meter
control switches to select
and then press .
3Press or of the meter
control switches, select the item.
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, navigation/multimedia
system, or at any authorized
Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Customizing vehicle fea-
tures

595
9
9-2. Customization
Vehicle specifications
4 To switch the function on and
off, press to switch to the
desired setting.
5 To perform detailed setting of
functions that support detailed
settings, press and hold and
display the setting screen.
The method of performing detailed set- ting differs for each screen. Please refer to the advice sentence displayed
on the screen.
To go back to the previous screen or
exit the customize mode, press .
■When customizing using the navi-
gation/multimedia system or multi- information display
Stop the vehicle in a safe place, apply
the parking brake, and shift the shift lever to P. Also, to prevent 12-volt bat-
tery discharge, leave the hybrid system
operating while customizing the fea- tures.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer for further details.
Vehicles with navigation system or multimedia system: Settings that can
be changed using the navigation system or multimedia system
Settings that can be changed using the multi-information display
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, – =Not available
■Predictive efficient drive* ( P.93)
*: If equipped
WARNING
■During customization
As the hybrid system needs to be operating during customization, ensure that the vehicle is parked in a
place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful car-
bon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge,
ensure that the hybrid system is oper- ating while customizing features.
Customizable Features
FunctionDefault
setting
Customized
setting
Predictive efficient driveOnOffO––
A
B
C
ABC

5969-2. Customization
■Alarm* (P.79)
*: If equipped
■Charging system (P.125, 127)
*: Vehicles with 7 kW onboard traction battery charger only
■Gauges, meters and multi-information display (with 7-inch display)
(P.199)
FunctionDefault
settingCustomized
setting
Sensitivity adjustment of the
intrusion sensor when the win-
dow is open
*StandardLow––O
Deactivates the alarm when the
doors are unlocked using the
mechanical key
OffOn––O
FunctionDefault
settingCustomized
setting
“Charging Current”MAX8A–O–16A*
“Battery Heater”OnOff–O–
“Battery Cooler”OnOff–O–
Function*1Default
settingCustomized
setting
Language*2“English”
(English)Except English*3–O–
Units*2km (L/100km,
kWh/100km)
km (km/L,
km/kWh)
–O–miles (MPG,
miles/kWh)
*4
Speedometer displayAnalogDigital–O–
EV indicatorOnOff–O–
“Eco Guidance” (ECO Accelera-
tor Guidance)OnOff–O–
ABC
ABC
ABC
