9 9-2. Customization
Vehicle specifications
*1: For details about each function: P.206
*2: The default setting varies according to country.
*3: Available languages may differ depending on the target region.
*4: If equipped
*5: This can only be set if GPS calibration of clock is turned off in the multimedia sys-
tem settings.
“Fuel Economy”“Total Average”“Trip Average”–O–“Tank Average”
“Power Consumption”“Total Average”“Trip Average”–O–
Audio system linked displayOnOff–O–
Energy monitorOnOff–O–
AWD system displayOnOff–O–
Drive information typeTripTotal–O–
Drive information items (first
item)DistanceAverage Speed–O–Total Time
Drive information items (second
item)Total TimeAverage Speed–O–Distance
“Closing Display”“Drive Info”
“ECO Score”
–O–“Charging
Schedule”
Pop-up displayOnOff–O–
Calendar*5–––O–
Multi-Information display offOffOn–O–
Convenience Services (Sugges-
tion function)On
On (when the
vehicle is
stopped)
O–O
Off
Function*1Default
settingCustomized
settingABC

5989-2. Customization

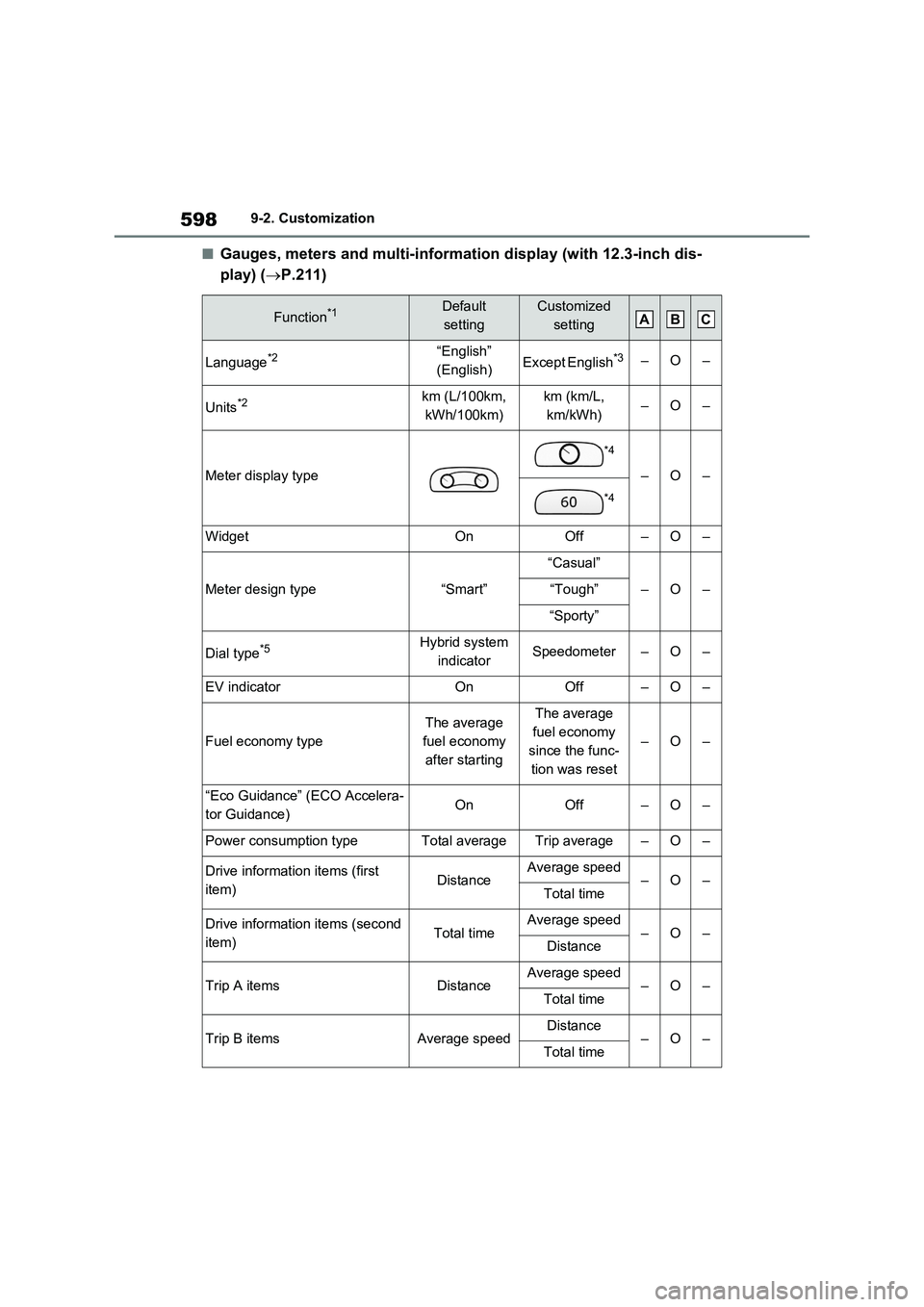

■Gauges, meters and multi-information display (with 12.3-inch dis-
play) (P.211)
Function*1Default
settingCustomized
setting
Language*2“English”
(English)Except English*3 –O–
Units*2km (L/100km,
kWh/100km)km (km/L,
km/kWh)–O–
Meter display type
*4
–O–
*4
WidgetOnOff–O–
Meter design type“Smart”
“Casual”
–O–“Tough”
“Sporty”
Dial type*5Hybrid system
indicatorSpeedometer–O–
EV indicatorOnOff–O–
Fuel economy type
The average
fuel economy
after startingThe average
fuel economy
since the func-
tion was reset
–O–
“Eco Guidance” (ECO Accelera-
tor Guidance)OnOff–O–
Power consumption typeTotal averageTrip average–O–
Drive information items (first
item)DistanceAverage speed–O–Total time
Drive information items (second
item)Total timeAverage speed–O–Distance
Trip A itemsDistanceAverage speed–O–Total time
Trip B itemsAverage speedDistance–O–Total time
ABC

599
9 9-2. Customization
Vehicle specifications
*1: For details about each function: P.217
*2: The default setting varies according to country.
*3: Available languages may differ depending on the target region.
*4: The on/off operation of the widget can be changed.
*5: The setting may not be changed depending on currently selected meter type.
*6: This can only be set if GPS calibration of clock is turned off in the multimedia sys-
tem settings.
■Head-up display*1 (P.222)
*1: If equipped
*2: For details about each function: P.223
Pop-up displayOnOff–O–
Calendar*6–––O–
Adjust meter brightnessStandardUser setting–O–
Convenience Services (Sugges-
tion function)On
On (when the
vehicle is
stopped)
O–O
Off
Function*2Default
settingCustomized
setting
Head-up displayOnOff–O–
Gauge informationHybrid System
IndicatorTachometer–O–No content
Route guidance to destina-
tion/street name
*1OnOff–O–
Driving support system informa-
tion displayOnOff–O–
Compass*1OnOff–O–
Audio system operation status*1OnOff–O–
Function*1Default
settingCustomized
settingABC
ABC

605
9 9-2. Customization
Vehicle specifications
■LTA (Lane Tracing Assist)* (P.353)
*: If equipped
■RSA (Road Sign Assist)*1 (P.364)
*1: If equipped
*2: The system is automatically enabled each time the power switch is turned to ON.
*3: If a Speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with navigation system
■Dynamic radar cruise control with full-speed range* (P.368)
*: If equipped
FunctionCustomized setting
Lane centering functionOn, Off–O–
Alert typeSteering wheel vibration, Buzzer–O–
Alert sensitivityHigh, Standard–O–
Vehicle sway warning functionOn, Off–O–
Vehicle sway warning sensitivityHigh, Standard, Low–O–
FunctionCustomized setting
RSA (Road Sign Assist)*2On, Off–O–
Excess speed notification
method
*3No notification, Display only, Dis-
play and buzzer–O–
Excess speed notification level2 km/h (1 mph), 5 km/h (3 mph),
10 km/h (5 mph)–O–
No overtaking notification
methodNo notification, Display only, Dis-
play and steering wheel vibration–O–
Other notifications method (No-
entry notification)
*4No notification, Display only, Dis-
play and buzzer–O–
FunctionCustomized setting
Dynamic Radar Cruise Control
with Road Sign Assist
*On, Off–O–
Curve speed reduction functionHigh/Low/Off–O–
ABC
ABC
ABC

613What to do if... (Troubleshooting)
can be started in a temporary
way. ( P.572)
 Is the 12-volt battery dis-
charged? ( P.573)
 Is the power switch in ON? If you
cannot release the shift lever by
depressing the brake pedal with
the power switch in ON.
( P.316)
 It is locked automatically to pre-
vent theft of the vehicle.
( P.311)
 Is the window lock switch
pressed?
The power window except for the
one at the driver’s seat cannot
be operated if the window lock
switch is pressed. ( P.281)
 The auto power off function will
be operated if the vehicle is left
in ACC or ON (the hybrid system
is not operating) for a period of
time. ( P.313)
 The seat belt reminder light is
flashing
Are the driver and the passengers
wearing the seat belts? ( P.541, 542)
The parking brake indicator is on
Is the parking brake released?
( P.320)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.534, 544)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the
alarm sounds. ( P.79)
To stop the alarm, turn the power
switch to ON or start the hybrid system.
 Is the message displayed on the
multi-information display?
Check the message on the multi-
information display. ( P.544)
The shift lever cannot be
shifted from P even if you
depress the brake pedal
The steering wheel cannot
be turned after the hybrid
system is stopped (vehicles
with steering lock function)
The windows do not open or
close by operating the
power window switches
The power switch is turned
off automatically
A warning buzzer sounds
during driving
An alarm is activated and the
horn sounds (if equipped)
A warning buzzer sounds
when leaving the vehicle

614What to do if... (Troubleshooting)

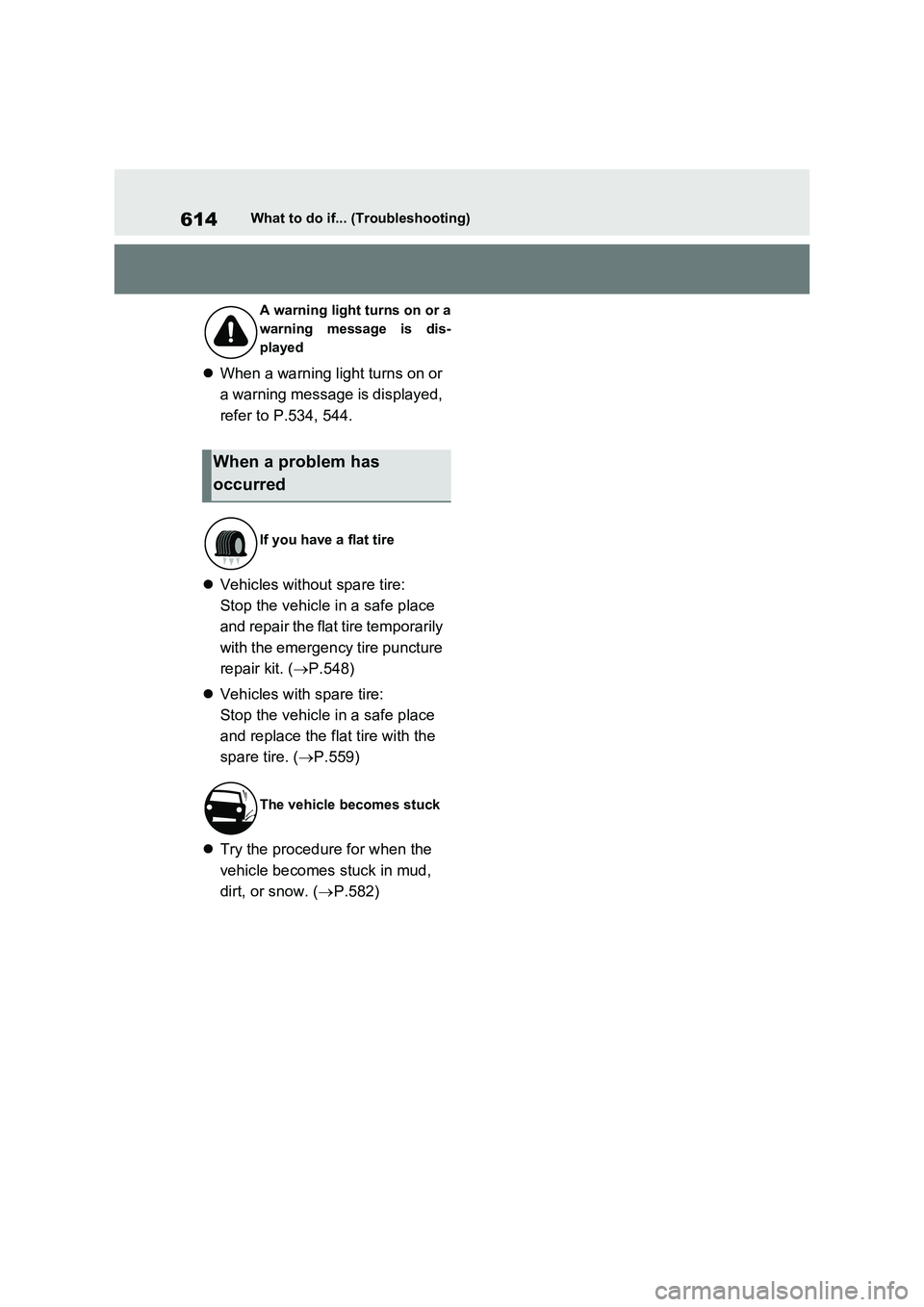

When a warning light turns on or
a warning message is displayed,
refer to P.534, 544.
Vehicles without spare tire:
Stop the vehicle in a safe place
and repair the flat tire temporarily
with the emergency tire puncture
repair kit. (P.548)
Vehicles with spare tire:
Stop the vehicle in a safe place
and replace the flat tire with the
spare tire. (P.559)
Try the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. (P.582)
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire
The vehicle becomes stuck

615Alphabetical Index
Alphabetical Index
A
A/C
“My Room Mode” ....................... 164
Air conditioning filter................... 500
Automatic air conditioning system
................................................. 430
Blower customization ................. 432
Front seat concentrated airflow
mode (S-FLOW) ...................... 435
Humidity sensor ......................... 437
Remote Air Conditioning System438
ABS (Anti-lock Brake System) .... 415
Function ..................................... 415
Warning light .............................. 536
ACA (Active Cornering Assist).... 416
AC charging cable ........................ 109
AC charging cable types ............ 111
CCID (Charging Circuit Interrupting
Device) .................................... 110
If the charging connector cannot be
unlocked .................................. 123
Indicator ..................................... 114
Locking and unlocking ............... 122
Maintenance .............................. 117
Replacing the plug-cord ............. 115
Safety functions ......................... 113
Acoustic Vehicle Alerting System 92
Active Cornering Assist (ACA).... 416
Airbag manual on-off system ........ 48
Airbags ............................................ 39
Airbag manual on-off system ....... 48
Airbag operating conditions ......... 41
Airbag precautions for your child . 44
Airbag warning light ................... 536
Correct driving posture................. 33
Curtain shield airbag operating con-
ditions ........................................ 41
Curtain shield airbag precautions 44
General airbag precautions.......... 44
Locations of airbags ..................... 39Modification and disposal of airbags
................................................... 46
Side airbag operating conditions .. 41
Side airbag precautions ............... 44
Side and curtain shield airbags oper-
ating conditions .......................... 41
Side and curtain shield airbags pre-
cautions...................................... 44
SRS airbags ................................. 39
SRS warning light.......................536
Air conditioning filter ................... 500
Air conditioning system
“My Room Mode” .......................164
Air conditioning filter ................... 500
Automatic air conditioning system
................................................. 430
Blower customization ................. 432
Front seat concentrated airflow
mode (S-FLOW).......................435
Humidity sensor ......................... 437
Remote Air Conditioning System438
Air intake vent (DC/DC converter) . 99
Cleaning ..................................... 504
Alarm................................................79
Warning buzzer .......................... 534
Antenna
Smart entry & start system ......... 253
Anti-lock brake system (ABS) ..... 415
Function ..................................... 415
Warning light .............................. 536
Approach warning ........................ 375
Armrest .......................................... 462
Ashtray .......................................... 453
Assist grips ...................................462
Audio system-linked display204, 216
AUTO EV/HV mode .........................85
AUTO EV/HV mode switch ............. 86
Automatic air conditioning system
..................................................... 430
“My Room Mode” .......................164
Air conditioning filter ................... 500

617Alphabetical Index
out ............................................ 167
Charging port ................................ 106
If the charging port lid does not open
................................................. 121
Locking and unlocking ............... 121
Opening and closing .................. 107
Child-protector.............................. 239
Child restraint system .................... 50
Child restraint system installation
method....................................... 60
Fixed with a seat belt ................... 61
Fixed with an ISOFIX lower anchor-
age ............................................. 63
Points to remember...................... 51
Riding with children ...................... 49
Using a top tether anchorage....... 64
Child safety ..................................... 49
12-volt battery precautions. 485, 577
Airbag precautions ....................... 44
Back door precautions ............... 240
Charging precautions ................. 132
Heated steering wheel and seat
heater precautions ................... 440
How your child should wear the seat
belt ............................................. 36
Panoramic moon roof precautions
................................................. 284
Power window lock switch ......... 281
Power window precautions ........ 280
Rear door child-protectors ......... 239
Seat belt precautions ................... 35
Seat heater precautions ............. 440
Cleaning ................................ 466, 469
Aluminum wheels ....................... 466
DC/DC Converter air intake vent 504
Exterior....................................... 466
Front camera.............................. 339
Interior ........................................ 469
Radar sensor ............................. 339
Seat belts ................................... 469
Water-repellent coating .............. 467Clock ......................................192, 193
Coat hooks .................................... 463
Condenser ..................................... 482
Console box .................................. 446
Consumption screen .................... 226
Convenience Services (Suggestion
function) ...................... 209, 221, 596
Coolant
Capacity ..................................... 588
Checking .................................... 481
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
Cooling system .............................481
Engine overheating .................... 578
Hybrid system overheating......... 580
Cruise control
Cruise control .............................381
Dynamic radar cruise control with
full-speed range .......................368
Cup holders ...................................447
Current fuel economy... 201, 213, 216
Curtain shield airbags ....................39
Customizable features ................. 594
D
Daytime running light system ..... 326
Replacing light bulbs ..................516
DC/DC converter air intake vent .... 99
Cleaning ..................................... 504
Deck board .................................... 449
Deck under tray.............................450
Defogger
Outside rear view mirrors ........... 432
Rear window .............................. 432
Windshield.................................. 431
Digital Rear-view Mirror ............... 268
Dimensions ...................................584
Display
BSM (Blind Spot Monitor)........... 387
Consumption screen ..................226

618Alphabetical Index
Cruise control ............................. 381
Drive information ................ 204, 216
Driving information ............. 201, 216
Dynamic radar cruise control with
full-speed range ....................... 368
Energy monitor........................... 226
Head-up display ......................... 222
LTA (Lane-Tracing Assist) ......... 359
Multi-information display .... 199, 211
Parking Support Brake function . 405
Pre-collision warning .................. 343
RCTA ......................................... 387
RSA (Road Sign Assist) ............. 365
Toyota parking assist-sensor ..... 395
Warning messages .................... 544
Do-it-yourself maintenance . 472, 474
Door lock
Back door ................................... 240
Side doors .................................. 235
Smart entry & start system......... 253
Wireless remote control ............. 233
Doors
Automatic door locking and unlock-
ing system ............................... 239
Back door ................................... 240
Door glasses .............................. 279
Door lock .................................... 235
Open door warning buzzer......... 238
Outside rear view mirrors ........... 277
Rear door child-protectors ......... 239
Side doors .................................. 235
Double locking system .................. 78
Drive information .................. 204, 216
Driver’s seat belt reminder light.. 541
Driver’s seat position memory .... 261
Driving position memory ............ 261
Memory recall function ............... 262
Drive-Start Control (DSC)
Sudden start restraint control ..... 294
Driving
Break-in tips ............................... 289Correct posture ............................ 33
Driving mode select switch......... 411
Plug in Hybrid Electric Vehicle ... 100
Procedures ................................. 288
Winter drive tips ......................... 422
Driving information display . 201, 212
Driving mode select switch ......... 411
Driving position memory ............. 261
Memory recall function ............... 262
Driving support system information
display ................................. 204, 216
DSC (Drive-Start Control)
Sudden start restraint control ..... 294
Dynamic radar cruise control with
full-speed range
Function ..................................... 368
Warning message ...................... 544
E
eCall ................................................. 66
ECB (Electronically Controlled Brake
System) ....................................... 415
Eco drive mode .............................411
E-Four (Electronic On-Demand AWD
system) ........................................416
Elapsed time.......................... 204, 216
Electric motor
Location........................................ 84
Specification ............................... 586
Electric Power Steering (EPS)
Function ..................................... 416
Warning light .............................. 536
Electronically Controlled Brake Sys-
tem (ECB) .................................... 415
Electronic key
Battery-saving function............... 254
If the electronic key does not operate
properly .................................... 571
Replacing the battery ................. 511
Electronic sunshade..................... 282
Jam protection function .............. 283

619Alphabetical Index
Operation ................................... 282
Emergency, in case of
If a warning buzzer sounds ........ 534
If a warning light turns on ........... 534
If a warning message is displayed
................................................. 544
If the 12-volt battery is discharged
................................................. 573
If the electronic key does not operate
properly.................................... 571
If the fuel filler door cannot be
opened..................................... 570
If the hybrid system will not start 568
If the vehicle is submerged or water
on the road is rising ................. 527
If you have a flat tire........... 548, 559
If you lose your keys .................. 570
If you think something is wrong.. 532
If your vehicle becomes stuck .... 582
If your vehicle has to be stopped in
an emergency .......................... 526
If your vehicle needs to be towed
................................................. 529
If your vehicle overheats ............ 578
Emergency brake signal .............. 416
Emergency flashers ..................... 526
Emergency tire puncture repair kit
..................................................... 548
Energy monitor ............................. 226
Engine
Compartment ............................. 479
Exhaust gas precautions.............. 47
Hood .......................................... 476
How to start the hybrid system... 310
Identification number.................. 585
If the hybrid system will not start 568
If your vehicle has to be stopped in
an emergency .......................... 526
Overheating ............................... 578
Power switch .............................. 310
Engine coolantCapacity ..................................... 588
Checking .................................... 481
High coolant temperature warning
light .......................................... 535
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
Engine coolant temperature 187, 193
Engine oil
Capacity ..................................... 587
Checking .................................... 479
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
EPS (Electric Power Steering)
Function ..................................... 416
Warning light .............................. 536
EV/HV mode selection switch........ 86
EV driving range ........................... 103
EV mode ..........................................85
Exhaust gas precautions ............... 47
Extended Headlight Lighting system
..................................................... 327
F
Flat tire ................................... 548, 559
Tire pressure warning system .... 488
Floor mats ....................................... 32
Fluid
Brake .......................................... 590
Hybrid transmission.................... 589
Rear differential .......................... 589
Washer ....................................... 483
Fog lights
Replacing light bulbs ..................516
Switch......................................... 331
Footwell lights............................... 443
Front fog lights
Replacing light bulbs ..................516
Switch......................................... 331
Front passenger’s seat belt reminder
