13Pictorial index
Precautions against winter season ................................................. P.422
To prevent freezing (windshield wiper de-icer)
*1............................. P.435
Precautions against car wash ......................................................... P.467
Replacing the wiper insert............................................................... P.508
Fuel filler door ............................................................................... P.336
Refueling method ............................................................................ P.336
Fuel type/fuel tank capacity ............................................................ P.586
Charging port ................................................................................ P.106
Charging method ............................................................................ P.127
Tires ............................................................................................... P.487
Tire size/inflation pressure .............................................................. P.590
Winter tires/tire chain ...................................................................... P.422
Checking/rotation/tire pressure warning system ............................. P.487
Coping with flat tires................................................................ P.548, 559
Hood ............................................................................................... P.476
Opening .......................................................................................... P.476
Engine oil ........................................................................................ P.587
Coping with overheat ...................................................................... P.578
Warning messages ......................................................................... P.544
Headlights/front position lights/daytime running lights ........... P.326
Turn signal lights .......................................................................... P.319
Front fog lights.............................................................................. P.331
Stop lights/tail lights..................................................................... P.326
Tail lights ....................................................................................... P.326
Back-up lights
Shifting the shift lever to R .............................................................. P.315
Light bulbs of the exterior lights for driving
(Replacing method: P.516, Watts: P.591)
E
F
G
H
I
J
K
L
M

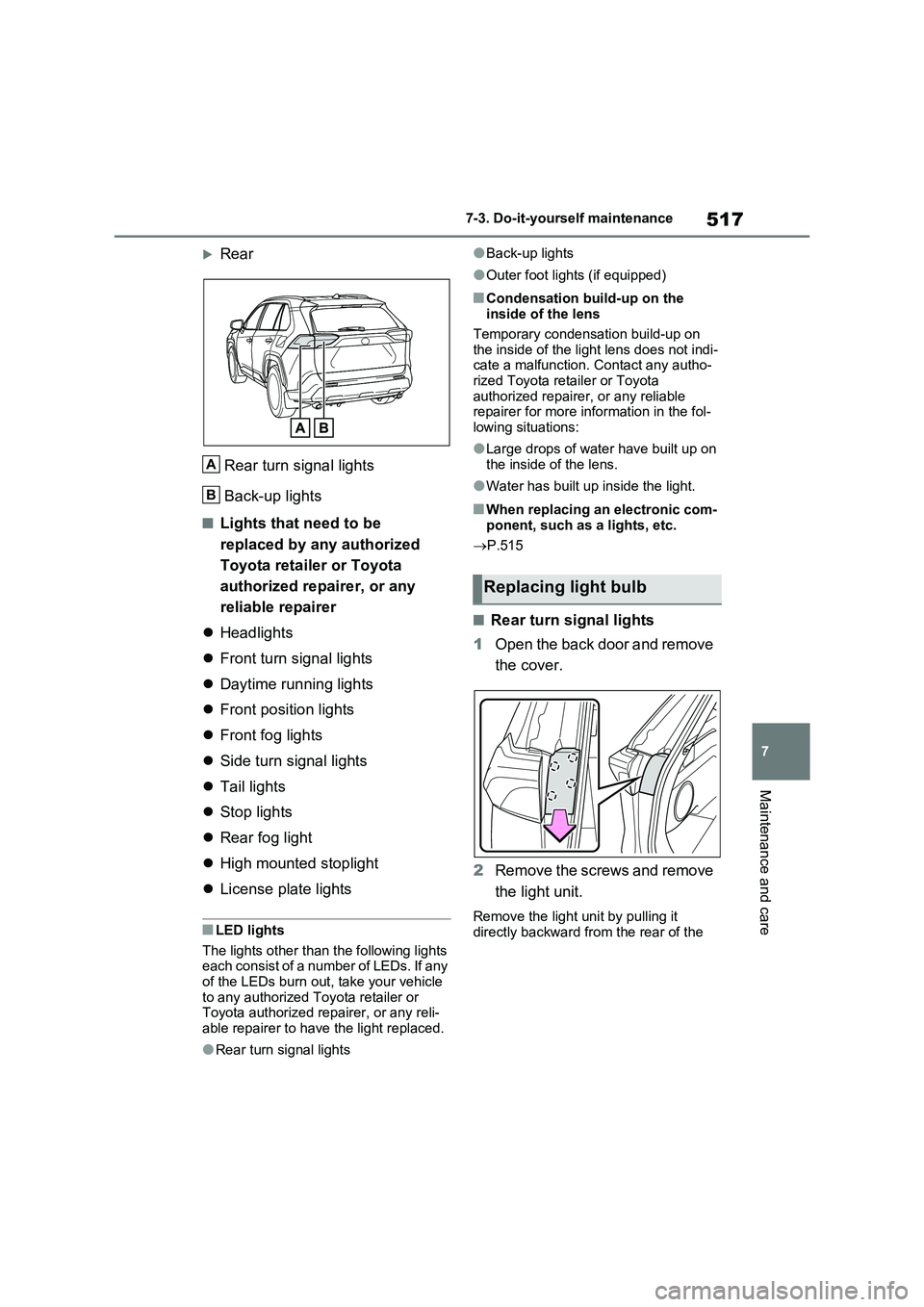

517
7
7-3. Do-it-yourself maintenance
Maintenance and care
Rear
Rear turn signal lights
Back-up lights
■Lights that need to be
replaced by any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer
 Headlights
 Front turn signal lights
 Daytime running lights
 Front position lights
 Front fog lights
 Side turn signal lights
 Tail lights
 Stop lights
 Rear fog light
 High mounted stoplight
 License plate lights
■LED lights
The lights other than the following lights each consist of a number of LEDs. If any of the LEDs burn out, take your vehicle
to any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer to have the light replaced.
●Rear turn signal lights
●Back-up lights
●Outer foot lights (if equipped)
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the light lens does not indi-cate a malfunction. Contact any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer for more information in the fol-
lowing situations:
●Large drops of water have built up on
the inside of the lens.
●Water has built up inside the light.
■When replacing an electronic com-
ponent, such as a lights, etc.
 P.515
■Rear turn signal lights
1 Open the back door and remove
the cover.
2 Remove the screws and remove
the light unit.
Remove the light unit by pulling it
directly backward from the rear of the
A
B
Replacing light bulb

616Alphabetical Index
Blower customization ................. 432
Front seat concentrated airflow
mode (S-FLOW) ...................... 435
Humidity sensor ......................... 437
Remote Air Conditioning System438
Automatic headlight leveling system
..................................................... 327
Automatic High Beam (AHB) ....... 328
Automatic light control system ... 326
Auxiliary box ................................. 448
Average fuel economy . 201, 213, 216
Average vehicle speed ......... 204, 216
B
Back door ...................................... 240
Hands Free Power Back Door ... 244
Power back door ........................ 243
Wireless remote control ............. 243
Back-up lights
Replacing light bulbs .................. 516
Wattage...................................... 591
Battery (12-volt battery) ............... 484
If the 12-volt battery is discharged
................................................. 573
Preparing and checking before win-
ter ............................................ 422
Replacing ................................... 576
Warning light .............................. 535
Battery (traction battery)................ 95
Charging ............................ 127, 135
Location ....................................... 95
Specification............................... 586
Blind Spot Monitor (BSM) ............ 386
Blind Spot Monitor function ........ 389
Rear Crossing Traffic Alert function
................................................. 391
Bottle holders ............................... 447
Brake
Brake Hold ................................. 323
Parking brake ............................. 320
Regenerative braking ................... 90Warning light .............................. 534
Brake assist...................................415
Brake Hold ..................................... 323
Brake Override System ................ 289
Break-in tips .................................. 289
BSM (Blind Spot Monitor) ............386
Blind Spot Monitor function ........ 389
Rear Crossing Traffic Alert function
................................................. 391
C
Card holder.................................... 448
Care
Aluminum wheels .......................466
Exterior ....................................... 466
Front camera .............................. 339
Interior ........................................469
Radar sensor.............................. 339
Seat belts ...................................469
Water-repellent coating .............. 467
Cargo hooks .................................. 449
Chains ............................................ 424
Charging
“My Room Mode” .......................164
AC charging cable ...................... 109
Charging equipment ................... 106
Charging indicator ...................... 107
Charging messages ................... 172
Charging procedure ................... 135
Charging schedule function........ 144
Charging time may increase ...... 134
High voltage components............. 95
How to charge ............................ 135
Information related to charging dis-
play .......................................... 131
Opening and closing the charging
port lid ...................................... 107
Power sources precautions ........ 126
Power sources that can be used 124
Safety functions.......................... 132
When charging cannot be carried

619Alphabetical Index
Operation ................................... 282
Emergency, in case of
If a warning buzzer sounds ........ 534
If a warning light turns on ........... 534
If a warning message is displayed
................................................. 544
If the 12-volt battery is discharged
................................................. 573
If the electronic key does not operate
properly.................................... 571
If the fuel filler door cannot be
opened..................................... 570
If the hybrid system will not start 568
If the vehicle is submerged or water
on the road is rising ................. 527
If you have a flat tire........... 548, 559
If you lose your keys .................. 570
If you think something is wrong.. 532
If your vehicle becomes stuck .... 582
If your vehicle has to be stopped in
an emergency .......................... 526
If your vehicle needs to be towed
................................................. 529
If your vehicle overheats ............ 578
Emergency brake signal .............. 416
Emergency flashers ..................... 526
Emergency tire puncture repair kit
..................................................... 548
Energy monitor ............................. 226
Engine
Compartment ............................. 479
Exhaust gas precautions.............. 47
Hood .......................................... 476
How to start the hybrid system... 310
Identification number.................. 585
If the hybrid system will not start 568
If your vehicle has to be stopped in
an emergency .......................... 526
Overheating ............................... 578
Power switch .............................. 310
Engine coolantCapacity ..................................... 588
Checking .................................... 481
High coolant temperature warning
light .......................................... 535
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
Engine coolant temperature 187, 193
Engine oil
Capacity ..................................... 587
Checking .................................... 479
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
EPS (Electric Power Steering)
Function ..................................... 416
Warning light .............................. 536
EV/HV mode selection switch........ 86
EV driving range ........................... 103
EV mode ..........................................85
Exhaust gas precautions ............... 47
Extended Headlight Lighting system
..................................................... 327
F
Flat tire ................................... 548, 559
Tire pressure warning system .... 488
Floor mats ....................................... 32
Fluid
Brake .......................................... 590
Hybrid transmission.................... 589
Rear differential .......................... 589
Washer ....................................... 483
Fog lights
Replacing light bulbs ..................516
Switch......................................... 331
Footwell lights............................... 443
Front fog lights
Replacing light bulbs ..................516
Switch......................................... 331
Front passenger’s seat belt reminder

620Alphabetical Index
light.............................................. 541
Front position lights
Light switch ................................ 326
Replacing light bulbs .................. 516
Front seat concentrated airflow
mode (S-FLOW) .......................... 435
Front seat heaters ........................ 440
Front seats .................................... 258
Adjustment ................................. 258
Cleaning ..................................... 469
Correct driving posture................. 33
Driving position memory ............ 261
Head restraints........................... 264
Memory recall function ............... 262
Seat heaters............................... 440
Seat position memory ................ 261
Seat ventilators .......................... 440
Front turn signal lights
Replacing light bulbs .................. 516
Turn signal lever ........................ 319
Fuel
Capacity ..................................... 586
Fuel gauge ......................... 187, 193
Gas station information .............. 716
Information ................................. 592
Refueling .................................... 336
Type ........................................... 586
Warning light .............................. 541
Fuel filler door .............................. 337
If the fuel filler door cannot be
opened..................................... 570
Opener ....................................... 337
Refueling .................................... 336
Fuel gauge ............................ 187, 193
Fuses ............................................. 513
G
Gas station information ............... 716
Gauges .................................. 187, 193
Glove box ...................................... 446
GPF (Gasoline Particulate Filter) system ......................................... 414
H
Headlight cleaner .......................... 332
Headlights ..................................... 326
Automatic headlight leveling ...... 327
Automatic High Beam (AHB)...... 328
Extended Headlight Lighting system
................................................. 327
Light switch ................................ 326
Replacing light bulbs ..................516
Head restraints.............................. 264
Head-up display ............................ 222
Heated steering wheel ..................440
Heated Windshield Defroster....... 435
Heaters
Automatic air conditioning system
................................................. 430
Heated steering wheel ............... 440
Hybrid battery (traction battery).. 128
Outside rear view mirrors ........... 432
Seat heaters ............................... 440
High coolant temperature warning
light ..............................................535
High mounted stoplight
Replacing light bulbs ..................516
High voltage components ..............95
Hill-start assist control ................. 416
Hood............................................... 476
Warning message ...................... 544
Hooks
Cargo hooks ............................... 449
Coat hooks ................................. 463
Retaining hooks (floor mat) .......... 32
Horn ............................................... 266
HV mode ..........................................85
Hybrid battery (traction battery)
Charging............................. 127, 135
Location........................................ 95
Specification ............................... 586
Hybrid battery (traction battery)

622Alphabetical Index
Replacing the battery ................. 511
Warning buzzer .......................... 253
Wireless remote control key....... 233
Knee airbags ................................... 39
L
Lane Tracing Assist (LTA) ........... 353
Operation ................................... 353
Warning messages .................... 363
Language (multi-information dis-
play) ............................. 208, 217, 596
Lever
Auxiliary catch lever ................... 476
Hood lock release lever ............. 476
Shift lever ................................... 315
Tilt and telescopic steering lock
release lever ............................ 266
Turn signal lever ........................ 319
Wiper lever ......................... 332, 334
License plate lights
Light switch ................................ 326
Replacing light bulbs .................. 516
Light bulbs
Replacing ................................... 516
Wattage...................................... 591
Lights
Automatic High Beam system .... 328
Emergency flasher switch .......... 526
Extended Headlight Lighting system
................................................. 327
Fog light switch .......................... 331
Front interior lights ..................... 444
Headlight switch ......................... 326
Illuminated entry system ............ 443
Interior lights .............................. 444
Luggage compartment light 242, 245
Personal lights ........................... 444
Rear interior light........................ 444
Replacing light bulbs .................. 516
Turn signal lever ........................ 319
Vanity lights................................ 453Wattage ...................................... 591
Lock steering column................... 311
LTA (Lane Tracing Assist) ........... 353
Operation ...................................353
Warning messages .................... 363
Luggage compartment light 242, 245
Luggage cover .............................. 450
M
Maintenance
Do-it-yourself maintenance ........ 474
Maintenance data.......................584
Maintenance requirements......... 472
Malfunction indicator lamp .......... 536
Menu icons .................................... 200
Meter
“ODO TRIP” switch ............ 191, 199
Clock .................................. 192, 193
Head-up display ......................... 222
Hybrid System Indicator ..... 190, 196
Indicators.................................... 180
Meter control switches ....... 200, 212
Meters ................................187, 193
Multi-information display ....199, 211
Settings ...................... 206, 217, 596
Units ................................... 208, 220
Warning lights .................... 534, 544
Warning messages .................... 209
Meter control switches ......... 200, 212
Mirrors
Digital Rear-view Mirror.............. 268
Inside rear view mirror................ 267
Outside rear view mirror defoggers
................................................. 432
Outside rear view mirrors ........... 277
Vanity mirrors .............................453
Multi-information display ..... 199, 211
Audio system-linked display204, 216
BSM (Blind Spot Monitor)........... 387
Changing the display..........200, 212
Convenience Services (Suggestion

625Alphabetical Index
Digital Rear-view Mirror ............. 268
Inside rear view mirror ............... 267
Outside rear view mirrors ........... 277
Rear window defogger ................. 432
Rear window wiper ....................... 334
Refueling ....................................... 336
Capacity ..................................... 586
Fuel types .................................. 586
If the fuel filler door cannot be
opened..................................... 570
Opening the fuel tank cap .......... 336
Regenerative braking ..................... 90
Remote Air Conditioning System 438
Replacing
Electronic key battery................. 511
Fuses ......................................... 513
Light bulbs.................................. 516
Tires ........................................... 559
Wiper insert ................................ 508
Road accident cautions ................. 97
Road Sign Assist .......................... 364
RSA (Road Sign Assist) ............... 364
S
Seat belt reminder light........ 541, 542
Seat belts ........................................ 35
Adjusting the seat belt shoulder
anchor height ............................. 37
Child restraint system installation 61
Cleaning and maintaining the seat
belt ........................................... 469
Emergency Locking Retractor (ELR)
................................................... 37
How to wear your seat belt .......... 36
How your child should wear the seat
belt ............................................. 36
Pregnant women, proper seat belt
use ............................................. 35
Reminder light and buzzer . 541, 542
Seat belt pretensioners ................ 37
SRS warning light ...................... 536Seat heaters .................................. 440
Seat position memory ..................261
Seats
Adjustment precautions...... 258, 259
Adjustment ......................... 258, 259
Armrest....................................... 462
Cleaning ..................................... 469
Driving position memory............. 261
Folding down the rear seatbacks260
Head restraint.............................264
Properly sitting in the seat ............ 33
Seat heaters ............................... 440
Seat position memory ................ 261
Seat ventilators .......................... 440
Seat ventilators .............................440
Secondary Collision Brake .......... 416
Sensor
Automatic headlight system ....... 326
Automatic High Beam system .... 328
BSM (Blind Spot Monitor)........... 388
Digital Rear-view Mirror.............. 271
Front camera .............................. 338
Humidity sensor ......................... 437
Inside rear view mirror................ 267
Intrusion sensor and tilt sensor .... 80
LTA (Lane Tracing Assist).......... 353
Parking Support Brake function
(rear-crossing vehicles)............388
Parking Support Brake function
(static objects) .......................... 395
Radar sensor.............................. 338
Rain-sensing windshield wipers .333
RCTA ......................................... 388
Tilt sensor.....................................80
Toyota parking assist-sensor ..... 395
Toyota Safety Sense ..................338
Service plug .................................... 95
Shift lever ...................................... 315
If the shift lever cannot be shifted
from P ...................................... 316
Shift lock system .......................... 316
