TOYOTA SIENNA HYBRID 2021 (in English) User Guide

9
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
NOTE: The Smart Key must be carried to enable the start function. With the
shift lever in Park and the brake pedal depressed, push the POWER button.
Without depressing the brake pedal, pressing the POWER button will chang\
e the
operation mode in succession from:
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
NOTE: Tighten until one click is
heard. If the cap is not locked
or tightened enough, the Check
Engine indicator “
” may
illuminate.

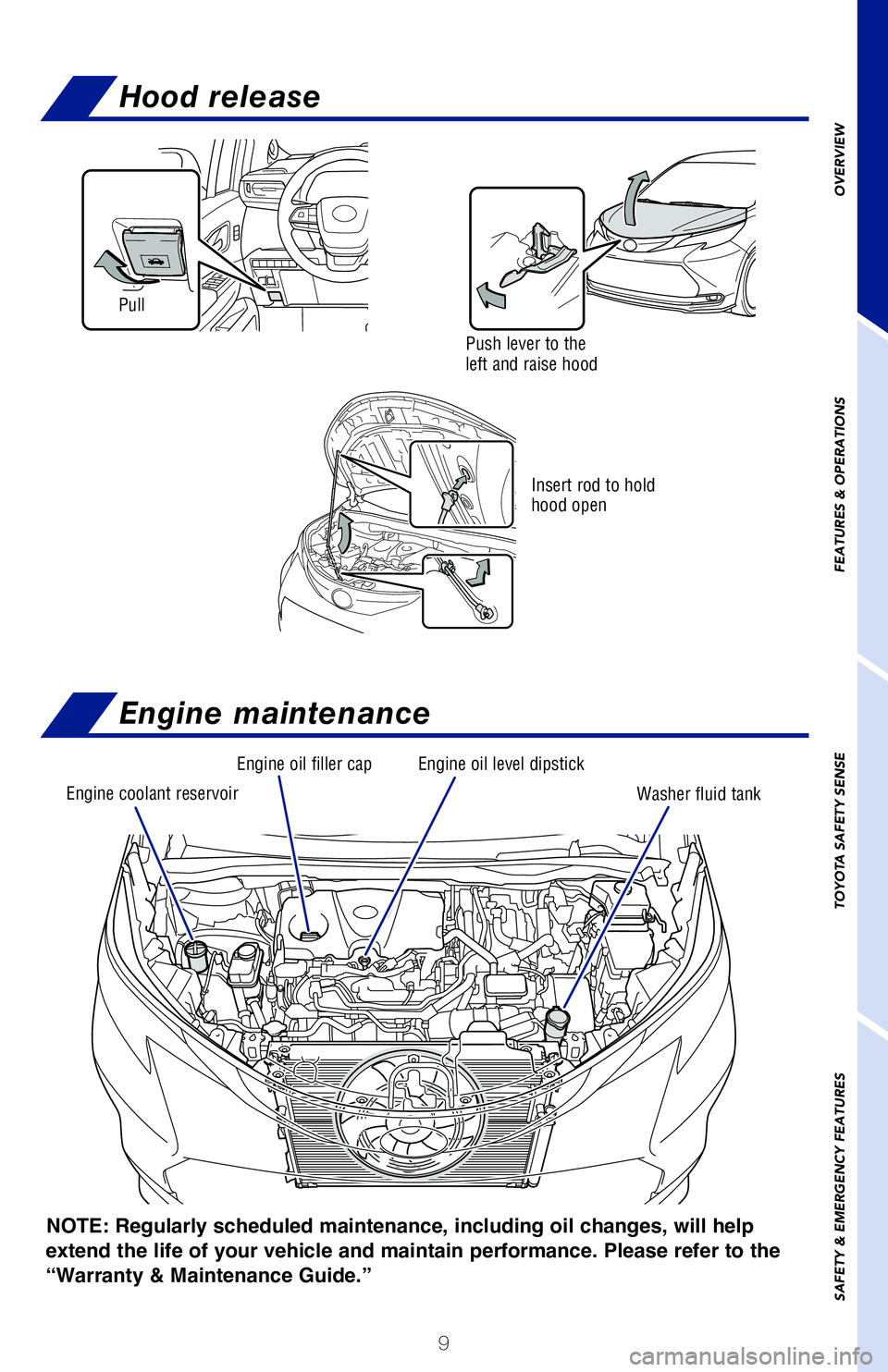

Turn to open
Fuel tank door release & cap
Push lever to the
left and raise hood
Pull
Insert rod to hold
hood open
Hood release
Washer fluid tankEngine coolant reservoir
Engine oil filler capEngine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Engine maintenance
MY21_Sienna_QRG_V4_ML_0929.indd 910/5/20 12:14 PM

10
Hybrid Synergy Drive System
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the
vehicle. When the brakes are applied, the braking force generates electr\
icity, which
is then sent to the traction battery to conserve energy. In addition, th\
e engine shuts
off when the vehicle is stopped. The benefits are better fuel economy an\
d reduced
vehicle emissions.
NOTE: Fuel consumption and energy information of the Hybrid System are shown on the Multi-Information Display (MID) and the audio system
screen (navigation system or multi-media system.)
- Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
- Link trips to reduce engine cold starts whenever possible.
- Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the Air Conditioning.
(1) Put the shift lever in “Park.”
(2) Depress the brake pedal, and “
” will be displayed on the Multi-Information
Display.
(3) Push the “POWER” button briefly and firmly.
(4) The “READY” light will blink. After a few seconds, when the light \
remains steady
and a beep sounds, shift the gear to the desired position and you may be\
gin
driving.
FEATURES & OPERATIONS
TIPS FOR IMPROVED FUEL ECONOMY
STARTING THE HYBRID SYSTEM
Push
When the steering lock cannot be
released, “Push Power Button while
Turning the Steering Wheel in Either
Direction” will be displayed on the
Multi-Information Display.
Check that the shift lever is set in P.
Press the power button shortly and
firmly while turning the steering wheel
left and right.
Push
Turn
Steering lock release
Shift the shift lever to “S” position from “D” position.
+ :
Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever
in the “D” position. * The vehicle must be on and the brake pedal depressed to shift from Par\
k.
“S” (SEQUENTIAL) MODE
DEFAULT SETTING
CUSTOMIZED SETTING
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Speed linked door locking function
-Doors lock when the vehicle speed is approximately 12 mph or higher.
Driver’s door linked door unlocking function
-Doors unlock when the driver

11
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline \
engine
and electric motor to provide the most efficient combination of power fo\
r the
vehicle. When the brakes are applied, the braking force generates electr\
icity, which
is then sent to the traction battery to conserve energy. In addition, th\
e engine shuts
off when the vehicle is stopped. The benefits are better fuel economy an\
d reduced
vehicle emissions.
NOTE: Fuel consumption and energy information of the Hybrid System are shown on the Multi-Information Display (MID) and the audio system
screen (navigation system or multi-media system.)
- Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
- Link trips to reduce engine cold starts whenever possible.
- Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the Air Conditioning.
(1) Put the shift lever in “Park.”
(2) Depress the brake pedal, and “
” will be displayed on the Multi-Information
Display.
(3) Push the “POWER” button briefly and firmly.
(4) The “READY” light will blink. After a few seconds, when the light \
remains steady
and a beep sounds, shift the gear to the desired position and you may be\
gin
driving.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
When the steering lock cannot be
released, “Push Power Button while
Turning the Steering Wheel in Either
Direction” will be displayed on the
Multi-Information Display.
Check that the shift lever is set in P.
Press the power button shortly and
firmly while turning the steering wheel
left and right.
Steering lock release
Hybrid transmission
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever
in the “D” position. * The vehicle must be on and the brake pedal depressed to shift from Par\
k.
“S” (SEQUENTIAL) MODE
P
R
N
D
S
+ (“S” mode)
- (“S” mode)
Park*
Reverse
Neutral
Drive
“S” mode
DEFAULT SETTING
CUSTOMIZED SETTING
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Speed linked door locking function
-Doors lock when the vehicle speed is approximately 12 mph or higher.
Driver’s door linked door unlocking function
-Doors unlock when the driver’s door is opened within 45 seconds after\
the vehicle is turned off.
Refer to the Owner’s Manual for more details. Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
MY21_Sienna_QRG_V4_ML_0929.indd 1110/5/20 12:14 PM

12
EV drive mode
In EV drive mode, electric power is supplied by the hybrid battery (tra\
ction battery),
and only the electric motor (traction motor) is used to drive the vehi\
cle.
This mode allows you to drive in residential areas early in the morning \
and late at
night, or in indoor parking lots etc. without concern for noises and gas\
emissions.
However, when the Acoustic Vehicle Alerting System is active, the vehicl\
e may
produce sound.
Refer to the Owner’s Manual for limitations and more details.
Driving mode select
Sport mode
Use Sport mode when increased acceleration response and precise handling\
is
desired, for example, when driving on mountain roads.
Normal mode
Use for normal driving.
Eco drive mode
Use Eco drive mode to help achieve low fuel consumption during trips tha\
t involve
frequent accelerating.
Refer to the Owner’s Manual for limitations and more details on this \
system.
(4.2-in display)
(4.2-in display)
(7-in display)
(7-in display)
Sport mode
Normal mode
Eco drive mode
Automatic (shift lever operation)
ManualTo turn automatic mode ON, while vehicle is stopped, pull and hold switc\
h until a
buzzer sounds and “EPB Shift Interlock Function Activated” display\
s on the Multi-
Information Display (MID). While depressing brake, shifting into P pos\
ition will
automatically set the brake and turn the parking brake indicator and par\
king brake
light on. To release brake, depress brake and shift out of P. The indica\
tor and the
light turn off.
To turn automatic mode OFF, push and hold parking brake switch until a b\
uzzer
sounds and “EPB Shift Interlock Function Deactivated” displays on \
the MID.
While vehicle is stopped and brake pedal is depressed, pull to set parki\
ng brake
and turn the parking brake indicator and parking brake light on. To rele\
ase, press
the brake pedal and push switch. The indicator and the light turn off.
The brake hold system keeps the brake applied when the shift lever is in\
D, S or N
with the system on and the brake pedal has been depressed to stop the ve\
hicle.
The system releases the brake when the accelerator pedal is depressed wi\
th the
shift lever in D or S to allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Driver sideAutomatic mode
BRAKE HOLD
PARKING BRAKE
FEATURES & OPERATIONS
MY21_Sienna_QRG_V4_ML_0929.indd 1210/5/20 12:14 PM

13
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
In EV drive mode, electric power is supplied by the hybrid battery (tra\
ction battery),
and only the electric motor (traction motor) is used to drive the vehi\
cle.
This mode allows you to drive in residential areas early in the morning \
and late at
night, or in indoor parking lots etc. without concern for noises and gas\
emissions.
However, when the Acoustic Vehicle Alerting System is active, the vehicl\
e may
produce sound.
Refer to the Owner’s Manual for limitations and more details.
Sport mode
Use Sport mode when increased acceleration response and precise handling\
is
desired, for example, when driving on mountain roads.
Normal mode
Use for normal driving.
Eco drive mode
Use Eco drive mode to help achieve low fuel consumption during trips tha\
t involve
frequent accelerating.
Refer to the Owner’s Manual for limitations and more details on this \
system.
Sport mode
Normal mode
Eco drive mode
Electric parking brake
Automatic (shift lever operation)
Manual To turn automatic mode ON, while vehicle is stopped, pull and hold switc\
h until a
buzzer sounds and “EPB Shift Interlock Function Activated” display\
s on the Multi-
Information Display (MID). While depressing brake, shifting into P pos\
ition will
automatically set the brake and turn the parking brake indicator and par\
king brake
light on. To release brake, depress brake and shift out of P. The indica\
tor and the
light turn off.
To turn automatic mode OFF, push and hold parking brake switch until a b\
uzzer
sounds and “EPB Shift Interlock Function Deactivated” displays on \
the MID.
While vehicle is stopped and brake pedal is depressed, pull to set parki\
ng brake
and turn the parking brake indicator and parking brake light on. To rele\
ase, press
the brake pedal and push switch. The indicator and the light turn off.
The brake hold system keeps the brake applied when the shift lever is in\
D, S or N
with the system on and the brake pedal has been depressed to stop the ve\
hicle.
The system releases the brake when the accelerator pedal is depressed wi\
th the
shift lever in D or S to allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Parking brake light
Press to release
Pull to
set
Standby indicatorOperating indicator
Driver sideAutomatic modeManual mode
BRAKE HOLD
PARKING BRAKE
Parking brake light
On Off
MY21_Sienna_QRG_V4_ML_0929.indd 1310/5/20 12:14 PM

14

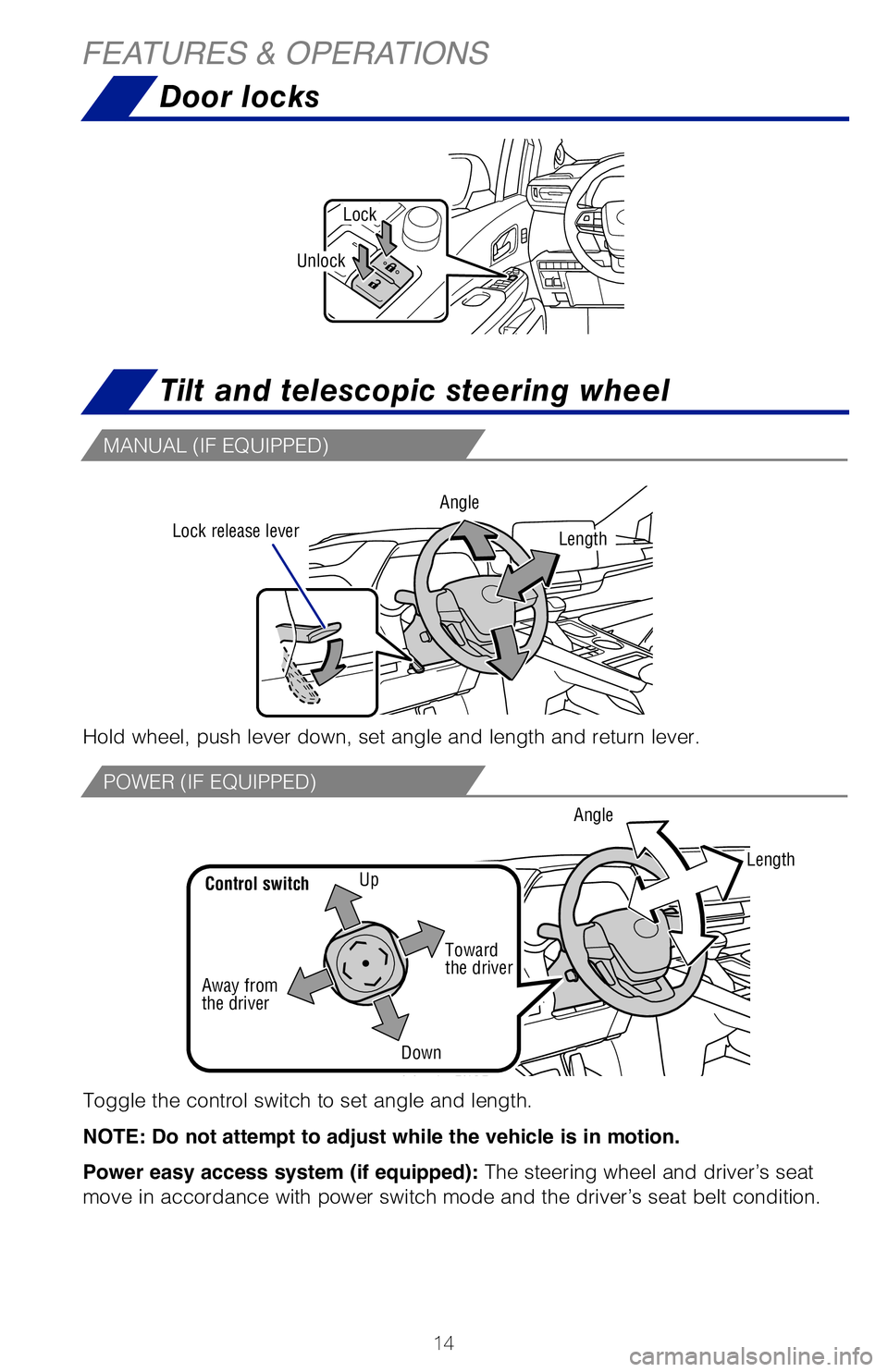

Door locks
Unlock
Lock
Tilt and telescopic steering wheel
MAIN SWITCH LOCATION
OPENING/CLOSING
From front seats Instrument panel
Press and hold the switch to open and close each sliding door.
HANDS-FREE FUNCTION (IF EQUIPPED)
To automatically open/close Power sliding door: Quickly kick your foot
underneath the lower center part of the moulding for within 1 second to trigger
sensor. To operate, make sure that the touchless sensor operation is enabled, the
vehicle is OFF and that you are carrying the remote.
Press “” or “” of the meter control switches and select “
(PSD)” from the
“ (Vehicle Settings)” from the “” screen on the Multi-Information Display
(MID) to access hands-free settings. And push “
” to enter selection.
NOTE: Use the same gear and “
” icons from the HUD section.
For more details, refer to the Owner’s Manual.
MANUAL (IF EQUIPPED)
POWER (IF EQUIPPED)
Hold wheel, push lever down, set angle and length and return lever.
Lock release lever Angle
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Power easy access system (if equipped):
The steering wheel and driver’s seat
move in accordance with power switch mode and the driver’s seat belt condition.
UpControl switch
Away from
the driver
Length
Toward
the driver
Down Angle
Length
FEATURES & OPERATIONS
MY21_Sienna_QRG_V4_ML_0929.indd 1410/5/20 12:14 PM

15
Perform the entire kick operation
within 1 second.
Door locks
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

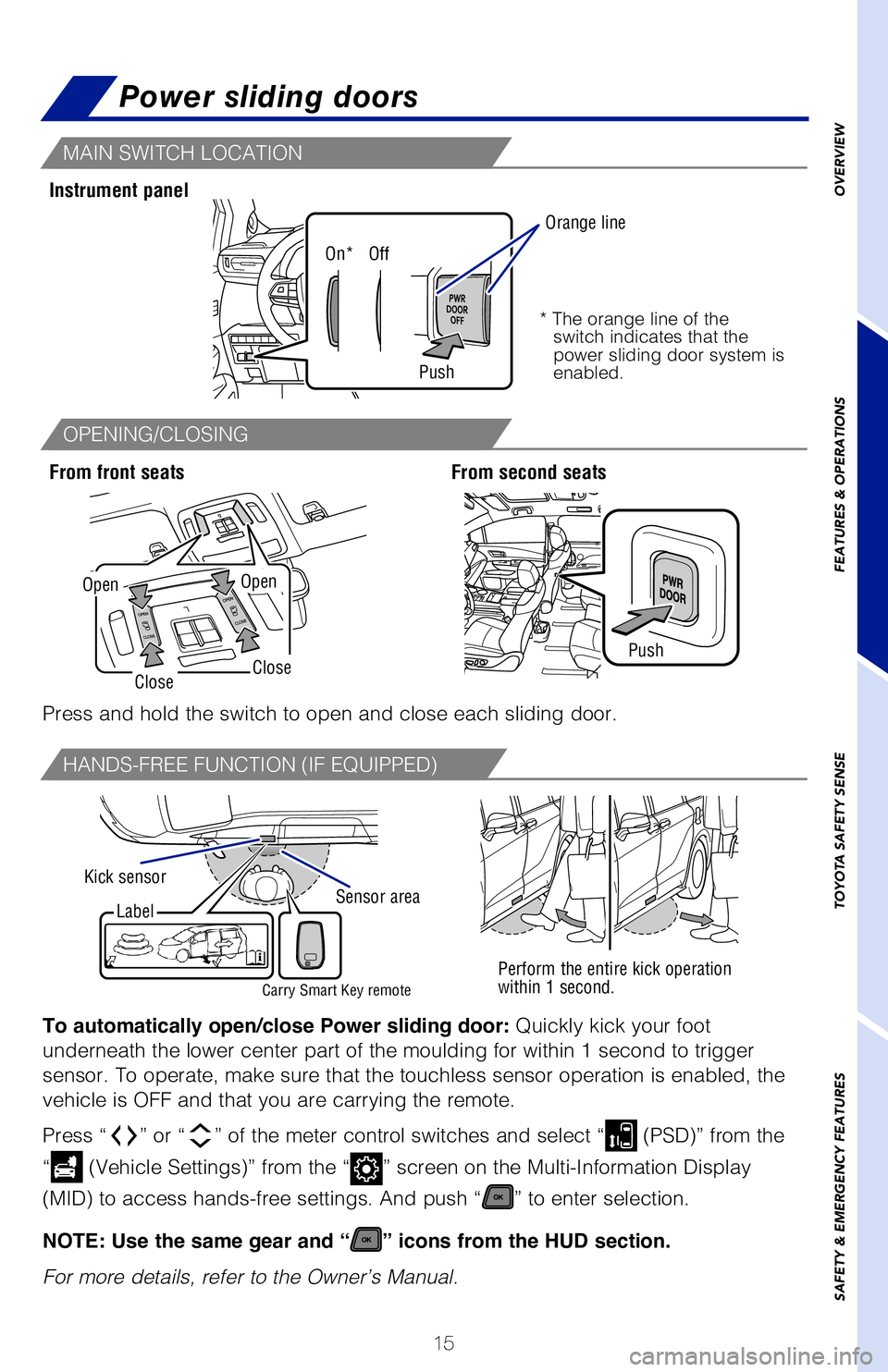

Power sliding doors
MAIN SWITCH LOCATION
OPENING/CLOSING
From front seats Instrument panel
Push
Push
From second seats
On* Off Orange line
Press and hold the switch to open and close each sliding door.
* The orange line of the
switch indicates that the
power sliding door system is
enabled.
OpenOpen
CloseClose
Sensor areaKick sensor
Label
Carry Smart Key remote
HANDS-FREE FUNCTION (IF EQUIPPED)
To automatically open/close Power sliding door: Quickly kick your foot
underneath the lower center part of the moulding for within 1 second to \
trigger
sensor. To operate, make sure that the touchless sensor operation is ena\
bled, the
vehicle is OFF and that you are carrying the remote.
Press “
” or “” of the meter control switches and select “ (PSD)” from the
“
(Vehicle Settings)” from the “” screen on the Multi-Information Display
(MID) to access hands-free settings. And push “
” to enter selection.
NOTE: Use the same gear and “
” icons from the HUD section.
For more details, refer to the Owner’s Manual.
Hold wheel, push lever down, set angle and length and return lever.
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Power easy access system (if equipped): The steering wheel and driver’s seat
move in accordance with power switch mode and the driver’s seat belt \
condition.
MY21_Sienna_QRG_V4_ML_0929.indd 1510/5/20 12:14 PM

16
1. When the liftgate reaches the desired height, push the rear liftgate \
close-button (on the door jam of the liftgate) once. Press and hold the button unti\
l the buzzer
sounds (4 times).
2. To reset the height, with the liftgate open and not moving, press and\
hold the rear liftgate close-button until the buzzer sounds 4 times, and continue to h\
old until it
buzzes again, then let go. Push the same button to close the liftgate. W\
hen you
next open the liftgate, it will open to the maximum height.
3. To set the height using the Multi-Information Display, press “
” or “” of the
meter control switches and select “
(Vehicle Settings)” from “” screen.
Press “
” or “” and select “ (PBD)” and then press “.” Select “PBD
Opening Adjustment,” then press “
.” Select desired position (5 height options
to choose from,) then press “
.”
NOTE: If battery is disconnected, the power back door needs to be reinit\
ialized.

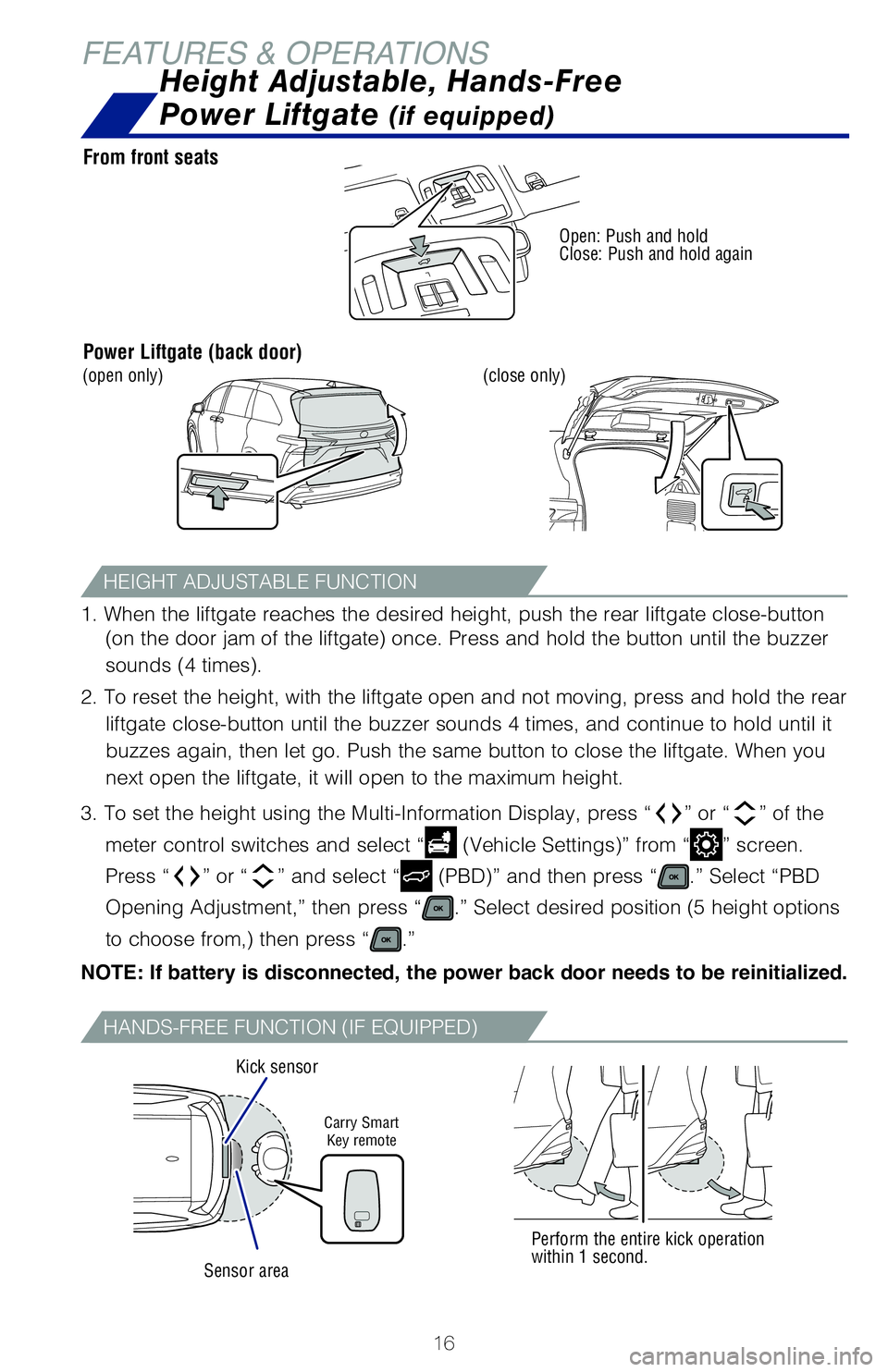

From front seats
Power Liftgate (back door)
Open: Push and hold
Close: Push and hold again
(close only)(open only)
HANDS-FREE FUNCTION (CONTINUED)
HEIGHT ADJUSTABLE FUNCTION
Height Adjustable, Hands-Free
Power Liftgate
(if equipped)
To automatically open/close Power Liftgate: Quickly kick your foot underneath
the lower center part of the rear bumper for within 1 second to trigger\
sensor. To
operate, make sure that the touchless sensor operation is enabled, the v\
ehicle is
OFF and that you are carrying the remote.
Press “ ” or “” of the meter control switches and select “
(PBD)” from the “
(Vehicle Settings)” from the “” screen on the Multi-Information Display (MID)
to access hands-free settings. And push “
” to enter selection.
NOTE:
- Installation of a tow hitch receiver or other accessories may require disabling or removing the kick sensor.
- Use the same gear and “
” icons from the HUD section.
For more details, refer to the Owner’s Manual.
HANDS-FREE FUNCTION (IF EQUIPPED)
Perform the entire kick operation
within 1 second.
Sensor area
Kick sensor
Carry Smart Key remote
All window auto up/down: Push the switch completely down or pull it completely
up and release to fully open or close. To stop window partway, lightly p\
ush the
switch in the opposite direction.
Window lock switch: Deactivates all passenger windows. Driver’s window remains
operable.
FEATURES & OPERATIONS
MY21_Sienna_QRG_V4_ML_0929.indd 1610/5/20 12:14 PM

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1. When the liftgate reaches the desired height, push the rear liftgate \
close-button
(on the door jam of the liftgate) once. Press and hold the button unti\
l the buzzer
sounds (4 times).
2. To reset the height, with the liftgate open and not moving, press and\
hold the rear liftgate close-button until the buzzer sounds 4 times, and continue to h\
old until it
buzzes again, then let go. Push the same button to close the liftgate. W\
hen you
next open the liftgate, it will open to the maximum height.
3. To set the height using the Multi-Information Display, press “ ” or “ ” of the
meter control switches and select “
(Vehicle Settings)” from “” screen.
Press “ ” or “ ” and select “
(PBD)” and then press “.” Select “PBD
Opening Adjustment,” then press “
.” Select desired position (5 height options
to choose from,) then press “
.”
NOTE: If battery is disconnected, the power back door needs to be reinit\
ialized.

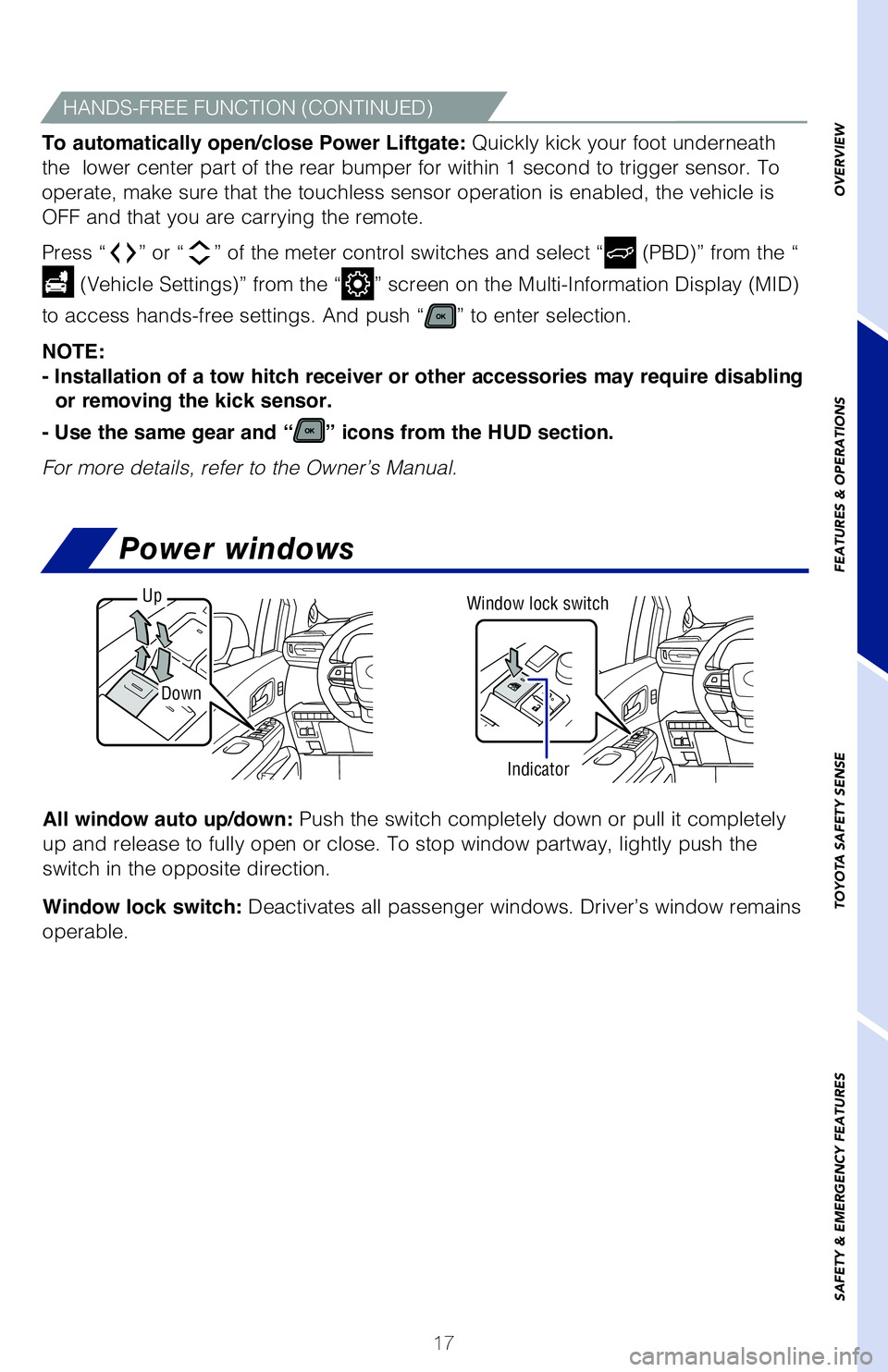

HANDS-FREE FUNCTION (CONTINUED)
Height Adjustable, Hands-Free
Power Liftgate
(if equipped)
To automatically open/close Power Liftgate: Quickly kick your foot underneath
the lower center part of the rear bumper for within 1 second to trigger\
sensor. To
operate, make sure that the touchless sensor operation is enabled, the v\
ehicle is
OFF and that you are carrying the remote.
Press “
” or “” of the meter control switches and select “ (PBD)” from the “
(Vehicle Settings)” from the “” screen on the Multi-Information Display (MID)
to access hands-free settings. And push “
” to enter selection.
NOTE:
- Installation of a tow hitch receiver or other accessories may require disabling or removing the kick sensor.
- Use the same gear and “
” icons from the HUD section.
For more details, refer to the Owner’s Manual.
All window auto up/down: Push the switch completely down or pull it completely
up and release to fully open or close. To stop window partway, lightly p\
ush the
switch in the opposite direction.
Window lock switch: Deactivates all passenger windows. Driver’s window remains
operable.
Window lock switch
Indicator
Up
Down
Power windows
MY21_Sienna_QRG_V4_ML_0929.indd 1710/5/20 12:14 PM

18

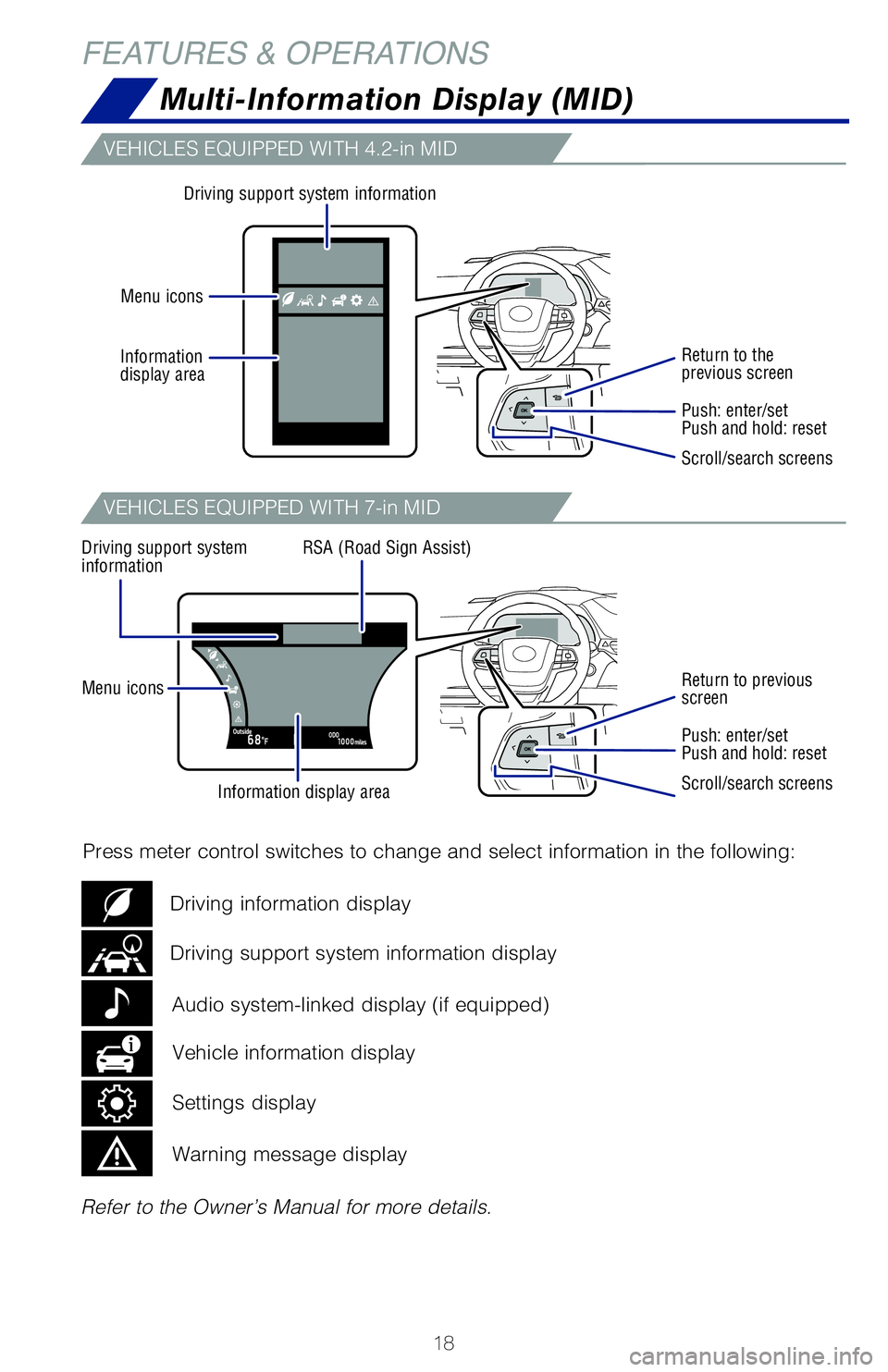

Multi-Information Display (MID)
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touchscreen to access the general setting screen.
3) Select “Clock.”
4) Select desired items to be set.

Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
* Premium Audio only
FEATURES & OPERATIONS
Information display area
Driving support system information
Driving support system
information RSA (Road Sign Assist)
Menu icons
Menu icons Information
display area
Refer to the Owner’s Manual for more details.
Press meter control switches to change and select information in the fol\
lowing:
Return to the
previous screen
Return to previous
screen
Push: enter/set
Push and hold: reset
Push: enter/set
Push and hold: reset
Scroll/search screens
Scroll/search screens
Driving support system information display Driving information display
Vehicle information display
Audio system-linked display (if equipped)
Settings display
Warning message display
VEHICLES EQUIPPED WITH 4.2-in MID
VEHICLES EQUIPPED WITH 7-in MID
The head-up display projects a variety of driving related information an\
d the
operating state of the driving support systems on the windshield.
Press meter control switches and select “
” on the Multi-Information Display
(MID) and select “HUD Main” to access Head-up display settings. \
And push “
”
to enter selection.
Refer to the Owner’s Manual for more details.
MY21_Sienna_QRG_V4_ML_0929.indd 1810/5/20 12:14 PM
