TOYOTA SUPRA 2019 Owners Manual

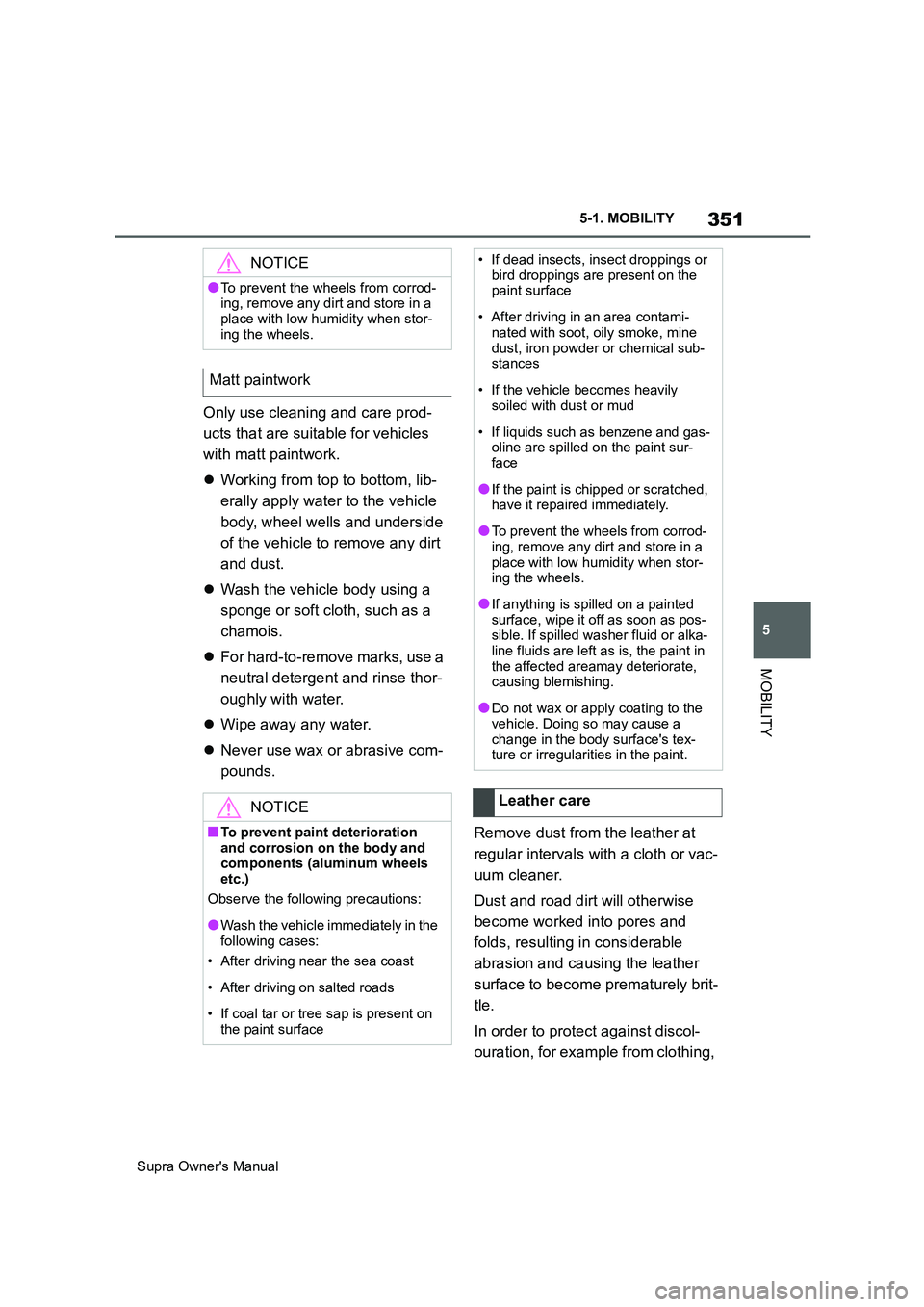

351
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
Only use cleaning and care prod-
ucts that are suitable for vehicles
with matt paintwork.
Working from top to bottom, lib-
erally apply water to the vehicle
body, wheel wells and underside
of the vehicle to remove any dirt
and dust.
Wash the vehicle body using a
sponge or soft cloth, such as a
chamois.
For hard-to-remove marks, use a
neutral detergent and rinse thor-
oughly with water.
Wipe away any water.
Never use wax or abrasive com-
pounds.
Remove dust from the leather at
regular intervals with a cloth or vac-
uum cleaner.
Dust and road dirt will otherwise
become worked into pores and
folds, resulting in considerable
abrasion and causing the leather
surface to become prematurely brit-
tle.
In order to protect against discol-
ouration, for example from clothing,
NOTICE
●To prevent the wheels from corrod-
ing, remove any dirt and store in a
place with low humidity when stor-
ing the wheels.
Matt paintwork
NOTICE
■To prevent paint deterioration
and corrosion on the body and
components (aluminum wheels
etc.)
Observe the following precautions:
●Wash the vehicle immediately in the
following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on
the paint surface
• If dead insects, insect droppings or
bird droppings are present on the
paint surface
• After driving in an area contami-
nated with soot, oily smoke, mine
dust, iron powder or chemical sub-
stances
• If the vehicle becomes heavily
soiled with dust or mud
• If liquids such as benzene and gas-
oline are spilled on the paint sur-
face
●If the paint is chipped or scratched,
have it repaired immediately.
●To prevent the wheels from corrod-
ing, remove any dirt and store in a
place with low humidity when stor-
ing the wheels.
●If anything is spilled on a painted
surface, wipe it off as soon as pos-
sible. If spilled washer fluid or alka-
line fluids are left as is, the paint in
the affected areamay deteriorate,
causing blemishing.
●Do not wax or apply coating to the
vehicle. Doing so may cause a
change in the body surface's tex-
ture or irregularities in the paint.
Leather care

352
Supra Owner's Manual5-1. MOBILITY
clean and care for the leather
approximately every two months.
Clean light-coloured leather more
frequently as it has the tendency to
soil faster.
Use leather cleaner, otherwise dirt
and grease will attack the protec-
tive coating of the leather.
Regularly clean the upholstery with
a vacuum cleaner.
In the event of heavy soiling, for
example stains caused by drinks,
use a soft sponge or a lint-free
microfibre cloth with suitable inte-
rior cleaning agents.
Clean the upholstery up to the
seams using wide wiping actions.
Avoid rubbing vigorously.
When cleaning the wheels while
they are installed on the vehicle, only use neutral rim cleaner with a
pH value of between 5 and 9. Do
not use abrasive cleaners or steam
cleaners above 60 °C/140 °F.
Observe the manufacturer's
instructions.
Corrosive, acidic or alkaline
cleaners may destroy the protective
layer of adjacent parts, for example
brake discs.
After cleaning, briefly apply the
brakes to dry them. The heat gen-
erated by braking dries the brake
discs and brake pads and protects
them against corrosion.
Chrome-like surfaces should be
cleaned carefully with plenty of
water, particularly if affected by
road salt, if necessary with added
car shampoo.
The surfaces of rubber parts can be
contaminated or lose their shine
due to environmental influences.
Only use water and suitable care
products for cleaning.
Rubber parts subjected to high
wear and tear should be treated
regularly with rubber care products.
Do not use silicone-based care
products for treating rubber seals,
otherwise these could be damaged
and become a source of noise. Care of upholstery fabrics
General
Safety note
NOTICE
Open Velcro fasteners on articles of
clothing can damage the seat covers.
There is a danger of damage to prop-
erty. Make sure that any Velcro fas-
teners on your clothing are closed.
Care of special parts
Light alloy wheels
Chrome surfaces
Rubber parts

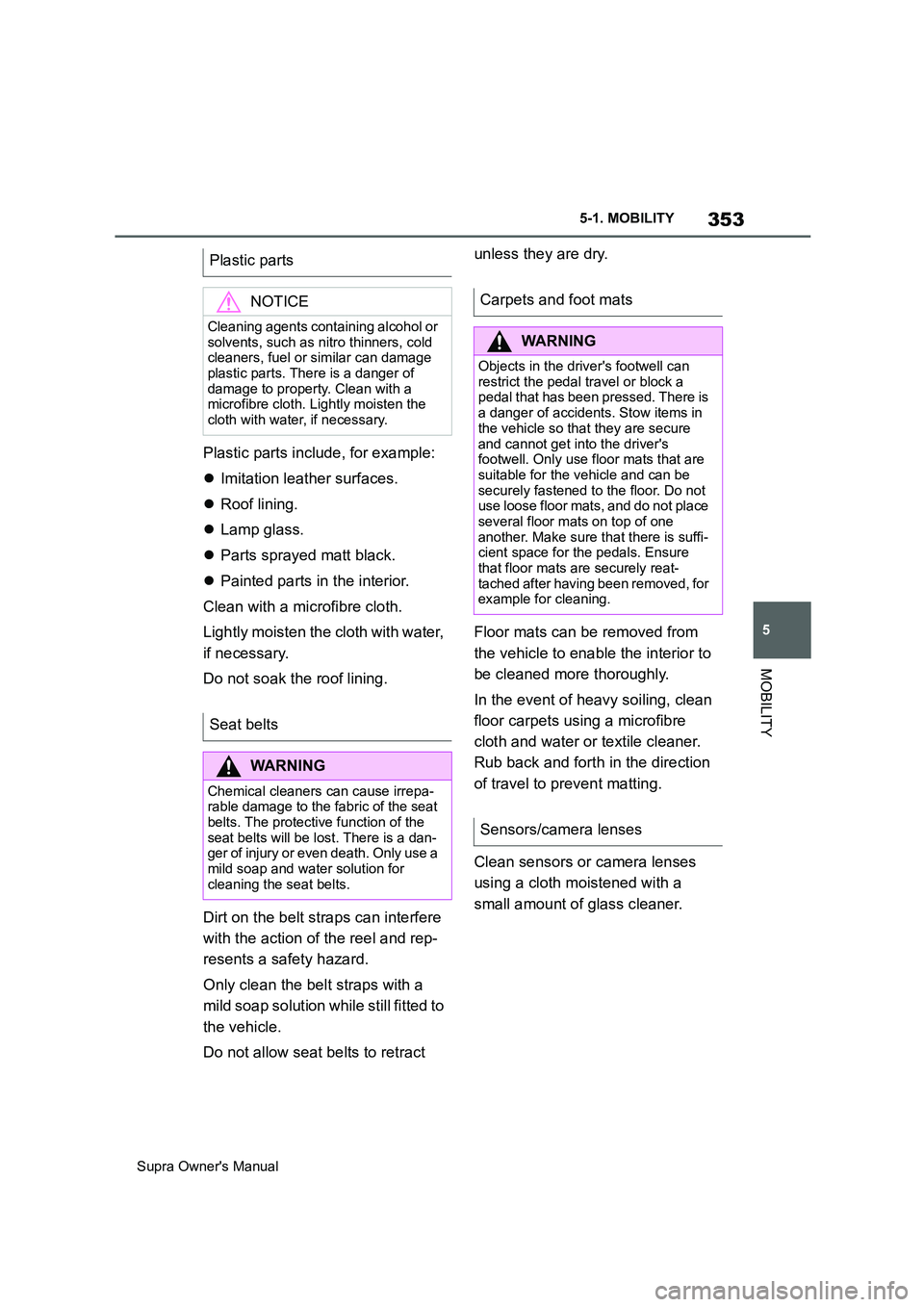

353
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
Plastic parts include, for example:
Imitation leather surfaces.
Roof lining.
Lamp glass.
Parts sprayed matt black.
Painted parts in the interior.
Clean with a microfibre cloth.
Lightly moisten the cloth with water,
if necessary.
Do not soak the roof lining.
Dirt on the belt straps can interfere
with the action of the reel and rep-
resents a safety hazard.
Only clean the belt straps with a
mild soap solution while still fitted to
the vehicle.
Do not allow seat belts to retract unless they are dry.
Floor mats can be removed from
the vehicle to enable the interior to
be cleaned more thoroughly.
In the event of heavy soiling, clean
floor carpets using a microfibre
cloth and water or textile cleaner.
Rub back and forth in the direction
of travel to prevent matting.
Clean sensors or camera lenses
using a cloth moistened with a
small amount of glass cleaner. Plastic parts
NOTICE
Cleaning agents containing alcohol or
solvents, such as nitro thinners, cold
cleaners, fuel or similar can damage
plastic parts. There is a danger of
damage to property. Clean with a
microfibre cloth. Lightly moisten the
cloth with water, if necessary.
Seat belts
WARNING
Chemical cleaners can cause irrepa-
rable damage to the fabric of the seat
belts. The protective function of the
seat belts will be lost. There is a dan-
ger of injury or even death. Only use a
mild soap and water solution for
cleaning the seat belts.
Carpets and foot mats
WARNING
Objects in the driver's footwell can
restrict the pedal travel or block a
pedal that has been pressed. There is
a danger of accidents. Stow items in
the vehicle so that they are secure
and cannot get into the driver's
footwell. Only use floor mats that are
suitable for the vehicle and can be
securely fastened to the floor. Do not
use loose floor mats, and do not place
several floor mats on top of one
another. Make sure that there is suffi-
cient space for the pedals. Ensure
that floor mats are securely reat-
tached after having been removed, for
example for cleaning.
Sensors/camera lenses

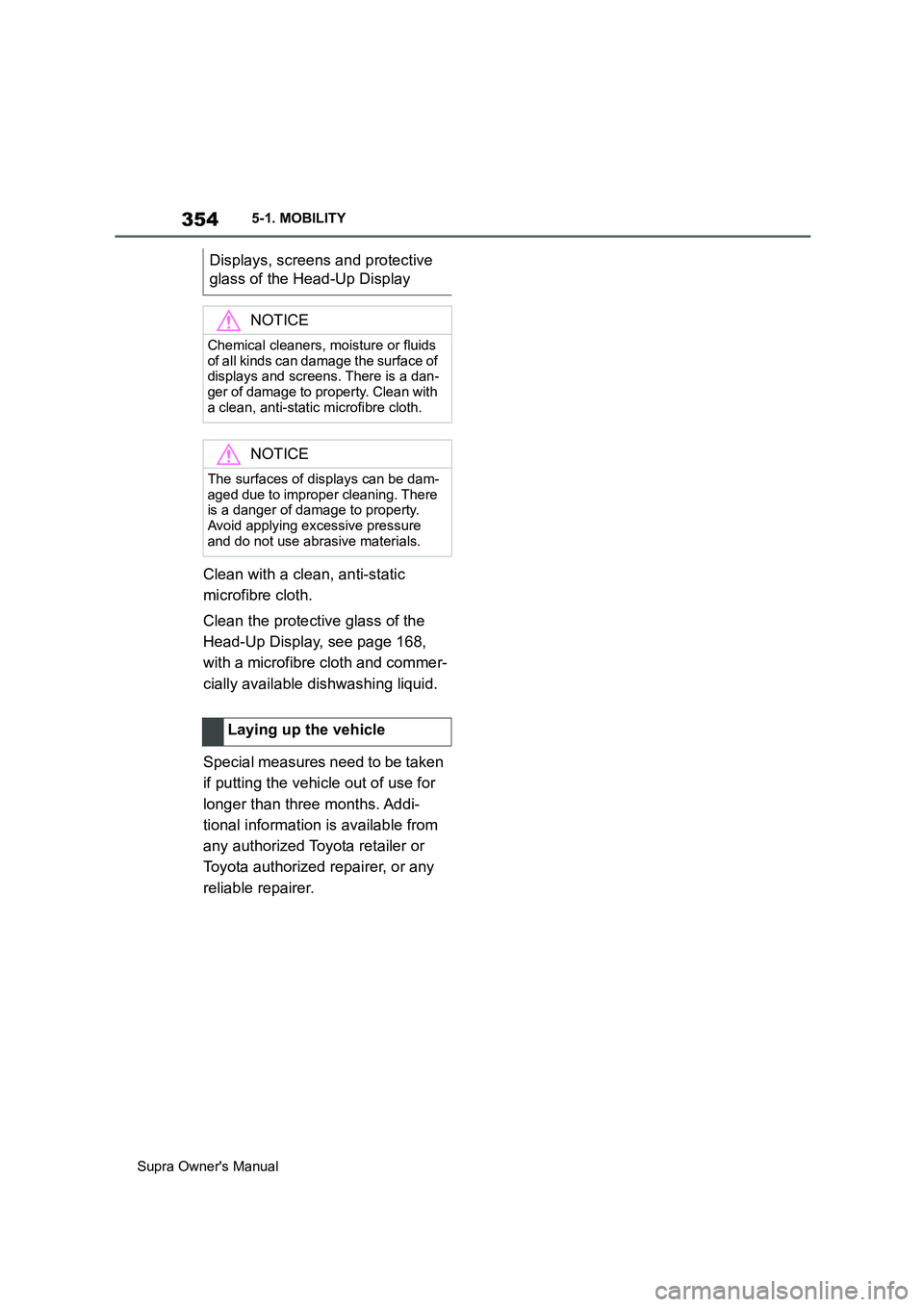

354
Supra Owner's Manual5-1. MOBILITY
Clean with a clean, anti-static
microfibre cloth.
Clean the protective glass of the
Head-Up Display, see page 168,
with a microfibre cloth and commer-
cially available dishwashing liquid.
Special measures need to be taken
if putting the vehicle out of use for
longer than three months. Addi-
tional information is available from
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.Displays, screens and protective
glass of the Head-Up Display
NOTICE
Chemical cleaners, moisture or fluids
of all kinds can damage the surface of
displays and screens. There is a dan-
ger of damage to property. Clean with
a clean, anti-static microfibre cloth.
NOTICE
The surfaces of displays can be dam-
aged due to improper cleaning. There
is a danger of damage to property.
Avoid applying excessive pressure
and do not use abrasive materials.
Laying up the vehicle

6

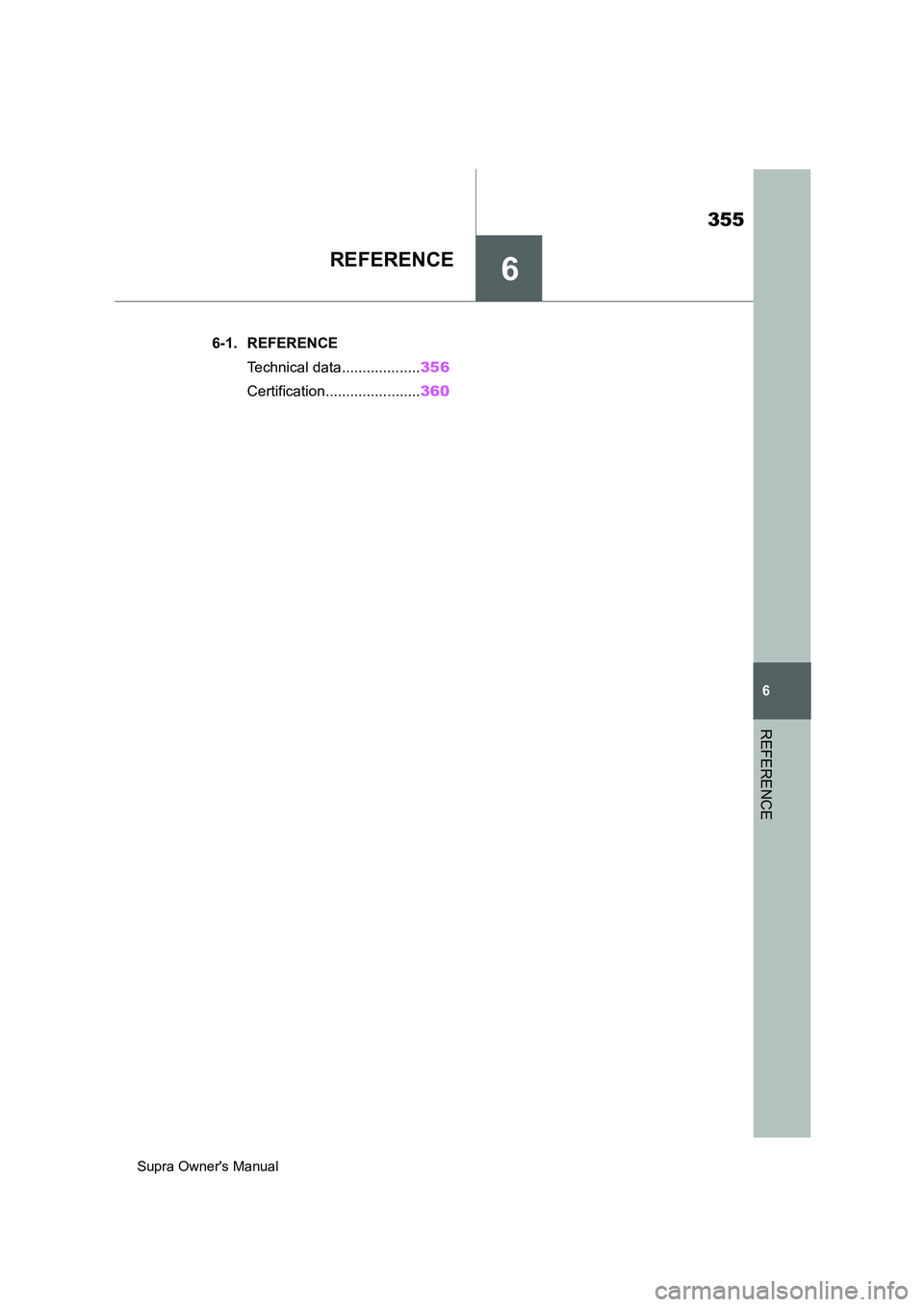

355
Supra Owner's Manual
6
REFERENCE
REFERENCE
.6-1. REFERENCE
Technical data...................356
Certification.......................360

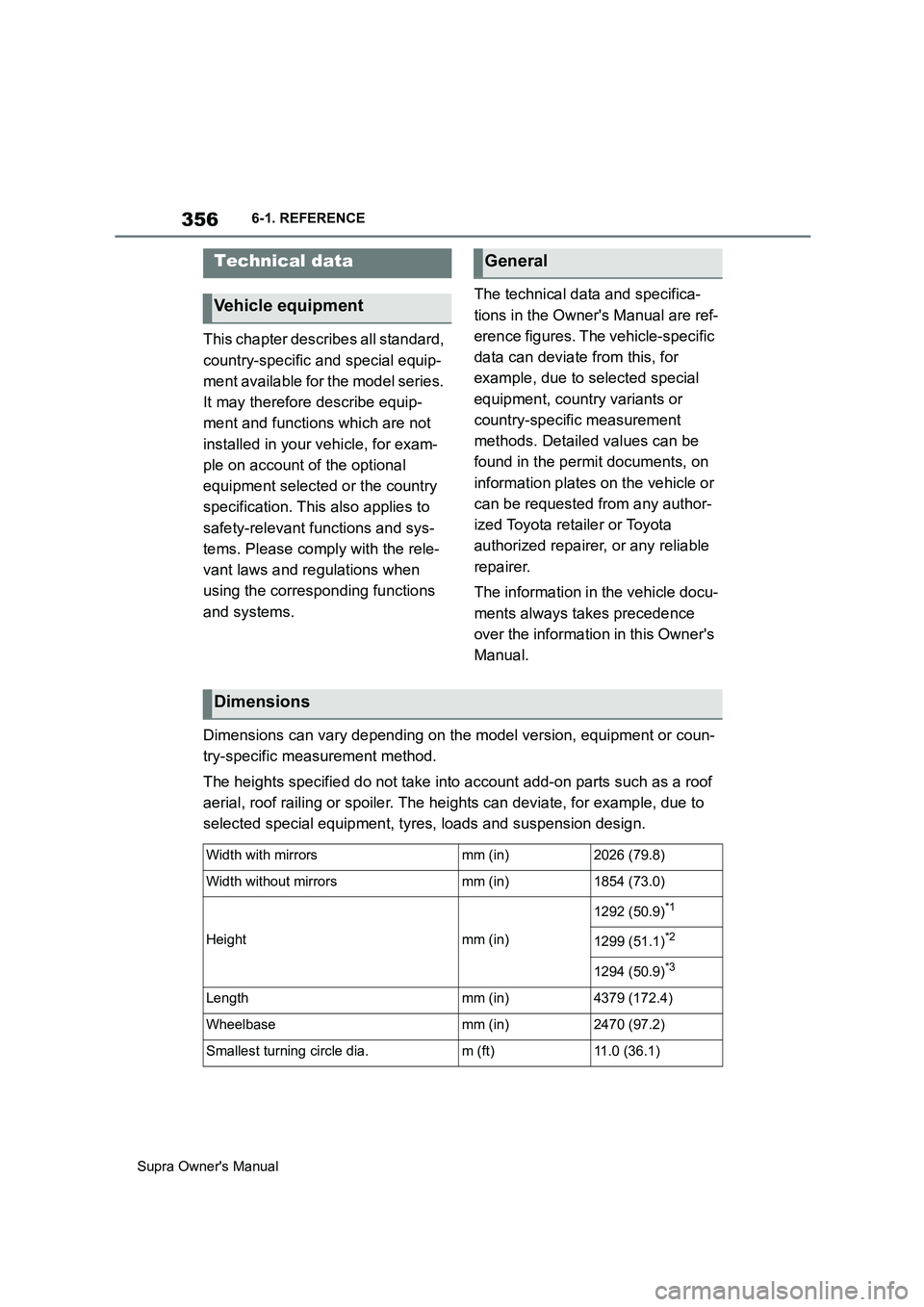

356
Supra Owner's Manual
6-1. REFERENCE
6-1.REFERENCE
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the optional
equipment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
The technical data and specifica-
tions in the Owner's Manual are ref-
erence figures. The vehicle-specific
data can deviate from this, for
example, due to selected special
equipment, country variants or
country-specific measurement
methods. Detailed values can be
found in the permit documents, on
information plates on the vehicle or
can be requested from any author-
ized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The information in the vehicle docu-
ments always takes precedence
over the information in this Owner's
Manual.
Dimensions can vary depending on the model version, equipment or coun-
try-specific measurement method.
The heights specified do not take into account add-on parts such as a roof
aerial, roof railing or spoiler. The heights can deviate, for example, due to
selected special equipment, tyres, loads and suspension design.
Technical data
Vehicle equipment
General
Dimensions
Width with mirrorsmm (in)2026 (79.8)
Width without mirrorsmm (in)1854 (73.0)
Heightmm (in)
1292 (50.9)*1
1299 (51.1)*2
1294 (50.9)*3
Lengthmm (in)4379 (172.4)
Wheelbasemm (in)2470 (97.2)
Smallest turning circle dia.m (ft)11.0 (36.1)

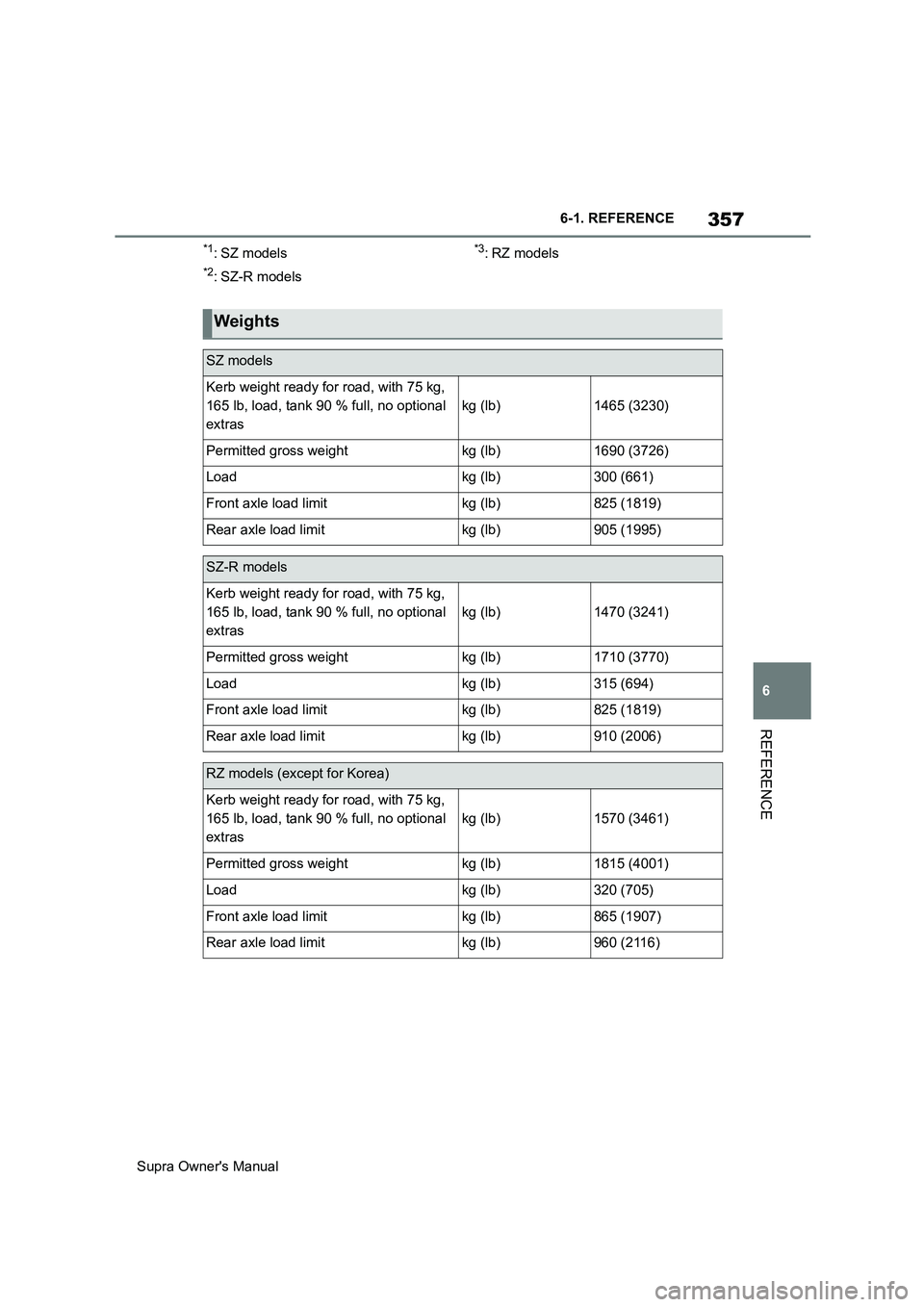

357
6
Supra Owner's Manual
6-1. REFERENCE
REFERENCE
*1:SZ models
*2:SZ-R models
*3: RZ models
Weights
SZ models
Kerb weight ready for road, with 75 kg,
165 lb, load, tank 90 % full, no optional
extras
kg (lb)1465 (3230)
Permitted gross weightkg (lb)1690 (3726)
Loadkg (lb)300 (661)
Front axle load limitkg (lb)825 (1819)
Rear axle load limitkg (lb)905 (1995)
SZ-R models
Kerb weight ready for road, with 75 kg,
165 lb, load, tank 90 % full, no optional
extras
kg (lb)1470 (3241)
Permitted gross weightkg (lb)1710 (3770)
Loadkg (lb)315 (694)
Front axle load limitkg (lb)825 (1819)
Rear axle load limitkg (lb)910 (2006)
RZ models (except for Korea)
Kerb weight ready for road, with 75 kg,
165 lb, load, tank 90 % full, no optional
extras
kg (lb)1570 (3461)
Permitted gross weightkg (lb)1815 (4001)
Loadkg (lb)320 (705)
Front axle load limitkg (lb)865 (1907)
Rear axle load limitkg (lb)960 (2116)

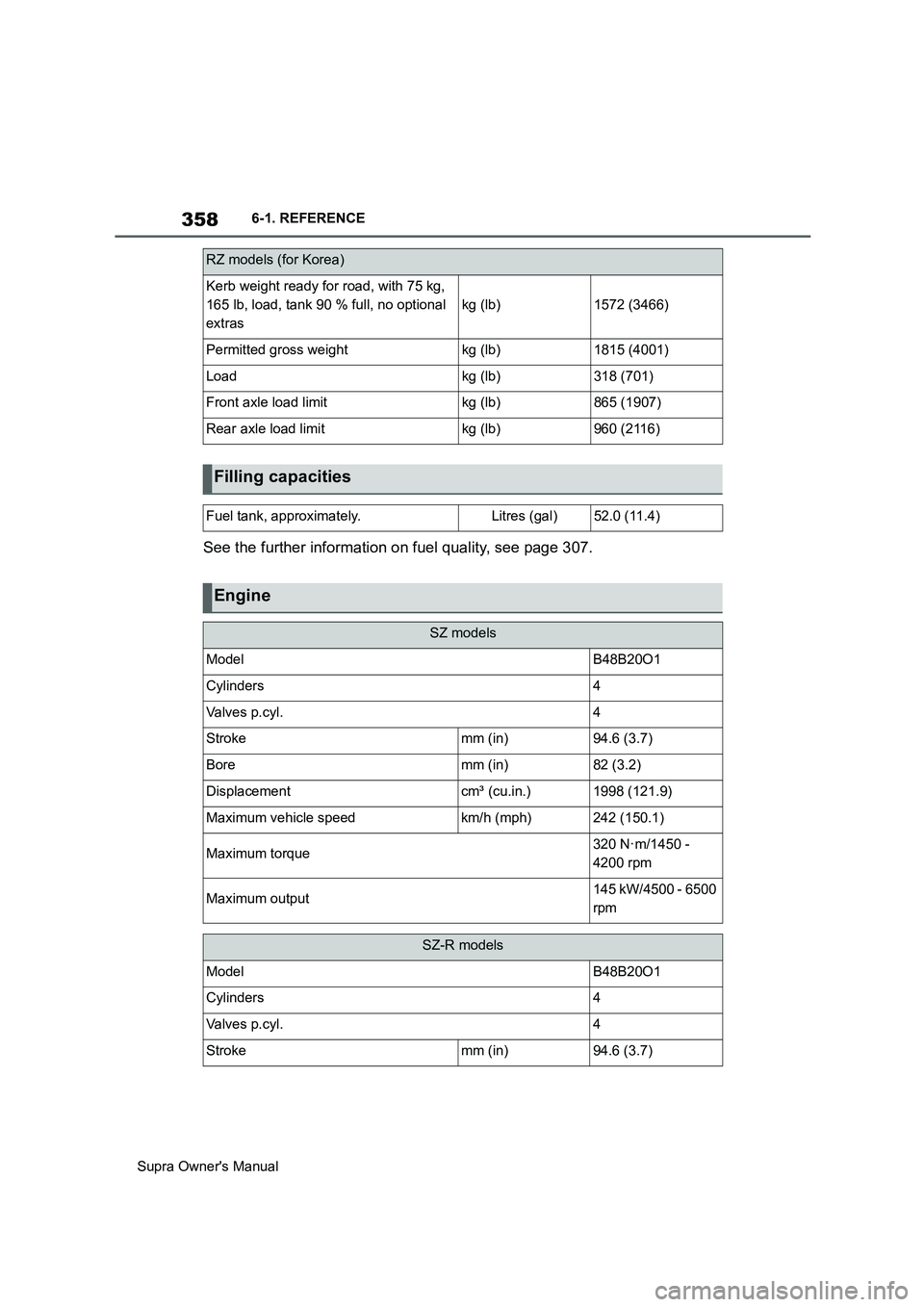

358
Supra Owner's Manual6-1. REFERENCE
See the further information on fuel quality, see page 307.
RZ models (for Korea)
Kerb weight ready for road, with 75 kg,
165 lb, load, tank 90 % full, no optional
extras
kg (lb)1572 (3466)
Permitted gross weightkg (lb)1815 (4001)
Loadkg (lb)318 (701)
Front axle load limitkg (lb)865 (1907)
Rear axle load limitkg (lb)960 (2116)
Filling capacities
Fuel tank, approximately.Litres (gal)52.0 (11.4)
Engine
SZ models
ModelB48B20O1
Cylinders4
Va l v e s p . c y l .4
Strokemm (in)94.6 (3.7)
Boremm (in)82 (3.2)
Displacementcm³ (cu.in.)1998 (121.9)
Maximum vehicle speedkm/h (mph)242 (150.1)
Maximum torque320 N·m/1450 -
4200 rpm
Maximum output145 kW/4500 - 6500
rpm
SZ-R models
ModelB48B20O1
Cylinders4
Va l v e s p . c y l .4
Strokemm (in)94.6 (3.7)

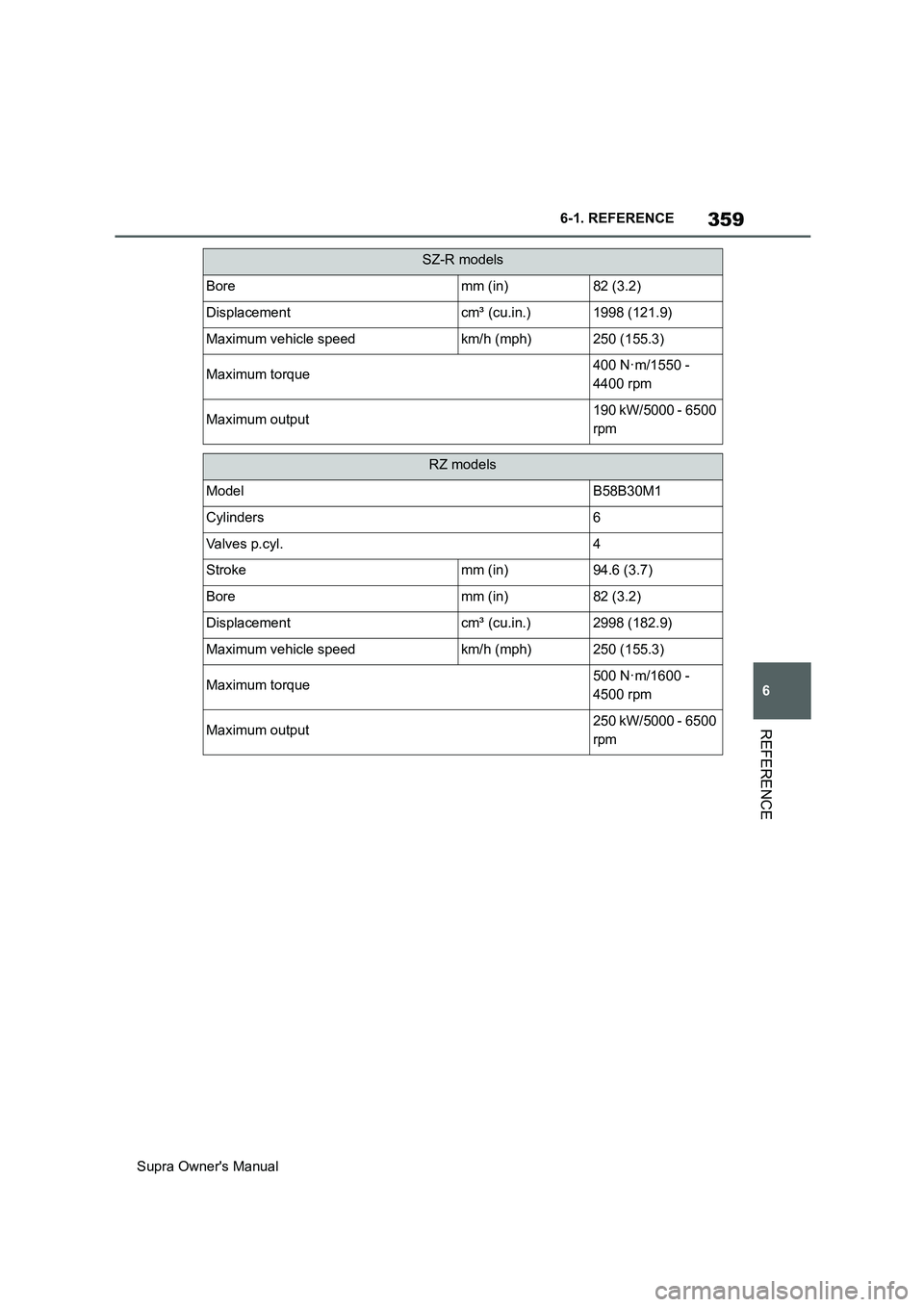

359
6
Supra Owner's Manual6-1. REFERENCE
REFERENCE
Boremm (in)82 (3.2)
Displacementcm³ (cu.in.)1998 (121.9)
Maximum vehicle speedkm/h (mph)250 (155.3)
Maximum torque400 N·m/1550 -
4400 rpm
Maximum output190 kW/5000 - 6500
rpm
RZ models
ModelB58B30M1
Cylinders6
Va l v e s p . c y l .4
Strokemm (in)94.6 (3.7)
Boremm (in)82 (3.2)
Displacementcm³ (cu.in.)2998 (182.9)
Maximum vehicle speedkm/h (mph)250 (155.3)
Maximum torque500 N·m/1600 -
4500 rpm
Maximum output250 kW/5000 - 6500
rpm
SZ-R models

360
Supra Owner's Manual6-1. REFERENCE
The following note is for all
radio-based Components of the
vehicle and the vehicle integrated
information systems and communi-
cation devices:
The radio-based components of
this vehicle are in accordance with
the basic requirements and the rest
relevant provisions of the Directive
2014/53 / EU. Further information is
available from any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Certification
Information
Alarm System
