TOYOTA SUPRA 2022 Owners Manual

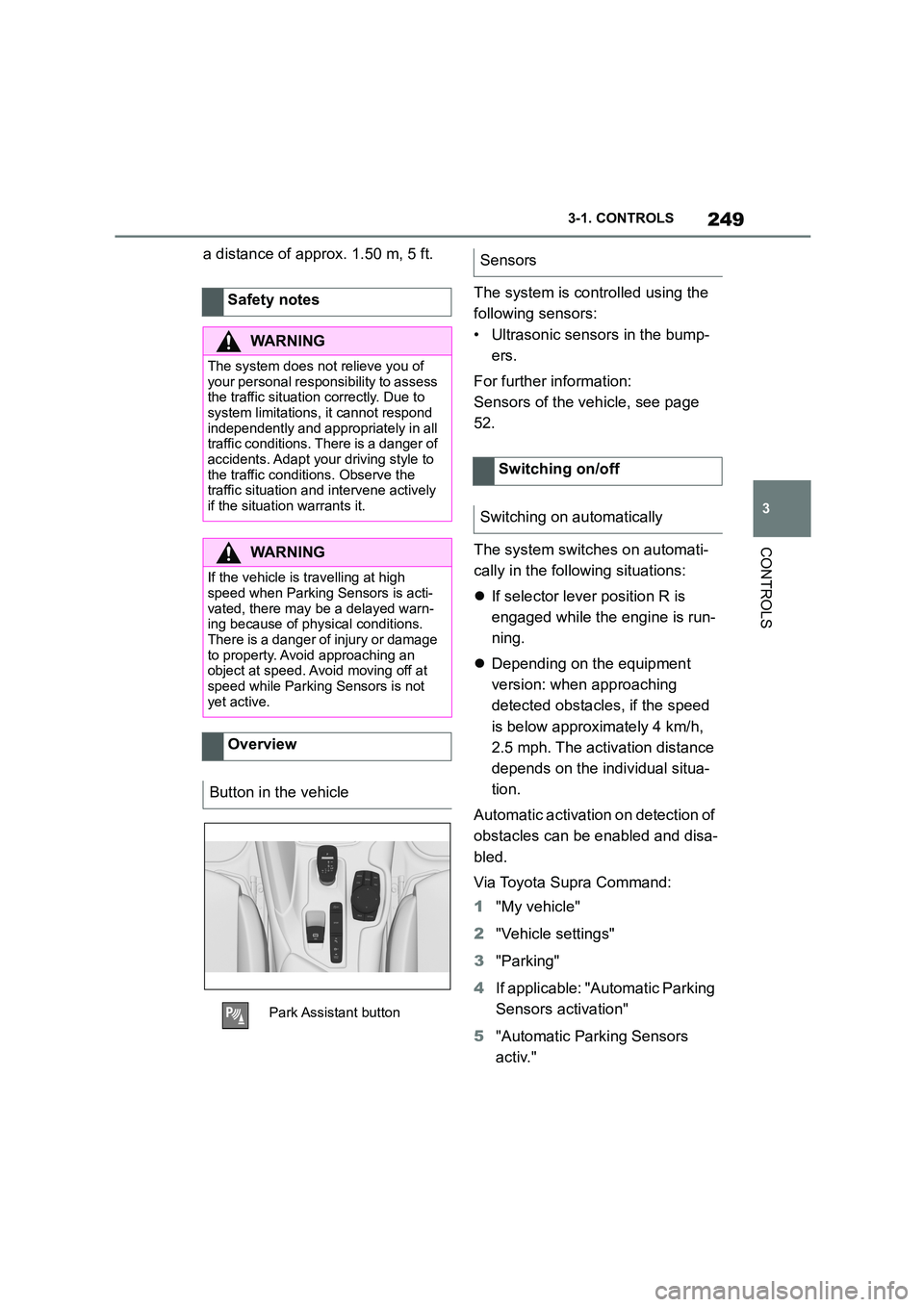

249
3
3-1. CONTROLS
CONTROLS
a distance of approx. 1.50 m, 5 ft.
The system is controlled using the
following sensors:
• Ultrasonic sensors in the bump-
ers.
For further information:
Sensors of the vehicle, see page
52.
The system switches on automati-
cally in the follo wing situations:
 If selector lever position R is
engaged while the engine is run-
ning.
 Depending on the equipment
version: when approaching
detected obstacles, if the speed
is below approximately 4 km/h,
2.5 mph. The activation distance
depends on the individual situa-
tion.
Automatic activation on detection of
obstacles can be enabled and disa-
bled.
Via Toyota Supra Command:
1 "My vehicle"
2 "Vehicle settings"
3 "Parking"
4 If applicable: "Automatic Parking
Sensors activation"
5 "Automatic Parking Sensors
activ."
Safety notes
WA R N I N G
The system does not relieve you of
your personal responsibility to assess the traffic situation correctly. Due to
system limitations, it cannot respond
independently and appropriately in all
traffic conditions. There is a danger of accidents. Adapt your driving style to
the traffic conditions. Observe the
traffic situation and intervene actively if the situation warrants it.
WA R N I N G
If the vehicle is travelling at high speed when Parking Sensors is acti-
vated, there may be a delayed warn-
ing because of physical conditions. There is a danger of injury or damage
to property. Avoid approaching an
object at speed. Avoid moving off at
speed while Parking Sensors is not yet active.
Overview
Button in the vehicle
Park Assistant button
Sensors
Switching on/off
Switching on automatically

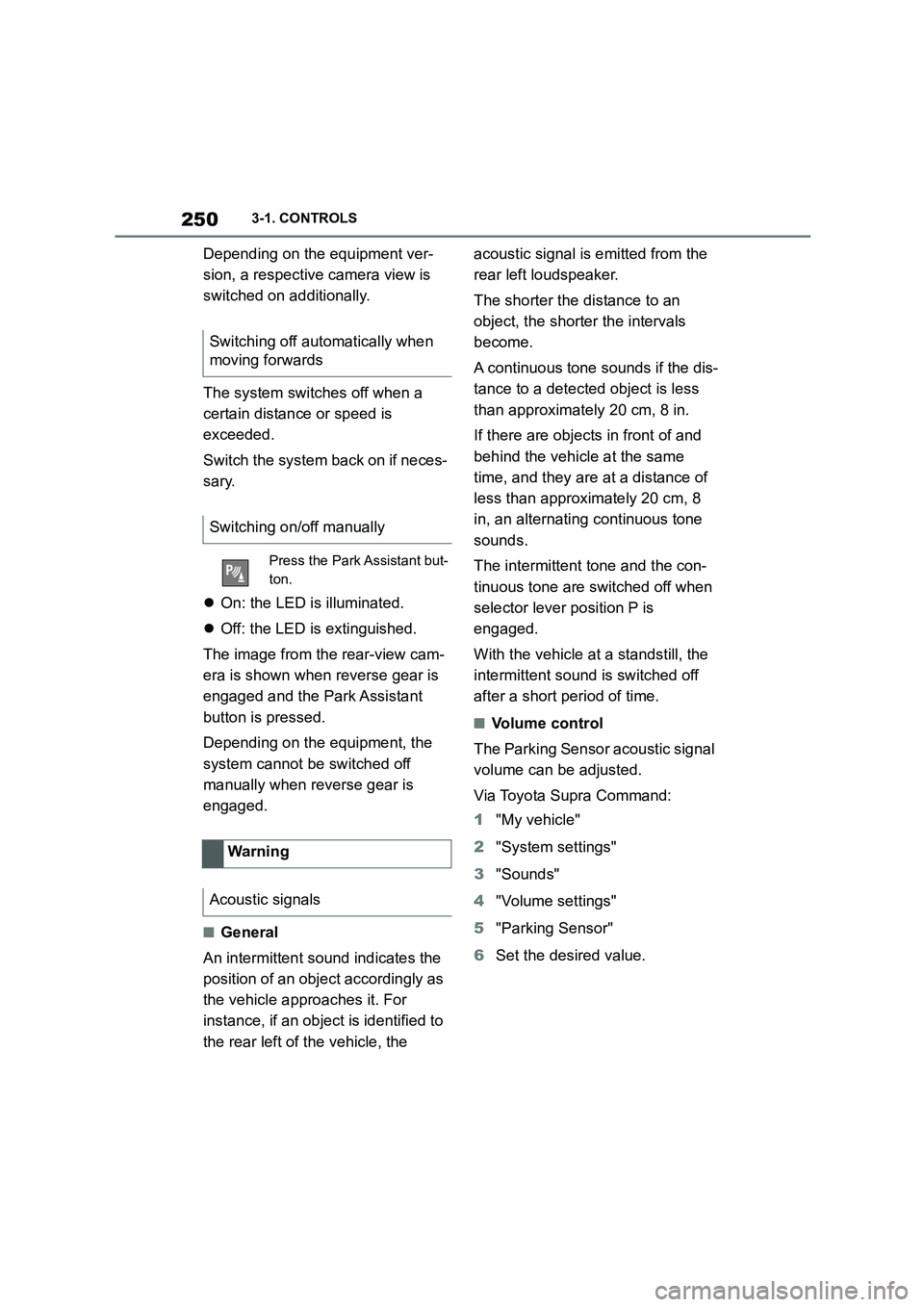

2503-1. CONTROLS
Depending on the equipment ver-
sion, a respective camera view is
switched on additionally.
The system switches off when a
certain distance or speed is
exceeded.
Switch the system back on if neces-
sary.
 On: the LED is illuminated.
 Off: the LED is extinguished.
The image from the rear-view cam-
era is shown when reverse gear is
engaged and the Park Assistant
button is pressed.
Depending on the equipment, the
system cannot be switched off
manually when reverse gear is
engaged.
■General
An intermittent so und indicates the
position of an object accordingly as
the vehicle approaches it. For
instance, if an object is identified to
the rear left of the vehicle, the
acoustic signal is emitted from the
rear left loudspeaker.
The shorter the distance to an
object, the shorter the intervals
become.
A continuous tone sounds if the dis-
tance to a detected object is less
than approximately 20 cm, 8 in.
If there are objects in front of and
behind the vehicle at the same
time, and they are at a distance of
less than approximately 20 cm, 8
in, an alternating continuous tone
sounds.
The intermittent tone and the con-
tinuous tone are switched off when
selector lever position P is
engaged.
With the vehicle at a standstill, the
intermittent sound is switched off
after a short period of time.
■Volume control
The Parking Sensor acoustic signal
volume can be adjusted.
Via Toyota Supra Command:
1 "My vehicle"
2 "System settings"
3 "Sounds"
4 "Volume settings"
5 "Parking Sensor"
6 Set the desired value.
Switching off automatically when
moving forwards
Switching on/off manually
Press the Park Assistant but-
ton.
Warning
Acoustic signals

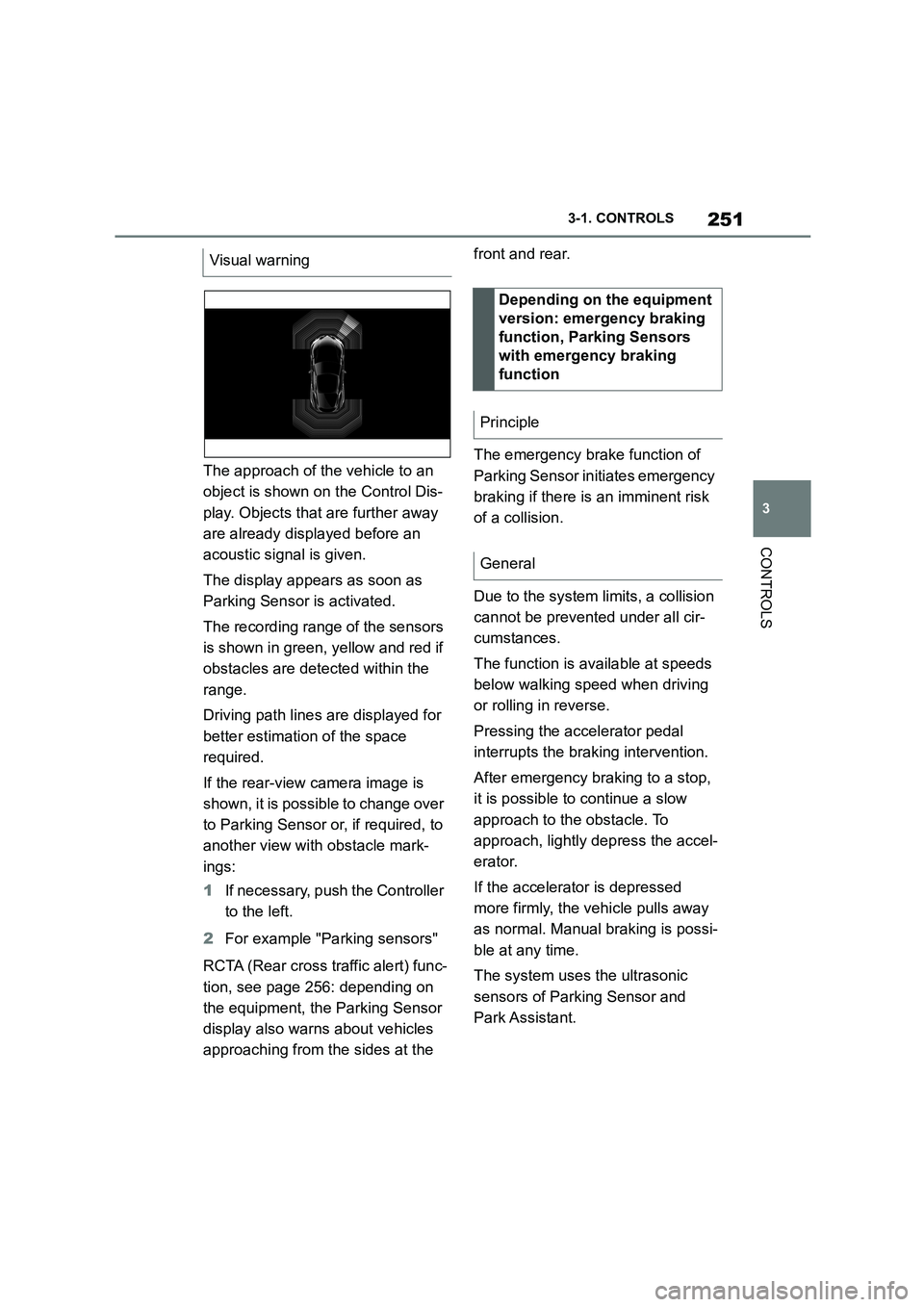

251
3
3-1. CONTROLS
CONTROLS
The approach of the vehicle to an
object is shown on the Control Dis-
play. Objects that are further away
are already displayed before an
acoustic signal is given.
The display appears as soon as
Parking Sensor is activated.
The recording range of the sensors
is shown in green, yellow and red if
obstacles are detected within the
range.
Driving path lines are displayed for
better estimation of the space
required.
If the rear-view camera image is
shown, it is possible to change over
to Parking Sensor or, if required, to
another view with obstacle mark-
ings:
1 If necessary, push the Controller
to the left.
2 For example "Parking sensors"
RCTA (Rear cross traffic alert) func-
tion, see page 256: depending on
the equipment, the Parking Sensor
display also warn s about vehicles
approaching from the sides at the
front and rear.
The emergency brake function of
Parking Sensor in itiates emergency
braking if there is an imminent risk
of a collision.
Due to the system limits, a collision
cannot be prevented under all cir-
cumstances.
The function is available at speeds
below walking speed when driving
or rolling in reverse.
Pressing the accelerator pedal
interrupts the braking intervention.
After emergency braking to a stop,
it is possible to continue a slow
approach to the obstacle. To
approach, lightly depress the accel-
erator.
If the accelerator is depressed
more firmly, the vehicle pulls away
as normal. Manual braking is possi-
ble at any time.
The system uses the ultrasonic
sensors of Parking Sensor and
Park Assistant.
Visual warning
Depending on the equipment
version: emergency braking
function, Parking Sensors
with emergency braking
function
Principle
General

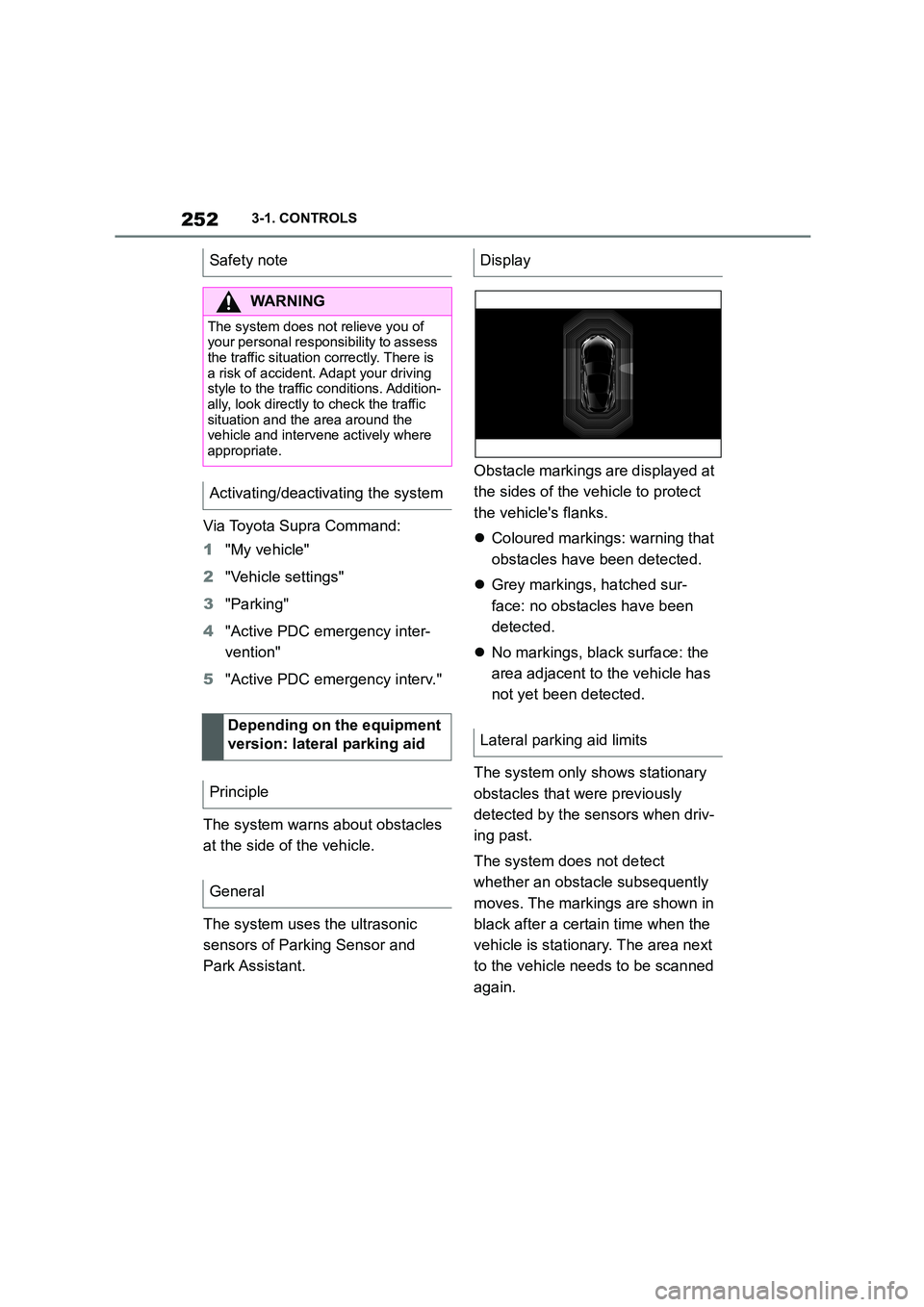

2523-1. CONTROLS
Via Toyota Supra Command:
1 "My vehicle"
2 "Vehicle settings"
3 "Parking"
4 "Active PDC emergency inter-
vention"
5 "Active PDC emergency interv."
The system warns about obstacles
at the side of the vehicle.
The system uses the ultrasonic
sensors of Parking Sensor and
Park Assistant.
Obstacle markings are displayed at
the sides of the vehicle to protect
the vehicle's flanks.
 Coloured markings: warning that
obstacles have been detected.
 Grey markings, hatched sur-
face: no obstacles have been
detected.
 No markings, black surface: the
area adjacent to the vehicle has
not yet been detected.
The system only shows stationary
obstacles that were previously
detected by the sensors when driv-
ing past.
The system does not detect
whether an obstacle subsequently
moves. The markings are shown in
black after a certain time when the
vehicle is stationary. The area next
to the vehicle needs to be scanned
again.
Safety note
WA R N I N G
The system does not relieve you of
your personal responsibility to assess the traffic situation correctly. There is
a risk of accident. Adapt your driving
style to the traffic conditions. Addition- ally, look directly to check the traffic
situation and the area around the
vehicle and intervene actively where
appropriate.
Activating/deactivating the system
Depending on the equipment
version: lateral parking aid
Principle
General
Display
Lateral parking aid limits

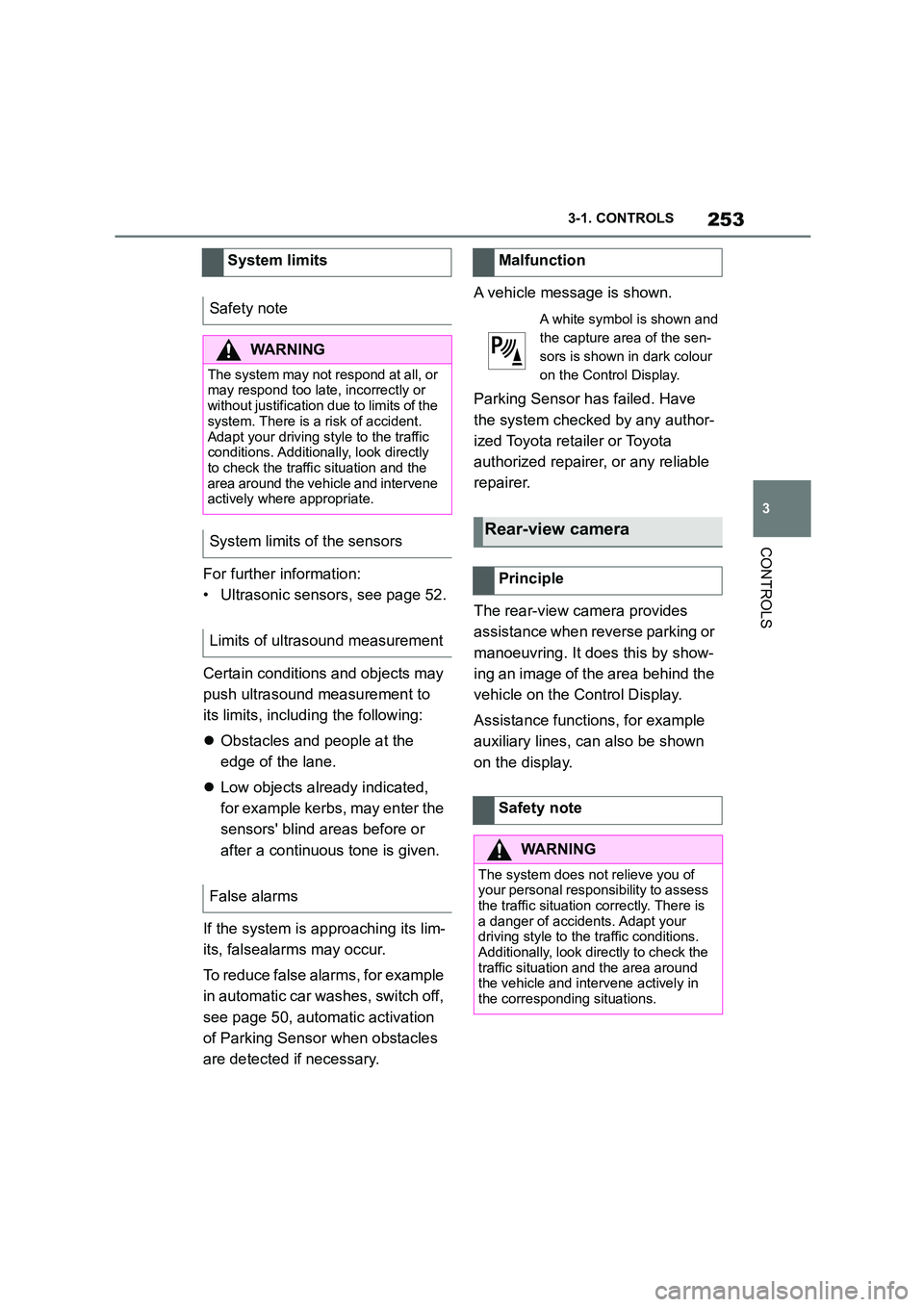

253
3
3-1. CONTROLS
CONTROLS
For further information:
• Ultrasonic sensors, see page 52.
Certain conditions and objects may
push ultrasound measurement to
its limits, including the following:
 Obstacles and people at the
edge of the lane.
 Low objects already indicated,
for example kerbs, may enter the
sensors' blind areas before or
after a continuous tone is given.
If the system is approaching its lim-
its, falsealarms may occur.
To reduce false alarms, for example
in automatic car washes, switch off,
see page 50, automatic activation
of Parking Sensor when obstacles
are detected if necessary.
A vehicle message is shown.
Parking Sensor has failed. Have
the system checked by any author-
ized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The rear-view camera provides
assistance when reverse parking or
manoeuvring. It does this by show-
ing an image of the area behind the
vehicle on the Control Display.
Assistance functions, for example
auxiliary lines, ca n also be shown
on the display.
System limits
Safety note
WA R N I N G
The system may not re spond at all, or may respond too late, incorrectly or
without justification due to limits of the
system. There is a risk of accident.
Adapt your driving style to the traffic conditions. Additionally, look directly
to check the traffic situation and the
area around the vehicle and intervene actively where appropriate.
System limits of the sensors
Limits of ultrasound measurement
False alarms
Malfunction
A white symbol is shown and
the capture area of the sen-
sors is shown in dark colour
on the Control Display.
Rear-view camera
Principle
Safety note
WA R N I N G
The system does not relieve you of your personal responsibility to assess
the traffic situation correctly. There is
a danger of accidents. Adapt your driving style to the traffic conditions.
Additionally, look directly to check the
traffic situation and the area around the vehicle and intervene actively in
the corresponding situations.

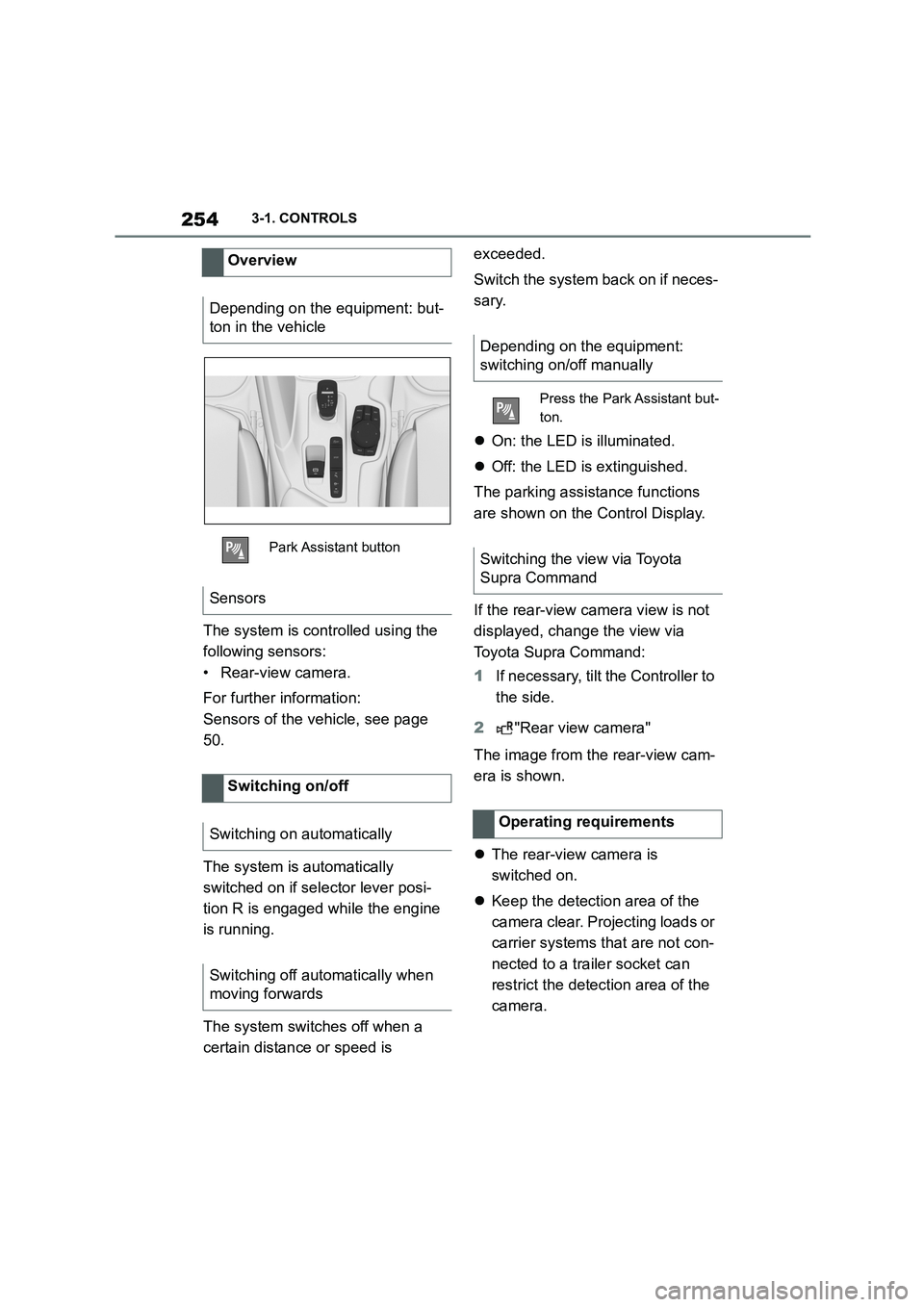

2543-1. CONTROLS
The system is controlled using the
following sensors:
• Rear-view camera.
For further information:
Sensors of the vehicle, see page
50.
The system is automatically
switched on if selector lever posi-
tion R is engaged while the engine
is running.
The system switches off when a
certain distance or speed is
exceeded.
Switch the system back on if neces-
sary.
 On: the LED is illuminated.
 Off: the LED is extinguished.
The parking assistance functions
are shown on the Control Display.
If the rear-view camera view is not
displayed, change the view via
Toyota Supra Command:
1 If necessary, tilt the Controller to
the side.
2 "Rear view camera"
The image from the rear-view cam-
era is shown.
 The rear-view camera is
switched on.
 Keep the detection area of the
camera clear. Projecting loads or
carrier systems that are not con-
nected to a trailer socket can
restrict the detection area of the
camera.
Overview
Depending on the equipment: but-
ton in the vehicle
Park Assistant button
Sensors
Switching on/off
Switching on automatically
Switching off automatically when
moving forwards
Depending on the equipment:
switching on/off manually
Press the Park Assistant but-
ton.
Switching the view via Toyota
Supra Command
Operating requirements

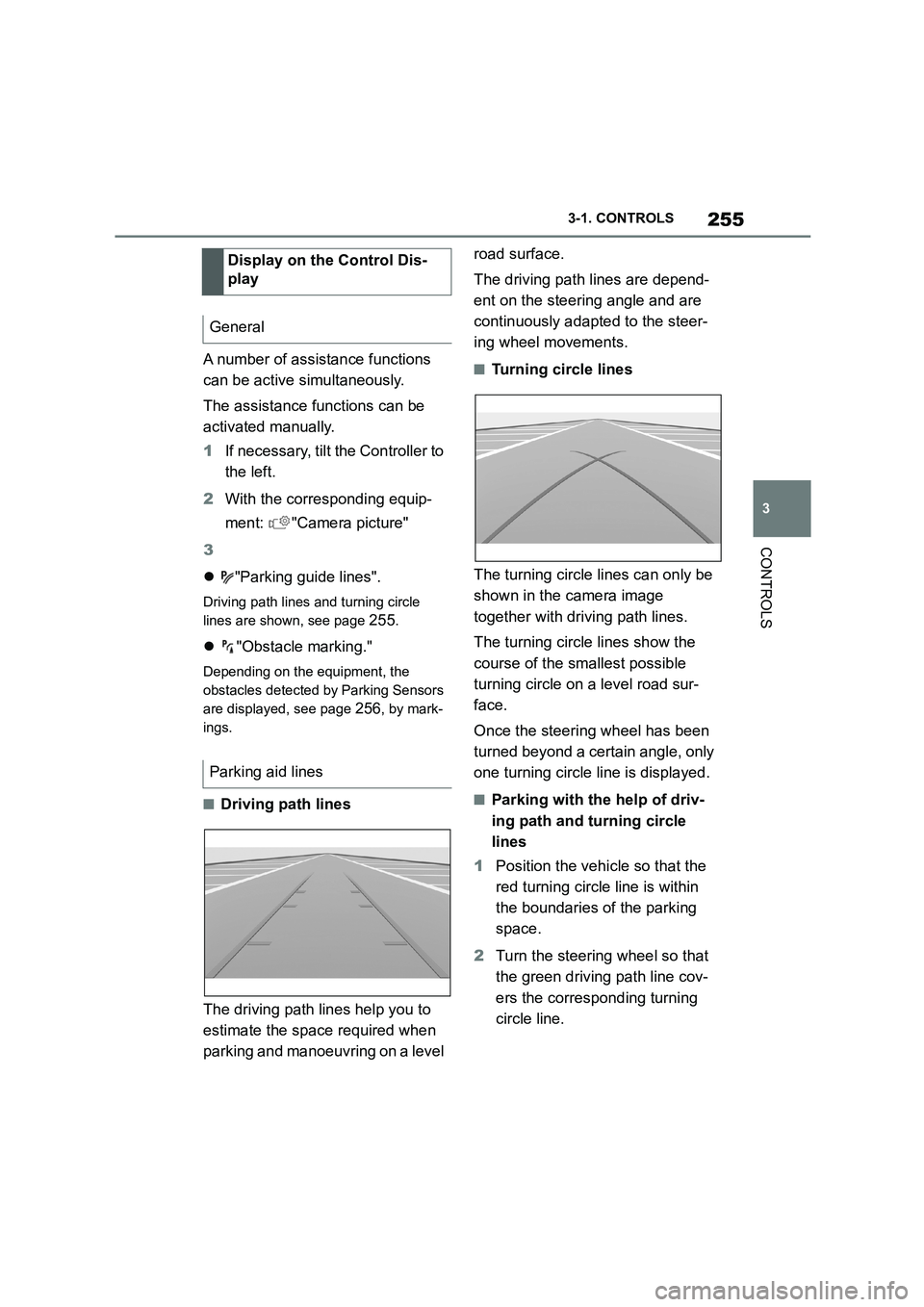

255
3
3-1. CONTROLS
CONTROLS
A number of assistance functions
can be active simultaneously.
The assistance functions can be
activated manually.
1 If necessary, tilt the Controller to
the left.
2 With the corresponding equip-
ment: "Camera picture"
3
 "Parking guide lines".
Driving path lines and turning circle
lines are shown, see page 255.
 "Obstacle marking."
Depending on the equipment, the
obstacles detected by Parking Sensors
are displayed, see page 256, by mark-
ings.
■Driving path lines
The driving path lines help you to
estimate the space required when
parking and manoeuvring on a level
road surface.
The driving path lines are depend-
ent on the steering angle and are
continuously adapted to the steer-
ing wheel movements.
■Turning circle lines
The turning circle lines can only be
shown in the camera image
together with driving path lines.
The turning circle lines show the
course of the smallest possible
turning circle on a level road sur-
face.
Once the steering wheel has been
turned beyond a certain angle, only
one turning circle line is displayed.
■Parking with the help of driv-
ing path and tu rning circle
lines
1 Position the vehicle so that the
red turning circle line is within
the boundaries of the parking
space.
2 Turn the steering wheel so that
the green driving path line cov-
ers the corresponding turning
circle line.
Display on the Control Dis-
play
General
Parking aid lines

2563-1. CONTROLS
Depending on the equipment,
obstacles behind the vehicle are
detected by the Parking Sensors.
Obstacle markers can be shown in
the image from the rear-view cam-
era.
The colour incrementation corre-
sponds to the markings of Parking
Sensors.
With rear-view camera switched on:
1 If necessary, tilt the Controller to
the left.
2 "Camera picture"
3
 "Brightness"
 "Contrast"
4 Set the desired value.
For further information:
• Cameras, see page 50.
If the camera is deactivated, for
example when the boot lid is
opened, the camera image is dis-
played as grey hatching.
Very low obstacles and higher, pro-
truding objects such as ledges can-
not be detected by the system.
Depending on the equipment, some
assistance functions also take
account of Parking Sensors data.
Observe the notes in the chapter on
Parking Sensors.
The objects shown in the Control
Display may be closer than they
appear. Do not estimate the dis-
tance to objects based on the dis-
play.
*: if equipped
At blind exits or when leaving per-
pendicular parking spaces, the sys-
Obstacle marker
Setting brightness and con-
trast via Toyota Supra Com-
mand
System limits
System limits of the sensors
Deactivated camera
Detection of objects
RCTA (Rear cross traffic
alert) function*
Principle

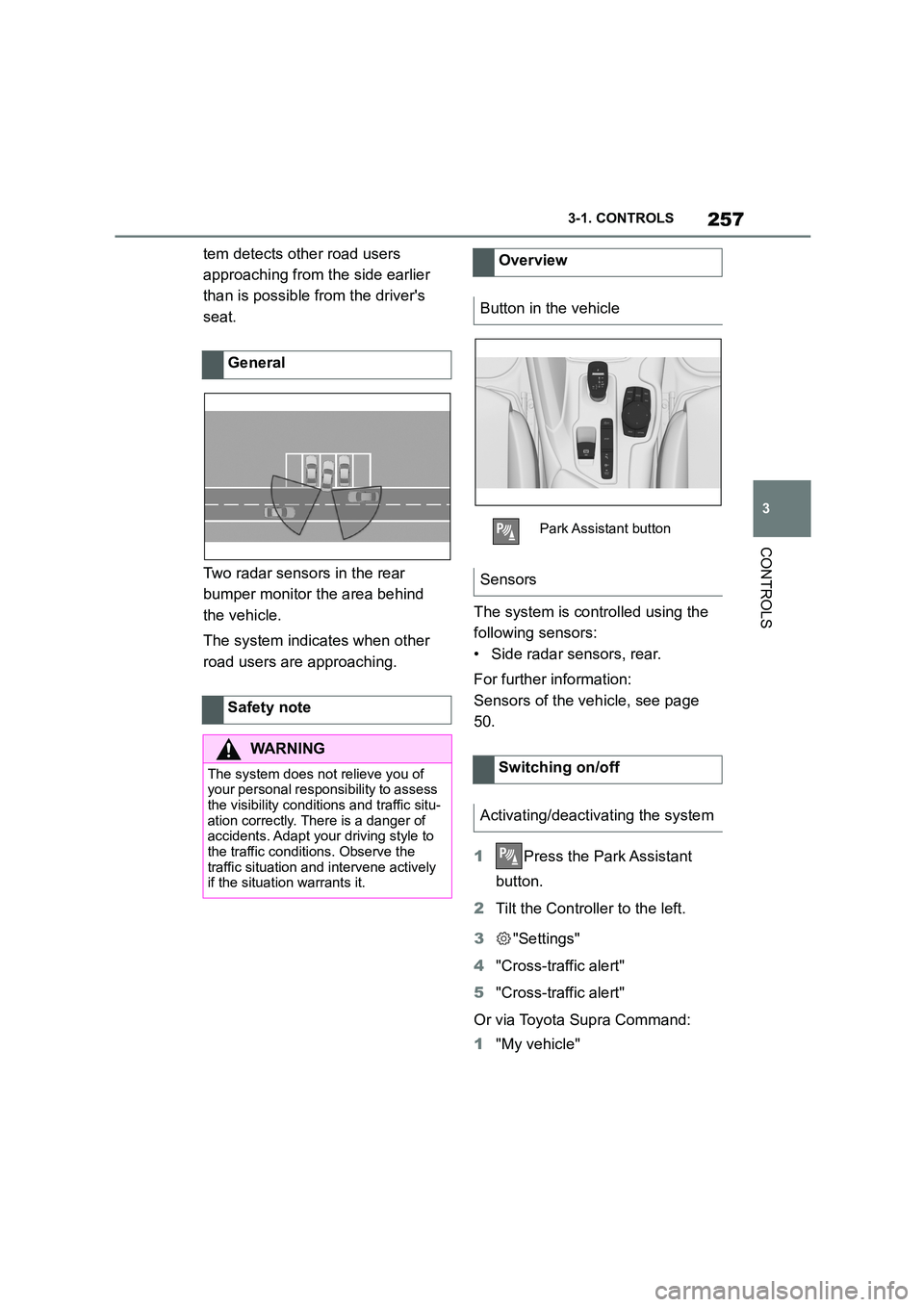

257
3
3-1. CONTROLS
CONTROLS
tem detects other road users
approaching from the side earlier
than is possible from the driver's
seat.
Two radar sensors in the rear
bumper monitor the area behind
the vehicle.
The system indicates when other
road users are approaching.
The system is controlled using the
following sensors:
• Side radar sensors, rear.
For further information:
Sensors of the vehicle, see page
50.
1 Press the Park Assistant
button.
2 Tilt the Controller to the left.
3 "Settings"
4 "Cross-traffic alert"
5 "Cross-traffic alert"
Or via Toyota Supra Command:
1 "My vehicle"
General
Safety note
WA R N I N G
The system does not relieve you of
your personal responsibility to assess the visibility conditions and traffic situ-
ation correctly. There is a danger of
accidents. Adapt your driving style to the traffic conditions. Observe the
traffic situation and intervene actively
if the situation warrants it.
Overview
Button in the vehicle
Park Assistant button
Sensors
Switching on/off
Activating/deactivating the system

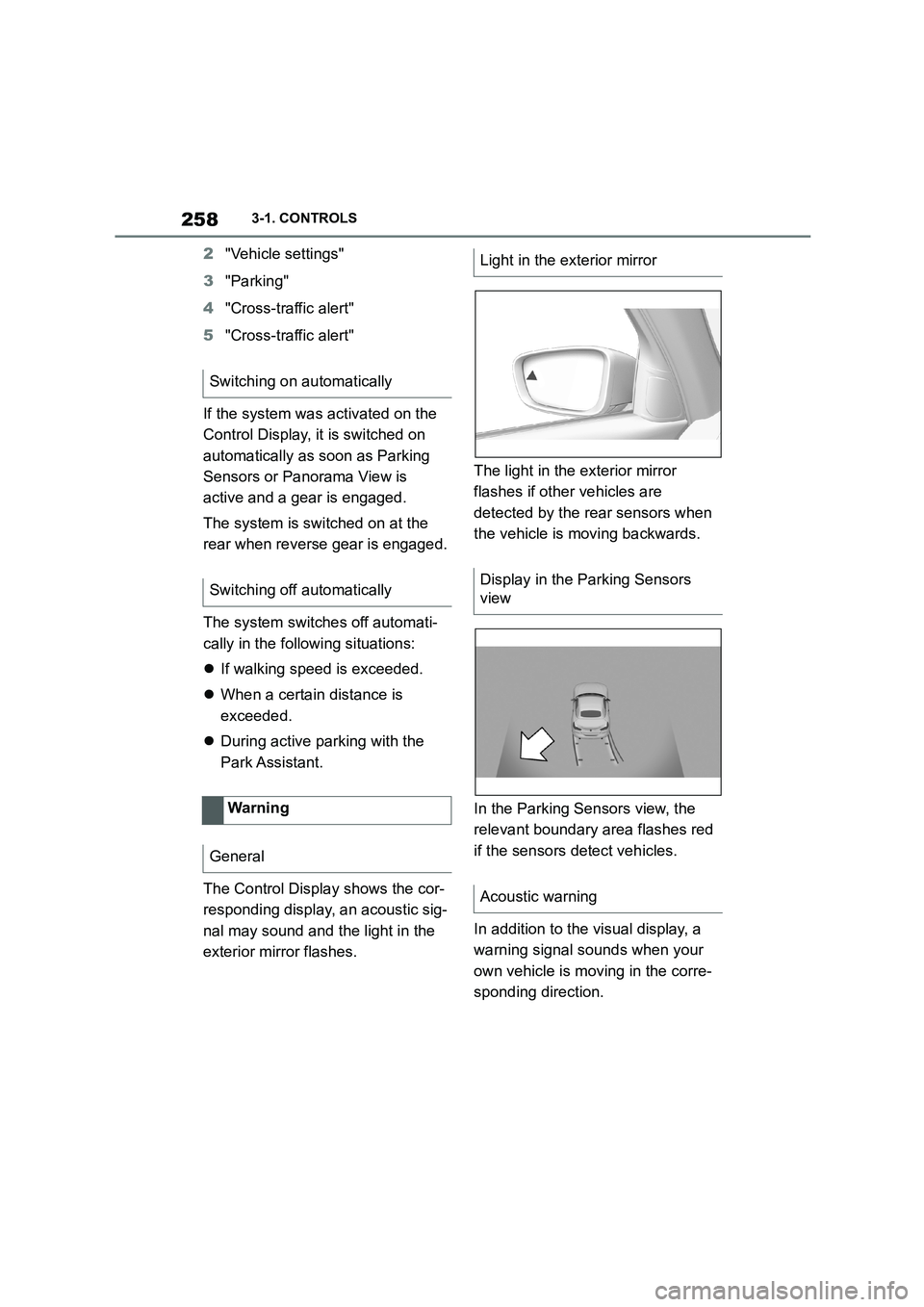

2583-1. CONTROLS
2"Vehicle settings"
3 "Parking"
4 "Cross-traffic alert"
5 "Cross-traffic alert"
If the system was activated on the
Control Display, it is switched on
automatically as soon as Parking
Sensors or Panorama View is
active and a gear is engaged.
The system is switched on at the
rear when reverse gear is engaged.
The system switches off automati-
cally in the following situations:
 If walking speed is exceeded.
 When a certain distance is
exceeded.
 During active parking with the
Park Assistant.
The Control Display shows the cor-
responding display, an acoustic sig-
nal may sound and the light in the
exterior mirror flashes.
The light in the exterior mirror
flashes if other vehicles are
detected by the rear sensors when
the vehicle is moving backwards.
In the Parking Sensors view, the
relevant boundary area flashes red
if the sensors detect vehicles.
In addition to the visual display, a
warning signal sounds when your
own vehicle is moving in the corre-
sponding direction.
Switching on automatically
Switching off automatically
Warning
General
Light in the exterior mirror
Display in the Parking Sensors
view
Acoustic warning
