VOLVO V60 2014 Owners Manual

10 Maintenance and service
10
}}
* Option/accessory, for more information, see Introduction.369

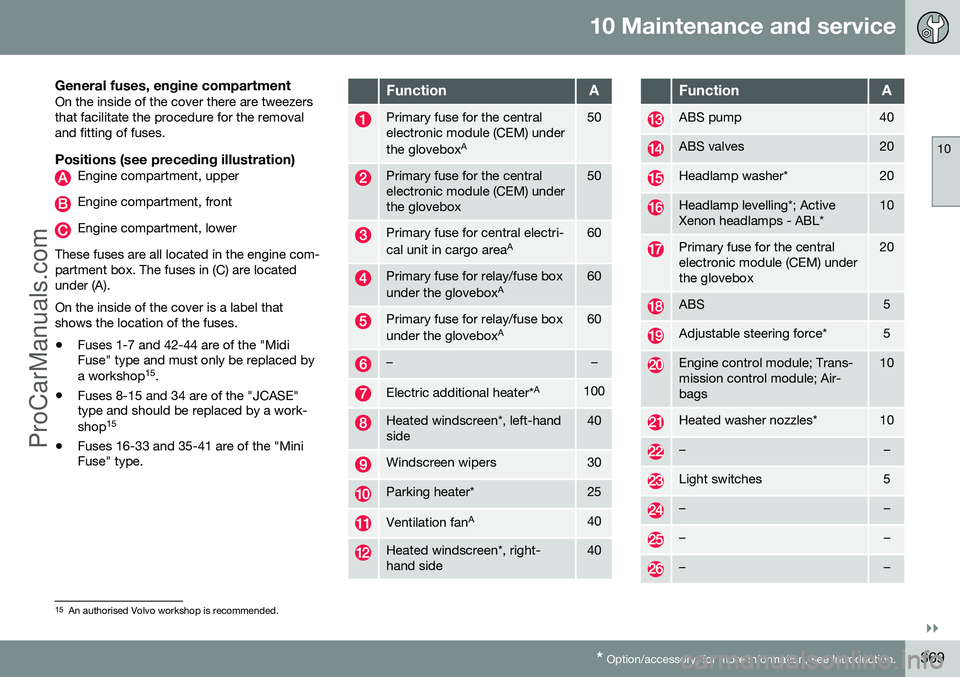

General fuses, engine compartmentOn the inside of the cover there are tweezers that facilitate the procedure for the removaland fitting of fuses.
Positions (see preceding illustration)Engine compartment, upper
Engine compartment, front
Engine compartment, lower
These fuses are all located in the engine com- partment box. The fuses in (C) are locatedunder (A). On the inside of the cover is a label that shows the location of the fuses. • Fuses 1-7 and 42-44 are of the "Midi Fuse" type and must only be replaced by a workshop 15
.
• Fuses 8-15 and 34 are of the "JCASE" type and should be replaced by a work- shop 15
• Fuses 16-33 and 35-41 are of the "Mini Fuse" type.
FunctionA
Primary fuse for the central electronic module (CEM) under the glovebox A50
Primary fuse for the central electronic module (CEM) underthe glovebox50
Primary fuse for central electri- cal unit in cargo area
A60
Primary fuse for relay/fuse box under the gloveboxA60
Primary fuse for relay/fuse box under the gloveboxA60
––
Electric additional heater* A100
Heated windscreen*, left-hand side40
Windscreen wipers30
Parking heater*25
Ventilation fanA40
Heated windscreen*, right- hand side40
FunctionA
ABS pump40
ABS valves20
Headlamp washer*20
Headlamp levelling*; Active Xenon headlamps - ABL*10
Primary fuse for the central electronic module (CEM) underthe glovebox20
ABS5
Adjustable steering force*5
Engine control module; Trans- mission control module; Air-bags10
Heated washer nozzles*10
––
Light switches5
––
––
––
15
An authorised Volvo workshop is recommended.
ProCarManuals.co’

||
10 Maintenance and service
10
370* Option/accessory, for more information, see Introduction.
FunctionA
Relay coils5
Auxiliary lamps*20
Horn15
Relay coil in main relay for engine management system;Engine control module (4-cyl. 2.0 l B
, 5, 6-cyl.)10
Transmission control module15
Solenoid clutch A/C (not 4-cyl. 2.0 l C
, not 5-cyl. diesel); Sup-
porting coolant pump (4-cyl. 2.0 l diesel)15
Relay coil in relay for solenoid clutch A/C (not 5-cyl. diesel);Relay coil in relay for coolantpump (1.6 l petrol Start/Stop);Relay coils in central electricalunit in engine compartmentcold zone (Start/Stop)5
Start relay A30
FunctionA
Ignition coils (1.6 l petrol, engine B4204T7); Glow controlmodule (5-cyl. diesel)10
Engine control module (4-cyl. 2.0 l
B
); Ignition coils (5, 6-cyl.
petrol); Capacitor (6-cyl.)20
Engine control module (petrol except 4-cyl. 2.0 l C
)10
Engine control module (1.6 l diesel, 5-cyl. diesel)15
Engine control module (4-cyl. 2.0 l B
)20
FunctionA
Valves (1.6 l petrol); mass air flow sensor (1.6 l, 4-cyl. 2.0 l B
);
Thermostat (4-cyl. 2.0 l pet-rol B
); EVAP valve (4-cyl. 2.0 l
petrol B
); Cooling valve for cli-
mate control system (4-cyl. 2.0 l diesel); Cooling pump for EGR(4-cyl. 2.0 l diesel) Mass air flow sensor (engine D4162T); Control valve, fuelflow (engine D4162T)10
Mass air flow sensor (5-cyl. diesel, 6-cyl.); Control valves(5-cyl. diesel); Injectors (5, 6-cyl. petrol); Engine controlmodule (5-cyl. petrol, 6-cyl.)15
ProCarManuals.co’

10 Maintenance and service
10
371
FunctionA
Solenoid clutch A/C (5, 6-cyl.); Valves (1.6 l, engine B4204T7;5-cyl., 6-cyl.); Engine controlmodule (6-cyl.); Solenoids (6-cyl. without turbo); Actuatormotors, intake manifold (6-cyl.without turbo); Mass air flowsensor (engine B4204T7; 5-cyl.petrol); Oil level sensor (5-cyl.diesel)10
Valves (4-cyl. 2.0 lB
); Oil pump
(4-cyl. 2.0 l petrol B
); Lambda-
sond, centre (4-cyl. 2.0 l pet- rol B
); Lambda-sond, rear (4-cyl.
2.0 l diesel)15
Lambda-sonds (1.6 l petrol, engine B4204T7); Lambda-sond (5-cyl. diesel); Controlmodule, radiator roller cover(1.6 l diesel, 5-cyl. diesel)10
Lambda-sond, front (4-cyl. 2.0 l B
); Lambda-sond, rear (4-
cyl. 2.0 l petrol B
); EVAP valve
(5, 6-cyl. petrol); Lambda- sonds (5, 6-cyl. petrol)15
FunctionA
Coolant pump (1.6 l petrol Start/Stop); Crankcase ventila-tion heater (5-cyl. petrol); Oilpump automatic gearbox(5-cyl.petrol Start/Stop)10
Ignition coils (4-cyl. 2.0 l pet- rol B
)15
Diesel filter heater20
Control module, radiator roller cover (5-cyl. petrol)5
Crankcase ventilation heater (5-cyl. diesel); Oil pump auto-matic gearbox (5-cyl. dieselStart/Stop)10
Solenoid clutch A/C (4-cyl. 2.0 l B
); Glow control module (4-
cyl. 2.0 l diesel); Oil pump (4- cyl. 2.0 l diesel)15
Coolant pump (4-cyl. 2.0 l pet- rol B
)50
Glow plugs (diesel)70
FunctionA
Cooling fan (1.6 l, 4-cyl. 2.0 l petrol, 5-cyl. petrol)60
Cooling fan (6-cyl., 4-cyl. 2.0 l diesel, 5-cyl. diesel)80
Power steering100
A For cars with the Start/Stop function this fuse location is empty - see instead Fuses - in the engine compartment'scold zone (p. 377).
B Does not apply to the B4204T7 engine.
C However, does apply to the B4204T7 engine.
Related information
• Fuses - under glovebox (p. 372)
• Fuses - in the control module under the glovebox (p. 374)
• Fuses - in cargo area (p. 376)
ProCarManuals.co’

10 Maintenance and service
10
372* Option/accessory, for more information, see Introduction.
Fuses - under glovebox
Fuses under the glovebox protect the info- tainment and seat functions, amongst otherthings.
Positions
FunctionA
Primary fuse for audio control module*; Primary fuse for fuses16-20: Infotainment40
Windscreen washers; Rear win- dow washer25
––
––
FunctionA
––
Door handle (Keyless*)5
––
Control panel, driver's door20
Control panel, front passenger door20
FunctionA
Control panel, rear passenger door, right20
Control panel, rear passenger door, left20
Keyless*7,5
Power seat driver's side*20
Power seat passenger side*20
ProCarManuals.co’

10 Maintenance and service
10
* Option/accessory, for more information, see Introduction.373
FunctionA
––
Infotainment control module; Screen A5
Audio control unit (amplifier)*, Digital radio*; TV*10
Audio or Control Module Sen- sus
A15
Telematics*; Bluetooth*5
––
Sunroof*; Interior lighting roof; Climate sensor*; Dampermotors, air intake5
12 V socket, tunnel console15
Seat heating, rear right*15
Seat heating, rear left*15
Electric additional heater*5
Seat heating (passenger side)15
Seat heating (driver's side)15
FunctionA
Parking assistance*; Parking camera*; Towbar control mod-ule* BLIS*5
AWD control module*15
Active chassis - Four-C*10
A
Certain model variants.
Related information
• Fuses - in engine compartment (p. 368)
• Fuses - in the control module under the glovebox (p. 374)
• Fuses - in cargo area (p. 376)
• Fuses - in the engine compartment's coldzone (p. 377)
ProCarManuals.co’

10 Maintenance and service
10
374* Option/accessory, for more information, see Introduction.
Fuses - in the control module under the glovebox
Fuses in the control module under the glove- box protect airbag and collision warning sys-tem functions, amongst other things.
Positions
FunctionA
Rear window wiper15
––
Interior lighting; Driver's door control panel, power windows;Remote controlled garage dooropener*; Power seats, front*7,5
FunctionA
Combined instrument panel5
Adaptive cruise control, ACC*; collision warning system*10
Interior lighting; Rain sensor7,5
Steering wheel module7,5
Central locking system, fuel filler flap10
FunctionA
Heated steering wheel*15
Heated windscreen*15
Unlocking, tailgate10
Folding head restraint*10
Fuel pump20
ProCarManuals.co’

10 Maintenance and service
10
* Option/accessory, for more information, see Introduction.375
FunctionA
Movement detector alarm*; Cli- mate panel5
Steering lock15
Siren*; Data link connector OBDII5
––
Airbags10
Collision warning*5
Accelerator pedal sensor; Dim- ming interior rearview mirror*;Seat heating, rear* Electric additional heater*7,5
Infotainment control module (Performance); Audio (Perform-ance)15
Brake lights5
Sunroof*20
Immobiliser5
Related information
• Fuses - in engine compartment (p. 368)
• Fuses - under glovebox (p. 372)
• Fuses - in cargo area (p. 376) •
Fuses - in the engine compartment's cold zone (p. 377)
ProCarManuals.co’

10 Maintenance and service
10
376* Option/accessory, for more information, see Introduction.

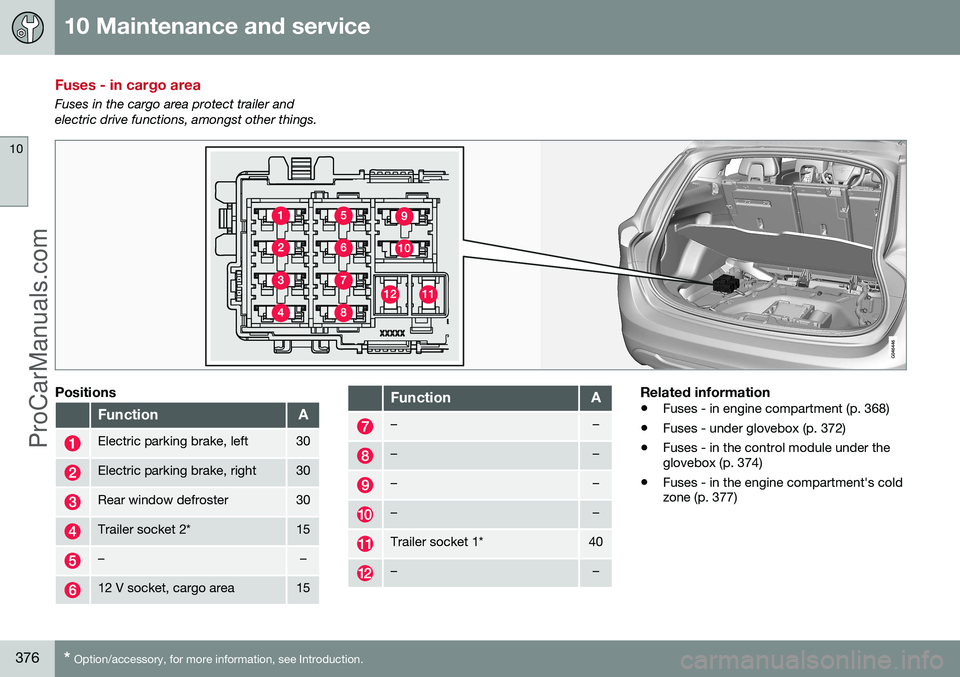

Fuses - in cargo area
Fuses in the cargo area protect trailer and electric drive functions, amongst other things.
Positions
FunctionA
Electric parking brake, left30
Electric parking brake, right30
Rear window defroster30
Trailer socket 2*15
––
12 V socket, cargo area15
FunctionA
––
––
––
––
Trailer socket 1*40
––
Related information
• Fuses - in engine compartment (p. 368)
• Fuses - under glovebox (p. 372)
• Fuses - in the control module under the glovebox (p. 374)
• Fuses - in the engine compartment's coldzone (p. 377)
ProCarManuals.co’

10 Maintenance and service
10
}}
* Option/accessory, for more information, see Introduction.377

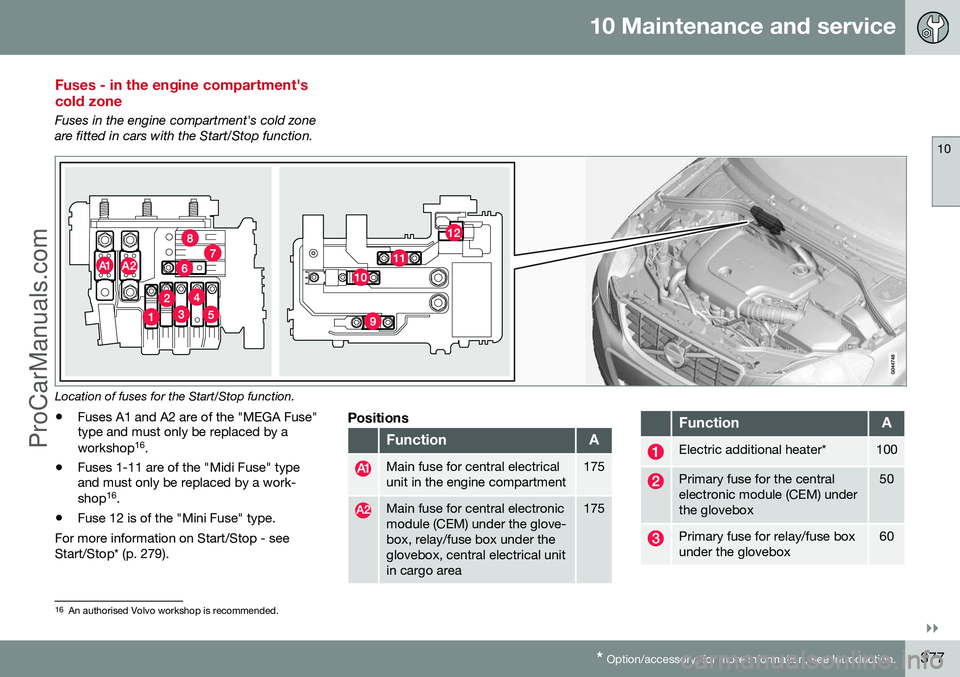

Fuses - in the engine compartment's cold zone
Fuses in the engine compartment's cold zone are fitted in cars with the Start/Stop function.
Location of fuses for the Start/Stop function. • Fuses A1 and A2 are of the "MEGA Fuse" type and must only be replaced by a workshop 16
.
• Fuses 1-11 are of the "Midi Fuse" type and must only be replaced by a work- shop 16
.
• Fuse 12 is of the "Mini Fuse" type.
For more information on Start/Stop - see Start/Stop* (p. 279).
Positions
FunctionA
Main fuse for central electrical unit in the engine compartment175
Main fuse for central electronic module (CEM) under the glove-box, relay/fuse box under theglovebox, central electrical unitin cargo area175
FunctionA
Electric additional heater*100
Primary fuse for the central electronic module (CEM) underthe glovebox50
Primary fuse for relay/fuse box under the glovebox60
16 An authorised Volvo workshop is recommended.
ProCarManuals.co’

||
10 Maintenance and service
10
378

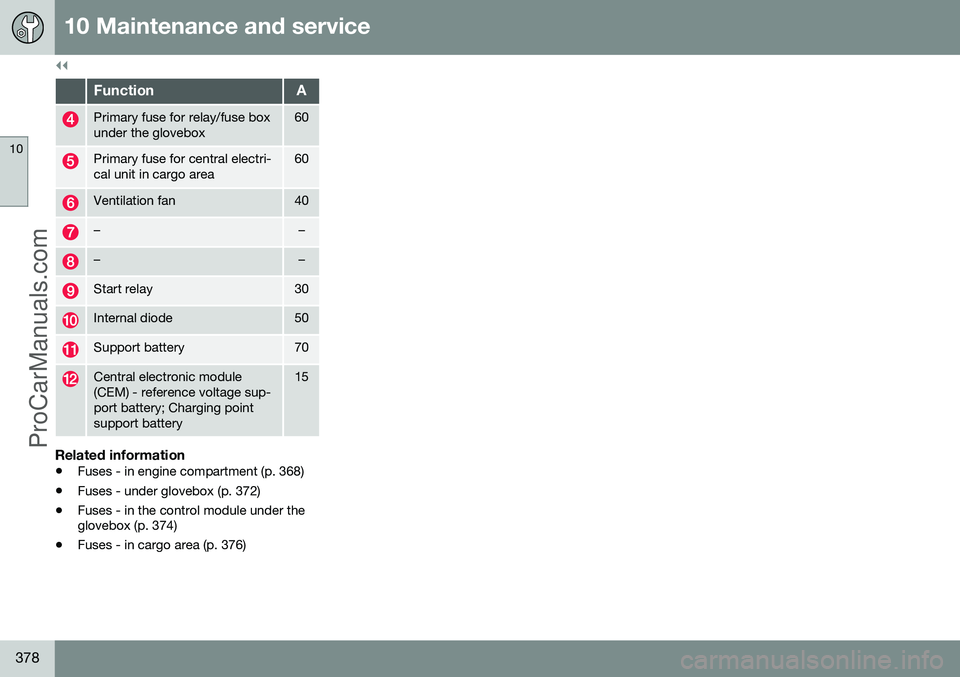

FunctionA
Primary fuse for relay/fuse box under the glovebox60
Primary fuse for central electri- cal unit in cargo area60
Ventilation fan40
––
––
Start relay30
Internal diode50
Support battery70
Central electronic module (CEM) - reference voltage sup-port battery; Charging pointsupport battery15
Related information
•Fuses - in engine compartment (p. 368)
• Fuses - under glovebox (p. 372)
• Fuses - in the control module under the glovebox (p. 374)
• Fuses - in cargo area (p. 376)
