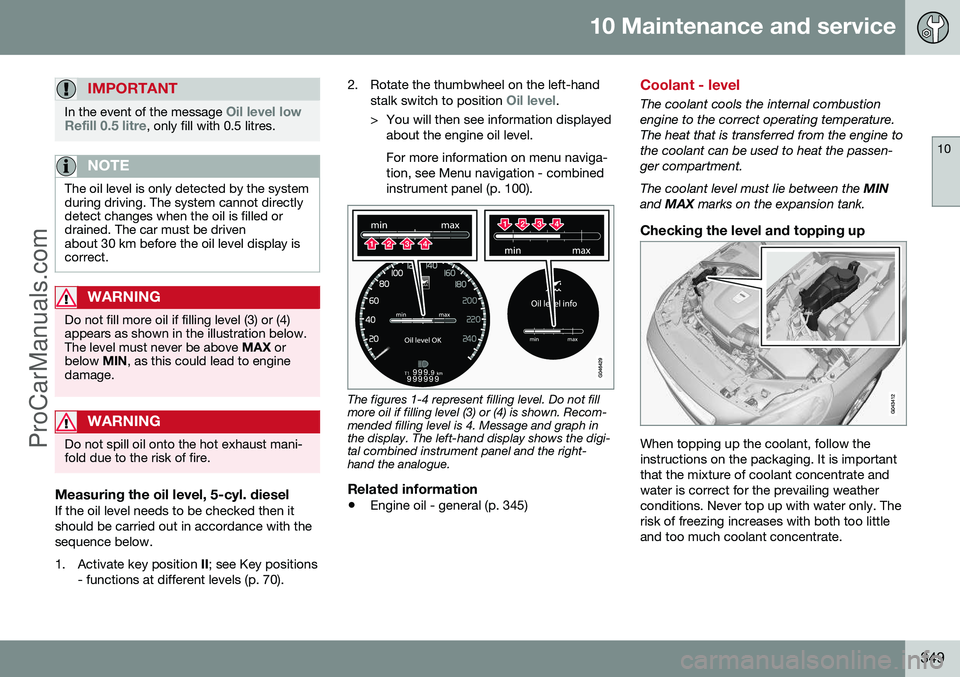

10 Maintenance and service
10
349
IMPORTANT
In the event of the message Oil level low
Refill 0.5 litre, only fill with 0.5 litres.
NOTE
The oil level is only detected by the system during driving. The system cannot directlydetect changes when the oil is filled ordrained. The car must be drivenabout 30 km before the oil level display iscorrect.
WARNING
Do not fill more oil if filling level (3) or (4) appears as shown in the illustration below.The level must never be above MAX or
below MIN, as this could lead to engine
damage.
WARNING
Do not spill oil onto the hot exhaust mani- fold due to the risk of fire.
Measuring the oil level, 5-cyl. dieselIf the oil level needs to be checked then it should be carried out in accordance with thesequence below.
1. Activate key position II; see Key positions
- functions at different levels (p. 70). 2. Rotate the thumbwheel on the left-hand
stalk switch to position
Oil level.
> You will then see information displayed about the engine oil level. For more information on menu naviga- tion, see Menu navigation - combinedinstrument panel (p. 100).
The figures 1-4 represent filling level. Do not fill more oil if filling level (3) or (4) is shown. Recom-mended filling level is 4. Message and graph inthe display. The left-hand display shows the digi-tal combined instrument panel and the right-hand the analogue.
Related information
• Engine oil - general (p. 345)
Coolant - level
The coolant cools the internal combustion engine to the correct operating temperature.The heat that is transferred from the engine tothe coolant can be used to heat the passen-ger compartment. The coolant level must lie between the
MIN
and MAX marks on the expansion tank.
Checking the level and topping up
When topping up the coolant, follow the instructions on the packaging. It is importantthat the mixture of coolant concentrate andwater is correct for the prevailing weatherconditions. Never top up with water only. Therisk of freezing increases with both too littleand too much coolant concentrate.
ProCarManuals.co’
Page 352 of 442
||

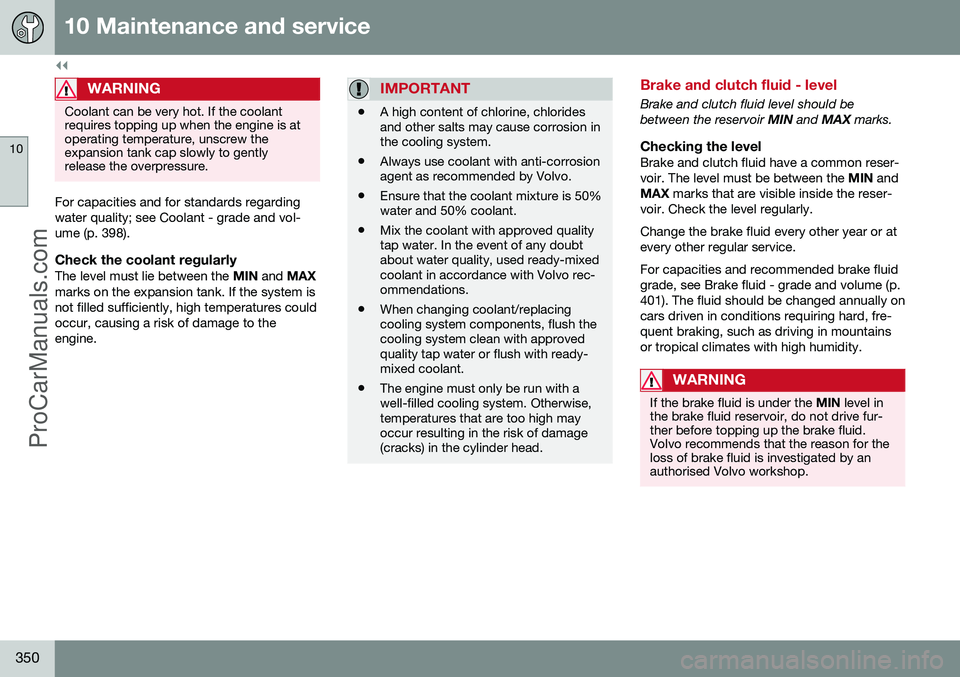

10 Maintenance and service
10
350
WARNING
Coolant can be very hot. If the coolant requires topping up when the engine is atoperating temperature, unscrew theexpansion tank cap slowly to gentlyrelease the overpressure.
For capacities and for standards regarding water quality; see Coolant - grade and vol-ume (p. 398).
Check the coolant regularlyThe level must lie between the MIN and MAX
marks on the expansion tank. If the system isnot filled sufficiently, high temperatures couldoccur, causing a risk of damage to theengine.
IMPORTANT
• A high content of chlorine, chlorides and other salts may cause corrosion inthe cooling system.
• Always use coolant with anti-corrosionagent as recommended by Volvo.
• Ensure that the coolant mixture is 50%water and 50% coolant.
• Mix the coolant with approved qualitytap water. In the event of any doubtabout water quality, used ready-mixedcoolant in accordance with Volvo rec-ommendations.
• When changing coolant/replacingcooling system components, flush thecooling system clean with approvedquality tap water or flush with ready-mixed coolant.
• The engine must only be run with awell-filled cooling system. Otherwise,temperatures that are too high mayoccur resulting in the risk of damage(cracks) in the cylinder head.
Brake and clutch fluid - level
Brake and clutch fluid level should be between the reservoir
MIN and MAX marks.
Checking the levelBrake and clutch fluid have a common reser-voir. The level must be between the MIN and
MAX marks that are visible inside the reser-
voir. Check the level regularly. Change the brake fluid every other year or at every other regular service. For capacities and recommended brake fluid grade, see Brake fluid - grade and volume (p.401). The fluid should be changed annually oncars driven in conditions requiring hard, fre-quent braking, such as driving in mountainsor tropical climates with high humidity.
WARNING
If the brake fluid is under the MIN level in
the brake fluid reservoir, do not drive fur- ther before topping up the brake fluid.Volvo recommends that the reason for theloss of brake fluid is investigated by anauthorised Volvo workshop.
ProCarManuals.co’
Page 353 of 442

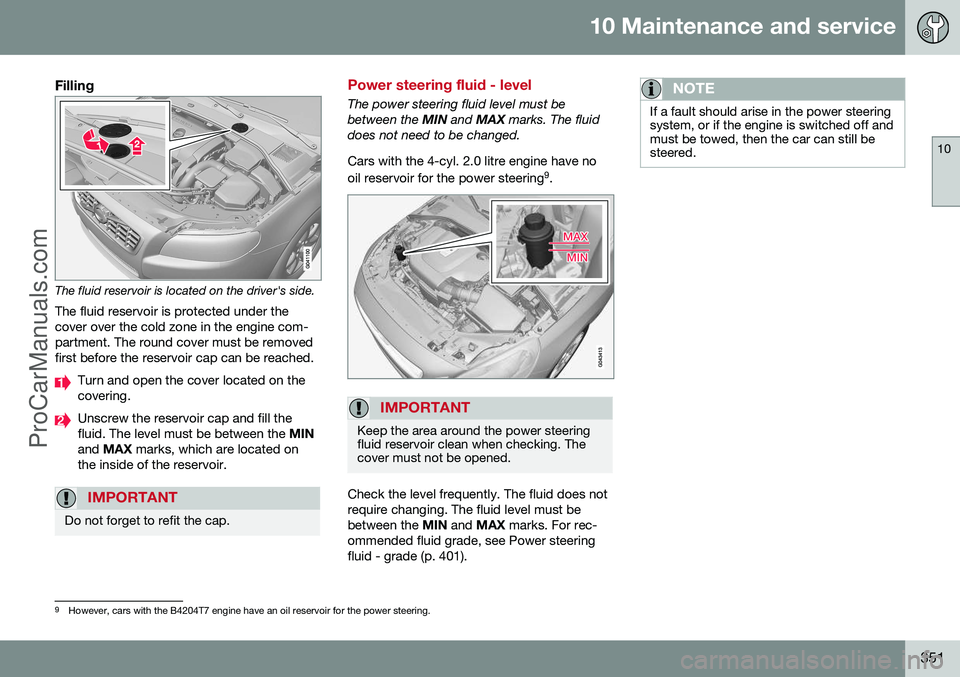

10 Maintenance and service
10
351
Filling
The fluid reservoir is located on the driver's side.The fluid reservoir is protected under the cover over the cold zone in the engine com-partment. The round cover must be removedfirst before the reservoir cap can be reached.
Turn and open the cover located on the covering.
Unscrew the reservoir cap and fill the fluid. The level must be between the MIN
and MAX marks, which are located on
the inside of the reservoir.
IMPORTANT
Do not forget to refit the cap.
Power steering fluid - level
The power steering fluid level must be between the MIN and MAX marks. The fluid
does not need to be changed. Cars with the 4-cyl. 2.0 litre engine have no oil reservoir for the power steering 9
.
IMPORTANT
Keep the area around the power steering fluid reservoir clean when checking. Thecover must not be opened.
Check the level frequently. The fluid does not require changing. The fluid level must bebetween the MIN and MAX marks. For rec-
ommended fluid grade, see Power steeringfluid - grade (p. 401).
NOTE
If a fault should arise in the power steering system, or if the engine is switched off andmust be towed, then the car can still besteered.
9 However, cars with the B4204T7 engine have an oil reservoir for the power steering.
ProCarManuals.co’
Page 354 of 442

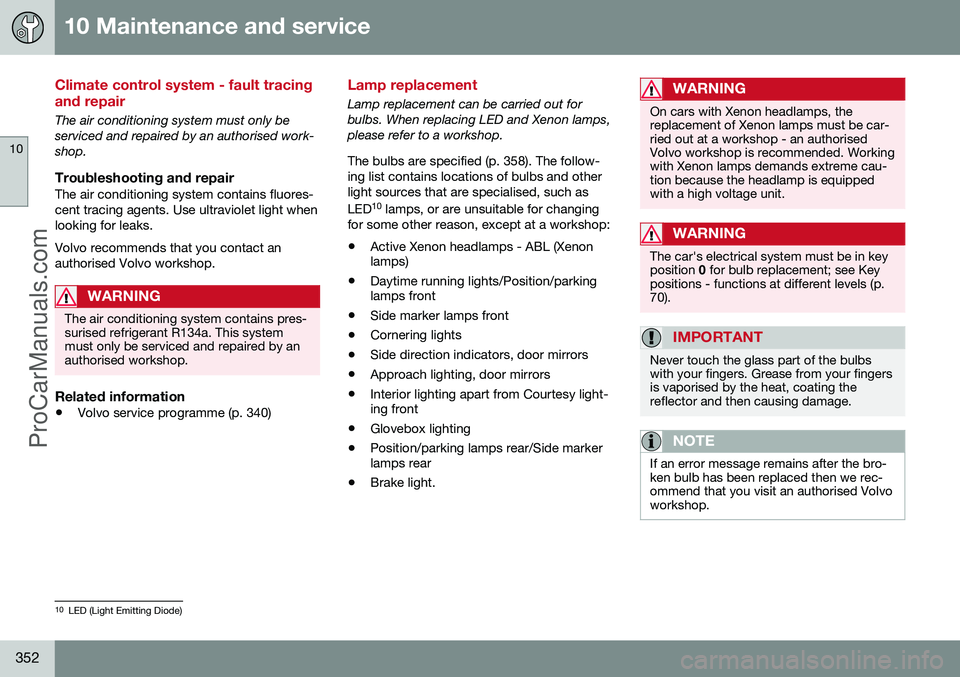

10 Maintenance and service
10
352
Climate control system - fault tracing and repair
The air conditioning system must only be serviced and repaired by an authorised work-shop.
Troubleshooting and repairThe air conditioning system contains fluores-cent tracing agents. Use ultraviolet light whenlooking for leaks. Volvo recommends that you contact an authorised Volvo workshop.
WARNING
The air conditioning system contains pres- surised refrigerant R134a. This systemmust only be serviced and repaired by anauthorised workshop.
Related information
•Volvo service programme (p. 340)
Lamp replacement
Lamp replacement can be carried out for bulbs. When replacing LED and Xenon lamps,please refer to a workshop. The bulbs are specified (p. 358). The follow- ing list contains locations of bulbs and otherlight sources that are specialised, such as LED 10
lamps, or are unsuitable for changing
for some other reason, except at a workshop:
• Active Xenon headlamps - ABL (Xenon lamps)
• Daytime running lights/Position/parkinglamps front
• Side marker lamps front
• Cornering lights
• Side direction indicators, door mirrors
• Approach lighting, door mirrors
• Interior lighting apart from Courtesy light-ing front
• Glovebox lighting
• Position/parking lamps rear/Side markerlamps rear
• Brake light.WARNING
On cars with Xenon headlamps, the replacement of Xenon lamps must be car-ried out at a workshop - an authorisedVolvo workshop is recommended. Workingwith Xenon lamps demands extreme cau-tion because the headlamp is equippedwith a high voltage unit.
WARNING
The car's electrical system must be in key position
0 for bulb replacement; see Key
positions - functions at different levels (p.70).
IMPORTANT
Never touch the glass part of the bulbs with your fingers. Grease from your fingersis vaporised by the heat, coating thereflector and then causing damage.
NOTE
If an error message remains after the bro- ken bulb has been replaced then we rec-ommend that you visit an authorised Volvoworkshop.
10 LED (Light Emitting Diode)
ProCarManuals.co’
Page 355 of 442
10 Maintenance and service
10
353
NOTE
Outside lighting such as headlamps, fog lamps and rear lamps may temporarilyhave condensation on the inside of thelens. This is normal, all exterior lighting isdesigned to withstand this. Condensationis normally vented out of the lamp housingwhen the lamp has been switched on for atime.
Related information
•Lamp replacement - headlamps (p. 353)
• Lamp replacement - location of rear lamps (p. 357)
• Lamp replacement - vanity mirror lighting(p. 358)
• Lamp replacement - lighting in cargo area(p. 357)
• Lamp replacement - number plate lighting(p. 357)
Lamp replacement - headlamps
All of the headlamp bulbs are replaced via the engine compartment. First loosen and removethe whole headlamp.
Removing the headlampSet the car's electrical system in key position0
, see Key positions - functions at different
levels (p. 70).
Pull out the headlamp's locking pins.
Release the headlamp by alternately tilt- ing and pulling it out.
IMPORTANT
Do not pull the electrical cable, only the connector.
Detach the headlamp connector by pressing down the clip with your thumb.
At the same time, guide out the connec- tor with your other hand.
5. Lift out the headlamp and place it on a soft surface to avoid scratching the lens.
6. Replace the bulb in question.
Securing the headlamp
ProCarManuals.com
Page 356 of 442
||

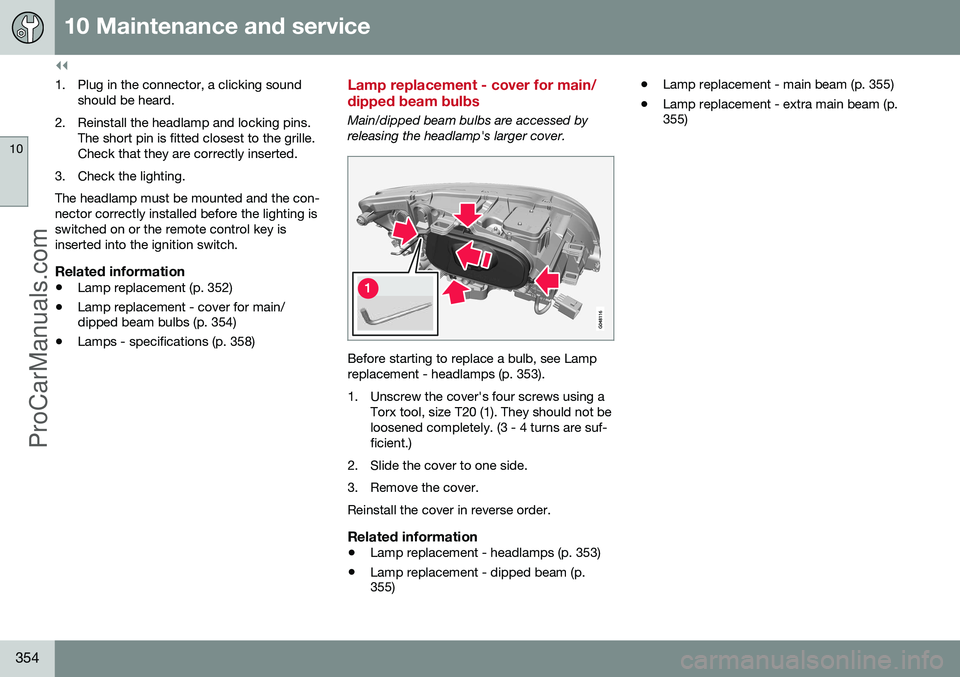

10 Maintenance and service
10
354
1. Plug in the connector, a clicking soundshould be heard.
2. Reinstall the headlamp and locking pins. The short pin is fitted closest to the grille. Check that they are correctly inserted.
3. Check the lighting. The headlamp must be mounted and the con- nector correctly installed before the lighting isswitched on or the remote control key isinserted into the ignition switch.
Related information
• Lamp replacement (p. 352)
• Lamp replacement - cover for main/ dipped beam bulbs (p. 354)
• Lamps - specifications (p. 358)
Lamp replacement - cover for main/ dipped beam bulbs
Main/dipped beam bulbs are accessed by releasing the headlamp's larger cover.
Before starting to replace a bulb, see Lamp replacement - headlamps (p. 353).
1. Unscrew the cover's four screws using a
Torx tool, size T20 (1). They should not be loosened completely. (3 - 4 turns are suf-ficient.)
2. Slide the cover to one side.
3. Remove the cover.Reinstall the cover in reverse order.
Related information
• Lamp replacement - headlamps (p. 353)
• Lamp replacement - dipped beam (p. 355) •
Lamp replacement - main beam (p. 355)
• Lamp replacement - extra main beam (p.355)
ProCarManuals.co’
Page 357 of 442

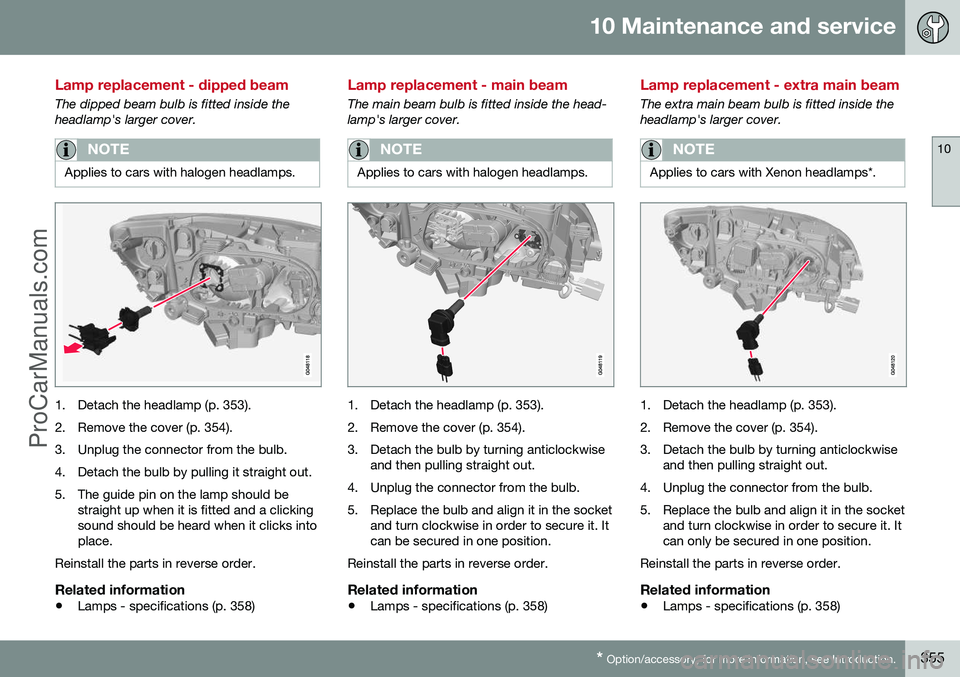

10 Maintenance and service
10
* Option/accessory, for more information, see Introduction.355
Lamp replacement - dipped beam
The dipped beam bulb is fitted inside the headlamp's larger cover.
NOTE
Applies to cars with halogen headlamps.
1. Detach the headlamp (p. 353).
2. Remove the cover (p. 354).
3. Unplug the connector from the bulb.
4. Detach the bulb by pulling it straight out.
5. The guide pin on the lamp should be
straight up when it is fitted and a clicking sound should be heard when it clicks intoplace.
Reinstall the parts in reverse order.
Related information
• Lamps - specifications (p. 358)
Lamp replacement - main beam
The main beam bulb is fitted inside the head- lamp's larger cover.
NOTE
Applies to cars with halogen headlamps.
1. Detach the headlamp (p. 353).
2. Remove the cover (p. 354).
3. Detach the bulb by turning anticlockwise
and then pulling straight out.
4. Unplug the connector from the bulb.
5. Replace the bulb and align it in the socket and turn clockwise in order to secure it. It can be secured in one position.
Reinstall the parts in reverse order.
Related information
• Lamps - specifications (p. 358)
Lamp replacement - extra main beam
The extra main beam bulb is fitted inside the headlamp's larger cover.
NOTE
Applies to cars with Xenon headlamps*.
1. Detach the headlamp (p. 353).
2. Remove the cover (p. 354).
3. Detach the bulb by turning anticlockwise
and then pulling straight out.
4. Unplug the connector from the bulb.
5. Replace the bulb and align it in the socket and turn clockwise in order to secure it. It can only be secured in one position.
Reinstall the parts in reverse order.
Related information
• Lamps - specifications (p. 358)
ProCarManuals.co’
Page 358 of 442

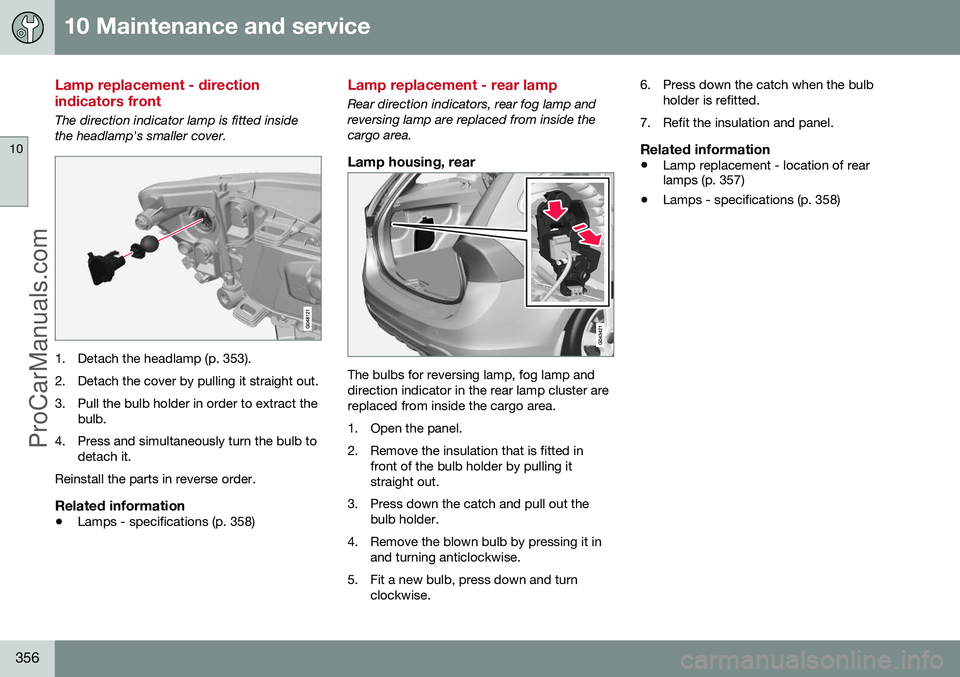

10 Maintenance and service
10
356
Lamp replacement - direction indicators front
The direction indicator lamp is fitted inside the headlamp's smaller cover.
1. Detach the headlamp (p. 353).
2. Detach the cover by pulling it straight out.
3. Pull the bulb holder in order to extract thebulb.
4. Press and simultaneously turn the bulb to detach it.
Reinstall the parts in reverse order.
Related information
• Lamps - specifications (p. 358)
Lamp replacement - rear lamp
Rear direction indicators, rear fog lamp and reversing lamp are replaced from inside thecargo area.
Lamp housing, rear
The bulbs for reversing lamp, fog lamp and direction indicator in the rear lamp cluster arereplaced from inside the cargo area.
1. Open the panel.
2. Remove the insulation that is fitted in
front of the bulb holder by pulling it straight out.
3. Press down the catch and pull out the bulb holder.
4. Remove the blown bulb by pressing it in and turning anticlockwise.
5. Fit a new bulb, press down and turn clockwise. 6. Press down the catch when the bulb
holder is refitted.
7. Refit the insulation and panel.
Related information
• Lamp replacement - location of rear lamps (p. 357)
• Lamps - specifications (p. 358)
ProCarManuals.co’
Page 359 of 442
10 Maintenance and service
10
357
Lamp replacement - location of rear lamps
The overview shows the location of the lamps at the rear.
Brake light (LED)
Position/parking lamps (LED)/Side marker lamps (LED)
Indicator (p. 356)
Brake light (LED)
Reversing lamp
Rear fog lamp
Related information
•Lamp replacement (p. 352)
• Lamps - specifications (p. 358)
Lamp replacement - number plate lighting
The number plate lighting is located under the tailgate handle.
1. Remove the screws with a screwdriver.
2. Carefully detach the whole lamp housing
and withdraw it.
3. Replace the bulb.
4. Refit the whole lamp housing and screw it into place.
Related information
• Lamps - specifications (p. 358)
Lamp replacement - lighting in cargo area
The cargo area lighting is located in the tail- gate.
G031942
1. Insert a screwdriver and gently prize so
that the lamp housing comes loose.
2. Replace the bulb.
3. Check that the bulb illuminates and press back the lamp housing.
Related information
• Lamps - specifications (p. 358)
ProCarManuals.co’
Page 360 of 442

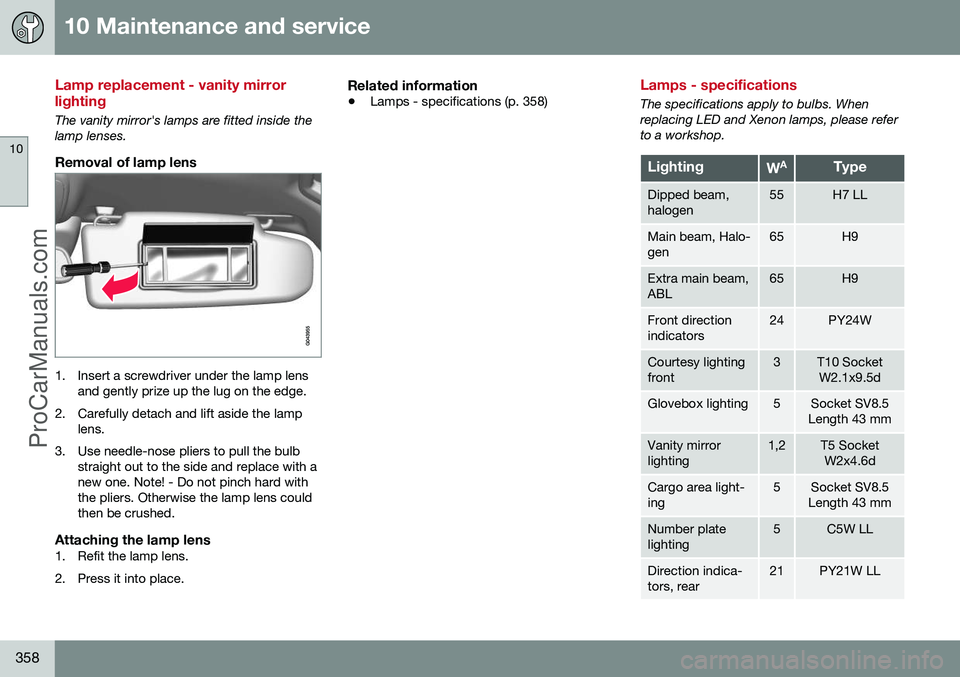

10 Maintenance and service
10
358
Lamp replacement - vanity mirror lighting
The vanity mirror's lamps are fitted inside the lamp lenses.
Removal of lamp lens
1. Insert a screwdriver under the lamp lensand gently prize up the lug on the edge.
2. Carefully detach and lift aside the lamp lens.
3. Use needle-nose pliers to pull the bulb straight out to the side and replace with a new one. Note! - Do not pinch hard withthe pliers. Otherwise the lamp lens couldthen be crushed.
Attaching the lamp lens1. Refit the lamp lens.
2. Press it into place.
Related information
• Lamps - specifications (p. 358)
Lamps - specifications
The specifications apply to bulbs. When replacing LED and Xenon lamps, please referto a workshop.
LightingWAType
Dipped beam, halogen55H7 LL
Main beam, Halo- gen65H9
Extra main beam, ABL65H9
Front direction indicators24PY24W
Courtesy lighting front3T10 Socket
W2.1x9.5d
Glovebox lighting5Socket SV8.5
Length 43 mm
Vanity mirror lighting1,2T5 Socket W2x4.6d
Cargo area light- ing5Socket SV8.5
Length 43 mm
Number plate lighting5C5W LL
Direction indica- tors, rear21PY21W LL
ProCarManuals.co’
