VOLVO XC90 TWIN ENGINE 2018 Owners Manual

SEATS AND STEERING WHEEL
}}
* Option/accessory. 199
Steering wheel controls and horn
The steering wheel has a horn and controls for
e.g. driver support systems and voice control.
Steering wheel keypads and paddles*.
Driver support system controls
2
. Paddle* for manually shifting gears (auto-
matic transmission). Controls for voice commands, adjusting the
head-up display, accessing menus and mes-
sages, and handling phone calls.
Horn The horn is located in the center of the steering wheel.
Related information
•
Adjusting the steering wheel (p. 199) Adjusting the steering wheel
The steering wheel can be adjusted to various
positions. The steering wheel's reach and height can be adjusted.
WARNING
Adjust the steering wheel and ensure it locks
into position before driving. Never adjust the
steering wheel while driving.
Steering wheel force can be adjusted with
speed-dependent power steering. Steering wheel
force is adjusted according to the vehicle's speed
to give the driver an enhanced sense of control
and stability. 2
Speed limiter*, Cruise Control, Adaptive Cruise Control*, Distance Alert* and Pilot Assist*.

||SEATS AND STEERING WHEEL
200
Steering wheel adjuster lever.
1. Move the lever forward to release the steer-
ing wheel.
2.

Adjust the steering wheel to the desired
position.
3. Pull the lever back to lock the steering wheel into place. If the lever is difficult to move,
press the steering wheel lightly while pulling
the lever.
Related information
• Steering wheel controls and horn (p. 199)

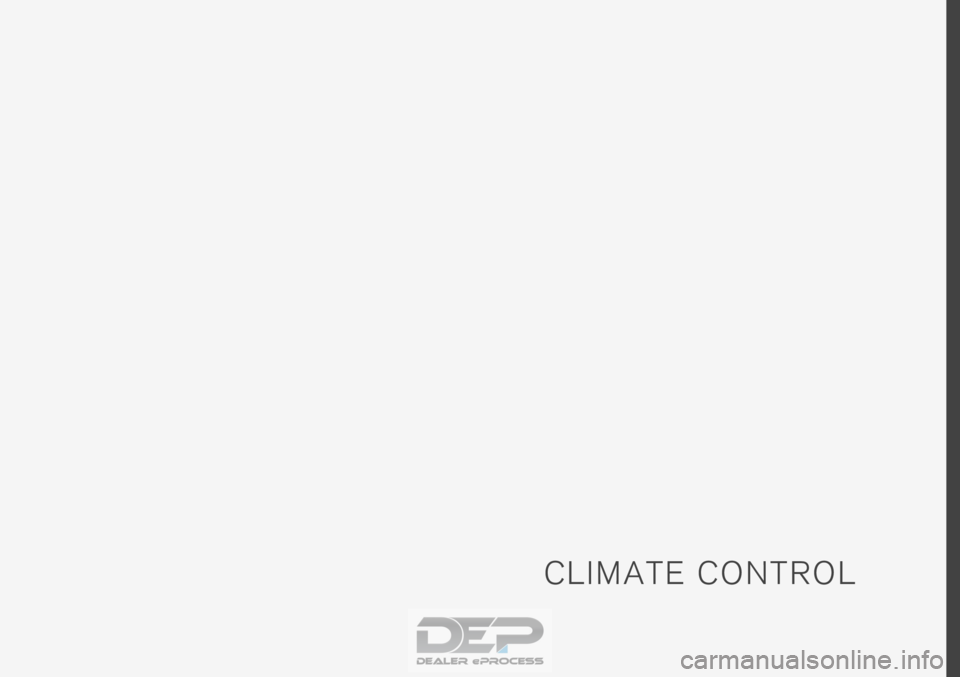

C L I M A T E C O N T R O L

CLIMATE CONTROL
* Option/accessory.
202 Climate
The vehicle is equipped with electronic climate
control. The climate system cools, heats and
dehumidifies the air in the passenger compart-
ment. All of the climate system functions are controlled
from the center display and the buttons on the
center console.
Certain rear seat functions can also be controlled
from the climate controls* on the rear of the tun-
nel console.
Related information
• Climate zones (p. 202)
• Climate control sensors (p. 202)
• Perceived temperature (p. 203)
• Climate control system voice commands
(p. 203)
• Parking climate (p. 230)
• Air quality (p. 204)
• Air distribution (p. 207)
• Climate system controls (p. 213) Climate zones
The vehicle is divided into climate zones to make
it possible to set different temperatures for dif-
ferent parts of the passenger compartment.
4-zone climate system Climate zones with 4-zone climate system.
In 4-zone climate systems, the passenger com-
partment temperature can be set separately for
the left and right sides of the vehicle, and for the
front and rear seats.
Related information
• Climate (p. 202) Climate control sensors
The climate system has a number of sensors to
help regulate the climate settings in the vehicle.
Location of the sensors Humidity sensor - in the rearview mirror con-
sole.
Ambient temperature sensor - in the right-
side door mirror.
Passenger compartment temperature sensor
- near the buttons in the center console.
Sunlight sensors - on the upper side of the
dashboard.
NOTE
Do not cover or block the sensors with cloth-
ing or other objects.

CLIMATE CONTROL
}}
* Option/accessory. 203
On vehicles equipped with the Interior Air Quality
System*, there is also an air quality sensor in the
climate system's air intake.
Related information
• Climate (p. 202)
• Interior Air Quality System* (p. 206) Perceived temperature
The climate control system regulates the climate
in the passenger compartment based on per-
ceived temperature, not actual temperature.
The selected passenger compartment tempera-
ture is based on the physical perception of the
current ambient temperature, airflow speed,
humidity, sunlight in the passenger compartment,
etc.
The system has a sunlight sensor that detects
which side of the vehicle the sunlight is shining
on and adjusts the temperature accordingly. This
means that the temperature of the air coming out
of the vents may be different for the left and right
sides, even if the temperature setting is the same
for both sides.
Related information
• Climate (p. 202) Climate control system voice
commands
1
Voice commands can be used for the climate
control system to e.g. change temperature, acti-
vate seat heating* or change blower speed. Tap and say one of the following commands:
• "Climate" - starts a command dialog for cli-
mate controls and provides examples of
commands that can be used.
• "
Set temperature to X degrees" - sets
desired temperature.
• "
Raise temperature"/"Lower
temperature" - raises/lowers the set tem-
perature.
• "Sync temperature" - synchronizes the
temperature for all climate zones in the vehi-
cle with the temperature set for the driver's
side.
• "
Air on feet"/"Air on body" - opens the
desired air vent.
• "
Air on feet off"/"Air on body off" - closes
the desired air vent.
• "Set fan to max"/"Turn off fan" - changes
blower speed to
Max/Off.
• "
Raise fan speed"/"Lower fan speed" -
raises/lowers the set blower speed. 1
Certain markets only.

||CLIMATE CONTROL
* Option/accessory.
204 •
"
Turn on auto" - activates automatic climate
control.
• "
Air condition on"/"Air condition off" -
activates/deactivates air conditioning.
• "
Recirculation on"/"Recirculation off " -
activates/deactivates air recirculation.
• "
Turn on defroster "/"Turn off defroster"
- activates/deactivates window and door mir-
ror defrosting.
• "
Turn on max defroster
"/"Turn off max
defroster " - activates/deactivates max
defroster.
• "
Turn on electric defroster"/"Turn off
electric defroster" - activates/deactivates
heated windshield*.
• "
Turn on rear defroster"/"Turn off rear
defroster" - Activates/deactivates heated rear window and door mirrors.
• "Turn steering wheel heat on"/"Turn
steering wheel heat off" - activates/deac-
tivates heated steering wheel *.
• "
Raise steering wheel heat "/"
Lower
steering wheel heat" - raises/lowers the
level of steering wheel heating*.
• "
Turn on seat heat"/"Turn off seat heat"
- activates/deactivates seat heating*.
• "
Raise seat heat"/"Lower seat heat" -
raises/lowers the level of seat heating*. •
"
Turn on seat ventilation"/"Turn off seat
ventilation" - activates/deactivates seat
ventilation*.
• "
Raise seat ventilation"/"Lower seat
ventilation" - raises/lowers the level of seat
ventilation*.
Related information
• Climate (p. 202)
• Voice control (p. 145)
• Using voice commands (p. 146)
• Voice control settings (p. 148) Air quality
The materials used in the passenger compart-
ment and air filtering system have been selected
to ensure a high level of air quality in the passen-
ger compartment.
Materials used in the passenger
compartment
The materials in the passenger compartment are
designed to be pleasant and comfortable, even
for people with asthma or allergies.
The materials have been developed and tested to
minimize dust in the passenger compartment and
make it easier to keep clean.
The mats in both the passenger compartment
and cargo compartment can be easily removed
for cleaning.
Use Volvo-recommended cleaning agents and
car care products to clean the interior.
Air filtering systemsIn addition to the passenger compartment filter,
the Clean Zone Interior Package* and Interior Air
Quality System* also help maintain high air qual-
ity in the passenger compartment.
Related information
• Climate (p. 202)
• Clean Zone* (p. 205)
• Clean Zone Interior Package* (p. 206)

CLIMATE CONTROL
* Option/accessory.205
•
Interior Air Quality System* (p. 206)
• Passenger compartment air filter (p. 207) Clean Zone*
The Clean Zone function monitors the condi-
tions affecting good air quality in the passenger
compartment and indicates whether they are ful-
filled or not. The indicator is shown in the center display's
Climate view.
The indicator is shown in the climate bar
when Climate view is not open.
If the conditions are not met, the text Clean
Zone will be shown in white. When all the condi-
tions are met, the text will change to blue.
Clean Zone monitors whether:
• All doors and tailgate are closed.
• All side windows and panoramic roof* are
closed.
• The Interior Air Quality System* is activated.
• The blower is activated. •
Air recirculation is deactivated.
NOTE Clean Zone does not indicate that the air
quality is good, but only that the conditions for
good air quality have been met.
Related information
•
Air quality (p. 204)
• Clean Zone Interior Package* (p. 206)
• Interior Air Quality System* (p. 206)
• Passenger compartment air filter (p. 207)

CLIMATE CONTROL
* Option/accessory.
206 Clean Zone Interior Package*
Clean Zone Interior Package (CZIP) is a series
of modifications that filters even more allergy and
asthma-inducing substances from the passenger
compartment.
CZIP includes the following:
• An enhanced function that starts the blower
when the vehicle is unlocked using the
remote key. The blower will then fill the pas-
senger compartment with fresh air. The func-
tion starts when required and switches off
automatically after a period of time or when
one of the passenger compartment doors is
opened. The amount of time the blower runs
gradually decreases due to reduced need up
until the vehicle is 4 years old.
• The fully automatic Interior Air Quality
System (IAQS).
Related information
•Air quality (p. 204)
• Clean Zone* (p. 205)
• Interior Air Quality System* (p. 206)
• Passenger compartment air filter (p. 207) Interior Air Quality System*
Interior Air Quality System (IAQS) is a fully auto-
matic air quality system that removes gases and
particles to reduce odors and contaminants in
the passenger compartment. IAQS is part of the Clean Zone Interior Package
(CZIP) and removes air contaminants such as
particles, hydrocarbons, nitric oxides and ground-
level ozone.
If the system's air quality sensors detect contami-
nants in the outside air, the air intake closes and
air recirculation is activated.
NOTE To ensure optimal air quality in the passenger
compartment, the air quality sensor should
always be engaged.
Recirculation is limited in cold weather to pre-
vent fogging.
In the event of fogging, use the defroster
functions for the windshield, side windows
and rear window.
Related information
•
Activating and deactivating the air quality
sensor* (p. 207)
• Air quality (p. 204)
• Clean Zone* (p. 205)
• Clean Zone Interior Package* (p. 206) •
Passenger compartment air filter (p. 207)

CLIMATE CONTROL
}}
* Option/accessory. 207
Activating and deactivating the air
quality sensor*
The air quality sensor is part of the fully automa-
ted Interior Air Quality System (IAQS).
The air quality sensor can be switched on or off.
1.
Tap Settings in the Top view in the center
display.
2. Tap Climate.
3. Select Air Quality Sensor to activate/deac-
tivate the air quality sensor.
Related information
• Interior Air Quality System* (p. 206) Passenger compartment air filter
All air entering the passenger compartment
through the climate control system intake is fil-
tered.
Replacing the passenger compartment
filter
To maintain the high performance of the climate
control system, the filter must be replaced regu-
larly. Follow Volvo's service schedule for recom-
mended replacement intervals. When driving in
areas with a lot of smog, dust, etc., the filter may
need to be changed more frequently.
NOTE There are two types of passenger compart-
ment filters. Make sure that the correct filter
is installed.
Related information
•
Air quality (p. 204)
• Clean Zone* (p. 205)
• Clean Zone Interior Package* (p. 206)
• Interior Air Quality System* (p. 206) Air distribution
The climate system distributes incoming air
through a number of vents in the passenger
compartment.
Automatic and manual air distributionWhen the auto-climate feature is on, air distribu-
tion is regulated automatically. Air distribution can
also be controlled manually.
Adjustable air ventsCertain air vents in the vehicle are adjustable,
which means they can be opened/closed and the
direction of the air flow from the vent can be
adjusted. Location of adjustable air vents in the passenger com-
partment.
Five seats - four vents on the dashboard, two
on the rear side of the tunnel console and

||CLIMATE CONTROL
208
one on each side of the pillars between the
front and rear doors.
Seven seats - one additional vent on each of
the pillars behind the rear doors.
Related information
•
Climate (p. 202)
• Adjusting air distribution (p. 208)
• Opening, closing and directing air vents
(p. 209)
• Air distribution options (p. 210) Adjusting air distribution
Air distribution can be adjusted manually if nee-
ded. Air distribution buttons in Climate view.
Air distribution - windshield defrost vents
Air distribution - dashboard and center con-
sole air vents
Air distribution - floor air vents
1. Open Climate view in the center display.
2.

Tap one or more air distribution buttons to
open/close the airflow for that vent.
> The air distribution changes and the but- tons will light up or go out.
Related information
• Air distribution (p. 207)
• Opening, closing and directing air vents
(p. 209) •
Air distribution options (p. 210)
