VOLVO XC90 TWIN ENGINE 2019 Owners Manual

DRIVER SUPPORT
* Option/accessory.359
BLIS messages
A number of messages related to BLIS 81
may
be displayed in the instrument panel.
Some examples of symbols and messages are shown in the table below. Message
Meaning
Blind spot sensor
Service required The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop is recommended.
Blind spot system off
Trailer attached BLIS and CTA have been deactivated because a trailer has been connected \
to the vehicle's electrical system.A text message can be erased by briefly pressing
the
button in the center of the right-side
steering wheel keypad.
If the message persists: Contact a workshop ‒ an
authorized Volvo workshop is recommended.
Related information
BLIS* (p. 355) 81
Blind Spot Information

DRIVER SUPPORT
* Option/accessory.
360 Cross Traffic Alert*
CTA 82
is a supplementary driver support system
to BLIS 83
that is intended to help the driver
detect vehicles crossing behind the vehicle
while backing up. CTA overview.
CTA supplements BLIS by detecting traffic cross-
ing from the side, e.g. when backing out of a
parking space.
CTA is primarily designed to detect vehicles, but
in certain cases can also detect pedestrians or
smaller objects such as bicycles.
CTA is only active when the vehicle is moving
backward or if reverse gear is engaged. If CTA detects that something is approaching
your vehicle from the side:
an audible signal will sound from either the
left or right speaker, depending on which
side of your vehicle the object is approaching
from.
an icon will illuminate in the PAS 84
graphic
on the screen.
an icon will appear in the Park Assist Cam-
era's Top view. Illuminated CTA icon in the PAS graphic
85
on the
screen.
WARNING
The Cross Traffic Alert function is supple-
mentary driver support intended to facili-
tate driving and make it safer – it cannot
handle all situations in all traffic, weather
and road conditions.
The responsibility for reversing the vehicle
safely and using good judgment always
rests with the driver.
Cross Traffic Alert is not a substitute for
the driver's attention and judgment. The
driver is always responsible for ensuring
the vehicle is driven in a safe manner, at
the appropriate speed, with an appropri-
ate distance to other vehicles, and in
accordance with current traffic rules and
regulations.
Related information
Activating/deactivating Cross Traffic Alert
(p. 361)
Cross Traffic Alert limitations (p. 361)
Recommended maintenance for Cross
Traffic Alert (p. 362)
Cross Traffic Alert messages (p. 363) 82
Cross Traffic Alert
83 Blind Spot Information
84 Park Assist System: Parking assistance with reversing sensors
85 Note: This illustration is general and details may vary depending on mod\
el.

DRIVER SUPPORT
}}
* Option/accessory. 361

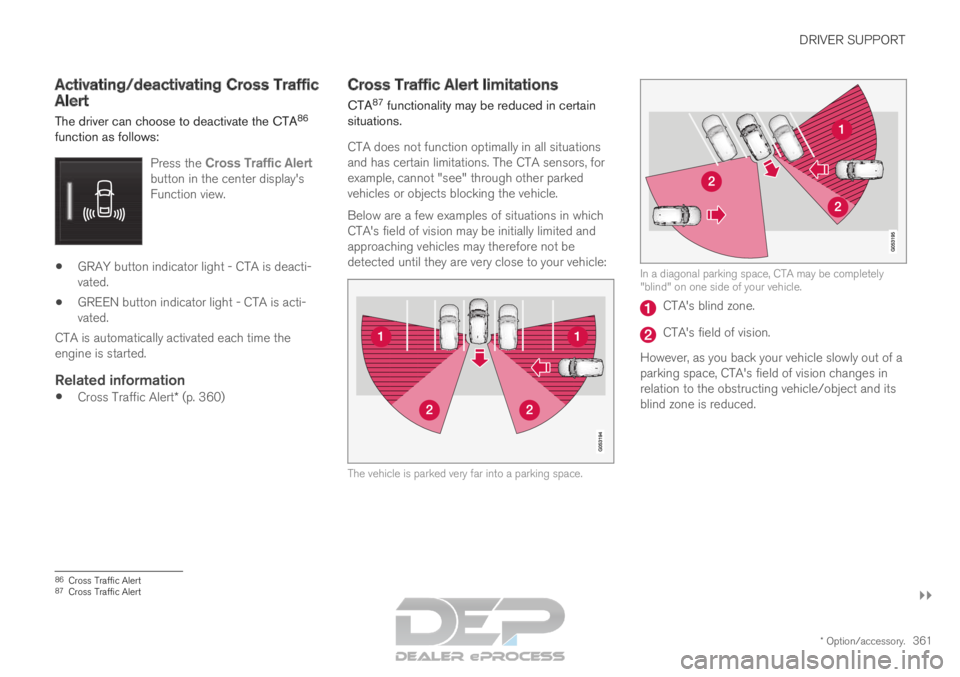

Activating/deactivating Cross Traffic
Alert
The driver can choose to deactivate the CTA 86
function as follows:
Press the Cross Traffic Alertbutton in the center display's
Function view.
GRAY button indicator light - CTA is deacti-
vated.
GREEN button indicator light - CTA is acti-
vated.
CTA is automatically activated each time the
engine is started.
Related information
Cross Traffic Alert* (p. 360) Cross Traffic Alert limitations
CTA 87
functionality may be reduced in certain
situations.
CTA does not function optimally in all situations
and has certain limitations. The CTA sensors, for
example, cannot "see" through other parked
vehicles or objects blocking the vehicle.
Below are a few examples of situations in which
CTA's field of vision may be initially limited and
approaching vehicles may therefore not be
detected until they are very close to your vehicle: The vehicle is parked very far into a parking space. In a diagonal parking space, CTA may be completely
"blind" on one side of your vehicle.
CTA's blind zone.
CTA's field of vision.
However, as you back your vehicle slowly out of a
parking space, CTA's field of vision changes in
relation to the obstructing vehicle/object and its
blind zone is reduced. 86
Cross Traffic Alert
87 Cross Traffic Alert

||DRIVER SUPPORT
* Option/accessory.
362
Examples of further limitations
Dirt, ice and snow covering the sensors may
reduce functionality and prevent the system
from providing warnings. For additional infor-
mation, see the section "Recommended
maintenance for Cross Traffic Alert".
CTA is automatically deactivated if a trailer,
bicycle holder or similar is connected to the
vehicle's electrical system.
For CTA to function optimally, bicycle hold-
ers, luggage racks or similar should not be
mounted on the vehicle's towbar.
Related information

Cross Traffic Alert* (p. 360)
Recommended maintenance for Cross
Traffic Alert (p. 362) Recommended maintenance for
Cross Traffic Alert

For optimal performance, it is important to
keep the areas in front of the sensors clean.
Do not attach any objects, tape or decals to
the surface of the sensors. Keep the marked area clean (on both the left and right
sides of the vehicle)
88
.
The CTA sensors are located on the inside of
each of the rear fenders/bumpers and are also
used by the BLIS 89
and Rear Collision Warning
functions.
CAUTION Repair of BLIS and CTA components or
repainting of the bumper may only be per-
formed by a workshop – an authorized Volvo
workshop is recommended.
Related information

Cross Traffic Alert* (p. 360)
BLIS* (p. 355)
Rear Collision Warning (p. 354) 88
Note: This illustration is general and details may vary depending on mod\
el.
89 Blind Spot Information

DRIVER SUPPORT
* Option/accessory.363
Cross Traffic Alert messages
A number of messages related to CTA 90
may be
displayed in the instrument panel.
Some examples of symbols and messages are shown in the table below. Message
Meaning
Blind spot sensor
Service required The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop is recommended.
Blind spot system off
Trailer attached BLIS and CTA have been deactivated because a trailer has been connected \
to the vehicle's electrical system.A text message can be erased by briefly pressing
the
button in the center of the right-side
steering wheel keypad.
If the message persists: Contact a workshop ‒ an
authorized Volvo workshop is recommended.
Related information
Cross Traffic Alert* (p. 360) 90
Cross Traffic Alert

DRIVER SUPPORT
* Option/accessory.
364 Road Sign Information*
The Road Sign Information (RSI
91
) function can
help the driver observe speed-related road
signs. Examples of signs that can be detected
92
. Example
92
of registered speed information.
If the vehicle passes a speed limit sign, it will be
displayed in the instrument panel and the head-
up display*.
NOTE In certain markets, the Road Sign Information
function (RSI) is only available in combination
with Sensus Navigation*.
WARNING
The Road Sign Information function is
supplementary driver support intended to
facilitate driving and help make it safer –
it cannot handle all situations in all traffic,
weather and road conditions.
Road Sign Information is not a substitute
for the driver's attention and judgment.
The driver is always responsible for
ensuring the vehicle is driven in a safe
manner, at the appropriate speed, with an
appropriate distance to other vehicles,
and in accordance with current traffic
rules and regulations.
Related information
Activating/deactivating Road Sign Informa-
tion (p. 365)
Road Sign Information and sign displays
(p. 366)
Road Sign Information and Sensus
Navigation (p. 366)
Road Sign Information with Speed Warning
and Settings (p. 367)
Activating/deactivating Speed Warning in
Road Sign Information (p. 368) 91
Road Sign Information
92 Road signs differ according to market ‒ the illustrations shown here are just some examples.

DRIVER SUPPORT
* Option/accessory.365

Road Sign Information with speed camera
information (p. 368)
Road Sign Information limitations (p. 369) Activating/deactivating Road Sign
Information
The Road Sign Information function can be
switched On or Off.
Press the Road Sign
Information button in the cen-
ter display's Function view.
GREEN button indicator light - RSI is acti-
vated.
GRAY button indicator light - RSI is deacti-
vated.
NOTE
If the Automatic Speed Limiter function is
activated, road sign information is shown
in the driver display even if RSI 93
is not
activated.
To remove road sign information from the
driver display, you must deactivate both
Automatic Speed Limiter and RSI.
When the Automatic Speed Limiter func-
tion is activated but RSI is deactivated, no
warnings are given from RSI. RSI must
also be activated for warnings to be pos-
sible.
Related information

Road Sign Information* (p. 364) 93
Road Sign Information (RSI)

DRIVER SUPPORT
* Option/accessory.
366 Road Sign Information and sign
displays
Road Sign Information (RSI 94
) displays road
signs in different ways depending on the sign
and situation. Example
95
of registered speed information.
When RSI has registered a speed limit sign, the
sign will be displayed as a symbol in the instru-
ment panel and a colored marking will be shown
in the speedometer's speed scale.
If the vehicle is equipped with Sensus
Navigation*, speed-related information will also
be retrieved from map data, which means that the
instrument panel can display or change informa-
tion about speed limits even if the vehicle has not
passed a speed-related sign.
Signs for "School" and "Children
playing"
If the warning sign 95
"School"
or "Children playing" is
included in the satellite naviga-
tor's map data 96
, a symbol of
this type will be displayed in the
instrument panel.
Related information
Road Sign Information* (p. 364)
Activating/deactivating Road Sign Informa-
tion (p. 365)
Road Sign Information with Speed Warning
and Settings (p. 367) Road Sign Information and Sensus
Navigation
If the vehicle is equipped with Sensus Navigation,
speed-related information will be provided in the
following situations:
In cases where the speed limit is given indi-
rectly, e.g. signs for highways or other major
roads.
If a previously detected speed sign is
deemed to be no longer valid and no new
sign has been passed.
NOTE In certain markets, the Road Sign Information
function (RSI) is only available in combination
with Sensus Navigation*.
NOTE
If a downloaded third-party app is used for
navigation, there is no support for speed-rela-
ted information.
Related information

Road Sign Information* (p. 364) 94
Road Sign Information
95 Road signs differ according to market ‒ the illustrations shown here are just examples.
96 Only vehicles with Sensus Navigation*.

DRIVER SUPPORT
}}
* Option/accessory. 367
Road Sign Information with Speed
Warning and Settings
The Speed Limit Warning sub-function for
RSI 97
can be switched On or Off.
Speed Limit Warning warns the driver if the
vehicle's speed has exceeded the applicable
speed limit or the preset Speed Limiter speed.
The warning will be repeated once after
about 1 minute in that speed limit area if the
driver does not slow down.
A new warning and message indicating that the
speed limit has been exceeded will be provided
only when the vehicle has entered a new/differ-
ent speed limit area.
When Speed Warning is acti-
vated, the symbol for the cur-
rent speed limit in the instru-
ment panel98
will flash tempo-
rarily if that speed is exceeded. The driver can be alerted if the
vehicle is exceeding a detected
speed limit and is approaching
a speed camera.
Settings
Adjusting the Speed Warning limit
The driver can adjust the settings to be alerted at
a higher speed than the posted speed limit.
To adjust the Speed Warning limit:
1. Select
Settings My Car IntelliSafe
Road Sign Information
in the center
display's Top view.
2. Mark Speed Limit Warning.
>

The function is activated and a speed limit
selector is displayed.
3. Tap the up/down arrows on the screen to adjust the speed at which the Speed Warn-
ing will be given.
Please note that the set warn-
ing limit will not be used when
a speed camera symbol is dis-
played in the instrument panel.
Audible alert On/Off
An audible alert can also be given along with the
Speed Warning. To adjust the audible alert settings:
1. Select
Settings My Car IntelliSafe
Road Sign Information
in the center
display's Top view.
2. Select/deselect Road Sign Audio Warning
to activate/deactivate the audible alert.
When
Road Sign Audio Warning is activated,
the driver will also be alerted if the vehicle is
approaching a one-way/"no-entry" road or
entrance.
Speed camera warning On/Off
If the vehicle is equipped with
Sensus Navigation* and map
data contains information on
speed cameras, the driver can
choose to receive an audible
alert if the vehicle is approach-
ing a speed camera. To adjust the audible alert settings:
1.

Select Settings My Car IntelliSafe
Road Sign Information
in the center
display's Top view.
2. Select/deselect Speed Camera Audio
Warning to activate/deactivate the speed camera audible alert. 97
Road Sign Information
98 Road signs differ according to market ‒ the illustration shown here is just an example.

||DRIVER SUPPORT
* Option/accessory.
368
Related information
Road Sign Information* (p. 364)
Road Sign Information with speed camera
information (p. 368) Activating/deactivating Speed
Warning in Road Sign Information
To activate the
Speed Limit Warning sub-func-
tion:
1.
Select Settings My Car IntelliSafe
Road Sign Information
in the center
display's Top view.
2. Mark Speed Limit Warning.
>

The function is activated and a speed limit
selector is displayed.
(See description for “Adjusting the Speed
Warning limit” in section “Road Sign Infor-
mation with Speed Warning and Set-
tings.”)
Related information
Road Sign Information* (p. 364)
Road Sign Information with Speed Warning
and Settings (p. 367) Road Sign Information with speed
camera information
Vehicles equipped with RSI 99
and Sensus
Navigation* can provide information on upcom-
ing speed cameras in the instrument panel. Speed camera information in the instrument panel
100
.
If the vehicle exceeds a
detected speed limit with the Speed Limit Warning func-
tion activated, the driver is
given a speed warning when
the vehicle is approaching a
speed camera if the navigation
map for the vehicle's current location contains
information on speed cameras. 99
Road Sign Information
100 Note: This illustration is general and details may vary depending on mod\
el and market/region.
