VOLVO XC90 TWIN ENGINE HYBRID 2017 Owners Manual

MAINTENANCE AND SERVICING
}}
509

Sending an appointment request
1.Open the Car status app in the center dis-play's App view.
2.Tap Appointments.
3.Under Appointments, tap Requestappoint..
4.Check that your Volvo ID is correct.
5.Check that the correct preferred retailer islisted. If you prefer, simply tap the button toinitiate a call to the retailer.
6.Tap Send appointment request. Yourrequest and vehicle data will be sent to yourretailer through the vehicle's Internet con-nection.
>Volvo will send a booking invitation to youremail address with a link to your preferredworkshop's On-Line Service Scheduler.
7. Open the email and click the link to bookyour workshop appointment at a convenienttime with your preferred service advisor. Addany additional preferences and free text toyour booking.
8. When you have submitted your workshopbooking, your appointment will be confirmedonline directly by email. The booking informa-tion will also appear in the Car status app inthe center display after a period of time aswell as in your My Volvo personal website,where you can make changes to yourappointment at any time.
9.Several days prior to your appointment, youwill receive a reminder via email from yourretailer. A notification will also appear on thecenter display one day prior to the appoint-ment. You can set the interval for otherreminders (e.g., two days, three days) at yourMy Volvo personal website.
10. On the day of your appointment, a reminderwill appear again on the center display andthe retailer's address can be set in your navi-gation system if you require directions to theworkshop.

Sending vehicle-related information
Information about the vehicle can be sent at anytime using its Internet connection.
Using this function does not send a workshopappointment request to your retailer; onlyvehicle data will be transmitted to Volvo. Thisvehicle data can be accessed by any retailer ifyou call the retailer and provide your VehicleIdentification Number (VIN).
1.Open the Car status app in the center dis-play's App view.
2.Tap Appointments.
3.Under Appointments, tap Send vehicledata.
>A message confirming that vehicle infor-mation has been sent via the Internetconnection will appear on the center dis-play. Transmission of the vehicle informa-tion can be cancelled at any time by tap-ping the X in the activity indicator.

||
MAINTENANCE AND SERVICING
510

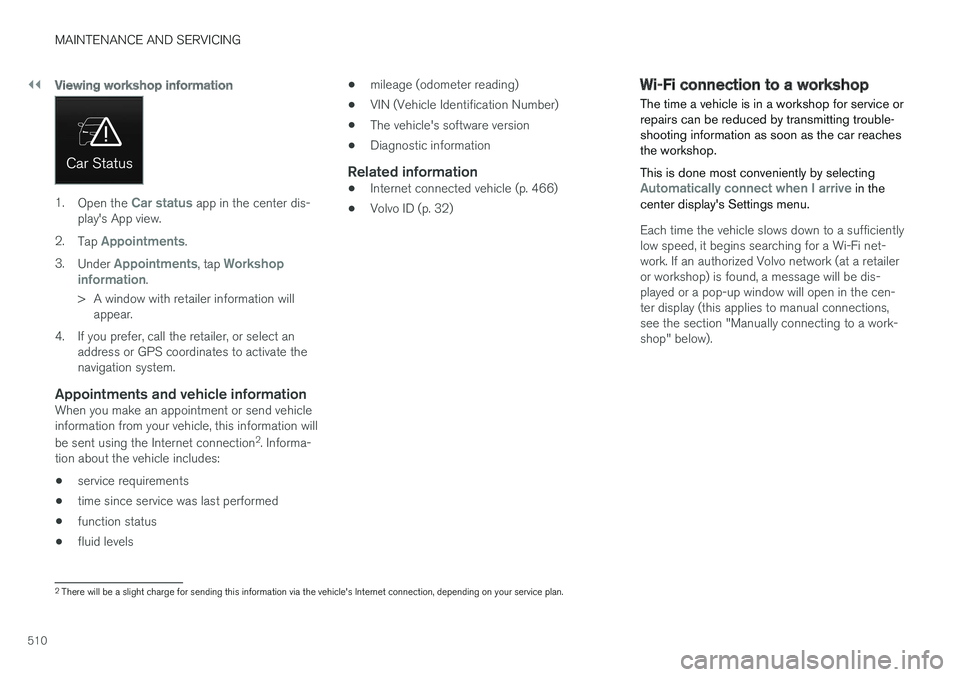

Viewing workshop information
1.Open the Car status app in the center dis-play's App view.
2.Tap Appointments.
3.Under Appointments, tap Workshopinformation.
>A window with retailer information willappear.
4. If you prefer, call the retailer, or select anaddress or GPS coordinates to activate thenavigation system.

Appointments and vehicle information
When you make an appointment or send vehicleinformation from your vehicle, this information will
be sent using the Internet connection2. Informa-tion about the vehicle includes:
•service requirements
•time since service was last performed
•function status
•fluid levels
•mileage (odometer reading)
•VIN (Vehicle Identification Number)
•The vehicle's software version
•Diagnostic information
Related information
•Internet connected vehicle (p. 466)
•Volvo ID (p. 32)
Wi-Fi connection to a workshop
The time a vehicle is in a workshop for service orrepairs can be reduced by transmitting trouble-shooting information as soon as the car reachesthe workshop.
This is done most conveniently by selectingAutomatically connect when I arrive in thecenter display's Settings menu.
Each time the vehicle slows down to a sufficientlylow speed, it begins searching for a Wi-Fi net-work. If an authorized Volvo network (at a retaileror workshop) is found, a message will be dis-played or a pop-up window will open in the cen-ter display (this applies to manual connections,see the section "Manually connecting to a work-shop" below).
2There will be a slight charge for sending this information via the vehicle's Internet connection, depending on your service plan.

MAINTENANCE AND SERVICING
511

Automatically connecting to a
workshop
Without driver confirmation
This is the most convenient way to transmit trou-ble-shooting data. The driver does not need toconfirm that the vehicle will establish a connec-tion.
If the vehicle stops at a workshop and the engineis switched off using the start knob, a messagewill appear above the status bar in the center dis-play. The vehicle will be automatically connectedwhen the driver's door is opened if the driverdoes not tap the Cancel button in the message.
To help prevent the driver from being disturbedby unwanted requests to connect (e.g., if thevehicle is often parked near a workshop with anauthorized Volvo network), the vehicle will switchto manual connection if the driver cancels a con-nection request twice within 5 days.

With driver confirmation
With this alternative, the driver must confirm aconnection.
If the vehicle stops at a workshop and the engineis switched off using the start knob, a pop-upwindow will open in the center display. The vehi-cle will be automatically connected when the driv-er's door is opened if the driver taps Connect inthe pop-up window. If the driver does nothing ortaps the pop-up window's Abort button, noattempt will be made to establish a connection.
NOTE
To help prevent the driver from being distur-bed by unwanted requests to connect (e.g., ifthe vehicle is often parked near a workshopwith an authorized Volvo network), the vehiclewill switch to manual connection if the drivercancels a connection request twice within5 days.

Manually connecting to a workshop
Manual connections are handled by the servicetechnician.

Changing the way a connection is made
The type of connection (manual or automatic)can be changed in the center display's Settingsmenu.
1. Pull down the center display's Top view andtap Settings.
2.Tap CommunicationVolvo ServiceNetworks.
3.Select Automatically connect when Iarrive, Ask before connecting or Neverconnect and never ask (manual connec-tions).

Related information
•Internet connected vehicle (p. 466)
•Settings view (p. 115)
Climate system service
Service and repairs on the air conditioning sys-tem should only be done by a trained and quali-fied Volvo service technician.
Troubleshooting and repairs
The air conditioning system contains a floures-cent tracer substance. Ultraviolet light is used tosearch for leaks in the system.

Refrigerant R134a
WARNING
The air conditioning system contains therefrigerant R134a under pressure. Serviceand repairs on the system should only bedone by a trained and qualified Volvo servicetechnician.

Related information
•Climate control system (p. 188)

MAINTENANCE AND SERVICING
512
Start battery
The vehicle's electrical system is single pole anduses the body and engine block as conductors.
The start (main) battery is used to power electri-cal components and systems. However, thehybrid battery is used to start the gasolineengine.
The start battery should only be replaced by atrained and qualified Volvo service technician.
The start battery is an Absorbed Glass Mat(AGM) 12-volt battery that is dimensioned foruse in vehicles to support electrical systems andfunctions.
The service life of a battery is affected by factorssuch as driving conditions/style, the number ofstarts, climate, etc. Extreme cold may also furtherdecrease the battery

MAINTENANCE AND SERVICING
}}
513

CAUTION
•The infotainment system's energy-savingfeature may not function correctly or atall, and/or a message may be displayed ifa battery charger or jumper cables arenot connected properly.
•The negative terminal on the battery mustnever be used to connect a jumper cableor a battery charger. Only the groundpoint on the chassis may be used.
NOTE
•The service life of the start battery isshortened if it becomes dischargedrepeatedly.
•The service life of the start battery isaffected by factors such as driving condi-tions and climate. Extreme cold may alsofurther decrease the battery's startcapacity.
•Because the battery

||
MAINTENANCE AND SERVICING
514
H8 AGM battery with strap
•When replacing the start battery anAbsorbed Glass Mat (AGM) must be used.
•When replacing the start battery, a new bat-tery with the same specifications and dimen-sions must be used. The battery should onlybe replaced by a trained and qualified Volvoservice technician.

Related information
•Jump starting (p. 395)
•Battery symbols (p. 516)
Support battery
Vehicles equipped with Start/Stop are equippedwith two 12-volt batteries.
In addition to a heavy-duty start battery, modelswith Start/Stop also have a support battery thatprovides extra current during the Start/Stopfunction's start sequence.
The following table shows the specifications forthe support battery:
Current (V)12
Cold start capacity (ColdCranking Amperes -CCA) (A)170
Dimensions, L×W×H in.(mm)5.9×3.5×5.1(150×90×130)
Capacity (Ah)10
•When replacing the start battery or supportbattery in a vehicle with Start/Stop, anAbsorbed Glass Mat (AGM) must be used.
•The greater the current consumption in thevehicle, the more the generator has to oper-ate and the battery is charged. This increasesfuel consumption.
•When the start battery's charge is below theminimum permitted level, the Start/Stopfunction will be disabled.
When the Start/Stop function is temporarily disa-bled due to high current consumption:
•The engine will auto-start, even if the brakepedal is depressed.
The support battery does not normally requiredmore service than the start battery. If questionsarise, consult a Volvo retailer or trained and quali-fied Volvo service technician.
CAUTION
When connecting an external start battery ora battery charger, the Start/Stop function maybe temporarily disabled if the negative termi-nal on the vehicle's start battery is used toconnect an external start battery or a batterycharger. Only the negative connection pointin the engine compartment may be used as aground point.

MAINTENANCE AND SERVICING
515

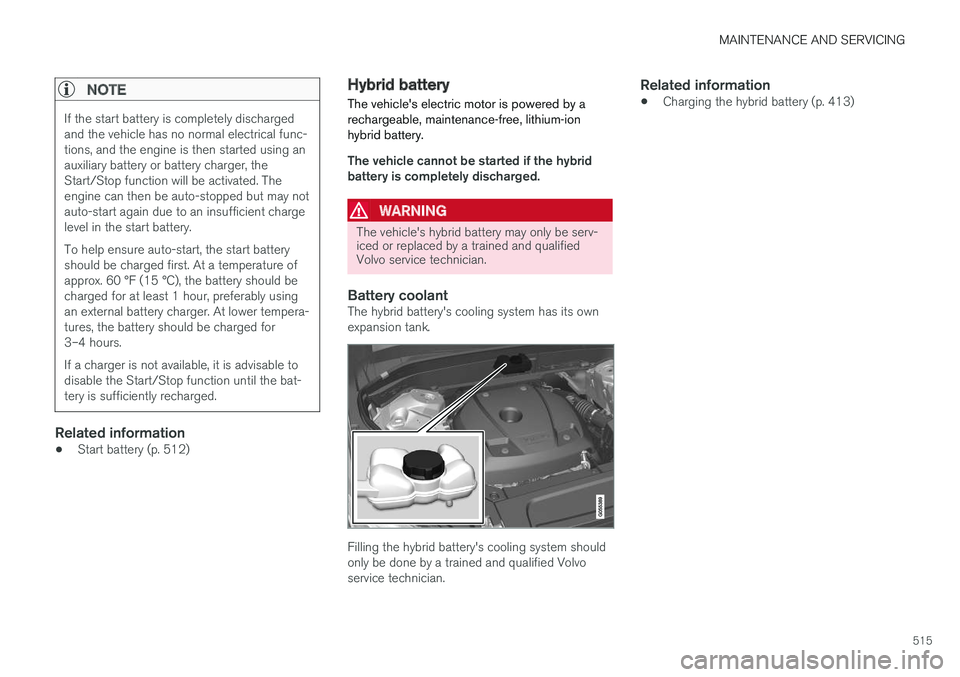

NOTE
If the start battery is completely dischargedand the vehicle has no normal electrical func-tions, and the engine is then started using anauxiliary battery or battery charger, theStart/Stop function will be activated. Theengine can then be auto-stopped but may notauto-start again due to an insufficient chargelevel in the start battery.
To help ensure auto-start, the start batteryshould be charged first. At a temperature ofapprox. 60 °F (15 °C), the battery should becharged for at least 1 hour, preferably usingan external battery charger. At lower tempera-tures, the battery should be charged for3–4 hours.
If a charger is not available, it is advisable todisable the Start/Stop function until the bat-tery is sufficiently recharged.

Related information
•Start battery (p. 512)
Hybrid battery
The vehicle's electric motor is powered by arechargeable, maintenance-free, lithium-ionhybrid battery.
The vehicle cannot be started if the hybridbattery is completely discharged.
WARNING
The vehicle's hybrid battery may only be serv-iced or replaced by a trained and qualifiedVolvo service technician.

Battery coolant
The hybrid battery's cooling system has its ownexpansion tank.
Filling the hybrid battery's cooling system shouldonly be done by a trained and qualified Volvoservice technician.
Related information
•Charging the hybrid battery (p. 413)

MAINTENANCE AND SERVICING
516
Battery symbols
There are information and warning symbols onthe battery.
Wear protective goggles.
See the owner's manual foradditional information.
Keep batteries away fromchildren.
Batteries contain corrosiveacid.
Avoid smoking, openflames, and/or sparks.
Risk of explosion
Recycle properly

NOTE
A used battery should be disposed of in anenvironmentally responsible manner. Consultyour Volvo retailer or take the battery to arecycling station.

Related information
•Start battery (p. 512)
Fuses
The fuses help protect the vehicle's electricalcomponents from overloading or short circuits.
WARNING
Never use metal objects or fuses with higheramperage than those stated on the lists offuses. Doing so could seriously damage oroverload the vehicle's electrical system.
Orange wires may only be handled by trainedand authorized Volvo service technicians orlicensed electricians.
A number of component in the vehicle usedhigh voltage electrical current and can be verydangerous to touch.
Do not touch any components that are notclearly described in this owner's information.
If an electrical component fails to function, thismay be due to a blown fuse. If the same fuseblows repeatedly, this indicates a problem withthe component, which should be inspected by atrained and qualified Volvo service technician.

MAINTENANCE AND SERVICING
517

Location of the fuseboxes
Engine compartment
Under the glove compartment
Cargo compartment

Related information
•Replacing fuses (p. 517)
•Fuses in the cargo compartment (p. 527)
•Fuses in the engine compartment (p. 518)
•Fuses in the passenger compartment(p. 523)
Replacing fuses
The fuses help protect the vehicle's electricalcomponents from overloading or short circuits.
Fuse replacement
1. See the list of fuse boxes for their locations.
2. Pull the fuse straight out and examine it fromthe side to see if the curved metal wire in thefuse is intact.
3. If the wire is broken, insert a new fuse of thesame color and amperage (written on thefuse).

WARNING
Never use metal objects or fuses with higheramperage than those stated on the followingpages. Doing so could seriously damage oroverload the vehicle's electrical system.

Related information
•Fuses (p. 516)
•Fuses in the cargo compartment (p. 527)
•Fuses in the engine compartment (p. 518)
•Fuses in the passenger compartment(p. 523)

MAINTENANCE AND SERVICING
518
Fuses in the engine compartment
The fuses in the engine compartment help pro-tect electrical components such as engine andbrake functions.
