YAMAHA GRIZZLY 250 2010 Owners Manual

8-12
8
5. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
NOTICE: Be sure the engine oil is at the
correct level, otherwise engine damage
may result.
[ECB00851]
6. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.To change the engine oil (with or without oil fil-
ter element cleaning)
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place an oil pan under the engine to collect
the used oil.
4. Remove the engine oil filler cap, and then re-
move the engine oil drain bolt to drain the oil
from the crankcase. NOTICE: When remov-
ing the engine oil drain bolt, the compres-
sion spring, oil strainer and O-ring will fall
out. Take care not to lose these parts.
[ECB00311]
1. Engine oil filler cap
2. Engine oil dipstick
3. Maximum level mark
4. Minimum level markU1P065E0.book Page 12 Monday, August 31, 2009 1:10 PM

8-13
8
TIPSkip steps 5–11, 16, and 17 if the oil filter element
is not being cleaned.5. Remove the footboard by removing the bolts.6. Fully loosen the brake pedal free play adjust-
ing nut, and push the brake pedal downward.1. Engine oil drain bolt
2. O-ring
3. Compression spring
4. Oil strainer
1. Footboard
2. Bolt
U1P065E0.book Page 13 Monday, August 31, 2009 1:10 PM

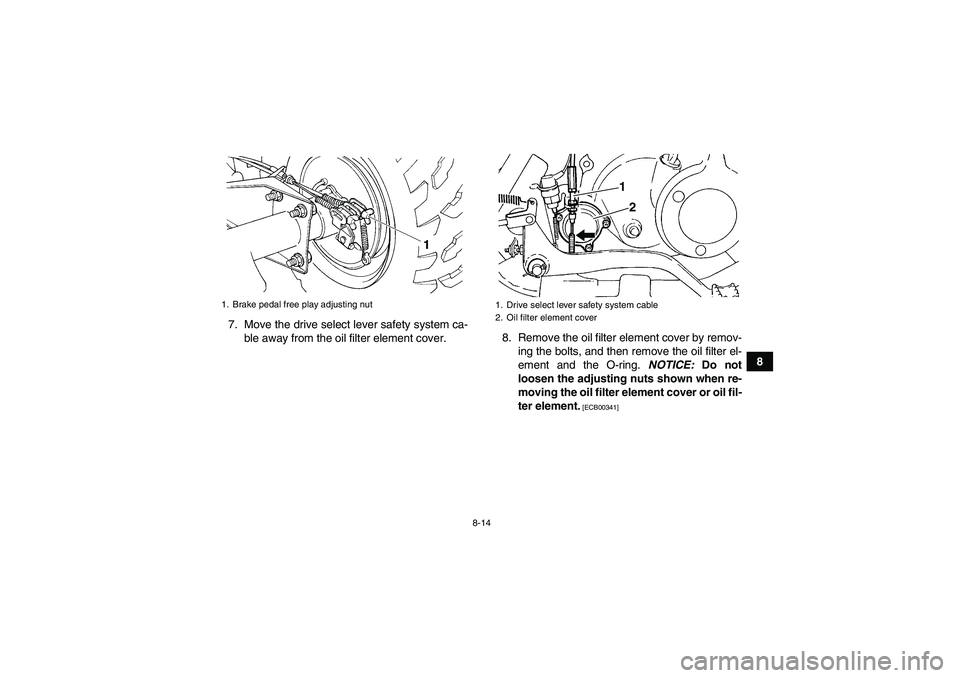

8-14
8 7. Move the drive select lever safety system ca-
ble away from the oil filter element cover.8. Remove the oil filter element cover by remov-
ing the bolts, and then remove the oil filter el-
ement and the O-ring. NOTICE: Do not
loosen the adjusting nuts shown when re-
moving the oil filter element cover or oil fil-
ter element.
[ECB00341]
1. Brake pedal free play adjusting nut
1. Drive select lever safety system cable
2. Oil filter element cover
12
U1P065E0.book Page 14 Monday, August 31, 2009 1:10 PM

8-15
89. Clean the oil strainer and oil filter element with
solvent.10. Install the oil filter element and a new O-ring.
TIPMake sure that the O-ring is properly seated.11. Install the oil filter element cover by installing
the bolts, and then tighten them to the speci-
fied torque.
1. Adjusting nut
2. Oil filter element cover
3. Bolt
12
3
3
1. Oil filter element
2. O-ringTightening torque:
Oil filter element cover bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U1P065E0.book Page 15 Monday, August 31, 2009 1:10 PM

8-16
8 12. Install the oil strainer, the compression spring,
a new O-ring and the engine oil drain bolt, and
then tighten the engine oil drain bolt to the
specified torque. NOTICE: Before installing
the engine oil drain bolt, be sure to install
the O-ring, compression spring and oil
strainer.
[ECB00321]
13. Refill with the specified amount of the recom-
mended engine oil, and then install and tight-
en the engine oil filler cap.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.NOTICEECB00300
In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
Make sure that no foreign material enters the
crankcase.14. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
15. Turn the engine off, wait at least ten minutes,
and then check the oil level and correct it if
necessary.
16. Install the footboard by installing the bolts, and
then tighten them to the specified torques. Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended oil:
See page 10-1.
Oil quantity:
Without oil filter element removal:
1.50 L (1.59 US qt, 1.32 Imp.qt)
With oil filter element removal:
1.60 L (1.69 US qt, 1.41 Imp.qt)
U1P065E0.book Page 16 Monday, August 31, 2009 1:10 PM

8-17
8
17. Adjust the brake pedal free play. (See page
8-30.)
EBU23386Final gear oil The final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals specified
in the periodic maintenance and lubrication chart.
To check the final gear oil level
1. Place the ATV on a level surface.
2. Remove the final gear oil filler bolt and its gas-
ket, and then check the oil level in the final
gear case. The oil level should be at the brim
of the filler hole.
1. Footboard bolt A
2. Footboard bolt BTightening torques:
Footboard bolt A:
4 Nm (0.4 m·kgf, 2.9 ft·lbf)
Footboard bolt B:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
U1P065E0.book Page 17 Monday, August 31, 2009 1:10 PM

8-18
8
3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Check the gasket for damage, and replace it if
necessary.
5. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.To change the final gear oil
1. Place the ATV on a level surface.
2. Remove the final gear case guard by remov-
ing the bolts.
3. Place an oil pan under the final gear case to
collect the used oil.
4. Remove the final gear oil filler bolt, the final
gear oil drain bolt, and their gasket to drain the
oil from the final gear case.
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelTightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1
2
4
3
1. Final gear case guard
2. Bolt
U1P065E0.book Page 18 Monday, August 31, 2009 1:10 PM

8-19
85. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
6. Refill with the recommended final gear oil to
the brim of the filler hole as shown. NOTICE:
Be sure no foreign material enters the final
gear case.
[ECB00421]
7. Check the oil filler bolt gasket for damage, and
replace it if necessary.
8. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.
1. Final gear oil drain bolt
2. GasketTightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1
1
2
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelRecommended final gear oil:
See page 10-1.
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1
2
4
3
U1P065E0.book Page 19 Monday, August 31, 2009 1:10 PM

8-20
8 9. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.
10. Install the final gear case guard by installing
the bolts and tightening them to the specified
torque.
EBU23686Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are
riding in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.
1. Place the ATV on a level surface.
2. Remove the seat. (See page 4-11.)
3. Remove the air filter case cover by unhooking
the holders. Tightening torque:
Final gear case guard bolt:
17 Nm (1.7 m·kgf, 12 ft·lbf)1. Air filter case check hose
U1P065E0.book Page 20 Monday, August 31, 2009 1:10 PM

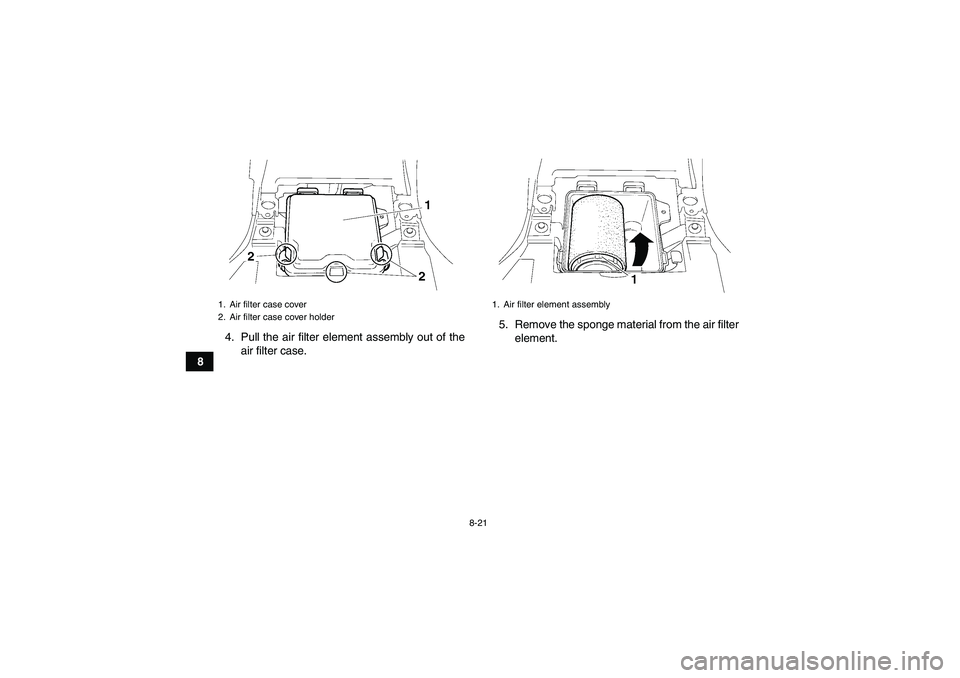

8-21
84. Pull the air filter element assembly out of the
air filter case.5. Remove the sponge material from the air filter
element.
1. Air filter case cover
2. Air filter case cover holder
1. Air filter element assembly
