YAMAHA SR125 2000 User Guide

DESCRIPTION
2-2
2

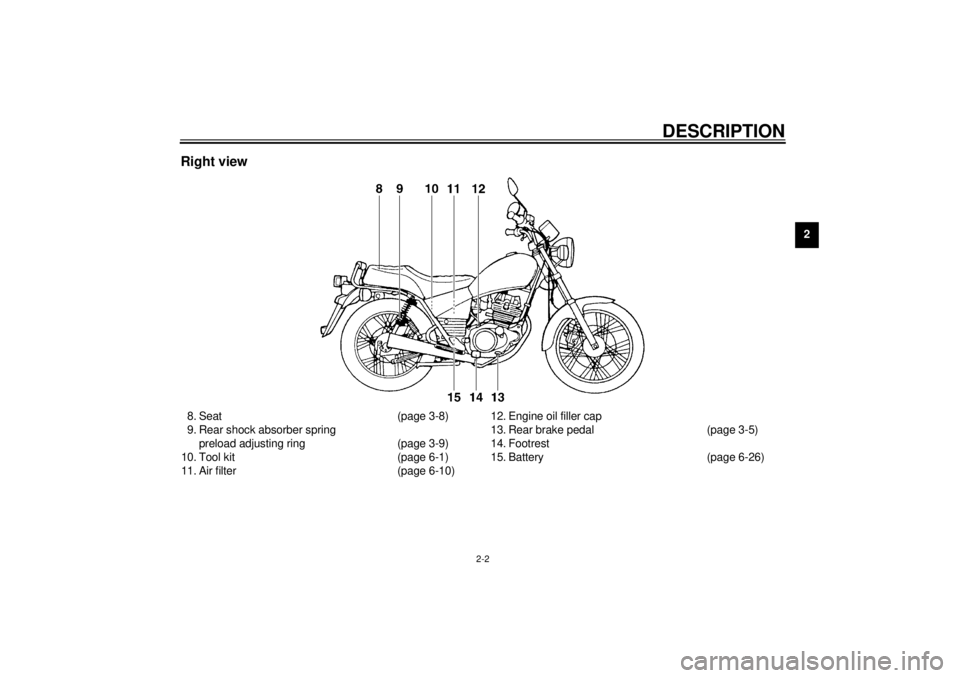

Right view8. Seat (page 3-8)
9. Rear shock absorber spring
preload adjusting ring (page 3-9)
10. Tool kit (page 6-1)
11. Air filter (page 6-10)12. Engine oil filler cap
13. Rear brake pedal (page 3-5)
14. Footrest
15. Battery (page 6-26)
E_3mw.book Page 2 Monday, February 5, 2001 9:54 AM

DESCRIPTION
2-3
2

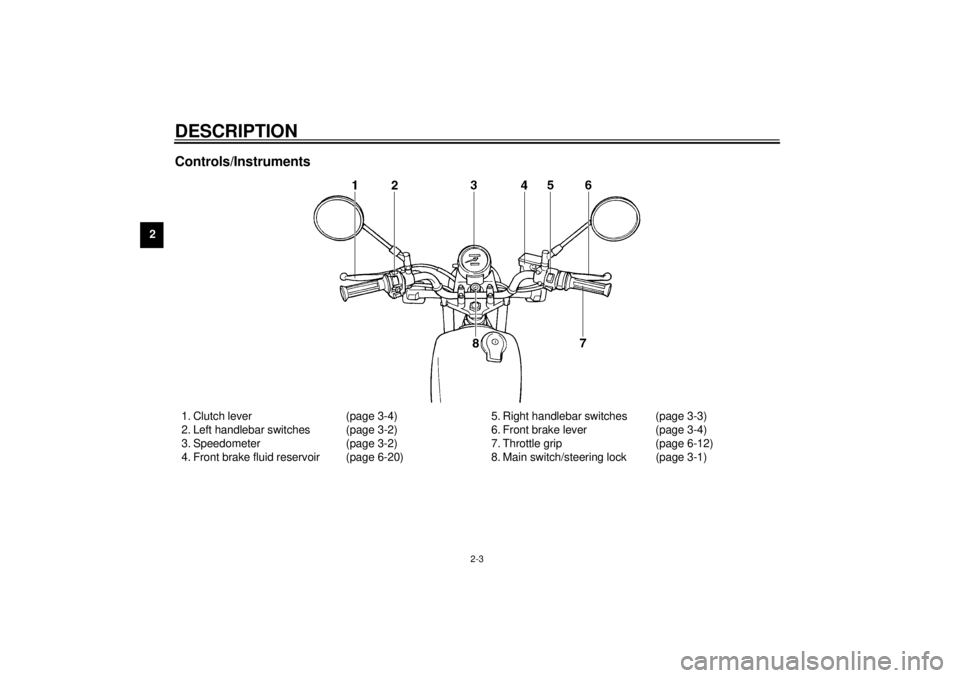

Controls/Instruments1. Clutch lever (page 3-4)
2. Left handlebar switches (page 3-2)
3. Speedometer (page 3-2)
4. Front brake fluid reservoir (page 6-20)5. Right handlebar switches (page 3-3)
6. Front brake lever (page 3-4)
7. Throttle grip (page 6-12)
8. Main switch/steering lock (page 3-1)
E_3mw.book Page 3 Monday, February 5, 2001 9:54 AM

3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00029*

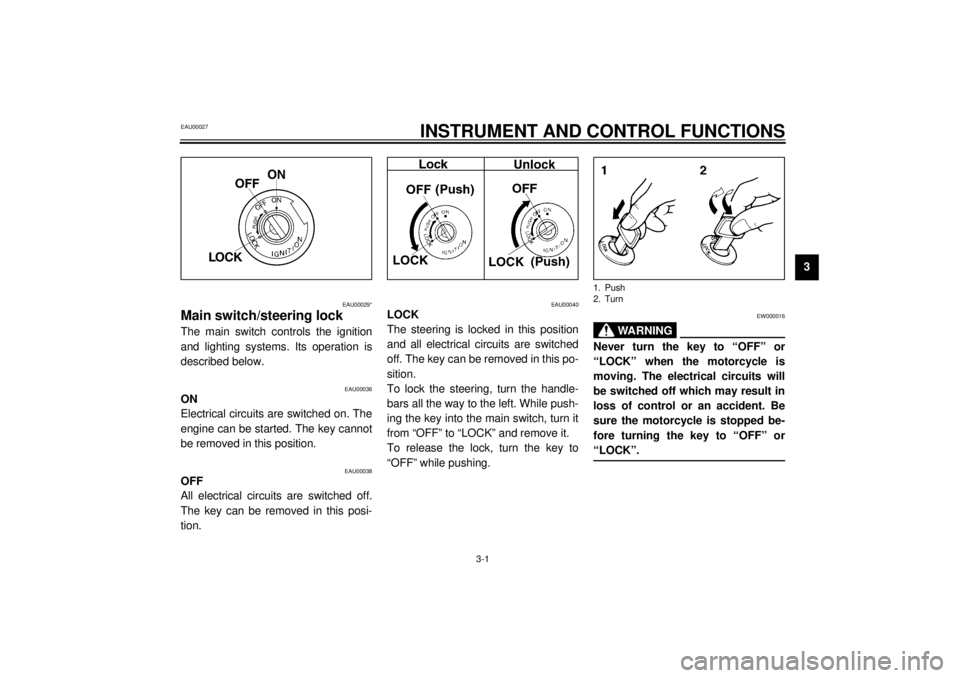

Main switch/steering lockThe main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on. The
engine can be started. The key cannot
be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.
EAU00040
LOCK
The steering is locked in this position
and all electrical circuits are switched
off. The key can be removed in this po-
sition.
To lock the steering, turn the handle-
bars all the way to the left. While push-
ing the key into the main switch, turn it
from “OFF” to “LOCK” and remove it.
To release the lock, turn the key to
“OFF” while pushing.
EW000016
WARNING
@ Never turn the key to “OFF” or
“LOCK” when the motorcycle is
moving. The electrical circuits will
be switched off which may result in
loss of control or an accident. Be
sure the motorcycle is stopped be-
fore turning the key to “OFF” or
“LOCK”. @1. Push
2. Turn
E_3mw.book Page 1 Monday, February 5, 2001 9:54 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU00056

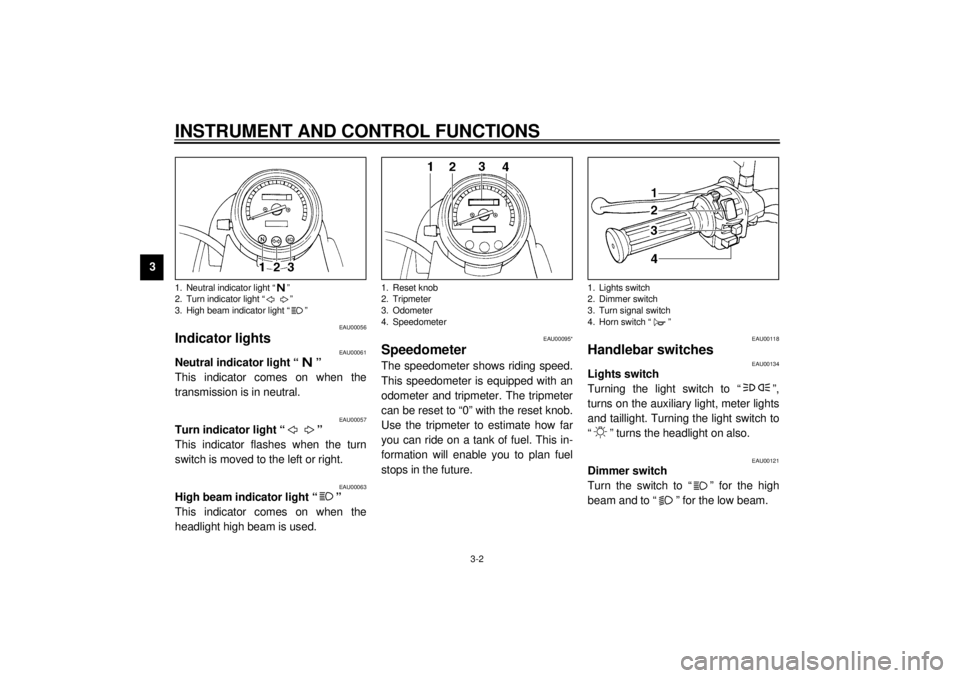

Indicator lights
EAU00061
Neutral indicator light “ ”
This indicator comes on when the
transmission is in neutral.
EAU00057
Turn indicator light “ ”
This indicator flashes when the turn
switch is moved to the left or right.
EAU00063
High beam indicator light “ ”
This indicator comes on when the
headlight high beam is used.
EAU00095*
SpeedometerThe speedometer shows riding speed.
This speedometer is equipped with an
odometer and tripmeter. The tripmeter
can be reset to “0” with the reset knob.
Use the tripmeter to estimate how far
you can ride on a tank of fuel. This in-
formation will enable you to plan fuel
stops in the future.
EAU00118
Handlebar switches
EAU00134
Lights switch
Turning the light switch to “ ”,
turns on the auxiliary light, meter lights
and taillight. Turning the light switch to
“ ” turns the headlight on also.
EAU00121
Dimmer switch
Turn the switch to “ ” for the high
beam and to “ ” for the low beam.
1. Neutral indicator light “ ”
2. Turn indicator light “ ”
3. High beam indicator light “ ”
1. Reset knob
2. Tripmeter
3. Odometer
4. Speedometer
1. Lights switch
2. Dimmer switch
3. Turn signal switch
4. Horn switch “ ”
E_3mw.book Page 2 Monday, February 5, 2001 9:54 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU00127
Turn signal switch
To signal a right-hand turn, push the
switch to “ ”. To signal a left-hand
turn, push the switch to “ ”. Once the
switch is released it will return to the
center position. To cancel the signal,
push the switch in after it has returned
to the center position.
EAU00129
Horn switch “ ”
Press the switch to sound the horn.
EAU00138

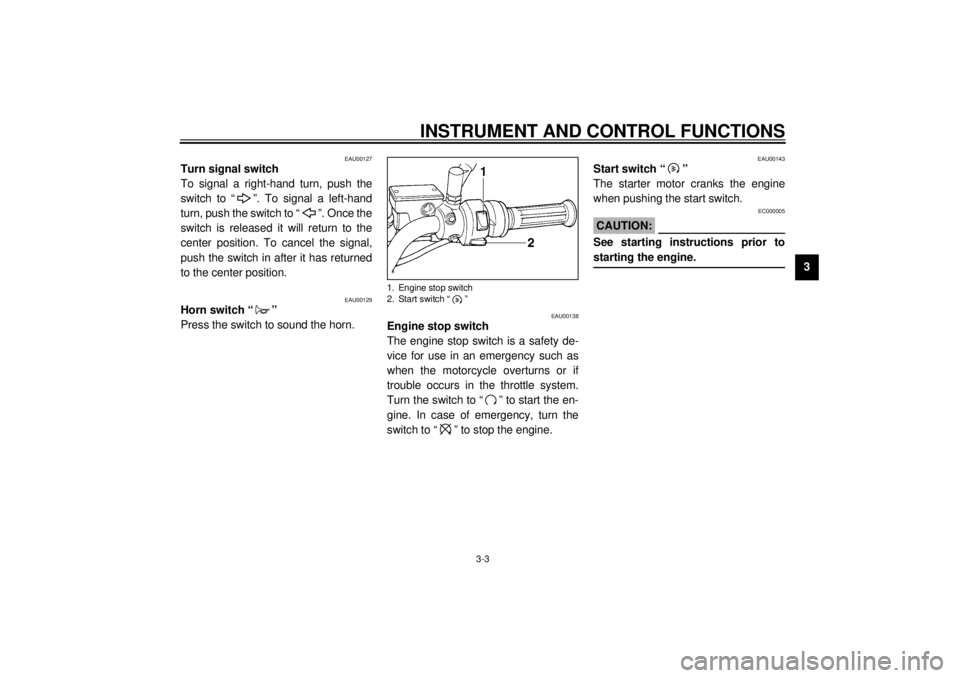

Engine stop switch
The engine stop switch is a safety de-
vice for use in an emergency such as
when the motorcycle overturns or if
trouble occurs in the throttle system.
Turn the switch to “ ” to start the en-
gine. In case of emergency, turn the
switch to “ ” to stop the engine.
EAU00143
Start switch “ ”
The starter motor cranks the engine
when pushing the start switch.
EC000005
CAUTION:@ See starting instructions prior to
starting the engine. @
1. Engine stop switch
2. Start switch “ ”
E_3mw.book Page 3 Monday, February 5, 2001 9:54 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU00152

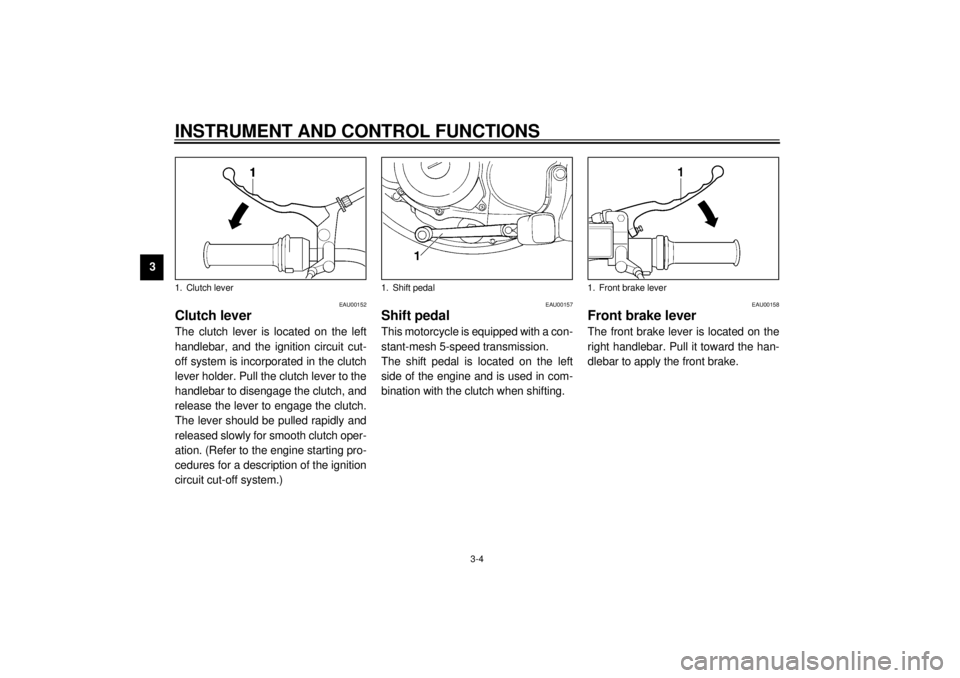

Clutch leverThe clutch lever is located on the left
handlebar, and the ignition circuit cut-
off system is incorporated in the clutch
lever holder. Pull the clutch lever to the
handlebar to disengage the clutch, and
release the lever to engage the clutch.
The lever should be pulled rapidly and
released slowly for smooth clutch oper-
ation. (Refer to the engine starting pro-
cedures for a description of the ignition
circuit cut-off system.)
EAU00157
Shift pedalThis motorcycle is equipped with a con-
stant-mesh 5-speed transmission.
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch when shifting.
EAU00158
Front brake leverThe front brake lever is located on the
right handlebar. Pull it toward the han-
dlebar to apply the front brake.
1. Clutch lever
1. Shift pedal
1. Front brake lever
E_3mw.book Page 4 Monday, February 5, 2001 9:54 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU00162

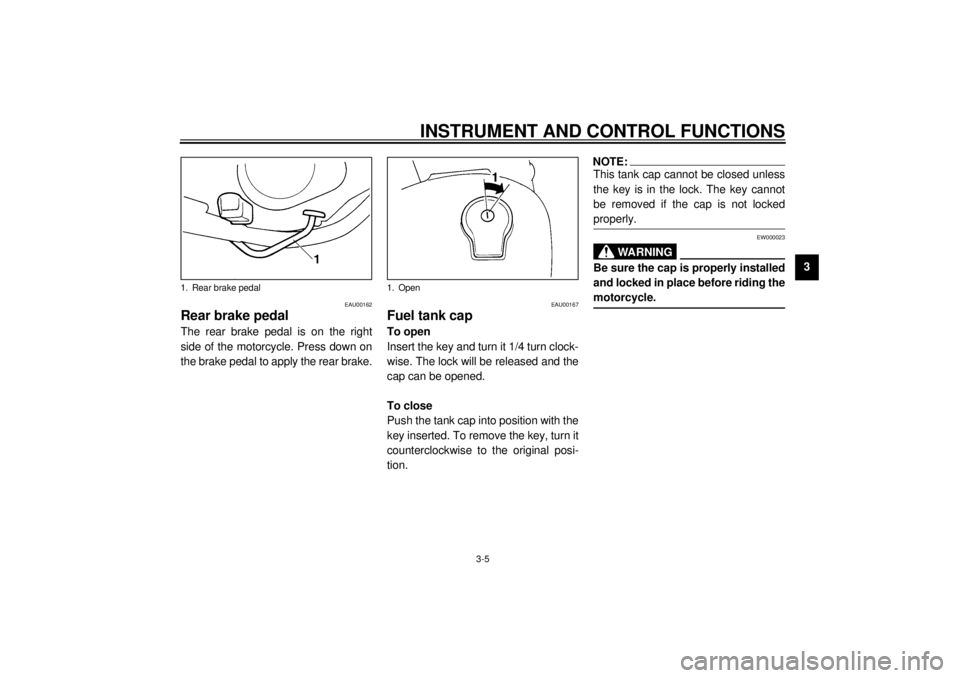

Rear brake pedalThe rear brake pedal is on the right
side of the motorcycle. Press down on
the brake pedal to apply the rear brake.
EAU00167
Fuel tank capTo open
Insert the key and turn it 1/4 turn clock-
wise. The lock will be released and the
cap can be opened.
To close
Push the tank cap into position with the
key inserted. To remove the key, turn it
counterclockwise to the original posi-
tion.
NOTE:@ This tank cap cannot be closed unless
the key is in the lock. The key cannot
be removed if the cap is not locked
properly. @
EW000023
WARNING
@ Be sure the cap is properly installed
and locked in place before riding the
motorcycle. @
1. Rear brake pedal
1. Open
E_3mw.book Page 5 Monday, February 5, 2001 9:54 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU01183

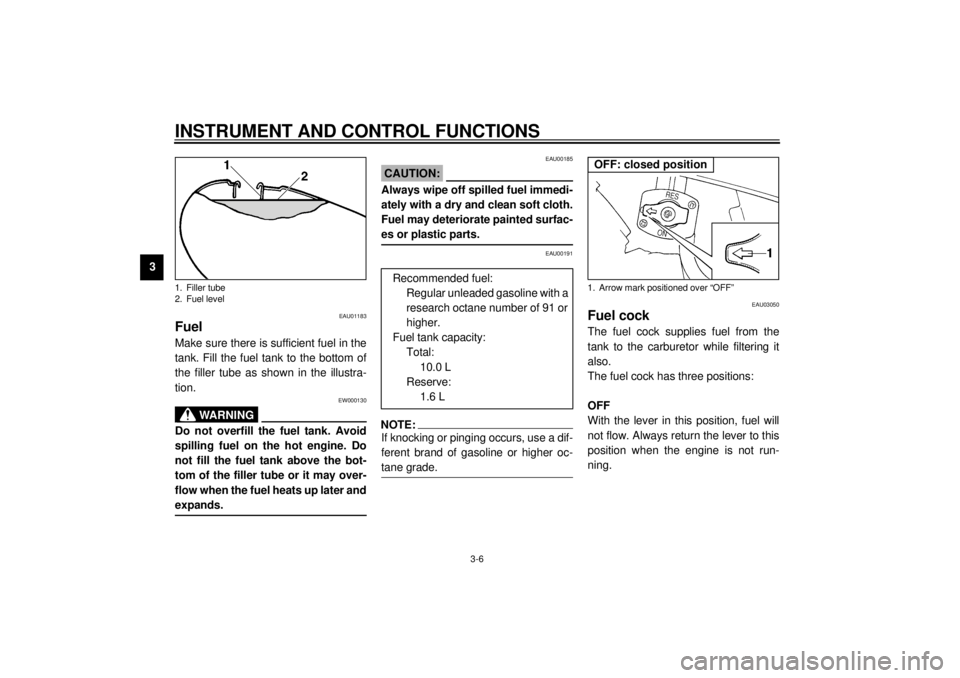

FuelMake sure there is sufficient fuel in the
tank. Fill the fuel tank to the bottom of
the filler tube as shown in the illustra-
tion.
EW000130
WARNING
@ Do not overfill the fuel tank. Avoid
spilling fuel on the hot engine. Do
not fill the fuel tank above the bot-
tom of the filler tube or it may over-
flow when the fuel heats up later and
expands. @
EAU00185
CAUTION:@ Always wipe off spilled fuel immedi-
ately with a dry and clean soft cloth.
Fuel may deteriorate painted surfac-
es or plastic parts. @
EAU00191
NOTE:@ If knocking or pinging occurs, use a dif-
ferent brand of gasoline or higher oc-
tane grade. @
EAU03050
Fuel cockThe fuel cock supplies fuel from the
tank to the carburetor while filtering it
also.
The fuel cock has three positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not run-
ning.
1. Filler tube
2. Fuel level
Recommended fuel:
Regular unleaded gasoline with a
research octane number of 91 or
higher.
Fuel tank capacity:
Total:
10.0 L
Reserve:
1.6 L
1. Arrow mark positioned over “OFF”OFF: closed position
E_3mw.book Page 6 Monday, February 5, 2001 9:54 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.RES
This indicates reserve. If you run out of
fuel while riding, move the lever to this
position. Fill the tank at the first oppor-
tunity. Be sure to set the lever back to
“ON” after refueling!
EAU03032
Starter (choke) knobStarting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the knob in direction
a to turn on
the starter (choke).
Move the knob in direction
b to turn off
the starter (choke).

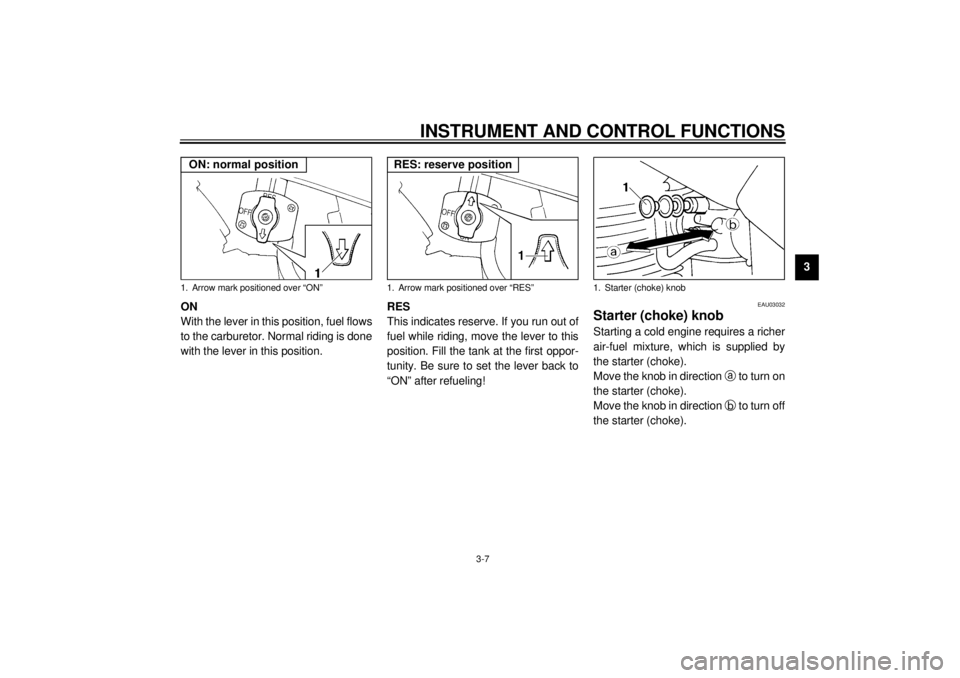

1. Arrow mark positioned over “ON”ON: normal position
1. Arrow mark positioned over “RES”RES: reserve position
1. Starter (choke) knob
E_3mw.book Page 7 Monday, February 5, 2001 9:54 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU01092

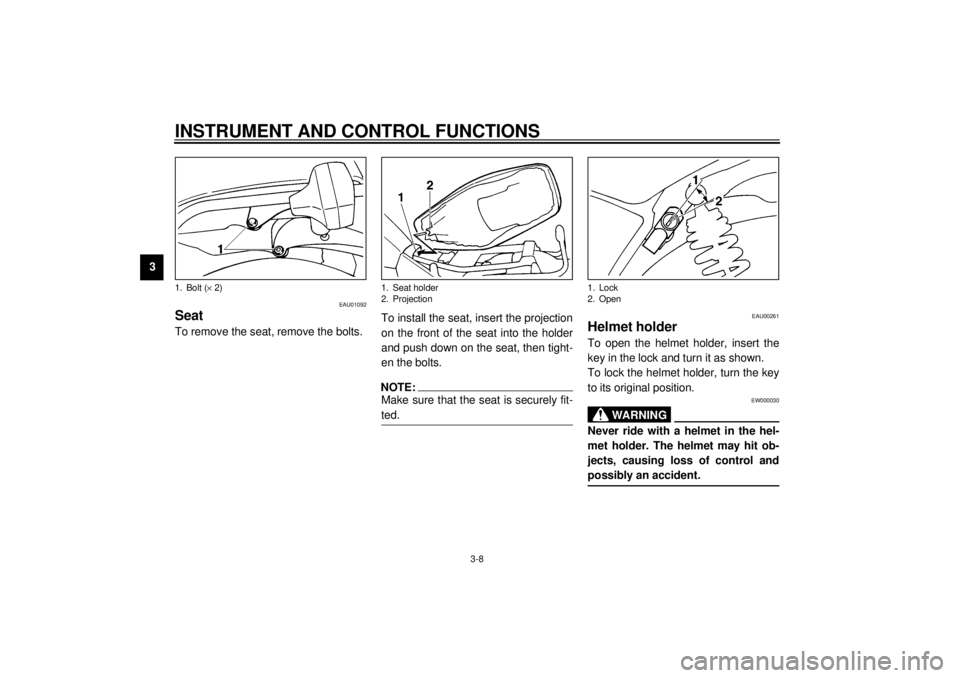

SeatTo remove the seat, remove the bolts.To install the seat, insert the projection
on the front of the seat into the holder
and push down on the seat, then tight-
en the bolts.
NOTE:@ Make sure that the seat is securely fit-
ted. @
EAU00261
Helmet holderTo open the helmet holder, insert the
key in the lock and turn it as shown.
To lock the helmet holder, turn the key
to its original position.
EW000030
WARNING
@ Never ride with a helmet in the hel-
met holder. The helmet may hit ob-
jects, causing loss of control and
possibly an accident. @
1. Bolt (´ 2)
1. Seat holder
2. Projection
1. Lock
2. Open
E_3mw.book Page 8 Monday, February 5, 2001 9:54 AM
