YAMAHA TMAX 2016 Owner's Manual

Smart key system
3-7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
damaged or contaminated by
dirt.
Do not touch the internal cir-
cuits and terminals. This may
cause malfunctions.
Do not apply excessive force to
the smart key when replacing
the battery.
Make sure the battery is in-
stalled correctly. Confirm the di-
rection of the positive/“+” side
of the battery.
To replace the smart key battery 1. Open the smart key case as shown.
2. Remove the switch plate and con- trol unit from the smart key case.
3. Remove the battery cover.
4. Remove the battery.
TIP
Dispose of the removed battery in ac-
cordance with local regulations. 5. Install a new battery as shown. Note the polarity of the battery.
6. Install the battery cover.
7. Install the switch plate and control unit into the smart key case.
8. Gently snap the smart key case closed.
1. Battery cover
2. Control unit
3. Switch plate
3
1
2
Specified battery:
CR2025
1. Battery
2. Control unit
2 1
2PW-9-E1.book 7 ページ ２０１５年９月１０日　木曜日　午後５時１７分

Smart key system
3-8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU61633
Vehicle power on and steering
lock release
1. With the smart key on and in oper- ating range, press the “ON/ ”
switch for one second.
2. Upon authentication of the smart key, the beeper will sound twice,
the smart key system indicator
light will come on momentarily and
the steering lock (if applied) will re-
lease automatically.
TIP
The smart key system indicator
light will flash if the steering lock
cannot automatically release itself.
Try moving the handlebars gently
to the left or right and then press
the “ON/ ” switch.
If the steering continues to be
locked and will not release, the
smart key system indicator light
will flash 16 times and the steering
lock release operation will stop
midway. Move the handlebar gen-
tly to the left and right to help re-
lease the steering lock and then
press the “ON/ ” switch again.
NOTICE
ECA15825
If the steering lock will not release
and the smart key system indicator
light is flashing, have a Yamaha
dealer check the smart key system.
3. The power of the vehicle is turned on once the steering lock is com-
pletely released. The smart key
system indicator light will go off
and the multi-function meter dis-
play will come on.
4. The engine can now be started. (See page 6-2.)
1. “ON/ ” switch
1
2PW-9-E1.book 8 ページ ２０１５年９月１０日　木曜日　午後５時１７分

Smart key system
3-9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU61693

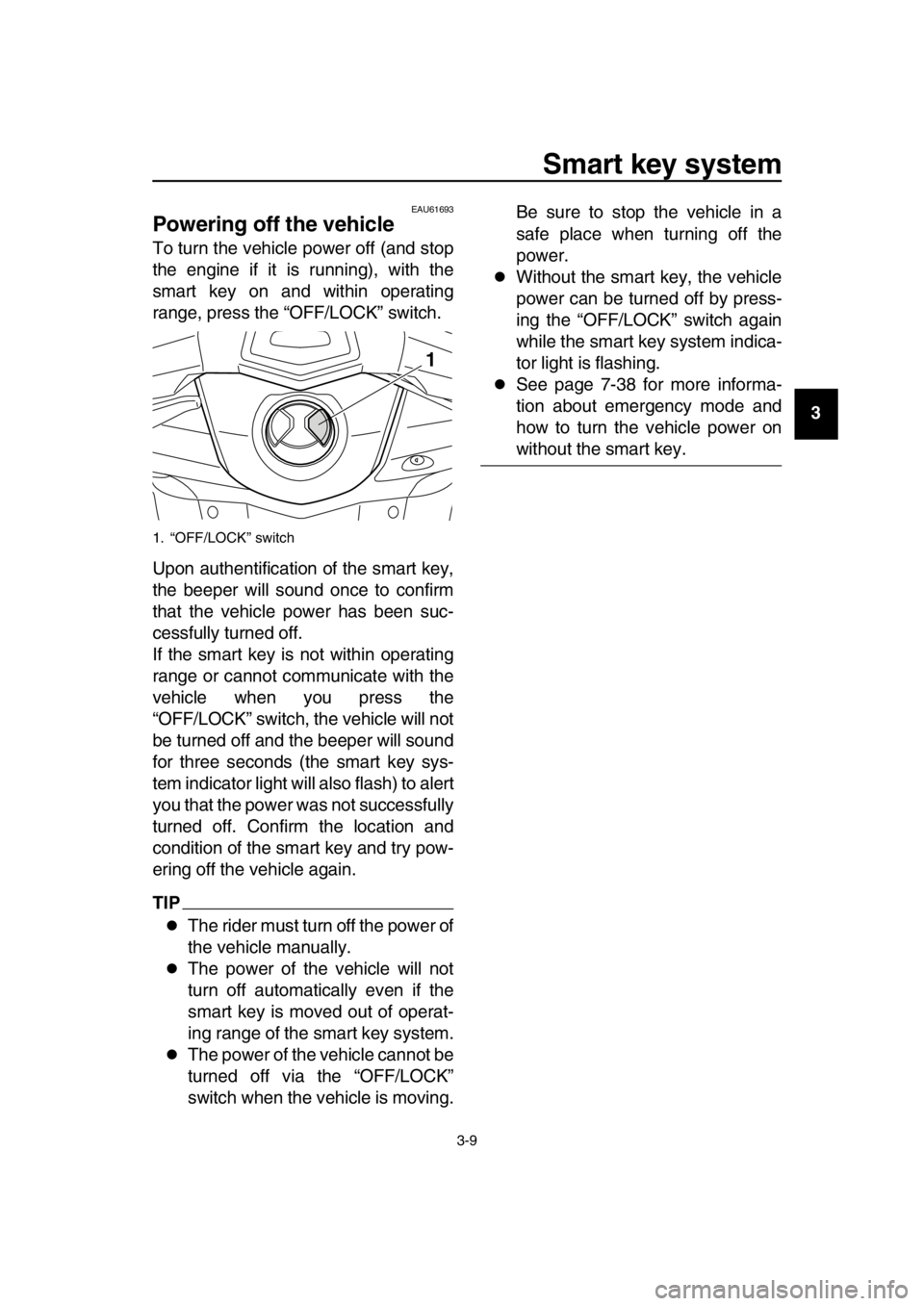

Powering off the vehicle
To turn the vehicle power off (and stop
the engine if it is running), with the
smart key on and within operating
range, press the “OFF/LOCK” switch.
Upon authentification of the smart key,
the beeper will sound once to confirm
that the vehicle power has been suc-
cessfully turned off.
If the smart key is not within operating
range or cannot communicate with the
vehicle when you press the
“OFF/LOCK” switch, the vehicle will not
be turned off and the beeper will sound
for three seconds (the smart key sys-
tem indicator light will also flash) to alert
you that the power was not successfully
turned off. Confirm the location and
condition of the smart key and try pow-
ering off the vehicle again.
TIP
The rider must turn off the power of
the vehicle manually.
The power of the vehicle will not
turn off automatically even if the
smart key is moved out of operat-
ing range of the smart key system.
The power of the vehicle cannot be
turned off via the “OFF/LOCK”
switch when the vehicle is moving. Be sure to stop the vehicle in a
safe place when turning off the
power.
Without the smart key, the vehicle
power can be turned off by press-
ing the “OFF/LOCK” switch again
while the smart key system indica-
tor light is flashing.
See page 7-38 for more informa-
tion about emergency mode and
how to turn the vehicle power on
without the smart key.
1. “OFF/LOCK” switch
1
2PW-9-E1.book 9 ページ ２０１５年９月１０日　木曜日　午後５時１７分

Smart key system
3-10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU61612

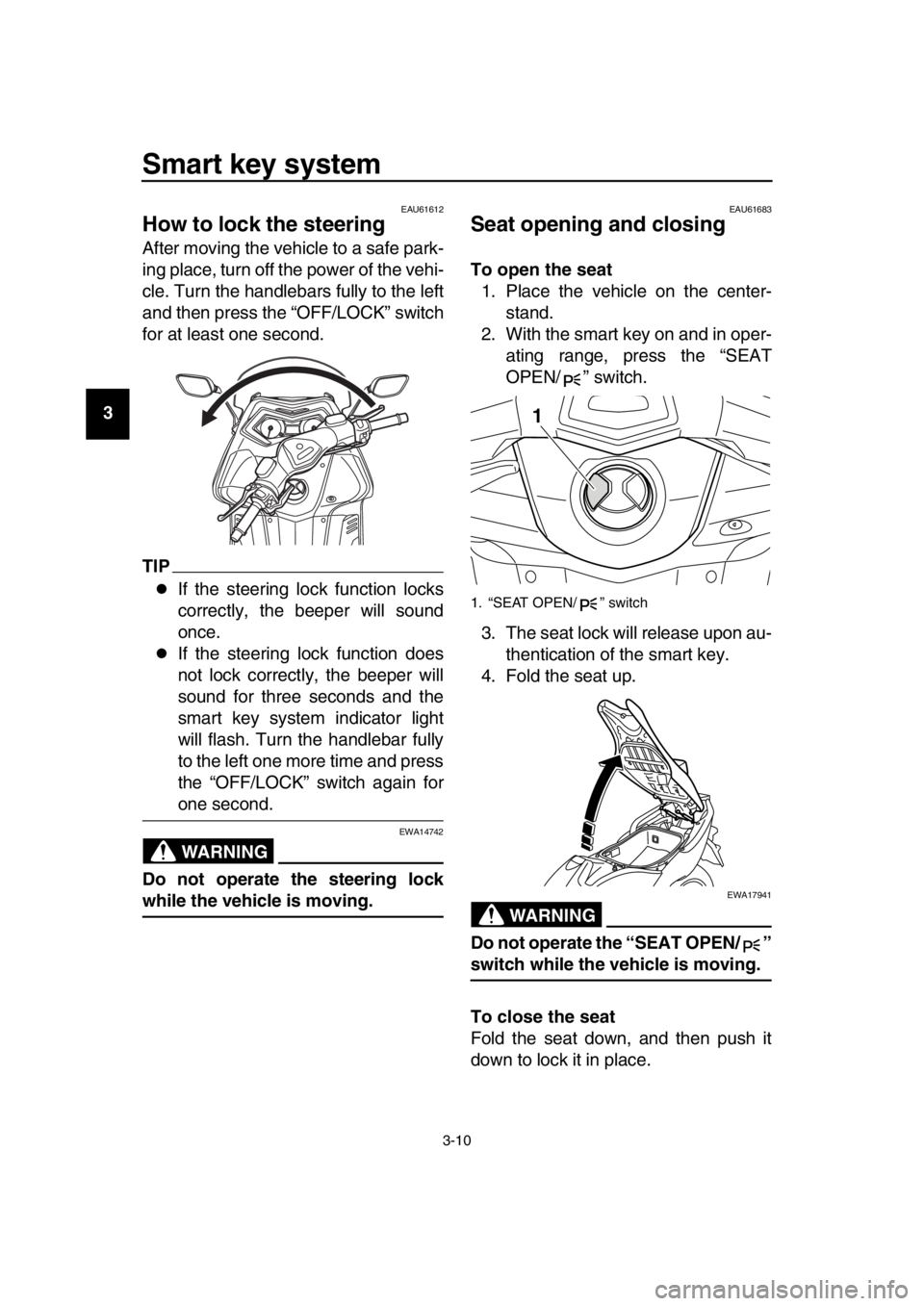

How to lock the steering
After moving the vehicle to a safe park-
ing place, turn off the power of the vehi-
cle. Turn the handlebars fully to the left
and then press the “OFF/LOCK” switch
for at least one second.
TIP
If the steering lock function locks
correctly, the beeper will sound
once.
If the steering lock function does
not lock correctly, the beeper will
sound for three seconds and the
smart key system indicator light
will flash. Turn the handlebar fully
to the left one more time and press
the “OFF/LOCK” switch again for
one second.
WARNING
EWA14742
Do not operate the steering lock
while the vehicle is moving.
EAU61683
Seat opening and closing
To open the seat 1. Place the vehicle on the center- stand.
2. With the smart key on and in oper- ating range, press the “SEAT
OPEN/ ” switch.
3. The seat lock will release upon au- thentication of the smart key.
4. Fold the seat up.
WARNING
EWA17941
Do not operate the “SEAT OPEN/ ”
switch while the vehicle is moving.
To close the seat
Fold the seat down, and then push it
down to lock it in place.
1. “SEAT OPEN/ ” switch
1
2PW-9-E1.book 10 ページ ２０１５年９月１０日　木曜日　午後５時１７分

Smart key system
3-11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
TIP
Make sure the seat is properly
closed before starting off.
In case of an emergency, the seat
can be opened with a mechanical
key. (See page 7-38.)
EAU61593
Parking mode
The steering is locked, and the hazard
lights and turn signal lights can be
turned on, but all other electrical sys-
tems are off.
To enter parking mode 1. Lock the steering. (See page 3-10. ）
2. Press and hold the “SEAT OPEN/ ” switch for at least one
second.
3. Upon authentification of the smart key, the beeper will sound twice
and the smart key system will
change to parking mode and the
smart key system indicator light
will come on.
TIP
The seat cannot be opened while in
parking mode.
NOTICE
ECA21990
Do not use the hazard lights for an
extended length of time, otherwise
the battery may discharge.
To exit parking mode
Press and hold the “SEAT OPEN/ ”
switch. Upon authentication of the
smart key, the beeper will sound once
and parking mode is cancelled and the
smart key system indicator light will go
off.
2PW-9-E1.book 11 ページ ２０１５年９月１０日　木曜日　午後５時１７分

4-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Instrument and control functions
EAU49398
Indicator ligh ts and warning
lights
EAU11032Turn signal indicator lights “ ” and
“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU11081High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU63521Engine trouble warning light “ ”
This warning light comes on if an elec-
trical circuit monitoring the engine is not
working correctly. If this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
The electrical circuit of the warning light
can be checked by turning the vehicle
power on. The warning light should
come on for a few seconds, and then
go off. If the warning light does not come on
initially when the vehicle power is
turned on, or if the warning light re-
mains on, have a Yamaha dealer check
the electrical circuit.
TIP
This warning light will come on when
the vehicle power is on and the “ON/ ”
switch is pushed, but this does not indi-
cate a malfunction.
EAU63532ABS warning light “ ” (for ABS
models)
In normal operation, the ABS warning
light comes on when the vehicle power
is turned on and goes off after traveling
at a speed of 10 km/h (6 mi/h) or higher.
If the ABS warning light:
does not come on when the vehi-
cle power is turned on
comes on or flashes while riding
does not go off after traveling at a
speed of 10 km/h (6 mi/h) or higher
The ABS may not work correctly. If any
of the above occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 4-13 for an expla-
nation of the ABS.)
WARNING
EWA16041
If the ABS warning light does not go
off after traveling at a speed of 10
km/h (6 mi/h) or higher, or if the
warning light comes on or flashes
while riding, the brake system re-
verts to conventional braking. If ei-
ther of the above occurs, or if the
warning light does not come on at
all, use extra caution to avoid possi-
ble wheel lock during emergency
braking. Have a Yamaha dealer
1. Turn signal indicator lights “ ” and “ ”
2. Anti-lock Brake System (ABS) warning light “ ” (for ABS models)
3. High beam indicator light “ ”
4. Engine trouble warning light “ ”
5. Smart key system indicator light “ ”
1
5411
3 2
ABS
ABS
2PW-9-E1.book 1 ページ ２０１５年９月１０日　木曜日　午後５時１７分

Instrument and control functions
4-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
check the brake system and electri-
cal circuits as soon as possible.
TIP
If the start switch is pushed while
the engine is running, the ABS
warning light will come on, but this
is not a malfunction.
The ABS warning light may come
on when revving the engine with
the scooter on its centerstand, but
this does not indicate a malfunc-
tion.
EAU61652Smart key system indicator light
“”
This indicator light communicates the
status of the smart key system. When
the smart key system is operating nor-
mally, this indicator light will be off. If
there is an error in the smart key sys-
tem, the indicator light will flash. The in-
dicator light will
also flash when
communication between the vehicle
and smart key takes place and when
certain smart key system operations
are carried out. (See page 3-1.)
TIP
When the start switch is pushed, the in-
dicator light will come on for about one
second and then go off. If the indicator
light does not come on or go off as nor-
mal, have a Yamaha dealer check the
vehicle.
EAU63541
Speedometer
The speedometer shows the riding
speed.
When the vehicle power is turned on,
the speedometer needle will sweep
once across the speed range and then
return to zero in order to test the electri-
cal circuit.
1. Speedometer
1
2PW-9-E1.book 2 ページ ２０１５年９月１０日　木曜日　午後５時１７分

Instrument and control functions
4-3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU63551
Tachometer
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the vehicle power is turned on,
the tachometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.
NOTICE
ECA10032
Do not operate the engine in the ta-
chometer red zone.
Red zone: 8250 r/min and above
EAU63564
Multi-function display
WARNING
EWA12313
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
1. Tachometer
2. Tachometer red zone
1
2
1. “SELECT” button
2. Fuel meter
3. Fuel level warning indicator “ ”
4. Odometer
5. Coolant temperature warning indicator “ ”
6. Coolant temperature meter
7. “RESET” button
1. Tripmeter/fuel reserve tripmeter
2. Ambient temperature/average fuel consumption/instantaneous fuel
consumption
2
34
5
6117
2
1
2PW-9-E1.book 3 ページ ２０１５年９月１０日　木曜日　午後５時１７分

Instrument and control functions
4-4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
The multi-function display is equipped
with the following:a fuel meter
a coolant temperature meter
an odometer
two tripmeters
a fuel reserve tripmeter
a self-diagnosis device
a clock
an ambient temperature display
a fuel consumption display
an oil change tripmeter
a V-belt replacement tripmeter
TIP
Be sure to turn the vehicle power
on before using the “SELECT” and
“RESET” buttons.
When the vehicle power is turned
on, all of the display segments of
the multi-function display will ap-
pear one after the other and then
disappear, in order to test the elec-
trical circuits. Clock
The clock uses a 24-hour time system.
The clock displays when the key is
turned to “ON”.
To set the clock:
1. Push the “SELECT” and “RESET”
buttons together for at least two
seconds.
2. When the hour digits start flashing, push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and the minute digits will start flashing.
4. Push the “RESET” button to set the minutes.
5. Push the “SELECT” button and then release it to start the clock.
Odometer and tripmeter modes
1. Clock
1
1. Clock
1. Odometer/tripmeters/fuel reserve tripmeter
1
1
2PW-9-E1.book 4 ページ ２０１５年９月１０日　木曜日　午後５時１７分

Instrument and control functions
4-5
1
2
3
4
5
6
7
8
9
10
11
12
13
14 The odometer shows the total distance
traveled by the vehicle.
The tripmeters show the distance trav-
eled since they were last reset.
The fuel reserve tripmeter shows the
distance traveled since the fuel level
warning indicator came on.
The oil change tripmeter shows the dis-
tance traveled since the last engine oil
change.
The V-belt replacement tripmeter
shows the distance traveled since the
last V-belt replacement.
TIP
The odometer will lock at 999999.
The tripmeters will reset and con-
tinue counting after 9999.9 is
reached.
Pushing the “SELECT” button switches the display between the odometer
mode and the tripmeter modes in the
following order:
Odo
 Trip 1  Trip 2  V-Belt Trip 
Oil Trip  Odo
When approximately 3.0 L (0.79 US
gal, 0.66 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “Trip F” and start counting the
distance traveled from that point. In that
case, pushing the “SELECT” button
switches the display between the vari-
ous tripmeter and odometer modes in
the following order:
Odo  Trip 1  Trip 2  Trip F 
V-Belt Trip  Oil Trip  Odo
To reset a tripmeter, select it by push-
ing the “SELECT” button until “Trip F”,
“Trip 1” or “Trip 2” is displayed. While
“Trip F”, “Trip 1” or “Trip 2” is displayed,
push the “SELECT” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
TIP
The display cannot be switched to “Trip
F” after the fuel reserve tripmeter has
1. Oil change tripmeter
1. V-belt replacement tripmeter
1
1
1. Fuel reserve tripmeter
1
2PW-9-E1.book 5 ページ ２０１５年９月１０日　木曜日　午後５時１７分
