YAMAHA TMAX 2019 Service Manual

Instrument and control functions
5-8
1
2
3
4
5
6
7
8
9
10
11
12
13
14

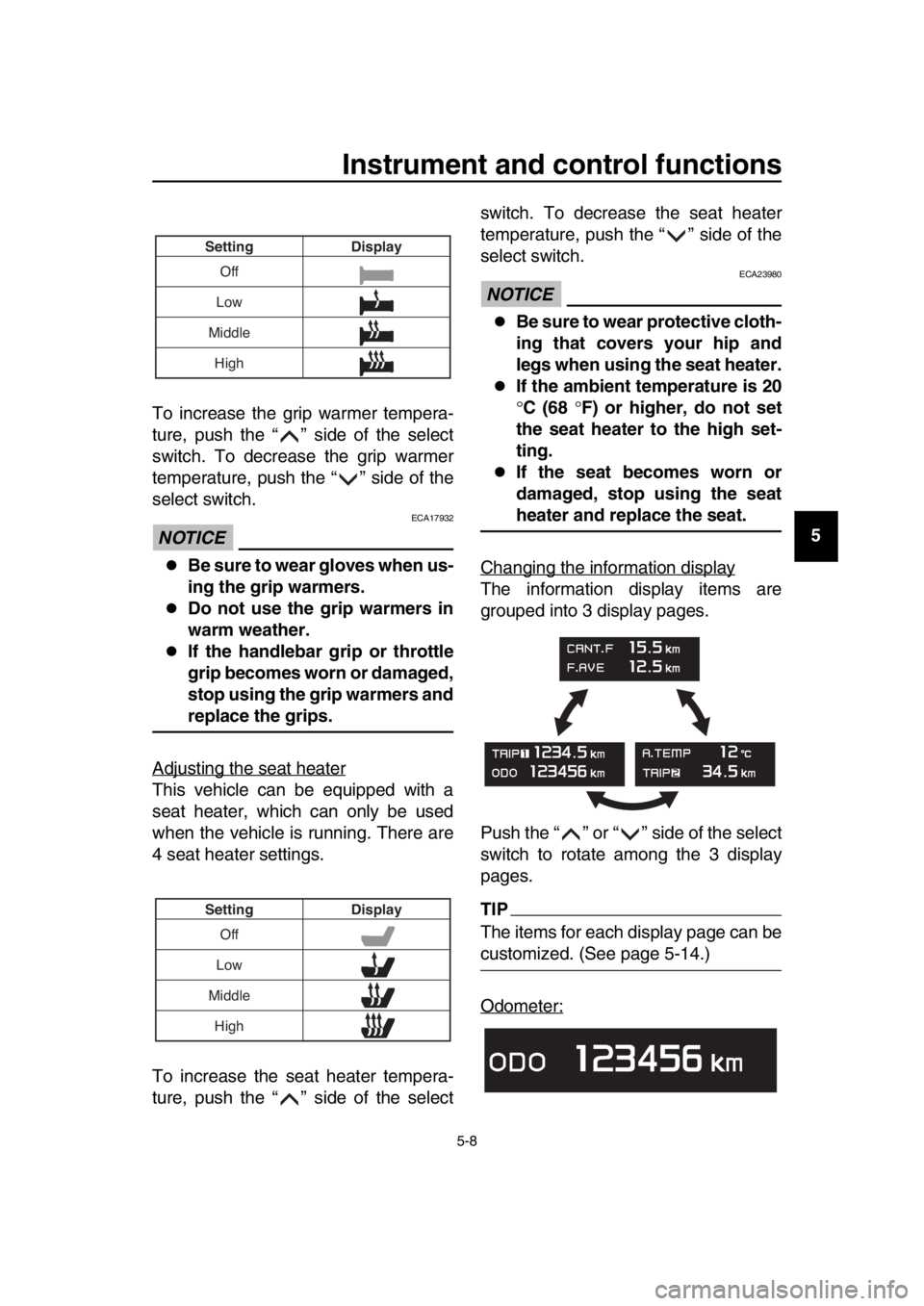

To increase the grip warmer tempera-
ture, push the “ ” side of the select
switch. To decrease the grip warmer
temperature, push the “ ” side of the
select switch.NOTICE
ECA17932
Be sure to wear gloves when us-
ing the grip warmers.
Do not use the grip warmers in
warm weather.
If the handlebar grip or throttle
grip becomes worn or damaged,
stop using the grip warmers and
replace the grips.
Adjusting the seat heater
This vehicle can be equipped with a
seat heater, which can only be used
when the vehicle is running. There are
4 seat heater settings.
To increase the seat heater tempera-
ture, push the “ ” side of the select switch. To decrease the seat heater
temperature, push the “ ” side of the
select switch.
NOTICE
ECA23980
Be sure to wear protective cloth-
ing that covers your hip and
legs when using the seat heater.
If the ambient temperature is 20

C (68 F) or higher, do not set
the seat heater to the high set-
ting.
If the seat becomes worn or
damaged, stop using the seat
heater and replace the seat.
Changing the information display
The information display items are
grouped into 3 display pages.
Push the “ ” or “ ” side of the select
switch to rotate among the 3 display
pages.
TIP
The items for each display page can be
customized. (See page 5-14.)
Odometer:
Off
Low
Middle Display
Setting
High
Off
Low
Middle Display
Setting
High
BV1-9-E2.book 8 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Instrument and control functions
5-9
1
2
3
4
5
6
7
8
9
10
11
12
13
14 The odometer shows the total distance
traveled by the vehicle.
Tripmeters:
“TRIP1” and “TRIP2” show the distance
traveled since they were last set to ze-
ro.
To reset a tripmeter, use the select
switch to select the information display
page that contains the tripmeter you
want to reset. Push the “ ” side of the
select switch for one second so that the
tripmeter flashes, and then push the
“ ” side of the select switch again for
one second while the tripmeter is flash-
ing.
TIP
The odometer will lock at 999999.
The tripmeters will reset and con-
tinue counting after 9999.9 is
reached.
When approximately 3.0 L (0.79 US gal,
0.66 Imp.gal) of fuel remains in the fuel
tank, the last segment of the fuel meter
starts flashing. In addition, the informa-
tion display will automatically change to
the fuel reserve tripmeter mode “F-
TRIP” and start counting the distance
traveled from that point.
In this case, push the select switch to switch the display in the following order:
F-TRIP Display–1 Display–2
Display–3 F-TRIP
If you do not reset the fuel reserve trip-
meter manually, it will reset automati-
cally after refueling and traveling 5 km
(3 mi).
TIP
You cannot enter setting mode (page
5-10) while “F-TRIP” is on.
Estimated traveling range:
The estimated distance that can be
traveled with the remaining fuel under
the current riding conditions is shown.
Ambient temperature:
This shows the ambient temperature
from –9 C to 50 C in 1  C increments.
The temperature displayed may vary
from the actual ambient temperature.
TIP
–9 C will be displayed even if the
detected temperature is lower.
50 C will be displayed even if the
detected temperature is higher.
The accuracy of the temperature
reading may be affected when rid-
ing under 20 km/h (12 mi/h) or
when stopped at traffic signals and
BV1-9-E2.book 9 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Instrument and control functions
5-10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
railroad crossings.
Average fuel consumption:
The average fuel consumption mode
“F.AVE” can be set to “km/L” or
“L/100km”. For UK-spec vehicles:
“MPG”. (See page 5-13.)
To reset the average fuel consumption,
use the select switch to select the infor-
mation display page that contains the
average fuel consumption display.
Push the “ ” side of the select switch
so that the average fuel consumption
display flashes, and then push the “ ”
side of the select switch again for 1 sec-
ond while the display is flashing.
TIP
After resetting the average fuel con-
sumption display, “– –.–” will be shown
until the vehicle has traveled 1 km (0.6
mi).
NOTICE
ECA15474
If there is a malfunction, “– –.–” will
be continuously displayed. Have a
Yamaha dealer check the vehicle.
Instantaneous fuel consumption:
The instantaneous fuel consumption
mode “CRNT.F” can be set to “km/L” or
“L/100km”. For UK-spec vehicles:
“MPG”. (See page 5-13.)
TIP
Instantaneous fuel consumption
cannot be reset.
If traveling at speeds under 10
km/h (6 mi/h), “– –.–” will be dis-
played.
NOTICE
ECA15474
If there is a malfunction, “– –.–” will
be continuously displayed. Have a
Yamaha dealer check the vehicle.
Setting mode
Stop the vehicle and then push the
“MENU” switch for 2 seconds to enter
the setting mode. To exit the setting
mode and return to the standard dis-
play mode, push the “MENU” switch
again for 2 seconds or select
“”.
TIP
Starting off or turning the vehicle power
off saves all settings changes and exits
the setting mode.
1. Setting mode display
1
BV1-9-E2.book 10 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Instrument and control functions
5-11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Menu items
Grip warmer settings
1. Use the select switch to highlight “Grip Warmer”. 2. Push the “MENU” switch. The grip
warmer setting display will be
shown and “High” will flash in the
display.
3. Push the “MENU” switch. The tem- perature level for the high setting
will start flashing.
Use the select switch to set the
temperature level, and then push
the “MENU” switch. “High” will start
flashing.
4. Use the select switch to highlight “Mid” or “Low”, and then change
the setting using the same proce-
Category Description
This function allows you to
set the low, middle, and
high settings to 10
temperature levels.
This function allows you to
set the low, middle, and
high settings to 10
temperature levels.
This function allows you to
turn the traction control
system on or off.
This function allows you to
check and reset the oil
change interval (indicator),
V-Belt change interval
(indicator), and the “FREE”
maintenance interval.
This function allows you to
switch the fuel
consumption units
between “L/100km” and
“km/L”.
For UK-spec vehicles: this
function is not available.
This function allows you to
change the items shown in
3 information displays.
This function allows you to
adjust the brightness of the
instrument panel.
This function allows you to
set the clock.
This function allows you to
reset all items to their
factory preset or default
settings; excepting the
odometer, clock, and
maintenance counter items
“Oil” and “V-Belt”.
Grip Warmer
Seat Heater
Tr action Control
Maintenance
Unit
Display
Brightness
Clock
All Reset
BV1-9-E2.book 11 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Instrument and control functions
5-12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
dure that was used for the high set-
ting.
5. When you finished changing the settings, use the select switch to
highlight “ ”, and then push the
“MENU” switch to return to the
menu screen.

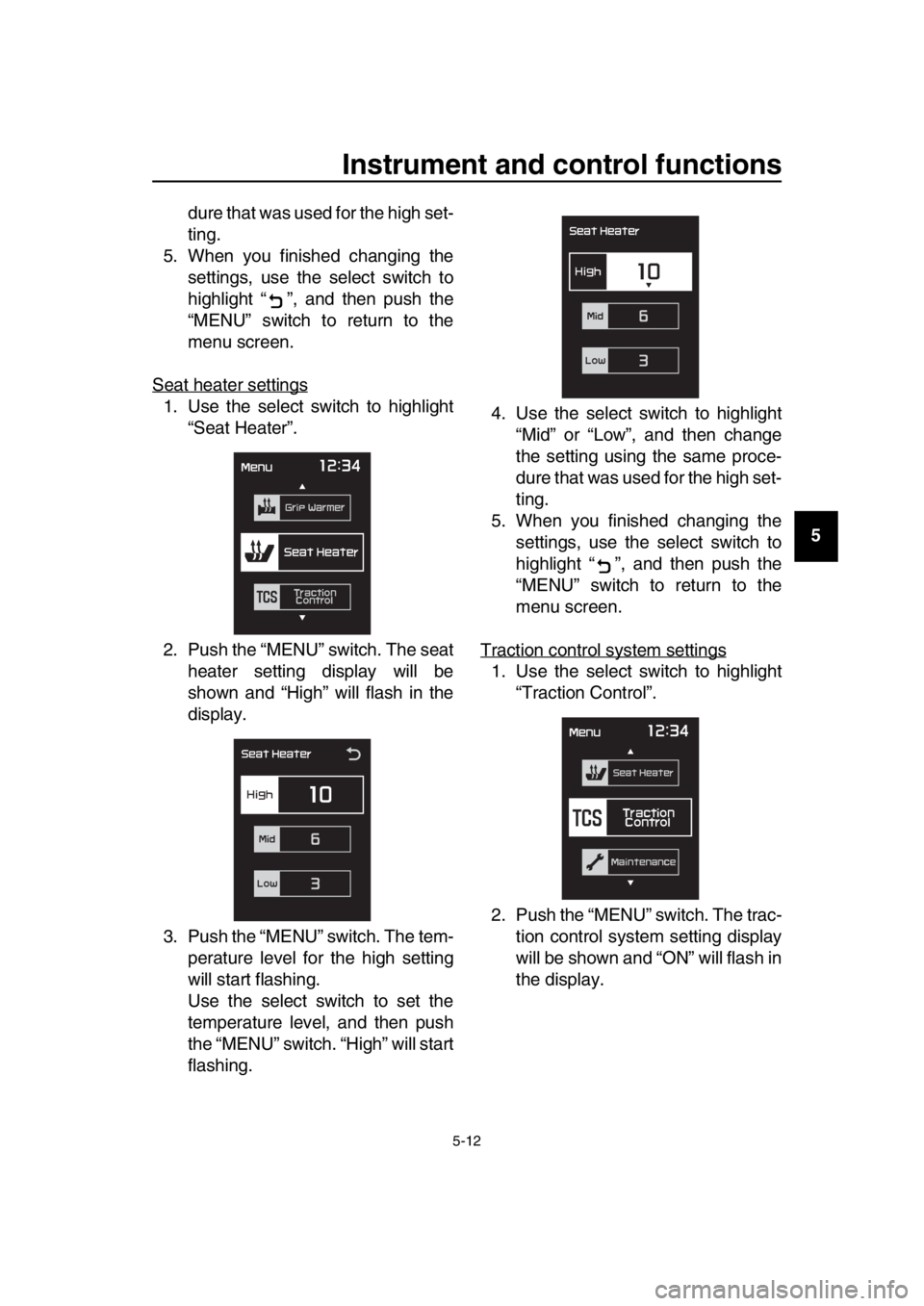

Seat heater settings
1. Use the select switch to highlight “Seat Heater”.
2. Push the “MENU” switch. The seat heater setting display will be
shown and “High” will flash in the
display.
3. Push the “MENU” switch. The tem- perature level for the high setting
will start flashing.
Use the select switch to set the
temperature level, and then push
the “MENU” switch. “High” will start
flashing. 4. Use the select switch to highlight
“Mid” or “Low”, and then change
the setting using the same proce-
dure that was used for the high set-
ting.
5. When you finished changing the settings, use the select switch to
highlight “ ”, and then push the
“MENU” switch to return to the
menu screen.
Traction control system settings
1. Use the select switch to highlight “Traction Control”.
2. Push the “MENU” switch. The trac- tion control system setting display
will be shown and “ON” will flash in
the display.
BV1-9-E2.book 12 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Instrument and control functions
5-13
1
2
3
4
5
6
7
8
9
10
11
12
13

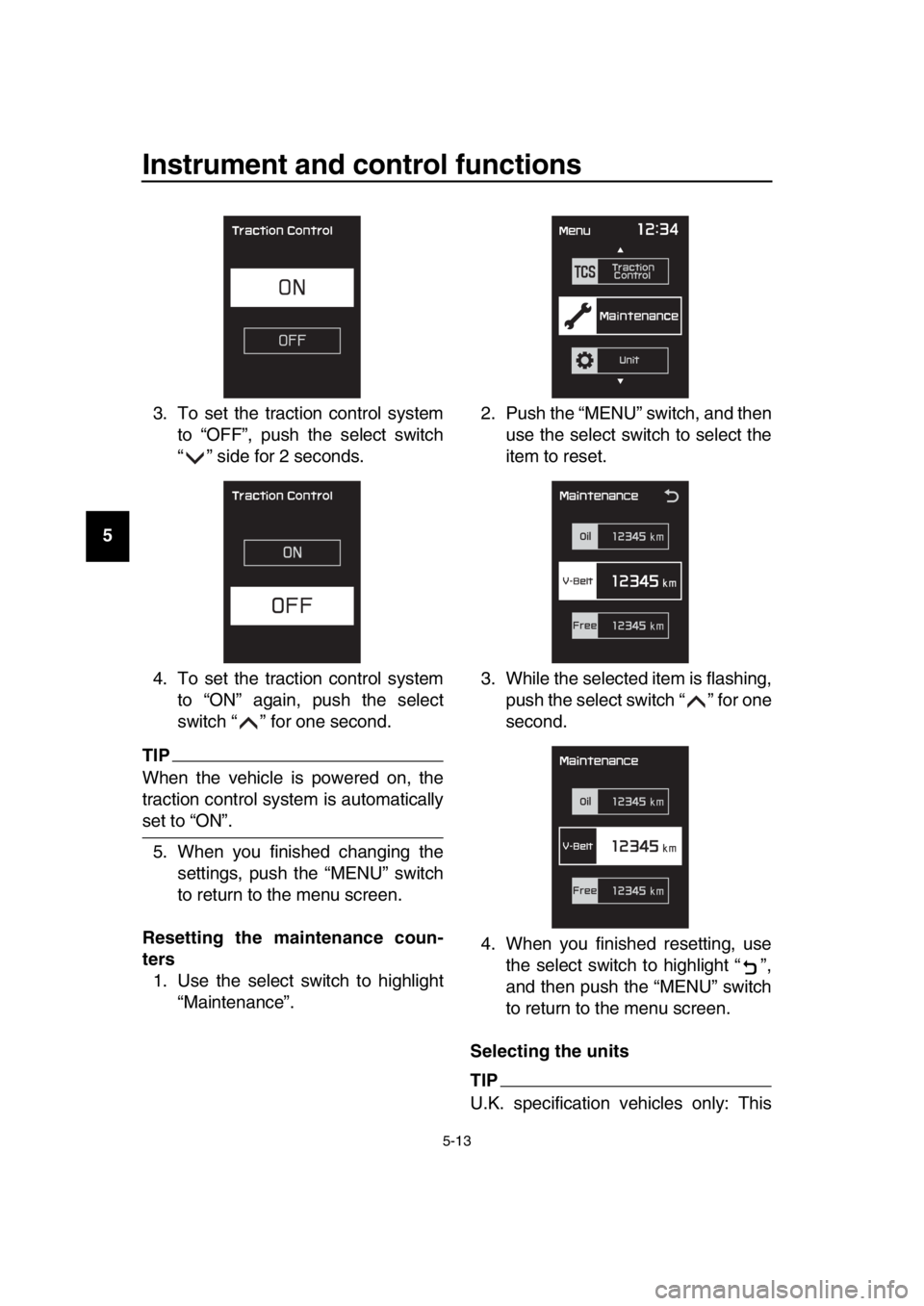

14 3. To set the traction control system
to “OFF”, push the select switch
“ ” side for 2 seconds.
4. To set the traction control system to “ON” again, push the select
switch “ ” for one second.
TIP
When the vehicle is powered on, the
traction control system is automatically
set to “ON”.
5. When you finished changing the settings, push the “MENU” switch
to return to the menu screen.
Resetting the maintenance coun-
ters 1. Use the select switch to highlight “Maintenance”. 2. Push the “MENU” switch, and then
use the select switch to select the
item to reset.
3. While the selected item is flashing, push the select switch “ ” for one
second.
4. When you finished resetting, use the select switch to highlight “ ”,
and then push the “MENU” switch
to return to the menu screen.
Selecting the units
TIP
U.K. specification vehicles only: This
BV1-9-E2.book 13 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Instrument and control functions
5-14
1
2
3
4
5
6
7
8
9
10
11
12
13
14

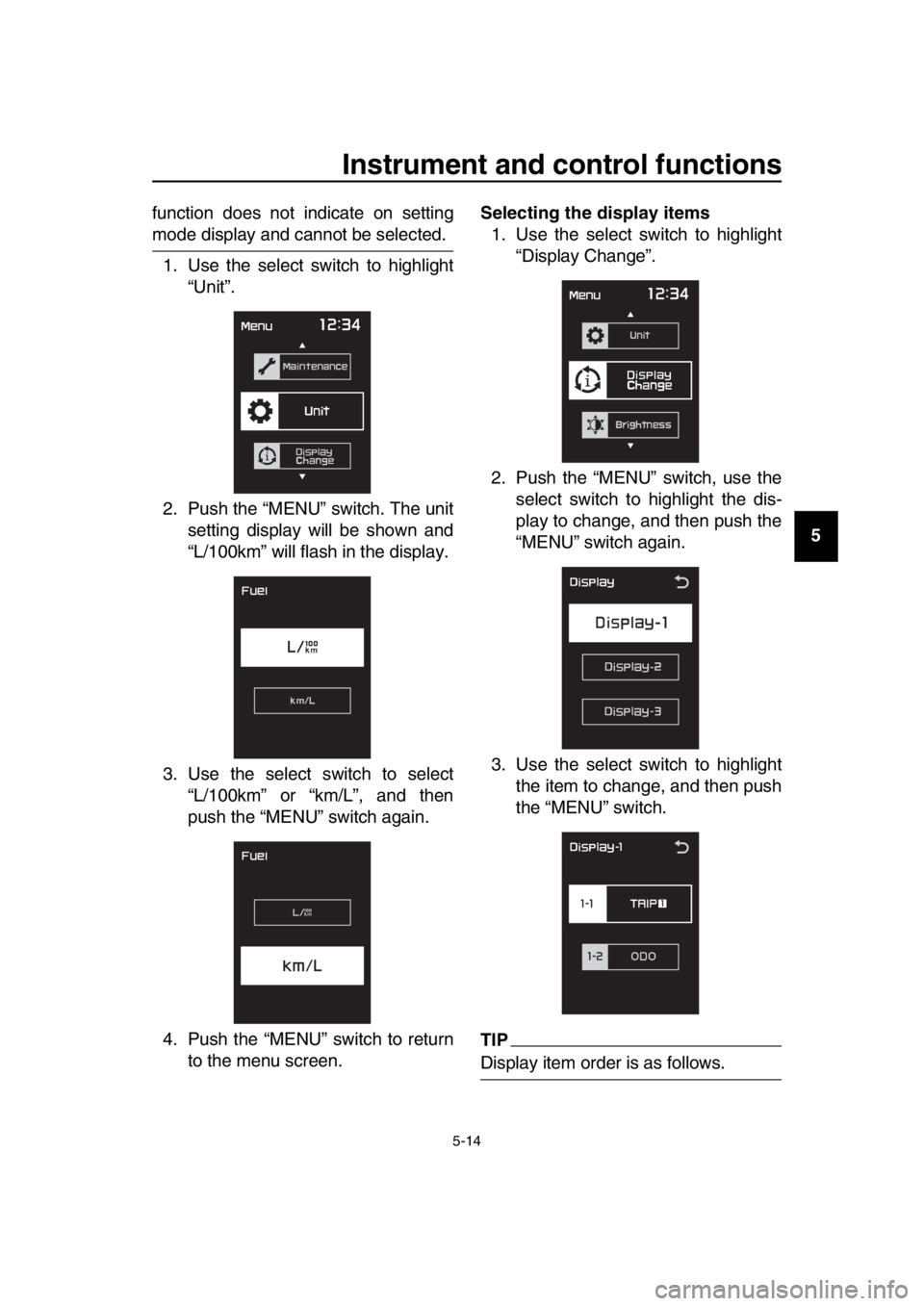

function does not indicate on setting
mode display and cannot be selected.
1. Use the select switch to highlight “Unit”.
2. Push the “MENU” switch. The unit setting display will be shown and
“L/100km” will flash in the display.
3. Use the select switch to select “L/100km” or “km/L”, and then
push the “MENU” switch again.
4. Push the “MENU” switch to return to the menu screen. Selecting the display items
1. Use the select switch to highlight “Display Change”.
2. Push the “MENU” switch, use the select switch to highlight the dis-
play to change, and then push the
“MENU” switch again.
3. Use the select switch to highlight the item to change, and then push
the “MENU” switch.
TIP
Display item order is as follows.
BV1-9-E2.book 14 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Instrument and control functions
5-15
1
2
3
4
5
6
7
8
9
10
11
12
13

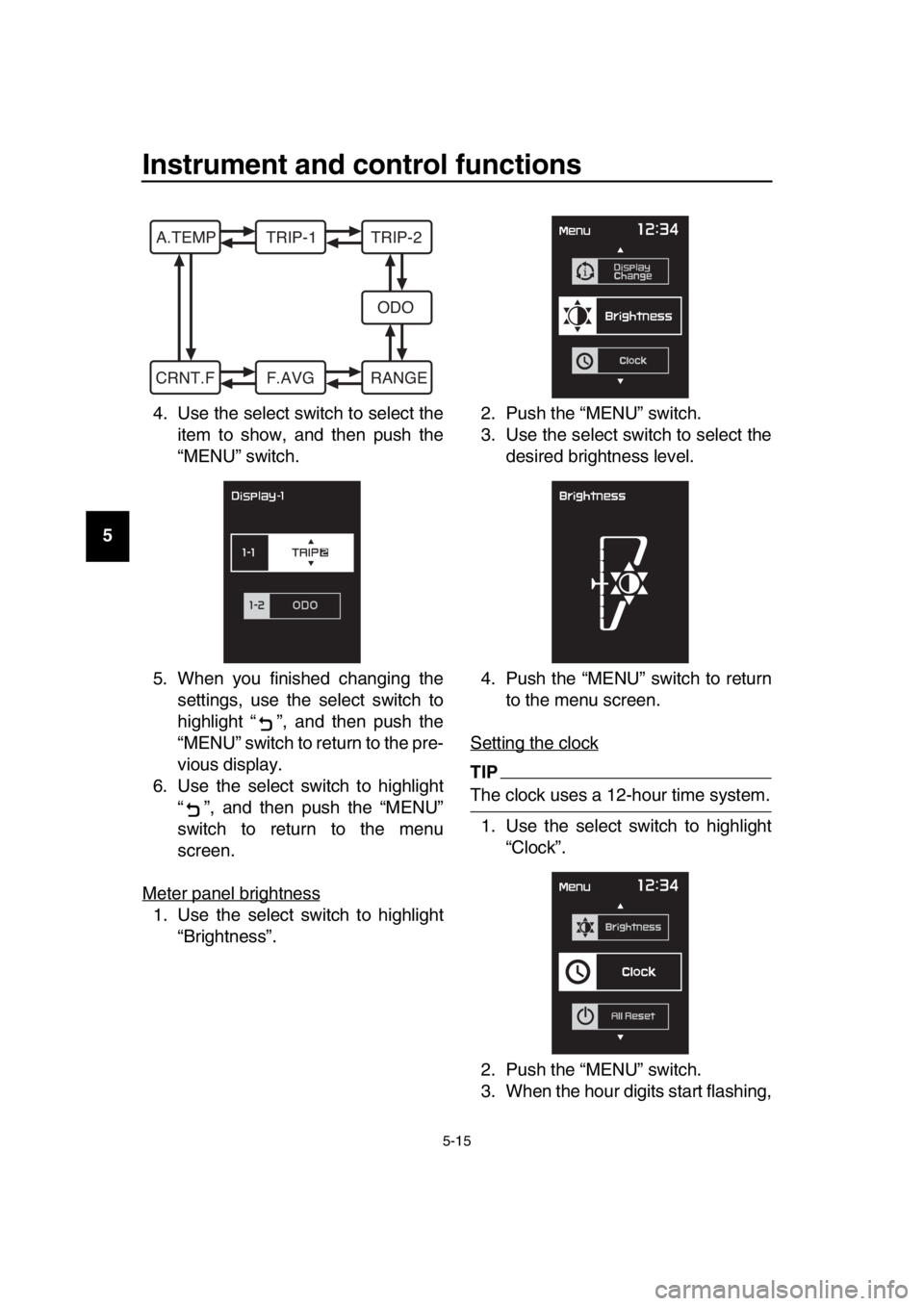

14 4. Use the select switch to select the
item to show, and then push the
“MENU” switch.
5. When you finished changing the settings, use the select switch to
highlight “ ”, and then push the
“MENU” switch to return to the pre-
vious display.
6. Use the select switch to highlight “ ”, and then push the “MENU”
switch to return to the menu
screen.
Meter panel brightness
1. Use the select switch to highlight “Brightness”. 2. Push the “MENU” switch.
3. Use the select switch to select the
desired brightness level.
4. Push the “MENU” switch to return to the menu screen.
Setting the clock
TIP
The clock uses a 12-hour time system. 1. Use the select switch to highlight “Clock”.
2. Push the “MENU” switch.
3. When the hour digits start flashing,
A.TEMP TRIP-1 TRIP-2 ODO
CRNT.F F.AVG RANGE
BV1-9-E2.book 15 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Instrument and control functions
5-16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
use the select switch to set the
hours.
4. Push the “MENU” switch, and the minute digits start flashing.
5. Use the select switch to set the minutes.
6. Push the “MENU” switch to return to the menu screen.
Resetting all of the display items
1. Use the select switch to highlight “All Reset”.
2. Push the “MENU” switch.
3. Use the select switch to highlight “YES”, and then push the “MENU”
switch. All items are reset to facto-
ry preset or default settings.
TIP
The odometer, clock, maintenance
counter item “Oil” and maintenance
counter item “V-Belt” will not be reset.
To exit the setting mode
1. Use the select switch to highlight
“Return”.
2. Push the “MENU” switch to exit the setting mode and return to the
standard display mode.
BV1-9-E2.book 16 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Instrument and control functions
5-17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU44914
Front brake lever
The front brake lever is located on the
right side of the handlebar. To apply the
front brake, pull this lever toward the
throttle grip.
The front brake lever is equipped with a
position adjusting di al. To adjust the
distance between the front brake lever
and the throttle grip, turn the adjusting
dial while holding the front brake lever
pushed away from the throttle grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with the
“ ” mark on the front brake lever.
EAU44924
Rear brake lever
The rear brake lever is located at the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
The rear brake lever is equipped with a
position adjusting dial. To adjust the
distance between the rear brake lever
and the handlebar grip, turn the adjust-
ing dial while holding the rear brake le-
ver pushed away from the handlebar
grip. Make sure that the appropriate
setting on the adjusting dial is aligned
with the “ ” mark on the rear brake le-
ver.
1. Front brake lever
2. Brake lever position adjusting dial
3. “ ” mark
4. Distance
1
2
3 4
1. Rear brake lever
2. Brake lever position adjusting dial
3. “ ” mark
4. Distance
54321
1
2
3
4
BV1-9-E2.book 17 ページ ２０１８年８月２８日　火曜日　午後５時２８分
