Operation and important ri din g points
7-5
7
TIP After parking, if the smart key is
not turned off and is within operat-
ing range, other people may be
able to start the engine and oper-
ate the vehicle.
 The sidestand alarm beeper can
be set to not activate. Contact
your Yamaha dealer.
WARNING
EWA10312
Since the en gine an d exhaust
system can b ecome very hot,
park in a place where pe destri-
ans or chil dren are not likely to
touch them an d b e burne d. 
Do not park on a slope or on soft
groun d, otherwise the vehicle
may overturn, increasin g the
risk of a fuel leak an d fire.
 Do not park near grass or other
flamma ble materials which
mi ght catch fire.
UB3TE1E0.book Page 5 Friday, September 11, 2020 8:48 AM

Periodic maintenance an d a djustment
8-1
8
EAU17246
Periodic inspection, adjustment, and
lubrication will keep your vehicle in the
safest and most efficient condition
possible. Safety is an obligation of the
vehicle owner/operator. The most im-
portant points of vehicle inspection,
adjustment, and lubrication are ex-
plained on the following pages.
The intervals given in the periodic
maintenance charts should be simply
considered as a general guide under
normal riding conditions. However, de-
pending on the weather, terrain, geo-
graphical location, and individual use,
the maintenance intervals may need to
be shortened.
WARNING
EWA10322
Failure to properly maintain the vehi-
cle or performin g maintenance ac-
tivities incorrectly may increase
your risk of injury or death durin g
service or while usin g the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha d ealer perform
service.
WARNING
EWA15123
Turn off the en gine when performin g
maintenance unless otherwise
specified .
 A runnin g en gine has movin g
parts that can catch on body
parts or clothin g an d electrical
parts that can cause shocks or
fires.
 Runnin g the en gine while ser-
vicin g can lead to eye injury,
b urns, fire, or car bon monoxi de
poisonin g – possi bly lea din g to
d eath. See pag e 1-3 for more in-
formation a bout car bon monox-
i d e.
WARNING
EWA15461
Brake discs, calipers, drums, and
linin gs can b ecome very hot d uring
use. To avoi d possi ble burns, let
b rake components cool before
touchin g them.
EAU17303
Emission controls not only function to
ensure cleaner air, but are also vital to
proper engine operation and maximum
performance. In the following periodic
maintenance charts, the services relat-
ed to emissions control are grouped
separately. These services require
specialized data, knowledge, and
equipment. Maintenance, replace-
ment, or repair of the emission control
devices and systems may be per-
formed by any repair establishment or
individual that is certified (if applicable).
Yamaha dealers are trained and equipped to perform these particular
services.
UB3TE1E0.book Page 1 Friday, September 11, 2020 8:48 AM

Periodic maintenance an d a djustment
8-2
8
EAU85230
Tool kitThe tool kit is in the location shown.
The information included in this manual
and the tools provided in the tool kit are
intended to assist you in the perfor-
mance of preventive maintenance and
minor repairs. However, a torque
wrench and other tools are necessary
to perform certain maintenance work
correctly.TIPIf you do not have the tools or experi-
ence required for a particular job, have
your Yamaha dealer perform it for you.1. Tool kit
1
UB3TE1E0.book Page 2 Friday, September 11, 2020 8:48 AM

Periodic maintenance an d a djustment
8-3
8
EAU71033
Perio dic maintenance chartsTIP Items marked with an asterisk should be performed by your Yamaha dealer because these items require special tools,
data, and technical skills.
 From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
 The annual checks must be performed every year, except if a distance- based maintenance is performed in-
stea d.
EAU71051
Perio dic maintenance chart for the emission control systemNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 *Fuel line • Check fuel hoses for cracks or
damage.
• Replace if necessary. √√√√√
2 *Spark plu gs • Check condition.
• Adjust gap and clean.
√√
• Replace. √√
3 *Valve clearance • Check and adjust. Every 40000 km (24000 mi)
4 *Fuel injection • Check engine idle speed.
√√√√√√
• Check and adjust synchroniza- tion. √√√√√
5 *Exhaust system • Check for leakage.
• Tighten if necessary.
• Replace gaskets if necessary. √√√√√
UB3TE1E0.book Page 3 Friday, September 11, 2020 8:48 AM

Periodic maintenance an d a djustment
8-4
8
6 *Evaporative emis-
sion control system • Check control system for dam-
age.
• Replace if necessary. √√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
UB3TE1E0.book Page 4 Friday, September 11, 2020 8:48 AM

Periodic maintenance an d a djustment
8-5
8
EAU71353
General maintenance an d lu brication chartNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 *Dia
gnostic system
check • Perform dynamic inspection us-
ing Yamaha diagnostic tool.
• Check the error codes. √√√√√√
2 *Air filter element • Replace. √√
3 *Air filter case check
hose • Clean.
√√√√√
4 *V-
belt case air filter
elements • Clean.
√√
• Replace. √√
5 *Front brake • Check operation, fluid level, and
for fluid leakage.
• Replace brake pads if necessary. √√√√√√
6 *Rear brake • Check operation, fluid level, and
for fluid leakage.
• Replace brake pads if necessary. √√√√√√
7 *Brake hoses • Check for cracks or damage.
√√√√√
• Replace. Every 4 years
8 *Brake flui d • Change. Every 2 years
9 Rear
brake lock ca-
b le • Check cable length.
• Adjust if necessary. At the initial interval and 4000 km (2400 mi) after the initial 1000 km (600 mi)
and every 5000 km (3000 mi) thereafter.
10 *Rear brake lock • Check operation.
•Adjust. √√√√√√
11 *Wheels • Check runout and for damage.
• Replace if necessary. √√√√
UB3TE1E0.book Page 5 Friday, September 11, 2020 8:48 AM

Periodic maintenance an d a djustment
8-6
8
12 *Tires • Check tread depth and for dam-
age.
• Replace if necessary.
• Check air pressure.
• Correct if necessary. √√√√√
13 *Wheel bearin gs • Check bearing for looseness or
damage. √√√√
14 *Drive belt • Check belt condition.
• Replace if damaged.
• Check belt tension.
• Adjust if necessary. At the initial interval and every 10000 km (6000 mi) until 40000 km (24000 mi),
and every 5000 km (3000 mi) thereafter.
15 *Drive pulley an
d
d rive axle • Lubricate.
√√
16 *Steerin g b earin gs • Check bearing assemblies for
looseness. √√
√
• Moderately repack with lithium- soap-based grease. √√
17 *Chassis fasteners • Make sure that all nuts, bolts and
screws are properly tightened. √√√√√
18 Front an
d rear
b rake lever pivot
shaft • Lubricate with silicone grease.
√√√√√
19 *Si
destan d, center-
stan d • Check operation.
• Lubricate with lithium-soap-
based grease. √√√√√
20 *Sidestan d switch • Check operation and replace if
necessary. √√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
UB3TE1E0.book Page 6 Friday, September 11, 2020 8:48 AM

Periodic maintenance an d a djustment
8-7
8
21 *Front fork • Check operation and for oil leak-
age.
• Replace if necessary. √√√√
22 *Shock a
bsor ber as-
sem bly • Check operation and for oil leak-
age.
• Replace if necessary. √√√√
23 *Rear suspension re-
lay arm an
d con-
nectin g arm
pivotin g points • Check operation.
√√√√
24 En gine oil • Change (warm engine before
draining).
• Check oil level and vehicle for oil leakage. At the initial interval and when the oil change indicator flashes or
comes on. √
25 En
gine oil filter car-
tri dge • Replace.
√√√
26 *Coolin g system • Check coolant level and vehicle
for coolant leakage. √√√√√
• Change. Every 3 years
27 *V-belt • Replace. When the V-belt replacement indicator flashes [every 20000 km (12000 mi)]
28 *Front an
d rear
b rake switches • Check operation.
√√√√√√
29 *Movin
g parts an d
cab les • Lubricate.
√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
( 24 000 m
i)
UB3TE1E0.book Page 7 Friday, September 11, 2020 8:48 AM

Periodic maintenance an d a djustment
8-8
8
EAU72781
TIPAir filters
 The engine air filter uses a disposable oil-coated paper el ement. This element cannot be cleaned with compressed air,
doing so will only damage it.
 If you often ride in the rain or in dusty areas, have the engine air filter and V-belt air filter elements serviced more fre-
quently.
Hydraulic brake service  Regularly check the brake fluid levels in the reservoirs, and refill as necessary.
 Replace the internal components of the brake master cylinders and calipers, and change the brake fluid every 2 years.
 Replace the brake hoses every 4 years, or sooner if cracked or damaged.30 *Throttle g
rip hous-
in g an d ca ble • Check operation and free play.
• Adjust the throttle cable free play
if necessary.
• Lubricate the throttle grip housing and cable. √√√√√
31 *Li
ghts, si gnals an d
switches • Check operation.
• Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
UB3TE1E0.book Page 8 Friday, September 11, 2020 8:48 AM

Periodic maintenance an d a djustment
8-9
8

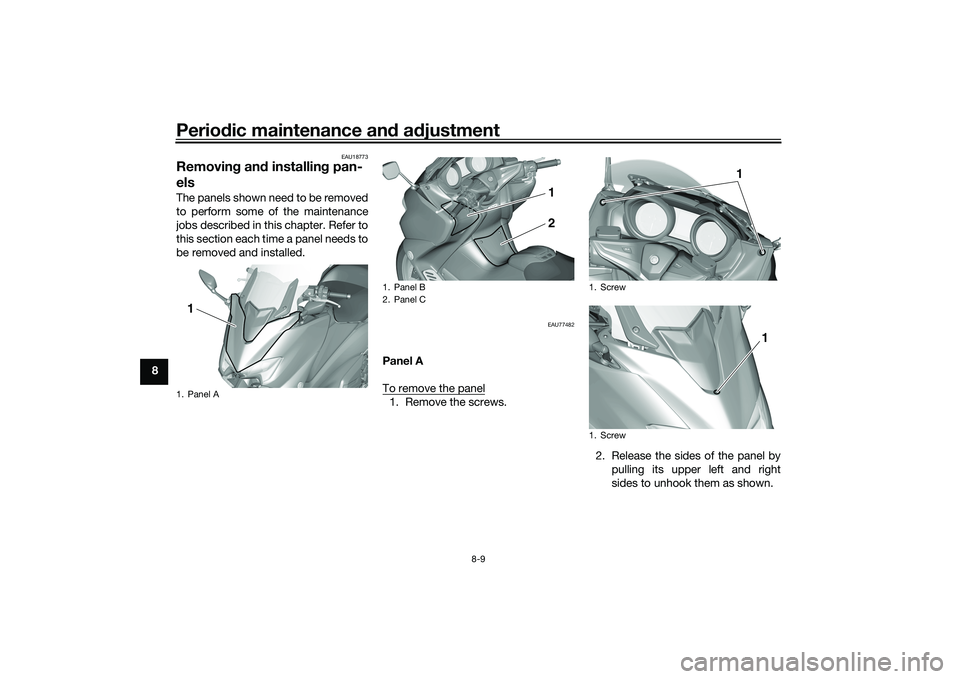

EAU18773
Removin g an d installin g pan-
elsThe panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU77482
Panel A
To remove the panel1. Remove the screws.
2. Release the sides of the panel bypulling its upper left and right
sides to unhook them as shown.
1. Panel A1
1. Panel B
2. Panel C
12
1. Screw
1. Screw
1
1
