YAMAHA XMAX 125 2022 Workshop Manual

Instrument and control functions
5-17
5
TIPWhen the vehicle is on the centerstand,
do not rev the engine for an extended
period of time. Otherwise, the traction
control system will automatically dis-
able and need to be reset.If the traction control system automat-
ically disables, try resetting it as fol-
lows.
1. Stop the vehicle and turn it off completely.
2. Wait a few seconds and then turn the vehicle power on.
3. The “ ” indicator light should turn off and the system be en-
abled.TIPIf the “ ” indicator light remains on af-
ter resetting, the vehicle may still be
ridden; however, have a Yamaha deal-
er check the vehicle as soon as possi-
ble.4. Have a Yamaha dealer check thevehicle and turn off the “ ”
warning light.
EAU78502
Fuel tank capTo remove the fuel tank cap1. Turn the main switch to “ ” to open the fuel tank cap lid.
2. Turn the fuel tank cap counter- clockwise until the release
mark “ ” aligns with “ ”, and
then pull the cap off. To install the fuel tank cap
1. Insert the fuel tank cap onto the tank opening and turn it clockwise
until the install mark “ ” aligns
with “ ”.
2. Close the fuel tank cap lid.1. Fuel tank cap lidZAUM1909
1
1. Fuel tank cap
2. Release mark “ ”
1. Install mark “ ”ZAUM1910
2
1
ZAUM1911
1
UB9YE1E0.book Page 17 Tuesday, October 12, 2021 2:29 PM

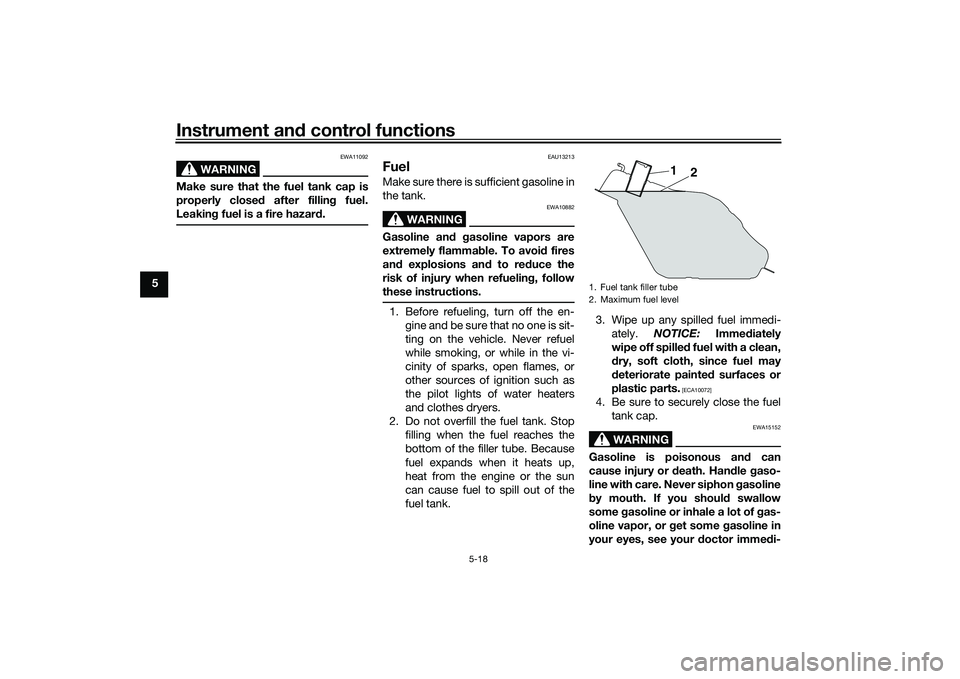

Instrument and control functions
5-18
5
WARNING
EWA11092
Make sure that the fuel tank cap is
properly close d after fillin g fuel.
Leakin g fuel is a fire hazar d.
EAU13213
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline an d g asoline vapors are
extremely flamma ble. To avoi d fires
an d explosions an d to re duce the
risk of injury when refuelin g, follow
these instructions.1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. Stop filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank. 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately
wipe off spille d fuel with a clean,
d ry, soft cloth, since fuel may
d eteriorate painted surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous an d can
cause injury or death. Han dle gaso-
line with care. Never siphon gasoline
b y mouth. If you shoul d swallow
some gasoline or inhale a lot of g as-
oline vapor, or g et some gasoline in
your eyes, see your doctor imme di-1. Fuel tank filler tube
2. Maximum fuel level
1
2
UB9YE1E0.book Page 18 Tuesday, October 12, 2021 2:29 PM

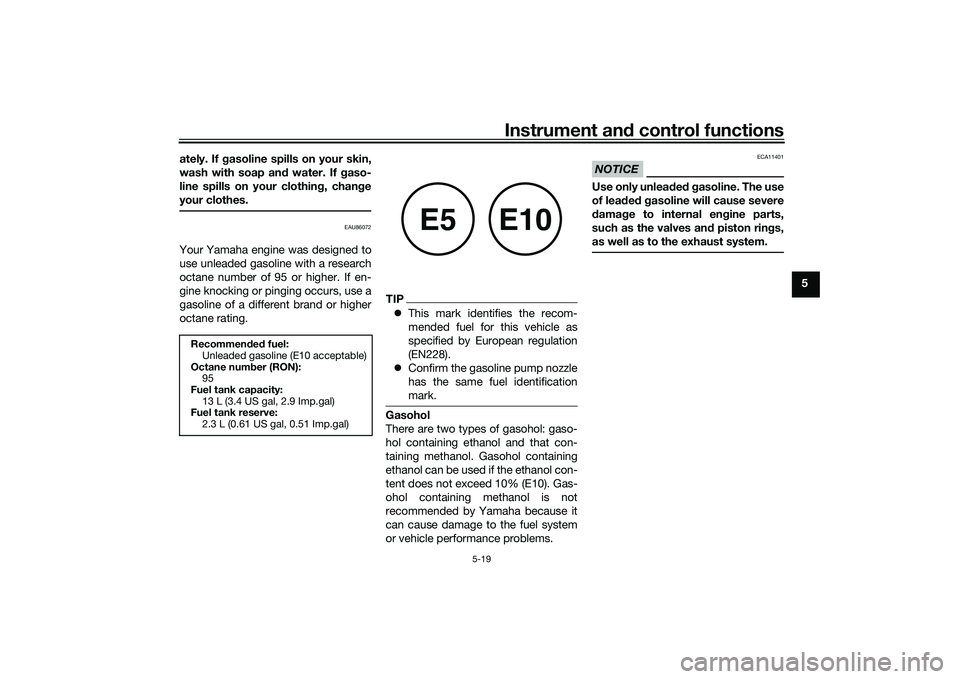

Instrument and control functions
5-19
5
ately. If g
asoline spills on your skin,
wash with soap an d water. If gaso-
line spills on your clothin g, chan ge
your clothes.
EAU86072
Your Yamaha engine was designed to
use unleaded gasoline with a research
octane number of 95 or higher. If en-
gine knocking or pinging occurs, use a
gasoline of a different brand or higher
octane rating.
TIP This mark identifies the recom-
mended fuel for this vehicle as
specified by European regulation
(EN228).
 Confirm the gasoline pump nozzle
has the same fuel identification
mark.Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that con-
taining methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
NOTICE
ECA11401
Use only unlea ded g asoline. The use
of lead ed g asoline will cause severe
d amag e to internal en gine parts,
such as the valves an d piston rin gs,
as well as to the exhaust system.
Recommen ded fuel:
Unleaded gasoline (E10 acceptable)
Octane num ber (RON):
95
Fuel tank capacity: 13 L (3.4 US gal, 2.9 Imp.gal)
Fuel tank reserve:
2.3 L (0.61 US gal, 0.51 Imp.gal)
E5
E10
UB9YE1E0.book Page 19 Tuesday, October 12, 2021 2:29 PM

Instrument and control functions
5-20
5
EAU58301
Fuel tank overflow hoseBefore operating the vehicle:
 Check the fuel tank overflow hose
connection and routing.
 Check the fuel tank overflow hose
for cracks or damage, and replace
it if necessary.
 Make sure that the fuel tank over-
flow hose is not blocked, and
clean it if necessary.
EAU13435
Catalytic converterThe exhaust system contains catalytic
converter(s) to reduce harmful exhaust
emissions.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazar d or
b urns:
 Do not park the vehicle near
possi ble fire hazard s such as
g rass or other materials that
easily burn.
 Park the vehicle in a place
where ped estrians or chil dren
are not likely to touch the hot
exhaust system.
 Make sure that the exhaust sys-
tem has coole d down before
d oin g any maintenance work.
 Do not allow the en gine to i dle
more than a few minutes. Lon g
i d lin g can cause a b uild-up of
heat.
EAU78514
Stora ge compartmentsThis model is equipped with 3 storage
compartments. The front storage com-
partments and rear storage compart-
ment are located as shown.
1. Fuel tank overflow hoseZAUM1912
1
1
1. Storage compartment A
2. Storage compartment B
1. Rear storage compartmentZAUM19131 2
1
UB9YE1E0.book Page 20 Tuesday, October 12, 2021 2:29 PM

Instrument and control functions
5-21
5
TIP Storage compartment A must be
opened using the smart key sys-
tem. (See page 3-9.)
 The seat/rear storage compart-
ment can be opened using the
smart key system or the mechani-
cal key.
 Some helmets cannot be stored in
the rear storage compartment be-
cause of their size or shape.Stora ge compartment A
To open storage compartment A, turn
the main switch to “OPEN” and then
push the “LID” button.
To close storage compartment A, push
the storage compartment lid until it is
closed.
Stora ge compartment B
To open storage compartment B, push
the storage compartment lid inward to
unlock it, and then pull to open. To close storage compartment B, push
the storage compartment lid into the
original position.
Seat/rear stora
ge compartment
To open the seat/rear storage com-
partment via the main switchTurn the main switch to “OPEN”, and
then push the “SEAT” button.
To open the seat/rear storage com-partment with the mechanical key1. Open the keyhole cover. 2. Insert the mechanical key into the
seat lock, and then turn it clock-
wise.1. Lid
2. Storage compartmentZAUM1915
1 2
1. Keyhole cover
1. Seat lock
2. Unlock.
1
1
2
UB9YE1E0.book Page 21 Tuesday, October 12, 2021 2:29 PM

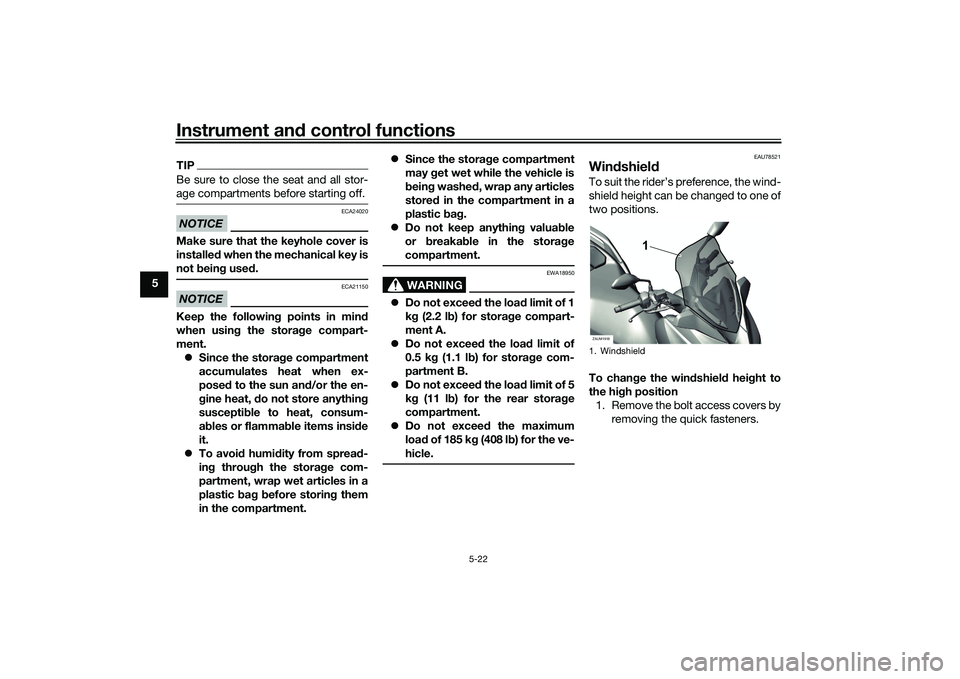

Instrument and control functions
5-22
5
TIPBe sure to close the seat and all stor-
age compartments before starting off.NOTICE
ECA24020
Make sure that the keyhole cover is
installe d when the mechanical key is
not bein g use d.NOTICE
ECA21150
Keep the following points in mind
when usin g the stora ge compart-
ment.  Since the stora ge compartment
accumulates heat when ex-
posed to the sun an d/or the en-
g ine heat, do not store anythin g
suscepti ble to heat, consum-
a b les or flamma ble items insi de
it.
 To avoi d humi dity from sprea d-
in g throu gh the stora ge com-
partment, wrap wet articles in a
plastic bag b efore storin g them
in the compartment. 
Since the storag e compartment
may get wet while the vehicle is
b ein g washe d, wrap any articles
store d in the compartment in a
plastic bag .
 Do not keep anythin g valua ble
or breakab le in the stora ge
compartment.
WARNING
EWA18950
 Do not exceed the load limit of 1
k g (2.2 l b) for stora ge compart-
ment A.
 Do not exceed the load limit of
0.5 k g (1.1 l b) for stora ge com-
partment B.
 Do not exceed the load limit of 5
k g (11 l b) for the rear stora ge
compartment.
 Do not exceed the maximum
loa d of 185 k g (408 l b) for the ve-
hicle.
EAU78521
Win dshiel dTo suit the rider’s preference, the wind-
shield height can be changed to one of
two positions.
To chan ge the win dshiel d hei ght to
the hi gh position
1. Remove the bolt access covers by removing the quick fasteners.1. WindshieldZAUM1918
1
UB9YE1E0.book Page 22 Tuesday, October 12, 2021 2:29 PM

Instrument and control functions
5-23
5
2. Remove the windshield by remov- ing the bolts.
3. Remove the bolts, and then install the bolts in the desired position. 4. Install the windshield to the high
position by installing the bolts, and
then tighten the bolts to the spec-
ified torque. WARNING! A loose
win dshiel d coul d cause an acci- d
ent. Be sure to ti ghten the
screws to the specified torque.
[EWA15511]
5. Place the bolt access covers, and
then install the quick fasteners.
1. Quick fastener
2. Bolt access cover
1. BoltZAUM19192
1
ZAUM1920
1
1
1. Bolt
1. Bolt
1
1
ZAUM1921ZAUM1922
1
1
1
1. Bolt
Ti
ghtenin g torque:
Windshield bolt: 8 N·m (0.8 kgf·m, 5.9 lb·ft)ZAUM1923
1
UB9YE1E0.book Page 23 Tuesday, October 12, 2021 2:29 PM

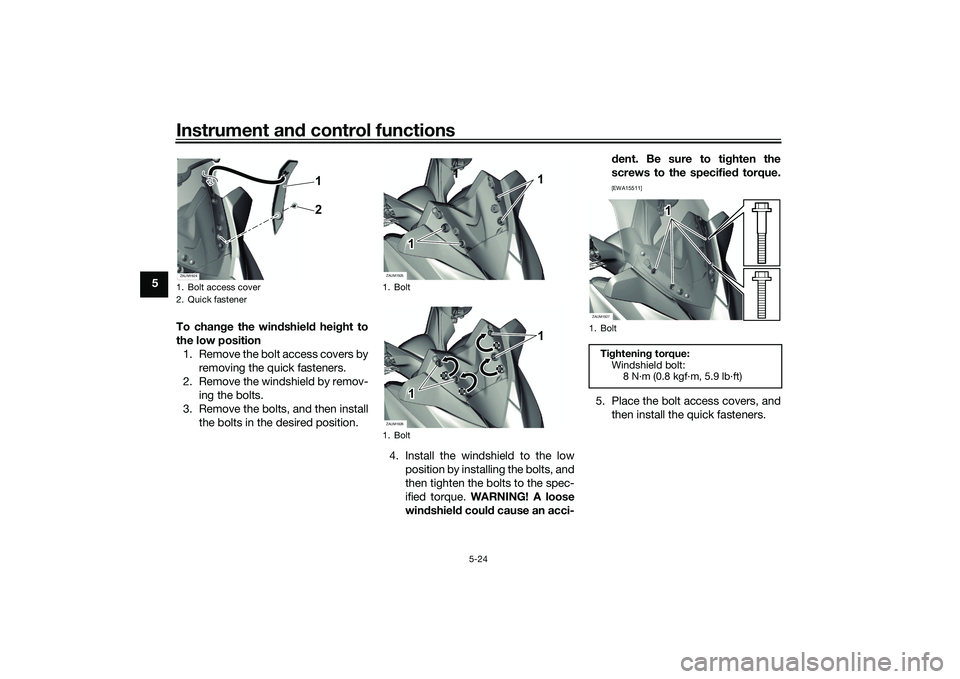

Instrument and control functions
5-24
5
To chan ge the win dshiel d hei ght to
the low position 1. Remove the bolt access covers by removing the quick fasteners.
2. Remove the windshield by remov- ing the bolts.
3. Remove the bolts, and then install the bolts in the desired position.
4. Install the windshield to the lowposition by installing the bolts, and
then tighten the bolts to the spec-
ified torque. WARNING! A loose
win dshield could cause an acci- d
ent. Be sure to ti ghten the
screws to the specified torque.
[EWA15511]
5. Place the bolt access covers, and
then install the quick fasteners.
1. Bolt access cover
2. Quick fastenerZAUM1924
12
1. Bolt
1. BoltZAUM1925
1
1
1
ZAUM1926
1
1
1. BoltTi
ghtenin g torque:
Windshield bolt: 8 N·m (0.8 kgf·m, 5.9 lb·ft)ZAUM1927
1
UB9YE1E0.book Page 24 Tuesday, October 12, 2021 2:29 PM

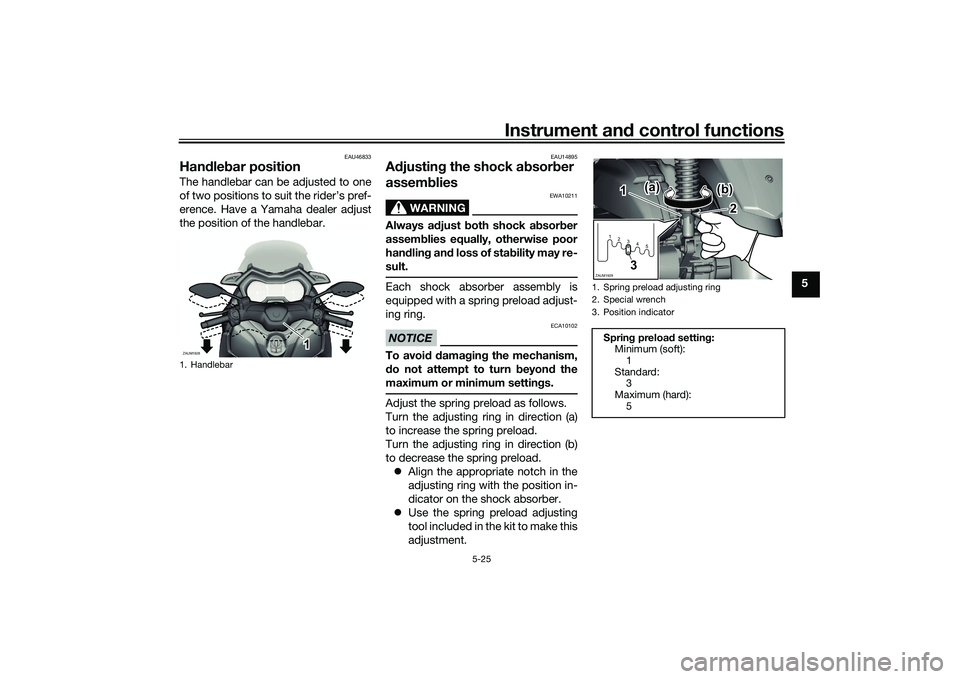

Instrument and control functions
5-25
5
EAU46833
Han dle bar position The handlebar can be adjusted to one
of two positions to suit the rider’s pref-
erence. Have a Yamaha dealer adjust
the position of the handlebar.
EAU14895
A djustin g the shock a bsor ber
assem blies
WARNING
EWA10211
Always a djust both shock ab sorber
assem blies equally, otherwise poor
han dlin g an d loss of sta bility may re-
sult.Each shock absorber assembly is
equipped with a spring preload adjust-
ing ring.NOTICE
ECA10102
To avoi d d amag ing the mechanism,
d o not attempt to turn b eyond the
maximum or minimum settin gs.Adjust the spring preload as follows.
Turn the adjusting ring in direction (a)
to increase the spring preload.
Turn the adjusting ring in direction (b)
to decrease the spring preload.
 Align the appropriate notch in the
adjusting ring with the position in-
dicator on the shock absorber.
 Use the spring preload adjusting
tool included in the kit to make this
adjustment.
1. HandlebarZAUM1928
1
1. Spring preload adjusting ring
2. Special wrench
3. Position indicator
Sprin g preloa d settin g:
Minimum (soft):
1
Standard: 3
Maximum (hard): 51 2345
ZAUM1929
2 2
1
(b)
(b)
(a)
(a)2
1
3 (b)
(a)
UB9YE1E0.book Page 25 Tuesday, October 12, 2021 2:29 PM

Instrument and control functions
5-26
5
EAU78213

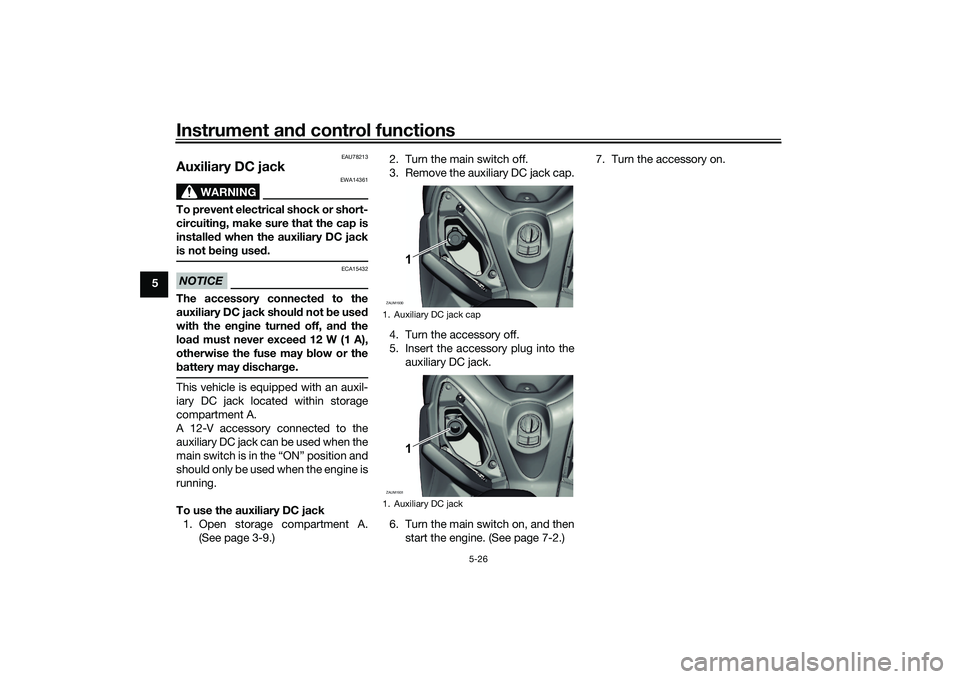

Auxiliary DC jack
WARNING
EWA14361
To prevent electrical shock or short-
circuiting , make sure that the cap is
installe d when the auxiliary DC jack
is not bein g use d.NOTICE
ECA15432
The accessory connecte d to the
auxiliary DC jack shoul d not b e used
with the en gine turne d off, an d the
loa d must never excee d 12 W (1 A),
otherwise the fuse may blow or the
b attery may d ischarge.This vehicle is equipped with an auxil-
iary DC jack located within storage
compartment A.
A 12-V accessory connected to the
auxiliary DC jack can be used when the
main switch is in the “ON” position and
should only be used when the engine is
running.
To use the auxiliary DC jack
1. Open storage compartment A. (See page 3-9.) 2. Turn the main switch off.
3. Remove the auxiliary DC jack cap.
4. Turn the accessory off.
5. Insert the accessory plug into the
auxiliary DC jack.
6. Turn the main switch on, and then start the engine. (See page 7-2.) 7. Turn the accessory on.
1. Auxiliary DC jack cap
1. Auxiliary DC jackZAUM1930
1
ZAUM1931
1
UB9YE1E0.book Page 26 Tuesday, October 12, 2021 2:29 PM
