Periodic maintenance an d a djustment
8-2
8
EAU17303

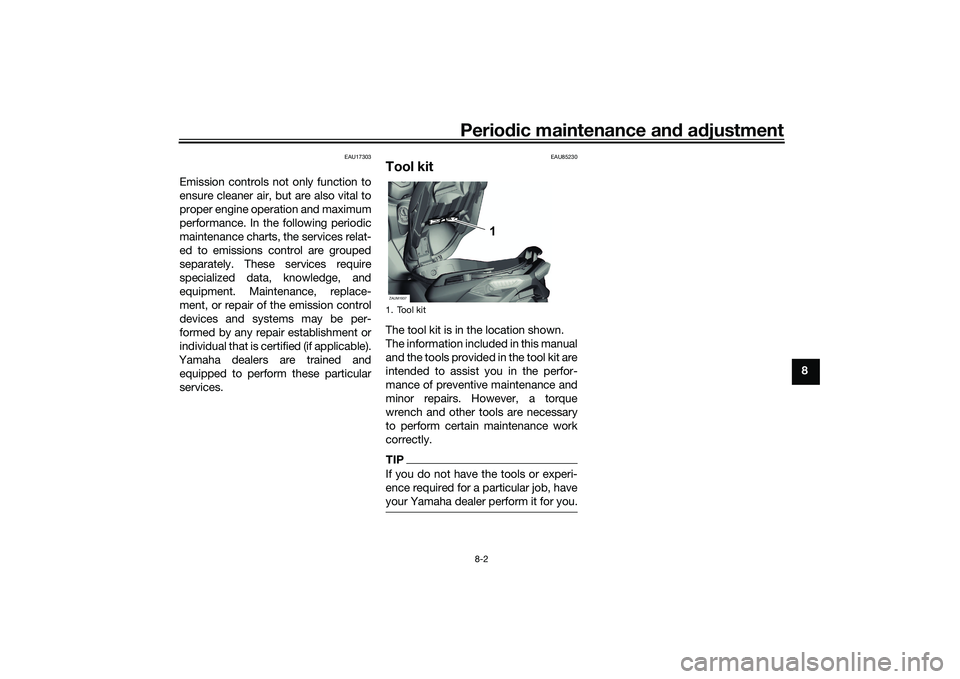

Emission controls not only function to
ensure cleaner air, but are also vital to
proper engine operation and maximum
performance. In the following periodic
maintenance charts, the services relat-
ed to emissions control are grouped
separately. These services require
specialized data, knowledge, and
equipment. Maintenance, replace-
ment, or repair of the emission control
devices and systems may be per-
formed by any repair establishment or
individual that is certified (if applicable).
Yamaha dealers are trained and equipped to perform these particular
services.
EAU85230
Tool kitThe tool kit is in the location shown.
The information included in this manual
and the tools provided in the tool kit are
intended to assist you in the perfor-
mance of preventive maintenance and
minor repairs. However, a torque
wrench and other tools are necessary
to perform certain maintenance work
correctly.TIPIf you do not have the tools or experi-
ence required for a particular job, have
your Yamaha dealer perform it for you.1. Tool kitZAUM1937
1
UB9YE1E0.book Page 2 Tuesday, October 12, 2021 2:29 PM

Periodic maintenance an d a djustment
8-3
8
EAU71021

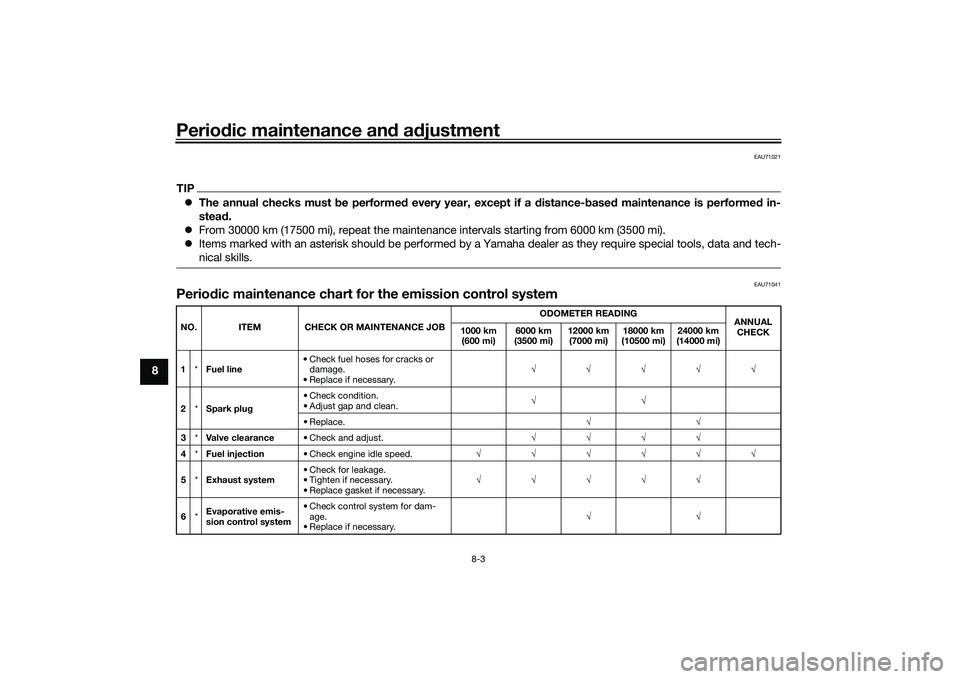

TIP The annual checks must be performe d every year, except if a distance- based maintenance is performe d in-
stea d.
 From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi).
 Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and tech-
nical skills.
EAU71041
Perio dic maintenance chart for the emission control systemNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 6000 km
(3500 mi) 12000 km
(7000 mi) 18000 km
(10500 mi) 24000 km
(14000 mi)
1 *Fuel line • Check fuel hoses for cracks or
damage.
• Replace if necessary. √√√√√
2 *Spark plu g • Check condition.
• Adjust gap and clean.
√√
• Replace. √√
3 *Valve clearance • Check and adjust. √√√√
4 *Fuel injection • Check engine idle speed. √√√√√√
5 *Exhaust system • Check for leakage.
• Tighten if necessary.
• Replace gasket if necessary. √√√√√
6 *Evaporative emis-
sion control system • Check control system for dam-
age.
• Replace if necessary. √√
UB9YE1E0.book Page 3 Tuesday, October 12, 2021 2:29 PM

Periodic maintenance an d a djustment
8-4
8
EAU71343

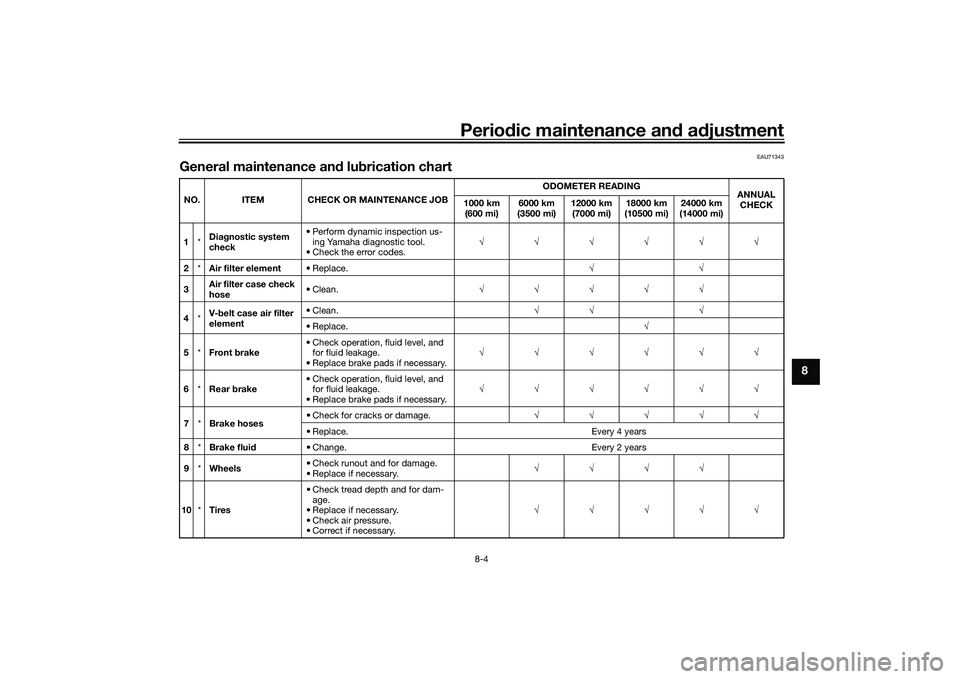

General maintenance an d lu brication chartNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 6000 km
(3500 mi) 12000 km
(7000 mi) 18000 km
(10500 mi) 24000 km
(14000 mi)
1 *Dia
gnostic system
check • Perform dynamic inspection us-
ing Yamaha diagnostic tool.
• Check the error codes. √√√√√√
2 *Air filter element •Replace. √√
3 Air filter case check
hose • Clean.
√√√√√
4 *V-
belt case air filter
element • Clean.
√√ √
•Replace. √
5 *Front brake • Check operation, fluid level, and
for fluid leakage.
• Replace brake pads if necessary. √√√√√√
6 *Rear brake • Check operation, fluid level, and
for fluid leakage.
• Replace brake pads if necessary. √√√√√√
7 *Brake hoses • Check for cracks or damage.
√√√√√
• Replace. Every 4 years
8 *Brake flui d • Change. Every 2 years
9 *Wheels • Check runout and for damage.
• Replace if necessary.
√√√√
10 *Tires • Check tread depth and for dam-
age.
• Replace if necessary.
• Check air pressure.
• Correct if necessary. √√√√√
UB9YE1E0.book Page 4 Tuesday, October 12, 2021 2:29 PM

Periodic maintenance an d a djustment
8-5
8

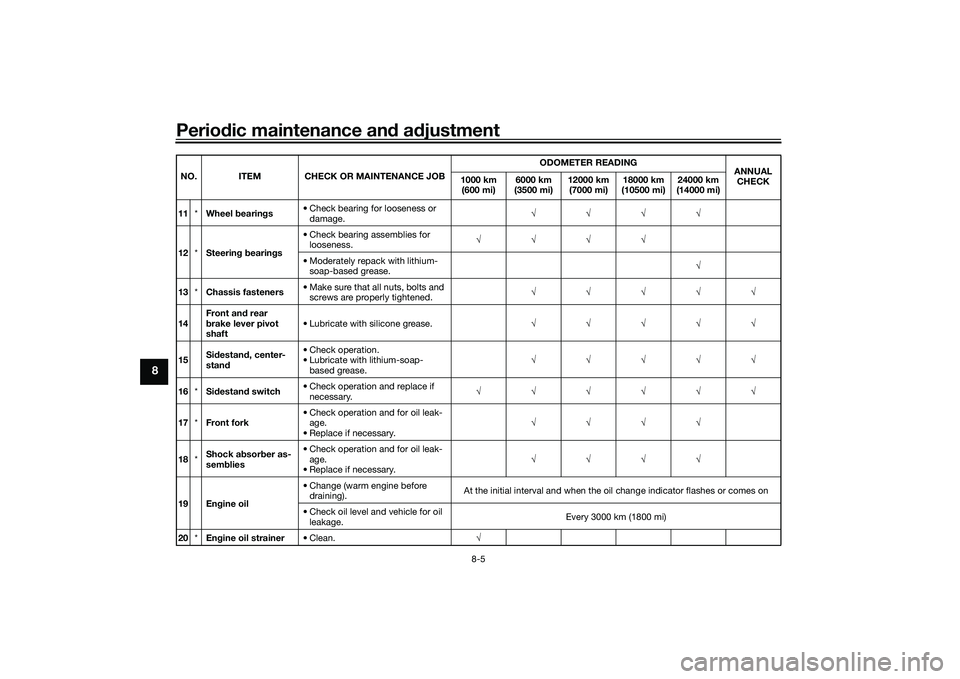

11 *Wheel bearin gs • Check bearing for looseness or
damage. √√√√
12 *Steerin g b earin gs • Check bearing assemblies for
looseness. √√√√
• Moderately repack with lithium- soap-based grease. √
13 *Chassis fasteners • Make sure that all nuts, bolts and
screws are properly tightened. √√√√√
14 Front an
d rear
b rake lever pivot
shaft • Lubricate with silicone grease.
√√√√√
15 Si
destan d, center-
stan d • Check operation.
• Lubricate with lithium-soap-
based grease. √√√√√
16 *Sidestan d switch • Check operation and replace if
necessary. √√√√√√
17 *Front fork • Check operation and for oil leak-
age.
• Replace if necessary. √√√√
18 *Shock a
bsor ber as-
sem blies • Check operation and for oil leak-
age.
• Replace if necessary. √√√√
19 En gine oil • Change (warm engine before
draining). At the initial interval and when the oil change indicator flashes or comes on
• Check oil level and vehicle for oil leakage. Every 3000 km (1800 mi)
20 *Engine oil strainer • Clean. √
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CH
ECK
1000 km
(600 mi) 6000 km
(3500 mi) 12000 km
(7000 mi) 18000 km
(10500 mi) 24000 km
(14000 mi)
UB9YE1E0.book Page 5 Tuesday, October 12, 2021 2:29 PM

Periodic maintenance an d a djustment
8-6
8
EAU72790
TIP Engine air filter and V-belt air filter
• This model’s engine air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with compressed air to avoid damaging it.
• The engine air filter element needs to be replaced and the V-belt air filter element needs to be serviced more fre-
quently when riding in unusually wet or dusty areas.21 *Final transmission
oil • Check vehicle for oil leakage.
√√√√√
• Change. √√√
22 *Coolin g system • Check coolant level and vehicle
for coolant leakage. √√√√√
• Change. Every 3 years
23 *V-belt • Replace. When the V-belt replacement indicator flashes or comes on
24 *Front an
d rear
b rake switches • Check operation.
√√√√√√
25 *Movin
g parts an d
ca bles • Lubricate.
√√√√√
26 *Throttle g
rip hous-
in g an d ca ble • Check operation and free play.
• Adjust the throttle cable free play
if necessary.
• Lubricate the throttle grip housing and cable. √√√√√
27 *Li
ghts, si gnals an d
switches • Check operation.
• Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 6000 km
(3500 mi) 12000 km
(7000 mi) 18000 km
(10500 mi) 24000 km
(14000 mi)
UB9YE1E0.book Page 6 Tuesday, October 12, 2021 2:29 PM

Periodic maintenance an d a djustment
8-7
8 

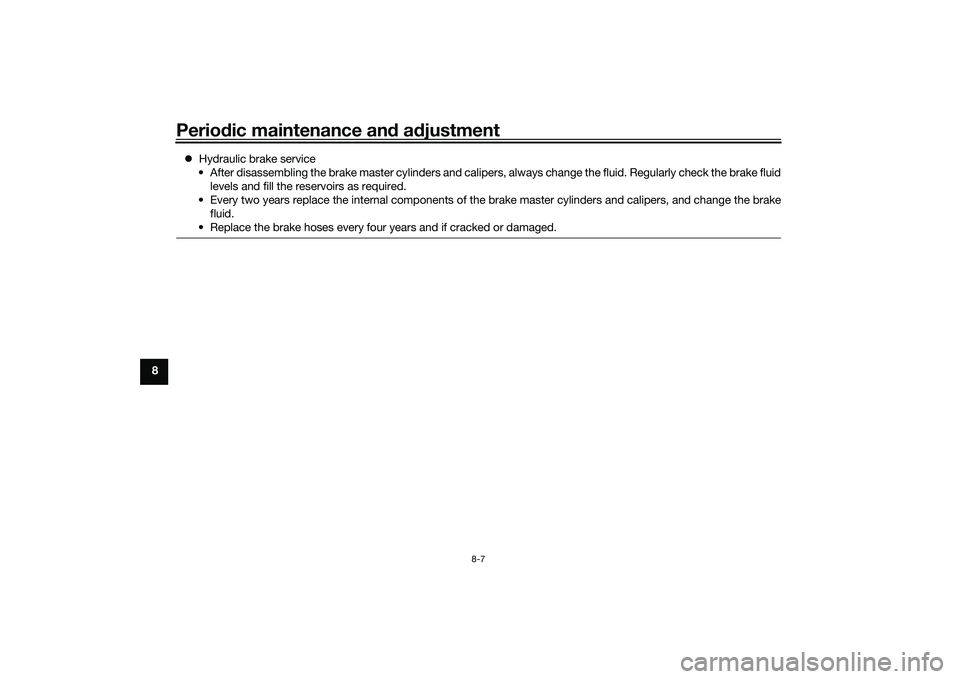

Hydraulic brake service
• After disassembling the brake master cylinders and calipers, always change the fluid. Regularly check the brake fluid levels and fill the reservoirs as required.
• Every two years replace the internal components of the brake master cylinders and calipers, and change the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged.
UB9YE1E0.book Page 7 Tuesday, October 12, 2021 2:29 PM

Periodic maintenance an d a djustment
8-8
8
EAU18752
Removin g an d installin g the
panelThe panel shown needs to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time the panel needs
to be removed and installed.
EAU78530
Panel A
To remove the panelRemove the screws, and then pull the
panel outward and slide it forward as
shown. To install the panel
Place the panel in the original position,
and then install the screws.
1. Panel AZAUM1938
1
1. Screw
1. Panel AZAUM19391
1
ZAUM1940
1
ZAUM1941
UB9YE1E0.book Page 8 Tuesday, October 12, 2021 2:29 PM

Periodic maintenance an d a djustment
8-9
8
EAU19623
Checkin g the spark plu gThe spark plug is an important engine
component, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
it should be removed and checked in
accordance with the periodic mainte-
nance and lubrication chart. In addi-
tion, the condition of the spark plug
can reveal the condition of the engine.
The porcelain insulator around the
center electrode of the spark plug
should be a medium-to-light tan (the
ideal color when the vehicle is ridden
normally). If the spark plug shows a
distinctly different color, the engine
could be operating improperly. Do not
attempt to diagnose such problems
yourself. Instead, have a Yamaha deal-
er check the vehicle.
If the spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced. Before installing a spark plug, the
spark plug gap should be measured
with a wire thickness gauge and, if
necessary, adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the spark
plug threads.
TIPIf a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4–
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.
Specifie
d spark plu g:
NGK/CPR8EA-9
1. Spark plug gapSpark plu g g ap:
0.8–0.9 mm (0.031–0.035 in)
Ti ghtenin g torque:
Spark plug: 12.5 N·m (1.25 kgf·m, 9.22 lb·ft)
UB9YE1E0.book Page 9 Tuesday, October 12, 2021 2:29 PM

Periodic maintenance an d a djustment
8-10
8
EAU36113
CanisterThis model is equipped with a canister
to prevent the discharging of fuel vapor
into the atmosphere. Before operating
this vehicle, make sure to check the
following:
 Check each hose connection. 
Check each hose and canister for
cracks or damage. Replace if
damaged.
 Make sure that the canister
breather is not blocked, and if
necessary, clean it.
EAU66995
Engine oil an d oil strainerThe engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil strainer
cleaned at the intervals specified in the
periodic maintenance and lubrication
chart.
To check the en gine oil level
1. Place the vehicle on the center- stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes until the oil set- tles, remove the engine oil filler
cap, wipe the engine oil dipstick
clean, insert it back into the oil fill-
er hole (without screwing it in), and
then remove it again to check the
oil level. WARNING! The muffler
an d muffler protector become
very hot d uring use. To avoi d
possi ble burns, let the muffler
an d protector cool b efore re-
moving the oil filler cap.
[EWA17810]
1. Canister
2. Canister breather hoseZAUM1942
2 2
1
22
1
2
ZAUM1458
UB9YE1E0.book Page 10 Tuesday, October 12, 2021 2:29 PM

Periodic maintenance an d a djustment
8-11
8

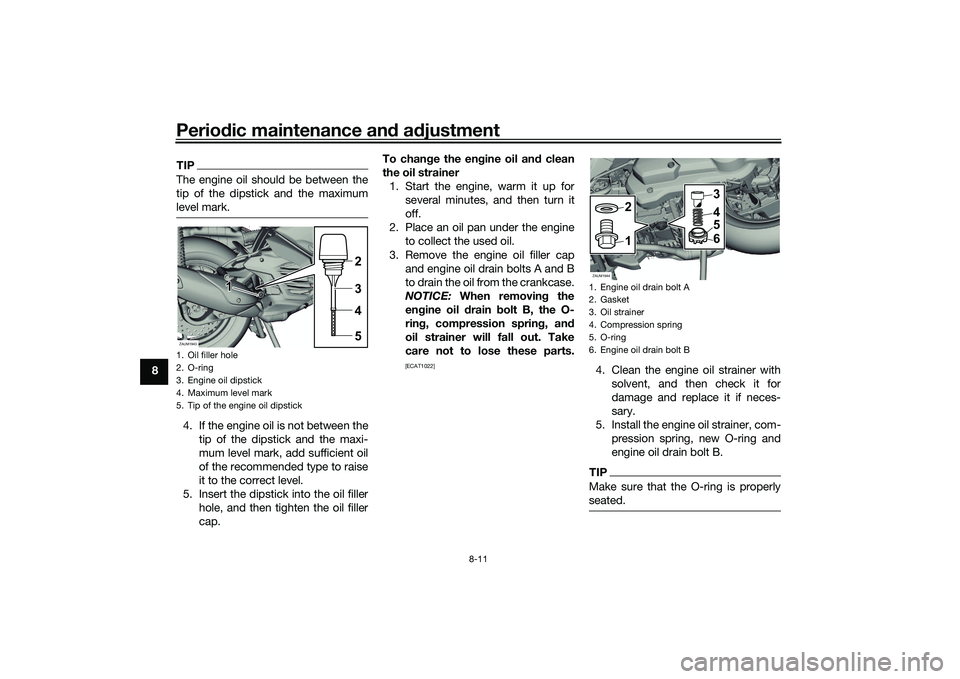

TIPThe engine oil should be between the
tip of the dipstick and the maximum
level mark.4. If the engine oil is not between the
tip of the dipstick and the maxi-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
5. Insert the dipstick into the oil filler hole, and then tighten the oil filler
cap. To chan
ge the en gine oil an d clean
the oil strainer 1. Start the engine, warm it up for several minutes, and then turn it
off.
2. Place an oil pan under the engine to collect the used oil.
3. Remove the engine oil filler cap and engine oil drain bolts A and B
to drain the oil from the crankcase.
NOTICE: When removin g the
en gine oil drain bolt B, the O-
rin g, compression sprin g, an d
oil strainer will fall out. Take
care not to lose these parts.
[ECAT1022]
4. Clean the engine oil strainer with solvent, and then check it for
damage and replace it if neces-
sary.
5. Install the engine oil strainer, com- pression spring, new O-ring and
engine oil drain bolt B.TIPMake sure that the O-ring is properly
seated.
1. Oil filler hole
2. O-ring
3. Engine oil dipstick
4. Maximum level mark
5. Tip of the engine oil dipstickZAUM1943
3245
1 1
1
1. Engine oil drain bolt A
2. Gasket
3. Oil strainer
4. Compression spring
5. O-ring
6. Engine oil drain bolt BZAUM1944
2 3
4
5
6
1
UB9YE1E0.book Page 11 Tuesday, October 12, 2021 2:29 PM
