ESP YAMAHA XSR 900 2022 Owners Manual

1-1
12
3
4
5
6
7
8
9
10
11
12
13
Safety information
EAU1028C
Be a Responsible Owner
As the vehicle’s owner, you are respon-
sible for the safe and proper operation
of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements before
riding this motorcycle.
He or she should:
Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.

Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.

Obtain qualified training in safe
and proper riding techniques.

Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.

Never operate a motorcycle with-
out proper training or instruction. Take a training course. Beginners
should receive training from a cer-
tified instructor. Contact an autho-
rized motorcycle dealer to find out
about the training courses nearest
you.
Safe Riding
Perform the pre-operation checks each
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 5-1
for a list of pre-operation checks.

This motorcycle is designed to car-
ry the operator and a passenger.

The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
Wear a brightly colored jacket. Use extra caution when you are
approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.
Ride where other motorists can see you. Avoid riding in another
motorist’s blind spot.
Never maintain a motorcycle without proper knowledge. Con-
tact an authorized motorcycle
dealer to inform you on basic
motorcycle maintenance. Cer-
tain maintenance can only be
carried out by certified staff.

Many accidents involve inexperi-
enced operators. In fact, many op-
erators who have been involved in
accidents do not even have a cur-
rent motorcycle license.
Make sure that you are qualifiedand that you only lend your mo-
torcycle to other qualified opera-
tors.
Know your skills and limits. Staying within your limits may
help you to avoid an accident.
We recommend that you prac-
BEA-28199-E0.book 1 ページ ２０２１年１２月１日　水曜日　午後７時８分

Safety information
1-4
1
2
3
4
5
6
7
8
9
10
11
12
13 dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts,
Accessories,
and Modifications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accessories
or modifications are not suitable be-
cause of potential safety hazards to you
or others. Installing aftermarket prod-
ucts or having other modifications per-
formed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.

Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,
limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also cause
instability when passing or being
passed by large vehicles.
Certain accessories can dis- place the operator from his or
her normal riding position. This
improper position limits the free- dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.

Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. See page 7-16 for tire
specifications and for information on
servicing and replacing your tires.
Transporting the Motorcycle
Be sure to observe following instruc-
tions before transporting the motorcy-
cle in another vehicle.

Remove all loose items from the
motorcycle.
BEA-28199-E0.book 4 ページ ２０２１年１２月１日　水曜日　午後７時８分

Special features
3-3
1
234
5
6
7
8
9
10
11
12
13
4 seconds, and then go off.
When not traveling with a set cruising
speed, if the start/engine stop switch is
set to the “ ” position, the engine
stalls, or the sidestand is lowered, then
the “ ” indicator light will go off (the
“ ” indicator light will not flash).
If the cruise control system is automati-
cally deactivated, please stop and con-
firm that your vehicle is in good
operating condition.
Before using the cruise control system
again, activate it using the power
switch.
TIPIn some cases, the cruise control sys-
tem may not be able to maintain the set
cruising speed when the
vehicle is trav-
eling uphill or downhill.
When the vehicle is traveling up-
hill, the actual traveling speed may
become lower than the set cruising
speed. If this occurs, accelerate to
the desired traveling speed using
the throttle.

When the vehicle is traveling
downhill, the actual traveling
speed may become higher than the set cruising speed. If this oc-
curs, the setting switch cannot be
used to adjust the set cruising
speed. To reduce the traveling
speed, apply the brakes. When the
brakes are applied, the cruise con-
trol system will become deactivat-
ed.
EAU91323
“D-MODE”“D-MODE” is an electronically con-
trolled engine performance system.
WARNING
EWA18440
Do not change the drive mode whilethe vehicle is moving.
The “D-MODE” system consists of 4
different control maps which regulate
engine response and output, thus pro-
viding you with a selection of modes to
fit your preferences and the riding envi-
ronment.
D-MODE 1
- Sporty engine response
D-MODE 2 - Moderate engine re-
sponse
D-MODE 3 - Mild engine response
D-MODE 4 - Mild engine response and
limits engine outputTIP
The current “D-MODE” setting is
shown in the MODE display. (See
page 4-12.)

The current “D-MODE” setting is
saved when the vehicle is turned
off.

The “D-MODE” is controlled by the
BEA-28199-E0.book 3 ページ ２０２１年１２月１日　水曜日　午後７時８分

Special features
3-5
1
234
5
6
7
8
9
10
11
12
13
more information on
“TCS-MODE”.

When “TCS-MODE” has been set
to “OFF”, the traction control sys-
tem, SCS and LIF systems are allturned off together.WARNING
EWA15433
The traction control system is not a
substitute for riding appropriately
for the conditions. Traction control
cannot prevent loss of traction due
to excessive speed when entering
turns, when accelerating hard at a
sharp lean angle, or while braking,
and cannot prevent front wheel slip-
ping. As with any vehicle, approach
surfaces that may be slippery with
caution and avoid especially slip-pery surfaces.
When the vehicle power is on, the trac-
tion control system automatically turns
on. The traction control system can be
turned on or off manually only when the
key is in the “ON” position and the mo-
torcycle is stopped.
TIPSet “TCS-MODE” to “OFF” to help free
the rear wheel if the motorcycle gets
stuck in mud, sand, or other soft surfac-es.NOTICE
ECA16801
Use only the specified tires. (See
page 7-16.) Using different sized
tires will prevent the traction control
system from controlling tire rotationaccurately.
SCS
The slide control system regulates en-
gine power output when a sideward
slide is detected in the rear wheel. It ad-
justs power output based on data from
the IMU (Inertial Measurement Unit).
This system supports the traction con-
trol system to contribute to a smoother
ride.
LIF
The lift control system reduces the rate
at which the front wheel rises during ex-
treme acceleration, such as during starts or out-of-corner exits. When
front-wheel lift is detected, engine pow-
er is regulated to slow front-wheel lift
while still providing good acceleration.
BEA-28199-E0.book 5 ページ ２０２１年１２月１日　水曜日　午後７時８分

Instrument and control functions
4-6
1
2
345
6
7
8
9
10
11
12
13
EAU88280
Turn signal indicator lights “ ” and
“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU88300
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU88310
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU88320
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
2.7 L (0.71 US gal, 0.59 Imp.gal). When
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by turning the vehicle
on. The warning light should come on
for a few seconds, and then go off.TIPIf the warning light does not come on at all, remains on after refueling, or if the
warning light flashes repeatedly, have
a Yamaha dealer check the vehicle.
EAU91650
Cruise control indicator lights “ ”/
“”
These indicator lights come on when
the cruise control system is activated.
(See page 3-1.)TIPWhen the vehicle is turned on, these
lights should come on for a few sec-
onds and then go off. Otherwise, havea Yamaha dealer check the vehicle.
EAU88331
Malfunction indicator light (MIL)
“”
This light comes on or flashes if a prob-
lem is detected in the engine or other
vehicle control system
. If this occurs,
have a Yamaha dealer check the
on-board diagnostic system. The elec-
trical circuit of the warning light can be
checked by turning the vehicle power
on. The light should come on for a few
seconds, and then go off. If the light does not come on initially when the ve-
hicle power is turned on, or if the light
remains on, have a Yamaha dealer
check the vehicle.
NOTICE
ECA26820
If the MIL starts flashing, reduce en-
gine speed to prevent exhaust sys-tem damage.TIPThe engine is sensitively monitored by
the on-board diagnostic system to de-
tect deterioration or malfunction of the
emission control system. Therefore the
MIL may come on or flash due to vehi-
cle modifications, lack of maintenance,
or excessive/improper use of the mo-
torcycle. To prevent this, observe these
precautions.
Do not attempt to modify the soft-
ware of the engine control unit.

Do not add any electrical accesso-
ries that interfere with engine con-
trol.

Do not use aftermarket accesso-
ries or parts such as suspension,
spark plugs, injectors, exhaust
system, etc.
BEA-28199-E0.book 6 ページ ２０２１年１２月１日　水曜日　午後７時８分

Instrument and control functions
4-13
1
2
34
5
6
7
8
9
10
11
12

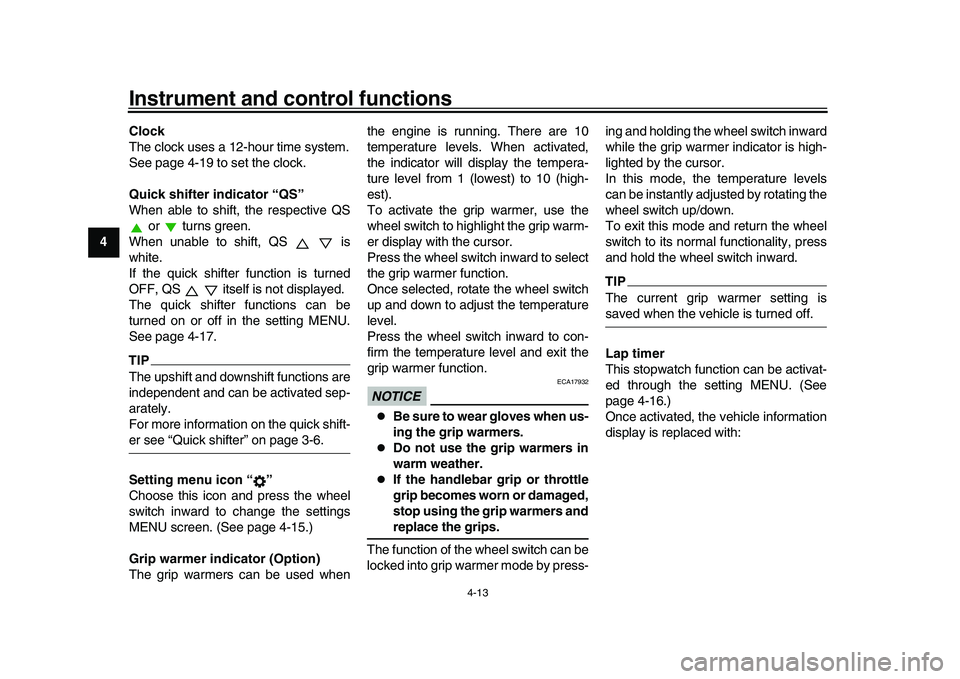

13 Clock
The clock uses a 12-hour time system.
See page 4-19 to set the clock.
Quick shifter indicator “QS”
When able to shift, the respective QS
or turns green.
When unable to shift, QS is
white.
If the quick shifter function is turned
OFF, QS itself is not displayed.
The quick shifter functions can be
turned on or off in the setting MENU.
See page 4-17.
TIPThe upshift and downshift functions are
independent and can be activated sep-
arately.
For more information on the quick shift-er see “Quick shifter” on page 3-6.
Setting menu icon “ ”
Choose this icon and press the wheel
switch inward to change the settings
MENU screen. (See page 4-15.)
Grip warmer indicator (Option)
The grip warmers can be used when the engine is running. There are 10
temperature levels. When activated,
the indicator will display the tempera-
ture level from 1 (lowest) to 10 (high-
est).
To activate the grip warmer, use the
wheel switch to highlight the grip warm-
er display with the cursor.
Press the wheel switch inward to select
the grip warmer function.
Once selected, rotate the wheel switch
up and down to adjust the temperature
level.
Press the wheel switch inward to con-
firm the temperature level and exit the
grip warmer function.
NOTICE
ECA17932

Be sure to wear gloves when us-
ing the grip warmers.

Do not use the grip warmers in
warm weather.

If the handlebar grip or throttle
grip becomes worn or damaged,
stop using the grip warmers andreplace the grips.
The function of the wheel switch can be
locked into grip warmer mode by press- ing and holding the wheel switch inward
while the grip warmer indicator is high-
lighted by the cursor.
In this mode, the temperature levels
can be instantly adjusted by rotating the
wheel switch up/down.
To exit this mode and return the wheel
switch to its normal functionality, press
and hold the wheel switch inward.
TIPThe current grip warmer setting issaved when the vehicle is turned off.
Lap timer
This stopwatch function can be activat-
ed through the setting MENU. (See
page 4-16.)
Once activated, the vehicle information
display is replaced with:
BEA-28199-E0.book 13 ページ ２０２１年１２月１日　水曜日　午後７時８分

Instrument and control functions
4-17
1
2
34
5
6
7
8
9
10
11
12

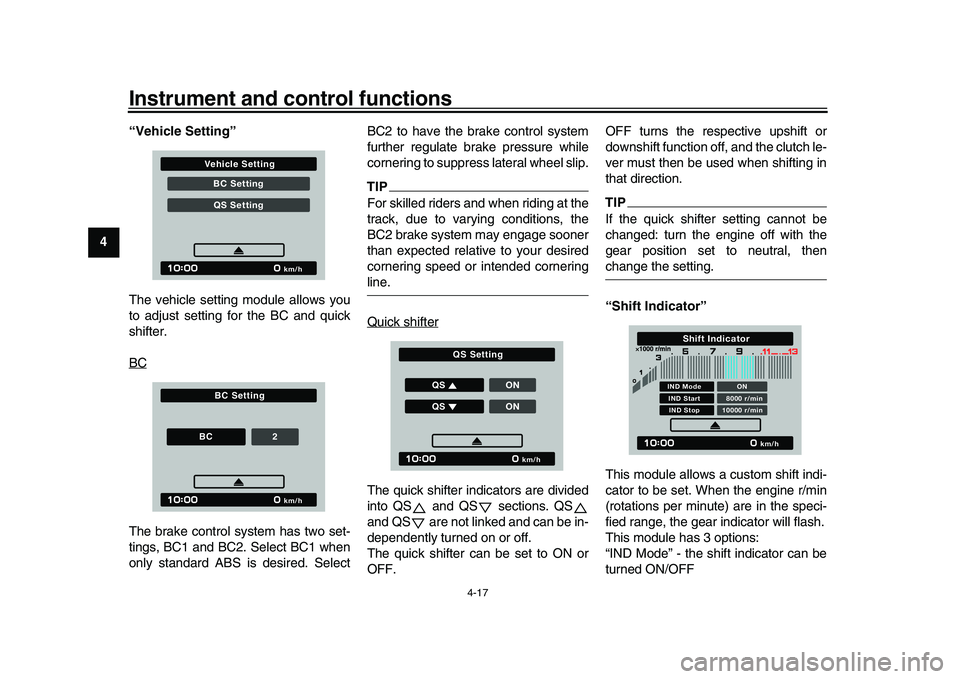

13 “Vehicle Setting”
The vehicle setting module allows you
to adjust setting for the BC and quick
shifter.
BC
The brake control system has two set-
tings, BC1 and BC2. Select BC1 when
only standard ABS is desired. Select BC2 to have the brake control system
further regulate brake pressure while
cornering to suppress lateral wheel slip.
TIPFor skilled riders and when riding at the
track, due to varying conditions, the
BC2 brake system may engage sooner
than expected relative to your desired
cornering speed or intended corneringline.
Quick shifterThe quick shifter indicators are divided
into QS and QS sections. QS
and QS are not linked and can be in-
dependently turned on or off.
The quick shifter can be set to ON or
OFF.OFF turns the respective upshift or
downshift function off, and the clutch le-
ver must then be used when shifting in
that direction.
TIPIf the quick shifter setting cannot be
changed: turn the engine off with the
gear position set to neutral, thenchange the setting.
“Shift Indicator”
This module allows a custom shift indi-
cator to be set. When the engine r/min
(rotations per minute) are in the speci-
fied range, the gear indicator will flash.
This module has 3 options:
“IND Mode” - the shift indicator can be
turned ON/OFF
BC SettingQS Setting
km/h
Vehicle Setting
km/h
BC Setting
BC
2
km/h
QS Setting
QS
ONQSON
km/h
Shift Indicator
IND Mode ONIND Start 8000 r/minIND Stop 10000 r/min
BEA-28199-E0.book 17 ページ ２０２１年１２月１日　水曜日　午後７時８分

Instrument and control functions
4-31
1
2
34
5
6
7
8
9
10
11
12
13 tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.

Do not tamper with or attempt to
open the cylinder assembly.

Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.

Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.

Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamahadealer for any service.
EAU77390
Auxiliary DC connectorsThis vehicle is equipped with an auxilia-
ry DC connector and a grip warmer DC
connector. Consult your Yamaha deal-
er before installing any accessories.
EAU15306
SidestandThe sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cu
t-off system, which
cuts the ignition in certain situations.
(See the following section for an expla-
nation of the ignition circuit cut-off sys-tem.)
WARNING
EWA10242
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly and have a
BEA-28199-E0.book 31 ページ ２０２１年１２月１日　水曜日　午後７時８分

Periodic maintenance and adjustment
7-25
1
2
3
4
5
67
8
9
10
11
12
13

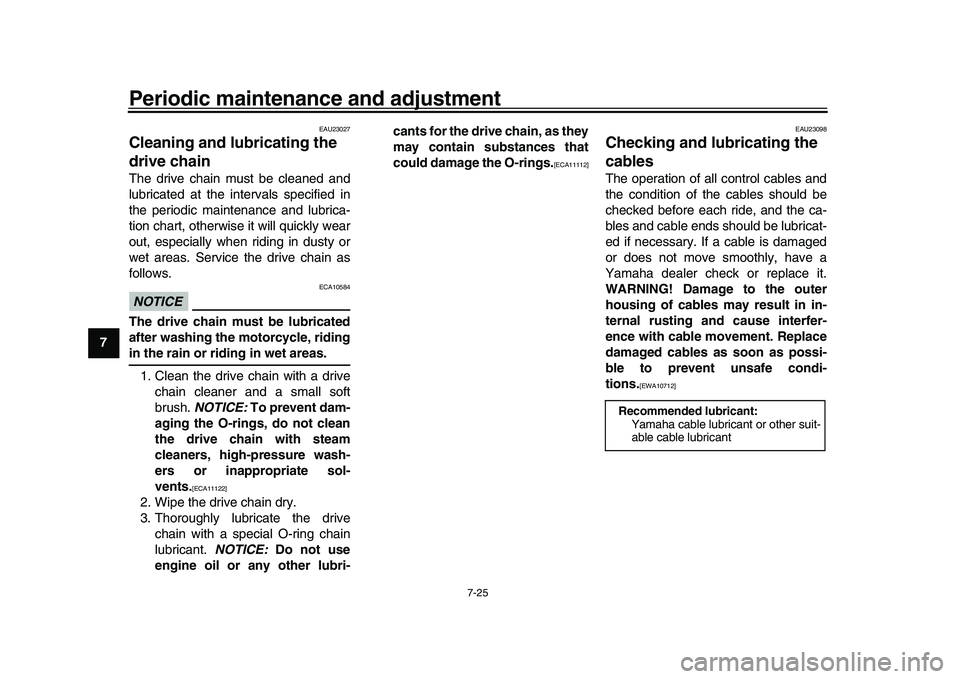

EAU23027
Cleaning and l ubricating the
drive chainThe drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.NOTICE
ECA10584
The drive chain must be lubricated
after washing the motorcycle, ridingin the rain or riding in wet areas.
1. Clean the drive chain with a drive chain cleaner and a small soft
brush. NOTICE: To prevent dam-
aging the O-rings, do not clean
the drive chain with steam
cleaners, high-pressure wash-
ers or inappropriate sol-
vents.
[ECA11122]
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a special O-ring chain
lubricant. NOTICE: Do not use
engine oil or any other lubri- cants for the drive chain, as they
may contain substances that
could damage the O-rings.
[ECA11112]
EAU23098
Checking and lubricating the
cablesThe operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING! Damage to the outer
housing of cables may result in in-
ternal rusting and cause interfer-
ence with cable movement. Replace
damaged cables as soon as possi-
ble to prevent unsafe condi-
tions.
[EWA10712]
Recommended lubricant:
Yamaha cable lubricant or other suit-
able cable lubricant
BEA-28199-E0.book 25 ページ ２０２１年１２月１日　水曜日　午後７時８分

8-1
1
2
3
4
5
6
789
10
11
12
13

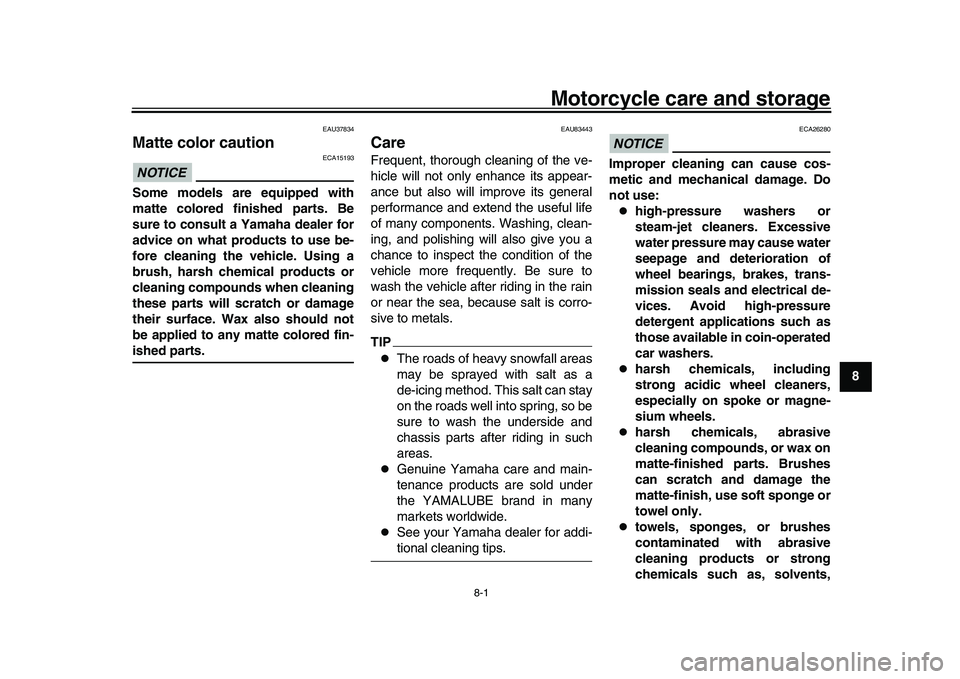

Motorcycle care and storage
EAU37834
Matte color cautionNOTICE
ECA15193
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-ished parts.
EAU83443
CareFrequent, thorough cleaning of the ve-
hicle will not only enhance its appear-
ance but also will improve its general
performance and extend the useful life
of many components. Washing, clean-
ing, and polishing will also give you a
chance to inspect the condition of the
vehicle more frequently. Be sure to
wash the vehicle after riding in the rain
or near the sea, because salt is corro-
sive to metals.TIP
The roads of heavy snowfall areas
may be sprayed with salt as a
de-icing method. This salt can stay
on the roads well into spring, so be
sure to wash the underside and
chassis parts after riding in such
areas.

Genuine Yamaha care and main-
tenance products are sold under
the YAMALUBE brand in many
markets worldwide.

See your Yamaha dealer for addi-tional cleaning tips.
NOTICE
ECA26280
Improper cleaning can cause cos-
metic and mechanical damage. Do
not use:
high-pressure washers or
steam-jet cleaners. Excessive
water pressure may cause water
seepage and deterioration of
wheel bearings, brakes, trans-
mission seals and electrical de-
vices. Avoid high-pressure
detergent applications such as
those available in coin-operated
car washers.

harsh chemicals, including
strong acidic wheel cleaners,
especially on spoke or magne-
sium wheels.

harsh chemicals, abrasive
cleaning compounds, or wax on
matte-finished parts. Brushes
can scratch and damage the
matte-finish, use soft sponge or
towel only.

towels, sponges, or brushes
contaminated with abrasive
cleaning products or strong
chemicals such as, solvents,
BEA-28199-E0.book 1 ページ ２０２１年１２月１日　水曜日　午後７時８分
