YAMAHA XSR 900 2022 Owners Manual

OWNER’S MANUAL
Read this manual carefully
before operating this vehicle.
MOTORCYCLE
BEA-28199-E0
MTM890 (XSR900)
Safety information
Description
Special features
Instrument and control functions
For your safety – pre-operation checks Operation and important riding pointsPeriodic maintenance and adjustment Motorcycle care and storage Specifications
Consumer information Index12
3
4
5
6
7
8
9
1 0
11
BEA-28199-E0_Hyoshi.indd 12021/12/20 10:28:23

EAU81563

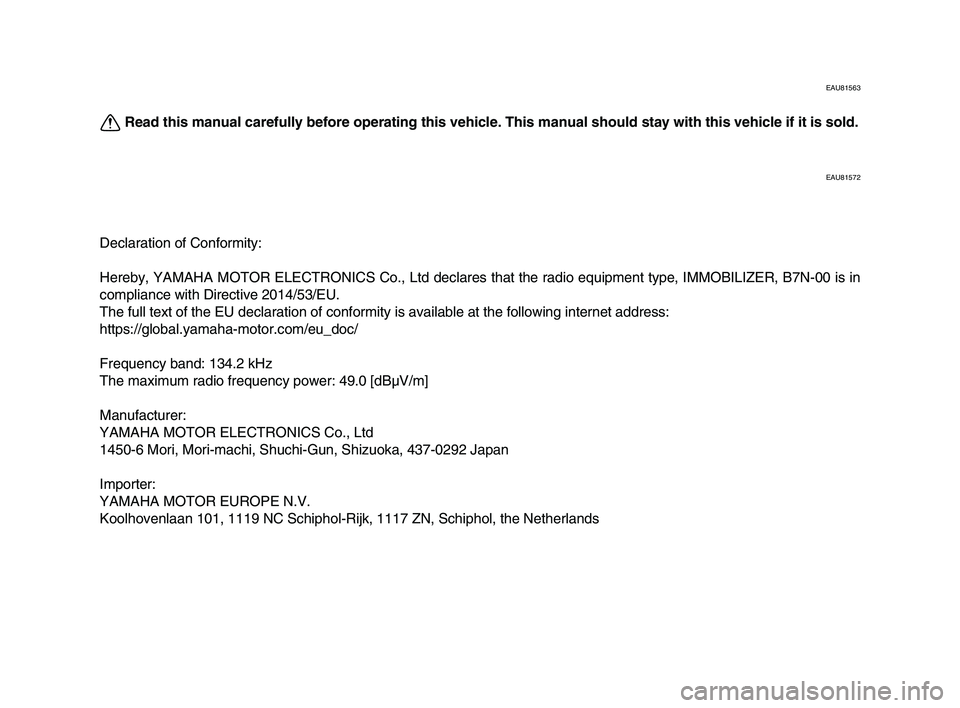

Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold.
EAU81572
Declaration of Conformity:
Hereby, YAMAHA MOTOR ELECTRONICS Co., Ltd declares that the radio equipment type, IMMOBILIZER, B7N-00 is in
compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
https://global.yamaha-motor.com/eu_doc/
Frequency band: 134.2 kHz
The maximum radio frequency power: 49.0 [dBµV/m]
Manufacturer:
YAMAHA MOTOR ELECTRONICS Co., Ltd
1450-6 Mori, Mori-machi, Shuchi-Gun, Shizuoka, 437-0292 Japan
Importer:
YAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101, 1119 NC Schiphol-Rijk, 1117 ZN, Schiphol, the Netherlands
BEA-28199-E0_Hyoshi.indd 22021/12/20 10:28:23

EAU94372

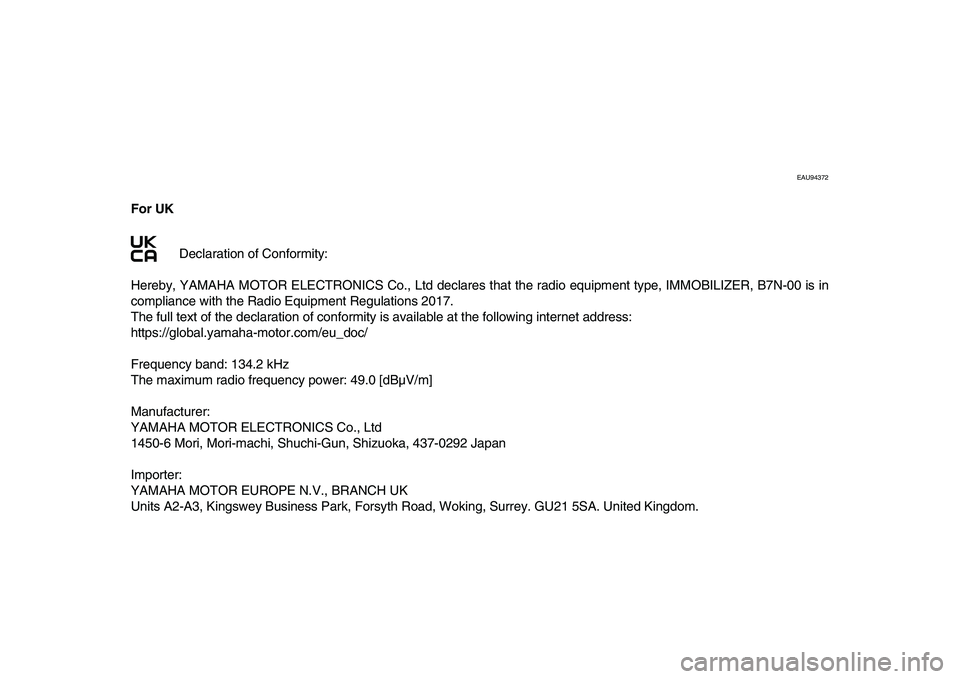

For UKDeclaration of Conformity:
Hereby, YAMAHA MOTOR ELECTRONICS Co., Ltd declares that the radio equipment type, IMMOBILIZER, B7N-00 is in
compliance with the Radio Equipment Regulations 2017.
The full text of the declaration of conformity is available at the following internet address:
https://global.yamaha-motor.com/eu_doc/
Frequency band: 134.2 kHz
The maximum radio frequency power: 49.0 [dBµV/m]
Manufacturer:
YAMAHA MOTOR ELECTRONICS Co., Ltd
1450-6 Mori, Mori-machi, Shuchi-Gun, Shizuoka, 437-0292 Japan
Importer:
YAMAHA MOTOR EUROPE N.V., BRANCH UK
Units A2-A3, Kingswey Business Park, Forsyth Road, Woking, Surrey. GU21 5SA. United Kingdom.BEA-28199-E0.book 1 ページ ２０２１年１２月１日　水曜日　午後７時８分

Introduction
EAU10103

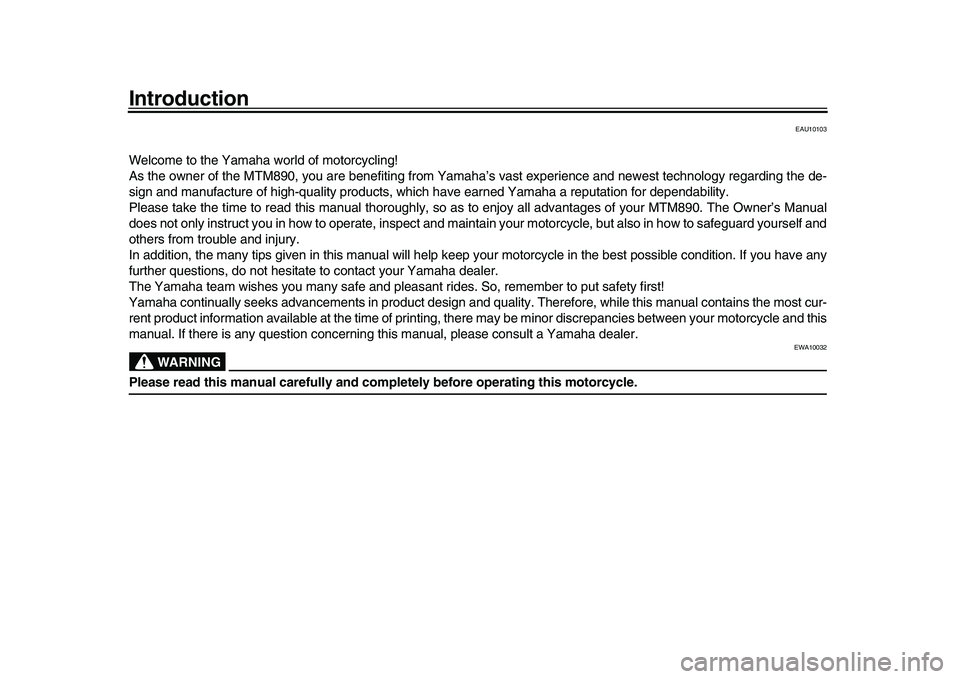

Welcome to the Yamaha world of motorcycling!
As the owner of the MTM890, you are benefiting from Yamaha’s vast experience and newest technology regarding the de-
sign and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your MTM890. The Owner’s Manual
does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself and
others from trouble and injury.
In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. If you have any
further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most cur-
rent product information available at the time of printing, there may be minor discrepancies between your motorcycle and this
manual. If there is any question concerning this manual, please consult a Yamaha dealer.
WARNING
EWA10032
Please read this manual carefully and completely before operating this motorcycle.BEA-28199-E0.book 1 ページ ２０２１年１２月１日　水曜日　午後７時８分

Important manual information
EAU10134

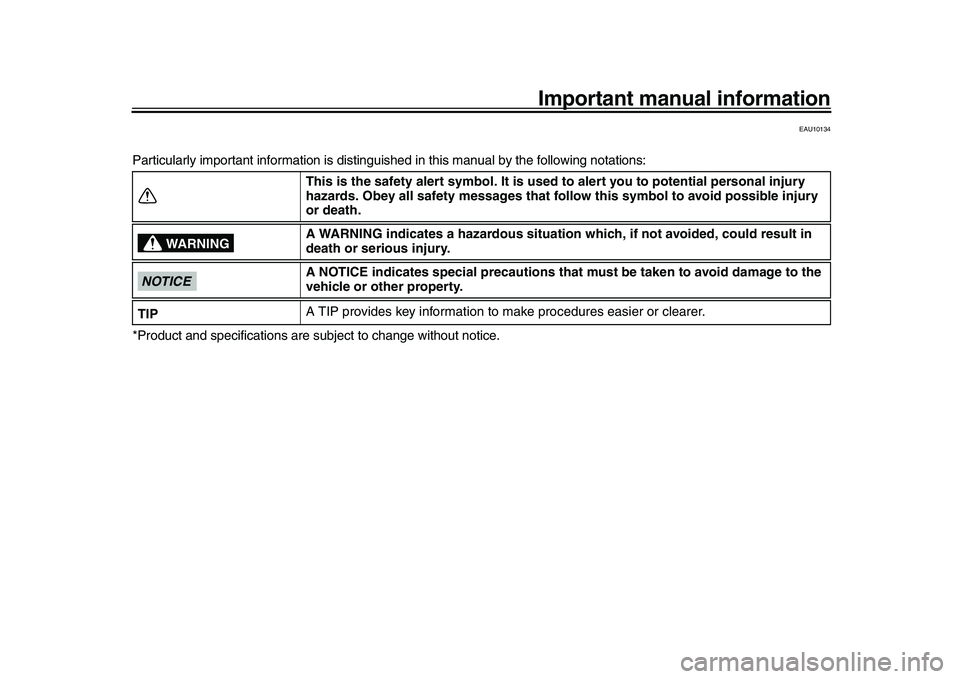

Particularly important information is distinguished in this manual by the following notations:
*Product and specifications are s ubject to change without notice.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
A WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid damage to the
vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIP
BEA-28199-E0.book 1 ページ ２０２１年１２月１日　水曜日　午後７時８分

Important manual information
EAU10202

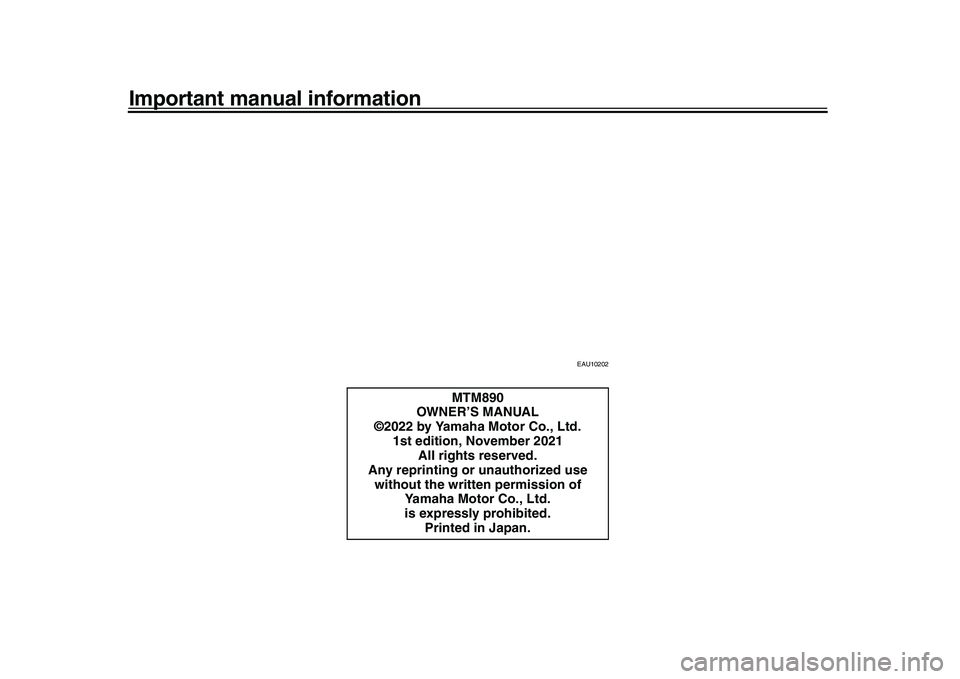

MTM890
OWNER’S MANUAL
©2022 by Yamaha Motor Co., Ltd. 1st edition, November 2021 All rights reserved.
Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd.
is expressly prohibited. Printed in Japan.
BEA-28199-E0.book 2 ページ ２０２１年１２月１日　水曜日　午後７時８分

Table of contents

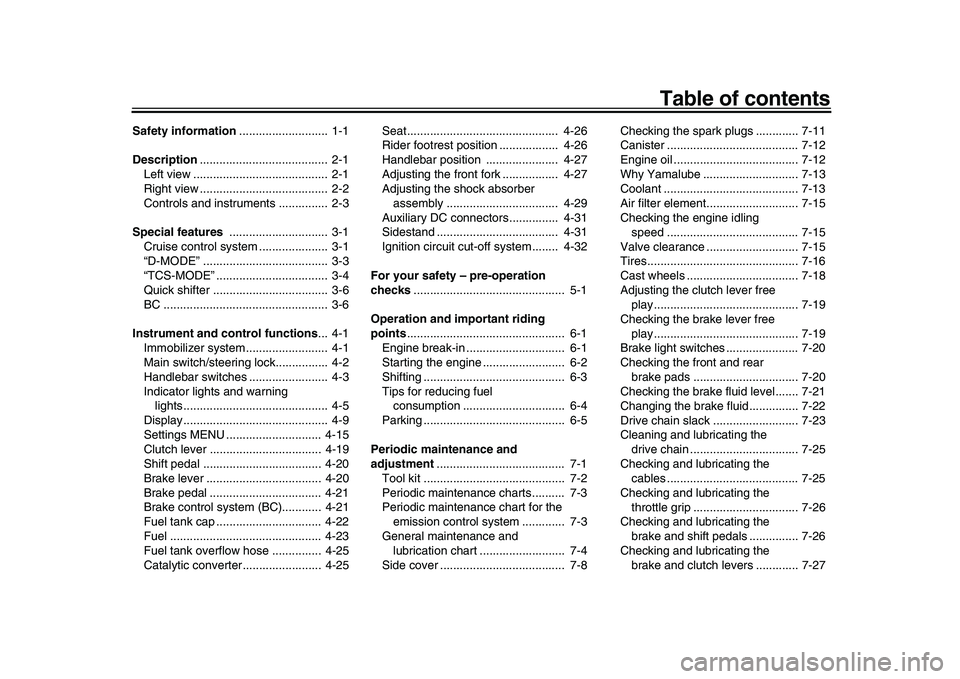

Safety information........................... 1-1
Description ....................................... 2-1
Left view ......................................... 2-1
Right view ....................................... 2-2
Controls and instruments ............... 2-3
Special features .............................. 3-1
Cruise control system .. ................... 3-1
“D-MODE” ...................................... 3-3
“TCS-MODE” .................................. 3-4
Quick shifter ................................... 3-6
BC .................................................. 3-6
Instrument and control functions ... 4-1
Immobilizer system ......................... 4-1
Main switch/steering lock................ 4-2
Handlebar switches .................... .... 4-3
Indicator lights and warning lights............................................ 4-5
Display............................................ 4-9
Settings MENU ............................. 4-15
Clutch lever .................................. 4-19
Shift pedal .................................... 4-20
Brake lever ................................... 4-20
Brake pedal ............... ................... 4-21
Brake control system (BC)............ 4-21
Fuel tank cap ................................ 4-22
Fuel .............................................. 4-23
Fuel tank overflow hose ............... 4-25
Catalytic converter........................ 4-25 Seat.............................................. 4-26
Rider footrest position .................. 4-26
Handlebar position ....
.................. 4-27
Adjusting the front fork ................. 4-27
Adjusting the shock absorber
assembly .................................. 4-29
Auxiliary DC connectors............... 4-31
Sidestand ..................................... 4-31
Ignition circuit cut-off system........ 4-32
For your safety – pre-operation
checks .............................................. 5-1
Operation and important riding
points ................................................ 6-1
Engine break-in .............................. 6-1
Starting the engine ......................... 6-2
Shifting ........................................... 6-3
Tips for reducing fuel consumption ............................... 6-4
Parking ........................................... 6-5
Periodic maintenance and
adjustment ....................................... 7-1
Tool kit ........................................... 7-2
Periodic maintenance charts.......... 7-3
Periodic maintenance chart for the emission control syst em ............. 7-3
General maintenance and lubrication chart .......................... 7-4
Side cover ...................................... 7-8 Checking the spark plugs ............. 7-11
Canister ........................................ 7-12
Engine oil ...................................... 7-12
Why Yamalube ............................. 7-13
Coolant ......................................... 7-13
Air filter element............................ 7-15
Checking the engine idling
speed ........................................ 7-15
Valve clearance ............................ 7-15
Tires.............................................. 7-16
Cast wheels .................................. 7-18
Adjusting the clutch lever free play............................................ 7-19
Checking the brake lever free
play............................................ 7-19
Brake light switches ...................... 7-20
Checking the front and rear
brake pads ................................ 7-20
Checking the brake fluid level....... 7-21
Changing the brake fluid............... 7-22
Drive chain slack .......................... 7-23
Cleaning and lubricating the drive chain ................................. 7-25
Checking and lubricating the cables ........................................ 7-25
Checking and lubricating the throttle grip ................................ 7-26
Checking and lubricating the
brake and shift pedals ............... 7-26
Checking and lubricating the brake and clutch levers ............. 7-27
BEA-28199-E0.book 1 ページ ２０２１年１２月１日　水曜日　午後７時８分

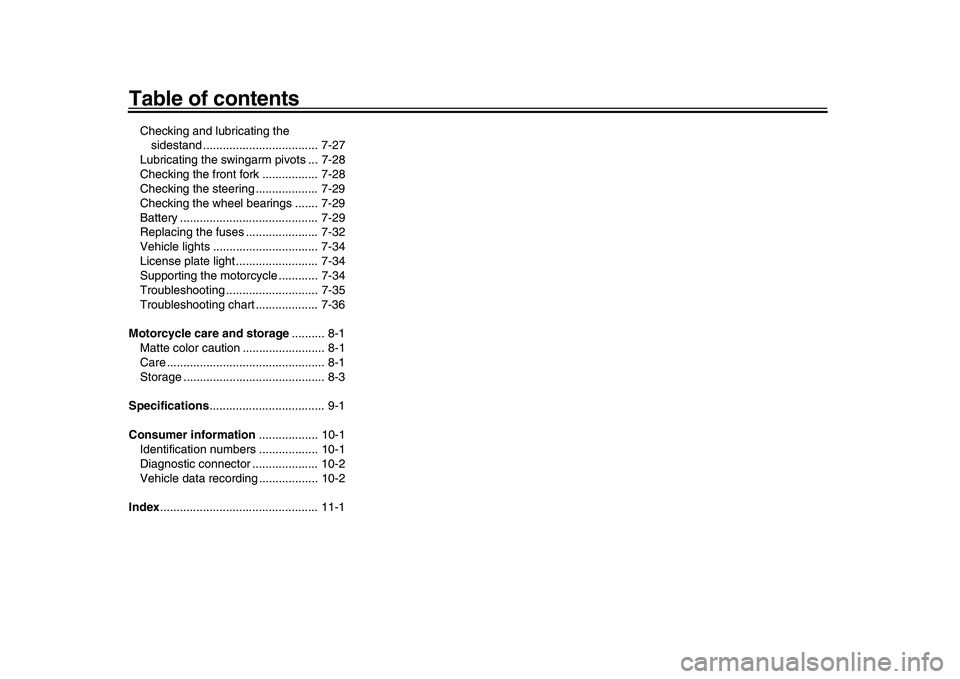

Table of contentsChecking and lubricating the sidestand ................................... 7-27
Lubricating the swingarm pivots ... 7-28
Checking the front fork ................. 7-28
Checking the steering ................... 7-29
Checking the wheel bearings ....... 7-29
Battery .......................................... 7-29
Replacing the fuses ...................... 7-32
Vehicle lights ................................ 7-34
License plate light ......................... 7-34
Supporting the moto rcycle ............ 7-34
Troubleshooting .......... .................. 7-35
Troubleshooting chart ................... 7-36
Motorcycle care and storage .......... 8-1
Matte color caution ......................... 8-1
Care ................................................ 8-1
Storage ........................................... 8-3
Specifications ................................... 9-1
Consumer information .................. 10-1
Identification numbers .................. 10-1
Diagnostic connector . ................... 10-2
Vehicle data recording .................. 10-2
Index ................................................ 11-1
BEA-28199-E0.book 2 ページ ２０２１年１２月１日　水曜日　午後７時８分

1-1
12
3
4
5
6
7
8
9
10
11
12
13
Safety information
EAU1028C

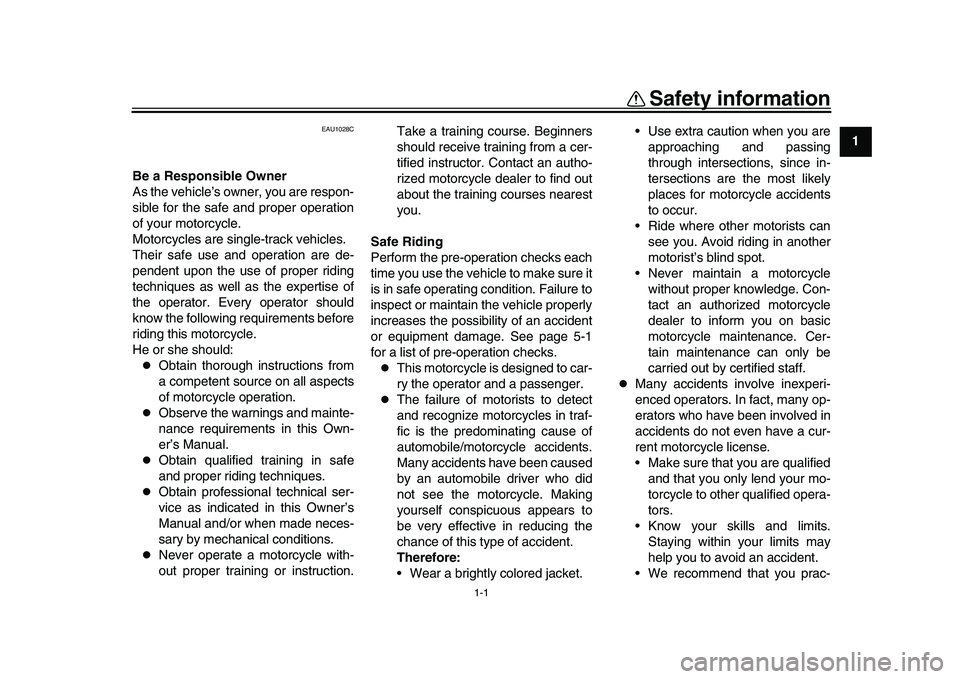

Be a Responsible Owner
As the vehicle’s owner, you are respon-
sible for the safe and proper operation
of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements before
riding this motorcycle.
He or she should:
Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.

Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.

Obtain qualified training in safe
and proper riding techniques.

Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.

Never operate a motorcycle with-
out proper training or instruction. Take a training course. Beginners
should receive training from a cer-
tified instructor. Contact an autho-
rized motorcycle dealer to find out
about the training courses nearest
you.
Safe Riding
Perform the pre-operation checks each
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 5-1
for a list of pre-operation checks.

This motorcycle is designed to car-
ry the operator and a passenger.

The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
Wear a brightly colored jacket. Use extra caution when you are
approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.
Ride where other motorists can see you. Avoid riding in another
motorist’s blind spot.
Never maintain a motorcycle without proper knowledge. Con-
tact an authorized motorcycle
dealer to inform you on basic
motorcycle maintenance. Cer-
tain maintenance can only be
carried out by certified staff.

Many accidents involve inexperi-
enced operators. In fact, many op-
erators who have been involved in
accidents do not even have a cur-
rent motorcycle license.
Make sure that you are qualifiedand that you only lend your mo-
torcycle to other qualified opera-
tors.
Know your skills and limits. Staying within your limits may
help you to avoid an accident.
We recommend that you prac-
BEA-28199-E0.book 1 ページ ２０２１年１２月１日　水曜日　午後７時８分

Safety information
1-2
1
2
3
4
5
6
7
8
9
10
11
12
13 tice riding your motorcycle
where there is no traffic until you
have become thoroughly famil-
iar with the motorcycle and all of
its controls.

Many accidents have been caused
by error of the motorcycle opera-
tor. A typical error made by the op-
erator is veering wide on a turn
due to excessive speed or under-
cornering (insufficient lean angle
for the speed).
Always obey the speed limit and
never travel faster than warrant-
ed by road and traffic conditions.
Always signal before turning or changing lanes. Make sure that
other motorists can see you.

The posture of the operator and
passenger is important for proper
control.
The operator should keep bothhands on the handlebar and
both feet on the operator foot-
rests during operation to main-
tain control of the motorcycle.
The passenger should always hold onto the operator, the seat
strap or grab bar, if equipped, with both hands and keep both
feet on the passenger footrests.
Never carry a passenger unless
he or she can firmly place both
feet on the passenger footrests.

Never ride under the influence of
alcohol or other drugs.

This motorcycle is designed for
on-road use only. It is not suitable
for off-road use.
Protective Apparel
The majority of fatalities from motorcy-
cle accidents are the result of head in-
juries. The use of a safety helmet is the
single most critical factor in the preven-
tion or reduction of head injuries.

Always wear an approved helmet.

Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.

The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.

Never wear loose-fitting clothes,
otherwise they could catch on the control levers, footrests, or wheels
and cause injury or an accident.

Always wear protective clothing
that covers your legs, ankles, and
feet. The engine or exhaust sys-
tem become very hot during or af-
ter operation and can cause burns.

A passenger should also observe
the above precautions.
Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon
monoxide, a deadly gas. Breathing car-
bon monoxide can cause headaches,
dizziness, drowsiness, nausea, confu-
sion, and eventually death.
Carbon Monoxide is a colorless, odor-
less, tasteless gas which may be pres-
ent even if you do not see or smell any
engine exhaust. Deadly levels of car-
bon monoxide can collect rapidly and
you can quickly be overcome and un-
able to save yourself. Also, deadly lev-
els of carbon monoxide can linger for
hours or days in enclosed or poorly
ventilated areas. If you experience any
symptoms of carbon monoxide poison-
ing, leave the area immediately, get
fresh air, and SEEK MEDICAL TREAT-
BEA-28199-E0.book 2 ページ ２０２１年１２月１日　水曜日　午後７時８分
