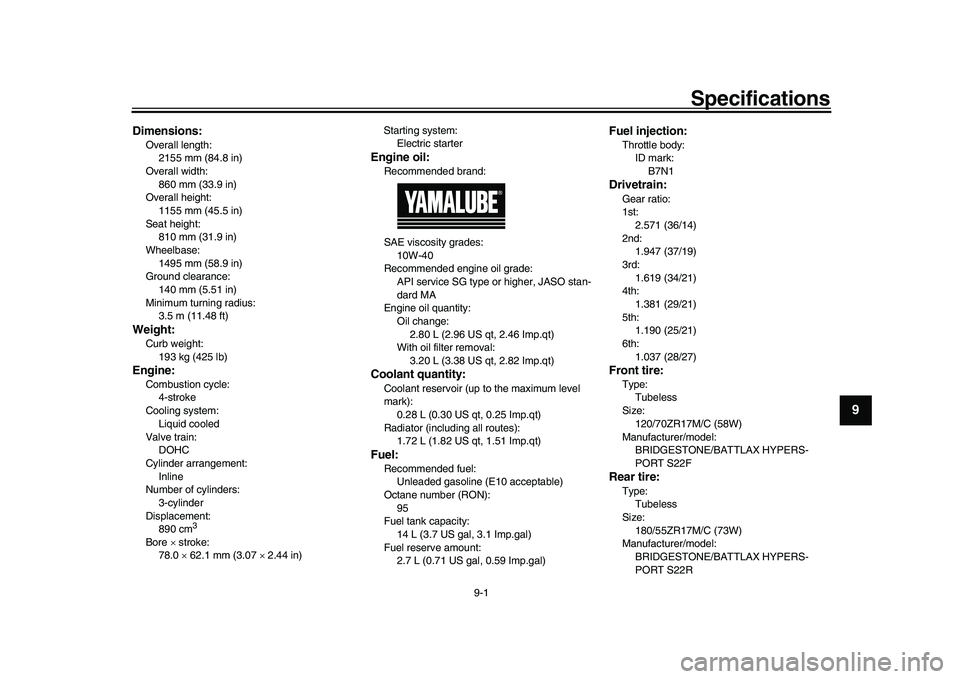

Specifications
EAU84806
Dimensions:Overall length:2155 mm (84.8 in)
Overall width: 860 mm (33.9 in)
Overall height: 1155 mm (45.5 in)
Seat height:
810 mm (31.9 in)
Wheelbase: 1495 mm (58.9 in)
Ground clearance: 140 mm (5.51 in)
Minimum turning radius:
3.5 m (11.48 ft)Weight:Curb weight:193 kg (425 lb)Engine:Combustion cycle:4-stroke
Cooling system: Liquid cooled
Valve train:
DOHC
Cylinder arrangement: Inline
Number of cylinders: 3-cylinder
Displacement:
890 cm
3
Bore  stroke:
78.0  62.1 mm (3.07  2.44 in) Starting system:
Electric starter
Engine oil:Recommended brand:
SAE viscosity grades:10W-40
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Oil change:2.80 L (2.96 US qt, 2.46 Imp.qt)
With oil filter removal: 3.20 L (3.38 US qt, 2.82 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level
mark):
0.28 L (0.30 US qt, 0.25 Imp.qt)
Radiator (including all routes): 1.72 L (1.82 US qt, 1.51 Imp.qt)Fuel:Recommended fuel:
Unleaded gasoline (E10 acceptable)
Octane number (RON): 95
Fuel tank capacity: 14 L (3.7 US gal, 3.1 Imp.gal)
Fuel reserve amount:
2.7 L (0.71 US gal, 0.59 Imp.gal)
Fuel injection:Throttle body:ID mark:B7N1Drivetrain:Gear ratio:
1st: 2.571 (36/14)
2nd: 1.947 (37/19)
3rd: 1.619 (34/21)
4th:
1.381 (29/21)
5th: 1.190 (25/21)
6th: 1.037 (28/27)Front tire:Type:Tubeless
Size: 120/70ZR17M/C (58W)
Manufacturer/model:
BRIDGESTONE/BATTLAX HYPERS-
PORT S22FRear tire:Type:Tubeless
Size: 180/55ZR17M/C (73W)
Manufacturer/model:
BRIDGESTONE/BATTLAX HYPERS-
PORT S22R
