5-4
5
Clutch fluid
Depress and release the clutch pedal five
times. Check to see if any fluid is leaking out
of the hoses, reservoir, or master cylinder.
Check the clutch fluid level and correct if nec-
essary. (See page 8-45.)TIPIf any leakage is found, or if the clutch pedal
offers little resistance, have a Yamaha dealer
service the vehicle. EBU33200FuelMake sure there is sufficient fuel in the tank.
WARNING
EWB02522Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and ex-
plosions and to reduce the risk of injury
when refueling, follow these instructions.
1. Before refueling, turn off the engine and
be sure that no one is sitting in the vehi-
cle.
Never refuel while smoking, or while in
the vicinity of sparks, open flames, or
other sources of ignition such as the pilot
lights of water heaters and clothes dry-
ers.
2. Do not overfill the fuel tank. Because fuel expands when it heats up, heat from the
engine or the sun can cause fuel to spill
out of the fuel tank.
3. Wipe up any spilled fuel immediately.
4. Be sure the fuel tank cap is closed se- curely.
WARNING
EWB02532Gasoline is poisonous and can cause inju-
ry or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline or inhale a
lot of gasoline vapor, or get some gasoline
in your eyes, see your doctor immediately.
U2HC7LE0.book Page 4 Wednesday, October 7, 2015 12:09 PM

5-5
5
If gasoline spills on your skin, wash with
soap and water. If gasoline spills on your
clothing, change your clothes. Your Yamaha engine has been designed to
use regular unleaded gasoline with a research
octane number of 91 or higher (95 or higher
for Europe). If knocking or pinging occurs,
use a different brand of gasoline or premium
unleaded gasoline. Unleaded fuel will give
you longer spark plug life and reduced main-
tenance cost.Portable fuel containers
If you carry a portable fuel container in the
bed of your Yamaha YXZ1000R, be sure to
secure it with the cap tightened before driving
the vehicle.
Always place a portable fuel container on the
ground before filling it. Before removing the
container cap, touch the container with the
fuel dispenser nozzle. Keep fuel dispenser
nozzle in contact with container inlet when fill-
ing.
WARNING! Never refill a fuel container
in the bed of any vehicle. Fire may result
from a build-up of static electricity. The
discharge of this build-up while refueling
can cause a spark and ignite the gasoline.
[EWB03270]
EBU35680Engine oilMake sure the engine oil is at the specified
level. Add oil as necessary. (See page 8-15.)
Recommended fuel: Regular unleaded gasoline only
For Europe: Regular unleaded gasoline only
with a research octane number of 95 or
higher
Fuel tank capacity: 34.0 L (8.98 US gal, 7.48 Imp.gal)
U2HC7LE0.book Page 5 Wednesday, October 7, 2015 12:09 PM

5-6
5
NOTICEECB03020Do not use oils with a diesel specifica-
tion of “CD” or oils of a higher quality
than specified. In addition, do not use
oils labeled “ENE RGY CONSERVING II”
or higher.
 Make sure that no foreign material en-
ters the oil tank. EBU35322TransmissionMake sure there is no oil leaking from the
transmission case.EBU31760CoolantCheck the coolant level in the coolant reser-
voir when the engine is cold (the coolant level
will vary with engine temperature). The coolant level is satisfactory if it is be-
tween the minimum and maximum level
marks on the coolant reservoir. If the coolant
level is at or below the minimum level mark,
add additional coolant to bring the level up to
maximum level mark. If coolant is not avail-
able, add distilled water. Change the coolant
every two years. (See page 8-33.)
NOTICEECB02120Hard water or salt water is harmful to the
engine. You may use soft water if you can-
not get distilled water. EBU36020Final gearMake sure there is no oil leaking from the final
gear case.
Recommended engine oil type and quantity:
See page 10-1.
Coolant reservoir capacity (up to the maxi-
mum level mark):0.31 L (0.33 US qt, 0.28 Imp.qt)
U2HC7LE0.book Page 6 Wednesday, October 7, 2015 12:09 PM

5-7
5
EBU36030Differential gearMake sure there is no oil leaking from the dif-
ferential gear case.EBU31790Accelerator pedalCheck to see that the accelerator pedal oper-
ates correctly. It must operate smoothly and
spring back to the idle position fully when re-
leased. Have a Yamaha dealer repair as nec-
essary for proper operation.EBU31800Seat beltsMake sure that the seat belts are not frayed,
torn, stretched, or damaged. The seat belts
must move smoothly when pulled out and re-
tract on its own when released. The seat belts
must also lock up when quickly pulled out.
The latch plate should click securely into the
buckle and release when the release button is
pushed firmly. Wash off any dirt or mud that
could affect operation. Have a Yamaha dealer
repair as necessary for proper operation. A crash can damage the restraint systems in
your vehicle. A damaged restraint system
may not properly protect the person using it,
resulting in serious injury or death in a crash.
To help make sure your restraint systems are
working properly after a crash, have them in-
spected and any necessary replacements
made as soon as possible.
EBU31810Passenger handholdCheck that the handhold bar and its supports
are in good condition. Confirm that the lock-
ing pins are securely fastened, and then push
and pull on the handhold to make sure that it
is not loose.EBU31820SteeringPark on level ground. Turn the steering wheel
right and left. Check for excessive free play,
abnormal noises, or a rough feeling. Have a
Yamaha dealer repair as necessary for proper operation.
U2HC7LE0.book Page 7 Wednesday, October 7, 2015 12:09 PM

5-8
5
EBU35690Shift leverThe shift lever should move smoothly both
forward and backwards and return to its orig-
inal position after a gear change is made.
Check the shift lever and transmission for
roughness before starting off.TIPThe engine may need to be started for the
transmission to engage gears. EBU35700Fittings and fastenersAlways check the tightness of chassis and
wheel fittings and fasteners before starting
off. Take the vehicle to a Yamaha dealer or re-
fer to the Service Manual for correct tighten-
ing torque.EBU31840Instruments, lights and switchesCheck that all instruments, lights and switch-
es are working properly. Correct if necessary.
EBU31851Control cablesWhen driving in cold weather, always make
sure all control cables work smoothly before
starting off. WARNING! Control cables can
freeze in cold weather and you could be
unable to control the vehicle.
[EWB03280]
EBU35331
TiresCheck tire pressure regularly to make sure it
is at the recommended specifications. Also
check for wear and damage.
Tire pressure
Use the tire pressure gauge to check and ad-
just tire pressures when the tires are cold. Tire
pressures must be equal on both sides.
WARNING! Operation of this vehicle with improper tire pressure may cause severe
injury or death from loss of control or roll-
over. Tire pressure below the minimum
U2HC7LE0.book Page 8 Wednesday, October 7, 2015 12:09 PM

5-9
5
specified could also cause the tire to dis-
lodge from the rim under severe driving
conditions.
[EWB03960]
Set tire pressures to the following specifica-
tions:
Recommended tire pressure:Vehicle load:0 - 195 kg (0 - 430 lb)Front: 114.0 kPa (1.140 kgf/cm², 16.5 psi)
Rear: 128.0 kPa (1.280 kgf/cm², 18.5 psi)
Vehicle load: 195 kg - maximum (430 lb - maximum)Front: 114.0 kPa (1.140 kgf/cm², 16.5 psi)
Rear: 169.0 kPa (1.690 kgf/cm², 24.5 psi)
Minimum tire pressure: Vehicle load:0 - 195 kg (0 - 430 lb)Front: 110.0 kPa (1.100 kgf/cm², 16.0 psi)
Rear: 124.0 kPa (1.240 kgf/cm², 18.0 psi)
Vehicle load: 195 kg - maximum (430 lb - maximum)Front: 110.0 kPa (1.100 kgf/cm², 16.0 psi)
Rear: 165.0 kPa (1.650 kgf/cm², 24.0 psi)
U2HC7LE0.book Page 9 Wednesday, October 7, 2015 12:09 PM

5-10
5

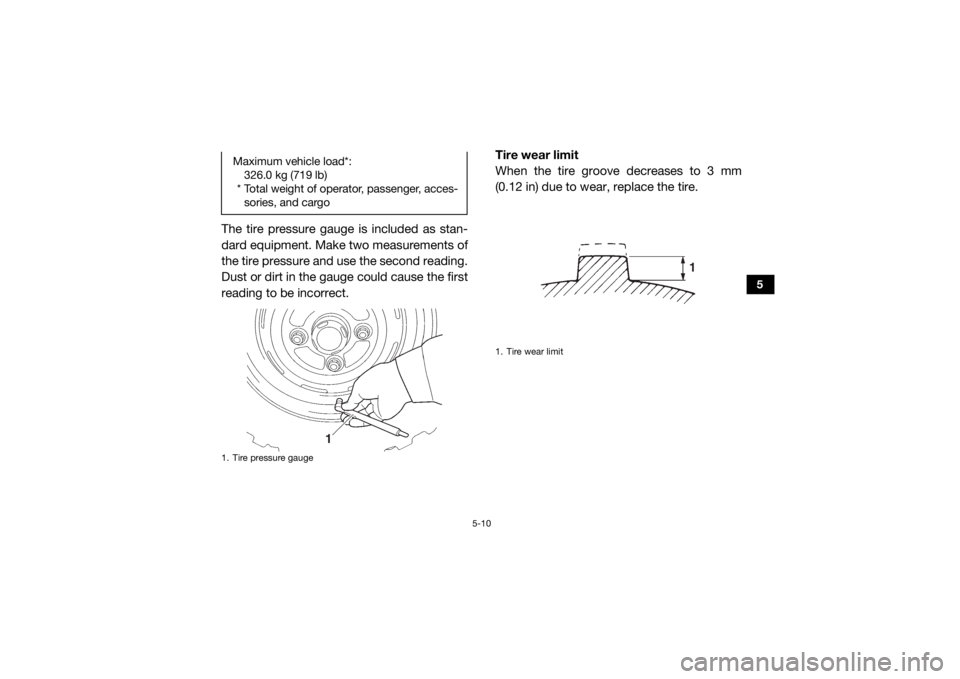

The tire pressure gauge is included as stan-
dard equipment. Make two measurements of
the tire pressure and use the second reading.
Dust or dirt in the gauge could cause the first
reading to be incorrect.Tire wear limit
When the tire groove decreases to 3 mm
(0.12 in) due to wear, replace the tire.Maximum vehicle load*:
326.0 kg (719 lb)
* Total weight of operator, passenger, acces- sories, and cargo1. Tire pressure gauge
1
1. Tire wear limit
1
U2HC7LE0.book Page 10 Wednesday, October 7, 2015 12:09 PM

6-1
6
EBU31870
OPERATION
EBU31880Read the Owner’s Manual carefully to be-
come familiar with all controls. If there is a
control or function you do not understand,
ask your Yamaha dealer.
WARNING
EWB03290Failure to familiarize yourself with the con-
trols can lead to loss of control, which
could cause an accident or injury. EBU35720Engine break-inThere is never a more important period in the
life of your vehicle than the period between 0
and 20 hours.
For this reason, we ask that you read the fol-
lowing material carefully. Because the engine
is brand new, you must not put an excessive
load on it for the first several hours of opera-
tion. During the first 20 hours, the variousparts in the engine wear and polish them-
selves to achieve the correct operating clear-
ances.
During this period, prolonged full-throttle op-
eration or any condition that might result in
excessive engine heating must be avoided.
However, momentary (2–3 seconds maxi-
mum) full-throttle operation under load does
not harm the engine.
Each full-throttle acceleration sequence
should be followed with a substantial rest pe-
riod for the engine, by cruising at lower r/min
so the engine can rid itself of the temporary
build-up of heat. If any abnormality is noticed
during this period, consult a Yamaha dealer.
0–10 hours:
Avoid prolonged operation above 5300 r/min.
Allow a cooling-off period of 5 to 10 minutes
after every hour of operation. Vary the speed
of the vehicle from time to time. Do not oper-
ate it at one set throttle position.U2HC7LE0.book Page 1 Wednesday, October 7, 2015 12:09 PM

6-2
6
10–20 hours:
Avoid prolonged operation above 6300 r/min.
After break-in:
The vehicle may now be operated normally.EBU35341Starting the engine1. Turn the key to “ ” (on).NOTICEECB02290The coolant temperature warning light and
engine trouble warning light should come
on, then go off.
The EPS warning light should come on,
then go off when the engine is started.
If a warning light does not go off, see page
4-2 for the corresponding warning light
circuit check. 2. Press the brake pedal.
3. Shift the transmission into neutral.
When the transmission is in the neutral
position, the transmission gear display
shows “N” and the neutral indicator
light should come on.
 The engine can be started in any gear if
the clutch pedal is applied. However, it
is recommended to shift into neutral
before starting the engine.
4. With your foot off the accelerator pedal, start the engine by turning the key to “ ”
(start).
If the engine fails to start, release the key, and
then try starting it again. Wait a few seconds
before the next attempt. Each attempt should
be as short as possible, to preserve battery
energy. NOTICE: Do not crank the engine
more than 5 seconds on each attempt, or
starter damage could occur. Wait at least
5 seconds between each operation of the
electric starter to let it cool.
[ECB02140]
Do not turn the key to the “ ” (start) position
with the engine running; otherwise, damage
to the electric starter may result.
U2HC7LE0.book Page 2 Wednesday, October 7, 2015 12:09 PM

6-3
6
TIPFor maximum engine life, never accelerate
hard when the engine is cold! EBU35413Shift lever operation and reverse driv-
ingThis vehicle has a 5-speed forward and 1-
speed reverse transmission. The transmis-
sion allows you to control the amount of pow-
er you have available at a given speed or for
starting, accelerating, climbing hills, etc.
To shift into neutral, release the accelerator
pedal, apply the clutch, and then repeatedly
move the shift lever forward until it stops.
When it stops, it will be in first gear. Move the
shift lever rearward slightly to reach the neu-
tral position, and then release the clutch.
NOTICEECB03040 Even with the transmission in the neutral
position, do not coast for long periods of
time with the engine off. The transmis-
sion is properly lubri cated only when the
engine is running. Inadequate lubrication
may damage the transmission.1. Shift lever
2. Neutral position
1
2
R 1
N 2
3
4
5
U2HC7LE0.book Page 3 Wednesday, October 7, 2015 12:09 PM
