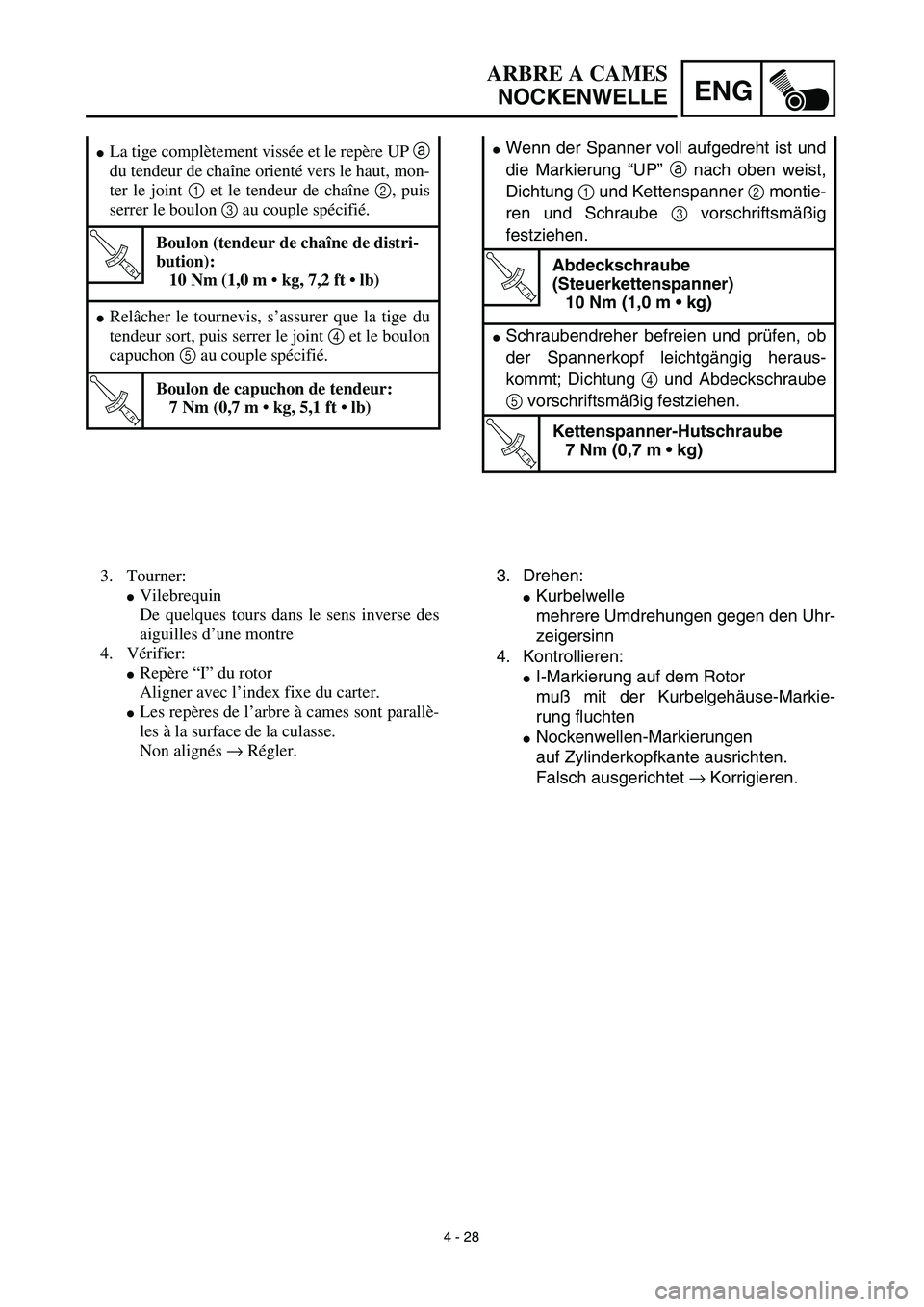

YAMAHA YZ450F 2003  Notices Demploi (in French) 4 - 28
ENG
Wenn der Spanner voll aufgedreht ist und
die Markierung “UP” a nach oben weist,
Dichtung 1 und Kettenspanner 2 montie-
ren und Schraube 3 vorschriftsmäßig
festziehen.
T R..
Abdecksch

Page 302 of 644

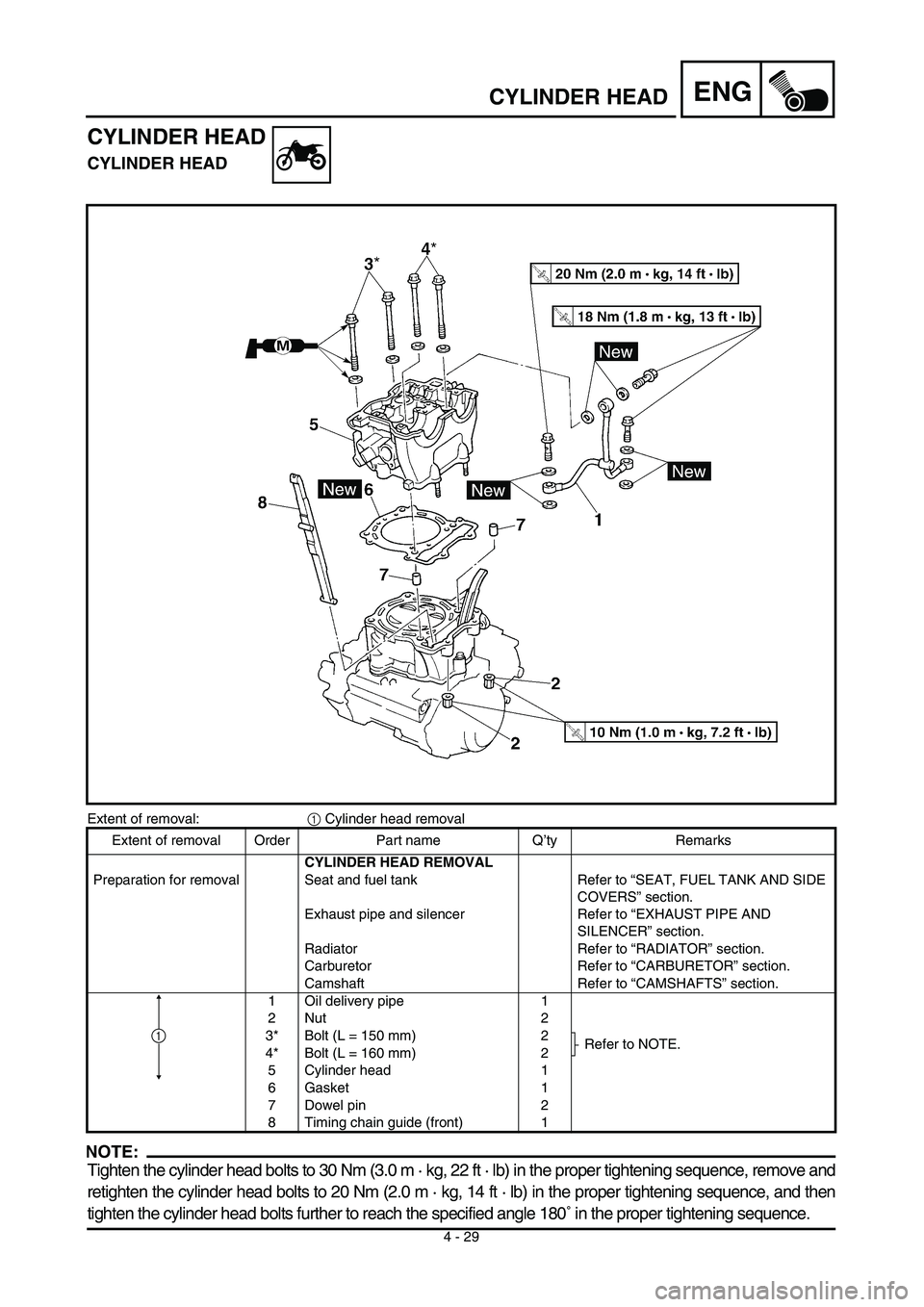

YAMAHA YZ450F 2003  Notices Demploi (in French) 4 - 29
ENGCYLINDER HEAD
CYLINDER HEAD
CYLINDER HEAD
Extent of removal:1 Cylinder head removal
NOTE:
Tighten the cylinder head bolts to 30 Nm (3.0 m · kg, 22 ft · lb) in the proper tightening sequenc

Page 303 of 644

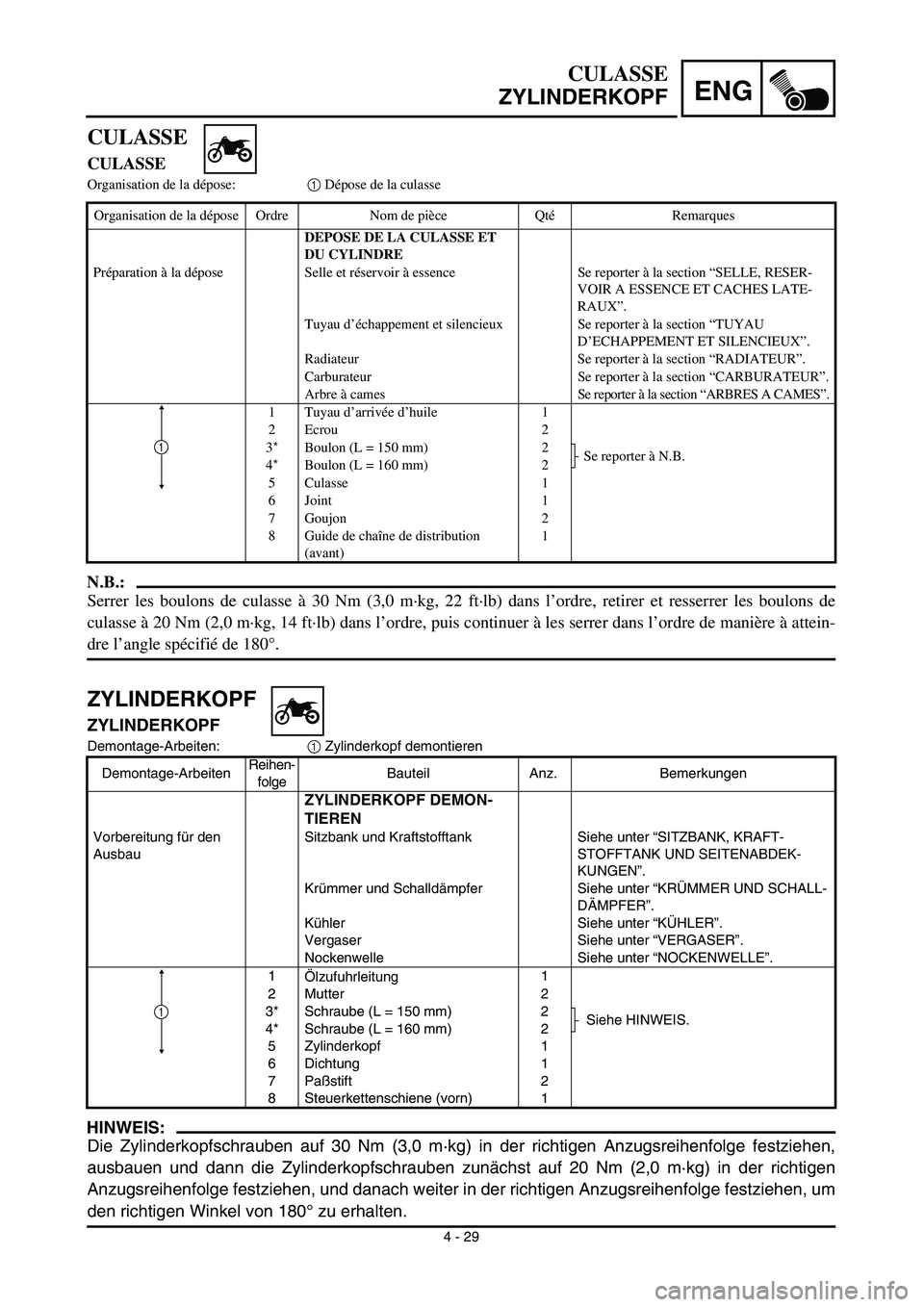

YAMAHA YZ450F 2003  Notices Demploi (in French) ENG
4 - 29
CULASSE
ZYLINDERKOPF
ZYLINDERKOPF
ZYLINDERKOPF
Demontage-Arbeiten:1 Zylinderkopf demontieren
HINWEIS:
Die Zylinderkopfschrauben auf 30 Nm (3,0 m·kg) in der richtigen Anzugsreihenfolge fest

Page 304 of 644

YAMAHA YZ450F 2003  Notices Demploi (in French) 4 - 30
ENGCYLINDER HEAD
INSPECTION
Cylinder head
1. Eliminate:
Carbon deposits (from the combustion
chambers)
Use a rounded scraper.
NOTE:
Do not use a sharp instrument to avoid dam-
aging or scratch

Page 305 of 644

YAMAHA YZ450F 2003  Notices Demploi (in French) 4 - 30
ENG
CULASSE
ZYLINDERKOPF
PRÜFUNG
Zylinderkopf
1. Entfernen:
Ölkohleablagerungen (im Brennraum)
Einen abgerundeten Schaber verwen-
den.
HINWEIS:
Keine scharfkantigen Gegenstände benutzen,
um

Page 306 of 644

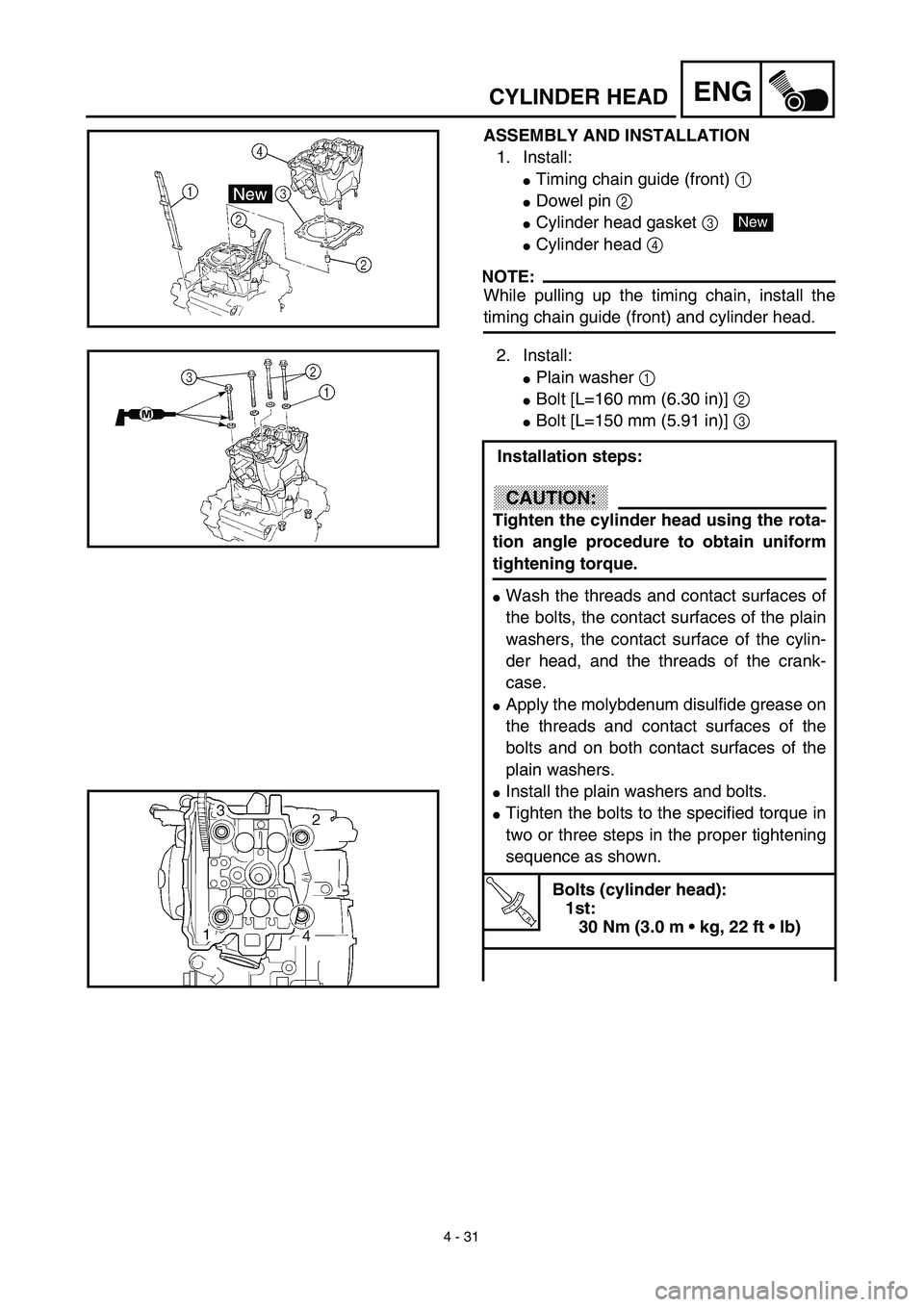

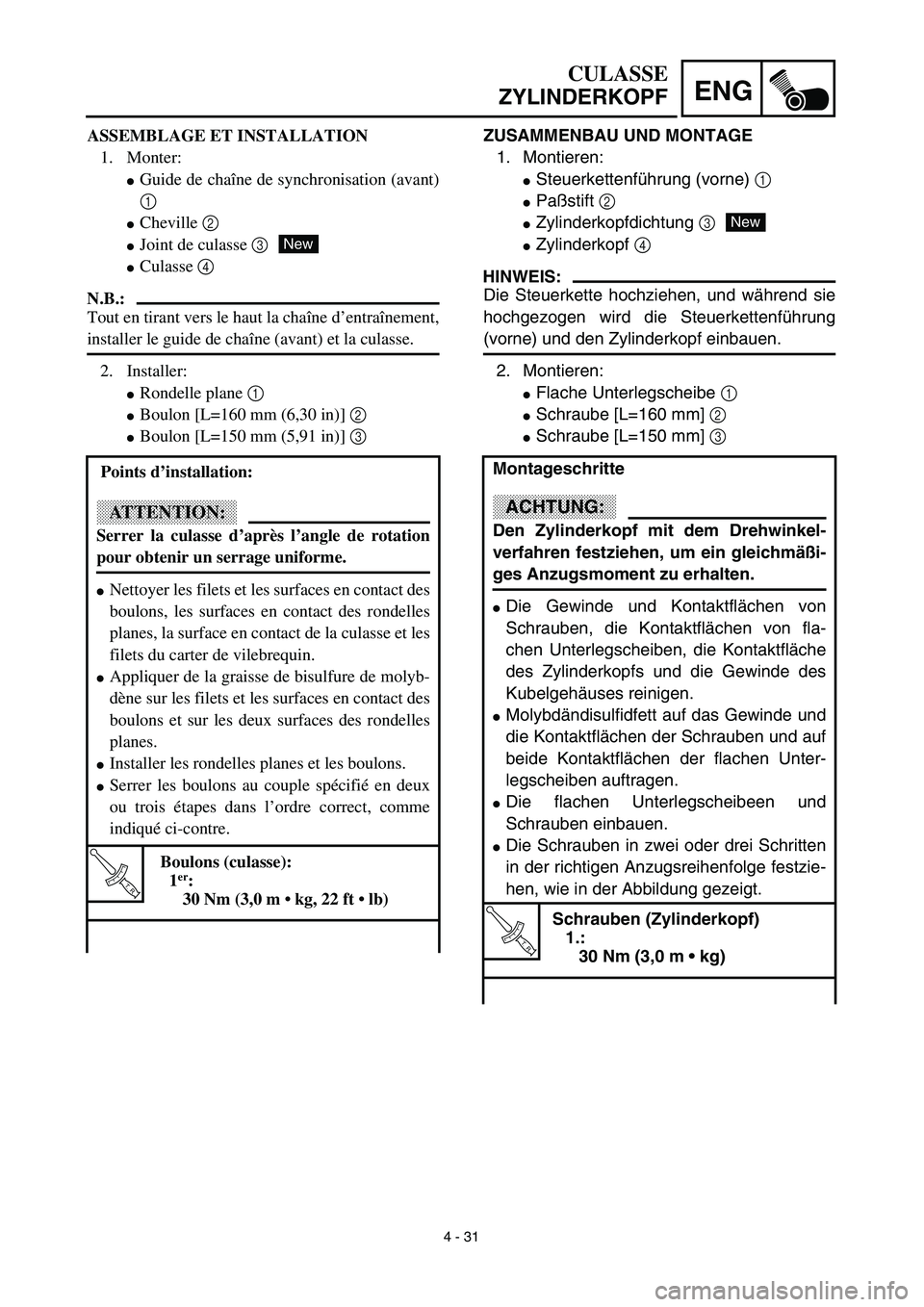

YAMAHA YZ450F 2003  Notices Demploi (in French) 4 - 31
ENGCYLINDER HEAD
ASSEMBLY AND INSTALLATION
1. Install:
Timing chain guide (front) 1
Dowel pin 2
Cylinder head gasket 3
Cylinder head 4
NOTE:
While pulling up the timing chain, install the

Page 307 of 644

YAMAHA YZ450F 2003  Notices Demploi (in French) 4 - 31
ENG
ZUSAMMENBAU UND MONTAGE
1. Montieren:
Steuerkettenführung (vorne) 1
Paßstift 2
Zylinderkopfdichtung 3
Zylinderkopf 4
HINWEIS:
Die Steuerkette hochziehen, und während sie
hochgezogen

Page 308 of 644

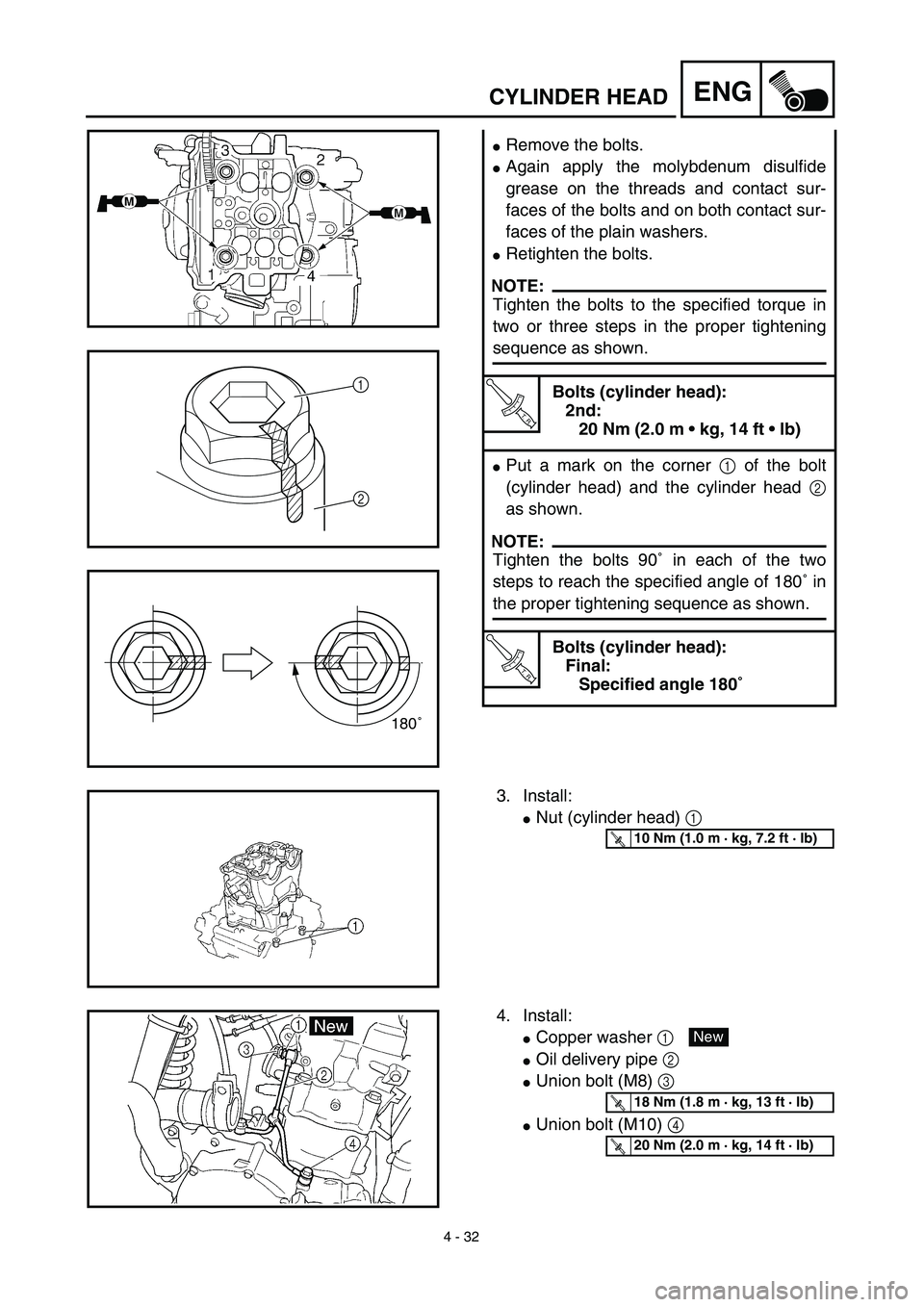

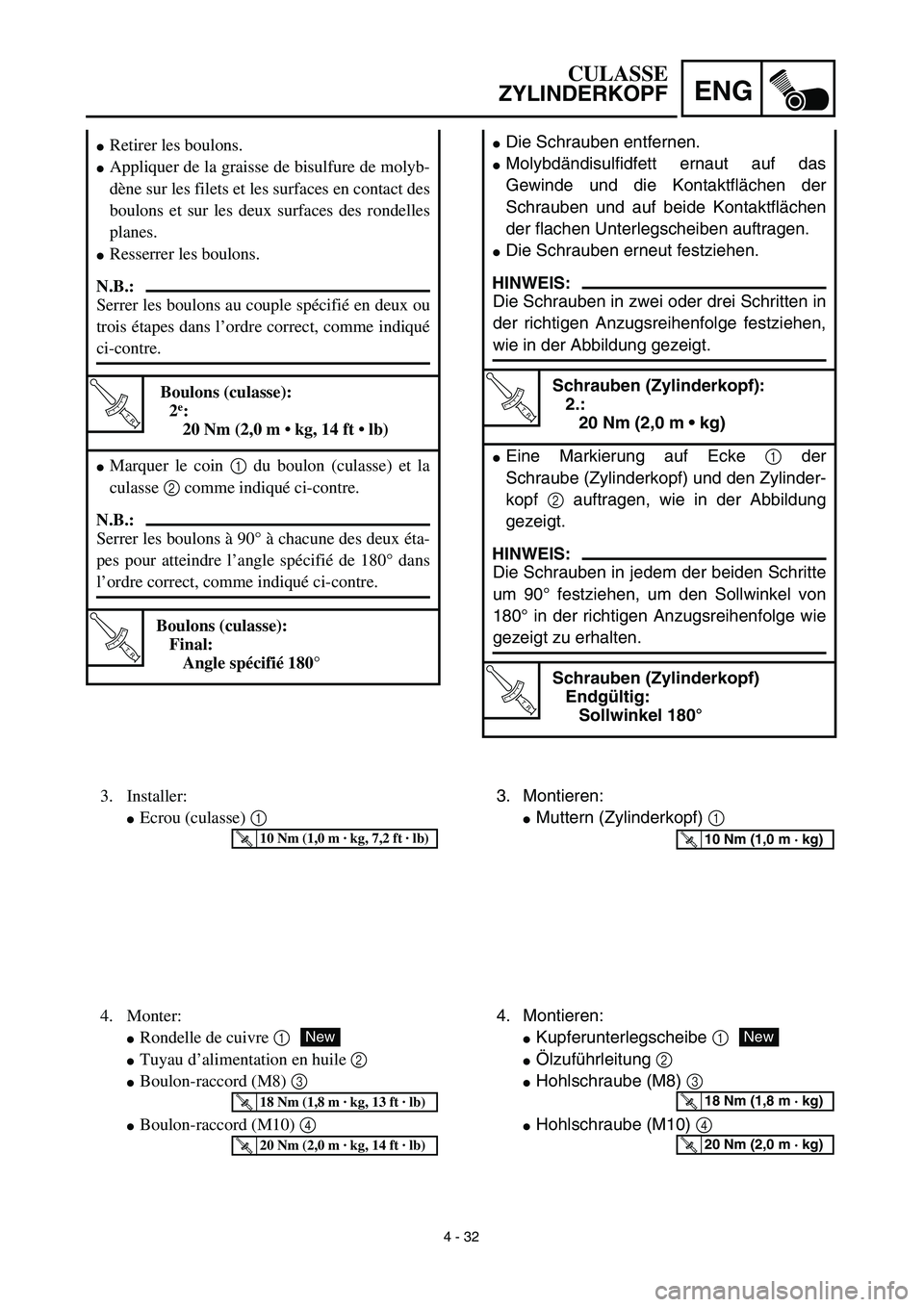

YAMAHA YZ450F 2003  Notices Demploi (in French) 4 - 32
ENG
Remove the bolts.
Again apply the molybdenum disulfide
grease on the threads and contact sur-
faces of the bolts and on both contact sur-
faces of the plain washers.
Retighten the bolts.

Page 309 of 644

YAMAHA YZ450F 2003  Notices Demploi (in French) 4 - 32
ENG
Die Schrauben entfernen.
Molybdändisulfidfett ernaut auf das
Gewinde und die Kontaktflächen der
Schrauben und auf beide Kontaktflächen
der flachen Unterlegscheiben auftragen.
Die Schr

Page 310 of 644

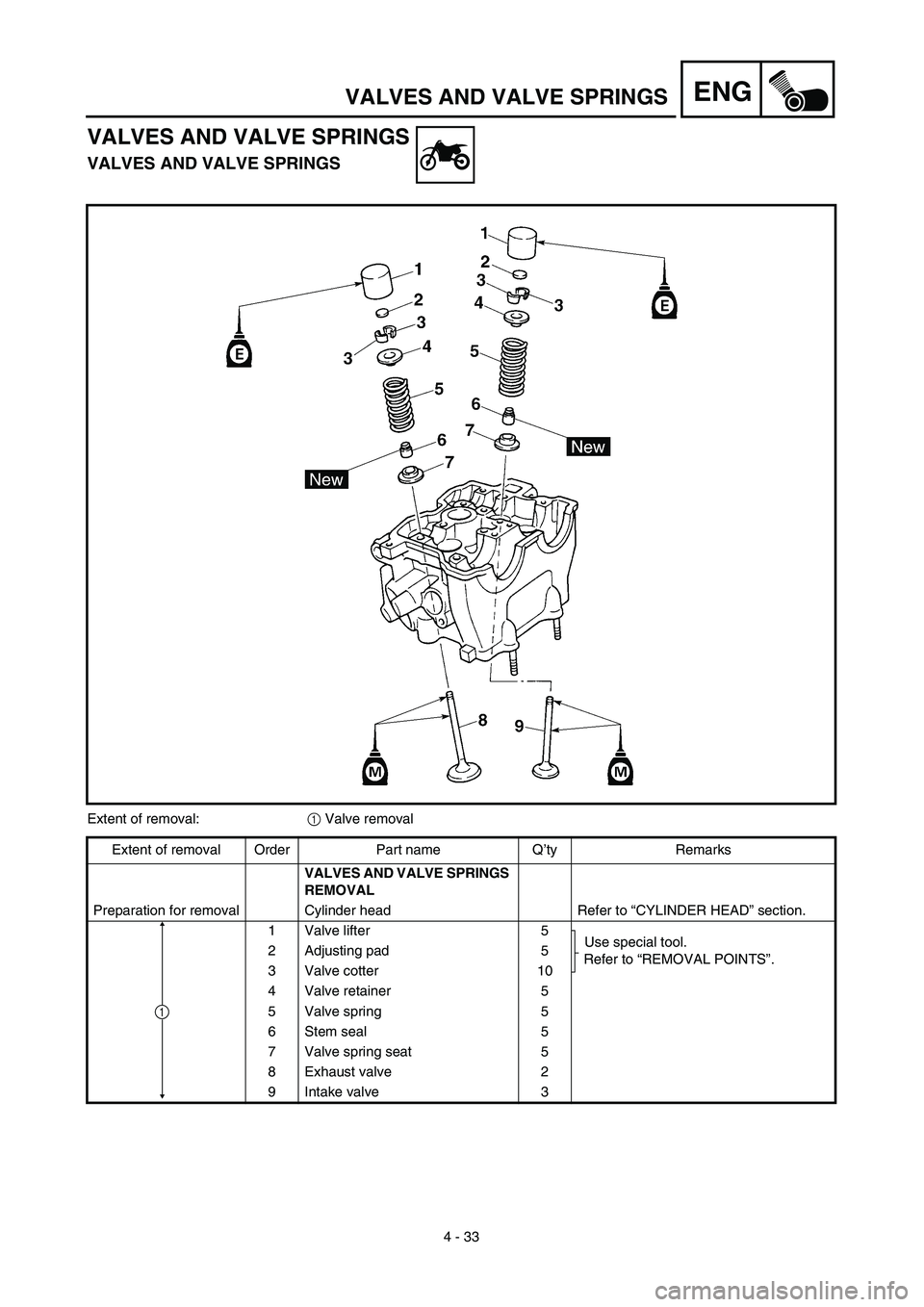

YAMAHA YZ450F 2003  Notices Demploi (in French) 4 - 33
ENGVALVES AND VALVE SPRINGS
VALVES AND VALVE SPRINGS
VALVES AND VALVE SPRINGS
Extent of removal:1 Valve removal
Extent of removal Order Part name Q’ty Remarks
VALVES AND VALVE SPRINGS
REMOVA
