ACURA CSX 2006 Service Repair Manual




M/T model
A/T model
6-27
12x1.25mm
74 N·m
(7.5 kgf·m, 54 lbf·ft)
12x1.25mm
74 N·m
(7.5 kgf·m, 54 lbf·ft) 14x1.5mm
93 N·m
(9.5 kgf·m, 69 lbf·ft)
31. Tighten the transmission mounting bolt and nuts. 32. Raise the vehicle on the lift.
33. Tighten the lower torque rod mounting bolt.
34. Lower the vehicle on the lift.
35. Install the air cleaner assembly (see page 11-345).
(cont’d)
08/08/21 14:27:21 61SNR030_060_0027
ProCarManuals.com
DYNOMITE -2009-



Î
M/T model
A/T model
6-28 Cylinder Head
Cam Chain Installation (cont’d)
12x1.25mm
64 N·m
(6.5 kgf·m, 47 lbf·ft)
12x1.25mm
64 N·m
(6.5 kgf·m, 47 lbf·ft)
12x1.25mm
64 N·m
(6.5 kgf·m, 47 lbf·ft)
12x1.25mm
64 N·m
(6.5 kgf·m, 47 lbf·ft) 12x1.25mm
64 N·m
(6.5 kgf·m, 47 lbf·ft)
C
B
A
36. Install the upper torque rod, then tighten the new
upper torque rod mounting bolts in the numbered
sequence shown. 37. Raise the vehicle on the lift.
38. M/T model: Tighten the front mount mounting bolt.
39. Install the splash shield (see step 40 on page 5-20).
40. Lower the vehicle on the lift.
41. Install the variable valve timing control (VTC) oil
control solenoid valve (see page 11-294).
42. Install the harness clamps (A), and connect the CKP sensor connector (B) and the VTC oil control
solenoid valve connector (C).
43. Install the crankshaft pulley (see page 6-17).
44. Install the cylinder head cover (see page 6-37).
45. Install the drive belt (see page 4-31).
46. Do the CKP pattern clear/CKP learn procedure (see page 11-4).
Replace.
Replace.
Replace.
Replace.
08/08/21 14:27:21 61SNR030_060_0028
ProCarManuals.com
DYNOMITE -2009-




(#'
 )

Removal
6-29
Auto-tensioner Removal and Installation
C
B
A
1. Remove the chain case cover.
2. Turn the crankshaft counterclockwise to compress
the auto-tensioner. 3. Align the holes on the lock (A) and the auto-
tensioner (B), then insert a 1.2 mm (0.05 in.)
diameter pin or lock pin (P/N 14511-PNA-003) (C)
into the holes. Turn the crankshaft clockwise to
secure the pin.
NOTE: Check the auto-tensioner cam position. If the
position is not aligned, set the first cam to the first
edge of the rack (see step 8 on page 6-22).
4. Remove the auto-tensioner.
(cont’d)
08/08/21 14:27:22 61SNR030_060_0029
ProCarManuals.com
DYNOMITE -2009-




Installation

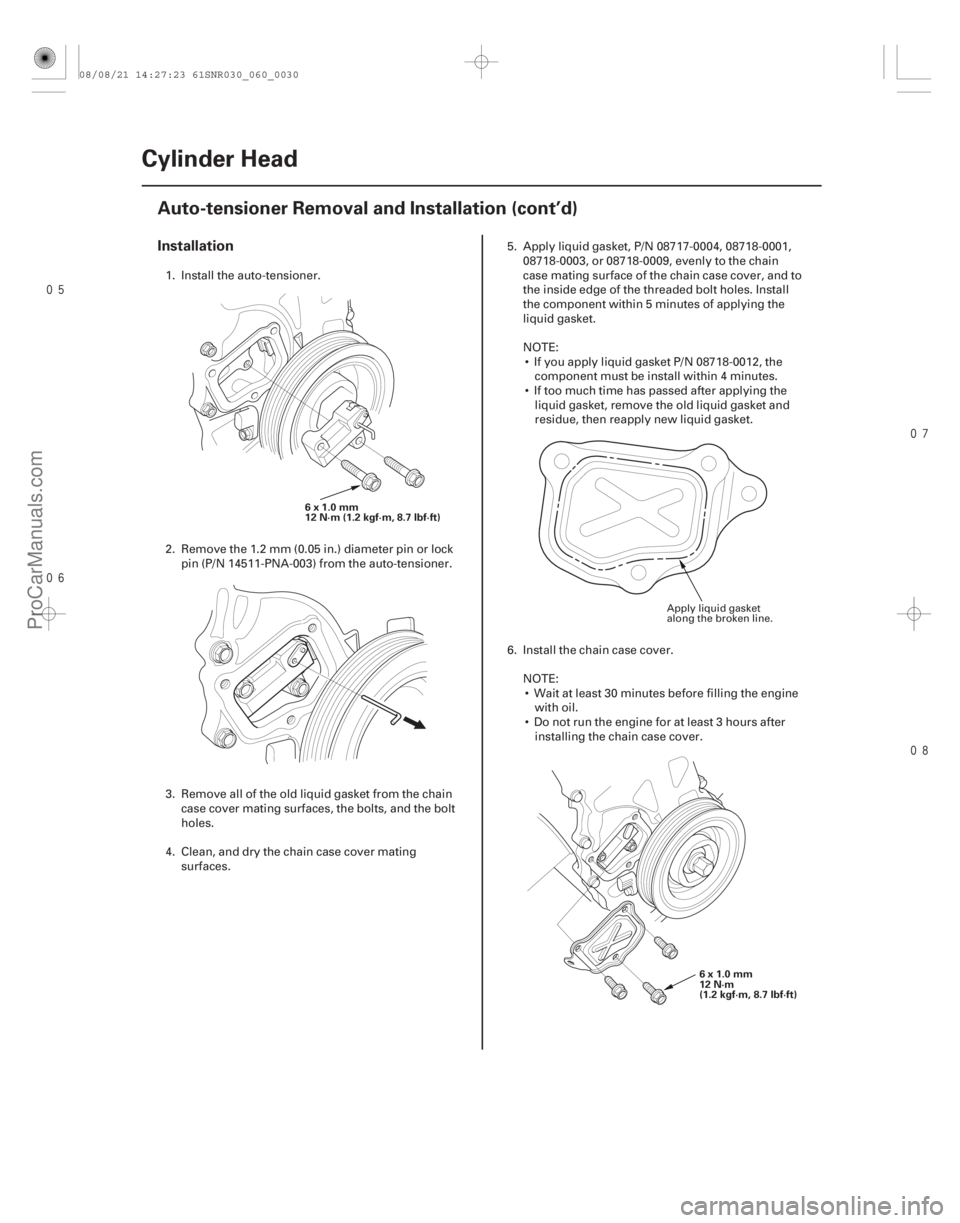

6-30Cylinder Head
Auto-tensioner Removal and Installation (cont’d)
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
1. Install the auto-tensioner.
2. Remove the 1.2 mm (0.05 in.) diameter pin or lockpin (P/N 14511-PNA-003) from the auto-tensioner.
3. Remove all of the old liquid gasket from the chain case cover mating surfaces, the bolts, and the bolt
holes.
4. Clean, and dry the chain case cover mating surfaces. 5. Apply liquid gasket, P/N 08717-0004, 08718-0001,
08718-0003, or 08718-0009, evenly to the chain
case mating surface of the chain case cover, and to
the inside edge of the threaded bolt holes. Install
the component within 5 minutes of applying the
liquid gasket.
NOTE: If you apply liquid gasket P/N 08718-0012, the component must be install within 4 minutes.
 If too much time has passed after applying the liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.
6. Install the chain case cover. NOTE: Wait at least 30 minutes before filling the engine with oil.
 Do not run the engine for at least 3 hours after installing the chain case cover.
Apply liquid gasket
along the broken line.
08/08/21 14:27:23 61SNR030_060_0030
ProCarManuals.com
DYNOMITE -2009-



(#'
 )

µ µ
µµ
Special Tools Required
Oil Seal Installed Height:
33.0 33.7 mm (1.30 1.33 in.)
6-31
Chain Case Oil Seal Installation
07749-0010000
07746-0010400 33.0 33.7 mm
(1.30 1.33 in.)
A
B
 Driver 07749-0010000
 Attachment, 52 x 55 mm 07746-0010400 1. Apply light coat of new engine oil around the chain case oil seal.
2. Apply light coat of new engine oil to the lip of the chain case oil seal.
3. Use the driver and the attachment, 52 x 55 mm to drive a new oil seal squarely into the chain case to
the specified installed height. 4. Measure the distance between the chain case
surface (A) and the oil seal (B).
08/08/21 14:27:23 61SNR030_060_0031
ProCarManuals.com
DYNOMITE -2009-


(#'
") Tensioner Rod Length
Service Limit: 13.5 mm (0.53 in.)
6-32
Cylinder Head
Cam Chain Inspection
13.5 mm (0.53 in.)
1. Remove the right front wheels.
2. Remove the splash shield (see step 25 on page 5-5).
3. Remove the drive belt (see page 4-31).
4. Remove the cylinder head cover (see page 6-36).
5. Set the No. 1 piston at top dead center (TDC). The
punch mark on the variable valve timing control
(VTC) actuator and the punch mark on the exhaust
camshaft sprocket should be at the top. Align the
TDC marks on the VTC actuator and the exhaust
camshaft sprocket (see step 5 on page 6-18).
6. Disconnect the crankshaft position (CKP) sensor connector and the VTC oil control solenoid valve
connector, and remove the harness clamps (see
step 6 on page 6-18).
7. Remove the VTC oil control solenoid valve (see page 11-294).
8. Remove the crankshaft pulley (see page 6-16).
9. Support the engine with a jack and a wood block under the oil pan.
10. Remove the upper torque rod (see step 10 on page 6-18).
11. Remove the ground cable, then remove the side engine mount bracket (see step 11 on page 6-19).
12. Remove the side engine mount bracket (see step 12 on page 6-19).
13. Remove the cam chain case (see step 13 on page 6-19). 14. Measure the tensioner rod length between the
tensioner body and bottom of the flat surface
section on the tensioner rod. If the length is more
than the service limit, replace the cam chain and
the oil pump chain.
15. Check the chain case oil seal for damage. If the oil seal is damaged, replace the chain case oil seal
(see page 6-31).
16. Remove all of the old liquid gasket from the chain case mating surfaces, bolt and bolt holes.
17. Clean, and dry the chain case mating surfaces.
18. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009, evenly to the engine
block mating surface of the chain case, and to the
inside edge of the threaded bolt holes. Install the
component within 5 minutes of applying the liquid
gasket(seestep17onpage6-24).
NOTE: If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
 If too much time has passed after applying the liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.
19. Apply liquid gasket to the engine block upper surface contact areas on the chain case and lower
block upper surface contact areas on the chain case
(see step 18 on page 6-24).
08/08/21 14:27:24 61SNR030_060_0032
ProCarManuals.com
DYNOMITE -2009-

6-33
20. Apply liquid gasket, P/N 08717-0004, 08718-0001,08718-0003, or 08718-0009, evenly to the oil pan
mating surface of the chain case, and to the inside
edge of the thread bolt holes. Install the component
within 5 minutes of applying the liquid gasket (see
step 19 on page 6-24).
NOTE: If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
 If too much time has passed after applying the liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.
21. Install the new O-ring on the chain case. Set the edge of the chain case to the edge of the oil pan,
then install the chain case on the engine block (see
step 20 on page 6-24). Wipe off the excess liquid
gasket on the oil pan and chain case mating surface.
NOTE: When installing the chain case, do not slide the bottom surface onto the oil pan mounting surface.
 Wait at least 30 minutes before filling the engine with oil.
 Do not run the engine for at least 3 hours after installing the chain case.
22. Install the side engine mount bracket (see step 21 on page 6-25).
23. Install the side engine mount bracket, then loosely tighten the new bolt and nut, and loosely tighten
the bolt. Install the ground cable (see step 22 on
page 6-25).
24. Remove the air cleaner assembly (see page 11-345).
25. Loosen the transmission mounting bolt and nuts (see step 25 on page 6-25).
26. Raise the vehicle on the lift.
27. Loosen the lower torque rod mounting bolt (see step 27 on page 6-26).
28. M/T model: Loosen the front mount mounting bolt (see step 28 on page 6-26). 29. Lower the vehicle on the lift.
30. Tighten the side engine mount mounting bolts and
nut (see step 30 on page 6-26).
31. Tighten the transmission mounting bolt and nuts (see step 31 on page 6-27).
32. Raise the vehicle on the lift.
33. Tighten the lower torque rod mounting bolt (see step 33 on page 6-27).
34. Lower the vehicle on the lift.
35. Install the air cleaner assembly (see page 11-345).
36. Install the upper torque rod, then tighten the new upper torque rod mounting bolts in the numbered
sequence shown (see step 36 on page 6-28).
37. Raise the vehicle on the lift.
38. M/T model: Tighten the front mount mounting bolt (see step 38 on page 6-28).
39. Install the splash shield (see step 40 on page 5-20).
40. Lower the vehicle on the lift.
41. Install the VTC oil control solenoid valve (see page 11-294).
42. Install the harness clamps, and connect the CKP sensor connector and the VTC oil control solenoid
valve connector (see step 42 on page 6-28).
43. Install the crankshaft pulley (see page 6-17).
44. Install the cylinder head cover (see page 6-37).
45. Install the drive belt (see page 4-31).
46. Do the CKP pattern clear/CKP learn procedure (see page 11-4).
08/08/21 14:27:24 61SNR030_060_0033
ProCarManuals.com
DYNOMITE -2009-


(#'


 )
6-34 Cylinder Head
CKP Pulse Plate Replacement
1. Remove the right front wheels.
2. Remove the splash shield (see step 25 on page 5-5).
3. Remove the drive belt (see page 4-31).
4. Remove the cylinder head cover (see page 6-36).
5. Set the No. 1 piston at top dead center (TDC). The
punch mark on the variable valve timing control
(VTC) actuator and the punch mark on the exhaust
camshaft sprocket should be at the top. Align the
TDC marks on the VTC actuator and the exhaust
camshaft sprocket (see step 5 on page 6-18).
6. Disconnect the crankshaft position (CKP) sensor connector and the variable valve timing control
(VTC) oil control solenoid valve connector, and
remove the harness clamps (see step 6 on page
6-18).
7. Remove the VTC oil control solenoid valve (see page 11-294).
8. Remove the crankshaft pulley (see page 6-16).
9. Support the engine with a jack and a wood block under the oil pan.
10. Remove the upper torque rod (see step 10 on page 6-18).
11. Remove the ground cable, then remove the side engine mount bracket (see step 11 on page 6-19).
12. Remove the side engine mount bracket (see step 12 on page 6-19).
13. Remove the cam chain case (see step 13 on page 6-19). 14. Remove the CKP pulse plate.
15. Install the CKP pulse plate.
16. Check the chain case oil seal for damage. If the oil
seal is damaged, replace the chain case oil seal
(see page 6-31).
17. Remove all of the old liquid gasket from the chain case mating surfaces, bolt and bolt holes.
18. Clean, and dry the chain case mating surfaces.
19. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009, evenly to the engine
block mating surface of the chain case, and to the
inside edge of the threaded bolt holes. Install the
component within 5 minutes of applying the liquid
gasket(seestep17onpage6-24).
NOTE: If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
 If too much time has passed after applying the liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.
20. Apply liquid gasket to the engine block upper surface contact areas on the chain case and lower
block upper surface contact areas on the chain case
(see step 18 on page 6-24).
08/08/21 14:27:24 61SNR030_060_0034
ProCarManuals.com
DYNOMITE -2009-

6-35
21. Apply liquid gasket, P/N 08717-0004, 08718-0001,08718-0003, or 08718-0009, evenly to the oil pan
mating surface of the chain case, and to the inside
edge of the threaded bolt holes. Install the
component within 5 minutes of applying the liquid
gasket(seestep19onpage6-24).
NOTE: If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
 If too much time has passed after applying the liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.
22. Install the new O-ring on the chain case. Set the edge of the chain case to the edge of the oil pan,
then install the chain case on the engine block (see
step 20 on page 6-24). Wipe off the excess liquid
gasket on the oil pan and chain case mating surface.
NOTE: When installing the chain case, do not slide the bottom surface onto the oil pan mounting surface.
 Wait at least 30 minutes before filling the engine with oil.
 Do not run the engine for at least 3 hours after installing the chain case.
23. Install the side engine mount bracket (see step 21 on page 6-25).
24. Install the side engine mount bracket, then loosely tighten the new bolt and nut, and loosely tighten
the bolt. Install the ground cable (see step 22 on
page 6-25).
25. Remove the air cleaner assembly (see page 11-345).
26. Loosen the transmission mounting bolt and nuts (see step 25 on page 6-25).
27. Raise the vehicle on the lift.
28. Loosen the lower torque rod mounting bolt (see step 27 on page 6-26).
29. M/T model: Loosen the front mount mounting bolt (see step 28 on page 6-26). 30. Lower the vehicle on the lift.
31. Tighten the side engine mount mounting bolts and
nut (see step 30 on page 6-26).
32. Tighten the transmission mounting bolt and nuts (see step 31 on page 6-27).
33. Raise the vehicle on the lift.
34. Tighten the lower torque rod mounting bolt (see step 33 on page 6-27).
35. Lower the vehicle on the lift.
36. Install the air cleaner assembly (see page 11-345).
37. Install the upper torque rod, then tighten the new upper torque rod mounting bolts in the numbered
sequence shown (see step 36 on page 6-28).
38. Raise the vehicle on the lift.
39. M/T model: Tighten the front mount mounting bolt (see step 38 on page 6-28).
40. Install the splash shield (see step 40 on page 5-20).
41. Lower the vehicle on the lift.
42. Install the VTC oil control solenoid valve (see page 11-294).
43. Install the harness clamps, and connect the CKP sensor connector and the VTC oil control solenoid
valve connector (see step 42 on page 6-28).
44. Install the crankshaft pulley (see page 6-17).
45. Install the cylinder head cover (see page 6-37).
46. Install the drive belt (see page 4-31).
47. Do the CKP pattern clear/CKP learn procedure (see page 11-4).
08/08/21 14:27:24 61SNR030_060_0035
ProCarManuals.com
DYNOMITE -2009-



(#'



 )
6-36 Cylinder Head
Cylinder Head Cover Removal
B
A
C
1. Remove the engine cover.
2. Remove the four ignition coils (see page 4-21).
3. Disconnect the evaporative emission (EVAP)
canister purge valve connector.
4. Remove the dipstick (A), and disconnect the breather hose (B).
5. Remove two bolts (C) securing the evaporative emission (EVAP) canister purge valve bracket. 6. Remove the cylinder head cover.
08/08/21 14:27:25 61SNR030_060_0036
ProCarManuals.com
DYNOMITE -2009-
