DTC P1683:
11-24711-247
28. Reconnect all connectors.
29. Update the ECM/PCM if it does not have the latestsoftware (see page 11-227), or substitute a known-
good ECM/PCM (see page 11-7).
30. Check for Temporary DTCs or DTCs with the HDS.
Check for poor connections or loose
terminals at the ETCS control relay and the ECM/
PCM. If the ECM/PCM was updated, substitute a
known-good ECM/PCM (see page 11-7), then
recheck. If the ECM/PCM was substituted, go to
step 1.
If the ECM/PCM was updated, troubleshooting
is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-228). If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting. Do not insert your fingers into the installed throttle
body when you turn the ignition switch to ON (II) or
while the ignition switch is ON (II). If you do, you
will seriously injure your fingers if the throttle valve
is activated.
NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3). 1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Start the engine. Hold the engine speed at 3,000 rpm without load (A/T in P or N, M/T in
neutral) until the radiator fan comes on, then let it
idle.
4. Turn the ignition switch to LOCK (0), and wait 10 seconds.
5. Turn the ignition switch to ON (II).
6. Check for Temporary DTCs or DTCs with the HDS.
Go to step 7.
Intermittent failure, the system is OK at this
time. Check for poor connections or loose terminals
at the throttle body and the ECM/PCM.
7. Turn the ignition switch to LOCK (0).
8. Disconnect the intake air duct from the throttle body; K20Z2 engine (see page 11-348), K20Z3
engine (see page 11-349).
(cont’d)Throttle Valve Default Position
Spring Performance Problem
Is DTC P1659 indicated?
Is DTC P1683 indicated?
08/08/21 14:26:43 61SNR030_110_0247
ProCarManuals.com
DYNOMITE -2009-


(#'

)
µ
µ
µ
µ µ
µ
YES
NO
YES
NO
YES
NO
DTC P1684:
11-24811-248Electronic Throttle Control System
DTC Troubleshooting (cont’d)
9. Push the throttle valve closed as shown.
10. Release the throttle valve. Clean the throttle body (see page 11- 344),
then go to step 12 and recheck. If DTC P1683 is
indicated, go to step 11.
Go to step 11.
11. Replace the throttle body; K20Z2 engine (see page 11-348), K20Z3 engine (see page 11-349).
12. Turn the ignition switch to ON (II).
13. Reset the ECM/PCM with the HDS.
14. Do the ECM/PCM idle learn procedure (see page 11-310).
15. Turn the ignition switch to LOCK (0), and wait 10 seconds.
16. Turn the ignition switch to ON (II).
17. Check for Temporary DTCs or DTCs with the HDS.
Check for poor connections or loose
terminals at the throttle body and the ECM/PCM,
then go to step 1.
Troubleshooting is complete. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting. Do not insert your fingers into the installed throttle
body when you turn the ignition switch to ON (II) or
while the ignition switch is ON (II). If you do, you
will seriously injure your fingers if the throttle valve
is activated.
NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3). 1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Start the engine. Hold the engine speed at 3,000 rpm without load (A/T in P or N, M/T in
neutral) until the radiator fan comes on, then let it
idle.
4. Turn the ignition switch to LOCK (0), and wait 10 seconds.
5. Turn the ignition switch to ON (II).
6. Check for Temporary DTCs or DTCs with the HDS.
Go to step 7.
Intermittent failure, the system is OK at this
time. Check for poor connections or loose terminals
at the throttle body and the ECM/PCM.
7. Turn the ignition switch to LOCK (0).
8. Disconnect the intake air duct from the throttle body; K20Z2 engine (see page 11-348), K20Z3
engine (see page 11-349).Throttle Valve Return Spring
Performance Problem
Does the throttle valve return?
Is DTC P1683 indicated? Is DTC P1684 indicated?
08/08/21 14:26:43 61SNR030_110_0248
ProCarManuals.com
DYNOMITE -2009-


(#'


)
µ
µ
µ
µ µ
µ
µ
µ
YES
NO
YES
NO YES
NO
YES
NO
DTC P2101:
11-24911-249

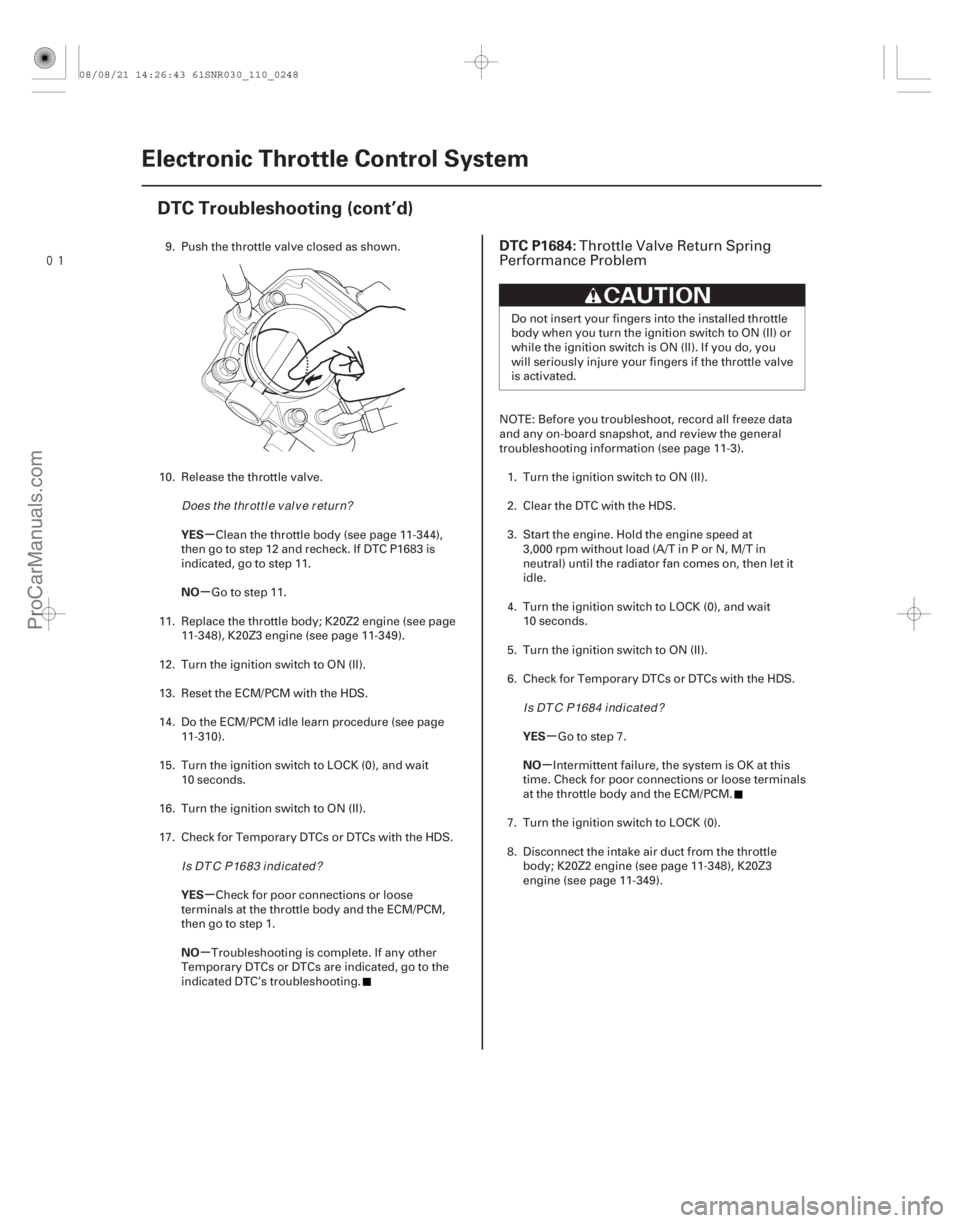

9. Push the throttle valve open as shown.
10. Release the throttle valve. Clean the throttle body (see page 11- 344),
then go to step 12 and recheck. If DTC P1684 is
indicated, go to step 11.
Go to step 11.
11. Replace the throttle body; K20Z2 engine (see page 11-348), K20Z3 engine (see page 11-349).
12. Turn the ignition switch to ON (II).
13. Reset the ECM/PCM with the HDS.
14. Do the ECM/PCM idle learn procedure (see page 11-310).
15. Turn the ignition switch to LOCK (0), and wait 10 seconds.
16. Turn the ignition switch to ON (II).
17. Check for Temporary DTCs or DTCs with the HDS.
Check for poor connections or loose
terminals at the throttle body and the ECM/PCM,
then go to step 1.
Troubleshooting is complete. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting. Do not insert your fingers into the installed throttle
body when you turn the ignition switch to ON (II) or
while the ignition switch is ON (II). If you do, you
will seriously injure your fingers if the throttle valve
is activated.
NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3). 1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Do the ETCS TEST in the INSPECTION MENU with the HDS.
4. Check for Temporary DTCs or DTCs with the HDS.
Go to step 7.
Go to step 5.
5. Test-drive the vehicle for several minutes in the range of these recorded freeze data parameters:
 ENGINE S PEED
 VSS
 APP SENSOR
6. Check for Temporary DTCs or DTCs with the HDS.
Go to step 7.
Intermittent failure, the system is OK at this
time. Check for poor connections or loose terminals
at the throttle body and the ECM/PCM, then clean
the throttle body (see page 11-344).
(cont’d)ETCS Malfunction
Does the throttle valve return?
Is DTC P1684 indicated? Is DTC P2101 indicated?
Is DTC P2101 indicated?
08/08/21 14:26:43 61SNR030_110_0249
ProCarManuals.com
DYNOMITE -2009-



µ´´
µ
µ
µ µ
µ
YES
NO
YES
NO

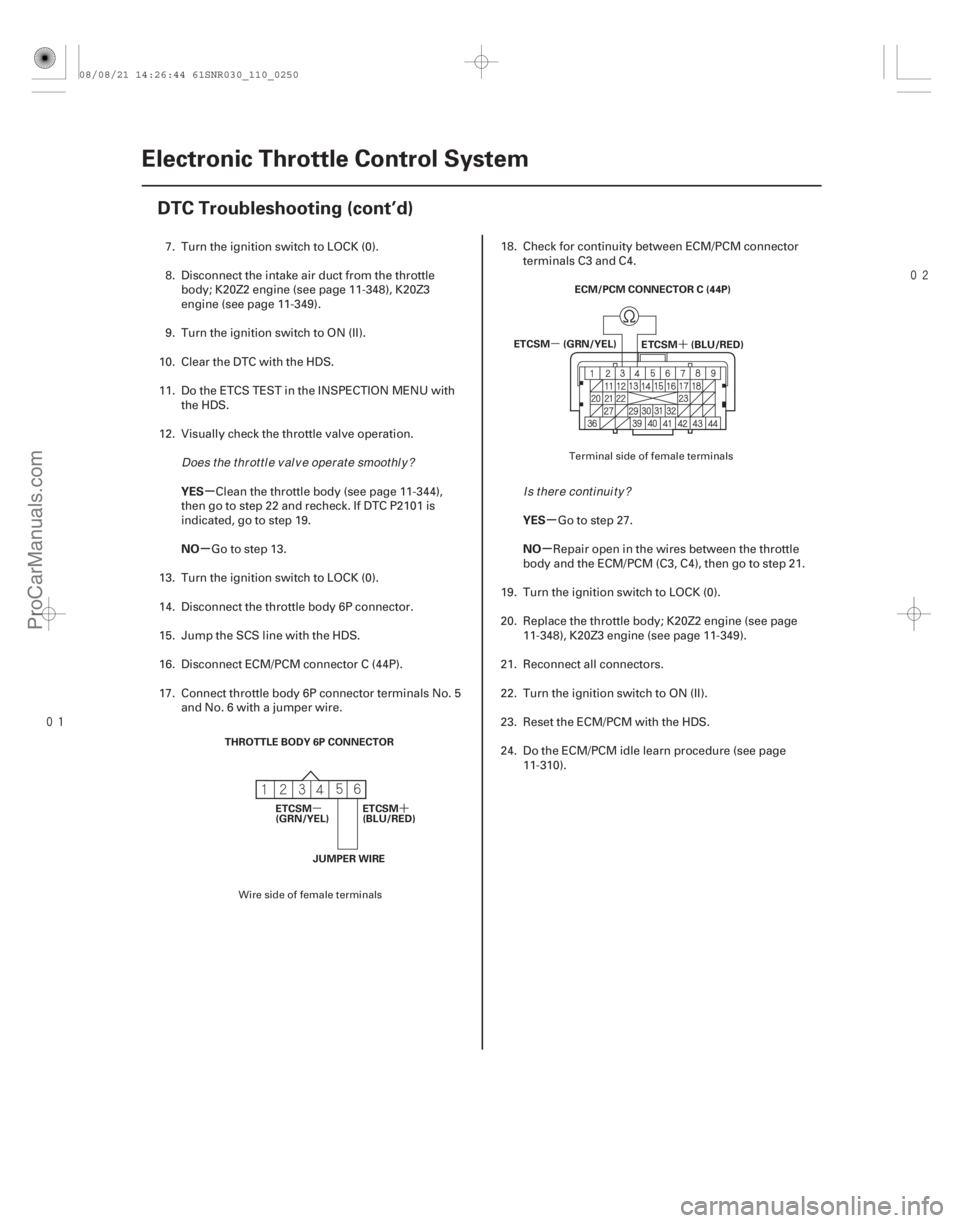

11-250Electronic Throttle Control System
DTC Troubleshooting (cont’d)
THROTTLE BODY 6P CONNECTOR
ETCSM
(GRN/YEL) ETCSM
(BLU/RED)
JUMPER WIRE ECM/PCM CONNECTOR C (44P)
ETCSM (BLU/RED)
ETCSM (GRN/YEL)
7. Turn the ignition switch to LOCK (0).
8. Disconnect the intake air duct from the throttle
body; K20Z2 engine (see page 11- 348), K20Z3
engine (see page 11-349).
9. Turn the ignition switch to ON (II).
10. Clear the DTC with the HDS.
11. Do the ETCS TEST in the INSPECTION MENU with the HDS.
12. Visually check the throttle valve operation.
Clean the throttle body (see page 11- 344),
then go to step 22 and recheck. If DTC P2101 is
indicated, go to step 19.
Go to step 13.
13. Turn the ignition switch to LOCK (0).
14. Disconnect the throttle body 6P connector.
15. Jump the SCS line with the HDS.
16. Disconnect ECM/PCM connector C (44P).
17. Connect throttle body 6P connector terminals No. 5 andNo.6withajumperwire. 18. Check for continuity between ECM/PCM connector
terminals C3 and C4.
Go to step 27.
Repair open in the wires between the throttle
body and the ECM/PCM (C3, C4), then go to step 21.
19. Turn the ignition switch to LOCK (0).
20. Replace the throttle body; K20Z2 engine (see page 11-348), K20Z3 engine (see page 11-349).
21. Reconnect all connectors.
22. Turn the ignition switch to ON (II).
23. Reset the ECM/PCM with the HDS.
24. Do the ECM/PCM idle learn procedure (see page 11-310).
Wire side of female terminals Terminal side of female terminals
Does t he t hr ot t l e v al v e oper at e smoot hl y ?
Is there continuity?
08/08/21 14:26:44 61SNR030_110_0250
ProCarManuals.com
DYNOMITE -2009-


(#'


)
´
µ
µ
µ
µ
µ µ
µ
YES
NO
YES
NO
YES
NO
DTC P2118:
11-25111-251
ECM/PCM CONNECTOR C (44P)
ETCSM (BLU/RED)
ETCSM (GRN/YEL)
25. Test-drive the vehicle for several minutes in the
range of these recorded freeze data parameters:
 ENGINE S PEED
 VSS
 APP SENSOR
26. Check for Temporary DTCs or DTCs with the HDS.
Check for poor connections or loose
terminals at the throttle body and the ECM/PCM,
then clean the throttle body (see page 11- 344), and
go to step 1.
Troubleshooting is complete. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.
27. Reconnect all connectors.
28. Update the ECM/PCM if it does not have the latest software (see page 11-227), or substitute a known-
good ECM/PCM (see page 11-7).
29. Test-drive the vehicle for several minutes in the range of these recorded freeze data parameters:
 ENGINE S PEED
 VSS
 APP SENSOR
30. Check for Temporary DTCs or DTCs with the HDS.
Check for poor connections or loose
terminals at the throttle body and the ECM/PCM. If
the ECM/PCM was updated, substitute a known-
good ECM/PCM (see page 11-7), then go to step 29.
If the ECM/PCM was substituted, go to step 1.
If the ECM/PCM was updated, troubleshooting
is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-228). If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting. NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).
1. Jump the SCS line with the HDS.
2. Disconnect ECM/PCM connector C (44P).
3. Measure the resistance between ECM/PCM connector terminals C3 and C4.
Go to step 4.
Go to step 15.
(cont’d)Throttle Actuator Current Range/
Performance Problem
Terminal side of female terminals
Is DTC P2101 indicated?
Is DTC P2101 indicated? Is t her e about 1.0 or l ess?
08/08/21 14:26:44 61SNR030_110_0251
ProCarManuals.com
DYNOMITE -2009-

µ´

µ´
µ
µ µ
µ
µ
µ
YES
NO
YES
NO
YES
NO

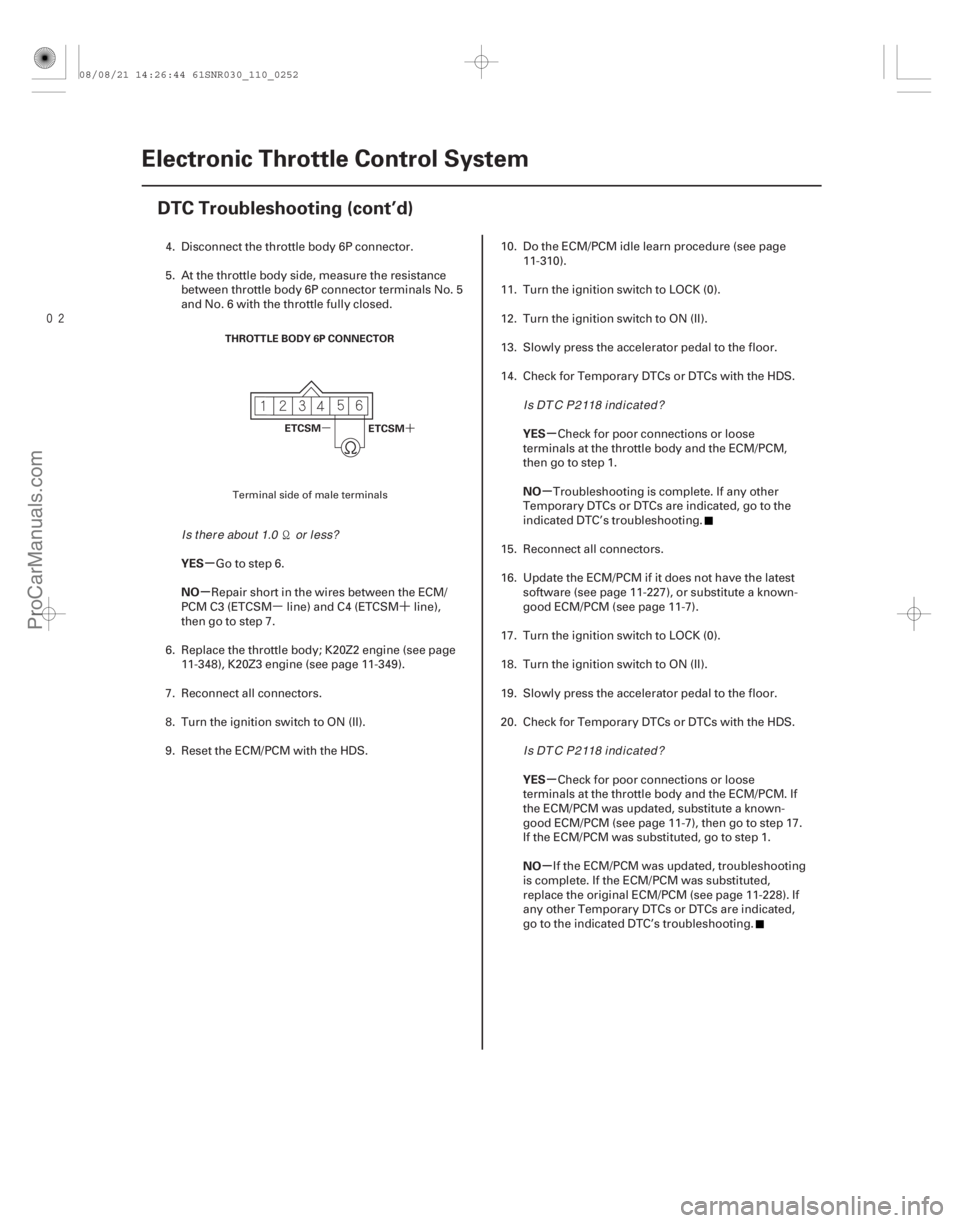

11-252Electronic Throttle Control System
DTC Troubleshooting (cont’d)
THROTTLE BODY 6P CONNECTOR
ETCSM ETCSM
4. Disconnect the throttle body 6P connector.
5. At the throttle body side, measure the resistance
between throttle body 6P connector terminals No. 5
and No. 6 with the throttle fully closed.
Go to step 6.
Repair short in the wires between the ECM/
PCM C3 (ETCSM line) and C4 (ETCSM line),
then go to step 7.
6. Replace the throttle body; K20Z2 engine (see page 11-348), K20Z3 engine (see page 11-349).
7. Reconnect all connectors.
8. Turn the ignition switch to ON (II).
9. Reset the ECM/PCM with the HDS. 10. Do the ECM/PCM idle learn procedure (see page
11-310).
11. Turn the ignition switch to LOCK (0).
12. Turn the ignition switch to ON (II).
13. Slowly press the accelerator pedal to the floor.
14. Check for Temporary DTCs or DTCs with the HDS.
Check for poor connections or loose
terminals at the throttle body and the ECM/PCM,
then go to step 1.
Troubleshooting is complete. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.
15. Reconnect all connectors.
16. Update the ECM/PCM if it does not have the latest software (see page 11-227), or substitute a known-
good ECM/PCM (see page 11-7).
17. Turn the ignition switch to LOCK (0).
18. Turn the ignition switch to ON (II).
19. Slowly press the accelerator pedal to the floor.
20. Check for Temporary DTCs or DTCs with the HDS.
Check for poor connections or loose
terminals at the throttle body and the ECM/PCM. If
the ECM/PCM was updated, substitute a known-
good ECM/PCM (see page 11-7), then go to step 17.
If the ECM/PCM was substituted, go to step 1.
If the ECM/PCM was updated, troubleshooting
is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-228). If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting.
Terminal side of male terminals
Is t her e about 1.0 or l ess? Is DTC P2118 indicated?
Is DTC P2118 indicated?
08/08/21 14:26:44 61SNR030_110_0252
ProCarManuals.com
DYNOMITE -2009-




(#'

)
µ
µ
µ
µ µ
µ
DTC P2122:
YES
NO
YES
NO YES
NO
11-253
APP SENSOR 6P CONNECTOR
SG4 (BLU) VCC4 (BRN) APP SENSOR 6P CONNECTOR
APSA (YEL)
APP SENSOR 6P CONNECTOR APSA (YEL)
JUMPER WIRE
APP Sensor A (TP Sensor D)
Circuit Low Voltage
NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).
1. Turn the ignition switch to ON (II).
2. Check APP SENSOR A in the DATA LIST with the HDS.
Go to step 3.
Intermittent failure, the system is OK at this
time. Check for poor connections or loose terminals
at the APP sensor and the ECM/PCM.
3. Turn the ignition switch to LOCK (0).
4. Disconnect the APP sensor 6P connector.
5. Turn the ignition switch to ON (II).
6. Measure the voltage between APP sensor 6P connector terminals No. 2 and No. 3.
Go to step 7.
Go to step 17. 7. Turn the ignition switch to LOCK (0).
8. Jump the SCS line with the HDS.
9. Disconnect ECM/PCM connector A (44P).
10. Check for continuity between APP sensor 6P connector terminal No. 1 and body ground.
Repair short in the wire between the ECM/
PCM (A17) and the APP sensor, then go to step 24.
Go to step 11.
11. Connect APP sensor 6P connector terminal No. 1 to body ground with a jumper wire.
(cont’d)
Wire side of female terminals Wire side of female terminals
Wire side of female terminals
Is t her e about 0.2 V or l ess?
Is t her e about 5 V ? Is there continuity?
08/08/21 14:26:45 61SNR030_110_0253
ProCarManuals.com
DYNOMITE -2009-



µ
µ µ
µ
YES
NO YES
NO
11-254Electronic Throttle Control System
DTC Troubleshooting (cont’d)
ECM/PCM CONNECTOR A (44P)
APSA (YEL)
APP SENSOR 6P CONNECTOR VCC4 (BRN)
JUMPER WIRE
APSA (YEL) APP SENSOR 6P CONNECTOR
VCC4 (BRN)
JUMPER WIRE
12. Check for continuity between ECM/PCM connector terminal A17 and body ground.
Go to step 13.
Repair open in the wire between the ECM/
PCM (A17) and the APP sensor, then go to step 24.
13. Reconnect ECM/PCM connector A (44P).
14. Connect APP sensor 6P connector terminals No. 1 andNo.3withajumperwire. 15. Turn the ignition switch to ON (II).
16. Check APP SENSOR A in the DATA LIST with the
HDS.
Go to step 29.
Go to step 22.
17. Turn the ignition switch to LOCK (0).
18. Jump the SCS line with the HDS.
19. Disconnect ECM/PCM connector A (44P).
20. Connect APP sensor 6P connector terminal No. 3 to body ground with a jumper wire.
Terminal side of female terminals
Wire side of female terminals Wire side of female terminals
Is there continuity?Is t her e about 0.2 V or l ess?
08/08/21 14:26:46 61SNR030_110_0254
ProCarManuals.com
DYNOMITE -2009-

µ
µ
µ
µ µ
µ
YES
NO
YES
NO YES
NO
11-255
ECM/PCM CONNECTOR A (44P)
VCC4
(BRN)
21. Check for continuity between ECM/PCM connectorterminal A25 and body ground.
Go to step 30.
Repair open in the wire between the ECM/
PCM (A25) and the APP sensor, then go to step 24.
22. Turn the ignition switch to LOCK (0).
23. Replace the accelerator pedal module; K20Z2 engine (see page 11-269), K20Z3 engine (see page
11-270).
24. Reconnect all connectors.
25. Turn the ignition switch to ON (II).
26. Reset the ECM/PCM with the HDS.
27. Do the ECM/PCM idle learn procedure (see page 11-310).
28. Check for Temporary DTCs or DTCs with the HDS.
Check for poor connections or loose
terminals at the APP sensor and the ECM/PCM,
then go to step 1.
Troubleshooting is complete. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting. 29. Turn the ignition switch to LOCK (0).
30. Reconnect all connectors.
31. Update the ECM/PCM if it does not have the latest
software (see page 11-227), or substitute a known-
good ECM/PCM (see page 11-7).
32. Check for Temporary DTCs or DTCs with the HDS.
Check for poor connections or loose
terminals at the APP sensor and the ECM/PCM. If
the ECM/PCM was updated, substitute a known-
good ECM/PCM (see page 11-7), then recheck. If the
ECM/PCM was substituted, go to step 1.
If the ECM/PCM was updated, troubleshooting
is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-228). If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting.
Terminal side of female terminals
Is there continuity?
Is DT C P2122 indicated? Is DT C P2122 indicated?
08/08/21 14:26:46 61SNR030_110_0255
ProCarManuals.com
DYNOMITE -2009-




(#'

)
µ
µ
µ
µ µ
µ
DTC P2123:
YES
NO
YES
NO YES
NO
11-256Electronic Throttle Control System
DTC Troubleshooting (cont’d)
APP SENSOR 6P CONNECTOR
SG4 (BLU) VCC4 (BRN) APP SENSOR 6P CONNECTOR
SG4 (BLU)
JUMPER WIRE
ECM/PCM CONNECTOR A (44P) SG4 (BLU)
APP Sensor A (TP Sensor D)
Circuit High Voltage
NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).
1. Turn the ignition switch to ON (II).
2. Check APP SENSOR A in the DATA LIST with the HDS.
Go to step 3.
Intermittent failure, the system is OK at this
time. Check for poor connections or loose terminals
at the APP sensor and the ECM/PCM.
3. Turn the ignition switch to LOCK (0).
4. Disconnect the APP sensor 6P connector.
5. Turn the ignition switch to ON (II).
6. Measure the voltage between APP sensor 6P connector terminals No. 2 and No. 3.
Go to step 12.
Go to step 7. 7. Turn the ignition switch to LOCK (0).
8. Jump the SCS line with the HDS.
9. Disconnect ECM/PCM connector A (44P).
10. Connect APP sensor 6P connector terminal No. 2 to body ground with a jumper wire.
11. Check for continuity between ECM/PCM connector terminal A35 and body ground.
Go to step 19.
Repair open in the wire between the ECM/
PCM (A35) and the APP sensor, then go to step 14.
Wire side of female terminals Wire side of female terminals
Terminal side of female terminals
Is t her e about 4.9 V or mor e?
Is t her e about 5 V ? Is there continuity?
08/08/21 14:26:46 61SNR030_110_0256
ProCarManuals.com
DYNOMITE -2009-
