Auto-tensioner Spring Torque:
32.5 39.7 N·m (3.31 4.05 kgf·m, 23.9 29.3 lbf·ft)
4-324-32 Charging System
Drive Belt Auto-tensioner
Inspection (cont’d)
Drive Belt Auto-tensioner Removal/
Installation
A
B
C
E
F
8x1.25mm
22 N·m
(2.2 kgf·m, 16 lbf·ft) 6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
A
10x1.25mm
56 N·m (5.7 kgf·m, 41 lbf·ft) B
30 °
30 °
D

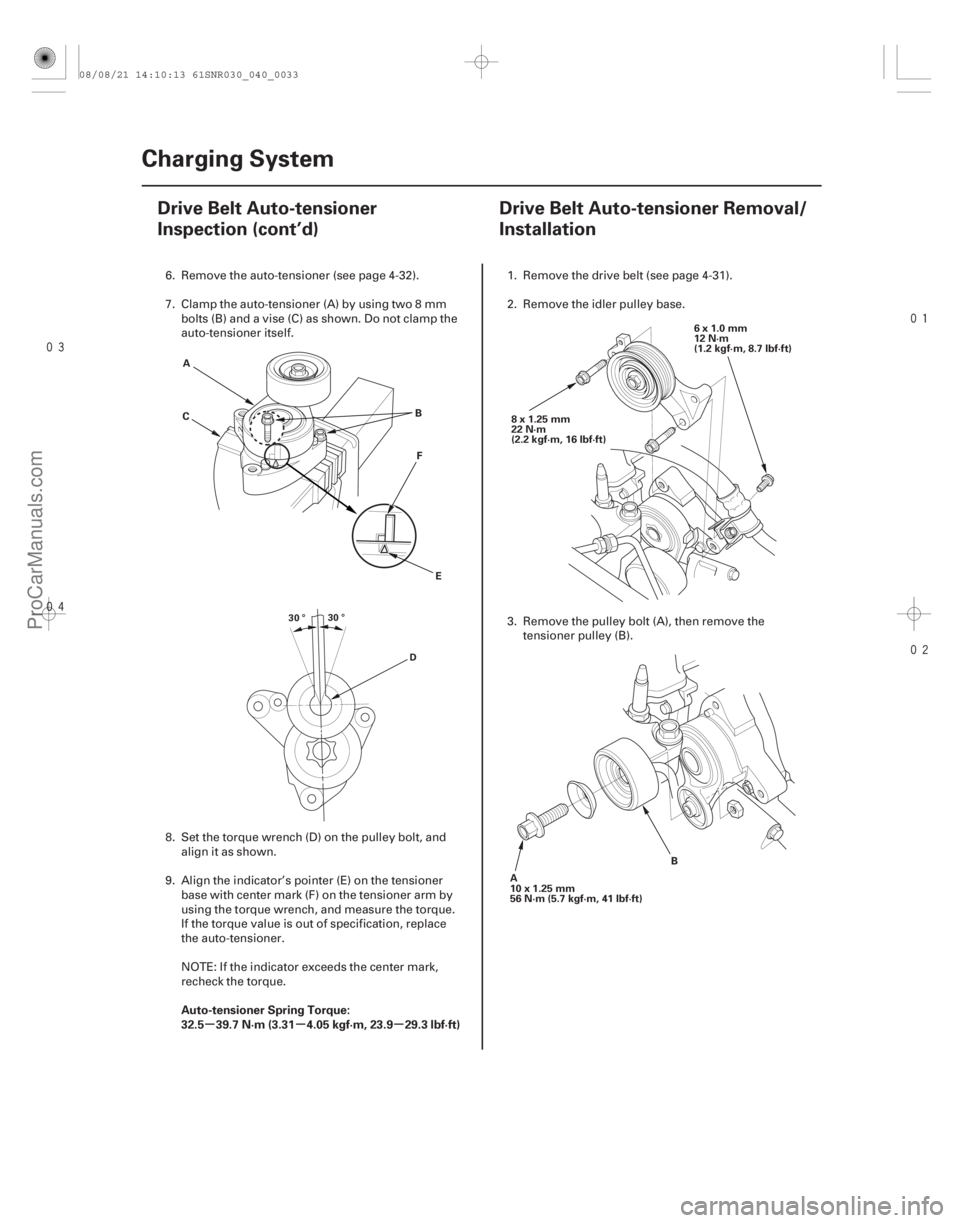

6. Remove the auto-tensioner (see page 4-32).
7. Clamp the auto-tensioner (A) by using two 8 mmbolts (B) and a vise (C) as shown. Do not clamp the
auto-tensioner itself.
8. Set the torque wrench (D) on the pulley bolt, and align it as shown.
9. Align the indicator’s pointer (E) on the tensioner base with center mark (F) on the tensioner arm by
using the torque wrench, and measure the torque.
If the torque value is out of specification, replace
the auto-tensioner.
NOTE: If the indicator exceeds the center mark,
recheck the torque. 1. Remove the drive belt (see page 4-31).
2. Remove the idler pulley base.
3. Remove the pulley bolt (A), then remove the
tensioner pulley (B).
08/08/21 14:10:13 61SNR030_040_0033
ProCarManuals.com
DYNOMITE -2009-


(#'

 )
4-334-33
Tensioner Pulley Replacement
8x1.25mm
22 N·m
(2.2 kgf·m, 16 lbf·ft) A
10x1.25mm
56 N·m
(5.7 kgf·m, 41 lbf·ft)B

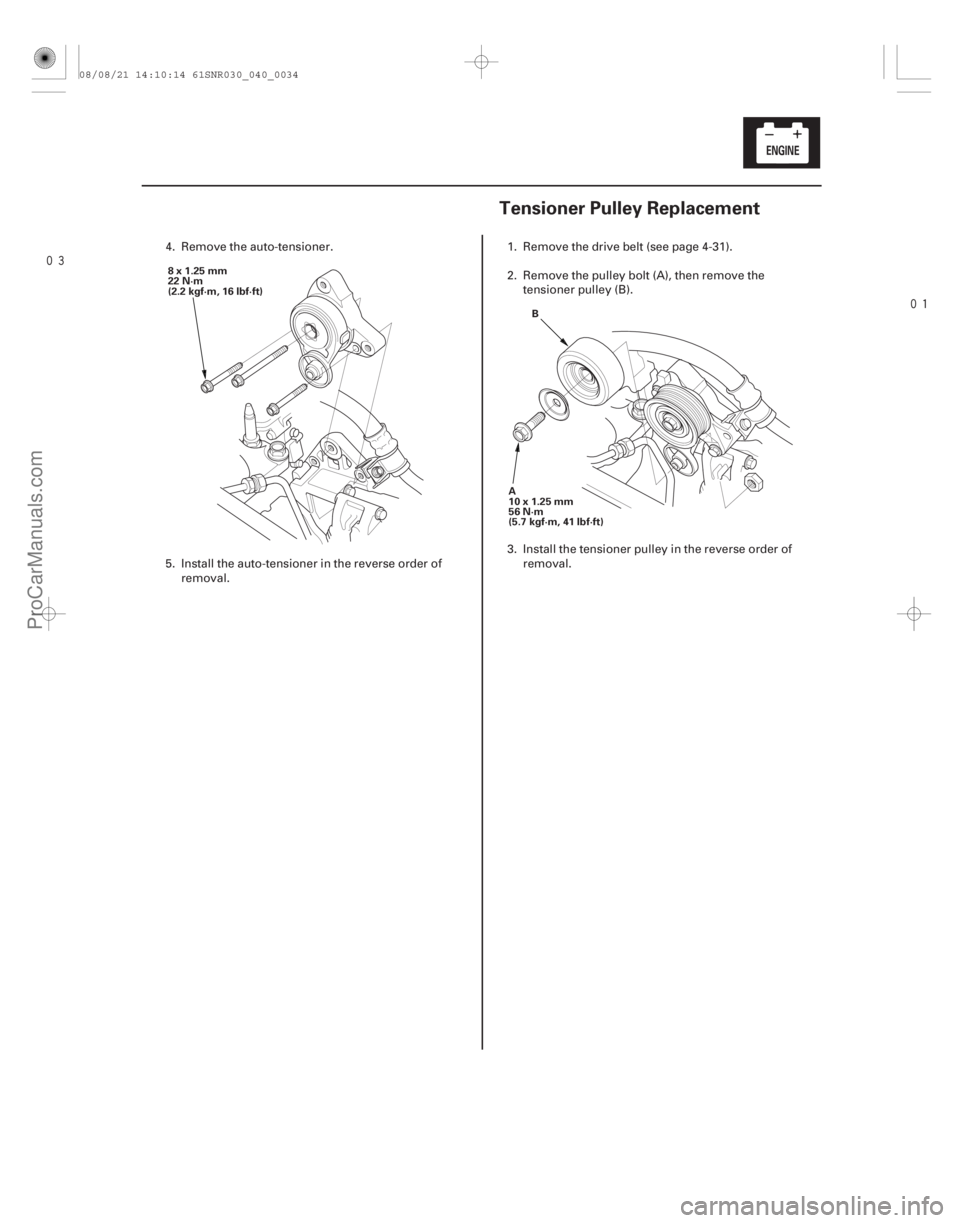

4. Remove the auto-tensioner.
5. Install the auto-tensioner in the reverse order of
removal. 1. Remove the drive belt (see page 4-31).
2. Remove the pulley bolt (A), then remove the
tensioner pulley (B).
3. Install the tensioner pulley in the reverse order of removal.
08/08/21 14:10:14 61SNR030_040_0034
ProCarManuals.com
DYNOMITE -2009-


(#'

 )

(#'



 )
Removal
4-344-34 Charging System
Idler Pulley Replacement
Alternator Removal and Installation
8x1.25mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)
AB
C
A
C
C C

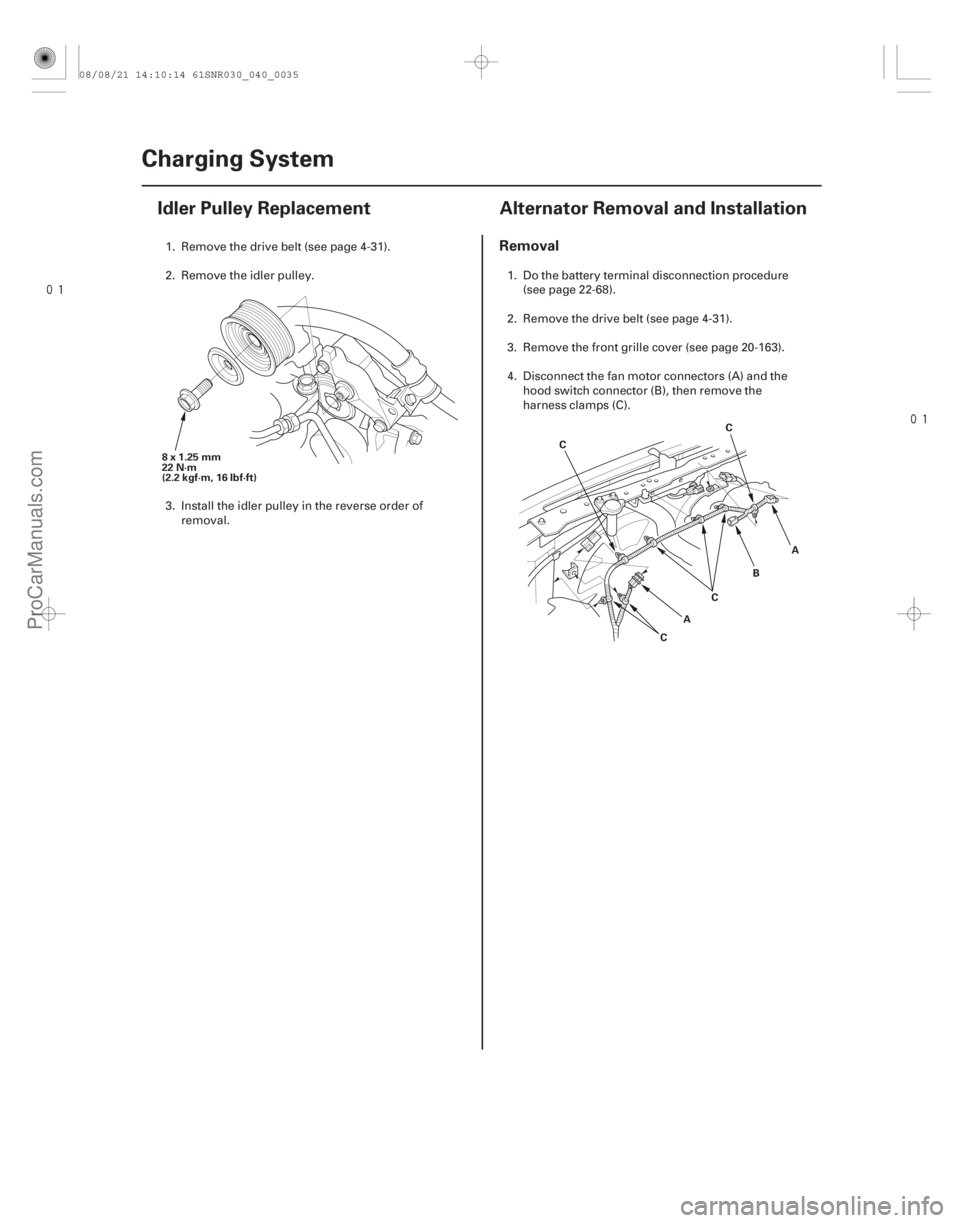

1. Remove the drive belt (see page 4-31).
2. Remove the idler pulley.
3. Install the idler pulley in the reverse order of
removal. 1. Do the battery terminal disconnection procedure
(see page 22-68).
2. Remove the drive belt (see page 4-31).
3. Remove the front grille cover (see page 20-163).
4. Disconnect the fan motor connectors (A) and the hood switch connector (B), then remove the
harnessclamps(C).
08/08/21 14:10:14 61SNR030_040_0035
ProCarManuals.com
DYNOMITE -2009-

Î
Î

4-35
D
C
A
C B
B
C
A AB
C

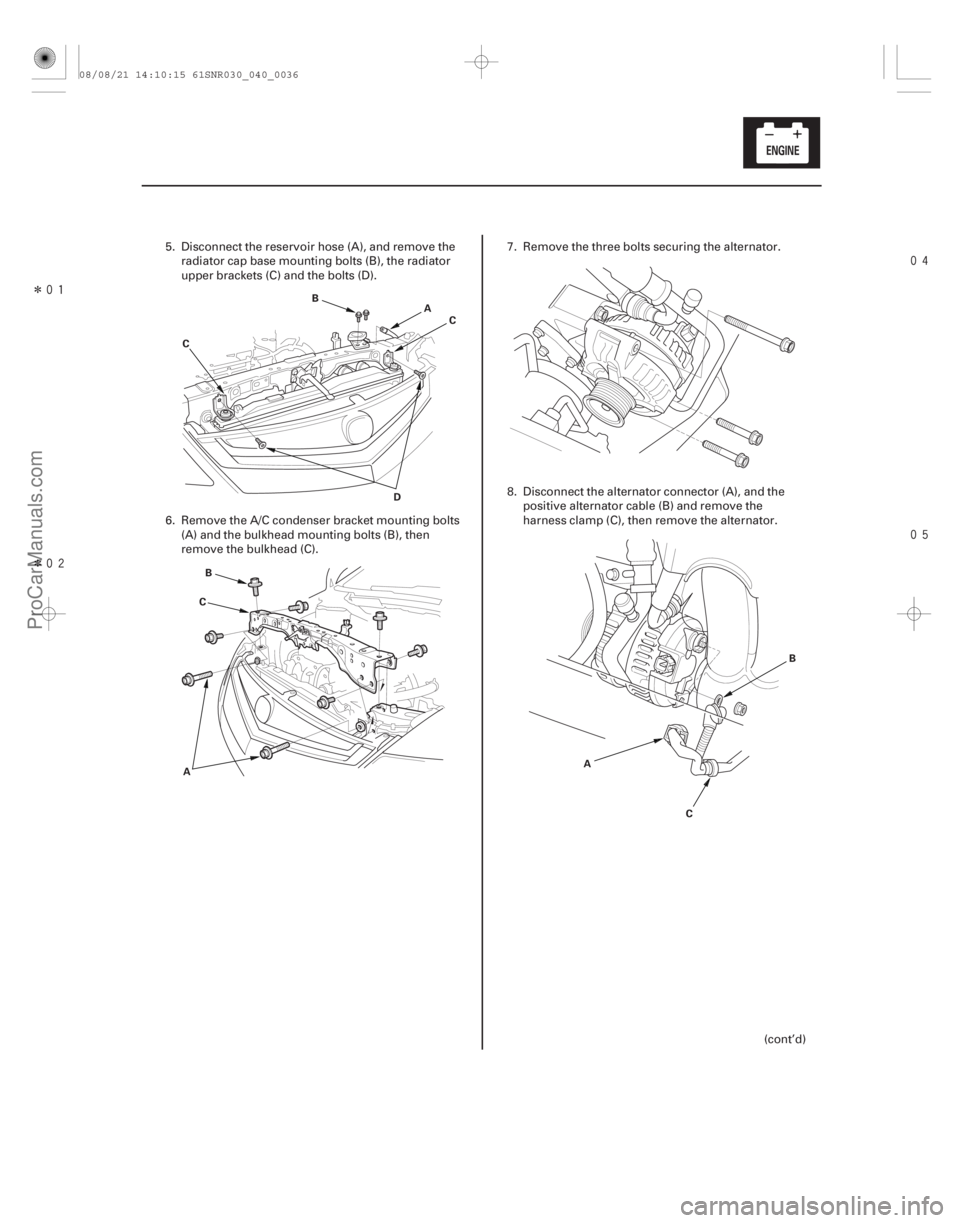

5. Disconnect the reservoir hose (A), and remove the radiator cap base mounting bolts (B), the radiator
upper brackets (C) and the bolts (D).
6. Remove the A/C condenser bracket mounting bolts (A) and the bulkhead mounting bolts (B), then
remove the bulkhead (C). 7. Remove the three bolts securing the alternator.
8. Disconnect the alternator connector (A), and the
positive alternator cable (B) and remove the
harness clamp (C), then remove the alternator.
(cont’d)
08/08/21 14:10:15 61SNR030_040_0036
ProCarManuals.com
DYNOMITE -2009-


Î Î
Î
Installation
4-36Charging System
Alternator Removal and Installation (cont’d)
A
B
C 6x1.0mm
8 N·m (0.8 kgf·m,
6lbf·ft)
8x1.25mm
22 N·m
(2.2 kgf·m, 16 lbf·ft) 8x1.25mm
22 N·m
(2.2 kgf·m, 16 lbf·ft) A
B
6x1.0mm
10 N·m (1.0 kgf·m, 7.2 lbf·ft)
C
6x1.0mm
10 N·m (1.0 kgf·m, 7.2 lbf·ft) A
D
A
C
6x1.0mm
10 N·m (1.0 kgf·m, 7.2 lbf·ft)
B
6x1.0mm
10 N·m (1.0 kgf·m, 7.2 lbf·ft)

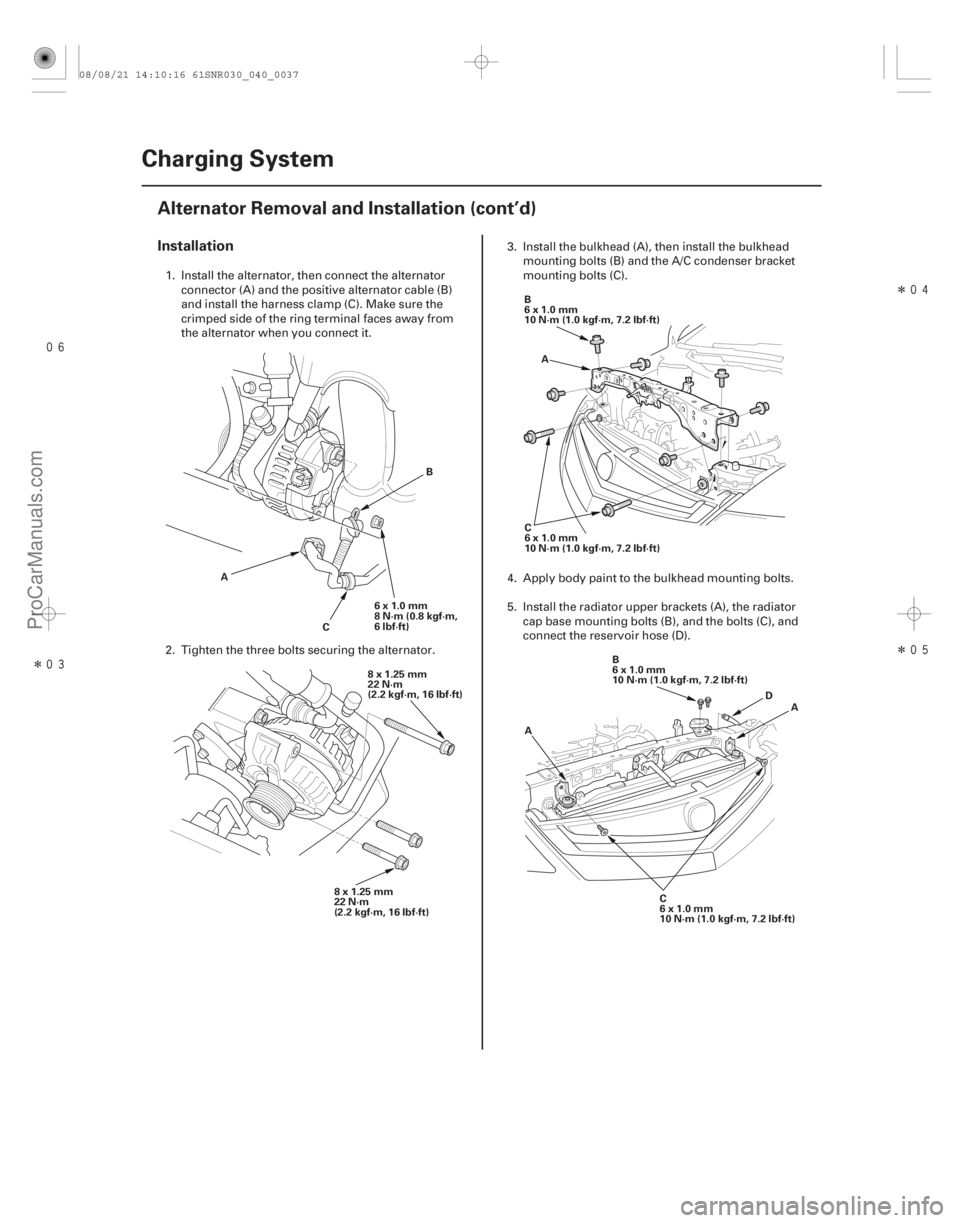

1. Install the alternator, then connect the alternator
connector (A) and the positive alternator cable (B)
and install the harness clamp (C). Make sure the
crimped side of the ring terminal faces away from
the alternator when you connect it.
2. Tighten the three bolts securing the alternator. 3. Install the bulkhead (A), then install the bulkhead
mounting bolts (B) and the A/C condenser bracket
mounting bolts (C).
4. Apply body paint to the bulkhead mounting bolts.
5. Install the radiator upper brackets (A), the radiator cap base mounting bolts (B), and the bolts (C), and
connect the reservoir hose (D).
08/08/21 14:10:16 61SNR030_040_0037
ProCarManuals.com
DYNOMITE -2009-



4-37
AB
C
A
C
C C

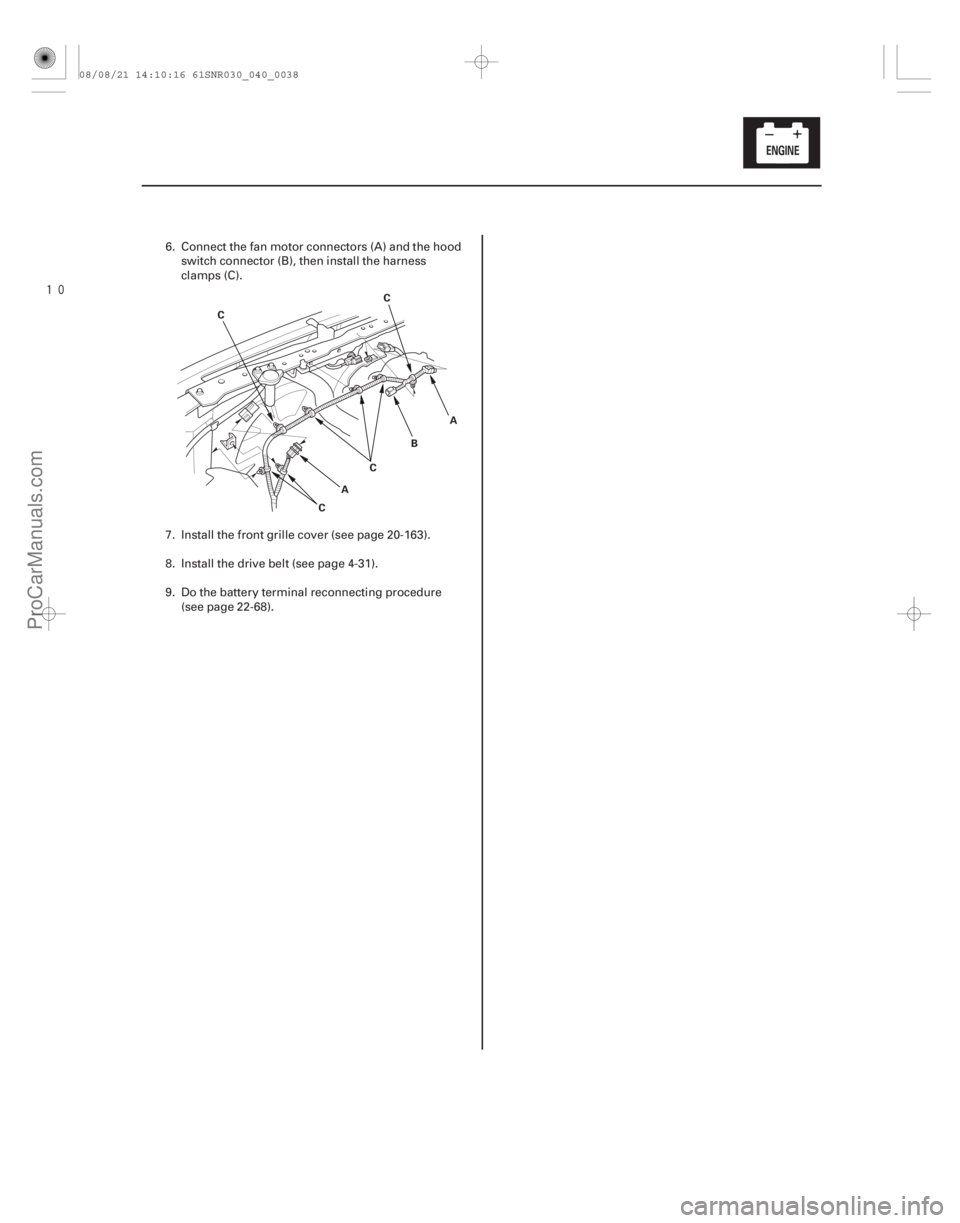

6. Connect the fan motor connectors (A) and the hood
switch connector (B), then install the harness
clamps (C).
7. Install the front grille cover (see page 20-163).
8. Install the drive belt (see page 4-31).
9. Do the battery terminal reconnecting procedure (see page 22-68).
08/08/21 14:10:16 61SNR030_040_0038
ProCarManuals.com
DYNOMITE -2009-

Î
(#'



!)

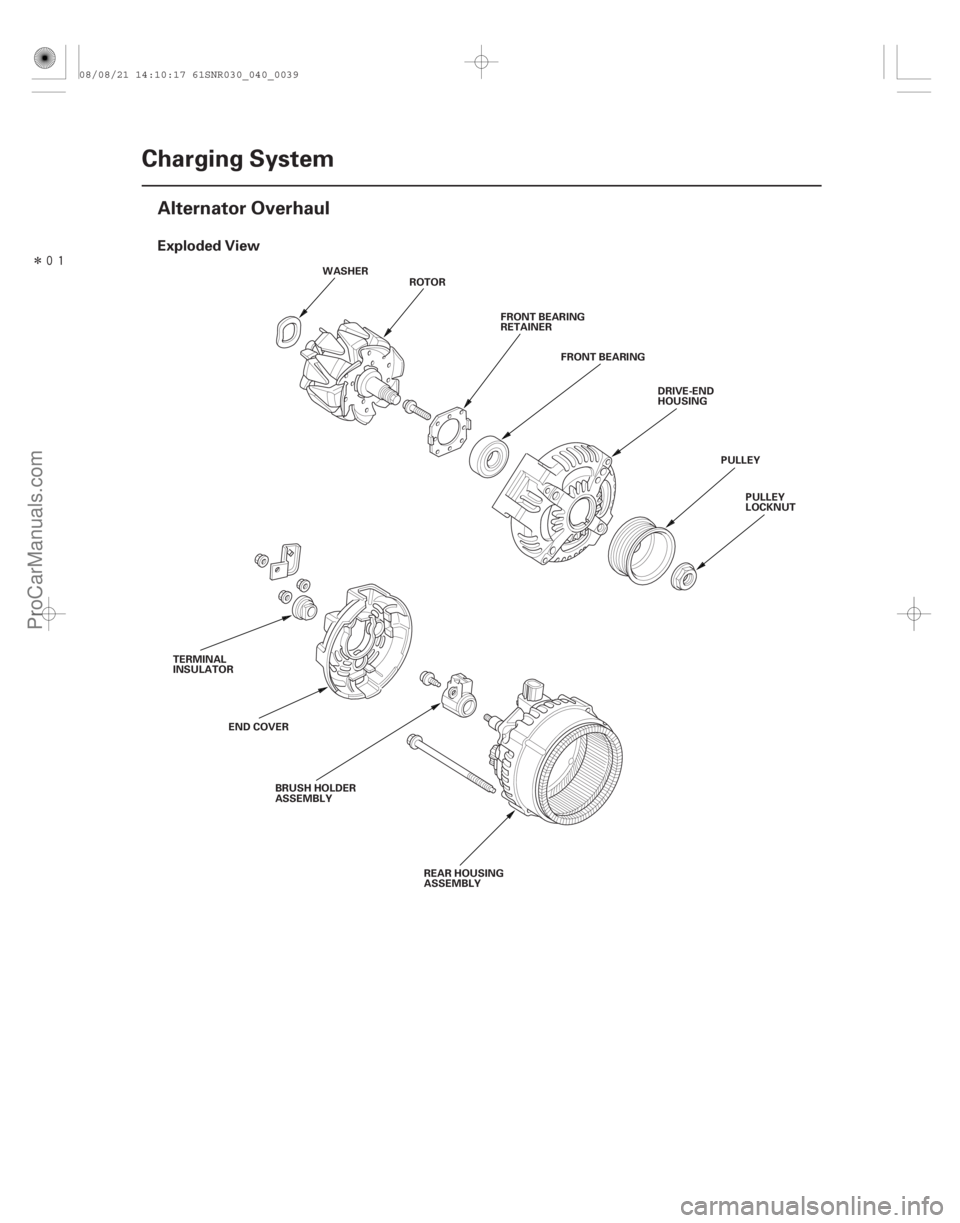

Exploded View
4-38Charging System
Alternator Overhaul
ROTOR
FRONT BEARING
RETAINERFRONT BEARING
DRIVE-END
HOUSING
PULLEYPULLEY
LOCKNUT
TERMINAL
INSULATOR BRUSH HOLDER
ASSEMBLY REAR HOUSING
ASSEMBLY
END COVER WASHER
08/08/21 14:10:17 61SNR030_040_0039
ProCarManuals.com
DYNOMITE -2009-




Special Tools Required
4-39
B
A
 Driver 07749-0010000
 Attachment, 42 x 47 mm 07746-0010300
NOTE: Refer to the Exploded View as needed during

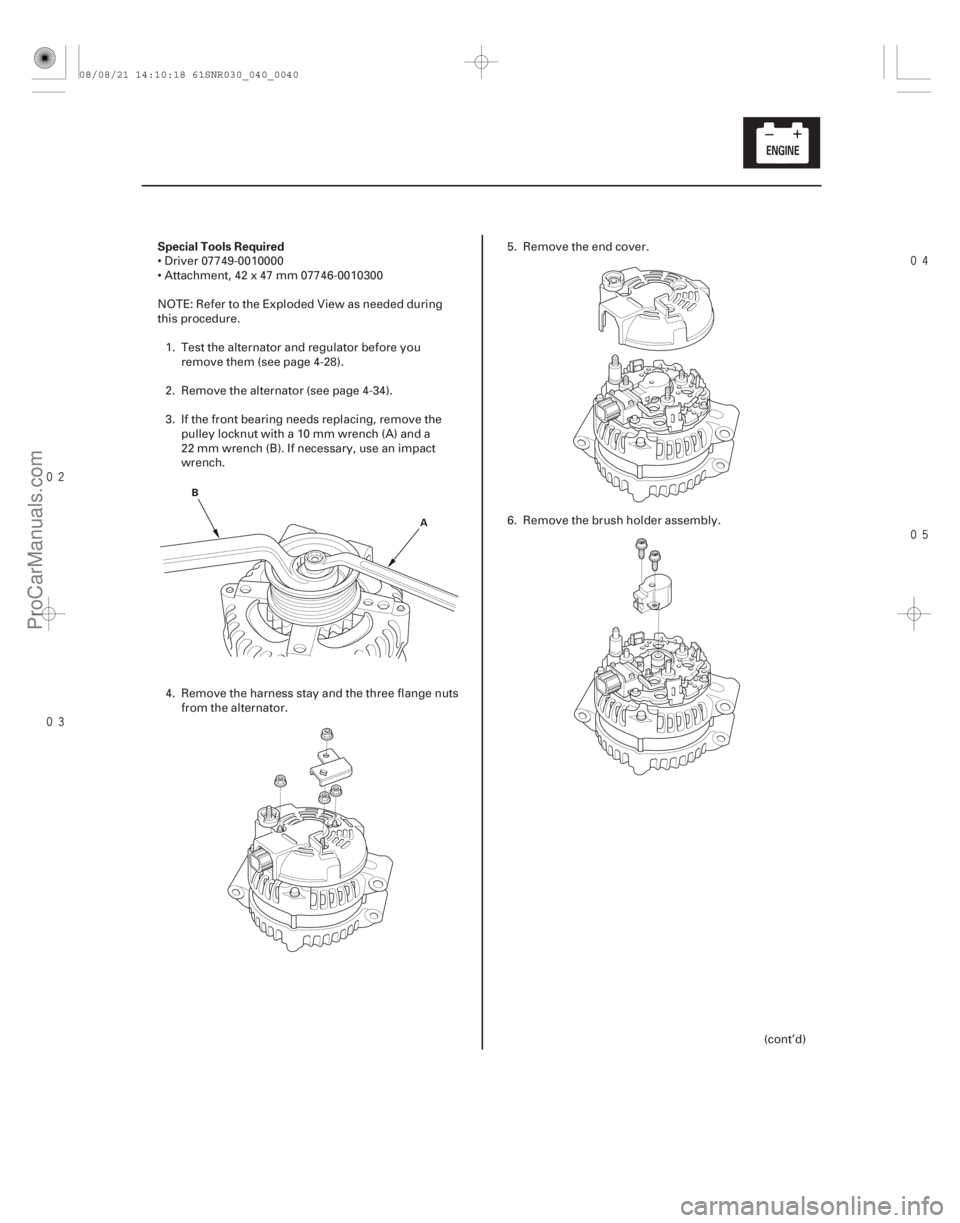

this procedure.1. Test the alternator and regulator before you remove them (see page 4-28).
2. Remove the alternator (see page 4-34).
3. If the front bearing needs replacing, remove the pulley locknut with a 10 mm wrench (A) and a
22 mm wrench (B). If necessary, use an impact
wrench.
4. Remove the harness stay and the three flange nuts from the alternator. 5. Remove the end cover.
6. Remove the brush holder assembly.
(cont’d)
08/08/21 14:10:18 61SNR030_040_0040
ProCarManuals.com
DYNOMITE -2009-




4-40Charging System
Alternator Overhaul (cont’d)
B
A

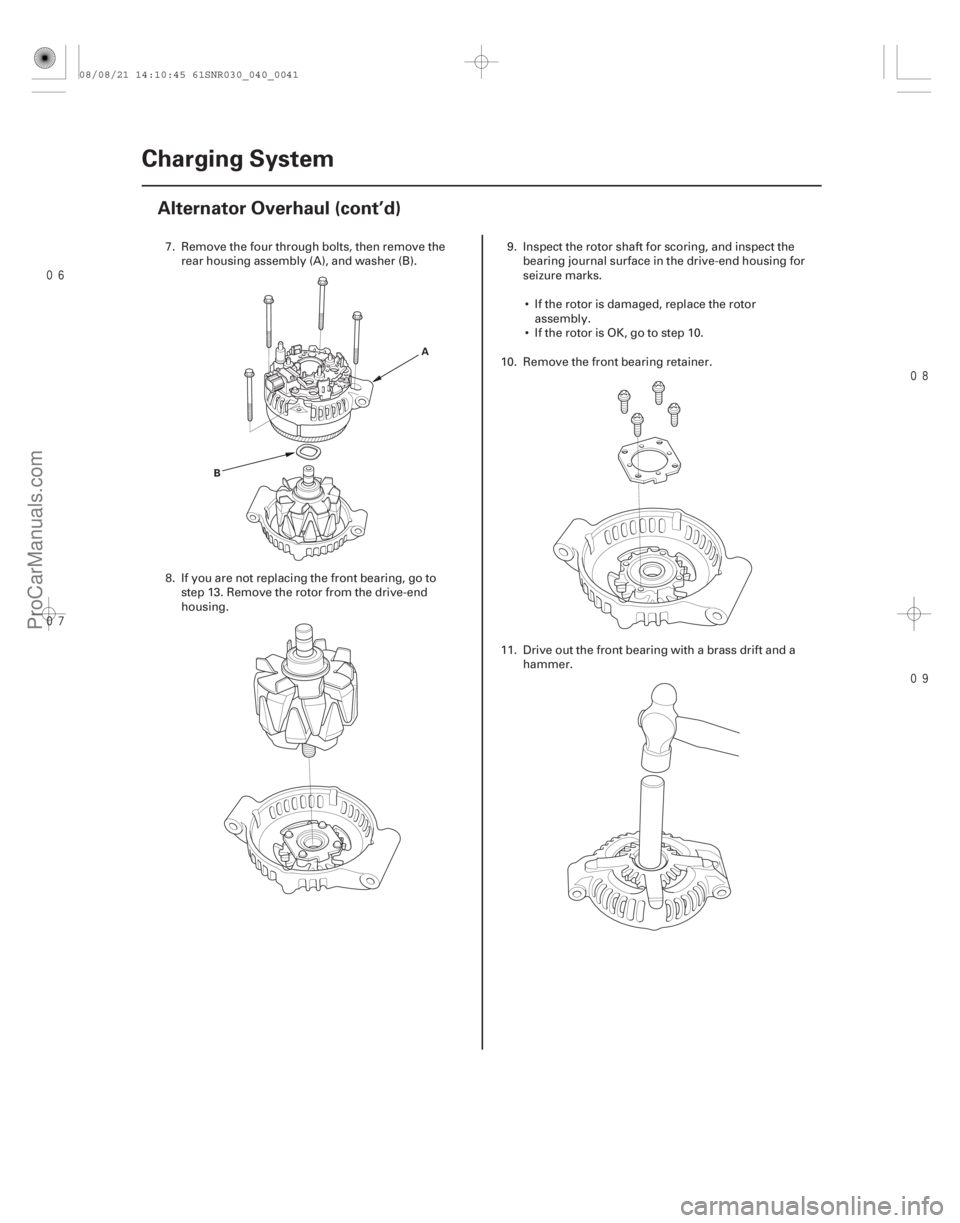

7. Remove the four through bolts, then remove the
rear housing assembly (A), and washer (B).
8. If you are not replacing the front bearing, go to step 13. Remove the rotor from the drive-end
housing. 9. Inspect the rotor shaft for scoring, and inspect the
bearing journal surface in the drive-end housing for
seizure marks.
 If the rotor is damaged, replace the rotor assembly.
 If the rotor is OK, go to step 10.
10. Remove the front bearing retainer.
11. Drive out the front bearing with a brass drift and a hammer.
08/08/21 14:10:45 61SNR030_040_0041
ProCarManuals.com
DYNOMITE -2009-







Alternator Brush Inspection Alternator Brush Length
Standard (New): 10.5 mm (0.41 in.)
Service Limit: 1.5 mm (0.06 in.) Rotor Slip Ring Test
4-41
07749-0010000
07746-0010300
B AA
BC

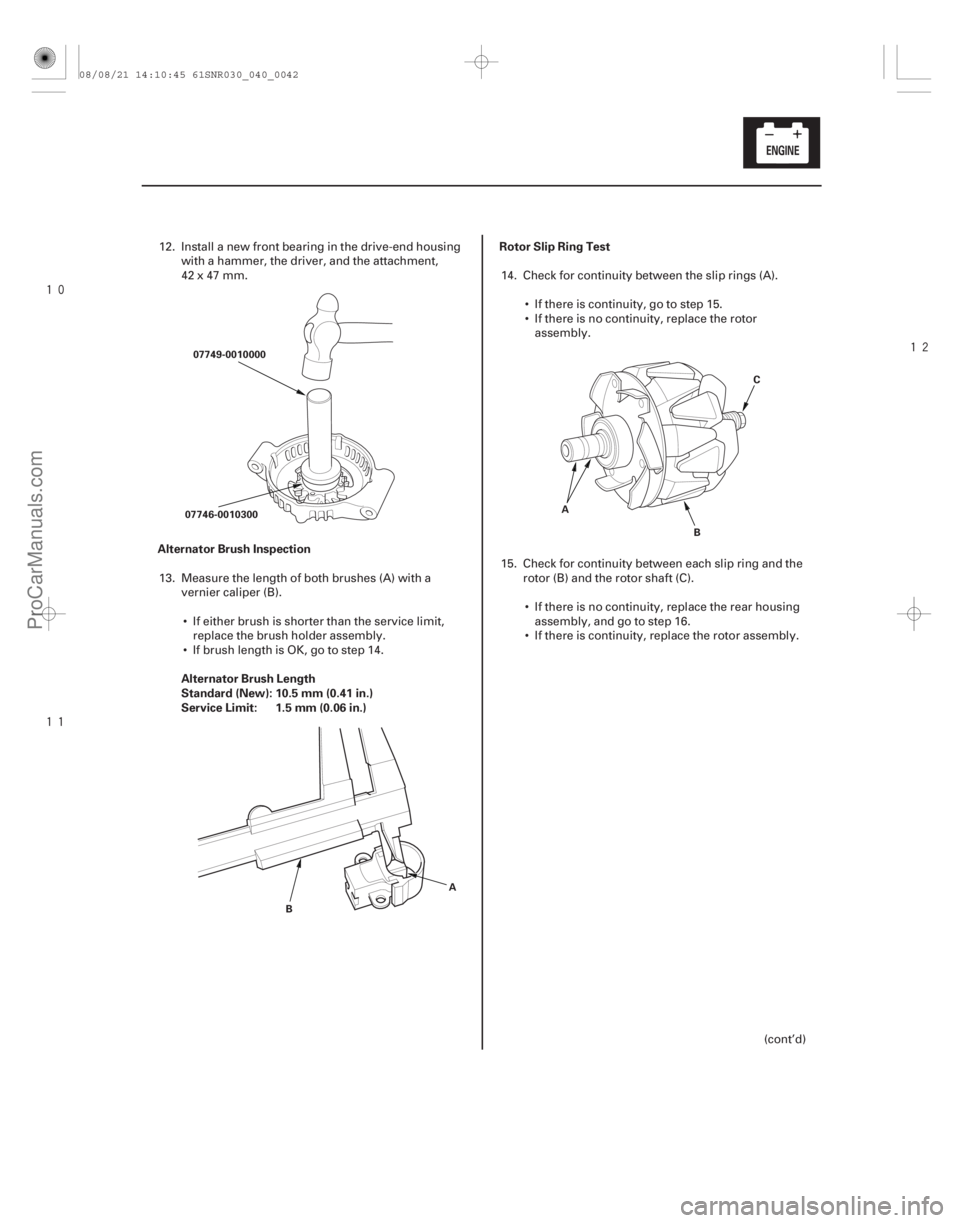

12. Install a new front bearing in the drive-end housing
with a hammer, the driver, and the attachment,
42x47mm.
13. Measure the length of both brushes (A) with a vernier caliper (B).
 If either brush is shorter than the service limit, replace the brush holder assembly.
 If brush length is OK, go to step 14. 14. Check for continuity between the slip rings (A).
 If there is continuity, go to step 15.
 If there is no continuity, replace the rotorassembly.
15. Check for continuity between each slip ring and the rotor (B) and the rotor shaft (C).
 If there is no continuity, replace the rear housing assembly, and go to step 16.
 If there is continuity, replace the rotor assembly.
(cont’d)
08/08/21 14:10:45 61SNR030_040_0042
ProCarManuals.com
