ACURA NSX 1991 Service Repair Manual

ProCarManuals.com

System Descriptio n

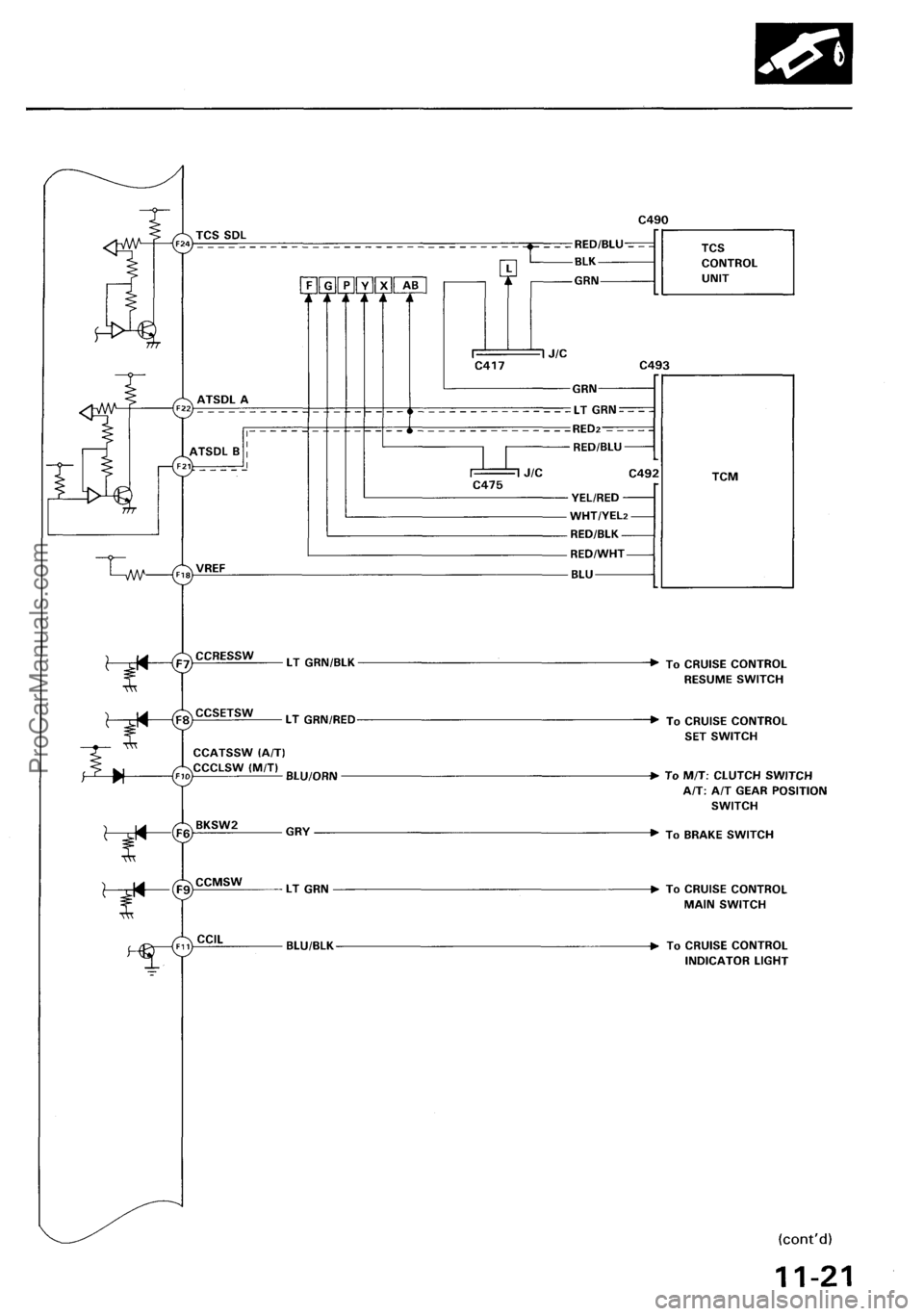

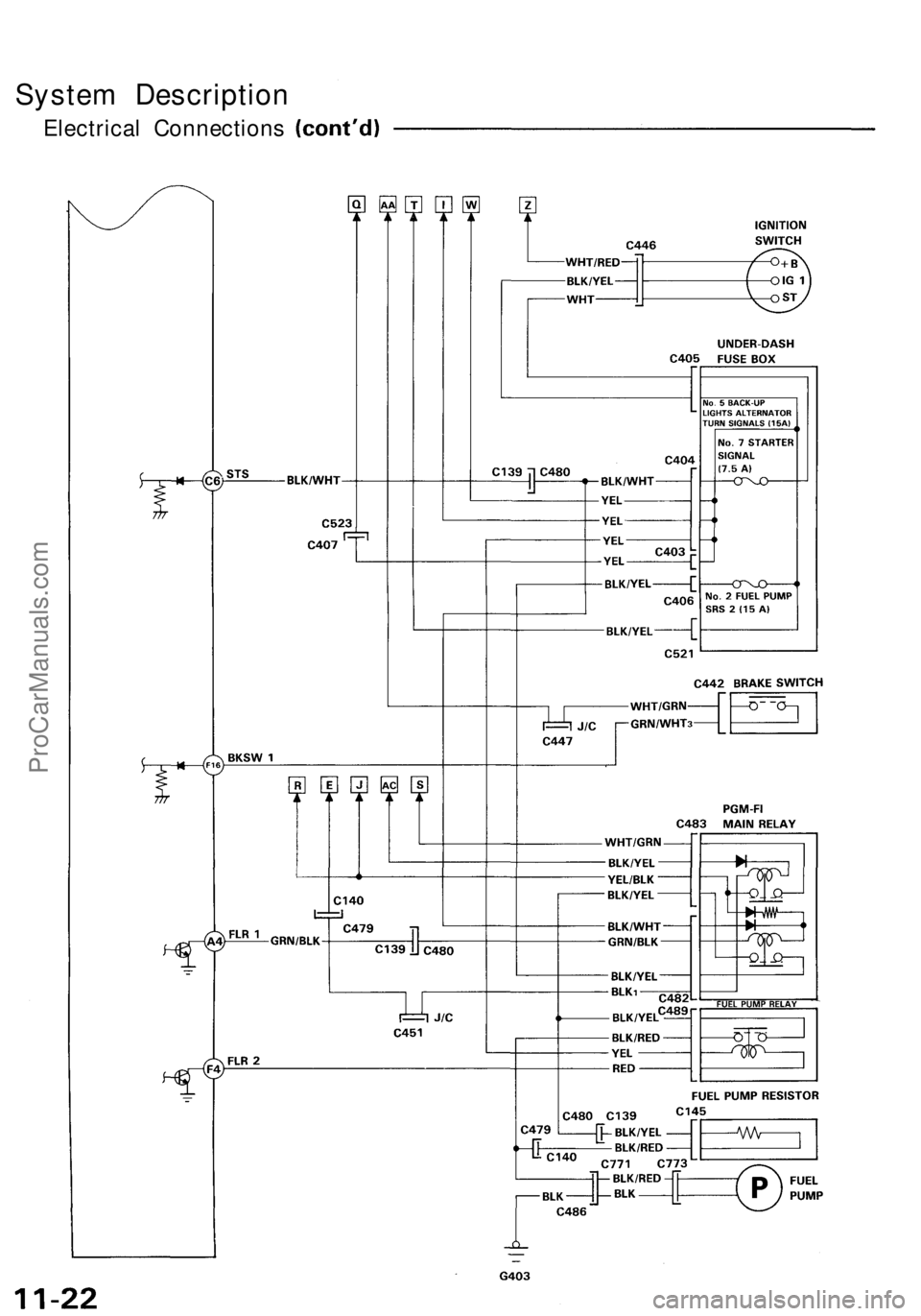

Electrical Connection s
ProCarManuals.com

System Descriptio n

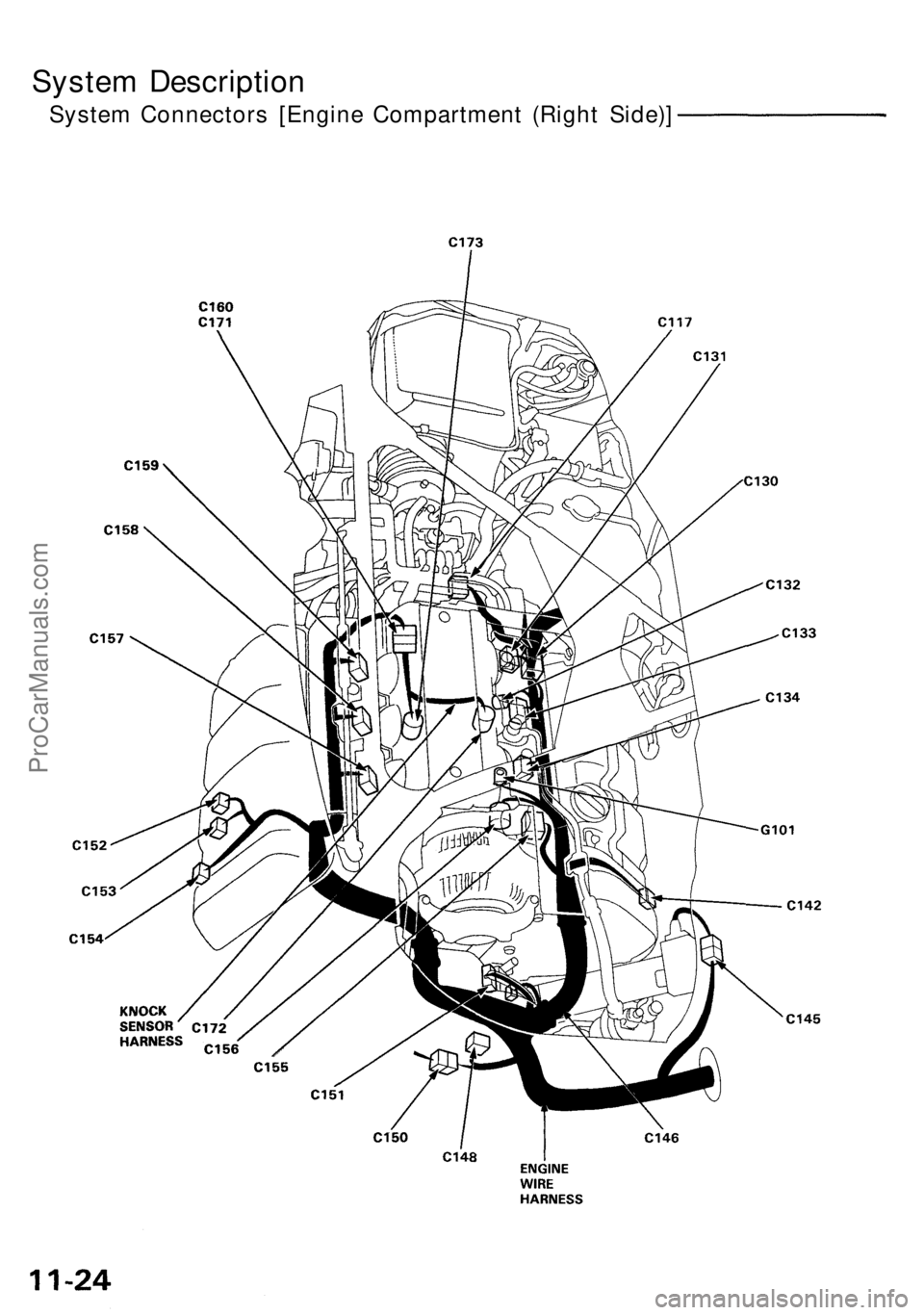

System Connectors [Engine Compartment (Right Side)]
ProCarManuals.com

NOTE:
•
Different wires
with
the
same color have been
given
a
number suffix
to
distinguish
them
(for example,

YEL/BLK1 and YEL/BLK2 are not the same).

Related to Fuel and Emissions System.

• — Connector with male terminals (double outline): View from terminal side

— Connector with female terminals (single outline): View from wire sideProCarManuals.com

System Descriptio n

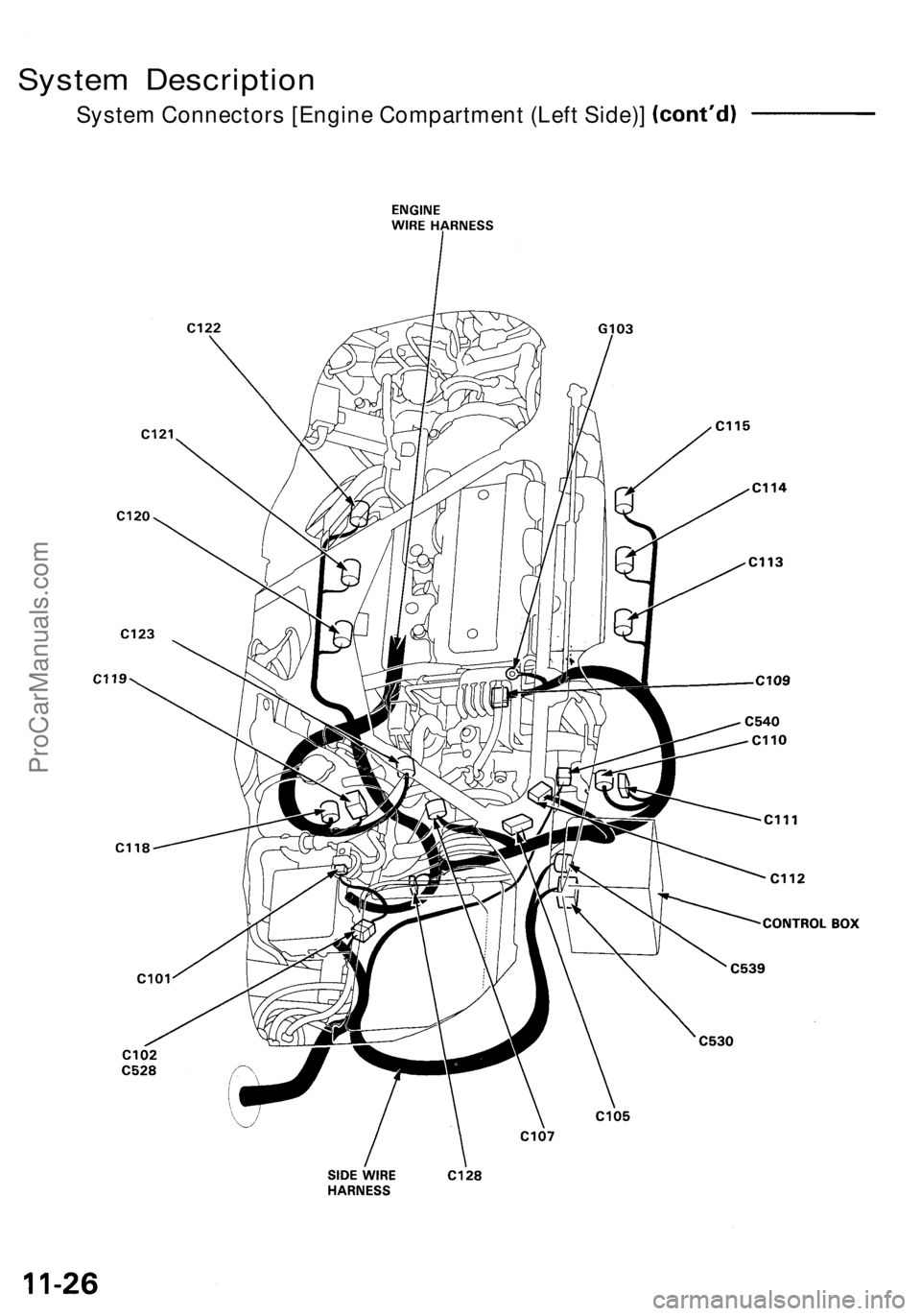

System Connectors [Engine Compartment (Left Side)]
ProCarManuals.com

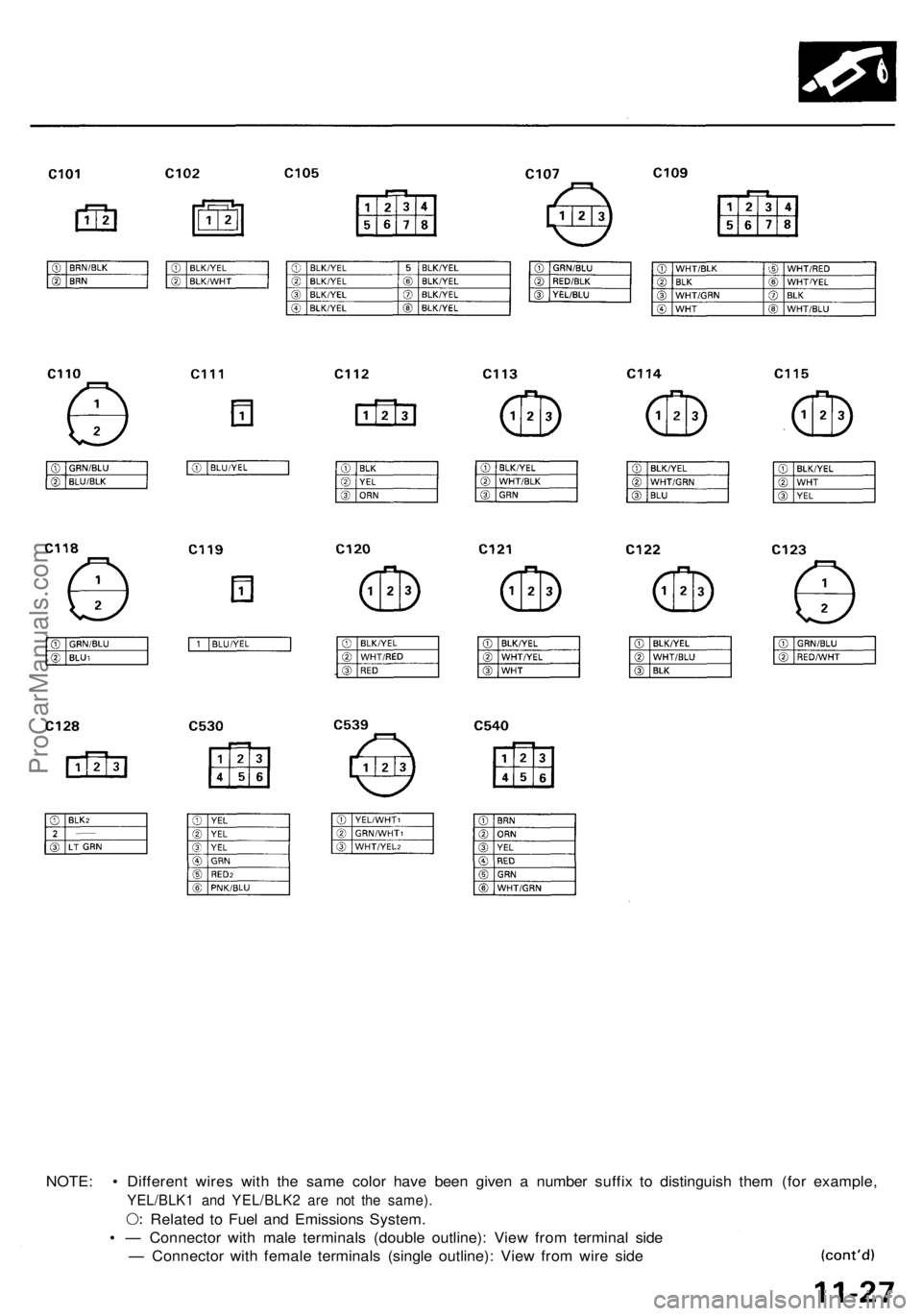

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example,

YEL/BLK1 and YEL/BLK2 are not the same).

Related to Fuel and Emissions System.

• — Connector with male terminals (double outline): View from terminal side

— Connector with female terminals (single outline): View from wire sideProCarManuals.com

System Descriptio n

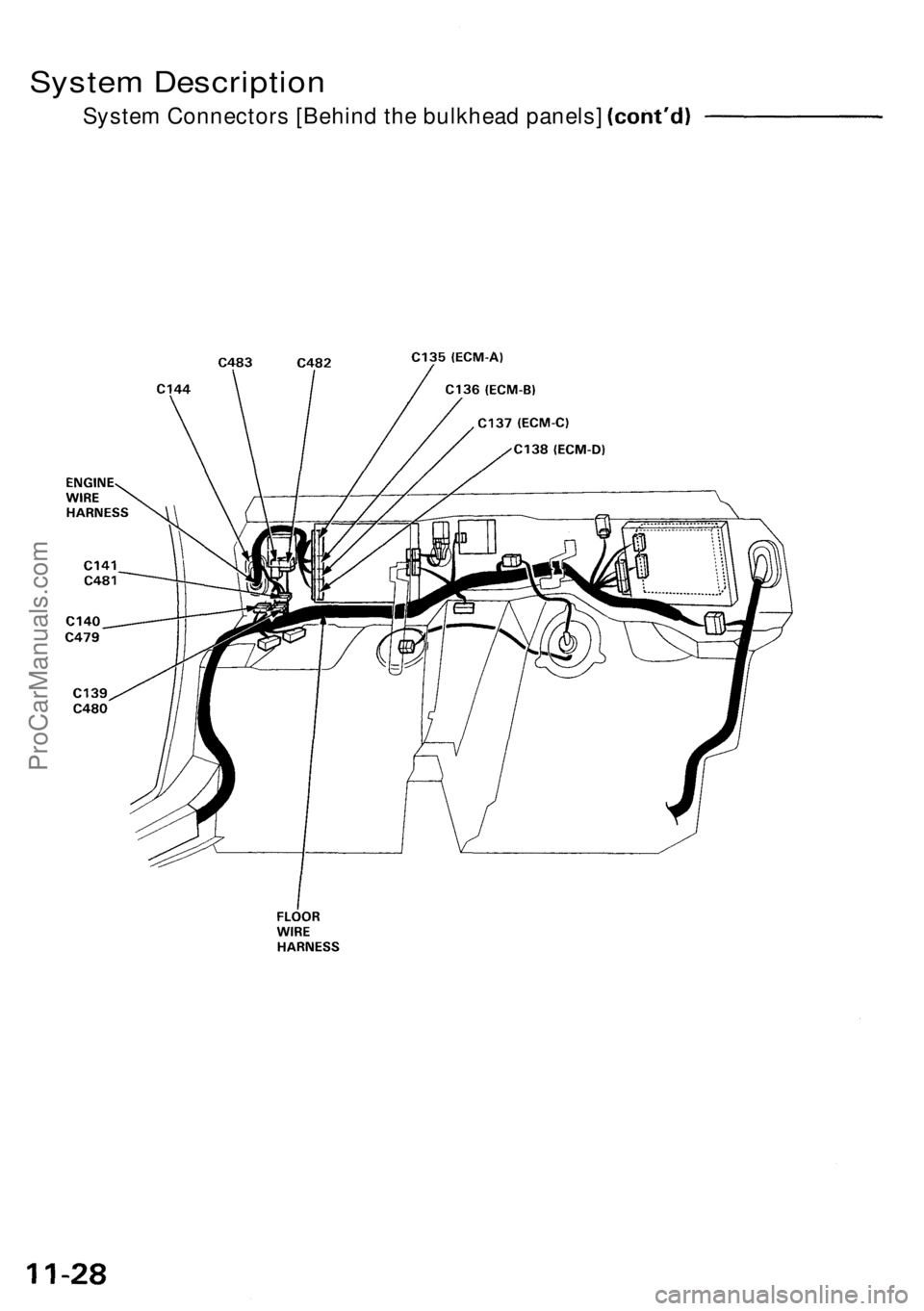

System Connectors [Behind the bulkhead panels]
ProCarManuals.com

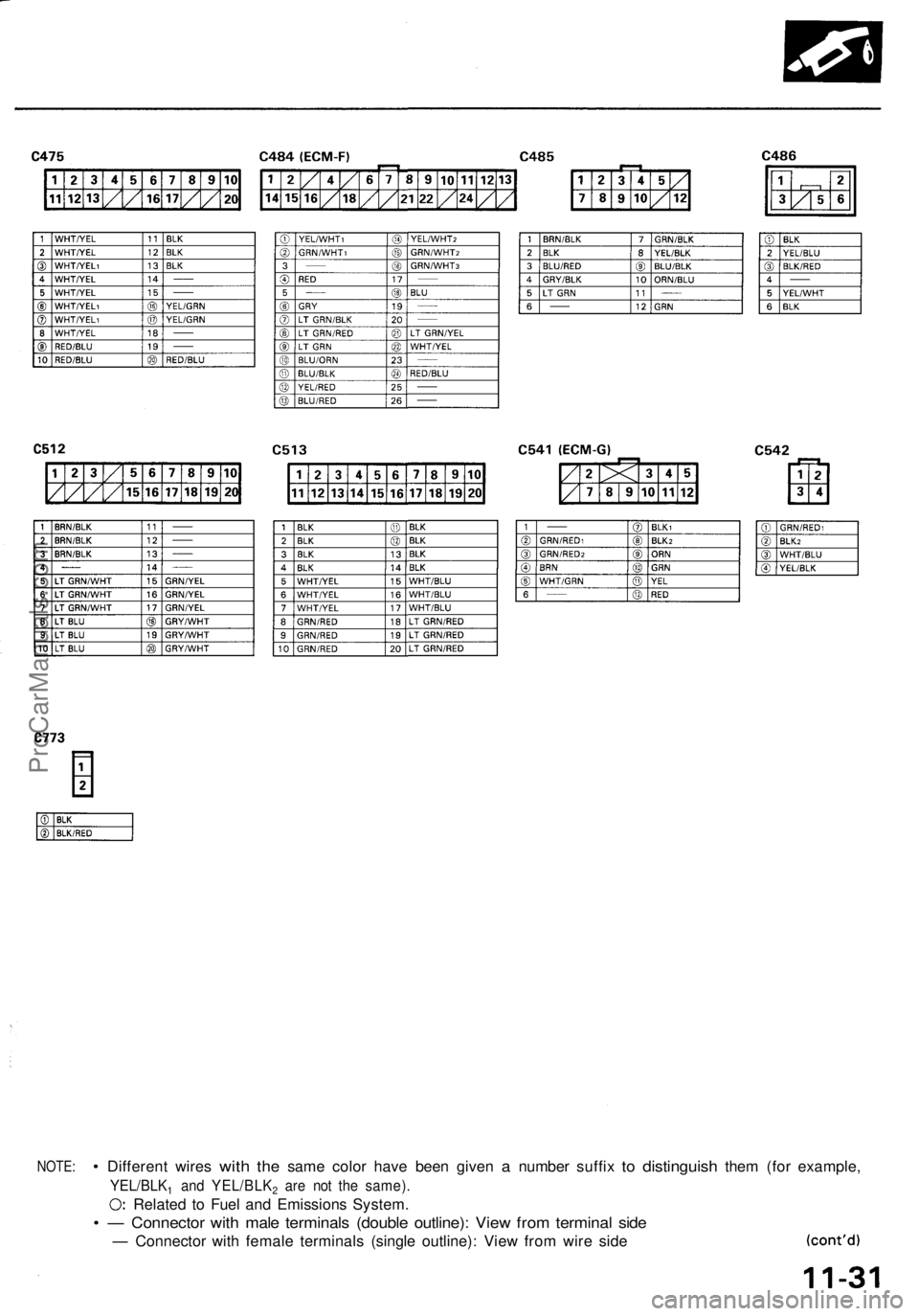

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example,

YEL/BLK1 and YEL/BLK
2 are not the same).

Related to Fuel and Emissions System.

• — Connector with male terminals (double outline): View from terminal side — Connector with female terminals (single outline): View from wire sideProCarManuals.com

System Description

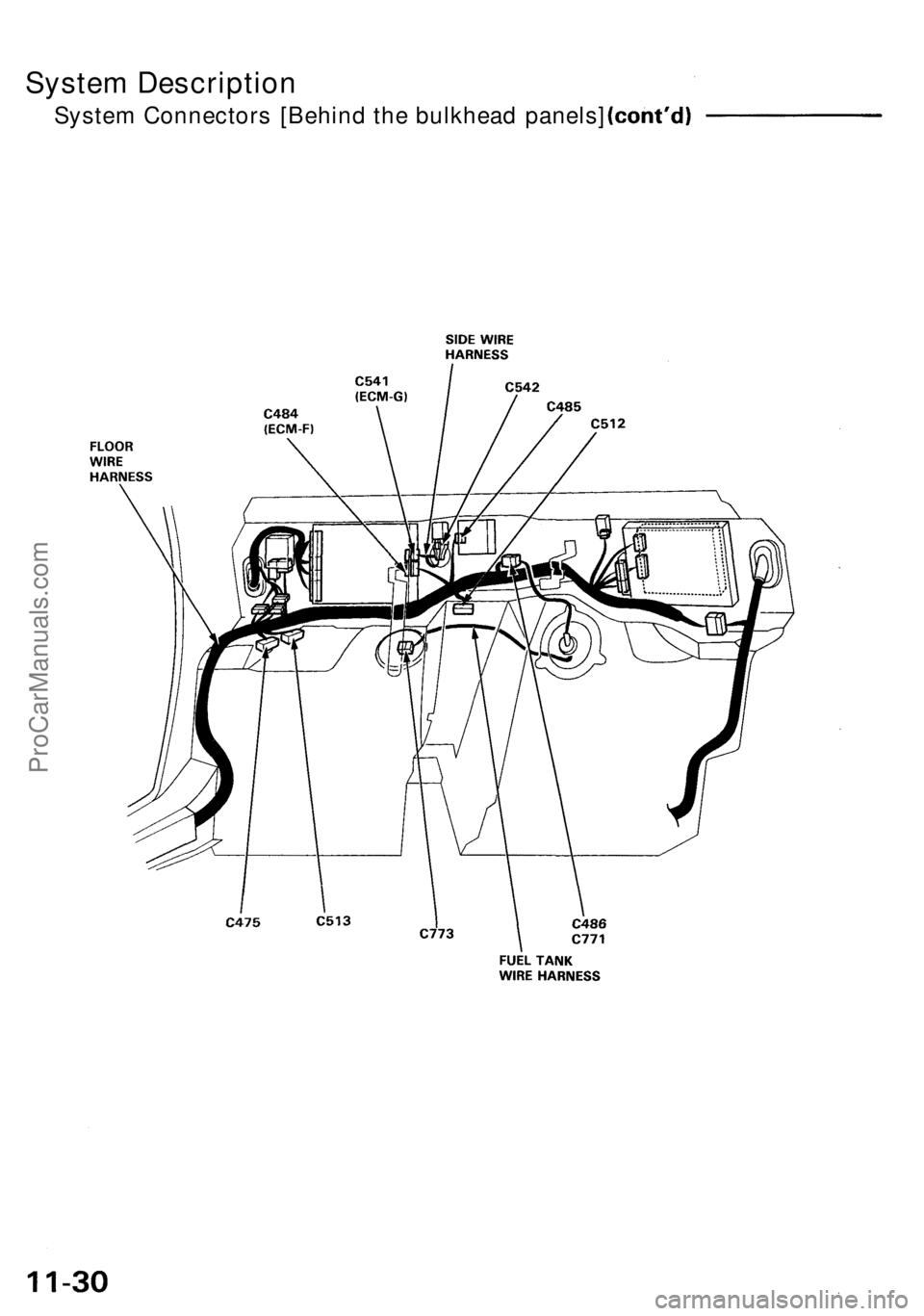

System Connectors [Behind the bulkhead panels]
ProCarManuals.com

NOTE:
•
Different wires
with
the
same color have been given
a
number suffix
to
distinguish
them (for example,

YEL/BLK1 and YEL/BLK
2 are not the same).

Related to Fuel and Emissions System.

• — Connector with male terminals (double outline): View from terminal side
— Connector with female terminals (single outline): View from wire sideProCarManuals.com
