Acura ZDX 2012 Owner's Manual

Each time you press the INFO
(▲/▼ ) button, the display changes
as shown in the illustration. Press the
INFO (▲ /▼ ) button until you see
the setting you want to customize,
then press the SEL/RESET button to
enter your selection.
: Press the INFO button ( ▲/▼ ).
: Press the SEL/RESET button. On models with
keyless access system
Multi-Information Display10609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Language SelectionThere are three language selections
you can make: English, French, and
Spanish. To choose the language you
want, follow these instructions:
You can choose this customize item
from‘‘METER SETUP ’’by pressing
the INFO (▲ /▼ ) button repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired language by
pressing the INFO (▲ /▼ ) button,
then enter your selection by pressing
the SEL/RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ LANGUAGE SELECTION ’’and
repeat the procedure again.
CONTINUED
Multi-Information Display
107
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Adjust Outside Temp. DisplayIf you sometimes find that the
temperature reading is a few degrees
above or below the actual
temperature, you can adjust it by
following these instructions:
You can choose this customize item
from‘‘METER SETUP ’’by pressing
the INFO (▲ /▼ ) button repeatedly.
Adjust the outside temperature value
by pressing the INFO (▲ /▼ ) button
repeatedly. Press the SEL/RESET
button to set the desired value.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ ADJUST OUTSIDE TEMP.
DISPLAY ’’and repeat the procedure
again.
U.S.
Canada
U.S.
Canada
Multi-Information Display10809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Trip Computer Trip A Info ResetYou can select the reset timing of the
Trip A information: Trip A, Average
Fuel Economy A, Average Vehicle
Speed A, and Elapsed Time A.
There are three reset choices you
can make:
WITH REFUEL－The Trip A
information is reset every time you
refuel your vehicle.
MANUAL ONLY －You can reset the
Trip A information when you press
and hold the SEL/RESET button
until the number resets. IGN OFF
－The Trip A information is
reset when you turn the ignition
switch to the LOCK (0) position.
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. VEHICLE OFF (LOCK)
mode is the equivalent of LOCK (0).
For more information, see pages 194
and 196.
You can choose this item to
customize from ‘‘METER SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
CONTINUED
Multi-Information Display
109
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO (▲/▼ ) button,
then enter your selection by pressing
the SEL/RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to ‘‘TRIP
COMPUTER TRIP A INFO RESET ’’
and repeat the procedure again.
Adjust Alarm VolumeSelect the warning alarm volume
from three levels.
You can choose this customize item
from ‘‘METER SETUP ’’by pressing
the INFO (▲ /▼ ) button repeatedly.
Multi-Information Display11009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Press the SEL/RESET button to see
the selections.
Select the desired level by pressing
the INFO (▲/▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ ADJUST ALARM VOLUME ’’and
repeat the procedure again.
Auto Interior IlluminationTo reduce glare at night, the
instrument lights gradually dim
when you turn the headlight switch
on. You can customize when the
instrument lights dim, according to
the outside light level.
There are MAX, HIGH, MID, LOW
and MIN levels and OFF for the auto
interior illumination settings.
If you want the illuminations to start
dimming as early as possible, select
MAX. For illuminations to start
dimming as late as possible, select
MIN. Choose HIGH, MID, or LOW
for levels in between.
To disable the auto interior
illumination function, select OFF.
CONTINUED
Multi-Information Display
111
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

You can choose this customize item
from‘‘METER SETUP ’’by pressing
the INFO (▲ /▼ ) button repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO (▲ /▼ ) button,
then enter your selection by pressing
the SEL/RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to ‘‘AUTO
INTERIOR ILLUMINATION ’’and
repeat the procedure again.
Multi-Information Display11209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Keyless Start Guidance ScreensOn models with keyless access systemWhen this item is set to ON, you will
see some guidance messages on the
multi-information display. You can
change this setting between on and
off. For more information on start
guidance messages, see page 197.You can choose this item to
customize from‘‘METER SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (▲ /▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ KEYLESS START GUIDANCE
SCREENS ’’and repeat the procedure
again.
CONTINUED
Multi-Information Display
113
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Position Setup
Here are the two custom settings for
the position setup:●MEMORY POSITION LINK●AUTO TILT AND TELESCOPE
STEERING WHEEL
While ‘‘POSITION SETUP ’’is
shown, press the SEL/RESET button
to enter the customize mode.
Each time you press the INFO
(▲ /▼ ) button, the screen changes
as shown in the illustration. Press the
INFO (▲ /▼ ) button until you see
the setting you want to customize,
then press the SEL/RESET button to
enter your selection.
: Press the INFO button ( ▲/▼ ).
: Press the SEL/RESET button.
Multi-Information Display11409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

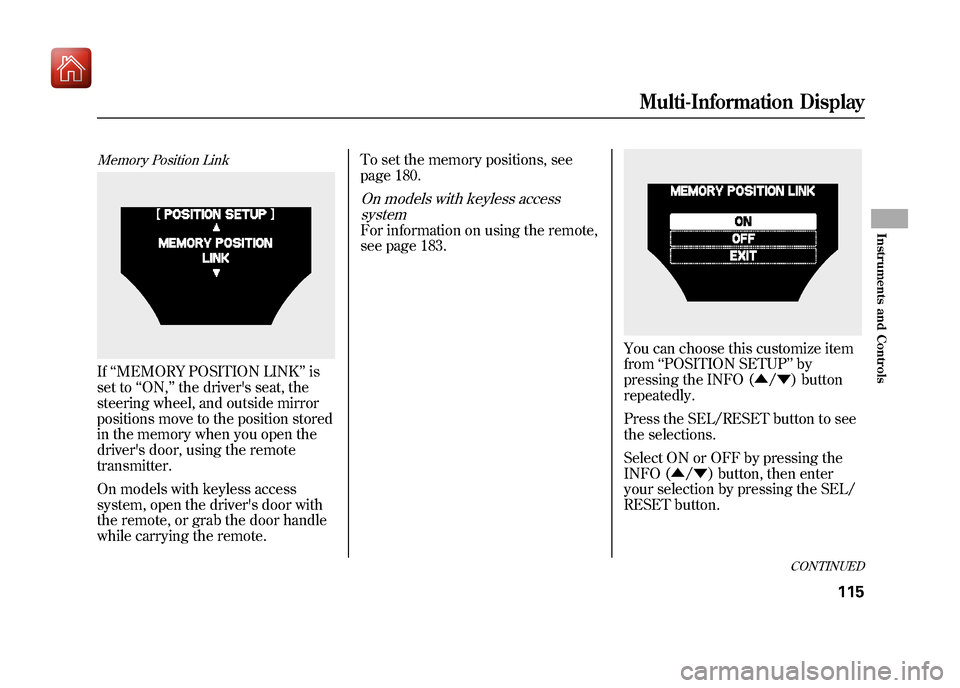

Memory Position LinkIf‘‘MEMORY POSITION LINK ’’is
set to ‘‘ON, ’’the driver's seat, the
steering wheel, and outside mirror
positions move to the position stored
in the memory when you open the
driver's door, using the remote
transmitter.
On models with keyless access
system, open the driver's door with
the remote, or grab the door handle
while carrying the remote. To set the memory positions, see
page 180.
On models with keyless access
systemFor information on using the remote,
see page 183.
You can choose this customize item
from ‘‘POSITION SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (▲ /▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
CONTINUED
Multi-Information Display
115
Instruments and Controls
