Acura ZDX 2012 Owner's Manual

When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ MEMORY POSITION LINK ’’and
repeat the procedure again.

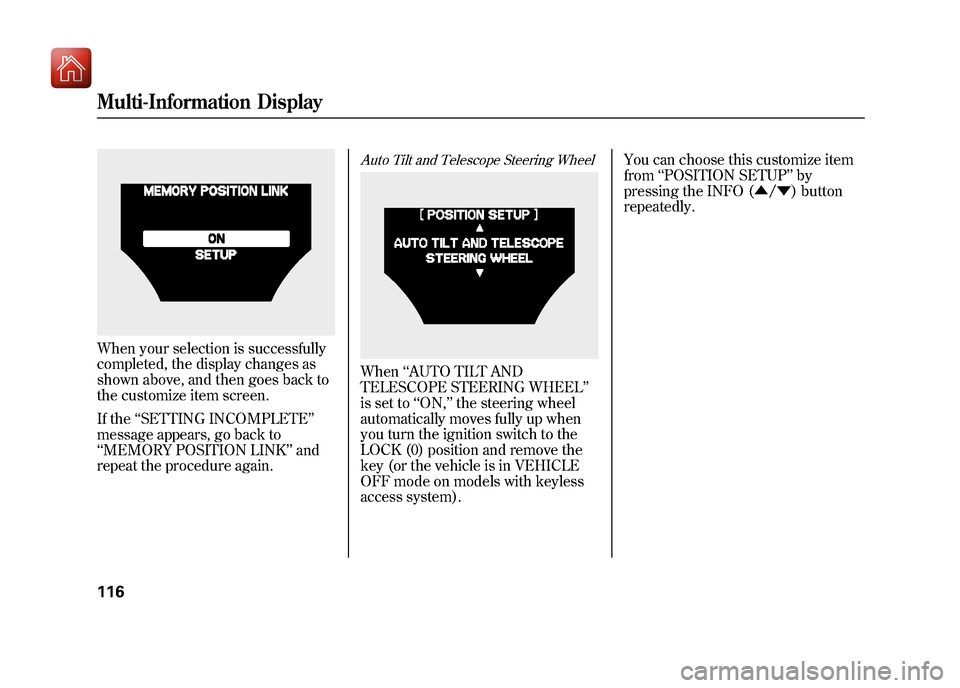

Auto Tilt and Telescope Steering WheelWhen ‘‘AUTO TILT AND
TELESCOPE STEERING WHEEL ’’
is set to ‘‘ON, ’’the steering wheel
automatically moves fully up when
you turn the ignition switch to the
LOCK (0) position and remove the
key (or the vehicle is in VEHICLE
OFF mode on models with keyless
access system). You can choose this customize item
from
‘‘POSITION SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
Multi-Information Display11609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

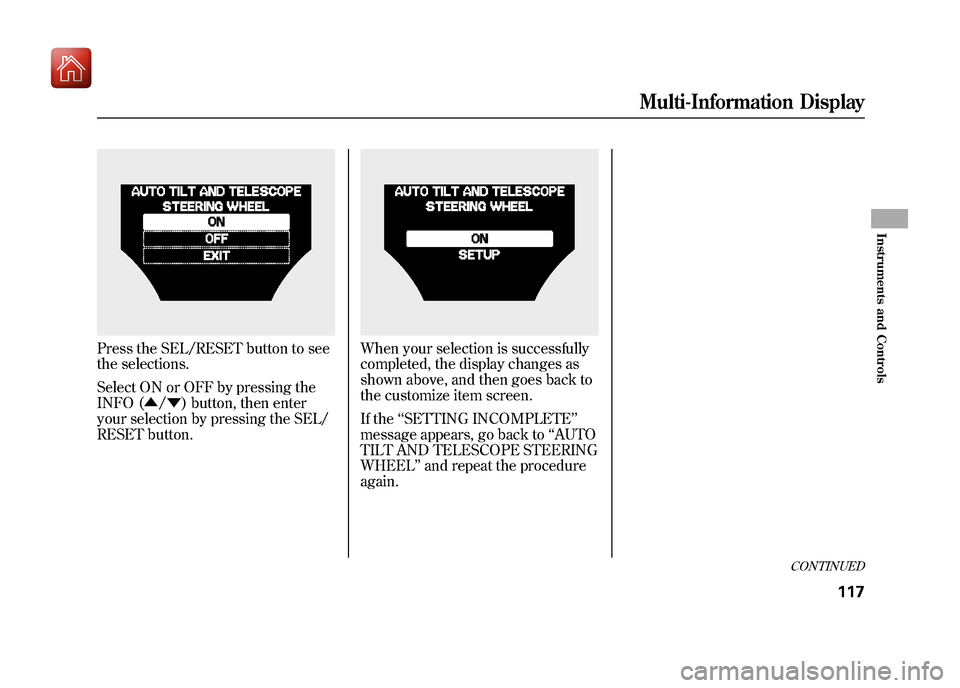

Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (▲/▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to ‘‘AUTO
TILT AND TELESCOPE STEERING
WHEEL ’’and repeat the procedure
again.
CONTINUED
Multi-Information Display
117
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

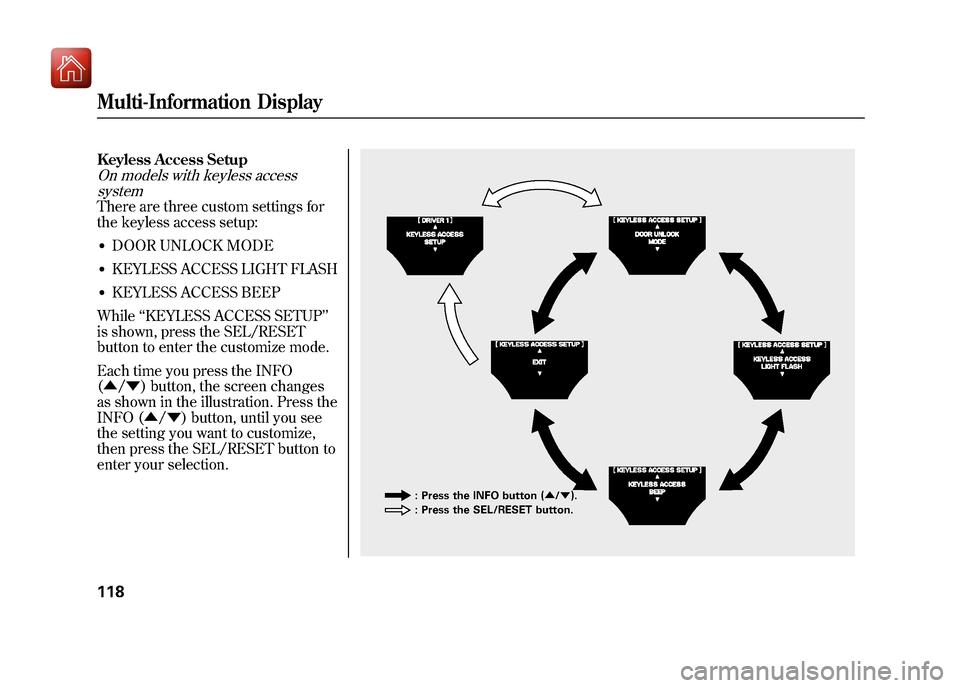

Keyless Access SetupOn models with keyless accesssystemThere are three custom settings for
the keyless access setup:●DOOR UNLOCK MODE●KEYLESS ACCESS LIGHT FLASH●KEYLESS ACCESS BEEP
While ‘‘KEYLESS ACCESS SETUP ’’
is shown, press the SEL/RESET
button to enter the customize mode.
Each time you press the INFO
(▲ /▼ ) button, the screen changes
as shown in the illustration. Press the
INFO (▲ /▼ ) button, until you see
the setting you want to customize,
then press the SEL/RESET button to
enter your selection.
: Press the INFO button ( ▲/▼ ).
: Press the SEL/RESET button.
Multi-Information Display11809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Door Unlock ModeTo select whether the driver's door
or all doors unlock when you open
the driver's door by grabbing the
door handle (while carrying the
remote), follow these instructions:
You can choose this item to
customize from‘‘KEYLESS ACCESS
SETUP ’’by pressing the INFO
(▲ /▼ ) button repeatedly.
Press the SEL/RESET button to see
the selections.
Select DRIVER DOOR or ALL
DOORS by pressing the INFO
(▲ /▼ ) button, then enter your
selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to ‘‘DOOR
UNLOCK MODE ’’and repeat the
procedure again.
CONTINUED
Multi-Information Display
119
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

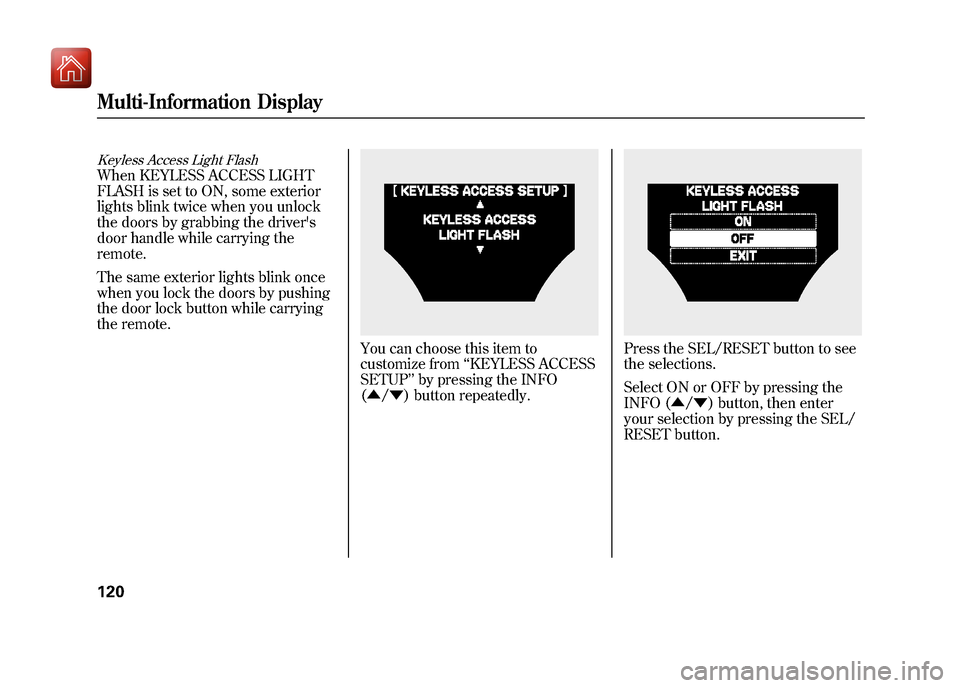

Keyless Access Light FlashWhen KEYLESS ACCESS LIGHT
FLASH is set to ON, some exterior
lights blink twice when you unlock
the doors by grabbing the driver's
door handle while carrying the
remote.
The same exterior lights blink once
when you lock the doors by pushing
the door lock button while carrying
the remote.
You can choose this item to
customize from‘‘KEYLESS ACCESS
SETUP ’’by pressing the INFO
(▲ /▼ ) button repeatedly.
Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (▲ /▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
Multi-Information Display12009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ KEYLESS ACCESS LIGHT FLASH ’’
and repeat the procedure again.
Keyless Access BeepWhen KEYLESS ACCESS BEEP is
set to ON, the beeper sounds twice
when you unlock the doors by
grabbing the driver's door handle
while carrying the remote.
When you lock the doors by pushing
the door lock button while carrying
the remote, the beeper sounds once.
You can choose this item to
customize from ‘‘KEYLESS ACCESS
SETUP ’’by pressing the INFO
(▲ /▼ ) button repeatedly.
CONTINUED
Multi-Information Display
121
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

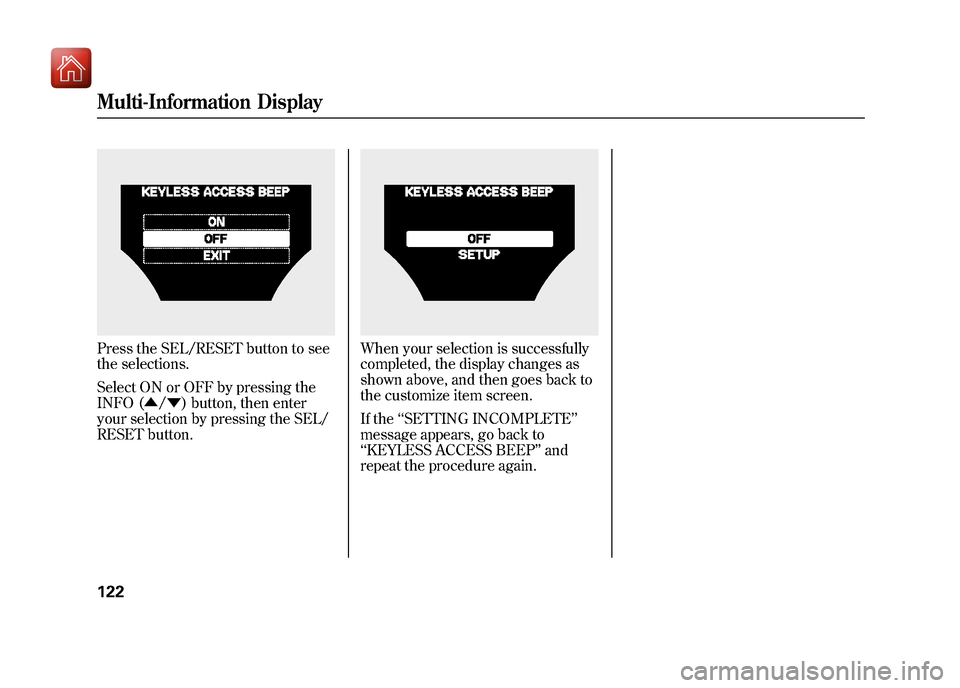

Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (▲/▼ ) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ KEYLESS ACCESS BEEP ’’and
repeat the procedure again.
Multi-Information Display12209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

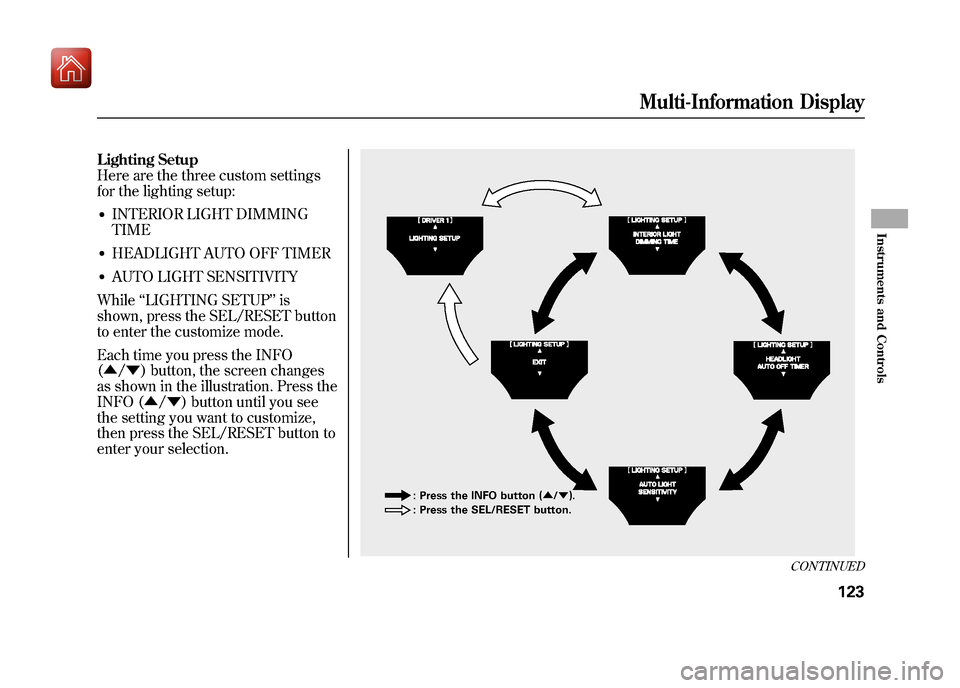

Lighting Setup
Here are the three custom settings
for the lighting setup:●INTERIOR LIGHT DIMMING
TIME●HEADLIGHT AUTO OFF TIMER●AUTO LIGHT SENSITIVITY
While ‘‘LIGHTING SETUP ’’is
shown, press the SEL/RESET button
to enter the customize mode.
Each time you press the INFO
(▲ /▼ ) button, the screen changes
as shown in the illustration. Press the
INFO (▲ /▼ ) button until you see
the setting you want to customize,
then press the SEL/RESET button to
enter your selection.
: Press the INFO button ( ▲/▼ ).
: Press the SEL/RESET button.
CONTINUED
Multi-Information Display
123
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

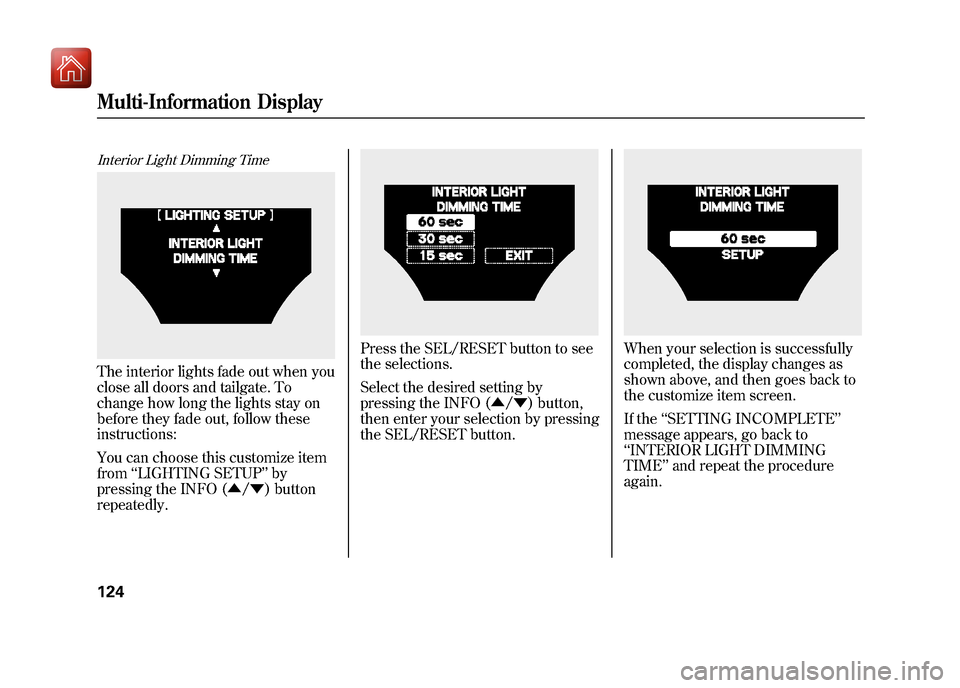

Interior Light Dimming TimeThe interior lights fade out when you
close all doors and tailgate. To
change how long the lights stay on
before they fade out, follow these
instructions:
You can choose this customize item
from‘‘LIGHTING SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO (▲ /▼ ) button,
then enter your selection by pressing
the SEL/RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ INTERIOR LIGHT DIMMING
TIME ’’and repeat the procedure
again.
Multi-Information Display12409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Headlight Auto Off TimerThe headlights, parking lights, side
marker lights, taillights, and license
plate lights go off after the selected
time when you remove the key from
the ignition switch and close the
driver's door. On models with
keyless access system, the lights go
off after the selected time when you
close the driver's door and take the
remote with you. To change how
long the lights stay on before they go
off, follow these instructions:
You can choose this customize item
from‘‘LIGHTING SETUP ’’by
pressing the INFO (▲ /▼ ) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO (▲ /▼ ) button,
then enter your selection by pressing
the SEL/RESET button.
CONTINUED
Multi-Information Display
125
Instruments and Controls
