When you remove the key from the
ignition switch (or the vehicle is in
VEHICLE OFF mode on models with
keyless access system), the steering
wheel automatically moves fully up.
To change the‘‘AUTO TILT AND
TELESCOPE STEERING WHEEL ’’
setting, see page 116.
The steering wheel then returns to
its original position when you insert
the key back in the ignition switch
(or the vehicle is in ON mode on
models with keyless access system).
Steering wheel movement is also
controlled by the driving position
memory system (see page 180). If your vehicle's battery is
disconnected or goes dead, or the
fuse for the power tilt and telescopic
steering wheel is removed, the
power tilt and telescopic steering
wheel system needs to be reset when
you reconnect the battery or install
the fuse.
Insert the key into the ignition
switch, and remove it (or set the
power mode to VEHICLE OFF on
models with keyless access system).
The steering wheel automatically
moves fully up to let you know the
system is reset.Steering Wheel Adjustments14609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

On models without keyless accesssystemThe master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the driver's
door lock. You can keep the glove
box locked when you leave your
vehicle and the valet key at a parking
facility. You should have received a key
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Acura-approved key blanks.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the circuits
are damaged.
●Protect the keys from direct
sunlight, high temperature, and
high humidity.●Do not drop the keys or set heavy
objects on them.●Keep the keys away from liquids.
If they get wet, dry them
immediately with a soft cloth.
The valet key does not contain a
battery. Do not try to take it apart.
Retractable Master KeyThe master key can be retracted into
the remote transmitter. To use the
key, push the release button to
release the key from the transmitter.
The key should be fully extended. To
retract the key, push the release
button and at the same time push the
key into the remote transmitter until
it is securely latched.
KEY
NUMBER
TAG MASTER KEY
WITH REMOTE
TRANSMITTER VALET KEY
RELEASE BUTTON
Push
CONTINUED
Keys and Locks
147
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Always use the fully-extended key
when you insert it to the ignition
switch. If the key does not fully
extend, the immobilizer system may
not operate may prevent the engine
from starting.
The key may come in contact with
your finger while being retracted or
extended. Make sure your fingers do
not touch the pivot of the key when
retracting or extending the key.
On models with keyless accesssystemEach keyless access remote has the
built-in key. This key is used to lock/
unlock the doors when the remote
battery becomes weak and the power
door lock/unlock operation is
disabled. You cannot start the engine
with this key.
The built-in key (see page 207) fits all
the locks on your vehicle. You should have received a key
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Acura-approved key blanks.
BUILT-IN KEYS KEY NUMBER
TAG
Keys and Locks14809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

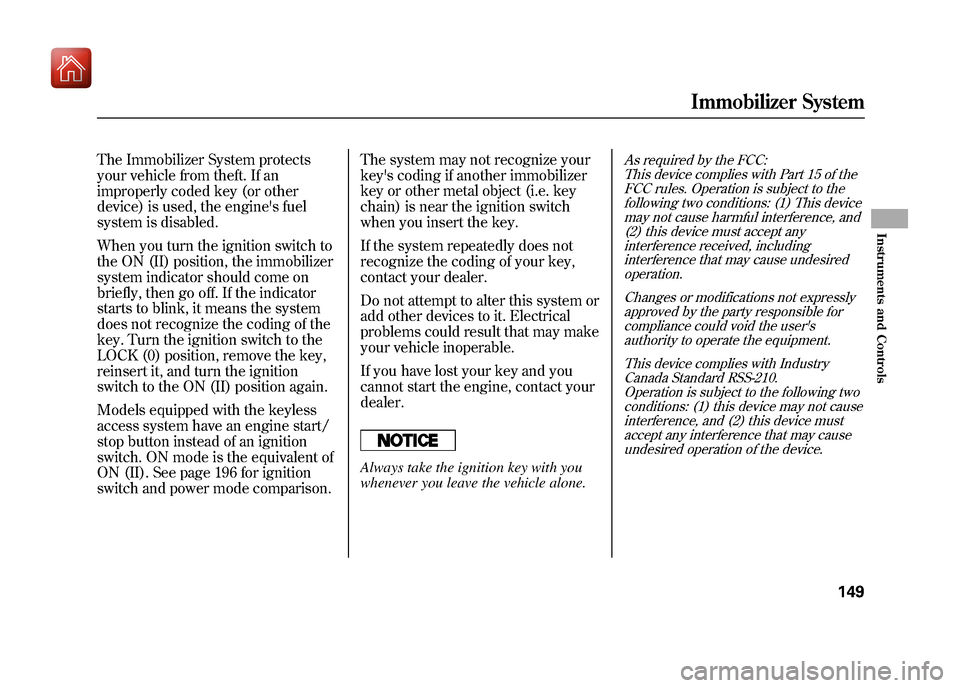

The Immobilizer System protects
your vehicle from theft. If an
improperly coded key (or other
device) is used, the engine's fuel
system is disabled.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on
briefly, then go off. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to the
LOCK (0) position, remove the key,
reinsert it, and turn the ignition
switch to the ON (II) position again.
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON mode is the equivalent of
ON (II). See page 196 for ignition
switch and power mode comparison.The system may not recognize your
key's coding if another immobilizer
key or other metal object (i.e. key
chain) is near the ignition switch
when you insert the key.
If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system or
add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
If you have lost your key and you
cannot start the engine, contact your
dealer.
Always take the ignition key with you
whenever you leave the vehicle alone.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to the
following two conditions: (1) This devicemay not cause harmful interference, and(2) this device must accept any
interference received, includinginterference that may cause undesiredoperation.
Changes or modifications not expresslyapproved by the party responsible for
compliance could void the user'sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.
Operation is subject to the following twoconditions: (1) this device may not causeinterference, and (2) this device must
accept any interference that may causeundesired operation of the device.
Immobilizer System
149
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

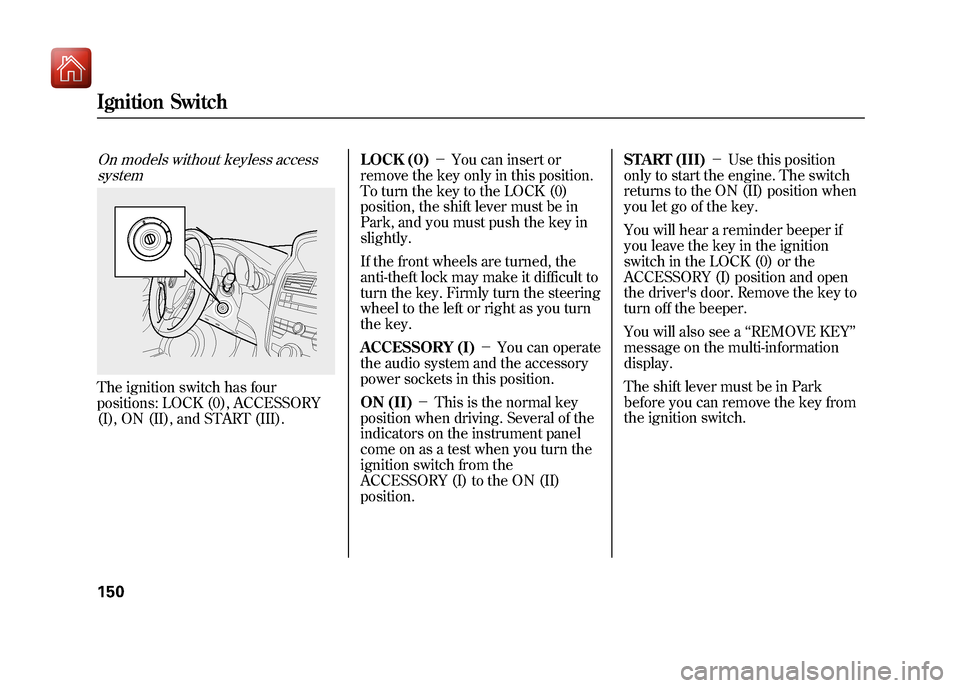

On models without keyless accesssystemThe ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III). LOCK (0)
－You can insert or
remove the key only in this position.
To turn the key to the LOCK (0)
position, the shift lever must be in
Park, and you must push the key in
slightly.
If the front wheels are turned, the
anti-theft lock may make it difficult to
turn the key. Firmly turn the steering
wheel to the left or right as you turn
the key.
ACCESSORY (I) －You can operate
the audio system and the accessory
power sockets in this position.
ON (II) －This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from the
ACCESSORY (I) to the ON (II)
position. START (III)
－Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key.
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or the
ACCESSORY (I) position and open
the driver's door. Remove the key to
turn off the beeper.
You will also see a ‘‘REMOVE KEY ’’
message on the multi-information
display.
The shift lever must be in Park
before you can remove the key from
the ignition switch.Ignition Switch15009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

To lock all doors and the tailgate,
press the front of the master door
lock switch on either front door, pull
the lock tab rearward on the driver's
door, or use the key on the outside
lock on the driver's door.
On models with keyless accesssystemThe built-in key can be used to lock/
unlock the doors when the remote
battery becomes weak and the power
door lock/unlock operation is
disabled. For more information, see
page 207.
Pressing the rear of either master
door lock switch will unlock all doors
and the tailgate.
The lock tab on any passenger's door
locks and unlocks that door.
Pushing forward the lock tab on the
driver ’s door unlocks only that door.
When the door is unlocked, you can
see the red indicator on the lock tab
above the inner door handle.
Lock
Unlock
POWER DOOR LOCK
MASTER SWITCH
Lock
Unlock
LOCK TAB
RED INDICATOR
CONTINUED
Door Locks
151
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

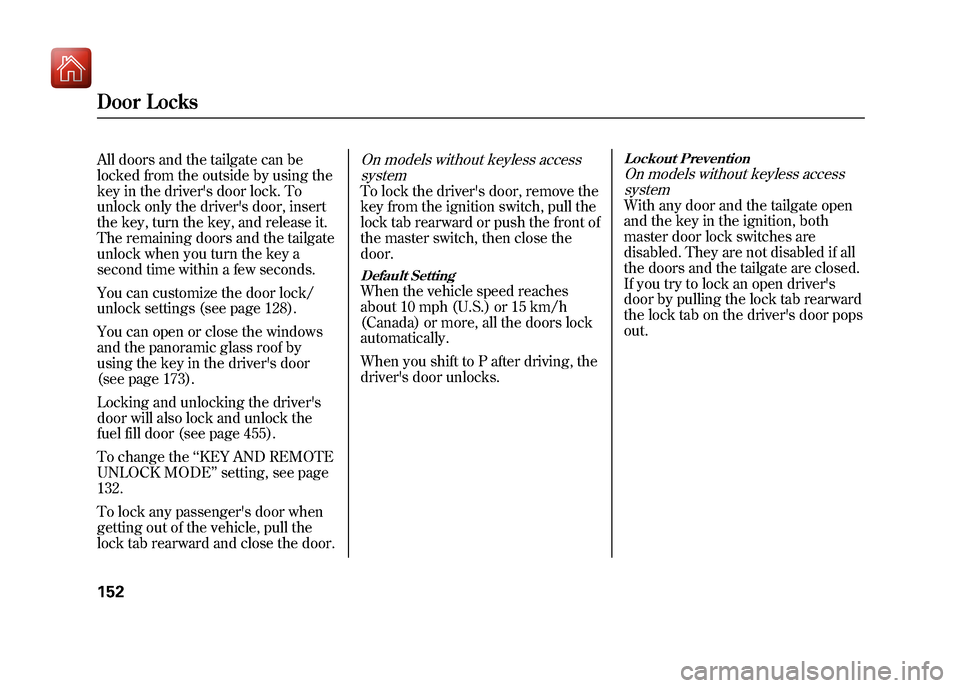

All doors and the tailgate can be
locked from the outside by using the
key in the driver's door lock. To
unlock only the driver's door, insert
the key, turn the key, and release it.
The remaining doors and the tailgate
unlock when you turn the key a
second time within a few seconds.
You can customize the door lock/
unlock settings (see page 128).
You can open or close the windows
and the panoramic glass roof by
using the key in the driver's door
(see page 173).
Locking and unlocking the driver's
door will also lock and unlock the
fuel fill door (see page 455).
To change the‘‘KEY AND REMOTE
UNLOCK MODE ’’setting, see page
132.
To lock any passenger's door when
getting out of the vehicle, pull the
lock tab rearward and close the door.
On models without keyless access systemTo lock the driver's door, remove the
key from the ignition switch, pull the
lock tab rearward or push the front of
the master switch, then close the
door.Default SettingWhen the vehicle speed reaches
about 10 mph (U.S.) or 15 km/h
(Canada) or more, all the doors lock
automatically.
When you shift to P after driving, the
driver's door unlocks.
Lockout PreventionOn models without keyless accesssystemWith any door and the tailgate open
and the key in the ignition, both
master door lock switches are
disabled. They are not disabled if all
the doors and the tailgate are closed.
If you try to lock an open driver's
door by pulling the lock tab rearward
the lock tab on the driver's door pops
out.
Door Locks15209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Childproof Door LocksThe childproof door locks are
designed to prevent children seated
in the rear from accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position (lever is
down), the door cannot be opened
from the inside regardless of the
position of the lock tab. To open the
door, push the lock tab forward and
use the outside door handle.Tailgate
To open the tailgate, push up inside
the handle, then lift up. To close the
tailgate, use the inner handle to pull
it down, then press down on the back
edge.
Keep the tailgate closed at all times
while driving to avoid damaging the
tailgate and to prevent exhaust gas
from getting into the interior. See
Carbon Monoxide Hazard
on page
58. Power Tailgate
The tailgate can be opened and
closed with the remote transmitter/
keyless access remote (see page 157
or 189) or the button in the
instrument panel when all doors and
the tailgate are unlocked.
Make sure the shift lever is in the
Park (P) position.
Lock
Unlock
LEVER
POWER TAILGATE BUTTON
CONTINUED
Door Locks, Tailgate
153
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

All doors must be unlocked to
operate the power tailgate. Press and
hold the tailgate button on the
remote transmitter/keyless access
remote when the ignition switch is in
the LOCK (0) position or hold the
button in the instrument panel for
about 1 second to open or close the
tailgate. Each time you press the
button on the remote transmitter/
keyless access remote or in the
instrument panel, you will hear a
beep, and some front and rear lights
will flash.
If you push the same button again
while the tailgate is opening or
closing, you will hear three beeps,
and the tailgate will stop moving,
reverse direction, and stop at the
fully opened or closed position.Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. VEHICLE OFF (LOCK)
mode is the equivalent of LOCK (0).
See page 196 for ignition switch and
power mode comparison.
The tailgate can also be closed by
pressing the button on the tailgate. If
you press the button again while the
tailgate is closing, you will hear three
beeps, and the tailgate will stop
moving, reverse direction, and stop
at the fully opened position.
TAILGATE BUTTON
Tailgate15409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

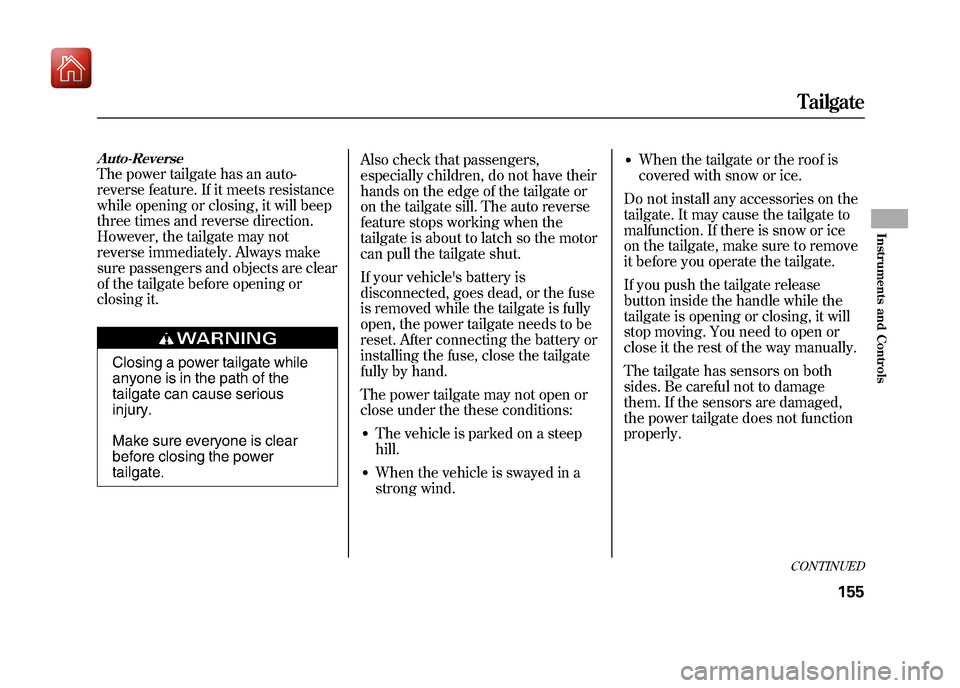

Auto-ReverseThe power tailgate has an auto-
reverse feature. If it meets resistance
while opening or closing, it will beep
three times and reverse direction.
However, the tailgate may not
reverse immediately. Always make
sure passengers and objects are clear
of the tailgate before opening or
closing it.
Closing a power tailgate while
anyone is in the path of the
tailgate can cause serious
injury.
Make sure everyone is clear
before closing the power
tailgate.Also check that passengers,
especially children, do not have their
hands on the edge of the tailgate or
on the tailgate sill. The auto reverse
feature stops working when the
tailgate is about to latch so the motor
can pull the tailgate shut.
If your vehicle's battery is
disconnected, goes dead, or the fuse
is removed while the tailgate is fully
open, the power tailgate needs to be
reset. After connecting the battery or
installing the fuse, close the tailgate
fully by hand.
The power tailgate may not open or
close under the these conditions:
●The vehicle is parked on a steep
hill.●When the vehicle is swayed in a
strong wind.
●When the tailgate or the roof is
covered with snow or ice.
Do not install any accessories on the
tailgate. It may cause the tailgate to
malfunction. If there is snow or ice
on the tailgate, make sure to remove
it before you operate the tailgate.
If you push the tailgate release
button inside the handle while the
tailgate is opening or closing, it will
stop moving. You need to open or
close it the rest of the way manually.
The tailgate has sensors on both
sides. Be careful not to damage
them. If the sensors are damaged,
the power tailgate does not function
properly.
CONTINUEDTailgate
155
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
