Acura ZDX 2012 Owner's Manual

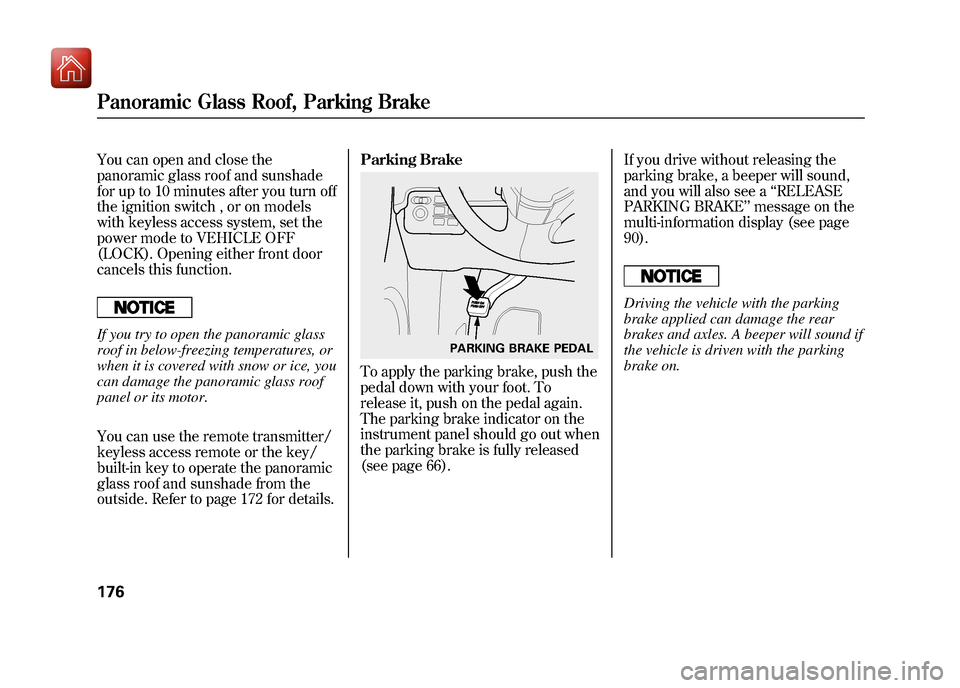

You can open and close the
panoramic glass roof and sunshade
for up to 10 minutes after you turn off
the ignition switch , or on models
with keyless access system, set the
power mode to VEHICLE OFF
(LOCK). Opening either front door
cancels this function.If you try to open the panoramic glass
roof in below-freezing temperatures, or
when it is covered with snow or ice, you
can damage the panoramic glass roof
panel or its motor.
You can use the remote transmitter/
keyless access remote or the key/
built-in key to operate the panoramic
glass roof and sunshade from the
outside. Refer to page 172 for details.Parking Brake
To apply the parking brake, push the
pedal down with your foot. To
release it, push on the pedal again.
The parking brake indicator on the
instrument panel should go out when
the parking brake is fully released
(see page 66).
If you drive without releasing the
parking brake, a beeper will sound,
and you will also see a
‘‘RELEASE
PARKING BRAKE ’’message on the
multi-information display (see page
90).
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles. A beeper will sound if
the vehicle is driven with the parking
brake on.
PARKING BRAKE PEDAL
Panoramic Glass Roof, Parking Brake17609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Keep the inside and outside mirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror can automatically
darken to reduce glare. To turn on
this feature, press the button on the
bottom of the mirror. The AUTO
indicator comes on as a reminder.
When it is on, the mirror darkens
when it senses the headlights of a
vehicle behind you, then returns to
normal visibility when the lights are
gone. Press the button again to turn
off this feature.
On models without navigationsystemWhen you shift to reverse with the
ignition switch in the ON (II)
position, the rear view is shown on
the left side of the inside mirror. For
more information, see page 451.There is also a sensor on the back of
the mirror. Items hung on the mirror
may block this sensor and affect its
performance.
INDICATOR
AUTO BUTTONSENSOR
CONTINUEDMirrors
177
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

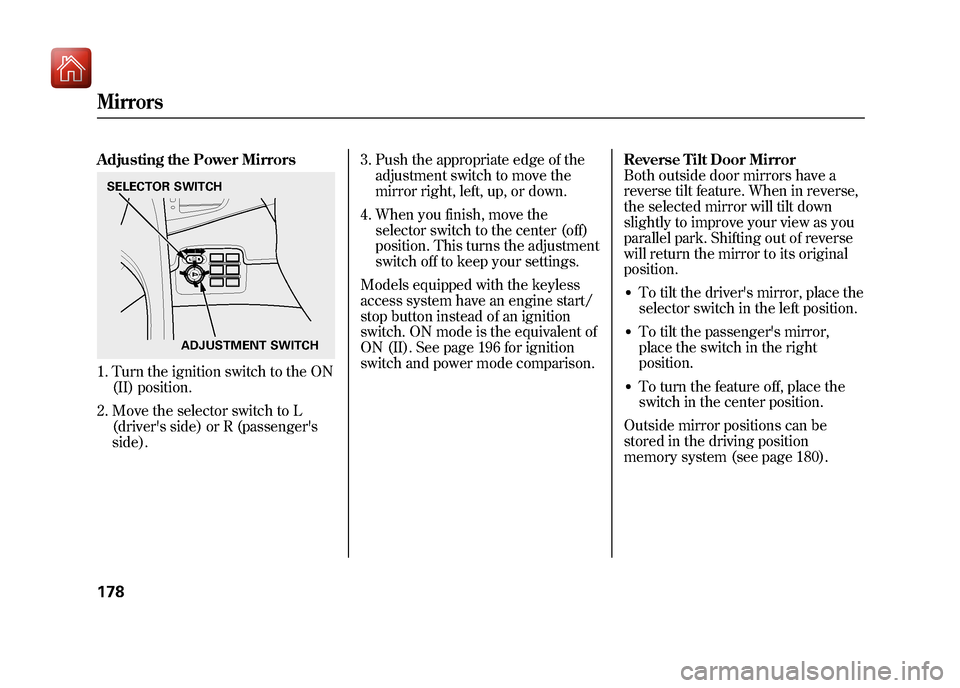

Adjusting the Power Mirrors1. Turn the ignition switch to the ON(II) position.
2. Move the selector switch to L (driver's side) or R (passenger's
side). 3. Push the appropriate edge of the
adjustment switch to move the
mirror right, left, up, or down.
4. When you finish, move the selector switch to the center (off)
position. This turns the adjustment
switch off to keep your settings.
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON mode is the equivalent of
ON (II). See page 196 for ignition
switch and power mode comparison. Reverse Tilt Door Mirror
Both outside door mirrors have a
reverse tilt feature. When in reverse,
the selected mirror will tilt down
slightly to improve your view as you
parallel park. Shifting out of reverse
will return the mirror to its original
position.
●To tilt the driver's mirror, place the
selector switch in the left position.●To tilt the passenger's mirror,
place the switch in the right
position.●To turn the feature off, place the
switch in the center position.
Outside mirror positions can be
stored in the driving position
memory system (see page 180).
SELECTOR SWITCH
ADJUSTMENT SWITCHMirrors17809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

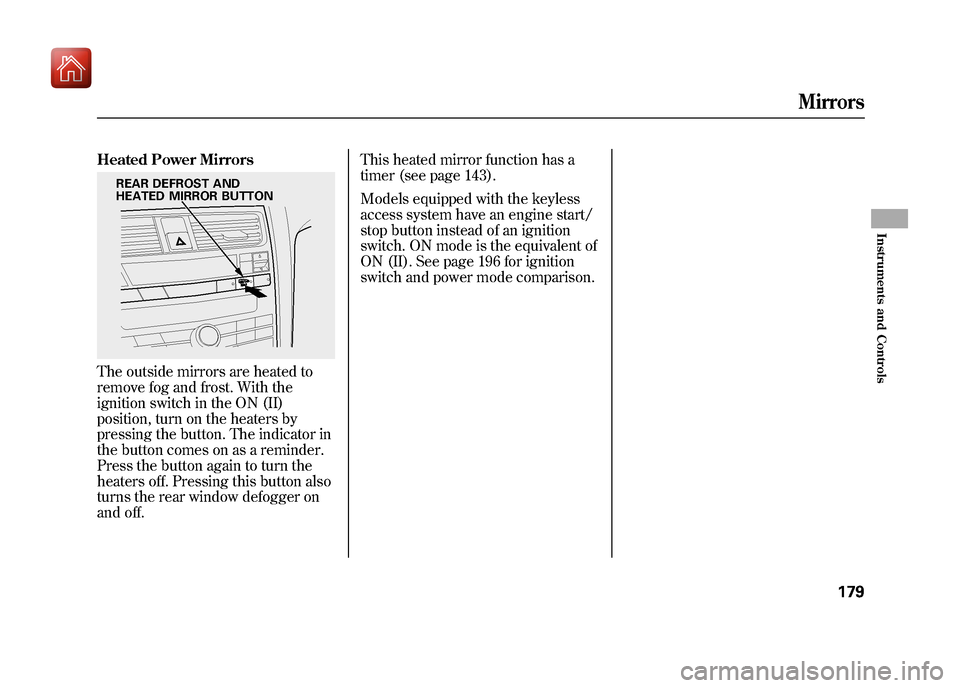

Heated Power MirrorsThe outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off. Pressing this button also
turns the rear window defogger on
and off.This heated mirror function has a
timer (see page 143).
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. ON mode is the equivalent of
ON (II). See page 196 for ignition
switch and power mode comparison.
REAR DEFROST AND
HEATED MIRROR BUTTON
Mirrors
179
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

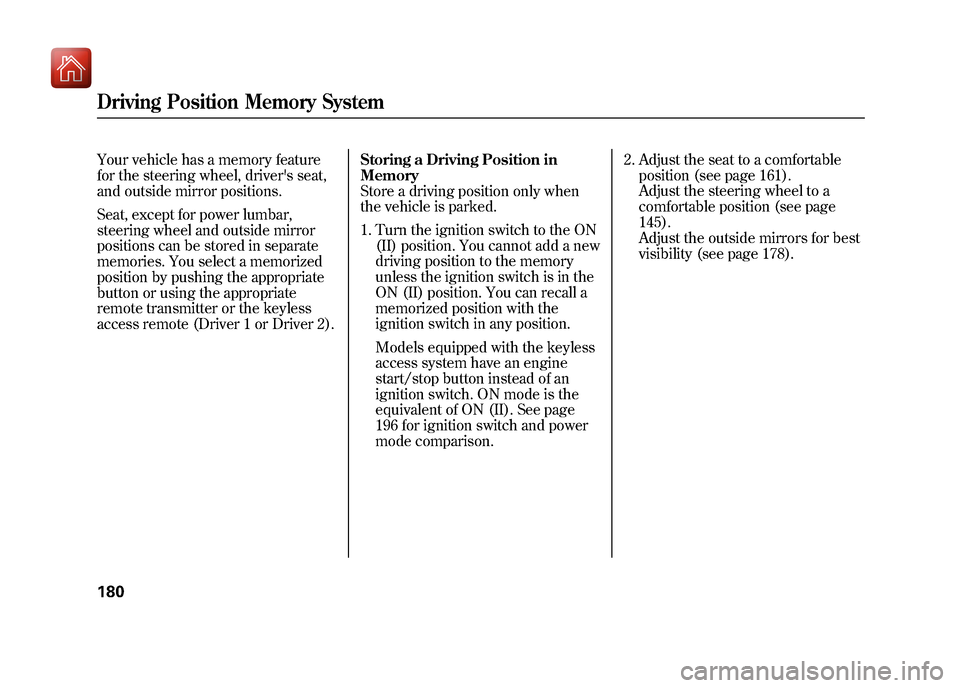

Your vehicle has a memory feature
for the steering wheel, driver's seat,
and outside mirror positions.
Seat, except for power lumbar,
steering wheel and outside mirror
positions can be stored in separate
memories. You select a memorized
position by pushing the appropriate
button or using the appropriate
remote transmitter or the keyless
access remote (Driver 1 or Driver 2).Storing a Driving Position in
Memory
Store a driving position only when
the vehicle is parked.
1. Turn the ignition switch to the ON
(II) position. You cannot add a new
driving position to the memory
unless the ignition switch is in the
ON (II) position. You can recall a
memorized position with the
ignition switch in any position.
Models equipped with the keyless
access system have an engine
start/stop button instead of an
ignition switch. ON mode is the
equivalent of ON (II). See page
196 for ignition switch and power
mode comparison. 2. Adjust the seat to a comfortable
position (see page 161).
Adjust the steering wheel to a
comfortable position (see page
145).
Adjust the outside mirrors for best
visibility (see page 178).Driving Position Memory System18009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

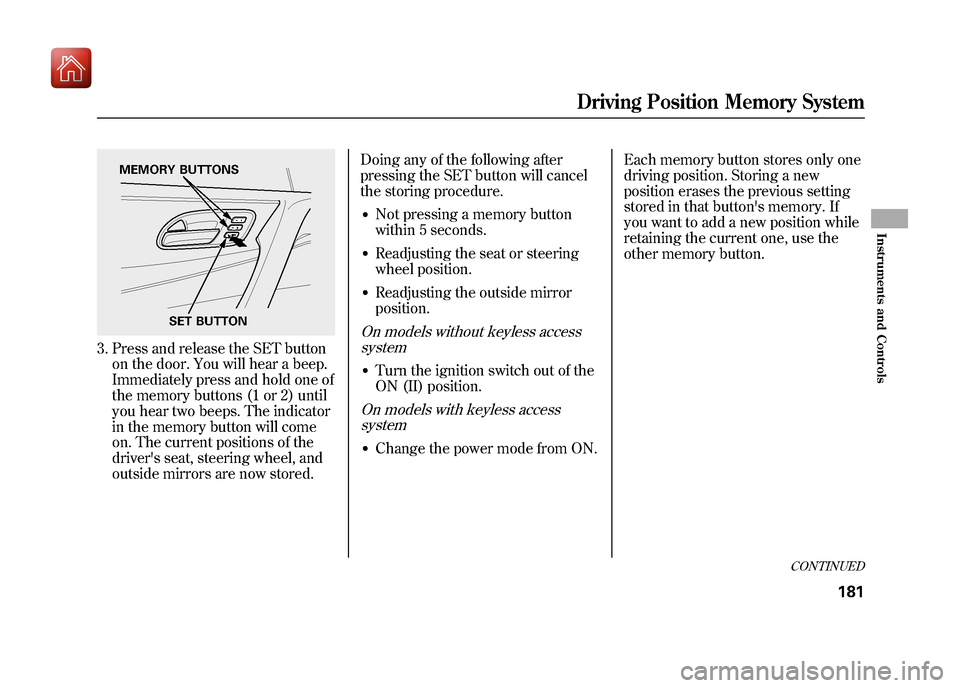

3. Press and release the SET buttonon the door. You will hear a beep.
Immediately press and hold one of
the memory buttons (1 or 2) until
you hear two beeps. The indicator
in the memory button will come
on. The current positions of the
driver's seat, steering wheel, and
outside mirrors are now stored. Doing any of the following after
pressing the SET button will cancel
the storing procedure.
●Not pressing a memory button
within 5 seconds.●Readjusting the seat or steering
wheel position.●Readjusting the outside mirror
position.On models without keyless access
system●Turn the ignition switch out of the
ON (II) position.On models with keyless accesssystem●Change the power mode from ON. Each memory button stores only one
driving position. Storing a new
position erases the previous setting
stored in that button's memory. If
you want to add a new position while
retaining the current one, use the
other memory button.
SET BUTTON
MEMORY BUTTONS
CONTINUED
Driving Position Memory System
181
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

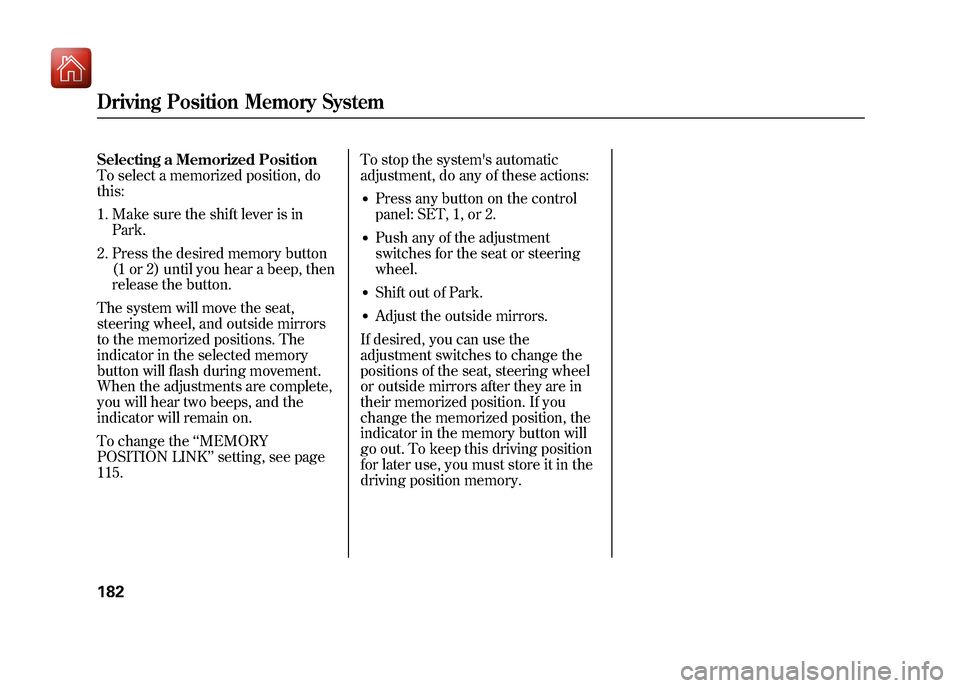

Selecting a Memorized Position
To select a memorized position, do
this:1. Make sure the shift lever is in Park.
2. Press the desired memory button (1 or 2) until you hear a beep, then
release the button.
The system will move the seat,
steering wheel, and outside mirrors
to the memorized positions. The
indicator in the selected memory
button will flash during movement.
When the adjustments are complete,
you will hear two beeps, and the
indicator will remain on.
To change the ‘‘MEMORY
POSITION LINK ’’setting, see page
115. To stop the system's automatic
adjustment, do any of these actions:
●Press any button on the control
panel: SET, 1, or 2.●Push any of the adjustment
switches for the seat or steering
wheel.●Shift out of Park.●Adjust the outside mirrors.
If desired, you can use the
adjustment switches to change the
positions of the seat, steering wheel
or outside mirrors after they are in
their memorized position. If you
change the memorized position, the
indicator in the memory button will
go out. To keep this driving position
for later use, you must store it in the
driving position memory.
Driving Position Memory System18209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

On models with navigation systemYour vehicle has a keyless access
system. This system allows you to
operate the vehicle without an
ignition key. When you carry the
remote with you, you can lock/
unlock the door(s), unlock the
tailgate, and start the engine.
The system may not work if:●The battery of the remote is weak.●There is strong electrical current
nearby.●You carry a cell phone, a laptop
computer, or other electrical
device near the remote.●The remote is covered by metal.●A vehicle is being operated with a
transmitter nearby.●When the remote battery is dead.●When the vehicle battery is dead.Each keyless access remote has the
built-in key. This key is used to lock/
unlock the doors when the remote
battery becomes weak and the power
door lock/unlock operation is
disabled. You cannot start the engine
with this key.
Make sure the driver always carries
the remote/built-in key set.
Protect the remote and the built-in
key from direct sunlight, high
temperature, and high humidity.
Do not drop the remote or the built-
in key, and do not set heavy objects
on them.
Keep the remote and the built-in key
away from liquids. If they get wet,
dry them immediately with a soft
cloth.
The built-in keys do not contain
batteries.
Always keep the remote and the
built-in key away from any magnetic
material.
You should have received a key
number tag with your built-in key.
You will need this key number if you
ever have to get a lost key replaced.
Use only Acura-approved key blanks.
CONTINUED
Keyless Access System
183
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

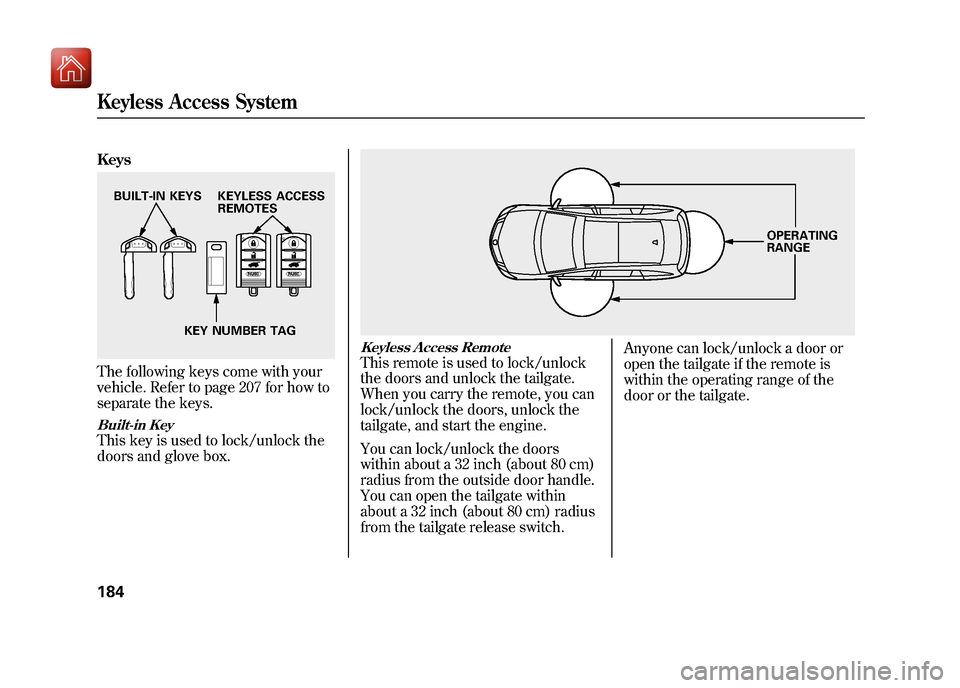

KeysThe following keys come with your
vehicle. Refer to page 207 for how to
separate the keys.Built-in KeyThis key is used to lock/unlock the
doors and glove box.
Keyless Access RemoteThis remote is used to lock/unlock
the doors and unlock the tailgate.
When you carry the remote, you can
lock/unlock the doors, unlock the
tailgate, and start the engine.
You can lock/unlock the doors
within about a 32 inch (about 80 cm)
radius from the outside door handle.
You can open the tailgate within
about a 32 inch (about 80 cm) radius
from the tailgate release switch.Anyone can lock/unlock a door or
open the tailgate if the remote is
within the operating range of the
door or the tailgate.
BUILT-IN KEYS
KEY NUMBER TAGKEYLESS ACCESS
REMOTES
OPERATING
RANGE
Keyless Access System18409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

The remote may not work if:●It is too close to the vehicle.●It is above or below the vehicle,
even when it is within its operating
range.
Each front door has a LOCK/
UNLOCK feature. Unlocking the Door(s)
The handle of each front door has a
sensor. That sensor works with the
remote so you can automatically
unlock the door(s).
By default, only the driver's door
unlocks when you grab its handle.
To unlock the remaining doors and
the tailgate, press the UNLOCK
button on the remote or the rear of
the master door lock switch on the
driver's door.To change the
‘‘DOOR UNLOCK
MODE ’’setting, see page 119.
All the doors unlock when you grab
the handle of the front passenger's
door.
When you unlock the door(s), some
exterior lights blink twice and the
system beeps twice.
To change the ‘‘KEYLESS ACCESS
LIGHT FLASH ’’setting, see page
120.
To change the ‘‘KEYLESS ACCESS
BEEP ’’setting, see page 121.
If you wear a glove while grabbing a
front door handle, the door sensor
may be slow to respond or may not
respond by unlocking the doors.
CONTINUED
Keyless Access System
185
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
