Acura ZDX 2012 Owner's Manual

If you do not open any of the doors
within 30 seconds, they will
automatically relock.
To change the‘‘SECURITY RELOCK
TIMER ’’setting, see page 134.
If a remote is within operating range
while you wash your vehicle or when
it is raining heavily, the door sensors
may respond by unlocking the doors. Each unlock sensor does not operate
when:
●The remote is not within the
operating range.●The remote is too close to the
vehicle.●When the doors are unlocked.●The remote battery is dead.●The vehicle battery is dead.Locking the Doors
When you press the door lock button
on the front door, all the doors and
the tailgate will lock.
Before locking the doors, make sure
the remote is not inside the vehicle.
DOOR LOCK BUTTON
Keyless Access System18609/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

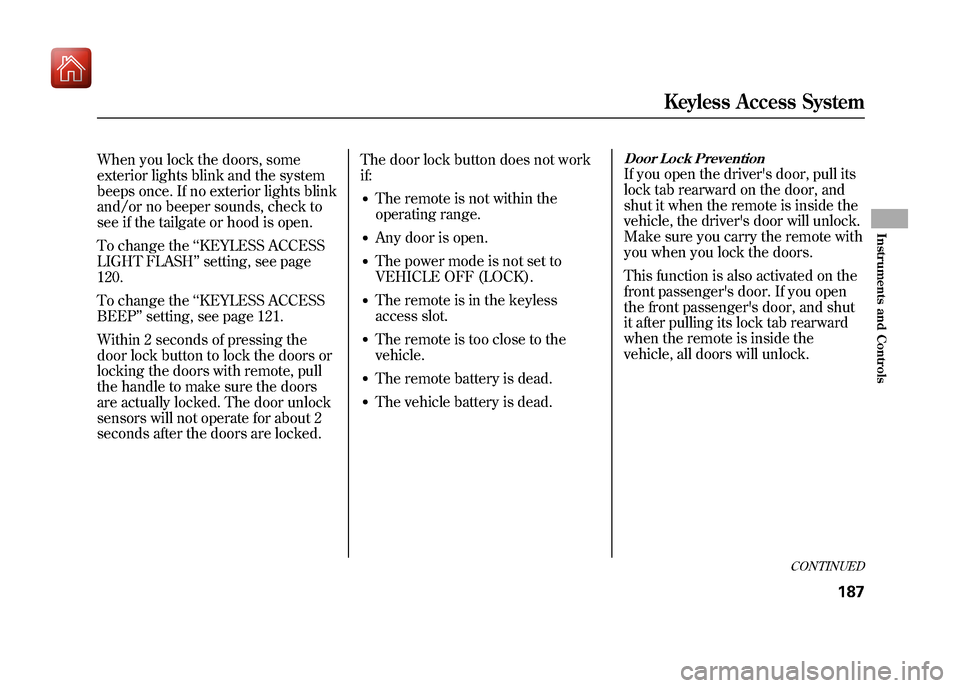

When you lock the doors, some
exterior lights blink and the system
beeps once. If no exterior lights blink
and/or no beeper sounds, check to
see if the tailgate or hood is open.
To change the‘‘KEYLESS ACCESS
LIGHT FLASH ’’setting, see page
120.
To change the ‘‘KEYLESS ACCESS
BEEP ’’setting, see page 121.
Within 2 seconds of pressing the
door lock button to lock the doors or
locking the doors with remote, pull
the handle to make sure the doors
are actually locked. The door unlock
sensors will not operate for about 2
seconds after the doors are locked. The door lock button does not work
if:
●The remote is not within the
operating range.●Any door is open.●The power mode is not set to
VEHICLE OFF (LOCK).●The remote is in the keyless
access slot.●The remote is too close to the
vehicle.●The remote battery is dead.●The vehicle battery is dead.
Door Lock PreventionIf you open the driver's door, pull its
lock tab rearward on the door, and
shut it when the remote is inside the
vehicle, the driver's door will unlock.
Make sure you carry the remote with
you when you lock the doors.
This function is also activated on the
front passenger's door. If you open
the front passenger's door, and shut
it after pulling its lock tab rearward
when the remote is inside the
vehicle, all doors will unlock.
CONTINUED
Keyless Access System
187
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

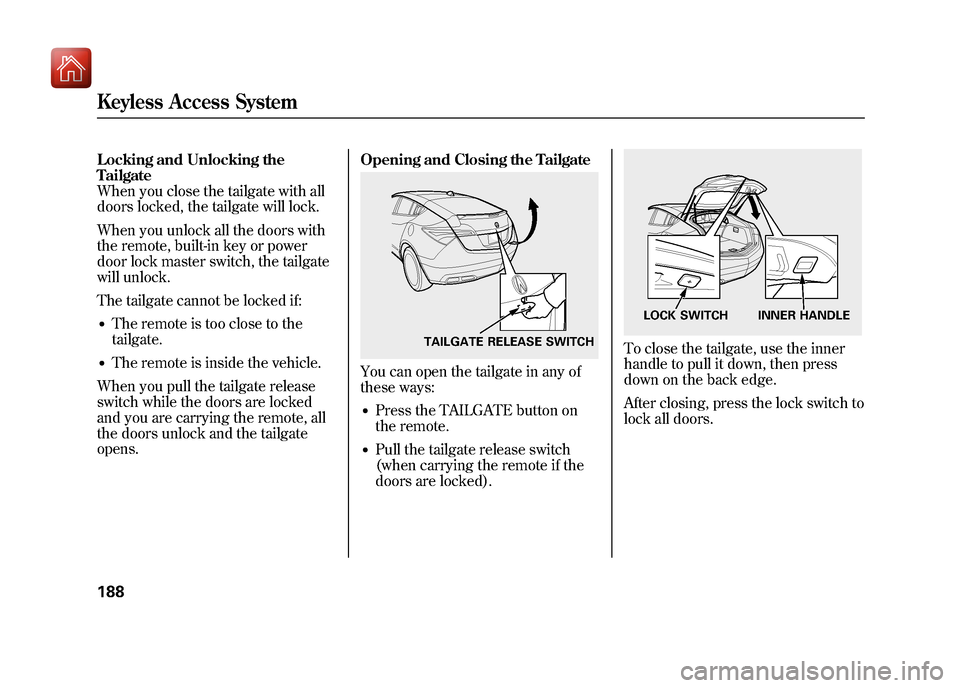

Locking and Unlocking the
Tailgate
When you close the tailgate with all
doors locked, the tailgate will lock.
When you unlock all the doors with
the remote, built-in key or power
door lock master switch, the tailgate
will unlock.
The tailgate cannot be locked if:●The remote is too close to the
tailgate.●The remote is inside the vehicle.
When you pull the tailgate release
switch while the doors are locked
and you are carrying the remote, all
the doors unlock and the tailgate
opens. Opening and Closing the Tailgate
You can open the tailgate in any of
these ways:●Press the TAILGATE button on
the remote.●Pull the tailgate release switch
(when carrying the remote if the
doors are locked).
To close the tailgate, use the inner
handle to pull it down, then press
down on the back edge.
After closing, press the lock switch to
lock all doors.
TAILGATE RELEASE SWITCH
LOCK SWITCH INNER HANDLE
Keyless Access System18809/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

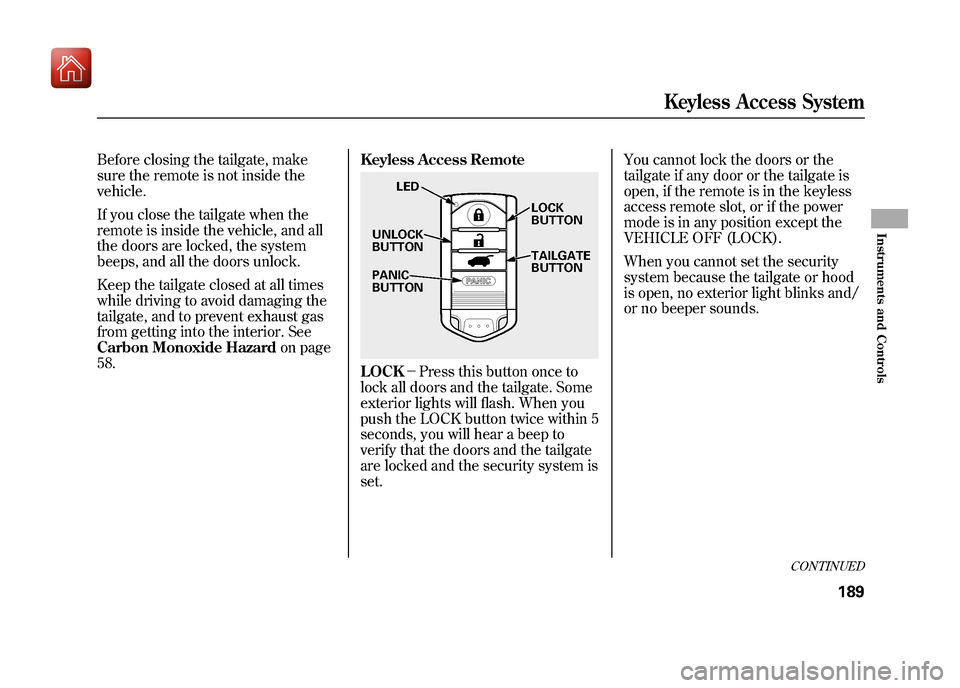

Before closing the tailgate, make
sure the remote is not inside the
vehicle.
If you close the tailgate when the
remote is inside the vehicle, and all
the doors are locked, the system
beeps, and all the doors unlock.
Keep the tailgate closed at all times
while driving to avoid damaging the
tailgate, and to prevent exhaust gas
from getting into the interior. See
Carbon Monoxide Hazardon page
58. Keyless Access Remote
LOCK
－Press this button once to
lock all doors and the tailgate. Some
exterior lights will flash. When you
push the LOCK button twice within 5
seconds, you will hear a beep to
verify that the doors and the tailgate
are locked and the security system is
set. You cannot lock the doors or the
tailgate if any door or the tailgate is
open, if the remote is in the keyless
access remote slot, or if the power
mode is in any position except the
VEHICLE OFF (LOCK).
When you cannot set the security
system because the tailgate or hood
is open, no exterior light blinks and/
or no beeper sounds.
LED
UNLOCK
BUTTON
PANIC
BUTTON LOCK
BUTTON
TAILGATE
BUTTON
CONTINUED
Keyless Access System
189
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

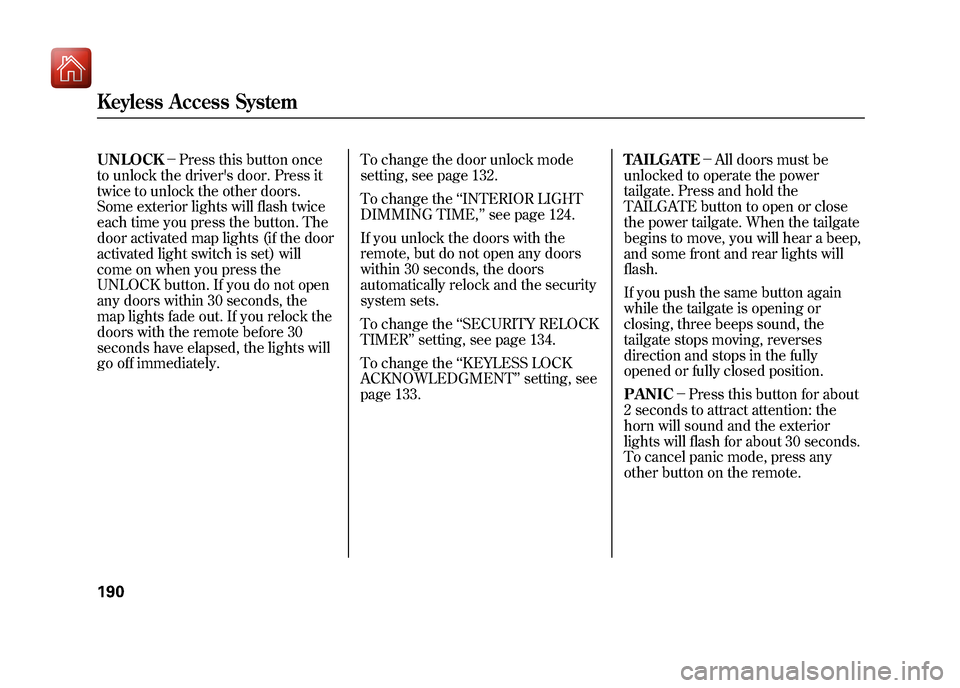

UNLOCK－Press this button once
to unlock the driver's door. Press it
twice to unlock the other doors.
Some exterior lights will flash twice
each time you press the button. The
door activated map lights (if the door
activated light switch is set) will
come on when you press the
UNLOCK button. If you do not open
any doors within 30 seconds, the
map lights fade out. If you relock the
doors with the remote before 30
seconds have elapsed, the lights will
go off immediately. To change the door unlock mode
setting, see page 132.
To change the
‘‘INTERIOR LIGHT
DIMMING TIME, ’’see page 124.
If you unlock the doors with the
remote, but do not open any doors
within 30 seconds, the doors
automatically relock and the security
system sets.
To change the ‘‘SECURITY RELOCK
TIMER ’’setting, see page 134.
To change the ‘‘KEYLESS LOCK
ACKNOWLEDGMENT ’’setting, see
page 133. TAILGATE
－All doors must be
unlocked to operate the power
tailgate. Press and hold the
TAILGATE button to open or close
the power tailgate. When the tailgate
begins to move, you will hear a beep,
and some front and rear lights will
flash.
If you push the same button again
while the tailgate is opening or
closing, three beeps sound, the
tailgate stops moving, reverses
direction and stops in the fully
opened or fully closed position.
PANIC －Press this button for about
2 seconds to attract attention: the
horn will sound and the exterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
other button on the remote.Keyless Access System19009/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

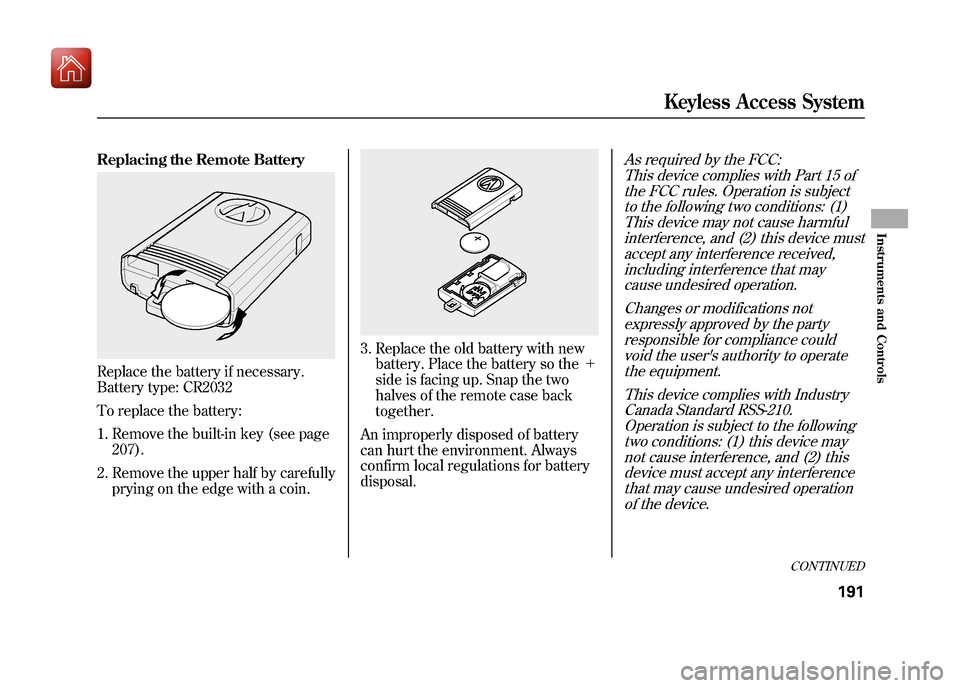

Replacing the Remote BatteryReplace the battery if necessary.
Battery type: CR2032
To replace the battery:1. Remove the built-in key (see page 207).
2. Remove the upper half by carefully prying on the edge with a coin.
3. Replace the old battery with newbattery. Place the battery so the ＋
side is facing up. Snap the two
halves of the remote case back
together.
An improperly disposed of battery
can hurt the environment. Always
confirm local regulations for battery
disposal.
As required by the FCC: This device complies with Part 15 ofthe FCC rules. Operation is subjectto the following two conditions: (1)
This device may not cause harmfulinterference, and (2) this device mustaccept any interference received,including interference that maycause undesired operation.
Changes or modifications notexpressly approved by the partyresponsible for compliance could
void the user's authority to operatethe equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the followingtwo conditions: (1) this device maynot cause interference, and (2) thisdevice must accept any interference
that may cause undesired operationof the device.
CONTINUED
Keyless Access System
191
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Keyless Memory Setting™When you unlock the door with your
remote, each remote activates the
keyless memory settings related to
that remote. The driver's ID (Driver
1 or Driver 2) is shown on the back
of each remote. Here are the settings activated with
the remote:
●Driving position memory
(see page 180).●Keyless memory settings
(see page 94).●Audio system settings
(see page 277).●Climate control settings
(see page 221).●Navigation system preferences
(see the navigation system
manual).
Remote Transmitter Care●Avoid dropping or throwing the
transmitter.●Protect the transmitter from
extreme temperature.●Do not immerse the transmitter in
any liquid.●If you lose a transmitter, the
replacement needs to be
reprogramed by your dealer.
DRIVER'S ID
Keyless Access System19209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Engine Start/Stop Button Operating RangeThe engine may not run, and some
malfunctions may occur, if the
remote is outside the vehicle.The engine may not start if the
remote is subjected to strong radio
waves.
Also, the engine may not start if the
remote is too close to the windows.
Make sure you know where the remote
is when you are inside the vehicle.
Remember that you can start the engine
when the remote is inside the vehicle.
Make sure you always carry the remote
with you.
CONTINUED
Keyless Access System
193
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

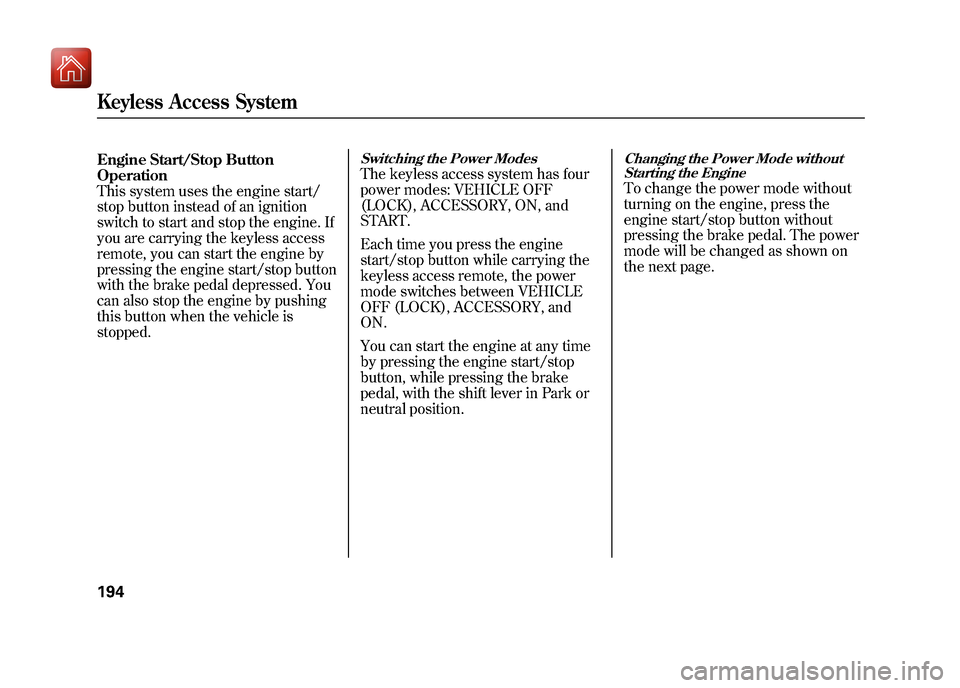

Engine Start/Stop Button
Operation
This system uses the engine start/
stop button instead of an ignition
switch to start and stop the engine. If
you are carrying the keyless access
remote, you can start the engine by
pressing the engine start/stop button
with the brake pedal depressed. You
can also stop the engine by pushing
this button when the vehicle is
stopped.
Switching the Power ModesThe keyless access system has four
power modes: VEHICLE OFF
(LOCK), ACCESSORY, ON, and
START.
Each time you press the engine
start/stop button while carrying the
keyless access remote, the power
mode switches between VEHICLE
OFF (LOCK), ACCESSORY, and
ON.
You can start the engine at any time
by pressing the engine start/stop
button, while pressing the brake
pedal, with the shift lever in Park or
neutral position.
Changing the Power Mode withoutStarting the EngineTo change the power mode without
turning on the engine, press the
engine start/stop button without
pressing the brake pedal. The power
mode will be changed as shown on
the next page.
Keyless Access System19409/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

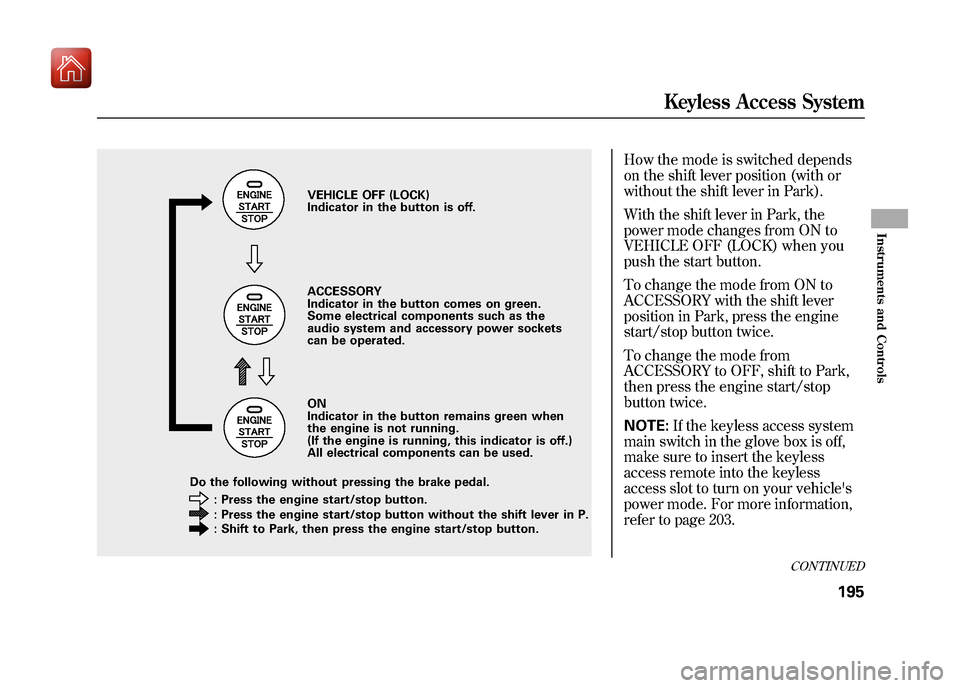

How the mode is switched depends
on the shift lever position (with or
without the shift lever in Park).
With the shift lever in Park, the
power mode changes from ON to
VEHICLE OFF (LOCK) when you
push the start button.
To change the mode from ON to
ACCESSORY with the shift lever
position in Park, press the engine
start/stop button twice.
To change the mode from
ACCESSORY to OFF, shift to Park,
then press the engine start/stop
button twice.
NOTE:If the keyless access system
main switch in the glove box is off,
make sure to insert the keyless
access remote into the keyless
access slot to turn on your vehicle's
power mode. For more information,
refer to page 203.
VEHICLE OFF (LOCK)
Indicator in the button is off.
ACCESSORY
Indicator in the button comes on green.
Some electrical components such as the
audio system and accessory power sockets
can be operated.
ON
Indicator in the button remains green when
the engine is not running.
(If the engine is running, this indicator is off.)
All electrical components can be used.
: Press the engine start/stop button.
: Press the engine start/stop button without the shift lever in P.
: Shift to Park, then press the engine start/stop button.
Do the following without pressing the brake pedal.
