Alfa Romeo Giulietta 2013 Owner handbook (in English)

Dashboard fuse box
Insert a hand in housing A fig. 162 and lower flap B to access the
fuses fig. 161.
fig. 161
A0K0206
fig. 162
A0K0244
167GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Luggage compartment fuse box
The fuse box (fig. 163) is located on the left side of the luggage
compartment underneath the side cover.
Contact Alfa Romeo Authorized Services to access it.
fig. 163
A0K0045
168GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

ENGINE COMPARTMENT FUSE BOXfig. 160DEVICE PROTECTEDFUSE AMPS
Headlamp washer pump power supply F09 30
HornF10 15
AC compressorF19 7,5
Heated rear windowF20 30
Fuel pumpF21 15
Fuel pump (1750 Turbo Petrol version) F21 20
Cigar lighter/power socketF85 15
12 V boot power socketF86 15
IBS Battery charge status sensor for Start&Stop system F87 5
External mirror defrostersF88 7,5
169GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

INSTRUMENT PANEL FUSE BOXfig. 162DEVICE PROTECTEDFUSE AMPS
Right main beam headlightF91 7,5
Left main beam headlightF90 7,5
Right dipped beam headlight (versions with halogen headlights) F12 7,5
Left dipped beam headlight (versions with halogen headlights) F13 7,5
Right dipped beam headlight (versions with Bi-Xenon headlights) F12 15
Left dipped beam headlight (versions with Bi-Xenon headlights) F13 15
Right fog lightF93 7,5
Left fog lightF92 7,5
Luggage compartment roof light/Sun visor roof light/Glove compartment light/Front and rear
roof light/Radio navigator displayF32 10
Various devicesF31 5
Rear electric window (left side)F33 20
Rear electric window (right side)F34 20
+30F36 10
Various devicesF37 7,5
Central lockingF38 20
Body Computer supplyF42 5
Two-way windscreen washer pump F43 20
Front electric window (driver side) F47 20
170GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

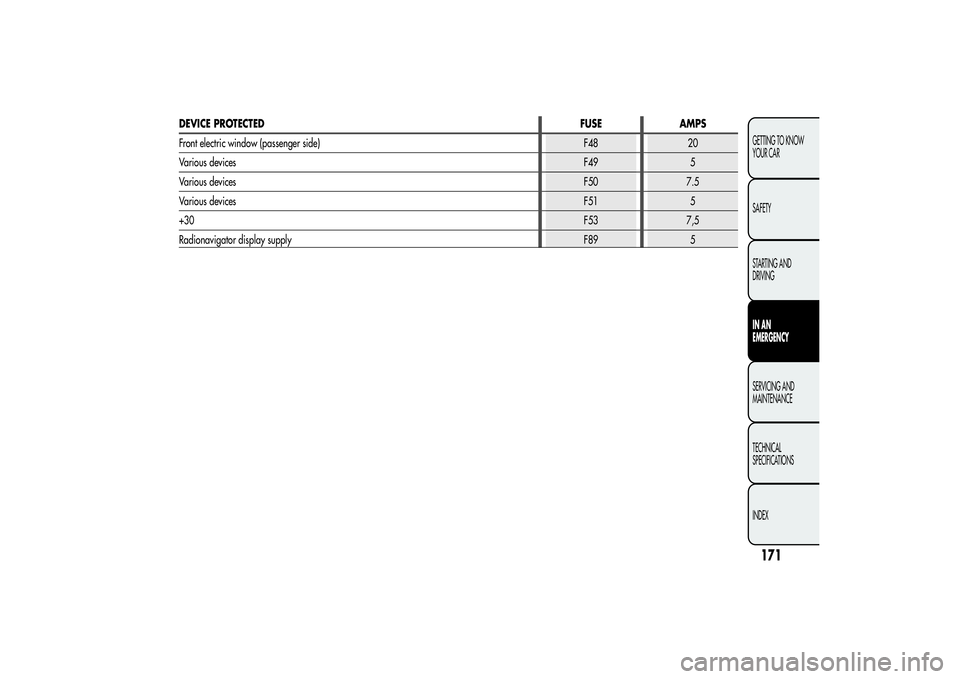

DEVICE PROTECTEDFUSE AMPS
Front electric window (passenger side) F48 20
Various devicesF49 5
Various devicesF50 7.5
Various devicesF51 5
+30F53 7,5
Radionavigator display supplyF89 5
171GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

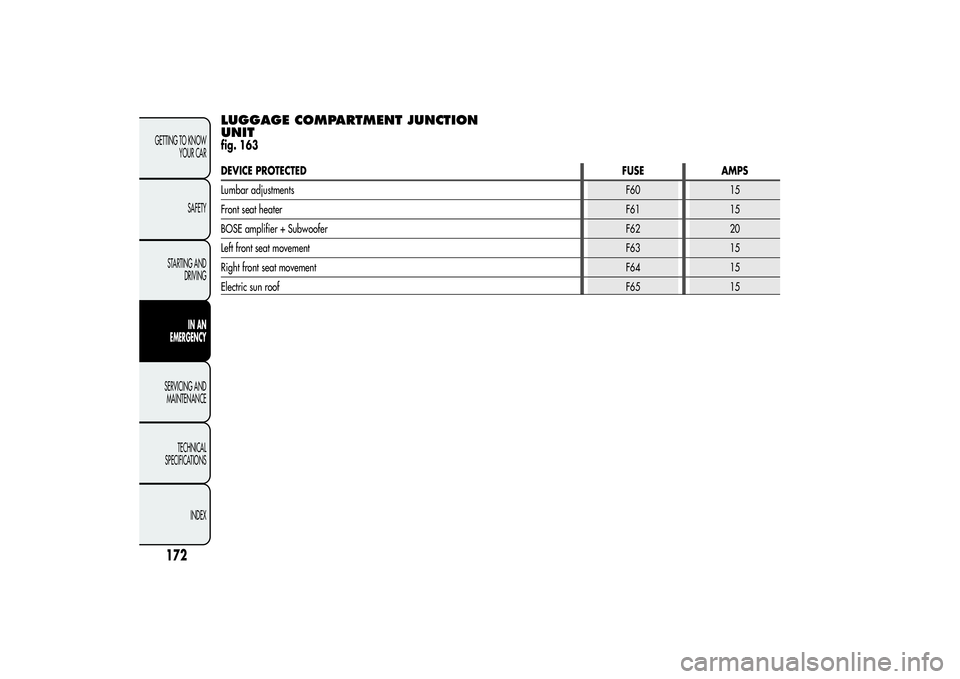

LUGGAGE COMPARTMENT JUNCTION
UNITfig. 163DEVICE PROTECTEDFUSE AMPS
Lumbar adjustmentsF60 15
Front seat heaterF61 15
BOSE amplifier + SubwooferF62 20
Left front seat movementF63 15
Right front seat movementF64 15
Electric sun roofF65 15
172GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

BATTERY RECHARGINGIMPORTANT The battery recharging procedure is given as information
only. Contact Alfa Romeo Authorized Services to carry out this
operation.
IMPORTANT After turning the ignition key to STOP, wait at least 1
minute before disconnecting the battery power supply.
We recommend recharging the battery slowly for approximately 24
hours at low amperage. Charging for a longer time may damage the
battery.VERSIONS WITHOUT Start&Stop
SYSTEM(for versions/markets, where provided)
Charge the battery as follows:
❒disconnect the negative battery terminal;
❒connect the charger cables to the battery terminals, observing the
polarity;
❒turn on the battery charger;
❒when it is recharged, turn the charger off before disconnecting it
from the battery;
❒reconnect the negative battery terminal.VERSIONS WITH Start&Stop SYSTEM(for versions/markets, where provided)
Charge the battery as follows:
❒disconnect the connector A fig. 164 (pressing the button B) from the
sensor C monitoring the battery conditions, on the negative pole D
of the battery;❒connect the positive cable of the battery charger to the positive
battery terminal E and the negative cable to sensor terminal D
as shown;
fig. 164
A0K0200
173GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒turn on the battery charger. At the end of the charging process,
switch the battery charger off;
❒after having disconnected the charging device, reconnect connector
A to the sensor C as shown.
RAISING THE CARIf you need to lift the car contact Alfa Romeo Authorized Services, who
will be equipped with a workshop lift.
IMPORTANT Be careful when positioning the arm of the lift for versions
with side skirts.
174GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

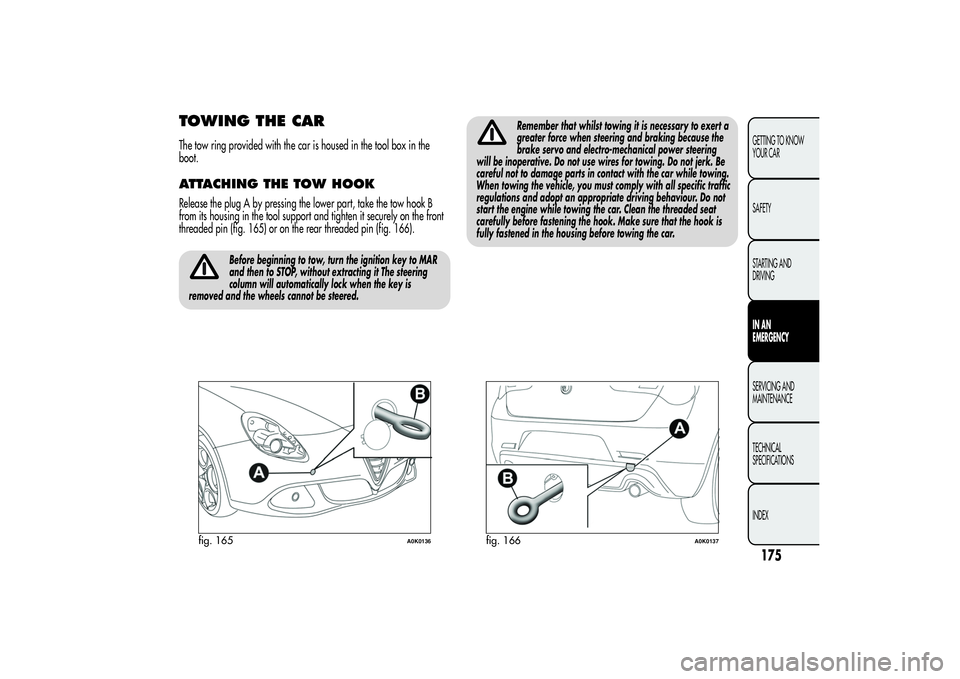

TOWING THE CARThe tow ring provided with the car is housed in the tool box in the
boot.ATTACHING THE TOW HOOKRelease the plug A by pressing the lower part, take the tow hook B
from its housing in the tool support and tighten it securely on the front
threaded pin (fig. 165) or on the rear threaded pin (fig. 166).
Before beginning to tow, turn the ignition key to MAR
and then to STOP, without extracting it The steering
column will automatically lock when the key is
removed and the wheels cannot be steered.
Remember that whilst towing it is necessary to exert a
greater force when steering and braking because the
brake servo and electro-mechanical power steering
will be inoperative. Do not use wires for towing. Do not jerk. Be
careful not to damage parts in contact with the car while towing.
When towing the vehicle, you must comply with all specific traffic
regulations and adopt an appropriate driving behaviour. Do not
start the engine while towing the car. Clean the threaded seat
carefully before fastening the hook. Make sure that the hook is
fully fastened in the housing before towing the car.
fig. 165
A0K0136
fig. 166
A0K0137
175GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

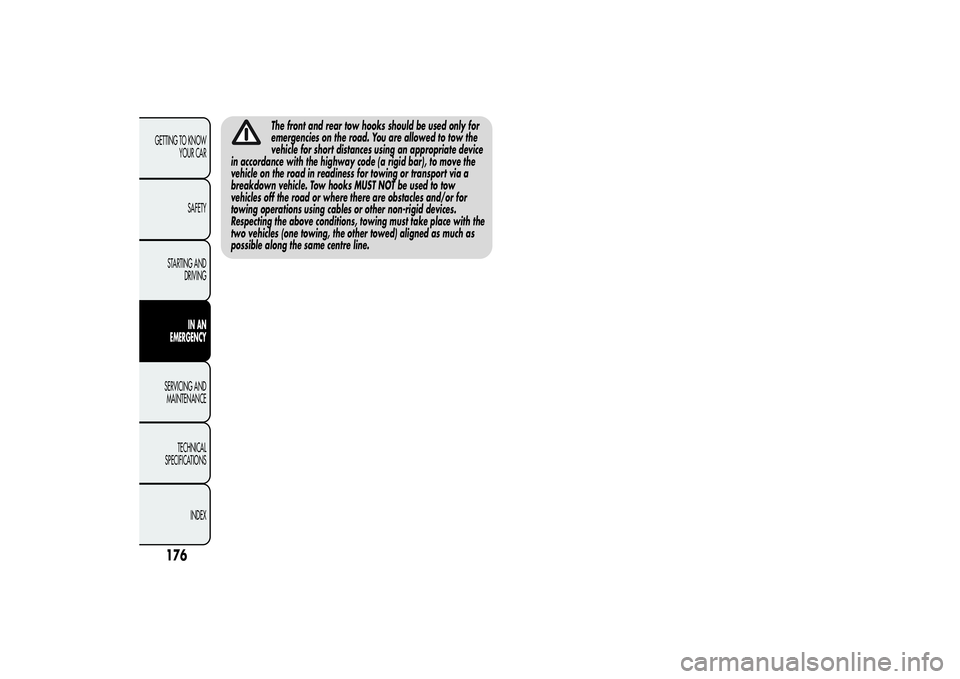

The front and rear tow hooks should be used only for
emergencies on the road. You are allowed to tow the
vehicle for short distances using an appropriate device
in accordance with the highway code (a rigid bar), to move the
vehicle on the road in readiness for towing or transport via a
breakdown vehicle. Tow hooks MUST NOT be used to tow
vehicles off the road or where there are obstacles and/or for
towing operations using cables or other non-rigid devices.
Respecting the above conditions, towing must take place with the
two vehicles (one towing, the other towed) aligned as much as
possible along the same centre line.
