Page 151 of 292

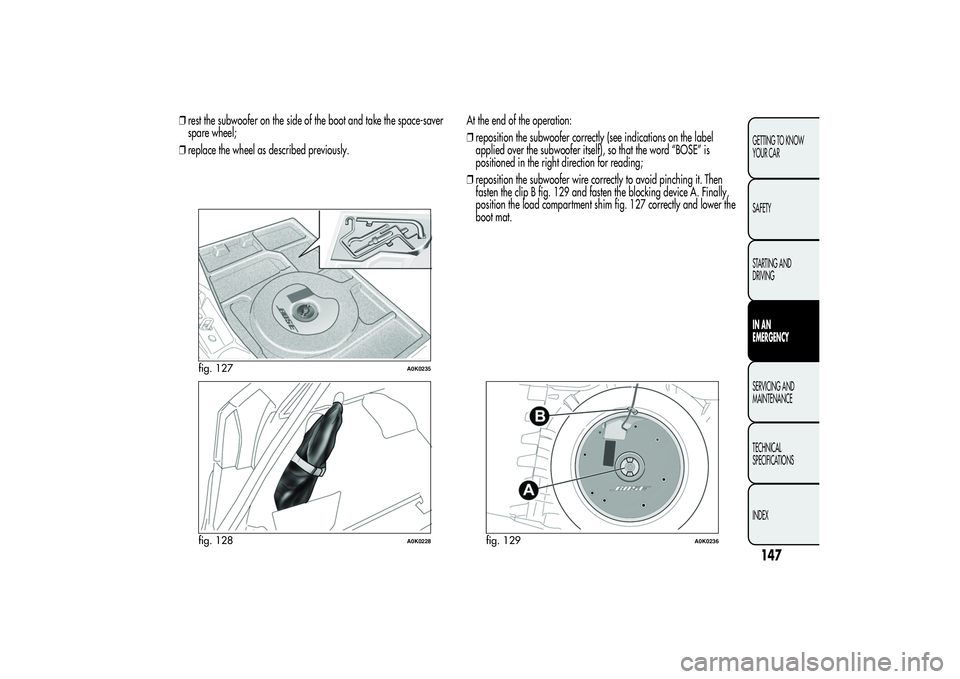

Alfa Romeo Giulietta 2013  Owner handbook (in English) ❒rest the subwoofer on the side of the boot and take the space-saver
spare wheel;
❒replace the wheel as described previously.At the end of the operation:
❒reposition the subwoofer correctly (see

Page 152 of 292

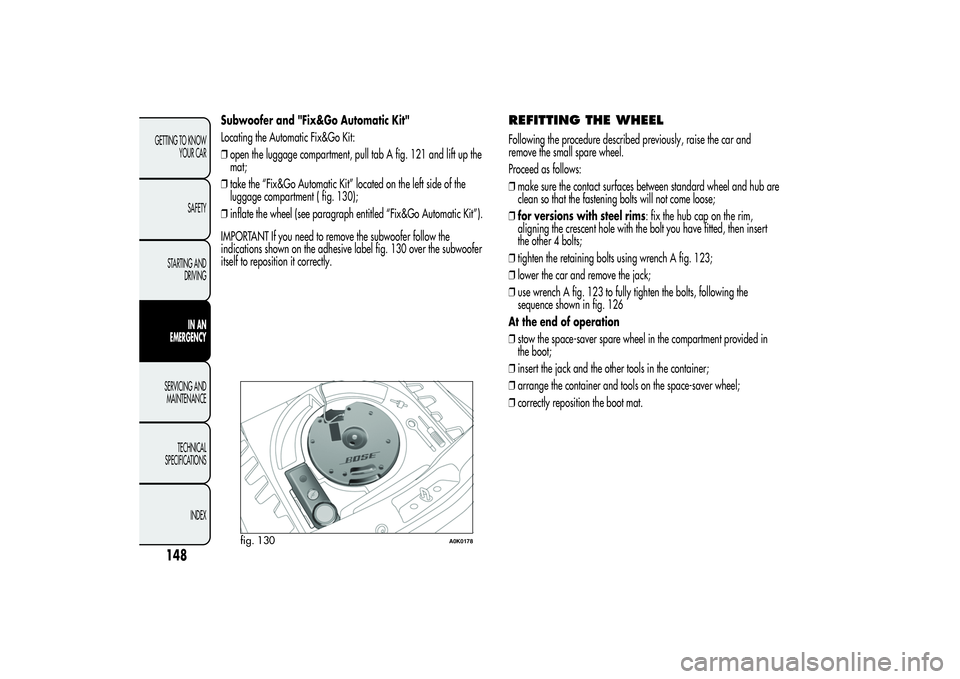

Alfa Romeo Giulietta 2013  Owner handbook (in English) Subwoofer and "Fix&Go Automatic Kit"
Locating the Automatic Fix&Go Kit:
❒open the luggage compartment, pull tab A fig. 121 and lift up the
mat;
❒take the “Fix&Go Automatic Kit” located

Page 153 of 292

Alfa Romeo Giulietta 2013  Owner handbook (in English) "Fix&Go Automatic" kitThis is located in the luggage compartment (the kit container may vary
according to version - see fig. 131).
The kit container also contains a screwdriver and the tow hoo

Page 154 of 292

Alfa Romeo Giulietta 2013  Owner handbook (in English) In the event of a puncture caused by foreign bodies, the kit
may be used to repair tyres showing damage on the track
or shoulder up to max 4 mm diameter.Holes and damage on the tyre side walls cannot

Page 155 of 292

Alfa Romeo Giulietta 2013  Owner handbook (in English) INFLATION PROCEDURE
Wear the protective gloves provided with the kit.
Proceed as follows:
❒engage the handbrake, unscrew the tyre valve cap, take out the
flexible filler pipe A fig. 134 and tighten

Page 156 of 292

Alfa Romeo Giulietta 2013  Owner handbook (in English) ❒if you still cannot obtain a pressure of at least 1.8 bar within 5
minutes from the compressor switching on, do not drive off and
contact Alfa Romeo Authorized Services;
❒after driving for about

Page 157 of 292

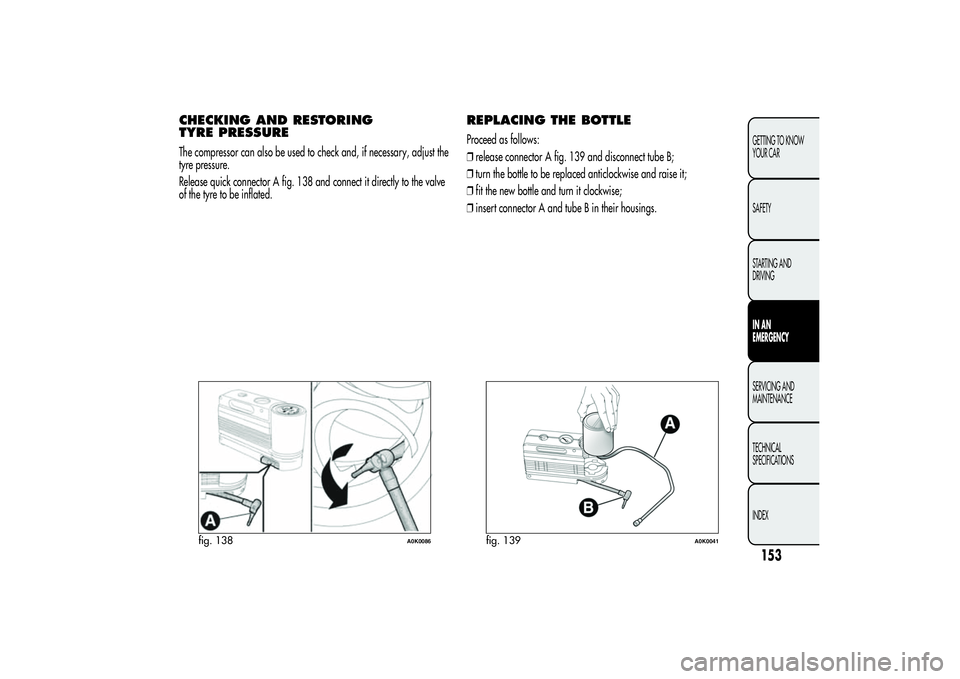

Alfa Romeo Giulietta 2013  Owner handbook (in English) CHECKING AND RESTORING
TYRE PRESSUREThe compressor can also be used to check and, if necessary, adjust the
tyre pressure.
Release quick connector A fig. 138 and connect it directly to the valve
of the

Page 158 of 292

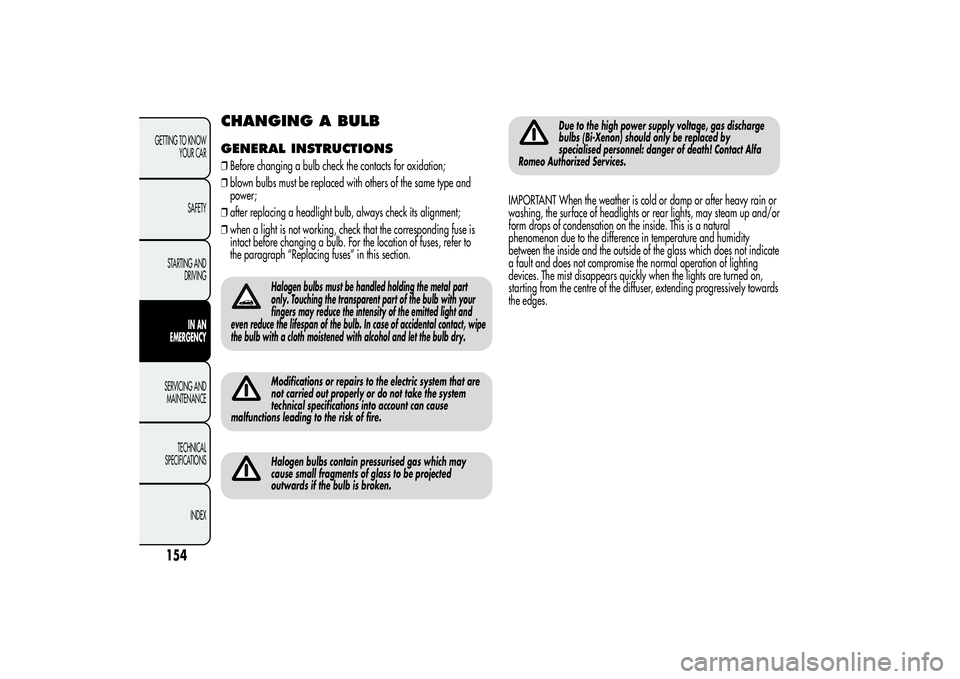

Alfa Romeo Giulietta 2013  Owner handbook (in English) CHANGING A BULBGENERAL INSTRUCTIONS❒Before changing a bulb check the contacts for oxidation;
❒blown bulbs must be replaced with others of the same type and
power;
❒after replacing a headlight bu

Page 159 of 292

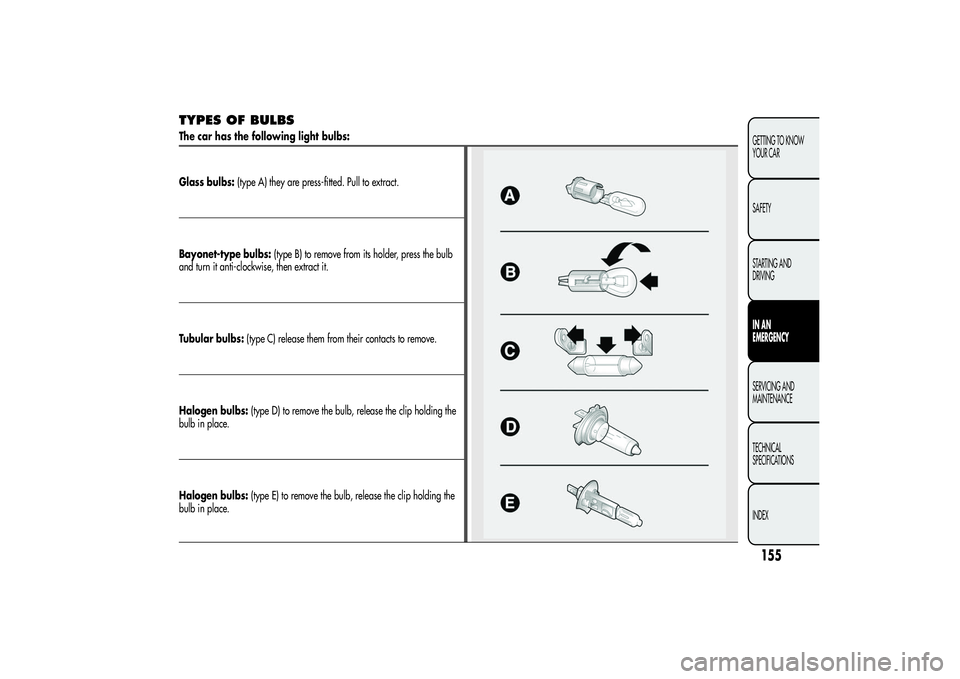

Alfa Romeo Giulietta 2013  Owner handbook (in English) TYPES OF BULBSThe car has the following light bulbs:
Glass bulbs:(type A) they are press-fitted. Pull to extract.Bayonet-type bulbs:(type B) to remove from its holder, press the bulb
and turn it anti-

Page 160 of 292

Alfa Romeo Giulietta 2013  Owner handbook (in English) Bulbs Type Power Re. Figure
Front side lights/Daytime running lights (DRL) LEDs - -
Rear side lights LEDs - -
Dipped headlights H7 55W D
Main beam headlamps H1 55W E
Main/Dipped beams (versions with B
