Page 724 of 947
Wiring and Circuit Protection (18.01)
Electric Distribution/Electronic Control (18.00)
May 2007 Workshop Manual 18-1-35
11. Connect door harness to main harness multiplug and
secure boot.
12. Connect Crash sensor an d parking brake multiplugs.
13. Connect Fuel pump module, parking aid module (x2) and pre-tensioner multiplugs (clip to body).
14. Install earth header.
15. Install clips (x13).
16. Connect petrol tank multiplug and secure to body
17. Install harness clips (x2).
18. Pull harness from passenger compartment and secure grommet.
19. Connect crash sensor, battery disconnect switch and pre-tensioner multiplugs (clip to body x2).
20. Install battery header.
21. Install earth headers (x2).
22. Secure in-line fuse to body.
23. Secure harness to floor (bolts x4).
24. Install clips (x8).
25. Feed harness into tailgate area and secure grommet (LH).
26. Connect LH tailgate harness multiplug (clip to body).
27. Install LH harness clips (x3).
28. Connect RH tailgate ha rness multiplug (clipped to
body).
29. Feed harness into tailgate area and secure grommet (RH).
30. Install RH harness clips (x4).
31. Install nuts (x7) harness to tunnel.
32. Install earth headers (x2).
33. Connect Airbag module (x2) multiplugs.
34. Install harness clips (x3).
35. Install nuts (x3) harness to tunnel.
36. Install earth headers (x2).
37. Connect Yaw sensor multiplug.
38. Install earth headers (x2).
39. Install nuts (x3) harness to front bulkhead.
40. Install harness clips (x4).
41. Connect fuel filler flap release and interior light
multiplugs.
42. Push rear light harness through body and secure grommet.
43. Install new harness clips (x7).
44. Pull harness from interior, connect Lucar connectors (x2) to AM/FM tuner and clip service loop.
45. Connect GPS (x2) and AM/FM tuner multiplugs.
46. Install bolts (x4) and earth strap for Satellite Navigation mounting plate access.
47. Connect rear bumper harness (x2) and Subframe harness multiplugs (clipped to body x1).
48. Push harness into w/arch area and secure grommet.
49. Install wires to earth headers (x3).
50. Push rear light harness through body and fit grommet. 51. Secure harness to body (x3).
52. Connect Interior light, a
ccessory sockets (x2), battery
disconnect switch, power plug (clipped to body x4).
53. Install new harness clips (x4).
54. Feed harness from cabin th rough bulkhead into under
bonnet area and secure grommet.
55. Connect multiplugs forward harness to main harness (x3) (clip to body).
56. Connect (bolted) multiplug forward harness to main harness (clip to body).
57. Install brake booster (see Workshop Manual procedure 06.07.AB Brake Booster - RHD - Renew
58. Install footrest (bolts x4).
59. Install handbrake lever (bolts x4).
60. Install front floor carpet and a post trim panel.
61. Install multimedia module (see Workshop Manual procedure 19.07.BB Module - Multi Media - Renew).
62. Position LH and RH rear lamp assemblies and connect
multiplugs (x2).
63. Install rubber seals (x3), plain washers (x3), and star washers (x3). Install and tighten nuts (x3).
64. Position fusebox, connect main battery feed, install and torque tighten nut, install terminal cover.
65. Connect multiplugs (x2) and install fusebox in mounting bracket.
66. Install mobility kit.
67. Install tyre sealant bottle.
68. Install power amplifier (see Workshop Manual procedure 15.01.AB Power Amplifier - Renew).
69. Fit rear floor carpet - check procedure
70. Connect multiplug (x1) subwoofer.
71. Install subwoofer (nut x1 and bolt x1).
72. Install seat belt bracket (bolts x4).
73. Install speaker to LH and RH trim moulding (nuts x6).
74. Connect multiplug (x2) LH and RH speaker
75. Feed seatbelt/s through quarter trim moulding.
76. Install quarter trim moulding (bolts x2 and screw x1).
77. Install RH and LH quarter trim middle panel, secure
with clips, Install and tighten screw.
78. Install RH rear wheel arch liner (see Workshop Manual procedure 01.02.JB Wheel Arch Liner - Rear - RH -
Renew).
79. Install central electronic module (see Workshop Manual procedure 18.01.LC Module - Central Electronic -
Renew).
80. Install instrument panel (see Workshop Manual procedure 01.12.AB Instrument Panel - Facia Assembly
- Remove for Access and Refit).
81. Install front header panel (see Workshop Manual procedure 01.05.BB Panel Assembly - Header - Renew).
82. Connect vehicle battery.
Page 727 of 947
Wiring and Circuit Protection (18.01)
Electric Distribution/E lectronic Control (18.00)
18-1-38 Workshop Manual May 2007
Axle Transmission Harness-Renew-
Sportshift Only
Removal
1. Disconnect vehicle battery.
2. Raise vehicle on ramp.
3. Remove torque tube (see Workshop Manual procedure
05.01.CA Torque Tube - Re move for Access & Refit).
4. Disconnect multiplug between propshaft speed sensor and transmission harness (see Fig. 1).
5. Disconnect multiplug betwee n clutch position sensor
and transmission harness (see Fig. 2).
6. Release clips (x4) securing clutch pipe to transmission harness. 7. Release clips (x5) securing transmission harness to
torque tube.
8. Release clip securing transmission harness to clutch pipe bracket and remove harness (see Fig. 3).
Installation
1. Secure transmission harness to clutch pipe bracket using clip.
2. Secure transmission harness to torque tube using clips.
3. Secure clutch pipe to tran smission harness using clips.
4. Connect multiplug between clutch position sensor and transmission harness.
5. Connect multiplug between propshaft speed sensor and transmission harness.
6. Install torque tube (see Workshop Manual procedure 05.01.CA Torque Tube - Remove for Access & Refit).
7. Lower vehicle on ramp.
8. Connect vehicle battery.
Tailgate Harness-Renew
Removal
1. Battery isolator switch 'OFF'.
2. Remove trim - tailgate lid assembly (see Workshop Manual procedure 01.05.EF Trim - Tailgate Lid
Assembly - Renew).
3. Disconnect multiplugs (x4), behind trim panel.
4. Disconnect Lucar connectors (x2), heated rear window.
Repair Operation Time (ROT)
Warning
Always disconnect the battery earth (- ve) terminal first.
Warning
When raising the vehicle on a ‘two post’ ramp, ensure
that the rear end of the vehi cle is securely strapped to
the ramp. Failure to strap th e rear of the vehicle down
may lead to the vehicl e falling off the ramp.
Fig. 1
Fig. 2
!
!
Fig. 3
Warning
Always connect the battery earth (+ve) terminal first.
Repair Operation Time (ROT)
ItemCode
Tailgate Harness-Renew 18.01.JC
Warning
To prevent damage to elec trical components, always
disconnect the vehicle battery when working on the
vehicle's electrical system. The earth lead (- ve) must be disconnected first and reconnected last.
!
Page 740 of 947
May 2007 Workshop Manual 20-1-1
Appendix & Glossary
Contents
Diagnostic Ports .................................................. 20-1-2
Fluids/Capacities.................................................. 20-1-3Terms...................................................................... 1-3
Special Tools........................................................ 20-1-4
Maintenance Schedules ..................................... 20-1-12
Torque Figures................................................... 20-1-15 General Torque Figures ........................................ 1-15
Vehicle Torque Figures Torque
Conversion Tables ................................................ 1-16
Page 752 of 947
Torque Figures
Appendix & Glossary
May 2007 Workshop Manual 20-1-13
Mechanical Function Checks - x x Lubricate the bonnet secondary latch.
- x x Check security of the bonnet catch. Ch eck that the secondary catch moves freely
over its whole travel and returns smartly under spring pressure.
- x x Lubricate the upper portion of the door seals.
x x x Check/adjust accessory drive belt tension and renew if necessary. Every 240,000km
(150,000 miles)/15 Years Replace the accessory drive belt.
x - - Adjust handbrake cables if required. - x x Check condition of handbrake pads.
- x x Inspect service brake pads and warnin g leads for wear. Replace if 60% worn.
- x - Check wiper blade inserts and renew if necessary.
- - x Renew wiper blades.
- x x Inspect/clean out coolant radiator and A/C condenser.
x x x Check security of exhaust system mountings and heat shields. Check by-pass valve operation.
x x x Check brake hoses, pipes and unions. - - x Check power steering pipes and unions for corrosion and mechanical defects.
x x x Check cooling system hoses security and condition.
x x x Check A/C hoses security and condition.
x - x Check condition and security of steering unit joints and gaiters (column and rack).
x x - Check security and condition of suspension fixings.
x x - Check security and condition of susp ension ball joints, gaiters and bushings.
- - x Check tightness of driveshaft bolts.
- - x Check condition of underbody protection/wheel arch liners.
Every 64,000km
(40,000 miles)/4 Years Clean Throttle Butterfly
Electrical Function Checks Every 112,000km (70,000 miles) Renew spark plugs. x x x Check/record battery voltage and quiescent drain.
x x x Clean and grease battery connections if required.
x x x Check the battery disconnect/connect switches.
x - x Check and if necessary adjust headlamp alignment.
x x x Check operation of all lamps.
x x x Check operation of all warning indicators.
x x x Check audible warnings including security system.
x x x Check operation of the horns.
x x x Check operation of the windows/headlamp washers/jets.
x x x Check operation of the windscreen wipers.
x x x Check rear view mirrors for security and function.
x x x Check/operate power fold mirrors (option).
x x x Check/operate electric windows.
x x x Interrogate DTC P-codes and rectify if required
x x x Check service interval indicator. Reset.
1000mls
1500km
3 months10000mls
16000km
12 months20000mls
32000km
24 months
Page 753 of 947
Torque Figures
Appendix & Glossary20-1-14 Workshop Manual May 2007
Wheels and Tyre Checks
x x x Check for correct tyre size, type and orientation.
x x x Check and report tyre tread depth.
x x x Check tyres for uneven/excessive wear or damage.
x x x Check/adjust tyre pressures.
x x x Check torque of road wheel nuts.
x x x Check road wheel rims for inner and outer damage.
x x x Check colour coded valve collars for co rrect location (tyre pressure monitoring)
(not Japanese market)
x x x Check ‘Use by ’ date of tyre repair kit and replace if expired or expiry date is
within 12 months
Anti Corrosion Check - x x Check body panels and underbody for corrosion starting from the inside - out
(excluding stone chips).
Final Checks x x x Degrease windscreen.
x x x Check clutch functionality.
x x x Check operation/condition of all seat belts and buckles.
x x x Check that the fuel filler bowl rain drain is clear.
x x x Carry out road test.
1000mls
1500km
3 months10000mls
16000km
12 months20000mls
32000km
24 months
Page 754 of 947
Torque Figures
Appendix & Glossary
May 2007 Workshop Manual 20-1-15

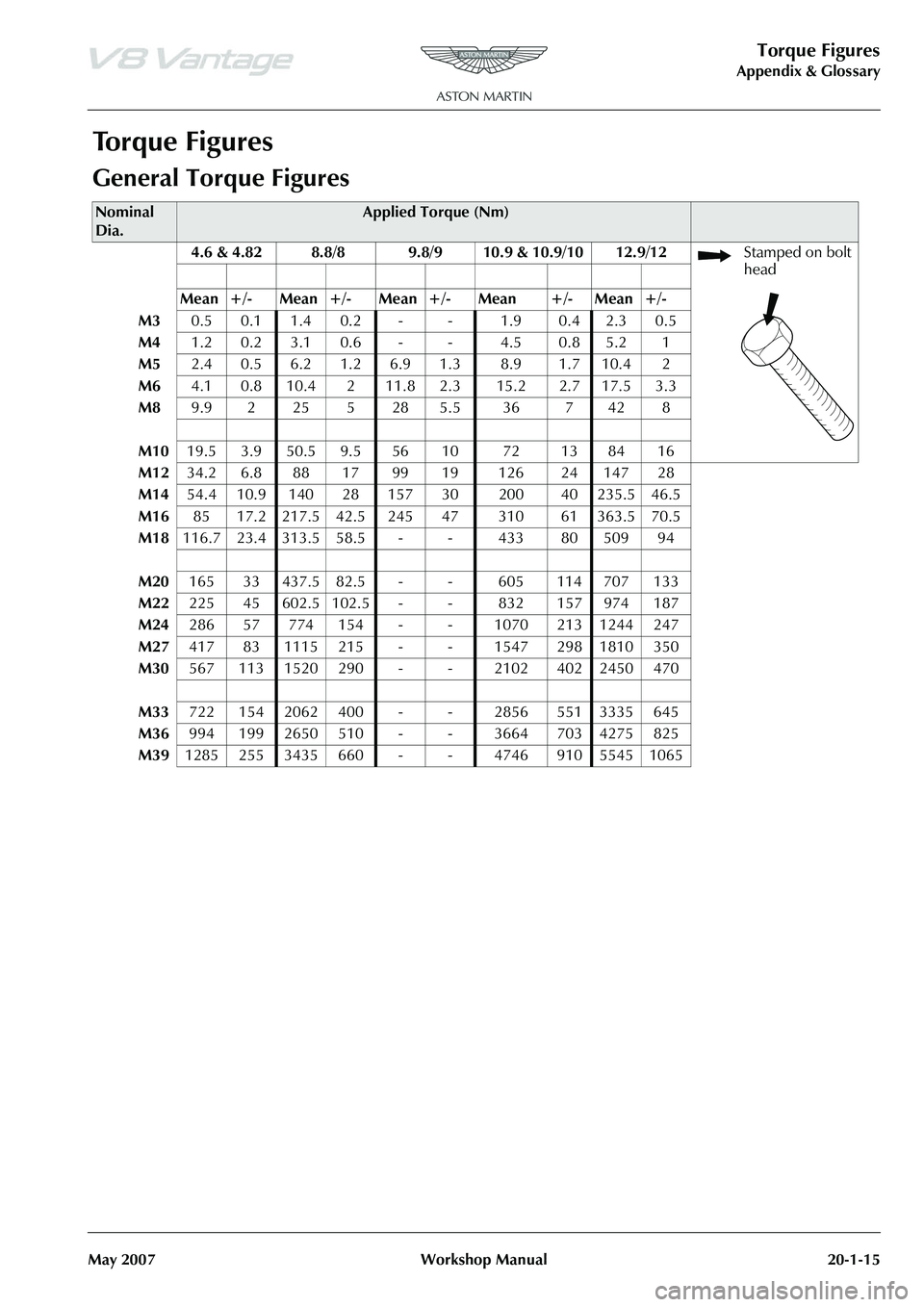

To r q u e F i g u r e s
General Torque Figures
Nominal
Dia. Applied Torque (Nm)
4.6 & 4.82 8.8/8 9.8/9 10.9 & 10.9/10 12.9/12 Stamped on bolt
head
Mean +/- Mean +/- Mean +/- Mean +/- Mean +/-
M3 0.5 0.1 1.4 0.2 - - 1.9 0.4 2.3 0.5
M4 1.2 0.2 3.1 0.6 - - 4.5 0.8 5.2 1
M5 2.4 0.5 6.2 1.2 6.9 1.3 8.9 1.7 10.4 2
M6 4.1 0.8 10.4 2 11.8 2.3 15.2 2.7 17.5 3.3
M8 9.9 2 25 5 28 5.5 36 7 42 8
M10 19.5 3.9 50.5 9.5 56 10 72 13 84 16
M12 34.2 6.8 88 17 99 19 126 24 147 28
M14 54.4 10.9 140 28 157 30 200 40 235.5 46.5
M16 85 17.2 217.5 42.5 245 47 310 61 363.5 70.5
M18 116.7 23.4 313.5 58.5 - - 433 80 509 94
M20 165 33 437.5 82.5 - - 605 114 707 133
M22 225 45 602.5 102.5 - - 832 157 974 187
M24 286 57 774 154 - - 1070 213 1244 247
M27 417 83 1115 215 - - 1547 298 1810 350
M30 567 113 1520 290 - - 2102 402 2450 470
M33 722 154 2062 400 - - 2856 551 3335 645
M36 994 199 2650 510 - - 3664 703 4275 825
M39 1285 255 3435 660 - - 4746 910 5545 1065
Page 755 of 947
Torque Conversion Tables
Appendix & Glossary20-1-16 Workshop Manual May 2007
Vehicle Torque Figures Torque
Conversion Tables
Newton Metres to Pounds Feet
Pounds Feet
0123456789Newton Metres0 - 0.74 1.47 2.21 2.95 3.69 4.42 5.16 5.90 6.64
10 7.38 8.11 8.85 9.59 10.33 11.06 11.80 12.54 13.28 14.01
20 14.75 15.49 16.23 16.96 17.71 18.44 19.18 19.91 20.65 21.39
30 22.13 22.86 23.60 24.34 25.08 25.81 20.55 27.29 28.03 28.76
40 29.50 30.24 30.98 31.71 32.45 33.19 33.93 34.68 35.40 36.14
50 36.88 37.62 38.35 39.09 39.83 40.57 41.30 42.04 42.78 43.52
60 44.25 44.99 45.73 46.47 47.20 47.94 48.68 49.42 50.15 50.89
70 51.63 52.37 53.10 53.84 54.58 55.32 56.06 56.79 57.53 58.27
80 59.00 59.74 60.48 61.22 61.95 62.69 63.43 64.17 64.91 65.64
90 66.38 67.12 67.86 68.59 68.33 70.07 70.81 71.54 72.28 73.02
100 73.76 74.49 75.23 75.97 76.71 77.44 78.18 78.92 79.66 80.39
110 81.13 81.87 82.61 83.34 84.08 84.82 85.56 86.29 87.03 87.77
120 88.51 89.24 89.98 90.72 91.46 92.19 92.93 93.67 94.41 95.15
130 95.88 96.62 97.36 98.09 98.83 98.58 100.3 101.00 101.78 102.52
140 103.26 104.00 104.73 105.47 108.21 106.95 107.68 108.42 109.16 109.90
150 110.63 111.37 112.11 112.85 113.59 114.33 115.06 115.80 116.54 117.27
160 118.01 118.75 119.49 120.22 120.98 121.70 122.44 123.17 123.91 124.65
170 125.39 126.12 126.86 127.60 128.34 129.07 129.81 130.55 131.29 132.02
180 132.76 133.50 134.24 134.87 135.71 136.45 137.19 137.92 138.68 139.40
190 140.14 140.87 141.61 142.35 143.09 143.83 144.56 145.30 146.04 140.78
200 147.51 148.25 148.99 149.73 150.46 151.20 151.94 152.68 153.41 154.15
210 154.89 155.63 156.36 157.10 157.83 158.58 159.31 160.05 160.79 161.53
220 162.26 163.00 163.74 164.48 165.21 165.95 166.69 167.43 168.16 168.90
230 169.64 170.38 171.11 171.85 172.59 173.33 174.07 174.80 175.54 176.28
240 177.02 177.75 178.49 179.23 179.97 180.70 181.44 182.18 182.92 133.65
250 184.39 185.13 185.87 186.60 187.34 158.08 188.82 189.55 190.29 191.03
260 191.77 192.50 193.24 193.98 194.72 195.45 196.19 198.93 197.67 198.40
270 198.14 198.58 200.62 201.35 202.09 202.83 203.57 204.31 205.10 205.78
280 206.52 207.26 207.99 208.73 209.47 210.21 210.94 211.68 212.42 213.16
290 213.89 214.63 215.37 216.11 216.84 217.58 218.32 219.06 219.79 220.53
300 221.27 222.01 222.74 223.48 224.22 224.98 225.68 226.43 227.17 227.91
310 228.64 229.38 230.12 230.86 231.68 232.33 233.07 233.81 234.55 235.28
320 236.02 238.76 237.50 238.23 238.97 239.71 240.45 241.18 241.92 242.68
330 243.40 244.13 244.87 245.61 246.35 247.08 247.82 248.56 249.20 250.03
340 250.77 251.51 252.25 252.98 253.72 254.46 255.20 255.93 256.67 257.41
350 258.15 258.68 259.62 260.36 261.10 261.84 262.57 263.31 264.05 264.79
360 265.52 268.26 267.00 267.74 268.47 267.21 269.95 270.68 271.42 272.16
370 272.90 273.64 274.37 275.11 275.85 276.59 277.32 278.06 278.80 279.54
380 280.27 281.01 281.75 282.49 283.22 283.98 284.70 285.44 286.17 286.91
390 287.65 298.38 289.12 289.86 298.68 291.34 292.08 292.81 293.55 294.29
Page 756 of 947
Torque Conversion Tables
Appendix & Glossary
May 2007 Workshop Manual 20-1-17
Newton Metres400 295.03295.76298.50297.24297.98298.71299.45300.19300.93301.68
410 302.40303.14303.88304.61305.35306.09306.83307.56308.30309.04
420 309.78310.51311.25311.99312.73313.46314.20314.94315.68316.41
430 317.15317.89318.63319.36320.10320.84321.58322.32323.05323.79
440 324.53325.27326.00326.74327.48328.22328.95329.68330.43331.17
450 331.90332.64333.38334.12334.35335.59336.33337.07337.80338.54
460 339.28340.02340.75341.49342.23342.97343.70344.44345.18345.92
470 346.65347.39348.13348.87349.60350.34351.08351.82352.56353.29
480 354.03354.77355.51356.24356.98357.72358.46359.19359.93350.67
490 361.41362.14362.88363.62364.36365.08365.83366.57367.31368.04
500 368.78369.52370.26370.99371.73372.47373.21373.94374.68375.42
510 376.16376.89377.63378.37379.11379.85380.58381.32382.06382.80
520 383.53384.27385.01385.75386.48387.22387.96388.70389.43390.17
530 390.91391.65392.38393.12393.86394.60395.33396.07396.81397.55
540 398.28399.02399.76400.50401.23401.97402.71403.45404.18404.92
550 405.68406.40407.13407.87408.61409.35410.09410.82411.56412.30
560 413.04413.77414.51415.25415.99416.72417.40418.20418.94419.67
570 420.41421.15421.87422.62423.36424.10424.84425.57426.31427.05
580 427.79428.52429.26430.00430.74431.47432.21432.95433.68434.42
590 435.16435.90436.64437.37438.11438.85439.59440.33441.06441.80
600 442.54443.28444.01444.75445.49448.23446.96447.70448.44449.18
610 449.91456.65451.39452.13452.86453.60454.34455.08455.81456.55
620 457.29456.03458.76459.50460.24460.98401.71462.45463.19463.93
630 464.66465.40468.14466.88467.61468.35469.09468.83470.57471.30
640 472.04472.78473.52474.25474.99475.73476.47477.20477.94478.68
650 479.42480.15480.89481.63482.37483.10483.84484.58485.32486.05
660 486.79487.53488.27489.00489.74490.48491.22491.95492.68493.43
670 494.17484.90489.64496.38497.12497.85498.59499.33500.07500.81
680 501.54502.28503.02503.76504.49505.23505.97506.71507.44508.18
690 508.92509.68510.39511.13511.87512.61513.34514.08514.82515.56
700 516.29517.03517.77518.51519.25519.98520.72521.46522.19522.93
710 523.67524.41525.14525.88526.62527.36528.10528.83529.57530.31
720 531.05531.78532.52533.26534.00534.73535.47536.21536.95537.68
730 538.42539.16539.90540.63541.37542.11542.85543.56544.32545.06
740 545.80546.53547.27548.01548.75549.48550.22550.96551.70552.43
750 553.17553.91554.65555.38556.12556.86557.60558.34559.07559.80
760 560.55561.29562.02562.76568.50564.24564.97565.71568.45567.19
770 567.92568.68569.40570.14570.87571.61572.35573.09573.82574.56
780 575.30576.04576.77577.51578.25578.99579.72580.40581.20581.94
790 582.67583.41584.15584.89585.62586.36587.10587.84588.58589.31
Newton Metres to Pounds Feet (Continued)
0123456789
Page 757 of 947
Torque Conversion Tables
Appendix & Glossary20-1-18 Workshop Manual May 2007
Newton Metres800 590.79 591.53 592.26 593.00 593.74 594.48 595.21 595.95 596.58 596.68
810 597.43 598.16 598.90 599.64 600.38 601.11 601.85 602.59 603.33 604.06
820 604.80 605.54 606.28 607.01 607.75 608.49 609.23 609.96 610.70 611.44
830 612.18 612.91 613.65 614.39 615.13 615.86 616.60 617.34 618.08 618.81
840 619.55 620.29 621.03 621.77 622.50 623.24 623.98 624.72 625.45 626.19
850 626.93 627.67 628.40 629.14 629.68 630.62 631.35 632.09 632.83 633.57
860 634.30 635.04 635.78 636.52 637.25 637.99 638.73 639.47 640.20 640.94
870 641.68 642.42 643.15 643.89 644.63 645.37 646.10 646.84 647.58 648.32
880 649.06 649.79 650.53 651.27 652.01 652.74 653.48 654.22 654.96 655.69
890 656.43 657.17 657.91 658.64 659.38 660.12 660.86 661.59 662.33 663.07
900 663.81 664.54 665.28 666.02 666.76 667.49 668.23 668.97 669.71 670.44
910 671.18 671.92 672.66 673.39 674.13 674.87 675.61 676.35 677.08 677.82
920 678.56 679.30 680.03 680.77 681.51 682.25 682.98 683.72 683.46 685.20
930 685.93 686.67 687.41 688.15 688.88 689.62 690.36 691.10 691.83 692.57
940 693.31 694.05 684.78 695.52 696.26 697.00 697.73 698.47 699.21 699.95
950 700.68 701.42 702.16 702.90 703.63 704.37 705.11 705.85 706.59 707.32
960 708.06 708.80 708.54 710.27 711.01 711.75 712.49 713.22 713.96 714.70
970 715.44 716.17 716.91 717.65 718.39 719.12 719.86 720.60 721.34 722.07
980 722.81 723.55 724.29 725.02 725.76 726.50 727.24 727.97 728.71 729.45
990 730.19 730.92 731.66 732.40 733.14 733.87 734.61 735.35 736.09 736.83
Newton Metres to Pounds Feet (Continued)
Pounds Feet
0123456789
Pounds Feet to Newton Metres
Newton Metres
0123456789Pounds Feet0 - 1.36 2.71 4.07 5.42 6.78 8.13 9.49 10.85 12.20
10 13.56 14.91 16.27 17.63 18.98 20.34 21.69 23.05 24.40 25.76
20 27.12 28.47 29.83 31.18 32.54 33.89 35.25 36.61 37.96 39.32
30 40.67 42.03 43.39 44.74 46.10 47.45 48.81 50.16 51.52 52.88
40 54.23 55.59 56.94 58.30 59.66 61.01 62.37 63.72 65.08 66.43
50 67.79 69.15 70.50 71.86 73.21 74.57 75.93 77.28 78.64 79.99
60 81.35 82.70 84.06 85.42 86.77 88.13 89.49 90.84 92.20 93.55
70 94.91 96.26 97.62 98.97 100.33 101.68 103.04 104.40 105.75 107.11
80 108.47 109.82 111.12 112.53 113.89 115.25 116.60 117.96 199.31 120.67
90 122.02 123.38 124.74 126.09 127.45 128.80 130.16 131.51 132.87 134.23
100 135.58 136.94 138.29 139.65 141.01 142.36 143.72 145.07 146.43 147.78
110 149.14 150.50 151.85 153.21 154.56 155.92 157.28 158.63 159.99 161.34
120 164.05 165.41 162.70 166.77 163.12 169.48 170.83 172.19 173.55 174.90
130 176.26 177.61 178.97 180.32 181.68 183.04 184.39 185.75 187.10 188.46
140 189.82 191.17 192.53 193.88 195.24 196.59 197.95 199.31 200.66 202.02
150 203.37 204.73 206.08 207.44 208.80 210.15 211.51 212.86 214.22 215.58
160 216.93 218.29 219.64 221.00 222.35 223.71 225.07 226.42 227.78 229.13
170 230.49 231.85 233.20 234.56 235.91 237.27 238.64 239.98 241.34 242.69
180 244.05 245.40 246.76 248.12 249.47 250.83 252.18 253.54 254.89 250.25
190 257.61 258.96 260.32 261.67 263.03 264.38 265.74 267.10 263.45 269.81
Page 758 of 947
Torque Conversion Tables
Appendix & Glossary
May 2007 Workshop Manual 20-1-19
Pounds Feet200 271.16272.52273.88275.23276.59277.94279.30280.65282.01283.37
210 284.72286.08287.43288.79290.15291.50292.86294.21295.57296.92
220 298.28299.64300.99302.35303.70305.06306.42307.77309.13310.48
230 311.84313.19314.55315.91317.26318.62319.97321.33322.68324.04
240 325.40326.75328.11329.46330.82332.18333.53334.89336.24337.60
250 338.95340.31341.67343.02344.38345.73347.09348.45349.80351.16
260 352.51353.87355.22356.58357.94359.29360.65362.00363.36364.72
270 366.07367.43368.78370.14371.49372.85374.21375.56376.92378.27
280 379.63380.98382.34363.70385.05386.41387.76389.12390.48391.63
290 393.19394.54395.90397.26398.61398.97401.32402.63464.03405.39
300 406.75408.10409.46410.81412.17413.52414.98416.24417.59418.95
310 420.30421.68423.02424.37425.73427.08428.44429.79431.15492.51
320 433.86435.22436.57437.93439.29440.64442.00443.35444.71448.06
330 447.42448.78450.13451.49452.84454.20455.56456.91458.27459.62
340 460.98462.33463.69465.05466.40467.76489.11470.47471.63473.18
350 474.54475.89477.25478.60479.98481.32482.67464.03485.38486.74
360 488.09489.45498.81492.16493.52494.87496.23497.59498.94500.30
370 501.65503.01504.36505.72507.08598.43509.79511.14512.50513.86
380 515.21516.57517.92519.28520.63521.98523.34524.70526.06527.41
390 528.77530.13531.48532.84534.19535.55536.90538.26539.62540.97
400 542.33543.68545.04546.40547.75549.11550.46551.82553.17554.53
410 555.89557.24558.60559.95561.31562.66564.02565.38566.73568.09
420 569.45570.80572.16573.51574.87576.22577.59578.93580.29581.65
430 583.00584.38585.71587.07598.41589.78591.14592.49593.85595.20
440 596.56597.92599.27600.63601.98603.34604.70606.05607.41608.76
450 610.12611.47612.83614.19615.54616.90618.25619.61620.97622.32
460 623.68625.03626.39627.74629.10630.46631.81633.17634.52635.98
470 637.23638.59639.95641.30642.68644.01645.37640.73648.08649.44
480 650.79652.15653.50654.86656.22657.57658.93660.28661.64663.00
490 664.35665.71667.06668.42669.77671.13672.49673.84675.20676.55
500 677.91679.27680.62680.98683.33684.69686.04687.04688.76690.11
510 691.47692.82694.18697.54696.89698.25699.60700.96702.31703.67
520 705.03706.38707.74709.09710.45711.80713.16714.52715.87717.23
530 718.58719.94721.30722.65724.01725.36726.72728.07729.43730.79
540 732.14733.50734.85736.21737.57738.92740.28741.63742.99744.35
550 745.70747.06748.41749.77751.12752.48753.84755.19756.55757.90
560 759.26760.61761.97763.33764.68766.04767.39768.75770.11771.48
570 772.82774.17775.53776.88778.24779.69780.95782.31783.66785.02
580 786.37787.73789.09790.44791.80793.15794.51795.87797.22798.58
590 799.93801.28802.64804.00805.36806.71808.07809.42810.78812.14
Pounds Feet to Newton Metres (Continued)
0123456789
