AUDI TT ROADSTER 2018 Owners Manual

Cl 00 .-< N r-­N .-< 0 r-­Vl 00

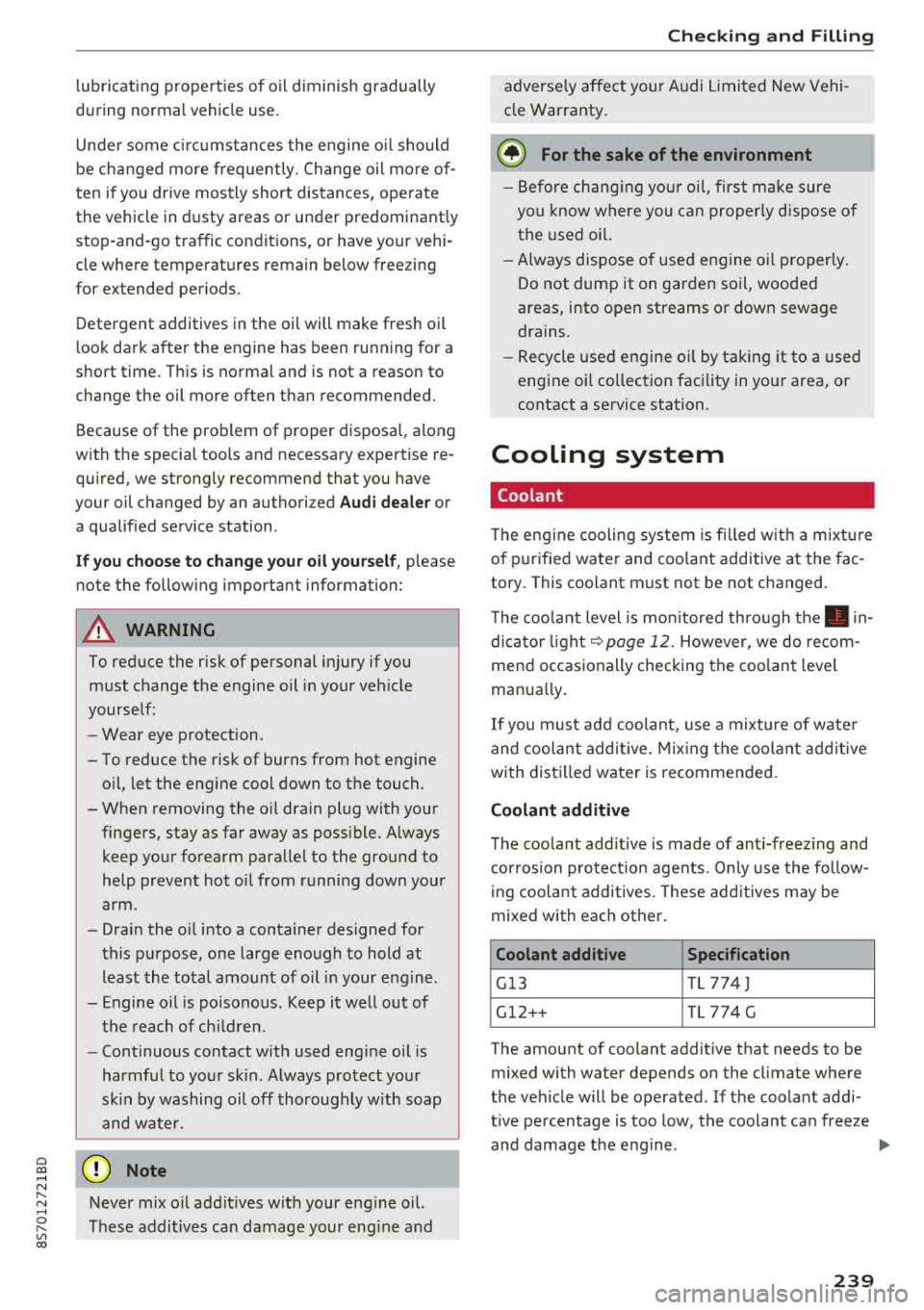

lubricating properties of oil diminish gradually
during normal vehicle use.
Unde r some c ircu mstances the eng ine o il should
be changed more frequently . Change oil mo re of­
ten if you drive most ly short distances, ope rate
the vehicle in dusty areas or under predominant ly
stop-and -go traffic condit ions, or have your vehi­
cle where temperatures remain below free zing
for extended periods.
Detergent additives in the oil will make fresh oil
l ook dark after the engine has been running for a
short time. Th is is normal and is not a reason to
change the oil more often than recommended.
Because of the problem of proper disposa l, along
with the special tools and necessary expertise re­
qu ired, we strongly recommend that you have
your oil changed by an authorized
A ud i de ale r or
a qualified service station .
If you c hoo se to change your o il y our self , please
note the following important information:
A WARNING
To reduce the risk of personal injury if you
must change the engine oil in your veh icle
yourself:
- Wear eye protection .
- To reduce the risk of burns from hot engine oil, let the eng ine cool down to the touch.
-
- When removing the o il drain plug with your
fingers, stay as far away as poss ible. A lways
keep your forearm paralle l to the ground to
help prevent hot o il from runn ing down your
arm .
- Drai n the oil into a container designed for
this pu rpose, one large enough to hold at
least the total amount of oil in your e ng ine .
- Engine oil is poisonous . Keep it well out of
the reach of ch ild ren .
- Cont inuous contact w ith used eng ine oi l is
harmful to your sk in. A lways protect your
sk in by washing oil off thoroug hly w ith soap
and water.
@ Note
Never mix oil addit ives with your engine o il.
These additives ca n damage your eng ine and
Ch eck ing and F illing
adverse ly affect yo ur Audi Limited New Vehi­
cle Warranty.
@ For the sake of the environment
- Before chang ing yo ur oil, first make sure
you know where you can proper ly d ispose o f
the used oi l.
- Always dispose of used engine o il properly.
Do not dump it on garden soil, wooded
areas, into open streams or down sewage
drains.
- Recycle used engine oi l by taking it to a used
engine oi l collection faci lity in you r area, or
contact a service station .
Cooling system
Coolant
The eng ine cooling system is fi lled w it h a m ixtu re
of purified water and coo lant additive at the fac ­
tory . This coolant must not be not c hanged.
T he coo lant level is mo nitored th ro ugh
the . in­
dicator light
<:!) page 12. However, we do recom­
mend occasionally checking the coolant leve l
manua lly.
If you must add coolant, use a mixture of wate r
and coolant additive . Mix ing t he coo lant add it ive
with dis tilled water is recommended.
Coolant additive
T he coolant add itive is made of anti-free zing and
cor rosion protect ion agents. On ly use the follow­
i ng coolant additives . These add itives may be
mixed wi th ea ch o the r.
Coolant additive Specification
G 13 TL 774 J
G12++ TL 774 G
The amount of coolant additive that needs to be
mixed with water depends on the cl imate where
the vehicle w ill be oper ated. If the coo lant add i­
t ive percentage is too low, the coolant can freeze
and damage the eng ine .
.,.
239

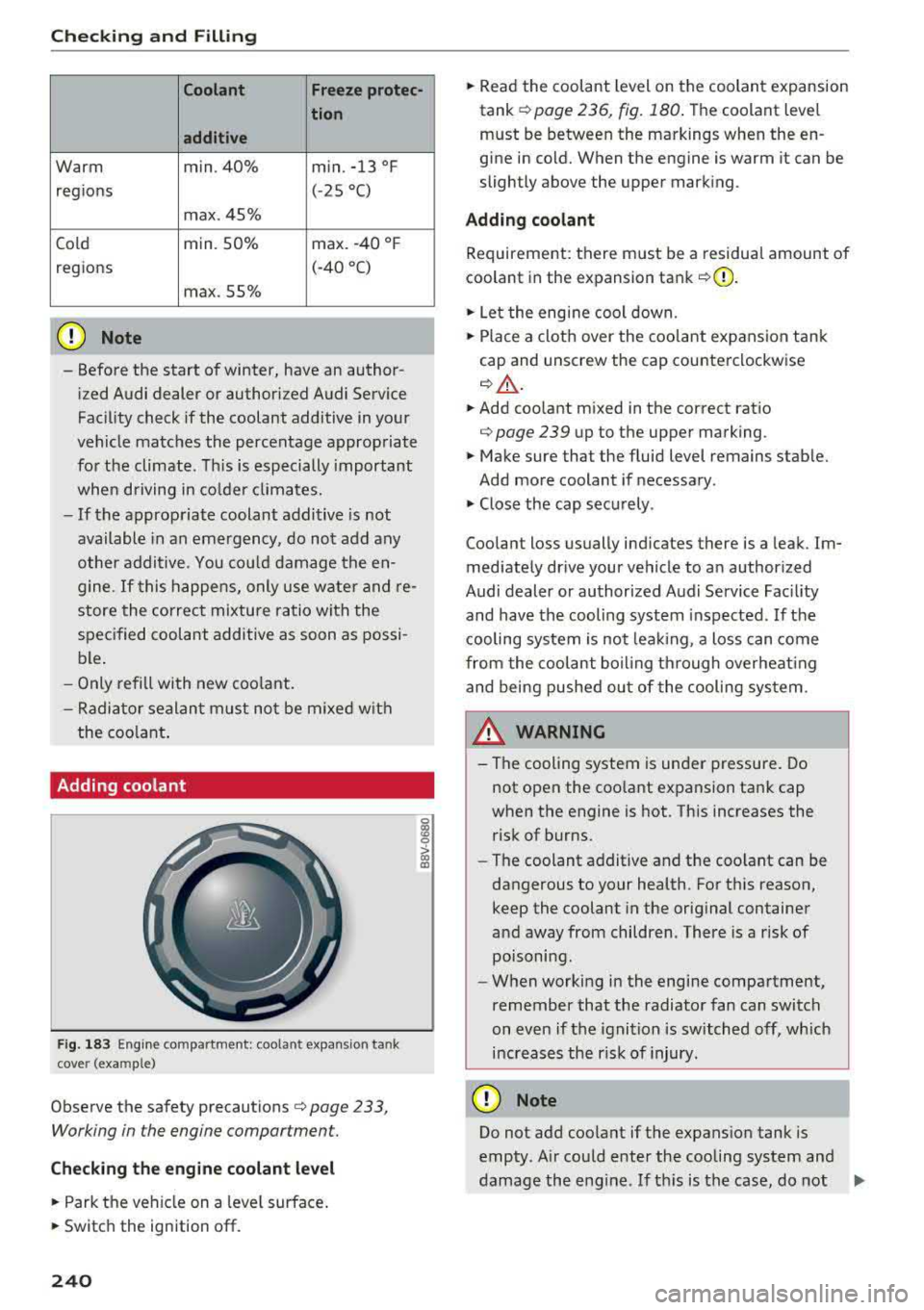

Checking and Filling
Coolant Freeze protec-
tion
additi ve
Warm min. 40% min. -13 °F
regions (- 25 °C)
max . 45%
Cold min. 50% max. -40 °F
regions (-40 °C)
max. 55%
@ Note
- Before the start of winter, have an author­ ized Audi dealer or authorized Audi Service
Facility check if the coolant additive in your
vehicle matches the percentage appropriate
for the climate. Th is is especially important
when driving in co lder climates.
- If the appropriate coolant additive is not
available in an emergency, do not add any
other additive . You cou ld damage the en­
gine.
If t his happens, only use wate r and re­
store the correct mixture ratio with the
specified coolant additive as soon as possi­
ble .
- Only refill with new coo lant.
- Radiato r sealant must not be mixed w ith
the coo lant .
Adding coolant
Fig . 183 Eng ine co mpartment : coo lant expans ion ta nk
cove r (exa mple)
Observe the safety precautions c:::> page 233 ,
Working in the engine compar tment.
Che cking the engin e coolant l evel
.. Park the vehicle on a level surface .
.. Switch the ignition off .
240
~ 0 > 00 ID
.. Read the coolant level on the coolant expansion
tank
c:::> page 236, fig. 180 . The coolant level
must be between the markings when the en­
gine in cold. When the engine is warm it can be
slightly above the upper mark ing .
Adding coo lant
Requirement : there must be a residual amount of
coolant in the expansion tank
c:::> @ .
.. Let the engine cool down.
.. Place a clot h over the coolant expansion tank
cap and unscrew the cap counterclockwise
c:::> ,A .
.. Add coo lant mixed in the correct rat io
c:::> page 239 up to the upper marking .
.. Make sure that the fluid level remains stable.
Add more coolant if necessary .
.. Close the cap securely .
Coolant loss usually ind icates there is a leak. Im­
mediate ly dr ive your vehicle to a n author ized
Audi dealer or author ized Audi Service Fac il ity
and have the cooling system inspected. If the
cooling system is not lea king , a loss can come
from the coolant boiling through overheat ing
and being pushed ou t of the cooling system .
Lil WARNING
- The cooling system is under pressure. Do
not open the coo lant expansion tank cap
when the engine is hot. This increases the risk of burns.
-The coolant additive and the coolant can be dangerous to your health. For this reason ,
keep the coolant in the original container
and away from children. There is a risk of
poisoning.
-When working in the engine compartment,
remember that the radiator fan can switch
on even if the ignition is switched
off, wh ich
increases the r is k of injury.
@ Note
Do not add coolant if the expans ion tank is
empty . A ir could enter the cooling system and
-
damage the eng ine . If this is the case, do not ..,.

Cl co .... N ,....
N .... 0 ,....
Vl co
continue driving. See an authorized A udi deal­
er or authorized Audi Service Facility for
assistance.
Brake fluid
F ig . 18 4 Engine co mpar tment : cove r on the brake flu id
r eservo ir
Observe the safety precautions c:> .&. in Working
in the engine compar tmen t on page 233.
Checking th e brake f luid l ev el
.,. Read the brake fluid level on the brake fluid
reservoir
i:> page 236, fig. 180. The bra ke fluid
l ev el must be between the MI N and MAX mark­
ings
c:> ,&. .
The brake flu id level is mon itored a utomat ica lly.
Changing the brake fluid
H ave the b rake flu id changed regularly by an a u­
thor ized Audi dealer or au thor ized A udi Se rvice
F acility .
A WARNING
-If the br ake f luid level is be low the M IN
marking, it can impair the braking effect
and dr iv ing safety, which increase the risk of
an acc ident. Do not cont inue driving . See an
authorized Audi dealer or authorized Audi
Service Facility for assistance .
- If the brake f luid is o ld, bubbles may form
in the brake system du ring heavy braking.
Th is would impair brak ing performance and
dr iv ing safety, which increases the risk of an
acc ident.
- To ensure the brake system functions cor­
rectly, only use brake fluids that comply
Chec king and Filling
wit h VW standard 501 14 or
FMVSS-116 DOT 4.
(D Note
- If the brake f lu id leve l is a bove the MA X
marking, bra ke f luid may leak o ut over the
edge of the reservo ir and result i n damage
to the vehicle.
- Do not get any b rake fl uid on the vehicle
paint, because it w ill corrode the paint .
Battery
General warnings about batteries
Bec au se of t he complex power sup ply, all wo rk
o n batter ies such as d iscon necti ng, replac ing,
etc., sho uld
onl y be performed by an au thorized
Audi dealer or authorized A udi Service Facility
c:> &_ .
The term "veh icle ba ttery" refe rs to the 12 Volt
battery in you r vehicle .
Detailed warnings for the vehicle battery :
~
Always wear eye protection .
&
Battery acid is highly corros ive . A lways
wear protective gloves a nd eye p rotection .
®
Fire, sparks , open flame and smok ing are
forbidden.
£
A hig hly explos ive m ix ture of gases ca n
for m when ch arging b att er ies.
®
Always keep children far away from bat-
tery electrolyte and the battery.
~
Always follow the instruct ions in the oper-
ating manual.
A WARNING ,.__ -All work on the battery or electrical system in
your vehicle can result in injuries, chem ica l
burns, acc idents or burns . Because of this, all
work must be pe rformed
only by an author­
iz ed Audi dealer or authorized A udi Service
F ac ility.
..,.
241

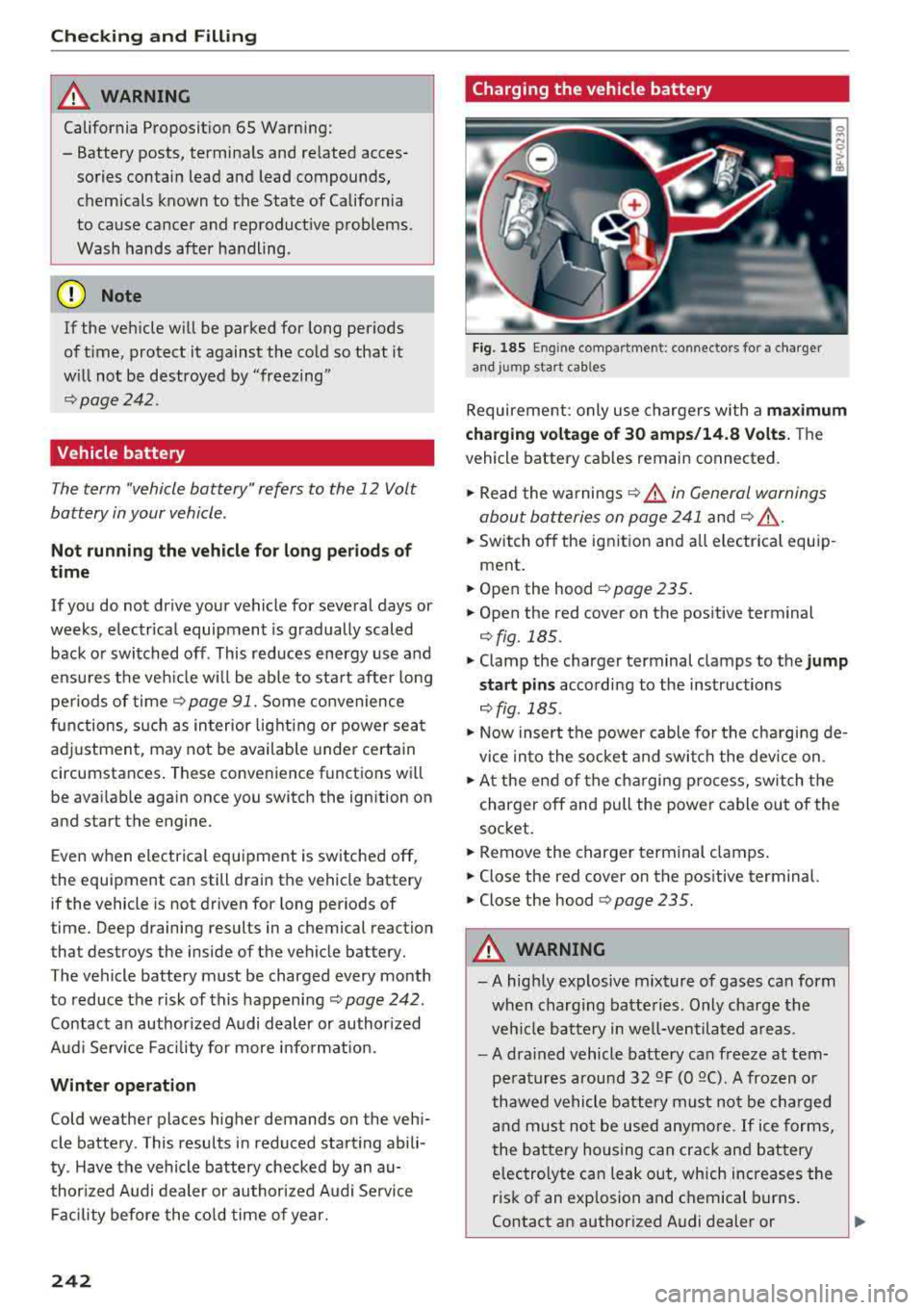

Checking and Filling
A WARNING
California Proposit ion 65 Warning:
- Battery posts, terminals and related acces­ sories contain lead and lead compounds, chemicals known to the State of California
to cause cancer and reproductive problems .
Wash hands after handling .
Q) Note
If the vehicle will be parked for long periods
of t ime, protect it against the cold so that it
w ill not be destroyed by "freezing"
~page 242 .
Vehicle battery
The term "vehicle battery " refers to the 12 Volt
battery in your vehicle .
Not running the vehicle for long p eriods of
t ime
If you do not drive your vehicle for several days or
weeks, electrical equipment is gradually scaled
back or switched off . This reduces energy use and
ensures the veh icle w il l be able to sta rt after long
pe riods of time
i:::> page 91. Some convenience
functions, such as interior light ing or power sea t
adjustment, may not be available under certain
circumstances . These convenience functions will
be avai lab le again once you switch the ignition on
and start the engine.
Even when electrical equipment is switched off ,
the equipment can still drain the vehicle battery if the vehicle is not driven for long periods of
time. Deep draining results in a chemical reaction
that destroys the inside of the vehicle battery.
The vehicle battery must be charged every month to reduce the risk of this happen ing
i:::> page 242.
Contact an author ized Audi dealer or authorized
Aud i Serv ice Facility for more information.
Winter operati on
Cold weather places higher demands on the vehi­
cle battery . This results in reduced start ing abili ­
ty . Have the vehicle battery checked by an au­
thori zed Audi dealer or authorized Audi Service
Facility before the co ld time of year.
242
Charging the vehicle battery
Fig. 18 5 En g in e compartmen t: co nn ectors fo r a cha rger
a n d jum p start cab les
Requireme nt: only use chargers with a maximum
charging volt age of 30 amp s/14.8 Volts.
The
vehicle battery cables remain connected.
... Read the wa rnings i:::> ,& in General warnings
about batteries on page 241
and i:::> ,& .
... Switch off the ignition and all electrica l equip ­
ment .
... Open the hood i:::> page 235 .
... Open the red cover on the positive terminal
¢fig. 185.
... Clamp the charger terminal clamps to the jump
s ta rt pins
according to the instructions
c::> fig . 185 .
... Now insert the power cable for the cha rging de­
vice into the socket and switch the device on .
... At the end of the charging process, switch the
charger off and pull the power cable out of the
socket .
... Remove the charger terminal clamps.
... Close the red cover on the pos itive terminal.
... Close the hood i:::> page 235.
A WARNING
-A highly explosive m ixture of gases can form
when charg ing batteries . Only charge the
veh icle battery in well-ventilated areas.
-A drained vehicle battery can freeze at tem­
peratures around 32
QF (0 QC) . A frozen or
thawed vehicle battery must not be charged
and must not be used anymore. If ice forms,
the battery housing can crack and battery
electrolyte can leak out, which increases the
risk of an explosion and c hemical burns .
Contact an authorized Audi dealer or
..,_

Cl 00 .-< N r-­N .-< 0 r-­Vl 00
authorized Audi Service Facility for more in­
formation.
- Do not connect or disconnect the charging
cable while charging because this increases
the risk of an exp losion.
(D Tips
- Only charge the vehicle battery through the
connections in the engine compartment.
- Read all of the manufacturer's instructions
for the charger before charging the vehicle
battery.

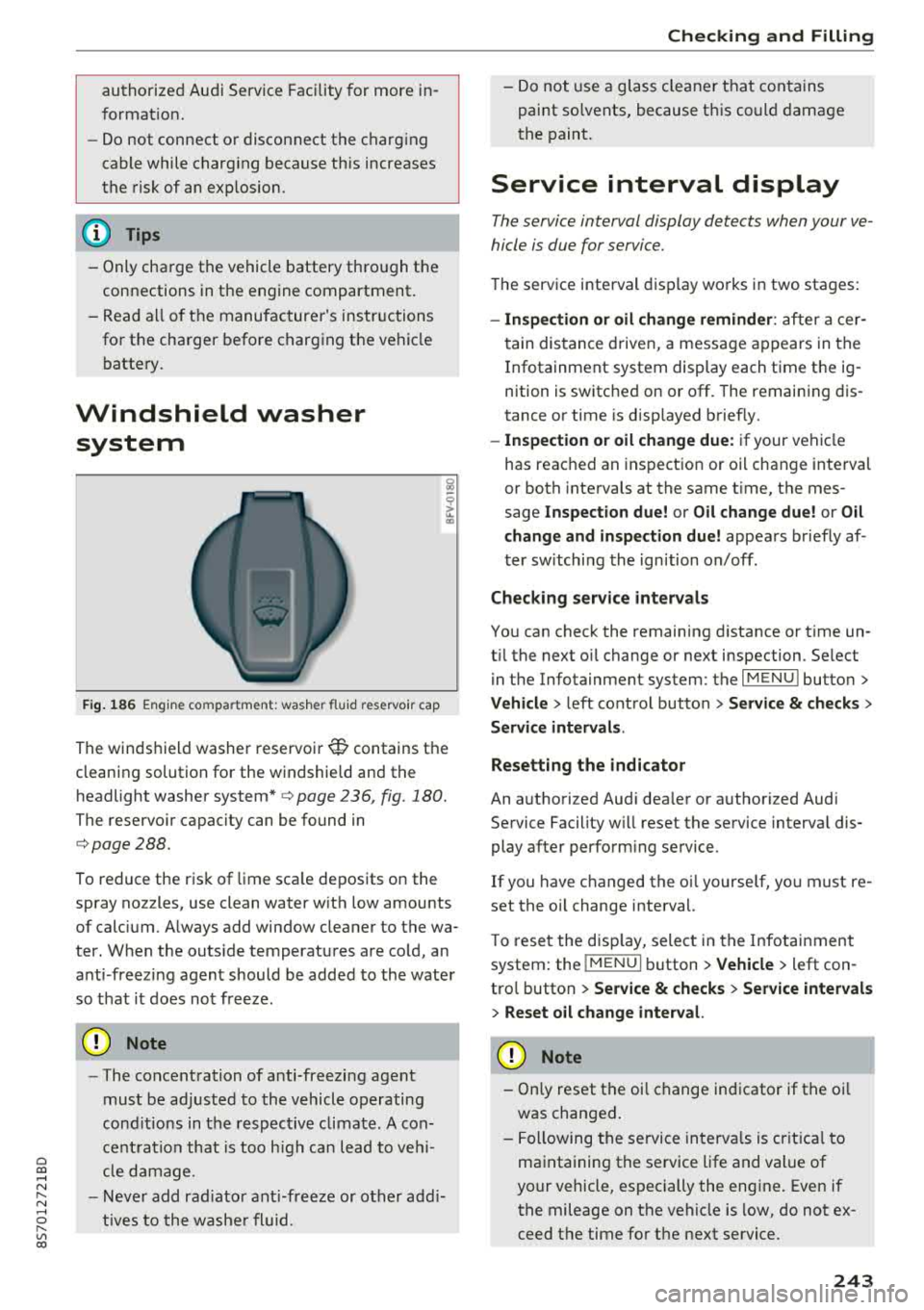

Windshield washer system
Fig. 186 Engine compa rtment: washer flu id reservo ir cap
The windshield washer reservoir W contains the
cleaning solution for the windshie ld and the
headlight washer
system* ¢ page 236, fig . 180.
The reservoir capacity can be found in
¢page 288.
To reduce the risk of lime sca le deposits on the
spray nozzles, use clean water with low amounts
of calc ium. A lways add window cleaner to the wa­
ter. When the outs ide temperatures are cold, an
anti -freezing agent should be added to the water
so that it does not freeze.
@ Note
-The concentration of anti-freezing agent
must be adjusted to the vehicle operating
cond itions in the respective climate. A con­
ce ntrat ion that is too high can lead to vehi­
cl e damage.
- Never add radiator anti-freeze or other addi­
tives to the washer fluid.
Checking and Filling
- Do not use a glass cleaner that contains
paint so lvents, because t his could damage
the paint.
Service interval display
The service interval display detects when your ve ­
hicle is due for service .
The service interval display works in two stages:
-Inspection or oil change reminder : after a cer-
tain distance driven, a message appears in the
In fotainment system display each time the ig ­
nition is switched on or off. The remaining dis­
tance or time is disp layed briefly.
- Inspection or oil change due: if your vehicle
has reached an inspection or oil change interval
or both intervals at the same t ime, the mes­
sage
Inspection due! or Oil change due! or Oil
change and inspection due!
appears briefly af ­
ter switching the ignition on/off .
Checking service intervals
You can check the remaining distance or time un ­
t il the next oil change or next inspection. Se lect
in the Infotainment system: the
I MENU I button>
Vehicle > left control button > Service & checks >
Service intervals .
Resetting the indicator
An authorized Audi dea ler or authorized Audi
Service Facility w ill reset the service interval dis­
play after performing service.
If you have ch anged the oi l yourse lf, you must re ­
set the oil change interval.
T o reset the disp lay, select in the Infotainment
system: the
I MENUI button> Vehicle> left con­
trol button >
Service & checks > Service intervals
> Reset oil change interval.
@ Note
-Only reset the oil change indicator if the oi l
was changed.
- Following the service intervals is crit ica l to
maintaining the service life and value of
your vehicle, especially the engi ne. Even if
the mileage on the vehicle is low, do not ex­
ceed the time for the next service.
243

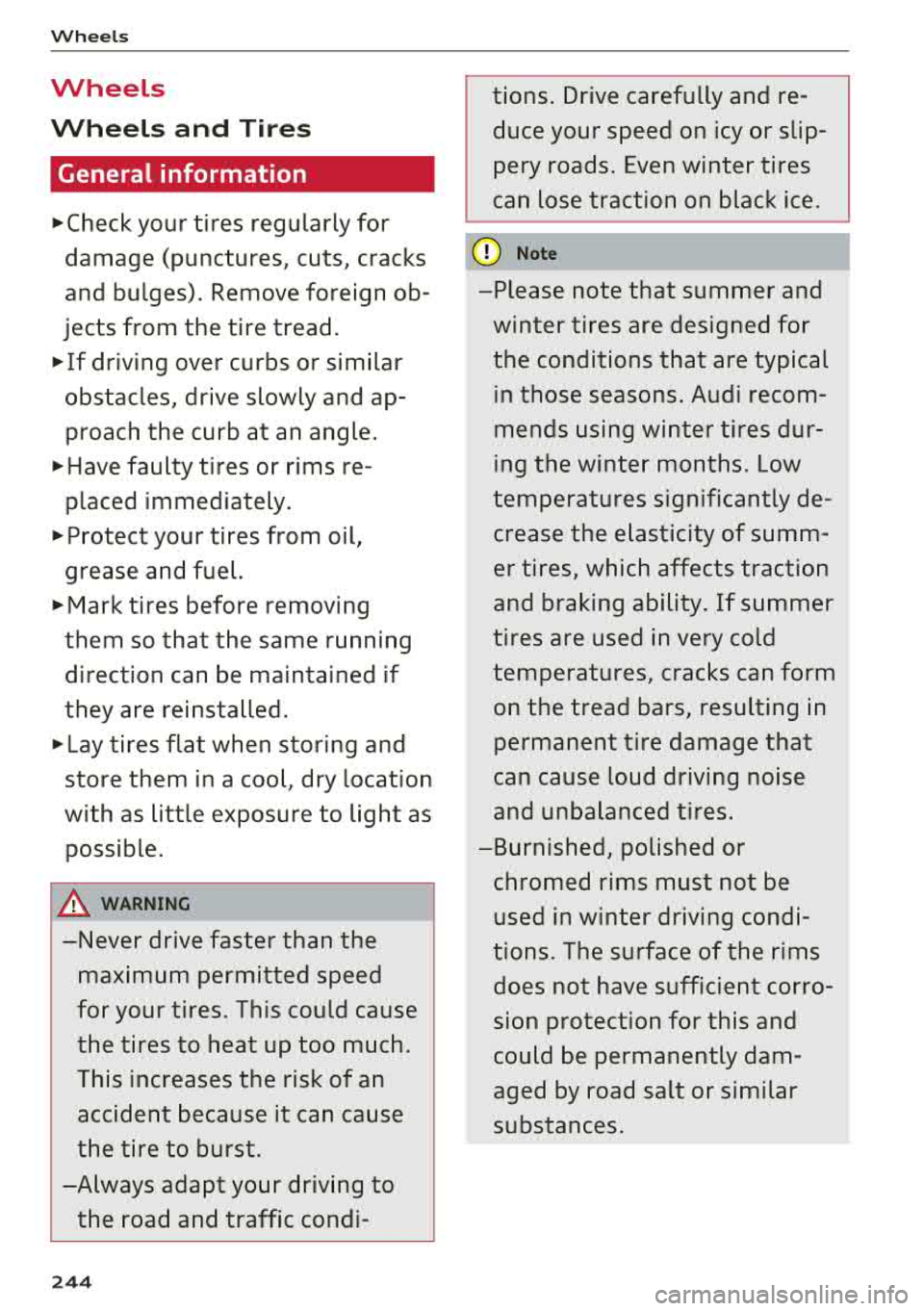

Wheels
Wheels
Wheels and T ires
General information
~check your tires regularly for
damage (punctures, cuts, cracks
and bulges). Remove foreign ob ­
jects from the tire tread.
~ If driving over curbs or similar
obstacles, drive slowly and ap­ proach the curb at an angle.
~Have faulty tires or rims re­
placed immediately.
~ Protect your tires from oil,
grease and fuel.
~ Mark tires before removing
them so that the same running
direction can be maintained if
they are reinstalled.
~Lay tires flat when storing and
store them in a cool, dry location
with as little exposure to light as
possible.
_&. WARNING -
-Never drive faster than the maximum permitted speed
for your tires. This could cause
the tires to heat up too much.
This increases the risk of an
accident because it can cause
the tire to burst .
-Always adapt your driving to the road and traffic condi-
244
tions . Drive carefully and re­
duce your speed on icy or slip­
pery roads . Even winter tires
can lose traction on black ice.
(@ Note
-Please note that summer and
winter tires are designed for
the conditions that are typical
i n those seasons . Aud i recom­
mends using winter tires dur­
ing the winter months . Low
temperatures significantly de­
crease the elasticity of summ­
er tires, which affects traction
and braking ability. If summer
tires are used in very cold
temperatures, cracks can form
on the tread bars, resulting in
permanent tire damage that
can cause loud driving noise
and unbalanced tires.
-Burnished, polished or chromed rims must not be used in winter driving condi­
t ions. The surface of the r ims
does not have sufficient corro­
sion protection for this and
could be permanently dam ­
aged by road salt or similar
substances.

Cl co .... N ,....
N .... 0 ,....
Vl co

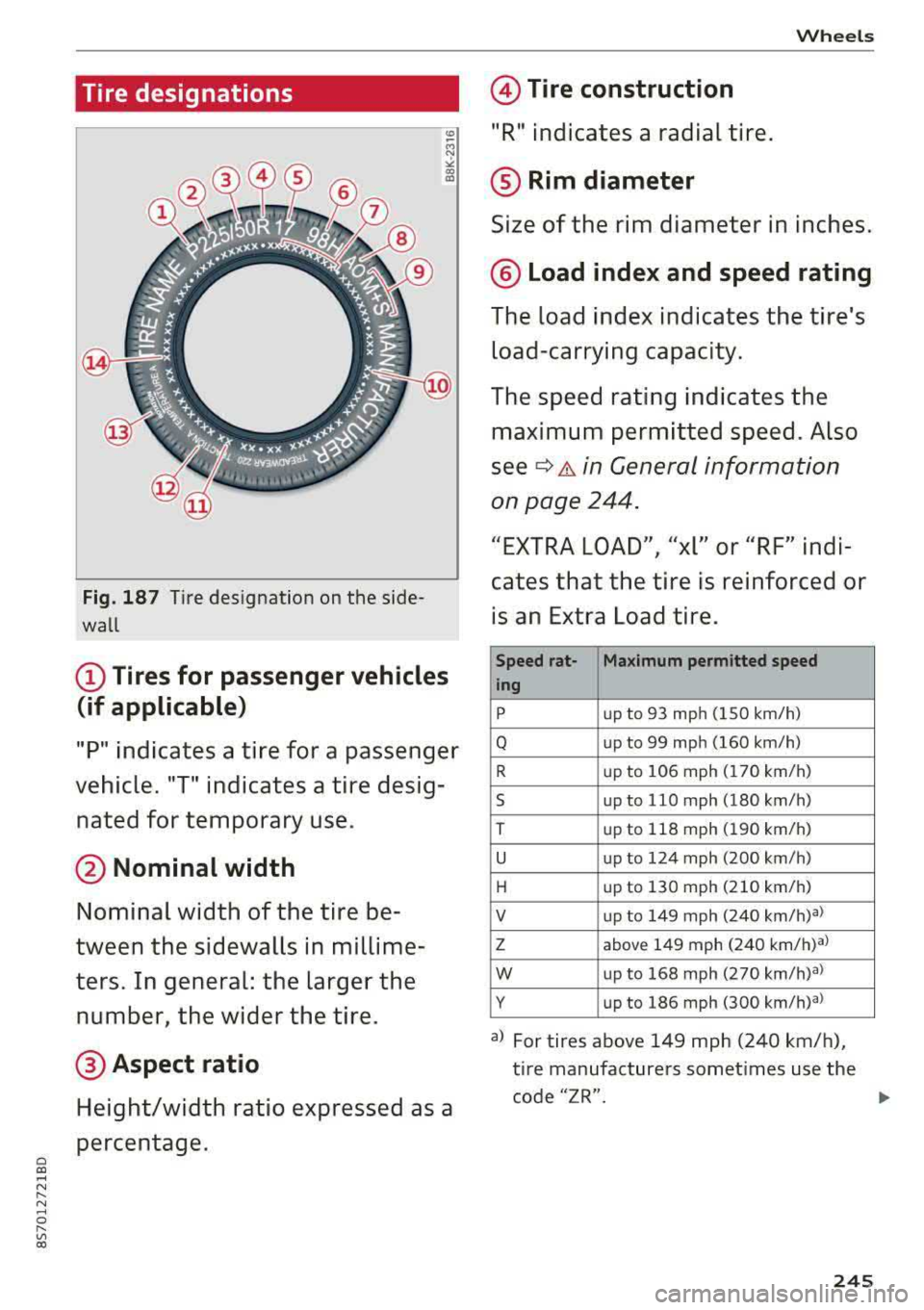

Tire designations
Fig. 187 Tire designation on the side­
wall
(D Tires for passenger vehicles
(if applicable)
"P" indicates a tire for a passenger
vehicle . "T" indicates a tire desig­
nated for temporary use.
@ Nominal width
Nominal width of the tire be­
tween the sidewalls in millime­
ters. In general: the larger the
number, the wider the tire .
@ Aspect ratio
Height/width ratio expressed as a
percentage .
Wheels
@Tire construction
"R" indicates a radial tire.
® Rim diameter
Size of the rim diameter in inches.
® Load index and speed rating
The load index indicates the tire's
load-carrying capacity.
The speed rating indicates the
maximum permitted speed. Also
see
¢ &. in General information
on page 244.
"EXTRA LOAD", "xl" or "RF" indi­
cates that the tire is rei nforc ed or
i s an Extra Load tire .
Speed rat-
Maximum permitted speed
ing
p up to 93 mph (150 km/h)
Q up to 99 mph (160 km/h)
R up to 106 mph (170 km/h)
s up to 110 mph (180 km/h)
T up to 118 mph (190 km/h)
u up to 124 mph (200 km/h)
H up to 130 mph (210 km/h)
V up to 149 mph (240 km/h)a)
z above 149 mph (240 km/h)a)
w up to 168 mph (270 km/h)a)
y up to 186 mph (300 km/h)a)
a) For tires above 149 mph (240 km/h) ,
tire manufacturers sometimes use the
code "ZR".
245

Wheel s

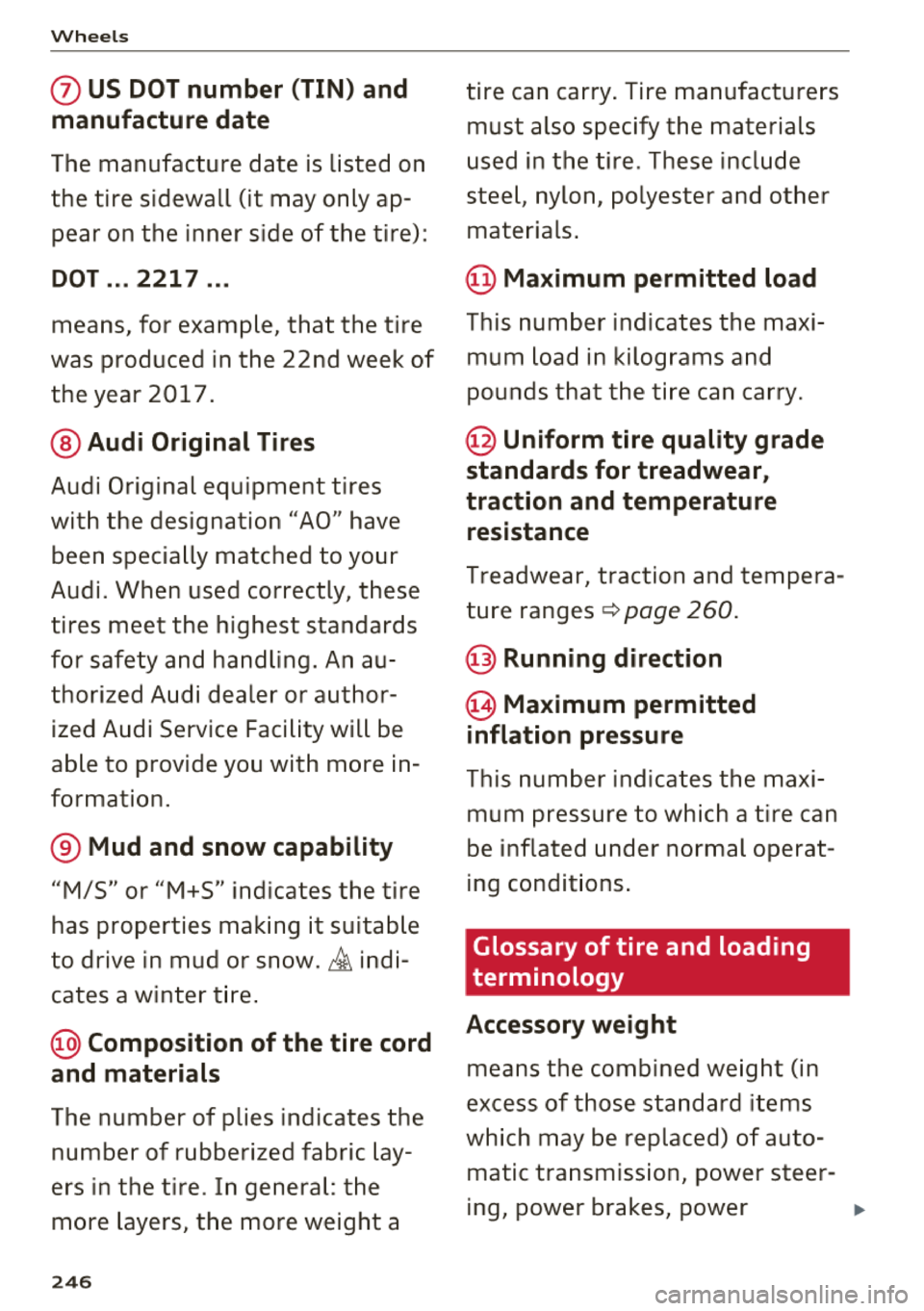

0 US DOT number (TIN) and
manufacture date
T he manufacture date is listed on
the tire sidewall (it may only ap­
pear on the inner side of the tire) :
DOT ... 2217 ...
means, for example, that the tire
was produced in the 22nd week of
the year 2017.
@ Audi Original Tires
Audi Original equipment tires
with the designation
"AO" have
been specially matched to your
Audi. When used correctly, these
tires meet the highest standards
for safety and handling. An au ­
thorized Audi dealer or author­
ized Audi Service Facility will be
able to provide you with more in­
formation.
® Mud and snow capability
"M/5" or "M+S" indicates the tire
has properties ma king it suitable
to drive in mud or snow.
& indi­
cates a winter t ire .
@) Compos ition of the tire cord
and materials
T he number of plies indicates the
number of rubberized fabric lay­
ers in the tire . In general: the
more layers, the more weight a
246
tire can carry. Tire manufacturers
must also specify the materials
used in the tire . These include
steel , nylon, po lyester and other
materials .
@ Maximum permitted load
This number indicates the max i­
mum load in kilograms and
pounds that the tire can carry.
@ Uniform tire quality grade
standards for treadwear,
tr action and temper ature
resistance
Treadwear, traction and tempera­
ture
ranges ~ page 260.
@ Running direction
@Maximum permitted
inflation pressure
This number indicates the maxi ­
mum pressure to which a tire can
be inflated under normal operat­
ing condit ions .
Glossary of tire and loading
terminology
Accessory weight
means the comb ined weight (in
excess of those standard items
which may be replaced) of auto­ matic transmission, power steer -
ing, power brakes, power
..

windows, power seats, radio, and heater, to the extent that these
items are available as factory- in­
stalled equipment (whether in­
stalled or not) .

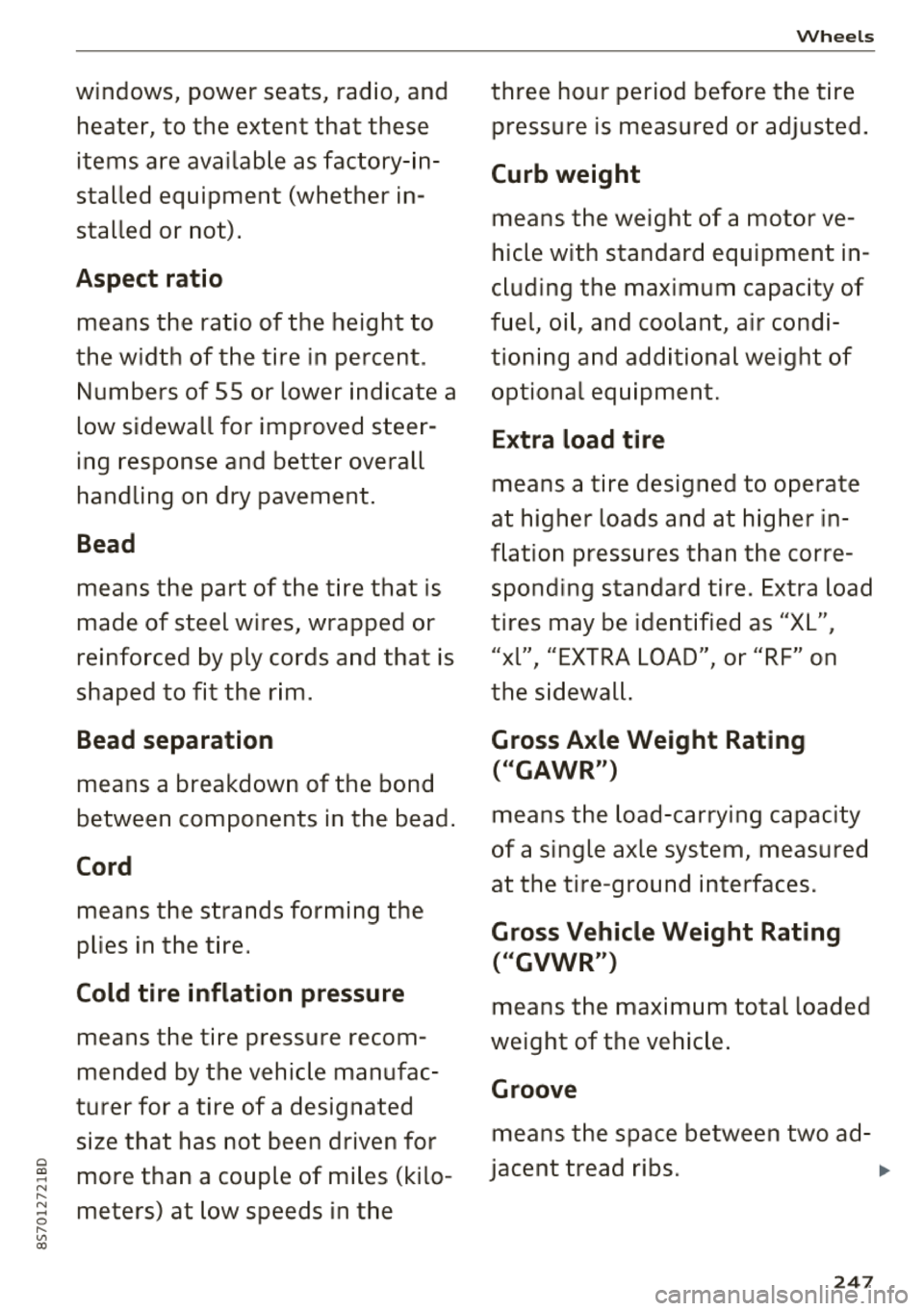

Aspect ratio
means the ratio of the height to
the width of the tire in percent .
Numbers of 55 or lower indicate a
low sidewall for improved steer­
ing response and better overall
handling on dry pavement .
Bead
means the part of the tire that is
made of steel wires , wrapped or
reinfo rced by ply cords and that is
shaped to fit the rim .
Bead separation
means a breakdown of the bond
between components in the bead .
Cord
means the strands forming the
plies in the tire.
Cold tire inflation pressure
means the t ire pressure recom­
mended by the vehic le manufac­
turer for a tire of a designated
Wheels
three hour period before the tire
pressure is measured or adjusted .
Curb weight
means the weight of a motor ve­
hicle with standar d equipment in ­
c luding the maximum capacity of
f u el, oi l, and coolant, air condi ­
tioning and additional weight of
optional eq uipment.
Extra load ti re
means a t ire designed to operate
at higher loads and at higher in ­
flation pressures than the corre­
sponding s tandard tire. Extra load
ti res may be identified as
"XL",
"xl" "EXT RA LOAD" or "RF" on , ,
the sidewall.
Gross Axle Weight Rating
(" GAWR ")
means the load -carrying capacity
of a single axle system, measured
at the tire -ground interfaces.
Gross Vehicle Weight Rating
( " GVWR ")
means the maxim um total loaded
weight of the vehic le .
Groove
size that has not been driven for means the space between two ad -
~ more than a co uple of miles (kilo -jacent tread ribs . .,.
"
8 meters) at low speeds in the
" "' a:,
2 47

Wheel s

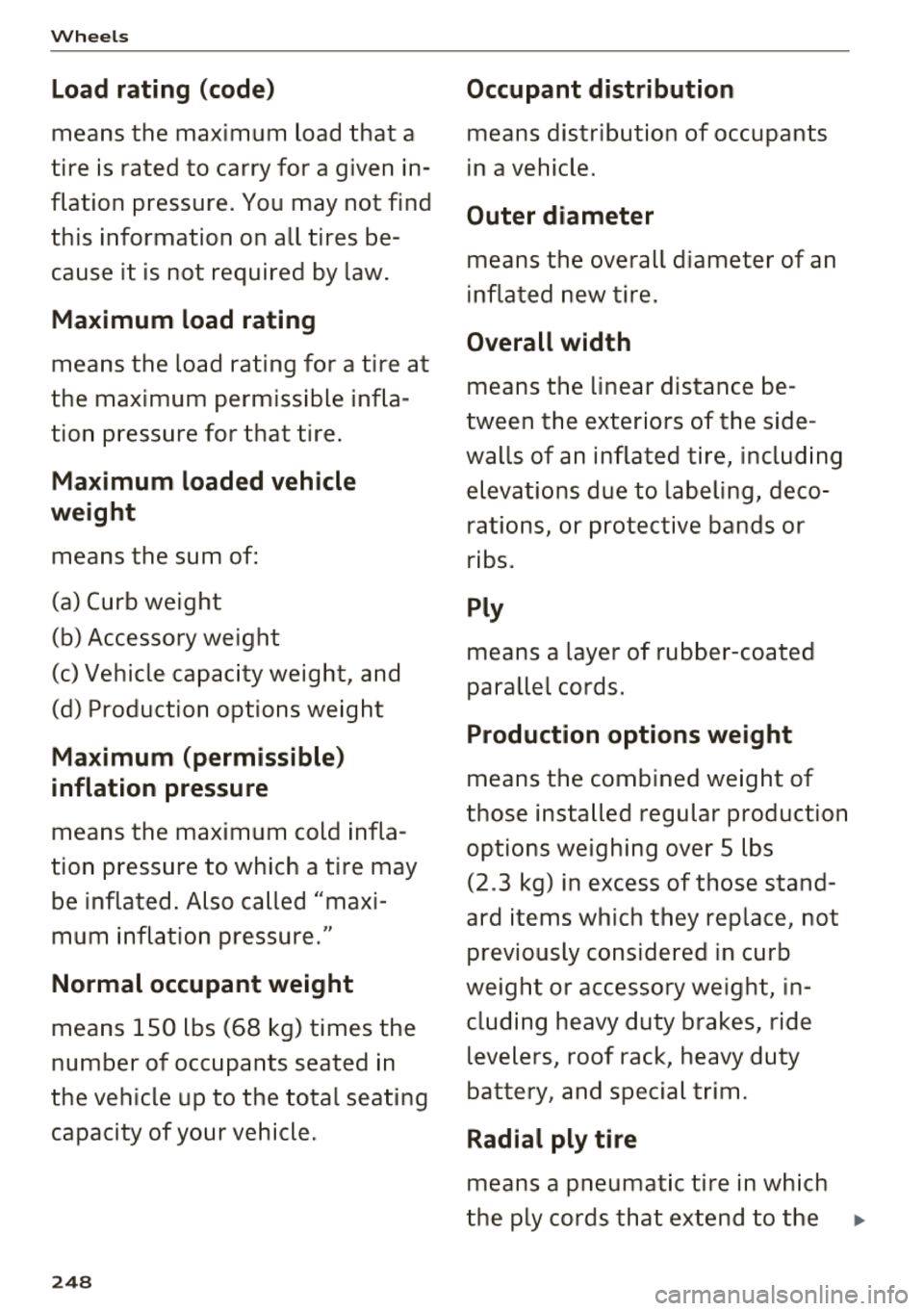

Load rating (code )
means the maximum load that a
tire is ra ted to carry for a given in­
flation pressure. You may not find
this info rmatio n on all tires be­
cause it is not required by law .
Maximum load rating
means the load rating for a tire at
the maximum permissible infla ­
tion pressure for that tire .
Maximum loaded vehicle
weight
means the sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight, and
(d) Production options weight
Ma ximum (permissible )
inflation pressure
means the maximum cold infla­
tion pressure to which a tire may be inflated . A lso called "maxi­
mum inflation pressure."
Normal occupant weight
means 150 lbs (68 kg) times the
number of occupants seated in
the vehicle up to the total seating
capacity of your vehicle.
248
Occupant distribution
means distribution of occupants
in a vehicle.
Outer diameter
means the overall diameter of an
inflated new tire.
Overall width
means the linear distance be­
tween the exteriors of the side­
walls of an inflated tire, inc lud ing
elevations due to labeling, deco­ rations, or protective bands or
ribs.
Ply
means a layer of rubber-coated
parallel cords.
Production options weight
means the combined weight of
those installed regular production options weighing over 5 lbs
(2 .3 kg) in excess of those stand­
ard items which they replace, not
previously considered in curb
weight or accessory weight, in­ cluding heavy duty brakes, ride
levelers, roof rack, heavy duty
battery, and special trim.
Radial ply ti re
means a pneumatic tire in which
the ply cords that extend to the
...
