BMW MOTORRAD R 1150 RS 2002 Rider's Manual (in English)

2
49
2
Safety check

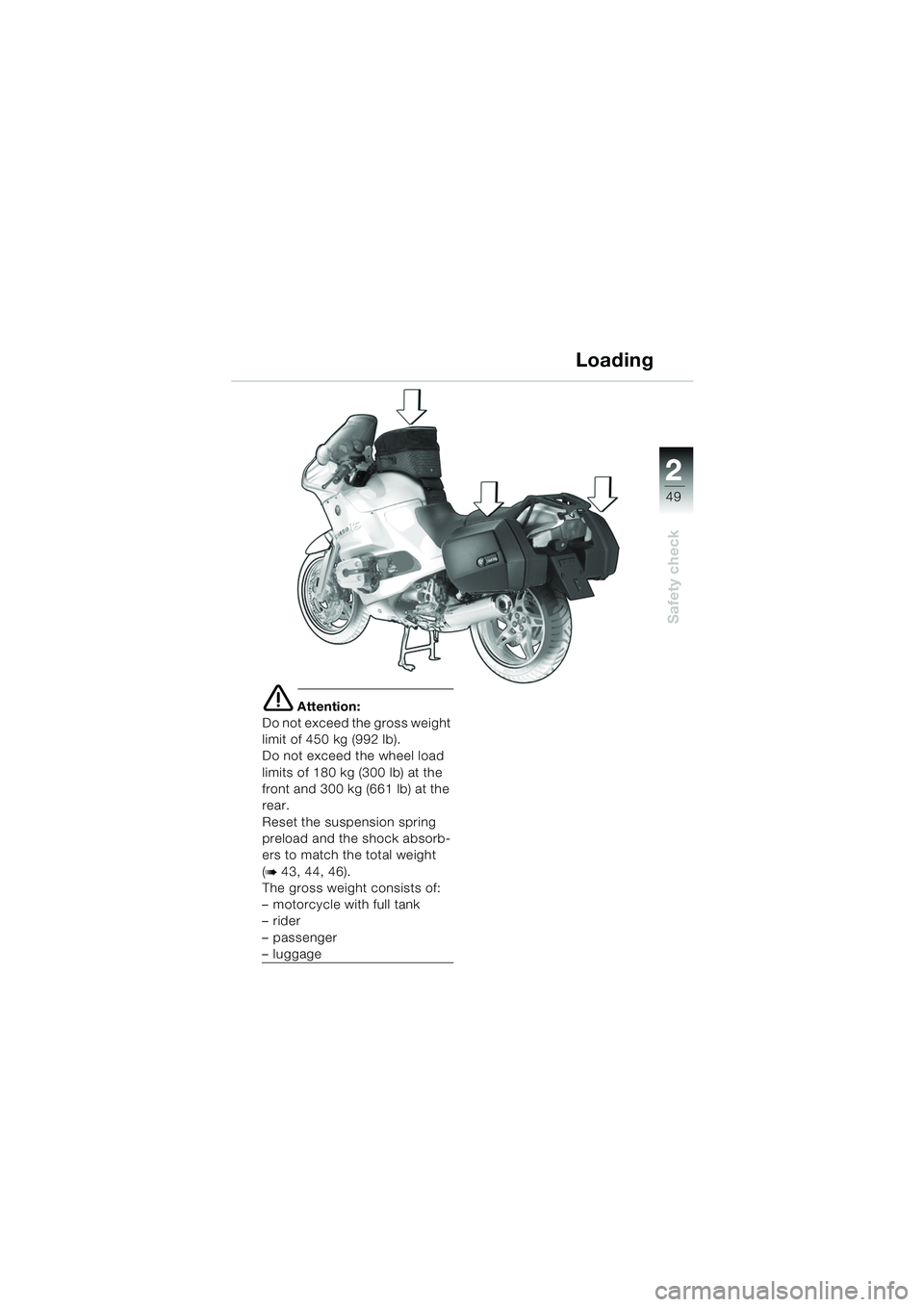

e Attention:
Do not exceed the gross weight
limit of 450 kg (992 lb).
Do not exceed the wheel load
limits of 180 kg (300 lb) at the
front and 300 kg (661 lb) at the
rear.
Reset the suspension spring
preload and the shock absorb-
ers to match the total weight
(
b 43, 44, 46).
The gross weight consists of:
– motorcycle with full tank
–rider
–passenger
– luggage
Loading
10rsbkg2.book Seite 49 Dienstag, 19. November 2002 4:56 16

33
50
Starting – Riding – Parking

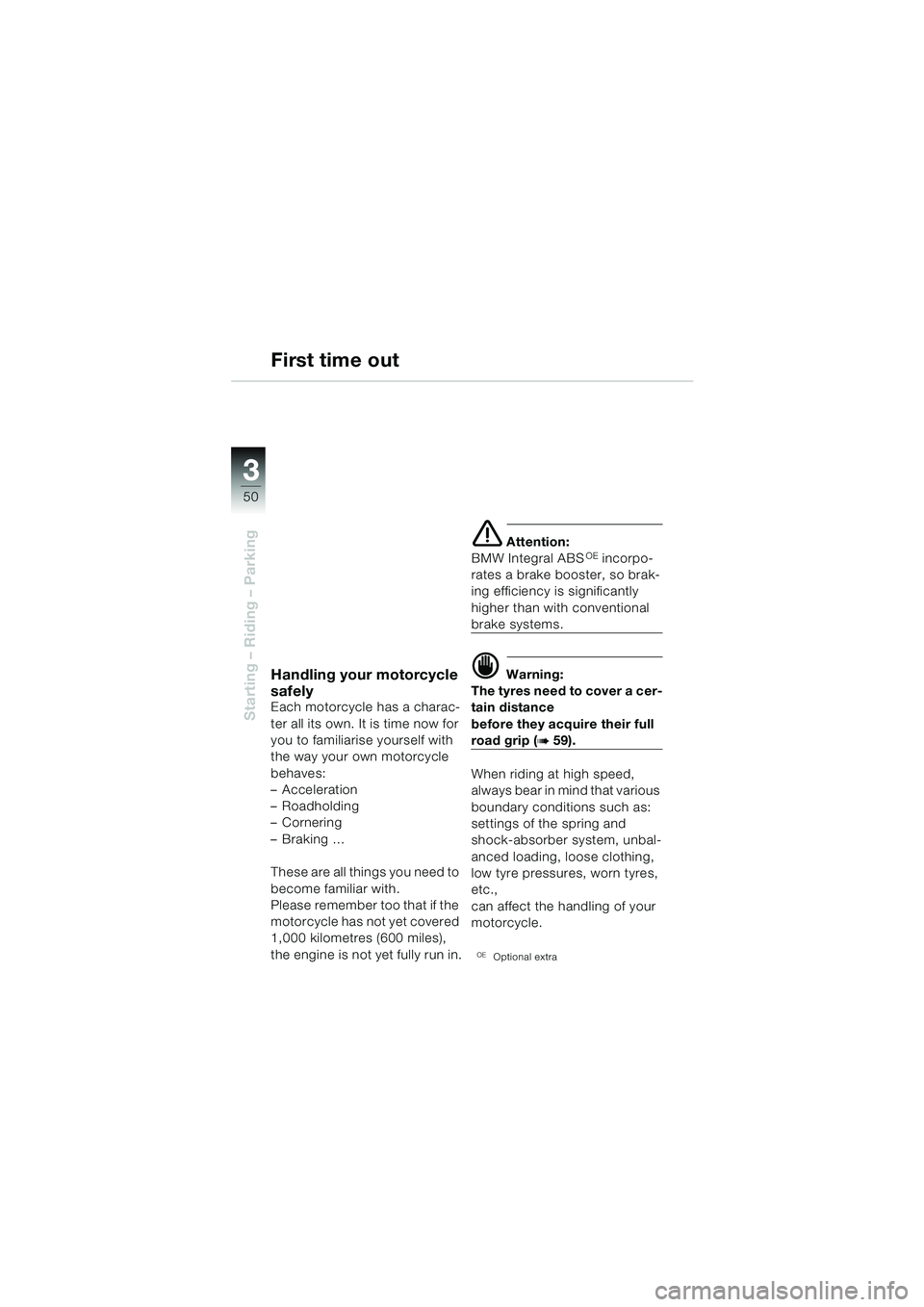

Handling your motorcycle
safely
Each motorcycle has a charac-
ter all its own. It is time now for
you to familiarise yourself with
the way your own motorcycle
behaves:
– Acceleration
– Roadholding
–Cornering
–Braking …
These are all things you need to
become familiar with.
Please remember too that if the
motorcycle has not yet covered
1,000 kilometres (600 miles),
the engine is not yet fully run in.
e Attention:
BMW Integral ABSOE incorpo-
rates a brake booster, so brak-
ing efficiency is significantly
higher than with conventional
brake systems.
d Warning:
The tyres need to cover a cer-
tain distance
before they acquire their full
road grip (b 59).
When riding at high speed,
a l w a y s b e a r i n m i n d t h a t v a r i o u s
boundary conditions such as:
settings of the spring and
shock-absorber system, unbal-
anced loading, loose clothing,
low tyre pressures, worn tyres,
etc.,
can affect the handling of your
motorcycle.
OEOptional extra
First time out
10rsbkg2.book Seite 50 Dienstag, 19. November 2002 4:56 16

3
51
3
Starting – Riding – Parking

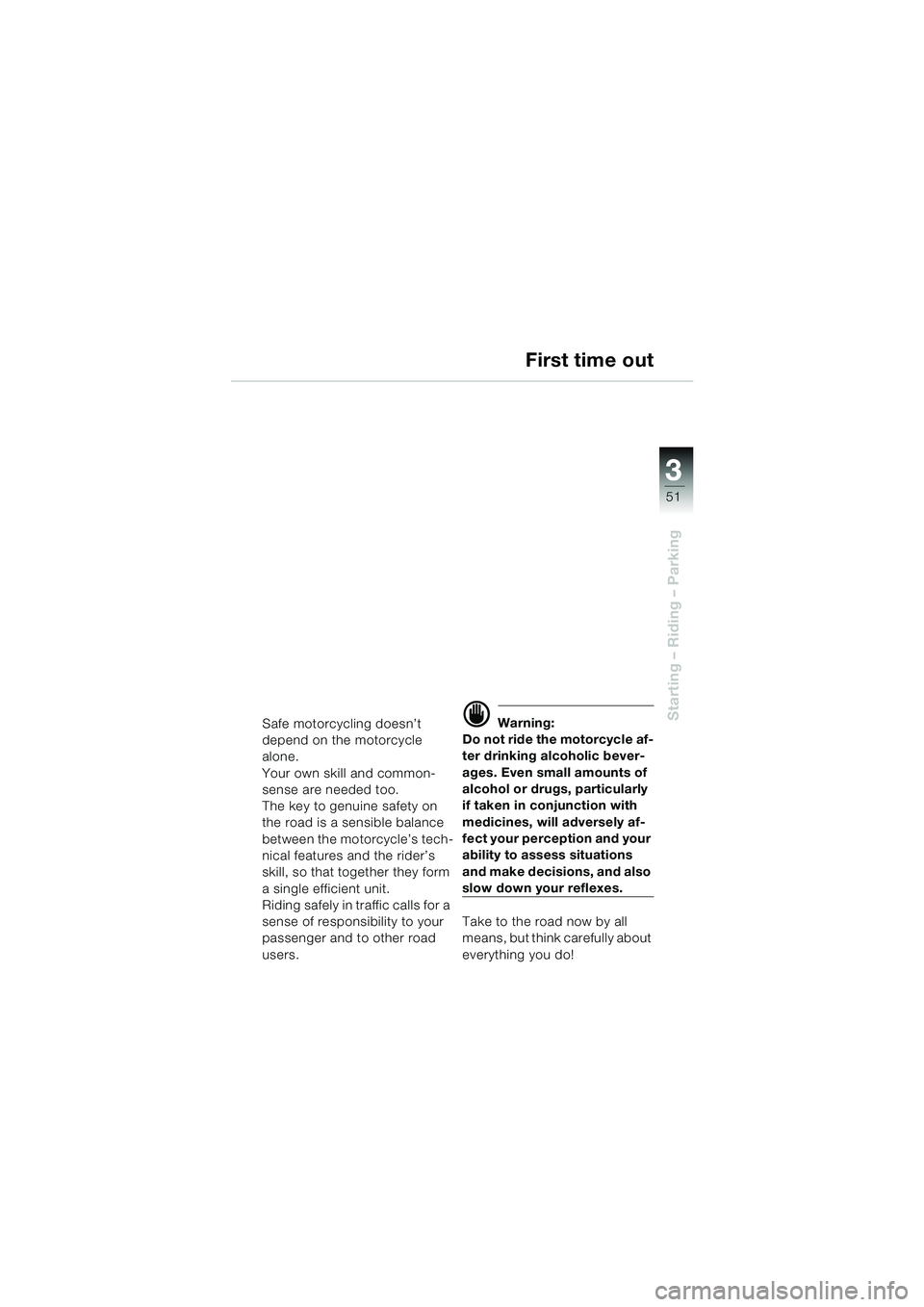

First time out
Safe motorcycling doesn’t
depend on the motorcycle
alone.
Your own skill and common-
sense are needed too.
The key to genuine safety on
the road is a sensible balance
between the motorcycle’s tech-
nical features and the rider’s
skill, so that together they form
a single efficient unit.
Riding safely in traffic calls for a
sense of responsibility to your
passenger and to other road
users.d Warning:
Do not ride the motorcycle af-
ter drinking alcoholic bever-
ages. Even small amounts of
alcohol or drugs, particularly
if taken in conjunction with
medicines, will adversely af-
fect your perception and your
ability to assess situations
and make decisions, and also
slow down your reflexes.
Take to the road now by all
means, but think carefully about
everything you do!
10rsbkg2.book Seite 51 Dienstag, 19. November 2002 4:56 16

33
52
Starting – Riding – Parking

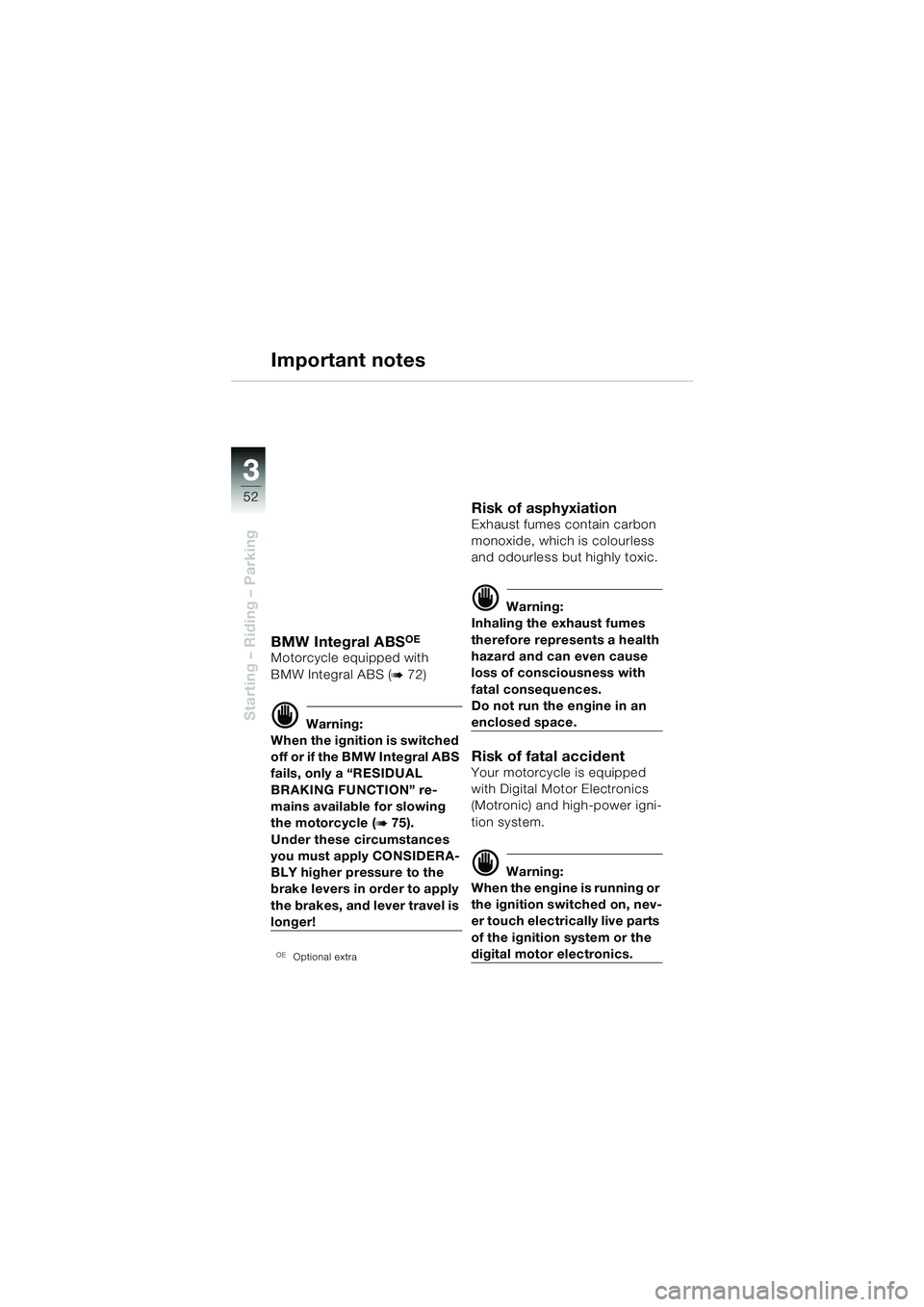

Important notes
BMW Integral ABSOE
Motorcycle equipped with
BMW Integral ABS (
b 72)
d Warning:
When the ignition is switched
off or if the BMW Integral ABS
fails, only a “RESIDUAL
BRAKING FUNCTION” re-
mains available for slowing
the motorcycle (
b 75).
Under these circumstances
you must apply CONSIDERA-
BLY higher pressure to the
brake levers in order to apply
the brakes, and lever travel is
longer!
OEOptional extra
Risk of asphyxiationExhaust fumes contain carbon
monoxide, which is colourless
and odourless but highly toxic.
d Warning:
Inhaling the exhaust fumes
therefore represents a health
hazard and can even cause
loss of consciousness with
fatal consequences.
Do not run the engine in an
enclosed space.
Risk of fatal accidentYour motorcycle is equipped
with Digital Motor Electronics
(Motronic) and high-power igni-
tion system.
d Warning:
When the engine is running or
the ignition switched on, nev-
er touch electrically live parts
of the ignition system or the
digital motor electronics.
10rsbkg2.book Seite 52 Dienstag, 19. November 2002 4:56 16

3
53
3
Starting – Riding – Parking
Important notes

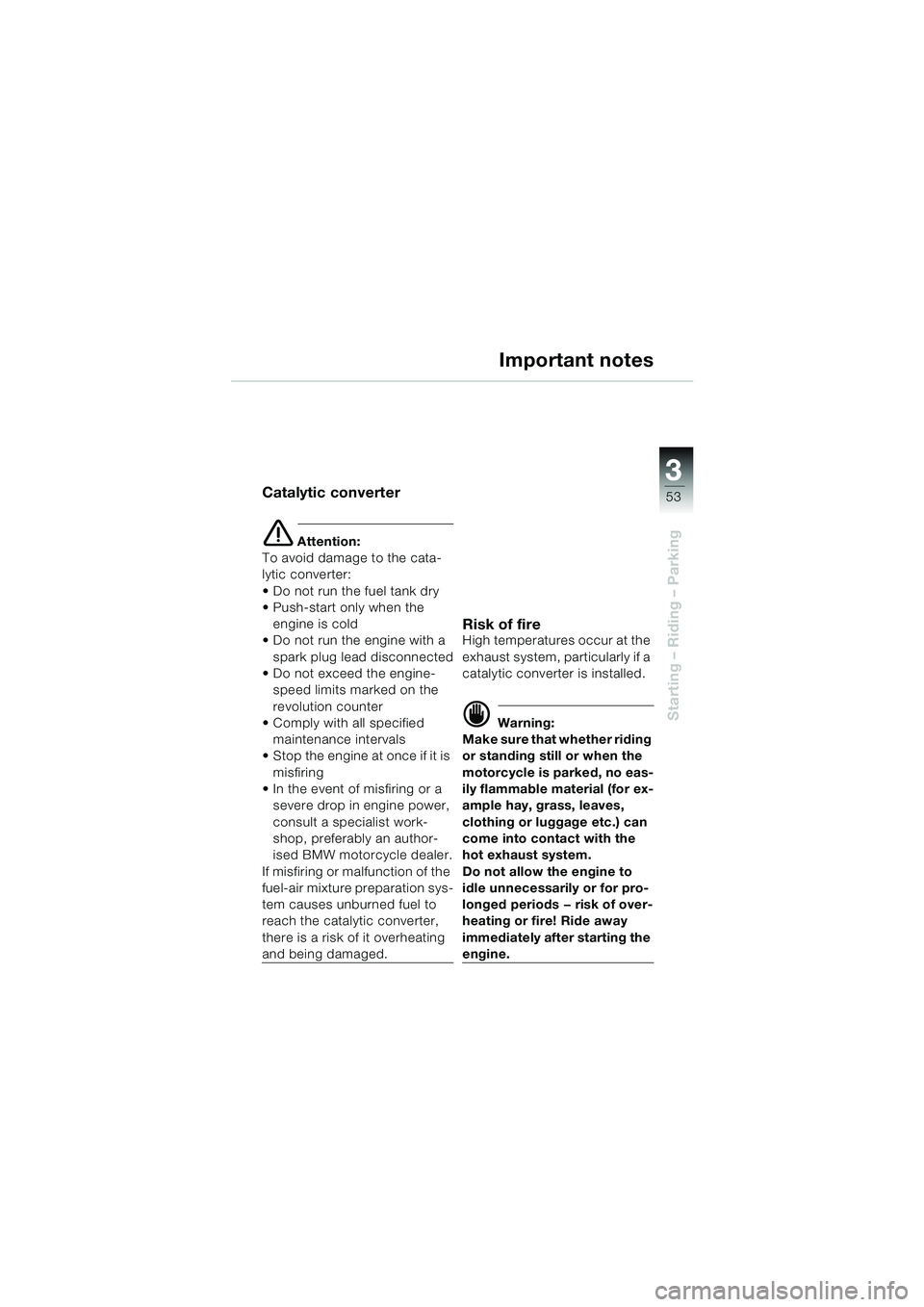

Catalytic converter
e Attention:
To avoid damage to the cata-
lytic converter:
 Do not run the fuel tank dry
 Push-start only when the
engine is cold
 Do not run the engine with a
spark plug lead disconnected
 Do not exceed the engine- speed limits marked on the
revolution counter
 Comply with all specified
maintenance intervals
 Stop the engine at once if it is
misfiring
 In the event of misfiring or a severe drop in engine power,
consult a specialist work-
shop, preferably an author-
ised BMW motorcycle dealer.
If misfiring or malfunction of the
fuel-air mixture preparation sys-
tem causes unburned fuel to
reach the catalytic converter,
there is a risk of it overheating
and being damaged.
Risk of fireHigh temperatures occur at the
exhaust system, particularly if a
catalytic converter is installed.
d Warning:
Make sure that whether riding
or standing still or when the
motorcycle is parked, no eas-
ily flammable material (for ex-
ample hay, grass, leaves,
clothing or luggage etc.) can
come into contact with the
hot exhaust system.
Do not allow the engine to
idle unnecessarily or for pro-
longed periods — risk of over-
heating or fire! Ride away
immediately after starting the
engine.
10rsbkg2.book Seite 53 Dienstag, 19. November 2002 4:56 16

33
54
Starting – Riding – Parking

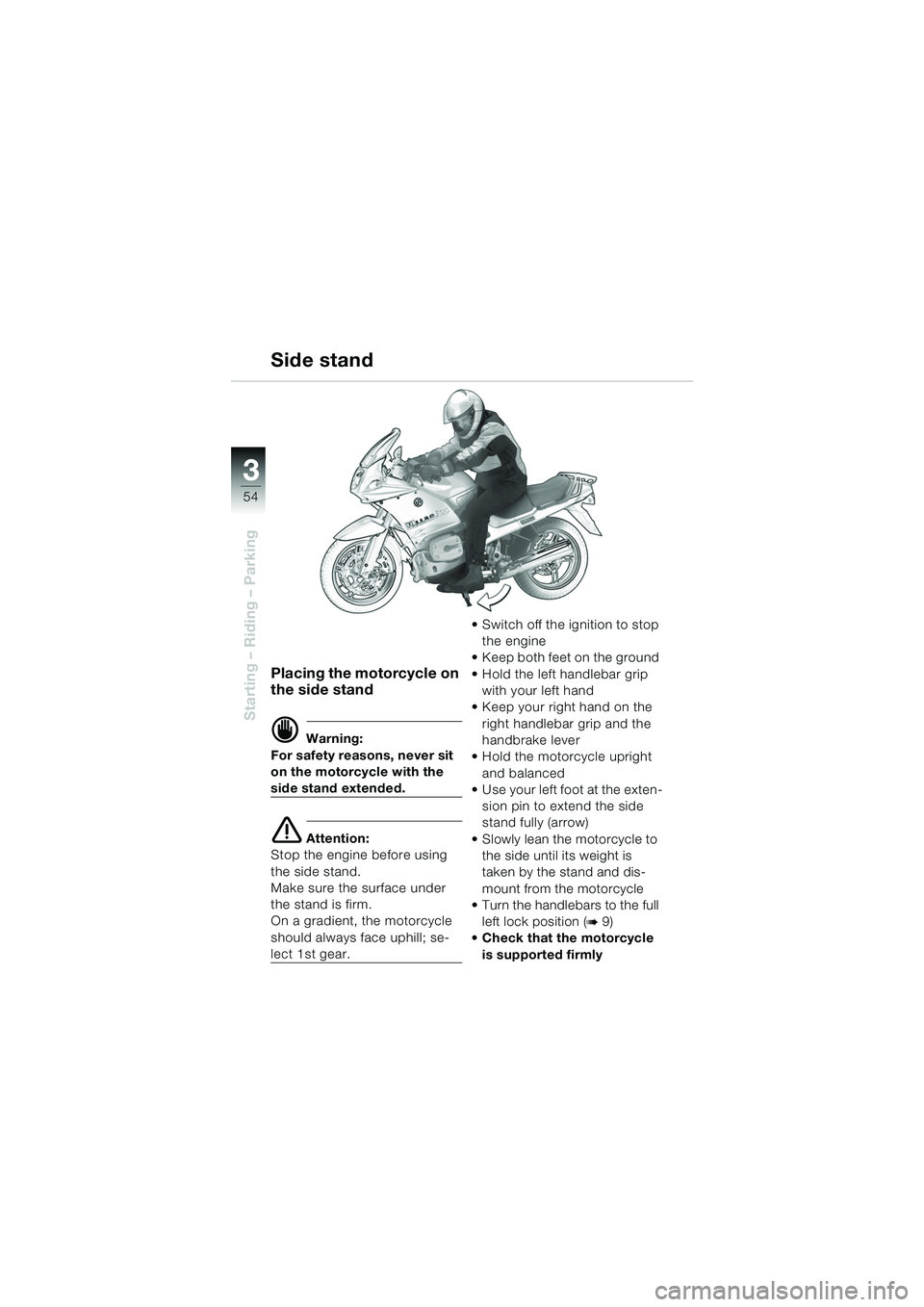

Placing the motorcycle on
the side stand
d Warning:
For safety reasons, never sit
on the motorcycle with the
side stand extended.
e Attention:
Stop the engine before using
the side stand.
Make sure the surface under
the stand is firm.
On a gradient, the motorcycle
should always face uphill; se-
lect 1st gear.  Switch off the ignition to stop
the engine
 Keep both feet on the ground
 Hold the left handlebar grip
with your left hand
 Keep your right hand on the
right handlebar grip and the
handbrake lever
 Hold the motorcycle upright and balanced
 U s e y o u r le f t f o o t a t t h e e x t e n -
sion pin to extend the side
stand fully (arrow)
 Slowly lean the motorcycle to the side until its weight is
taken by the stand and dis-
mount from the motorcycle
 Turn the handlebars to the full
left lock position (
b 9)
 Check that the motorcycle
is supported firmly
Side stand
10rsbkg2.book Seite 54 Dienstag, 19. November 2002 4:56 16

3
55
3

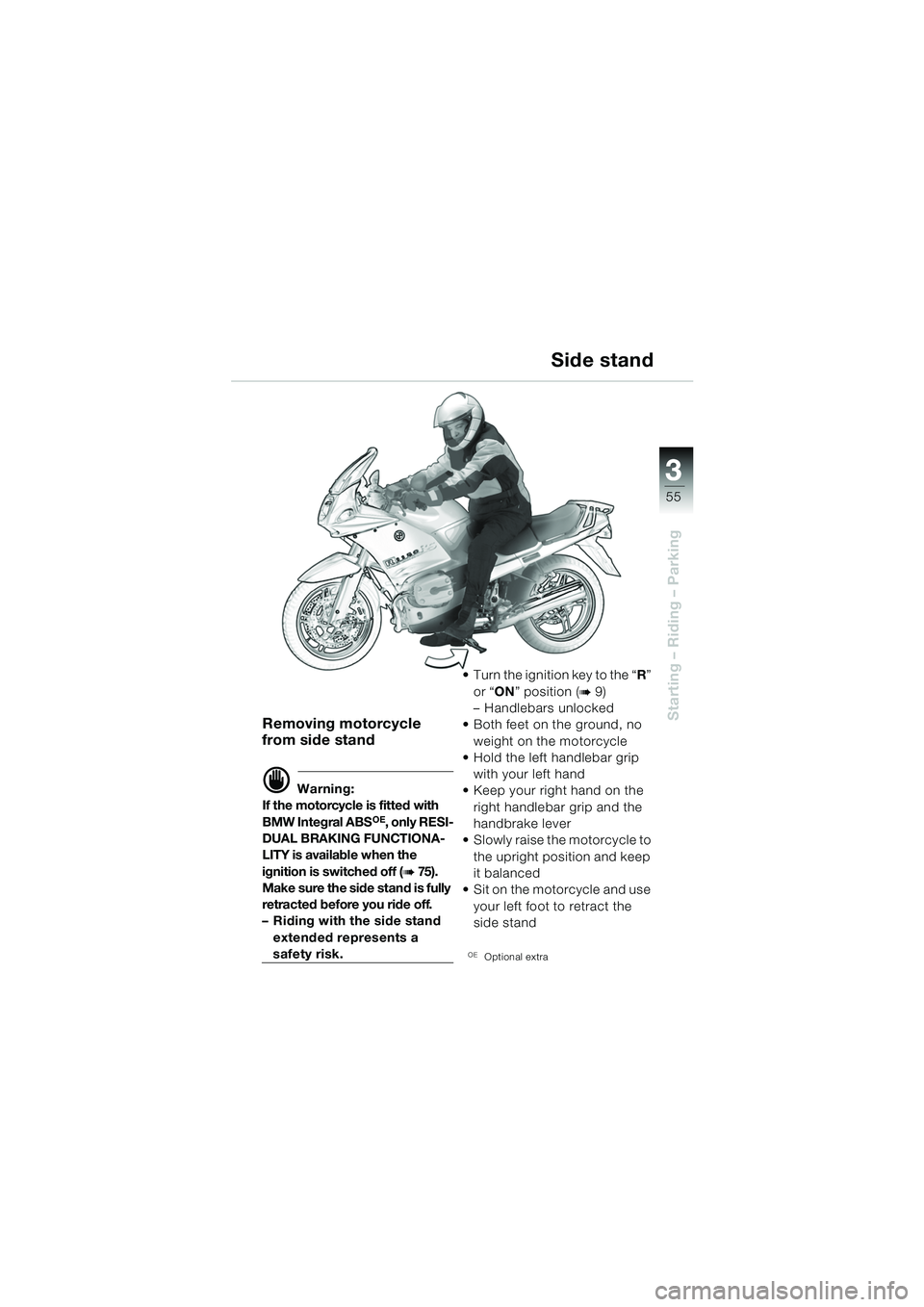

Starting – Riding – ParkingRemoving motorcycle
from side stand
d Warning:
If the motorcycle is fitted with
BMW Integral ABS
OE, only RESI-
DUAL BRAKING FUNCTIONA-
LITY is available when the
ignition is switched off (
b 75 ) .
Make sure the side stand is fully
retracted before you ride off.
– Riding with the side stand
extended represents a
safety risk.  Turn the ignition key to the “
R”
or “ ON” position (
b 9)
– Handlebars unlocked
 Both feet on the ground, no weight on the motorcycle
 Hold the left handlebar grip
with your left hand
 Keep your right hand on the
right handlebar grip and the
handbrake lever
 Slowly raise the motorcycle to
the upright position and keep
it balanced
 Sit on the motorcycle and use your left foot to retract the
side stand
OEOptional extra
Side stand
10rsbkg2.book Seite 55 Dienstag, 19. November 2002 4:56 16

33
56

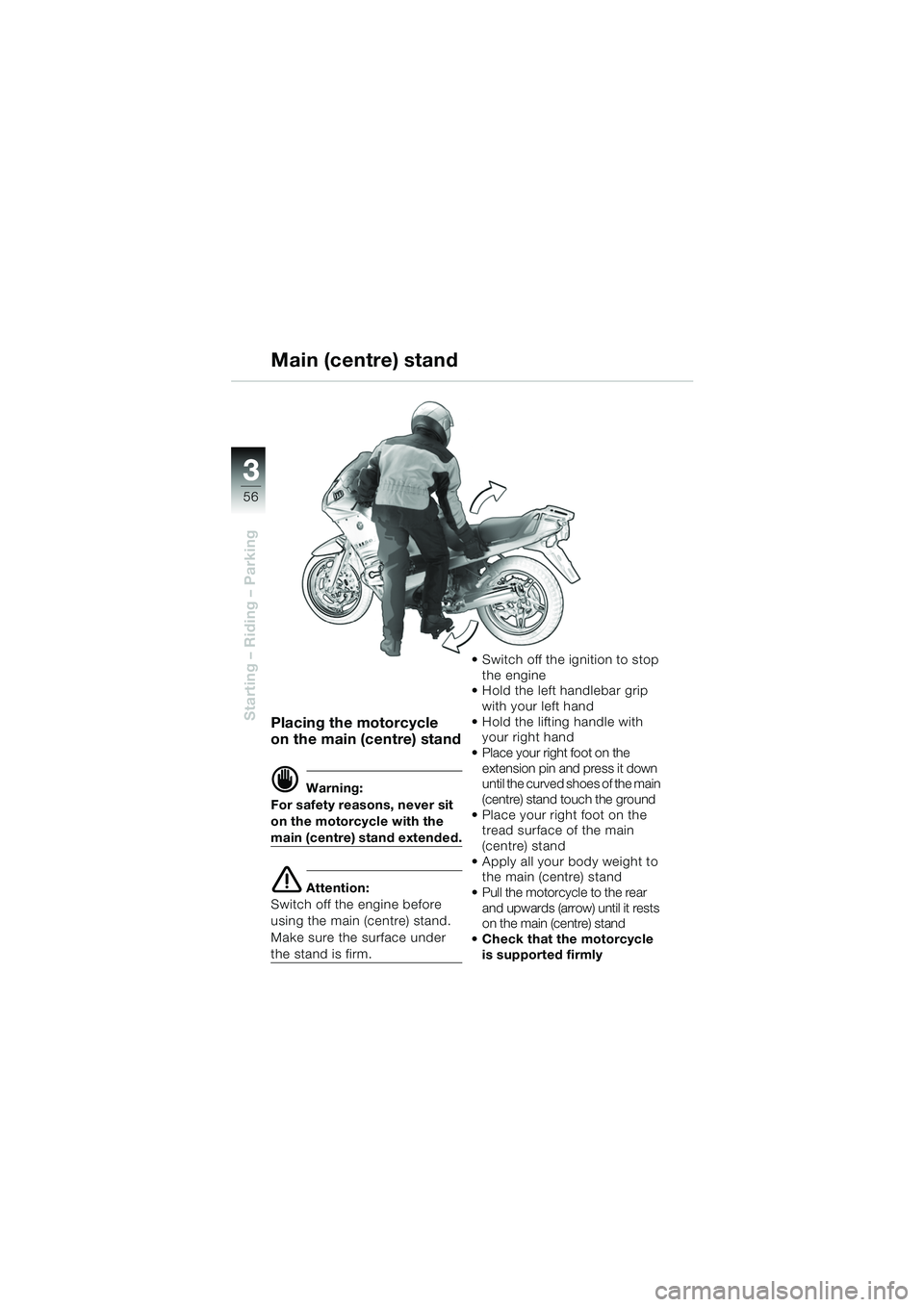

Starting – Riding – ParkingPlacing the motorcycle
on the main (centre) stand
d Warning:
For safety reasons, never sit
on the motorcycle with the
main (centre) stand extended.
e Attention:
Switch off the engine before
using the main (centre) stand.
Make sure the surface under
the stand is firm.  Switch off the ignition to stop
the engine
 Hold the left handlebar grip
with your left hand
 Hold the lifting handle with your right hand
 Place your right foot on the extension pin and press it down
until the curved shoes of the main
(centre) stand touch the ground
 Place your right foot on the tread surface of the main
(centre) stand
 Apply all your body weight to the main (centre) stand
 Pull the motorcycle to the rear and upwards (arrow) until it rests
on the main (centre) stand
 Check that the motorcycle is supported firmly
Main (centre) stand
10rsbkg2.book Seite 56 Dienstag, 19. November 2002 4:56 16

3
57
3

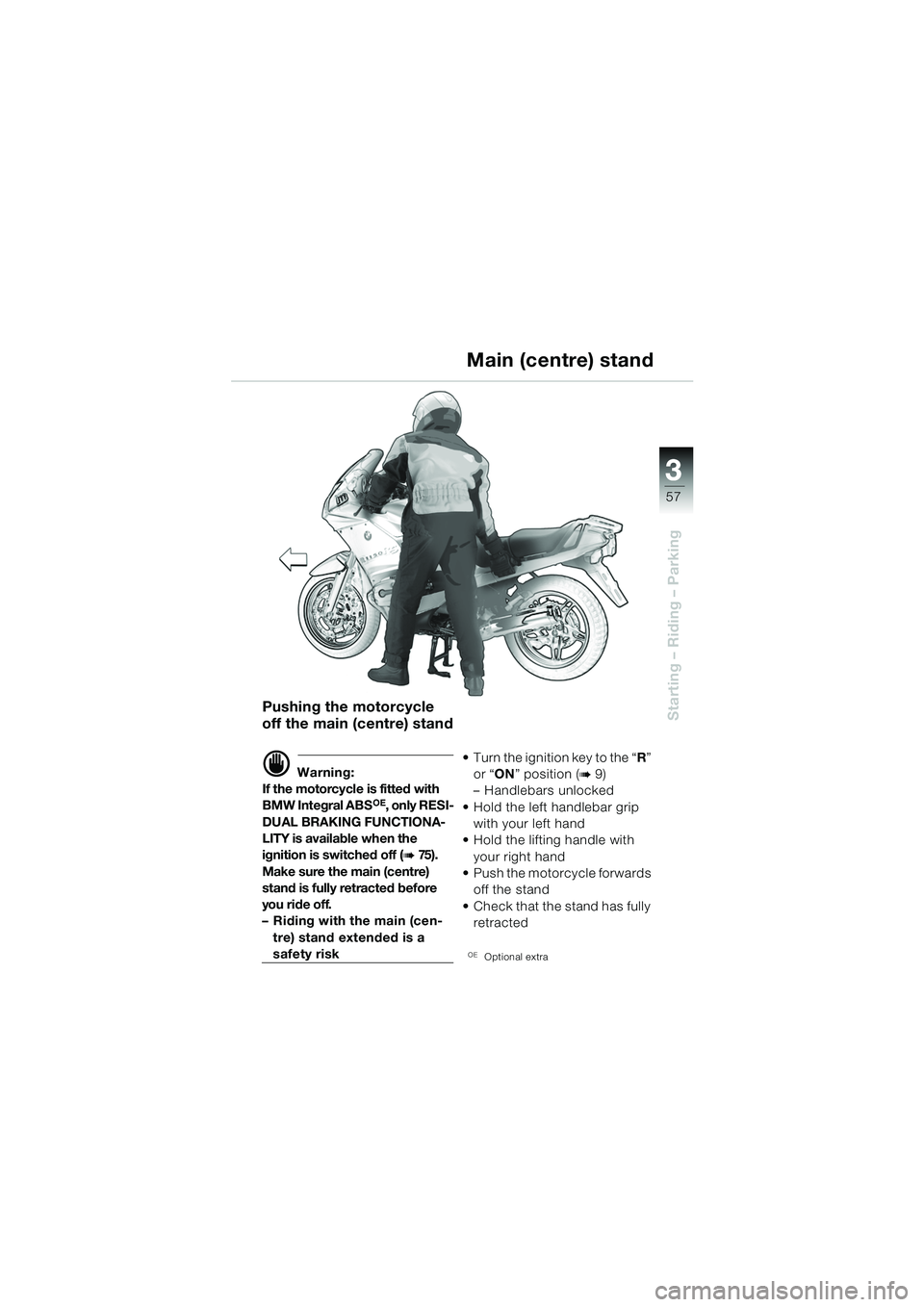

Starting – Riding – ParkingPushing the motorcycle
off the main (centre) stand
d Warning:
If the motorcycle is fitted with
BMW Integral ABS
OE, only RESI-
DUAL BRAKING FUNCTIONA-
LITY is available when the
ignition is switched off (
b 75 ) .
Make sure the main (centre)
stand is fully retracted before
you ride off.
– Riding with the main (cen- tre) stand extended is a
safety risk  Turn the ignition key to the “
R”
or “ ON” position (
b 9)
– Handlebars unlocked
 Hold the left handlebar grip with your left hand
 Hold the lifting handle with
your right hand
 Push the motorcycle forwards
off the stand
 Check that the stand has fully retracted
OEOptional extra
Main (centre) stand
10rsbkg2.book Seite 57 Dienstag, 19. November 2002 4:56 16

33
58

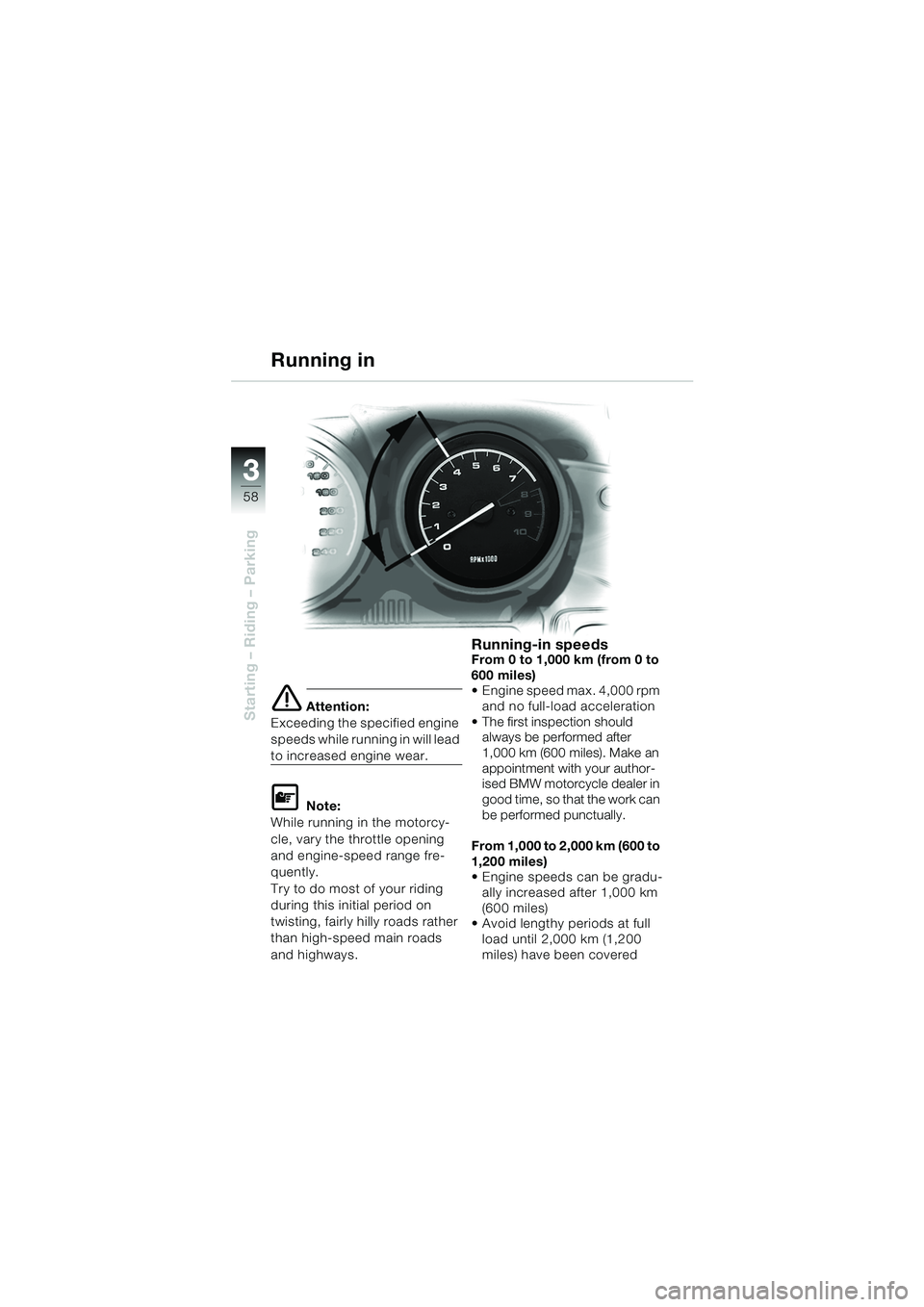

Starting – Riding – Parkinge Attention:
Exceeding the specified engine
speeds while running in will lead
to increased engine wear.
L Note:
While running in the motorcy-
cle, vary the throttle opening
and engine-speed range fre-
quently.
Try to do most of your riding
during this initial period on
twisting, fairly hilly roads rather
than high-speed main roads
and highways.
Running-in speedsFrom 0 to 1,000 km (from 0 to
600 miles)
 Engine speed max. 4,000 rpm and no full-load acceleration
 The first inspection should always be performed after
1,000 km (600 miles). Make an
appointment with your author-
ised BMW motorcycle dealer in
good time, so that the work can
be performed punctually.
From 1,000 to 2,000 km (600 to
1,200 miles)
 Engine speeds can be gradu- ally increased after 1,000 km
(600 miles)
 Avoid lengthy periods at full
load until 2,000 km (1,200
miles) have been covered
Running in
