BMW MOTORRAD R 1150 RS 2002 Rider's Manual (in English)

3
79
3
Starting – Riding – Parking
OEOptional extra

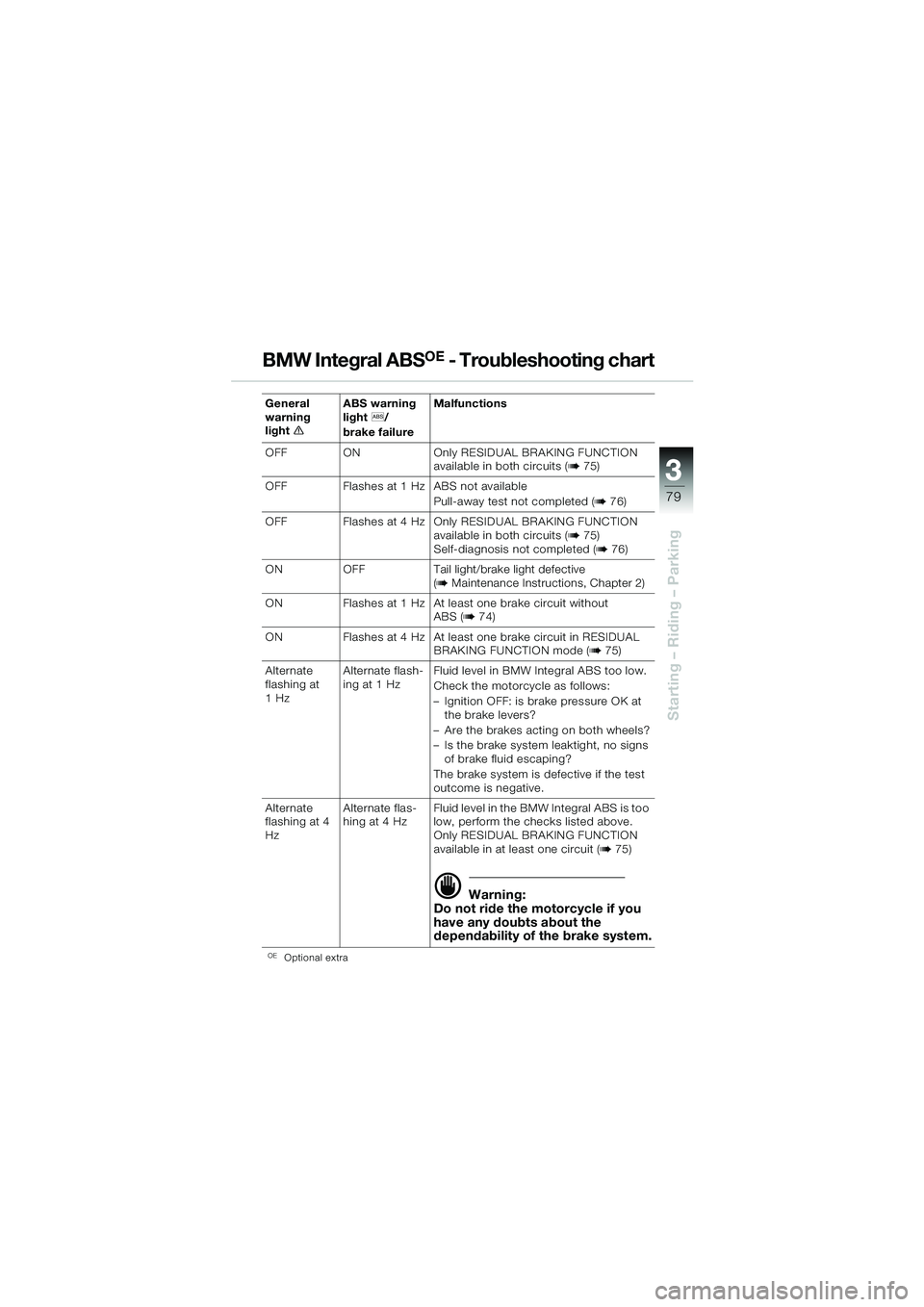

General
warning
lighte ABS warning
light
l/
brake failure Malfunctions
OFF ON Only RESIDUAL BRAKING FUNCTION available in both circuits (
b 75)
OFF Flashes at 1 Hz ABS not available Pull-away test not completed (
b 76)
OFF Flashes at 4 Hz Only RESIDUAL BRAKING FUNCTION available in both circuits (
b 75)
Self-diagnosis not completed (b 76)
ON OFF Tail light/brake light defective (
b Maintenance Instructions, Chapter 2)
ON Flashes at 1 Hz At least one brake circuit without ABS (
b 74)
ON Flashes at 4 Hz At least one brake circuit in RESIDUAL BRAKING FUNCTION mode (
b 75)
Alternate
flashing at
1Hz Alternate flash-
ing at 1 Hz
Fluid level in BMW Integral ABS too low.
Check the motorcycle as follows:
– Ignition OFF: is brake pressure OK at
the brake levers?
– Are the brakes acting on both wheels?
– Is the brake system leaktight, no signs of brake fluid escaping?
The brake system is defective if the test
outcome is negative.
Alternate
flashing at 4
Hz Alternate flas-
hing at 4 Hz
Fluid level in the BMW Integral ABS is too
low, perform the checks listed above.
Only RESIDUAL BRAKING FUNCTION
available in at least one circuit (
b 75)

d Warning:
Do not ride the motorcycle if you
have any doubts about the
dependability of the brake system.
BMW Integral ABSOE - Troubleshooting chart
10rsbkg2.book Seite 79 Dienstag, 19. November 2002 4:56 16

44
80

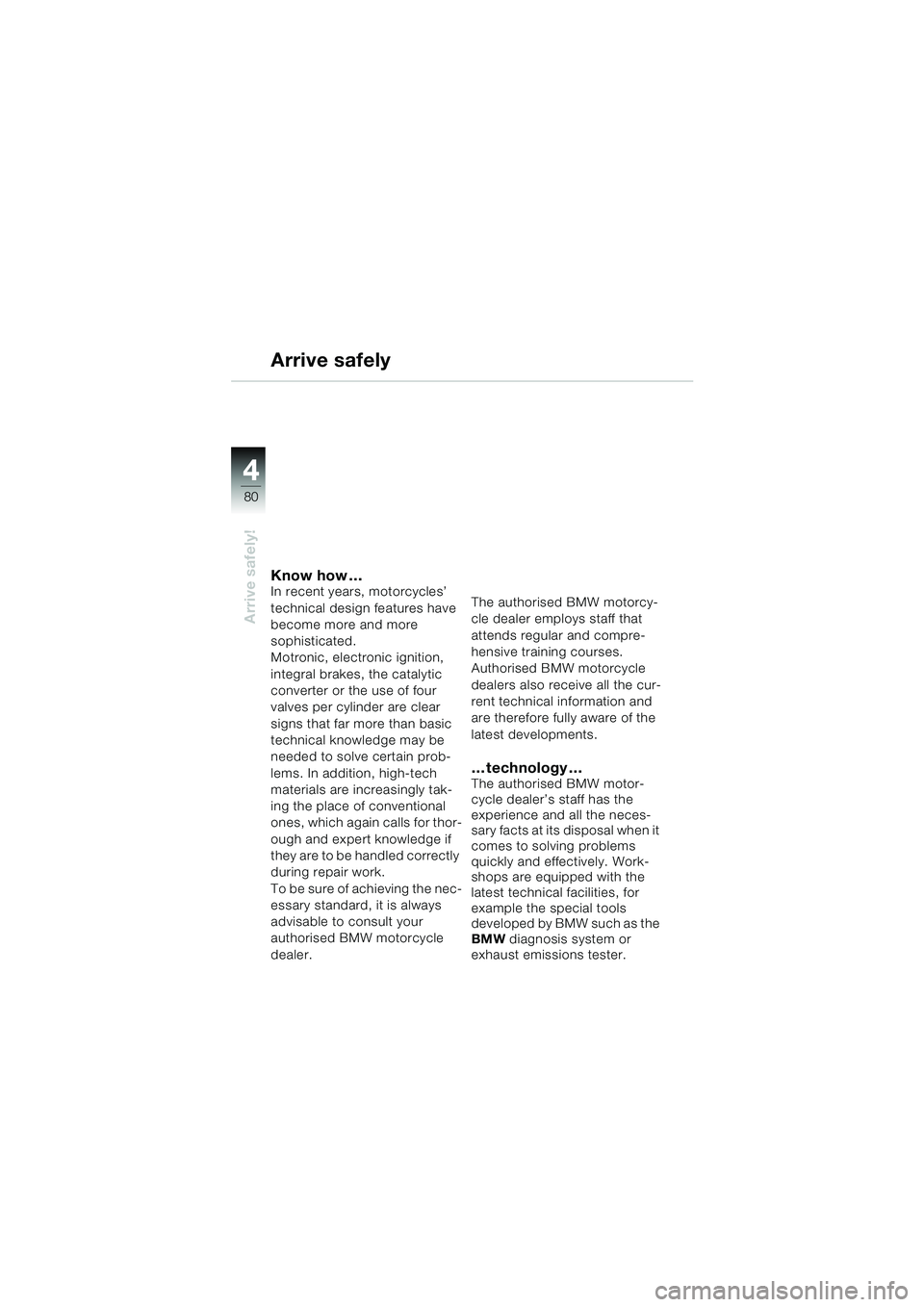

Arrive safely!
Know how …In recent years, motorcycles’
technical design features have
become more and more
sophisticated.
Motronic, electronic ignition,
integral brakes, the catalytic
converter or the use of four
valves per cylinder are clear
signs that far more than basic
technical knowledge may be
needed to solve certain prob-
lems. In addition, high-tech
materials are increasingly tak-
ing the place of conventional
ones, which again calls for thor-
ough and expert knowledge if
they are to be handled correctly
during repair work.
To be sure of achieving the nec-
essary standard, it is always
advisable to consult your
authorised BMW motorcycle
dealer. The authorised BMW motorcy-
cle dealer employs staff that
attends regular and compre-
hensive training courses.
Authorised BMW motorcycle
dealers also receive all the cur-
rent technical information and
are therefore fully aware of the
latest developments.
… technology …The authorised BMW motor-
cycle dealer’s staff has the
experience and all the neces-
sary facts at its disposal when it
comes to solving problems
quickly and effectively. Work-
shops are equipped with the
latest technical facilities, for
example the special tools
developed by BMW such as the
BMW
diagnosis system or
exhaust emissions tester.
Arrive safely
10rsbkg2.book Seite 80 Dienstag, 19. November 2002 4:56 16

4
81
4
Arrive safely!

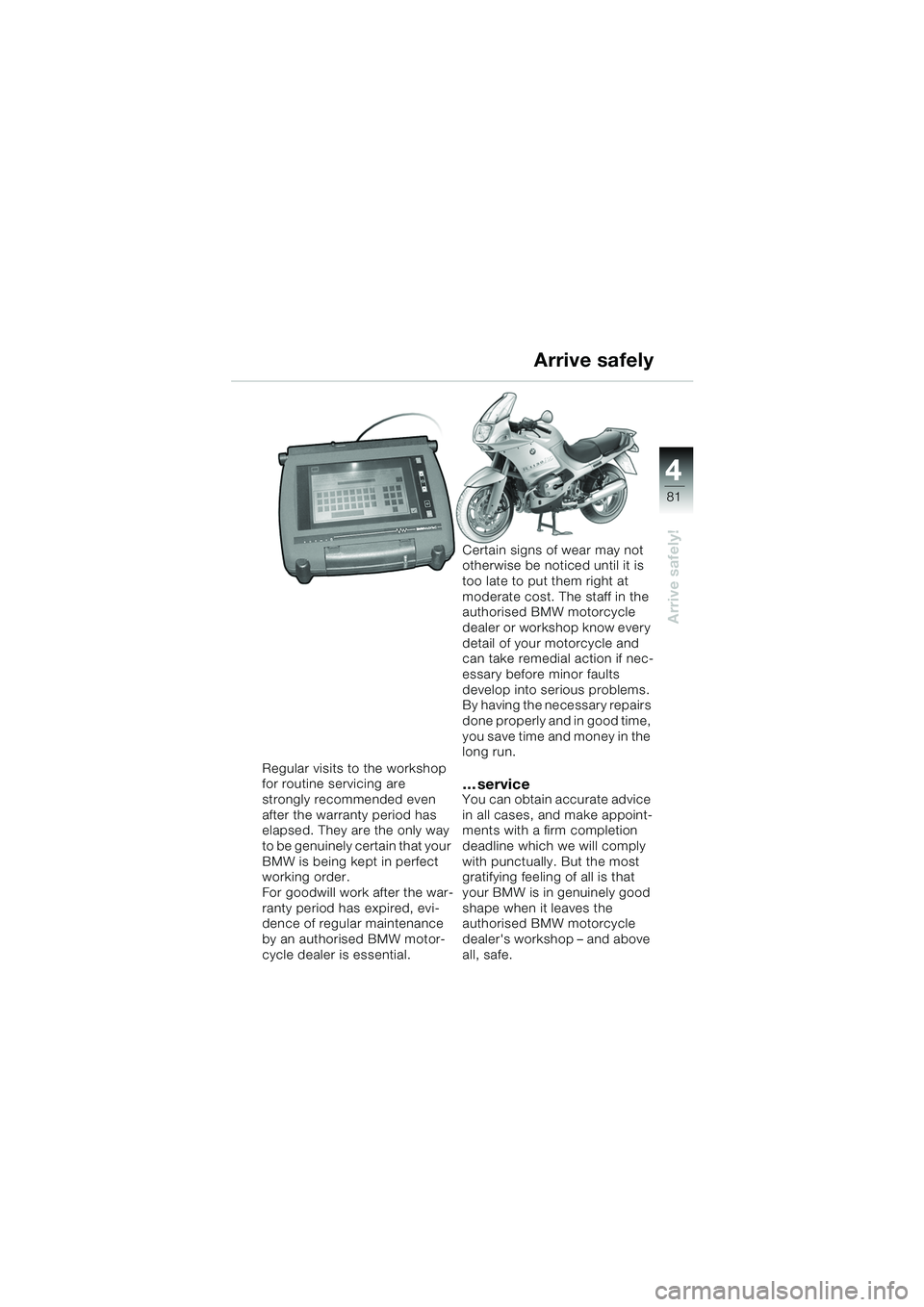

Regular visits to the workshop
for routine servicing are
strongly recommended even
after the warranty period has
elapsed. They are the only way
to be genuinely certain that your
BMW is being kept in perfect
working order.
For goodwill work after the war-
ranty period has expired, evi-
dence of regular maintenance
by an authorised BMW motor-
cycle dealer is essential.Certain signs of wear may not
otherwise be noticed until it is
too late to put them right at
moderate cost. The staff in the
authorised BMW motorcycle
dealer or workshop know every
detail of your motorcycle and
can take remedial action if nec-
essary before minor faults
develop into serious problems.
By having the necessary repairs
done properly and in good time,
you save time and money in the
long run.
…serviceYou can obtain accurate advice
in all cases, and make appoint-
ments with a firm completion
deadline which we will comply
with punctually. But the most
gratifying feeling of all is that
your BMW is in genuinely good
shape when it leaves the
authorised BMW motorcycle
dealer's workshop – and above
all, safe.
Arrive safely
10rsbkg2.book Seite 81 Dienstag, 19. November 2002 4:56 16

44
82
Arrive safely!

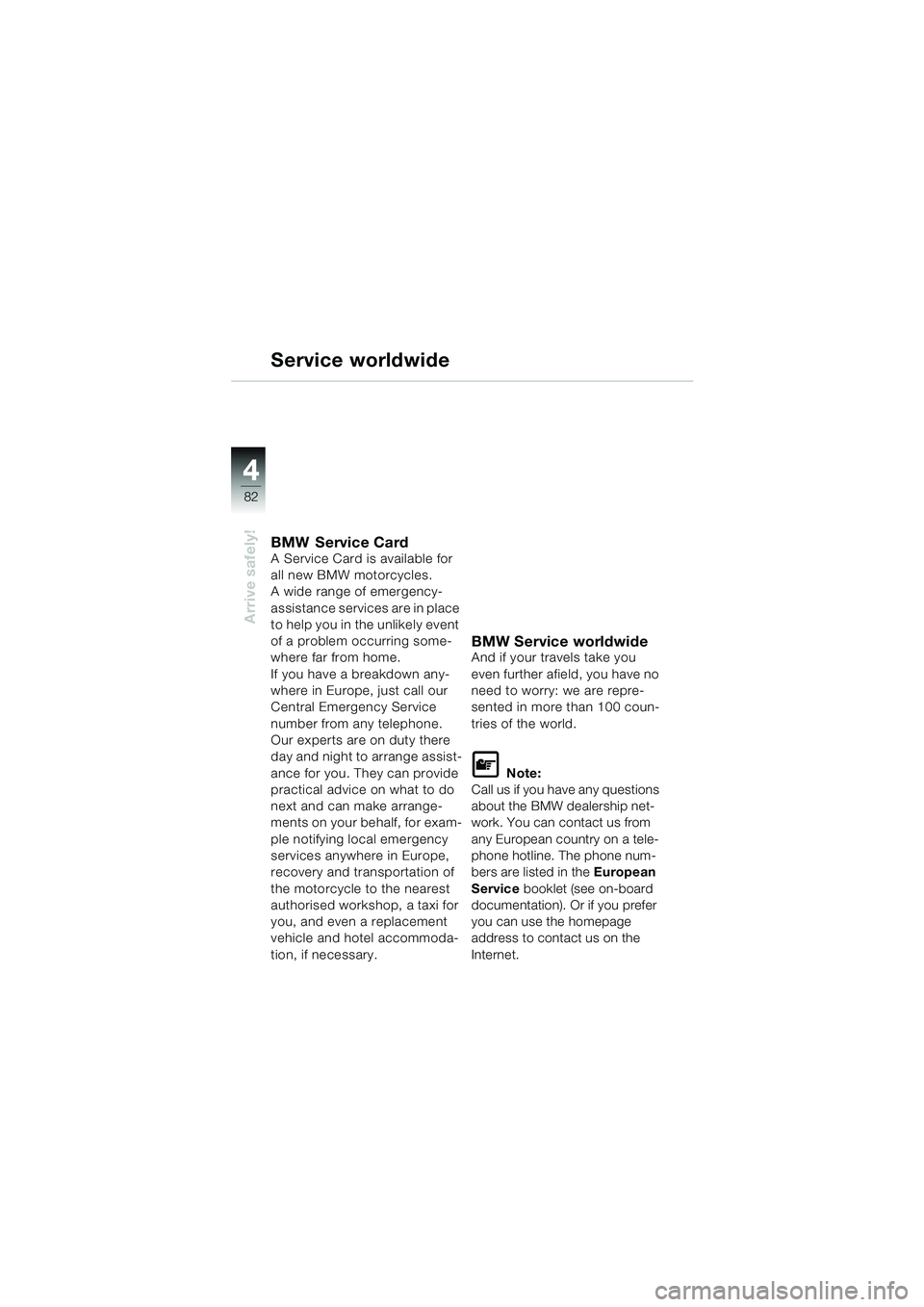

Service worldwide
BMW Service CardA Service Card is available for
all new BMW motorcycles.
A wide range of emergency-
assistance services are in place
to help you in the unlikely event
of a problem occurring some-
where far from home.
If you have a breakdown any-
where in Europe, just call our
Central Emergency Service
number from any telephone.
Our experts are on duty there
day and night to arrange assist-
ance for you. They can provide
practical advice on what to do
next and can make arrange-
ments on your behalf, for exam-
ple notifying local emergency
services anywhere in Europe,
recovery and transportation of
the motorcycle to the nearest
authorised workshop, a taxi for
you, and even a replacement
vehicle and hotel accommoda-
tion, if necessary.
BMW Service worldwideAnd if your travels take you
even further afield, you have no
need to worry: we are repre-
sented in more than 100 coun-
tries of the world.
L Note:
Call us if you have any questions
about the BMW dealership net-
work. You can contact us from
any European country on a tele-
phone hotline. The phone num-
bers are listed in the European
Service booklet (see on-board
documentation). Or if you prefer
you can use the homepage
address to contact us on the
Internet.
10rsbkg2.book Seite 82 Dienstag, 19. November 2002 4:56 16

4
83
4
Arrive safely!

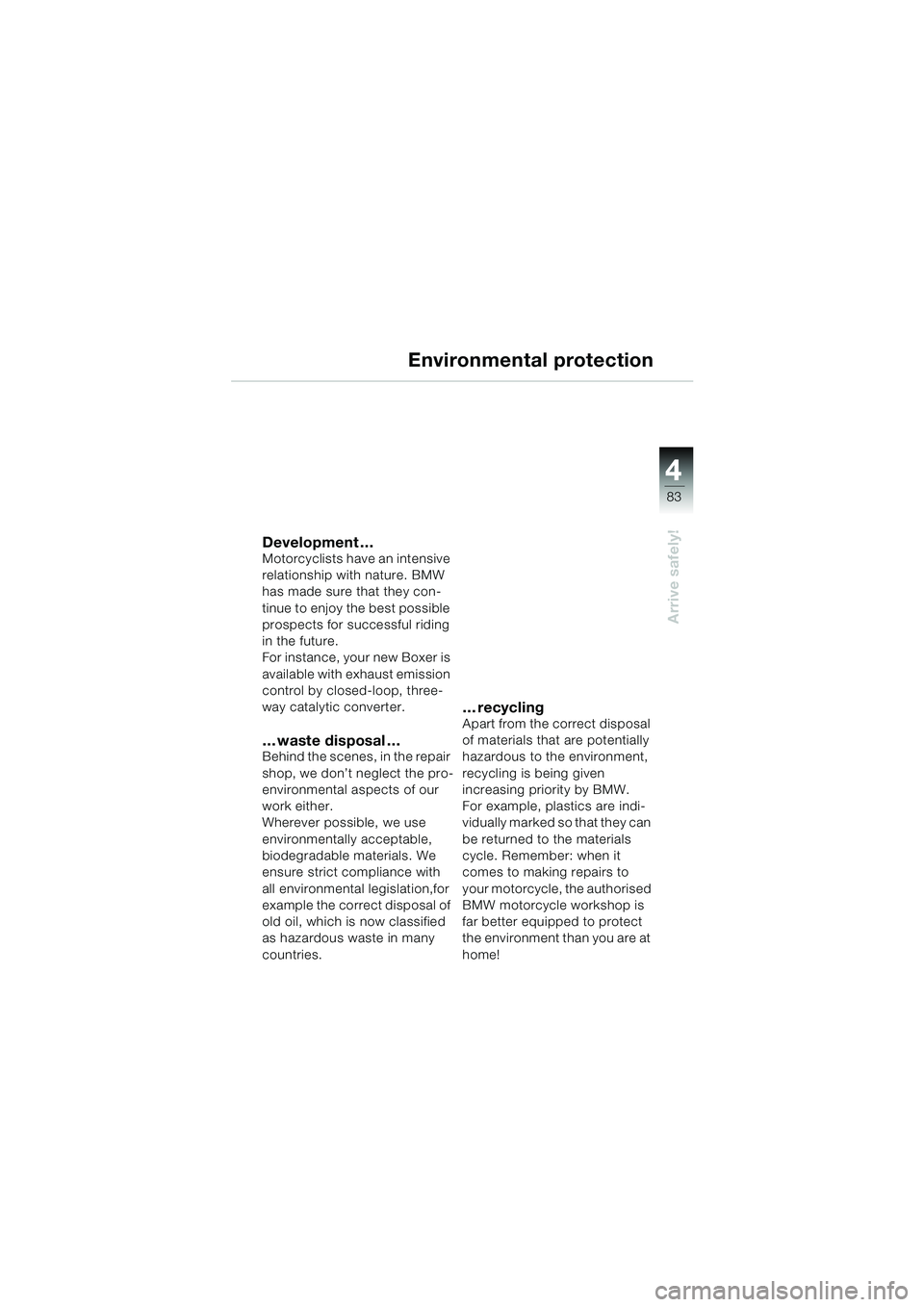

Environmental protection
Development …Motorcyclists have an intensive
relationship with nature. BMW
has made sure that they con-
tinue to enjoy the best possible
prospects for successful riding
in the future.
For instance, your new Boxer is
available with exhaust emission
control by closed-loop, three-
way catalytic converter.
… waste disposal …Behind the scenes, in the repair
shop, we don’t neglect the pro-
environmental aspects of our
work either.
Wherever possible, we use
environmentally acceptable,
biodegradable materials. We
ensure strict compliance with
all environmental legislation,for
example the correct disposal of
old oil, which is now classified
as hazardous waste in many
countries.
…recyclingApart from the correct disposal
of materials that are potentially
hazardous to the environment,
recycling is being given
increasing priority by BMW.
For example, plastics are indi-
vidually marked so that they can
be returned to the materials
cycle. Remember: when it
comes to making repairs to
your motorcycle, the authorised
BMW motorcycle workshop is
far better equipped to protect
the environment than you are at
home!
10rsbkg2.book Seite 83 Dienstag, 19. November 2002 4:56 16

44
84
Arrive safely!

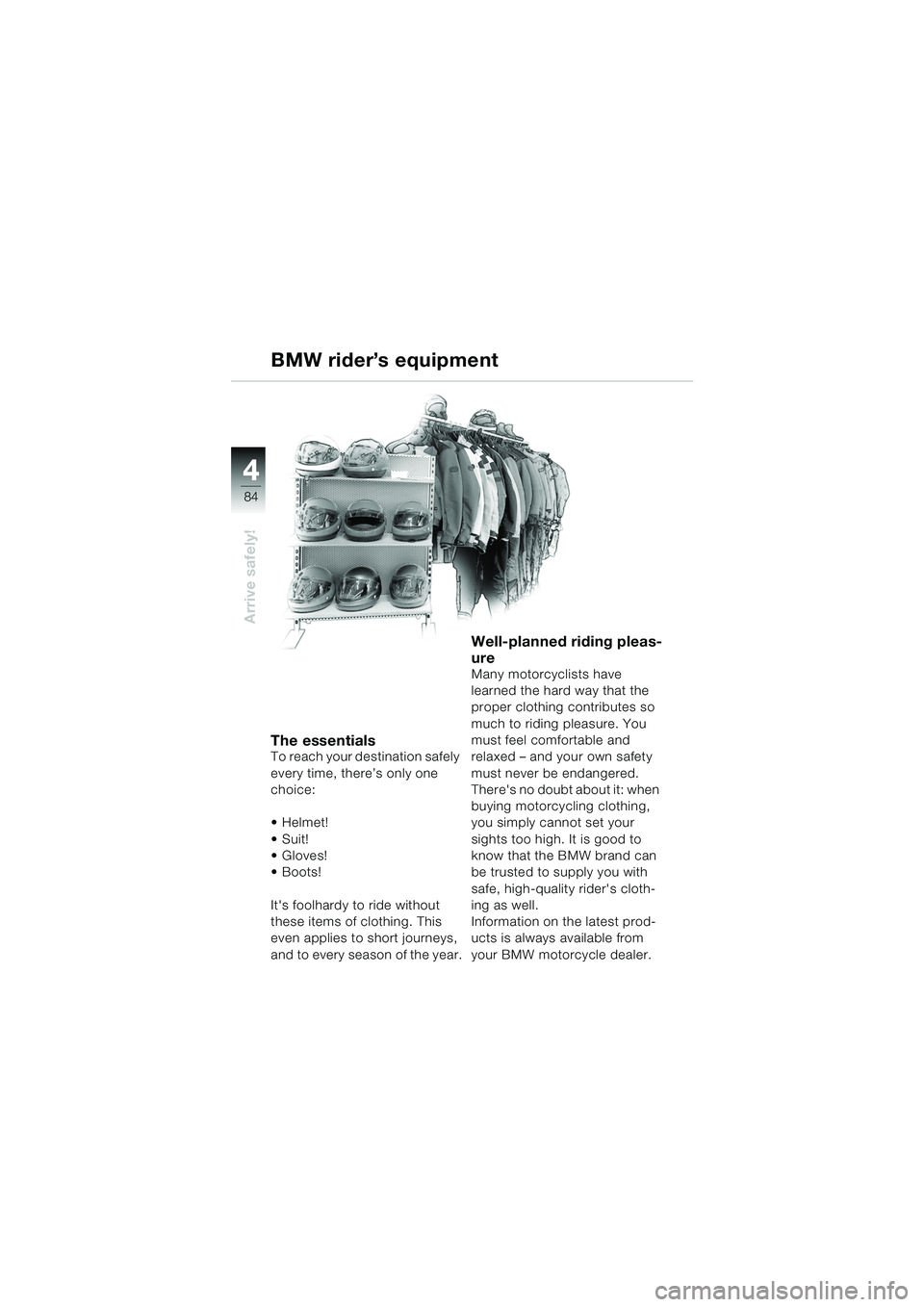

The essentialsTo reach your destination safely
every time, there’s only one
choice:
Helmet!
Suit!
 Gloves!
 Boots!
It's foolhardy to ride without
these items of clothing. This
even applies to short journeys,
and to every season of the year.
Well-planned riding pleas-
ure
Many motorcyclists have
learned the hard way that the
proper clothing contributes so
much to riding pleasure. You
must feel comfortable and
relaxed – and your own safety
must never be endangered.
There's no doubt about it: when
buying motorcycling clothing,
you simply cannot set your
sights too high. It is good to
know that the BMW brand can
be trusted to supply you with
safe, high-quality rider's cloth-
ing as well.
Information on the latest prod-
ucts is always available from
your BMW motorcycle dealer.
BMW rider’s equipment
10rsbkg2.book Seite 84 Dienstag, 19. November 2002 4:56 16

4
85
4
Arrive safely!

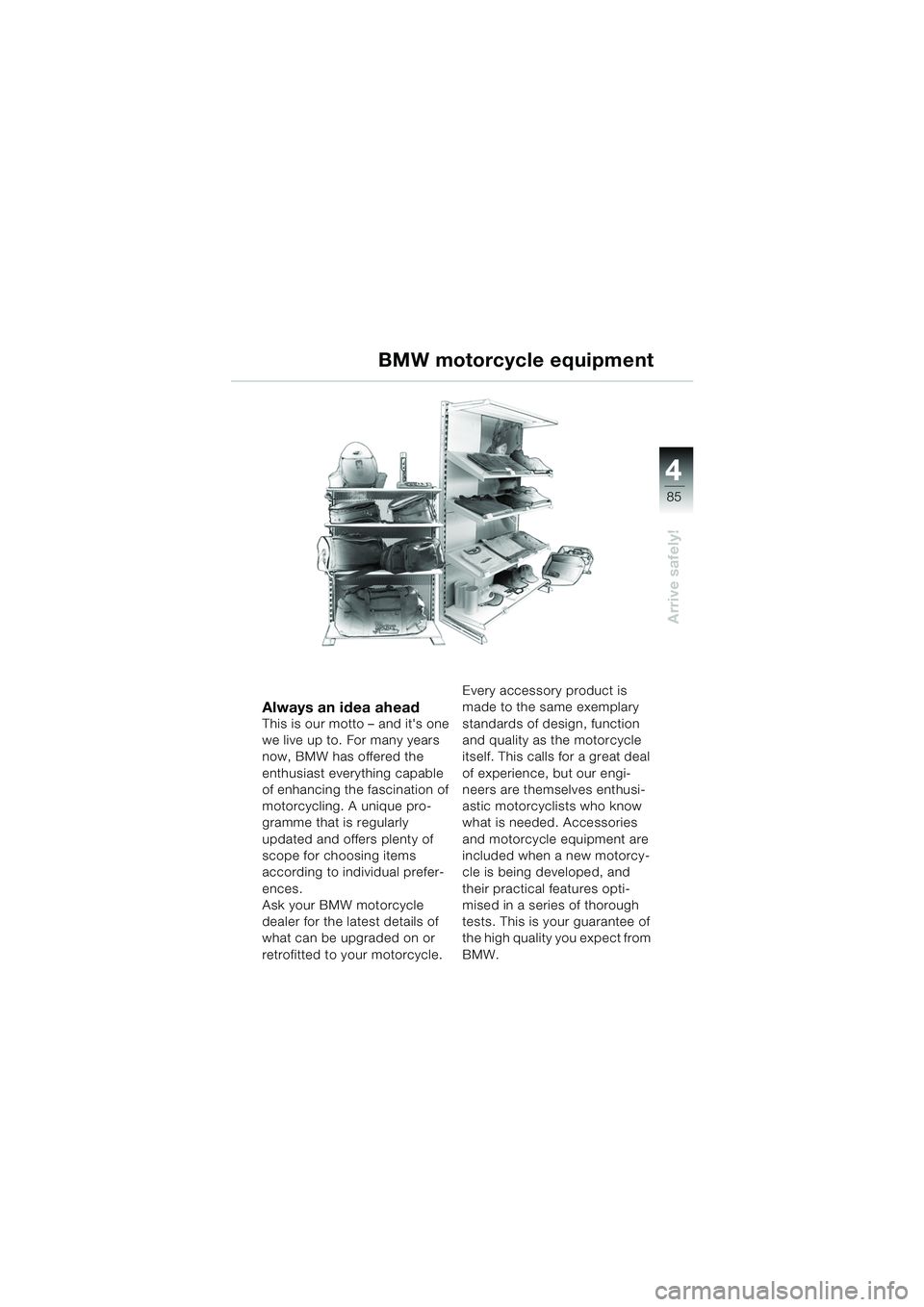

Always an idea aheadThis is our motto – and it's one
we live up to. For many years
now, BMW has offered the
enthusiast everything capable
of enhancing the fascination of
motorcycling. A unique pro-
gramme that is regularly
updated and offers plenty of
scope for choosing items
according to individual prefer-
ences.
Ask your BMW motorcycle
dealer for the latest details of
what can be upgraded on or
retrofitted to your motorcycle.Every accessory product is
made to the same exemplary
standards of design, function
and quality as the motorcycle
itself. This calls for a great deal
of experience, but our engi-
neers are themselves enthusi-
astic motorcyclists who know
what is needed. Accessories
and motorcycle equipment are
included when a new motorcy-
cle is being developed, and
their practical features opti-
mised in a series of thorough
tests. This is your guarantee of
the high quality you expect from
BMW.
BMW motorcycle equipment
10rsbkg2.book Seite 85 Dienstag, 19. November 2002 4:56 16

44
86
Arrive safely!

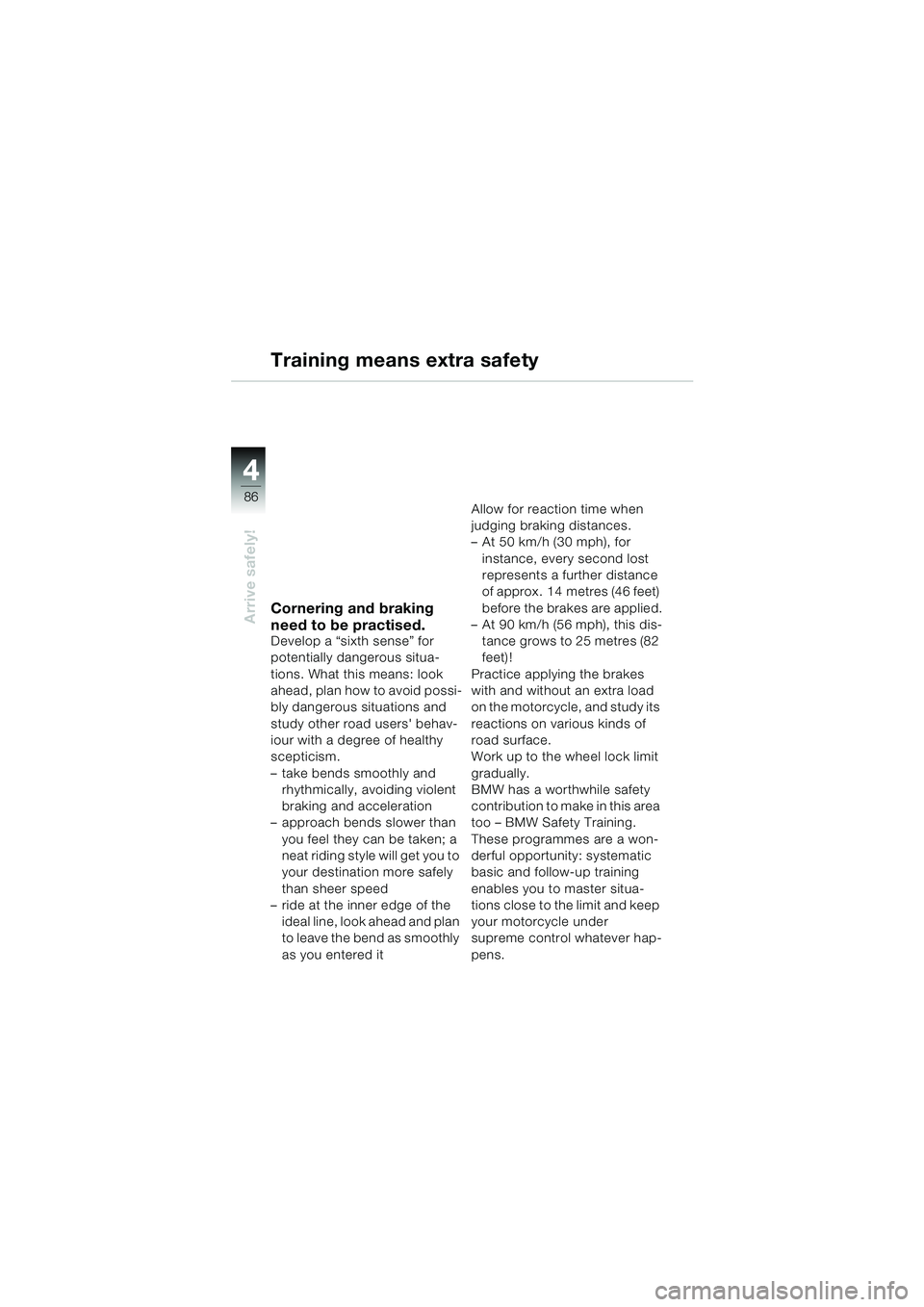

Training means extra safety
Cornering and braking
need to be practised.
Develop a “sixth sense” for
potentially dangerous situa-
tions. What this means: look
ahead, plan how to avoid possi-
bly dangerous situations and
study other road users' behav-
iour with a degree of healthy
scepticism.
– take bends smoothly and rhythmically, avoiding violent
braking and acceleration
– approach bends slower than
you feel they can be taken; a
neat riding style will get you to
your destination more safely
than sheer speed
– ride at the inner edge of the
ideal line, look ahead and plan
to leave the bend as smoothly
as you entered it Allow for reaction time when
judging braking distances.
– At 50 km/h (30 mph), for
instance, every second lost
represents a further distance
of approx. 14 metres (46 feet)
before the brakes are applied.
– At 90 km/h (56 mph), this dis-
tance grows to 25 metres (82
feet) !
Practice applying the brakes
with and without an extra load
on the motorcycle, and study its
reactions on various kinds of
road surface.
Work up to the wheel lock limit
gradually.
BMW has a worthwhile safety
contribution to make in this area
too – BMW Safety Training.
These programmes are a won-
derful opportunity: systematic
basic and follow-up training
enables you to master situa-
tions close to the limit and keep
your motorcycle under
supreme control whatever hap-
pens.
10rsbkg2.book Seite 86 Dienstag, 19. November 2002 4:56 16

4
87
4
Arrive safely!

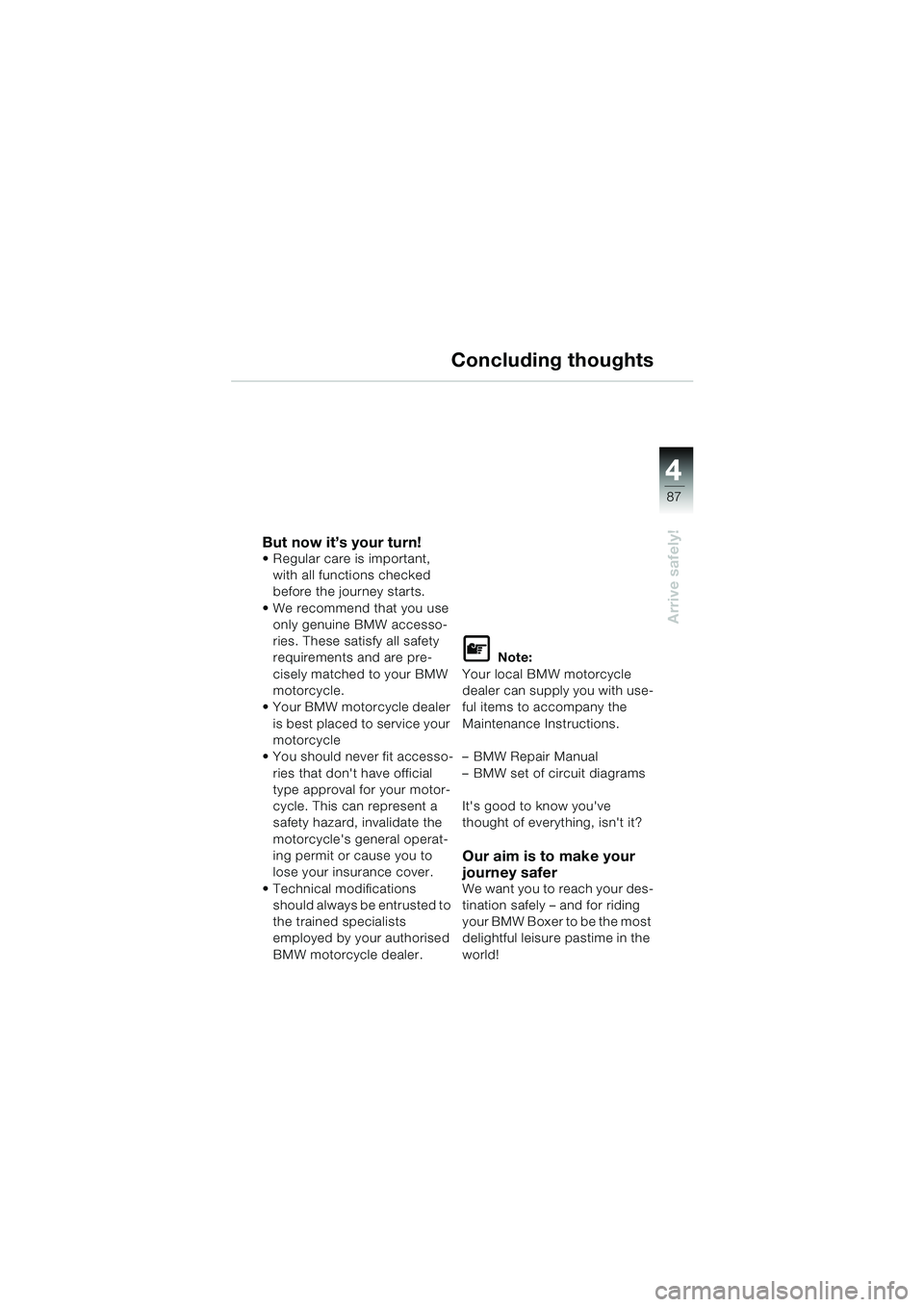

Concluding thoughts
But now it’s your turn! Regular care is important, with all functions checked
before the journey starts.
 We recommend that you use only genuine BMW accesso-
ries. These satisfy all safety
requirements and are pre-
cisely matched to your BMW
motorcycle.
 Your BMW motorcycle dealer
is best placed to service your
motorcycle
 You should never fit accesso- ries that don't have official
type approval for your motor-
cycle. This can represent a
safety hazard, invalidate the
motorcycle's general operat-
ing permit or cause you to
lose your insurance cover.
 Technical modifications should always be entrusted to
the trained specialists
employed by your authorised
BMW motorcycle dealer.
L Note:
Your local BMW motorcycle
dealer can supply you with use-
ful items to accompany the
Maintenance Instructions.
– BMW Repair Manual
–BMW set of circuit diagrams
It's good to know you've
thought of everything, isn't it?
Our aim is to make your
journey safer
We want you to reach your des-
tination safely – and for riding
your BMW Boxer to be the most
delightful leisure pastime in the
world!
10rsbkg2.book Seite 87 Dienstag, 19. November 2002 4:56 16

88
Index
i
AABS - anti-lock brake system, 74
Activating fast idle, 63
Adjusting headlight beam throw, 41
Adjusting knob for windshield, 6
Adjusting reach A/B, 15
Adjusting windshield, 10
Air filter, 5
Anti-lock brake system Notes, 72, 74, 75, 76, 77, 78,
79
Arrive safely, 80, 81
BBefore you start, 60, 61
BMW Integral ABS, 52 Brake fluid level, checking, 33
Changing brake fluid, 33
Troubleshooting chart, 79
BMW Service Card, 82
Brake booster, 74
Brake fluid
Changing, 30
Brake fluid level Checking, 30
Front brake, 31, 35
Rear brake, 32, 36
Brake pads, checking, 29
Brake pads, checking wear, 29 Brake system
General, 28, 29, 71
With BMW Integral ABS, 33,
34, 35, 36
Without BMW Integral ABS, 30,
31, 32
Brake system general, 29, 70
Brake system, checking, 28
Brake system, warnings, 70
CCapacity, 25
Catalytic converter, 53 Safety instructions, 53
Changing gear, 68, 69
Checking brake fluid level, 30
Checklist, 20, 21
Choke Cold start, 63
Cold-start lever, 12
Clock, 10
Clock (FID), 67
Closing the System case, 18
Clutch
Fluid level, 37
Clutch lever, 26
Cockpit Overview, 6
Cockpit instruments, 6
Cold-start lever (choke) How to use, 63
Position, 12
A - C
10rsbkg2.book Seite 88 Dienstag, 19. November 2002 4:56 16
