CHERY TIGGO 2009 Service Repair Manual

Downloaded from www.Manualslib.com manuals search engine ON-VEHICLE SERVICE

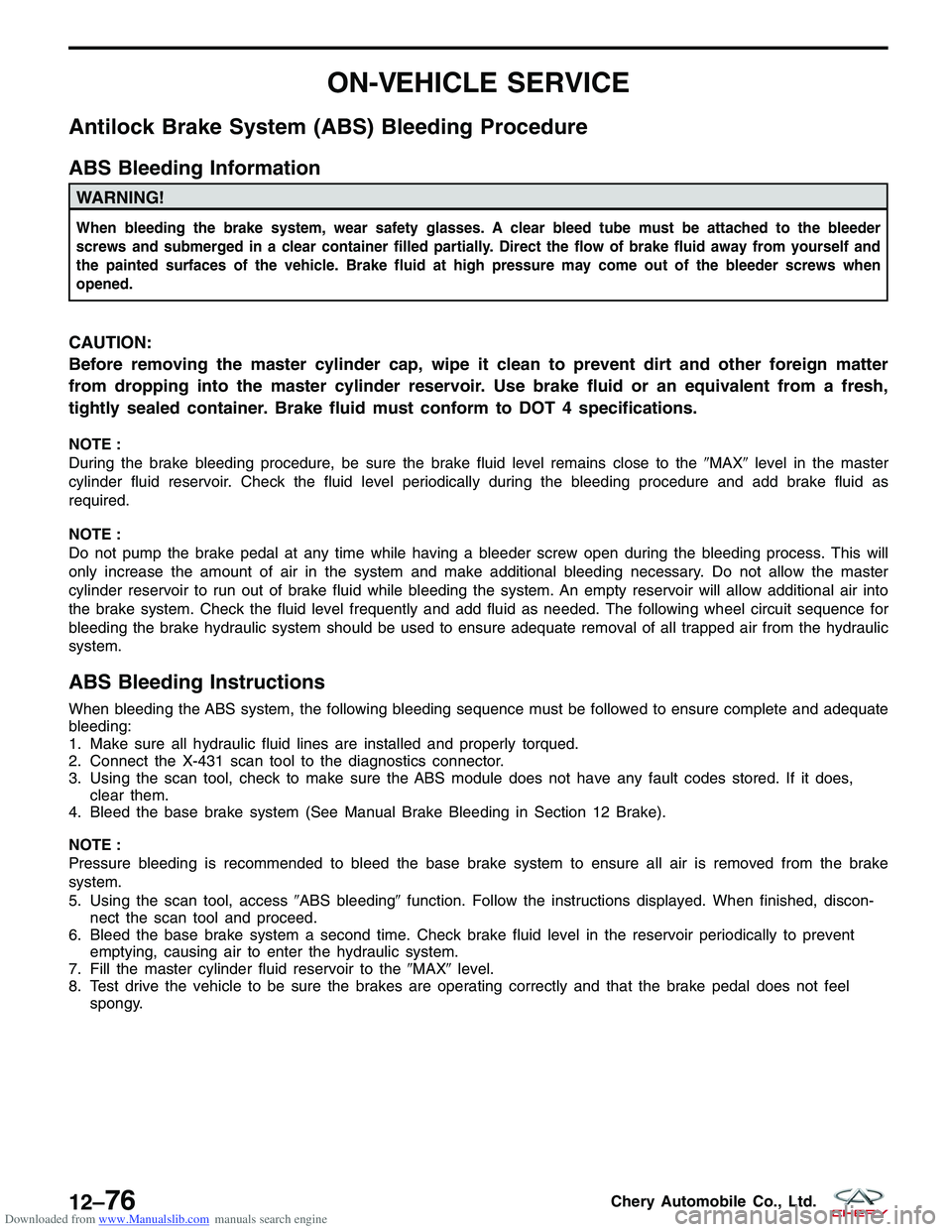

Antilock Brake System (ABS) Bleeding Procedure
ABS Bleeding Information
WARNING!
When bleeding the brake system, wear safety glasses. A clear bleed tube must be attached to the bleeder
screws and submerged in a clear container filled partially. Direct the flow of brake fluid away from yourself and
the painted surfaces of the vehicle. Brake fluid at high pressure may come out of the bleeder screws when
opened.
CAUTION:
Before removing the master cylinder cap, wipe it clean to prevent dirt and other foreign matter
from dropping into the master cylinder reservoir. Use brake fluid or an equivalent from a fresh,
tightly sealed container. Brake fluid must conform to DOT 4 specifications.
NOTE :
During the brake bleeding procedure, be sure the brake fluid level remains close to theMAXlevel in the master
cylinder fluid reservoir. Check the fluid level periodically during the bleeding procedure and add brake fluid as
required.
NOTE :
Do not pump the brake pedal at any time while having a bleeder screw open during the bleeding process. This will
only increase the amount of air in the system and make additional bleeding necessary. Do not allow the master
cylinder reservoir to run out of brake fluid while bleeding the system. An empty reservoir will allow additional air into
the brake system. Check the fluid level frequently and add fluid as needed. The following wheel circuit sequence for
bleeding the brake hydraulic system should be used to ensure adequate removal of all trapped air from the hydraulic
system.
ABS Bleeding Instructions
When bleeding the ABS system, the following bleeding sequence must be followed to ensure complete and adequate
bleeding:
1. Make sure all hydraulic fluid lines are installed and properly torqued.
2. Connect the X-431 scan tool to the diagnostics connector.
3. Using the scan tool, check to make sure the ABS module does not have any fault codes stored. If it does, clear them.
4. Bleed the base brake system (See Manual Brake Bleeding in Section 12 Brake).
NOTE :
Pressure bleeding is recommended to bleed the base brake system to ensure all air is removed from the brake
system.
5. Using the scan tool, access ABS bleedingfunction. Follow the instructions displayed. When finished, discon-
nect the scan tool and proceed.
6. Bleed the base brake system a second time. Check brake fluid level in the reservoir periodically to prevent emptying, causing air to enter the hydraulic system.
7. Fill the master cylinder fluid reservoir to the MAXlevel.
8. Test drive the vehicle to be sure the brakes are operating correctly and that the brake pedal does not feel spongy.
12–76Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Antilock Brake System (ABS) Hydraulic Control Module
Removal & Installation
NOTE :
The following special tools are required to perform the repair procedure:
•Diagnostic Scan Tool X-431
NOTE :
The ABS hydraulic control module is comprised of the Hydraulic Control Unit (HCU) and the Electronic Control Unit
(ECU). These are serviced as a complete unit and cannot be serviced separately. 1. Disconnect the negative battery cable.
2. Turn the ignition switch off.
3. Using a brake pedal holding tool, depress the brake pedal past its first 25 mm of travel and hold it in this posi- tion. This will isolate the master cylinder from the brake hydraulic system and will not allow the brake fluid to
drain out of the master cylinder reservoir while the lines are disconnected.
4. Remove the brake tubes (1) at the hydraulic con- trol unit.
(Tighten: Brake tube nuts to 10 N·m)
5. Disconnect the ABS hydraulic control module elec- trical connector.
6. Remove the mounting bolts attaching the HCU mounting bracket to vehicle.
(Tighten: ABS mounting bracket bolts to 20 N·m)
7. Position the brake tubes as necessary without bending them.
8. Remove the ABS HCU from vehicle.
9. Remove the ABS mounting bolts and mounting bracket as necessary. (Tighten: ABS mounting bolts to 10 N·m)
10. Installation is in the reverse order of removal.
Installation Notes:
• After installation, connect the X-431 scan tool to initialize the ABS hydraulic control module and bleed the brake
system (See Antilock Brake System (ABS) Bleeding Procedure in Section 12 Brakes).
Front Wheel Speed Sensor
Removal & Installation
1. Disconnect the negative battery cable.
2. Raise and support the vehicle.
3. Remove the wheel mounting nuts and the tire and wheel assembly.
(Tighten: Wheel mounting nuts to 110 N·m)
4. Disconnect the wheel speed sensor electrical connector.
ON-VEHICLE SERVICE
LTSM120025
12
12–77Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 5. Remove the wheel speed sensor mounting bolt (1).(Tighten: Wheel speed sensor mounting bolt to
10 N·m)
6. Remove the front wheel speed sensor.
Rear Wheel Speed Sensor
Removal & Installation
1. Disconnect the negative battery cable.
2. Raise and support the vehicle.
3. Remove the wheel mounting nuts and the tire and wheel assembly. (Tighten: Wheel mounting nuts to 110 N·m)
4. Disconnect the rear wheel speed sensor electrical connector (1).
5. Remove the rear hub and bearing assembly (See Rear Hub and Bearing Removal & Installation in Section 09 Driveline & Axle).
6. Remove the rear wheel speed sensor with the rear hub and bearing. NOTE: The rear wheel speed sensor is integrated into the rear hub and bearing assembly and a one piece
sealed unit.
ON-VEHICLE SERVICE
LTSM120026
LTSM120027
LTSM120028
12–78Chery Automobile Co., Ltd.

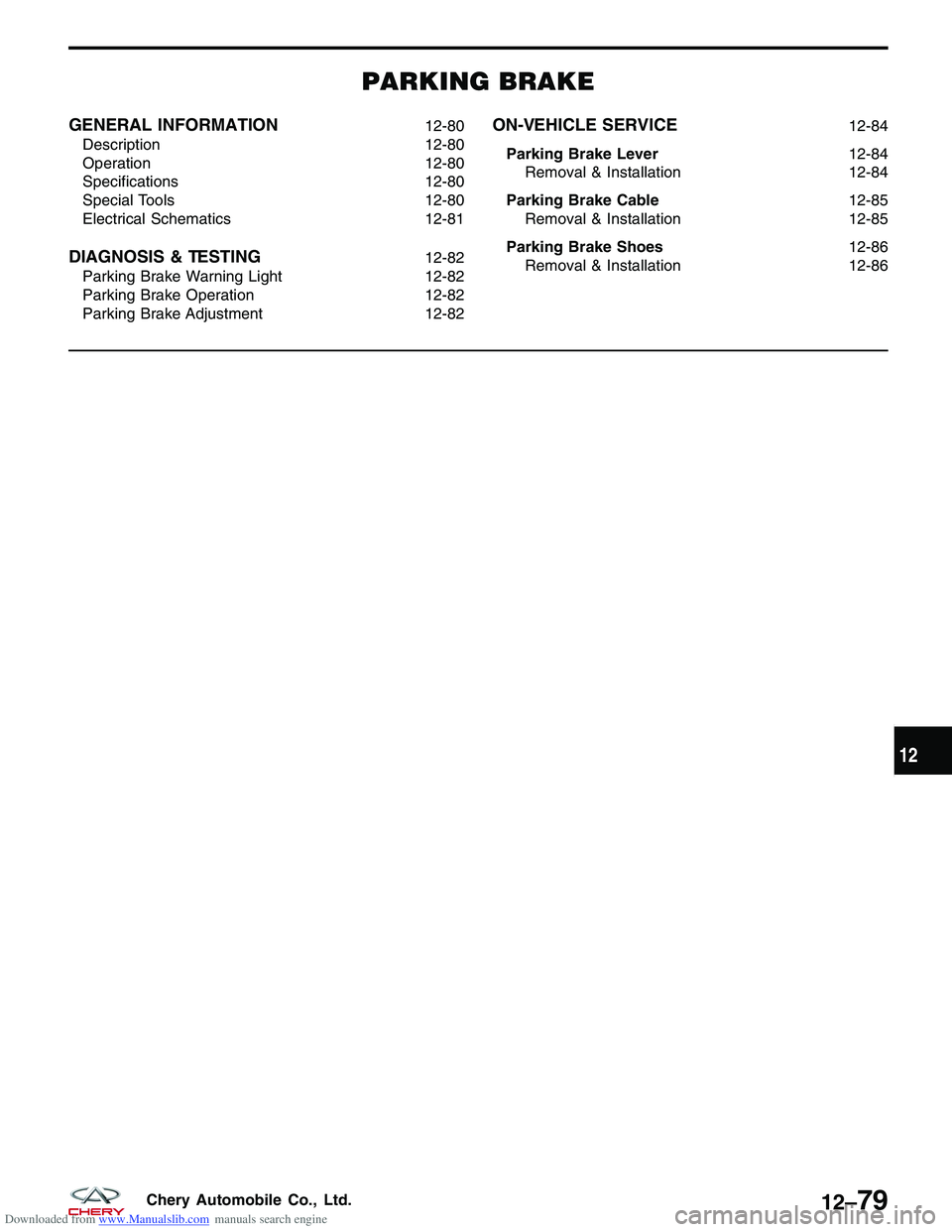

Downloaded from www.Manualslib.com manuals search engine PARKING BRAKE
GENERAL INFORMATION12-80
Description 12-80
Operation 12-80
Specifications 12-80
Special Tools 12-80
Electrical Schematics 12-81
DIAGNOSIS & TESTING12-82
Parking Brake Warning Light 12-82
Parking Brake Operation 12-82
Parking Brake Adjustment 12-82
ON-VEHICLE SERVICE12-84
Parking Brake Lever 12-84
Removal & Installation 12-84
Parking Brake Cable 12-85
Removal & Installation 12-85
Parking Brake Shoes 12-86
Removal & Installation 12-86
12
12–79Chery Automobile Co., Ltd.

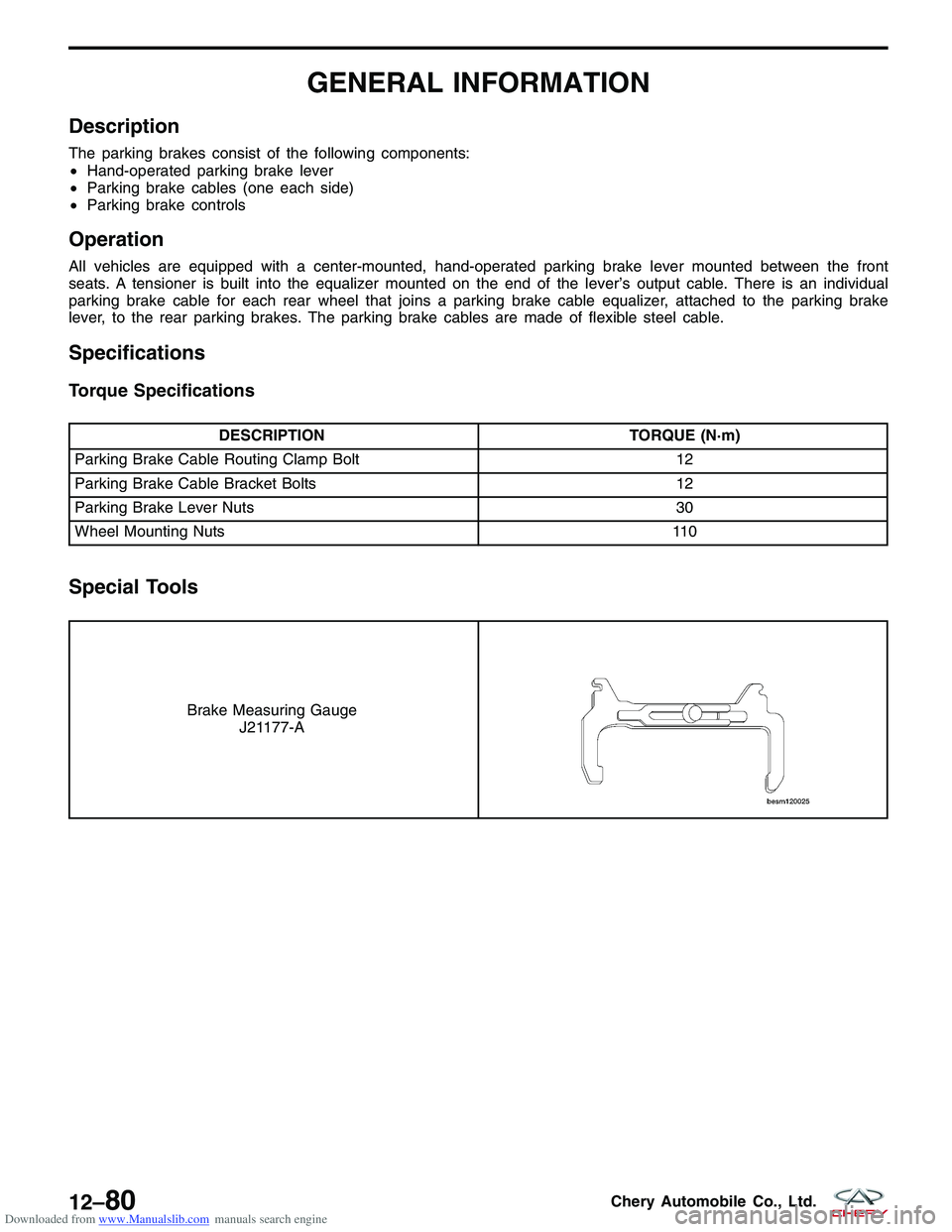

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Description
The parking brakes consist of the following components:
•Hand-operated parking brake lever
• Parking brake cables (one each side)
• Parking brake controls
Operation
All vehicles are equipped with a center-mounted, hand-operated parking brake lever mounted between the front
seats. A tensioner is built into the equalizer mounted on the end of the lever’s output cable. There is an individual
parking brake cable for each rear wheel that joins a parking brake cable equalizer, attached to the parking brake
lever, to the rear parking brakes. The parking brake cables are made of flexible steel cable.
Specifications
Torque Specifications
DESCRIPTION TORQUE (N·m)
Parking Brake Cable Routing Clamp Bolt 12
Parking Brake Cable Bracket Bolts 12
Parking Brake Lever Nuts 30
Wheel Mounting Nuts 110
Special Tools
Brake Measuring Gauge
J21177-A
12–80Chery Automobile Co., Ltd.

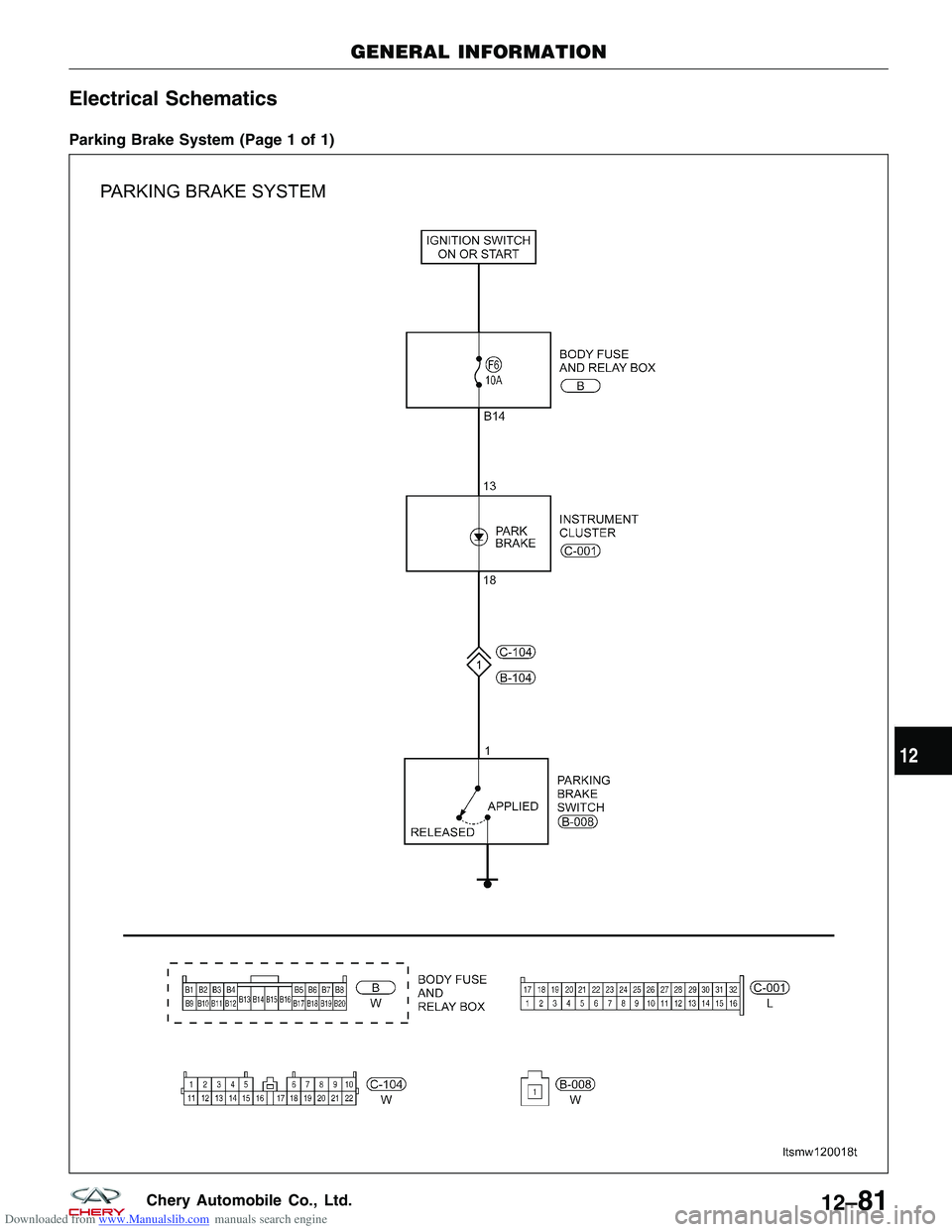

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics
Parking Brake System (Page 1 of 1)
GENERAL INFORMATION
LTSMW120018T
12
12–81Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING
Parking Brake Warning Light
The parking brake switch is incorporated in the circuit for the red warning lamp in the dash. The switch will cause the
lamp to illuminate only when the parking brakes are applied. If the lamp remains on after parking brake release, the
switch or circuit is faulty.
Parking Brake Operation
The leading cause of improper parking brake operation, is excessive clearance between the parking brake shoes and
the shoe braking surface. Excessive clearance is a result of lining and/or drum wear, drum surface machined over-
size.
In most cases, the actual cause of an improperly functioning parking brake (too loose/too tight/won’t hold), can be
traced to a parking brake component.
Inspect the following when diagnosing a parking brake problem:
•Brake shoe wear
• Drum surface (in rear rotor) machined oversize
• Front cable not secured to lever
• Rear cable not attached to actuator
• Rear cable seized
• Parking brake lever not seated
• Parking brake lever bind
Parking Brake Adjustment
Adjust the parking brake only if the parking brake lever can be pulled up more than 3 notches without having an
adequate solid braking effect.
NOTE :
Excessive parking brake lever travel (sometimes described as a loose lever or too loose condition), could be the
result of worn brake shoes, improper brake shoe adjustment, or improperly assembled brake parts. A too loose con-
dition can also be caused by inoperative or improperly assembled parking brake components. Always confirm that the
parking brake components are assembled properly. Perform the following procedure to adjust the parking brake:
1. Verify the parking brake lever is in the released (down) position.
2. Raise and support the vehicle.
3. Remove the wheel mounting nuts and the rear tire and wheel assemblies.
4. Utilizing the access hole in the rotors, adjust the parking brake shoes.
5. Reach inside the vehicle and fully apply and release the parking brake.
6. With the parking brake lever in the fully applied (up) position, attempt to rotate the rear rotors by hand (to ensure that the parking brake shoes are working properly).
7. With the parking brake lever in the released (down) position, attempt to rotate the rear rotors by hand (to ensure that the parking brake shoes are not dragging).
8. Install both rear tire and wheel assemblies and the wheel mounting nuts. (Tighten: Wheel mounting nuts to 110 N·m)
12–82Chery Automobile Co., Ltd.

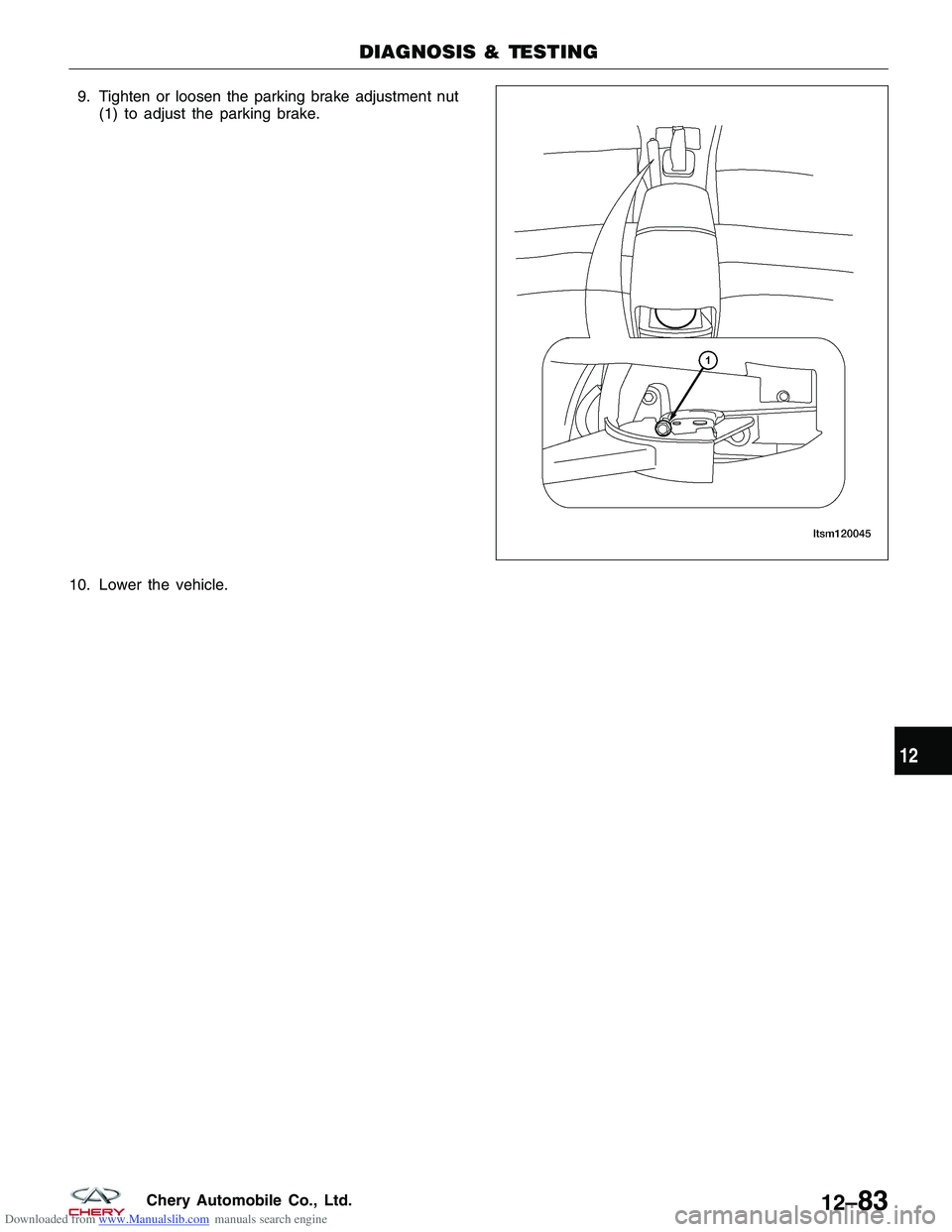

Downloaded from www.Manualslib.com manuals search engine 9. Tighten or loosen the parking brake adjustment nut(1) to adjust the parking brake.
10. Lower the vehicle.
DIAGNOSIS & TESTING
LTSM120045
12
12–83Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine ON-VEHICLE SERVICE

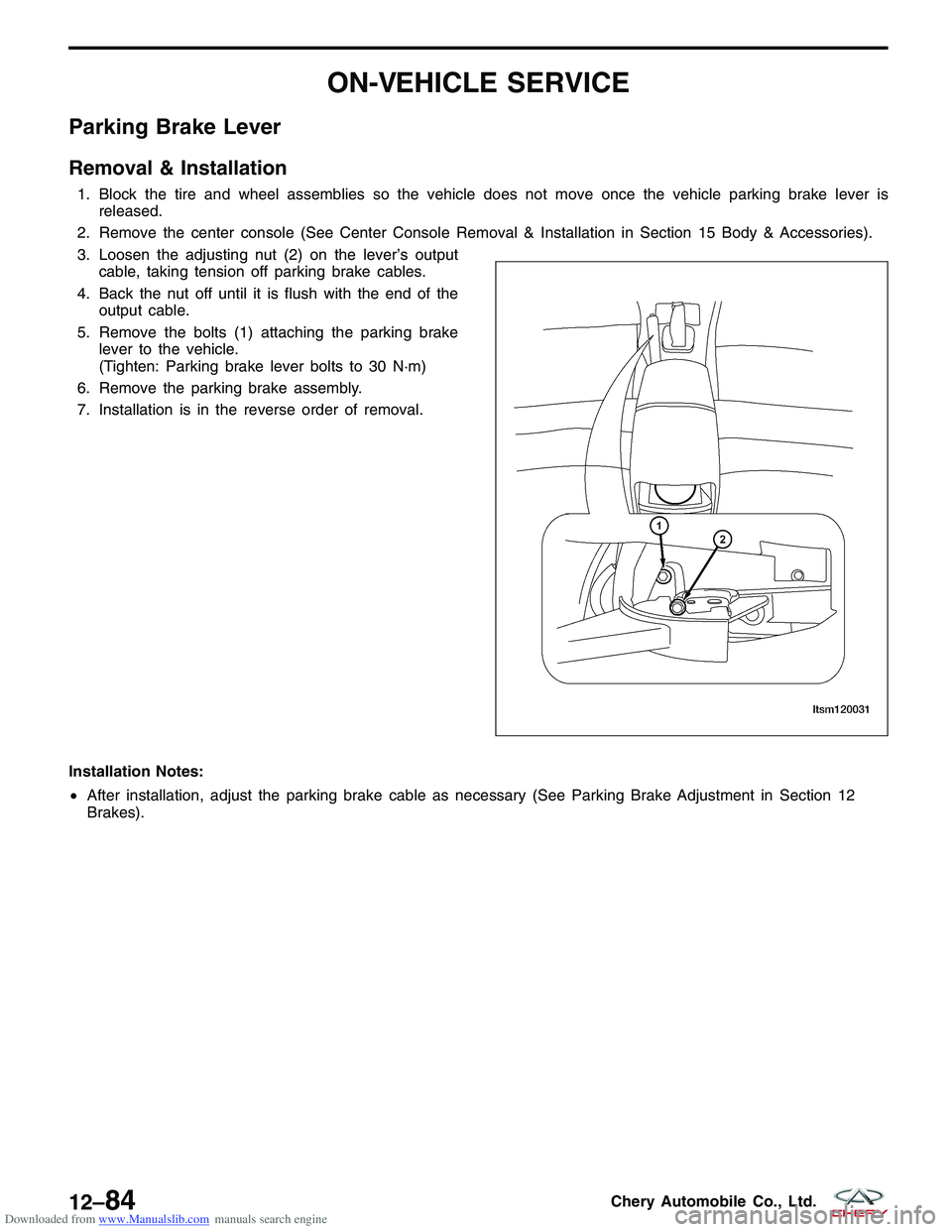

Parking Brake Lever
Removal & Installation
1. Block the tire and wheel assemblies so the vehicle does not move once the vehicle parking brake lever isreleased.
2. Remove the center console (See Center Console Removal & Installation in Section 15 Body & Accessories).
3. Loosen the adjusting nut (2) on the lever’s output cable, taking tension off parking brake cables.
4. Back the nut off until it is flush with the end of the output cable.
5. Remove the bolts (1) attaching the parking brake lever to the vehicle.
(Tighten: Parking brake lever bolts to 30 N·m)
6. Remove the parking brake assembly.
7. Installation is in the reverse order of removal.
Installation Notes:
• After installation, adjust the parking brake cable as necessary (See Parking Brake Adjustment in Section 12
Brakes).
LTSM120031
12–84Chery Automobile Co., Ltd.

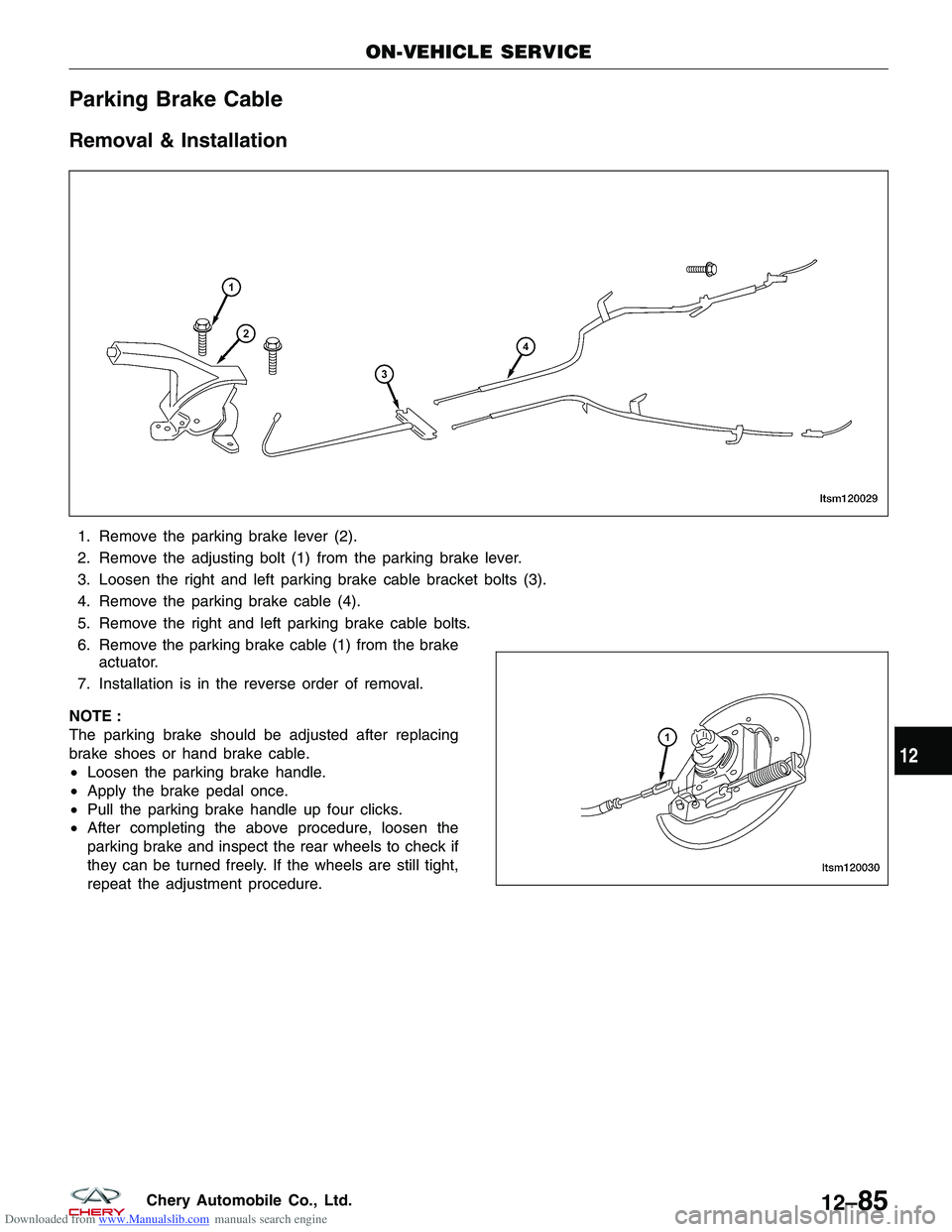

Downloaded from www.Manualslib.com manuals search engine Parking Brake Cable
Removal & Installation
1. Remove the parking brake lever (2).
2. Remove the adjusting bolt (1) from the parking brake lever.
3. Loosen the right and left parking brake cable bracket bolts (3).
4. Remove the parking brake cable (4).
5. Remove the right and left parking brake cable bolts.
6. Remove the parking brake cable (1) from the brakeactuator.
7. Installation is in the reverse order of removal.
NOTE :
The parking brake should be adjusted after replacing
brake shoes or hand brake cable.
• Loosen the parking brake handle.
• Apply the brake pedal once.
• Pull the parking brake handle up four clicks.
• After completing the above procedure, loosen the
parking brake and inspect the rear wheels to check if
they can be turned freely. If the wheels are still tight,
repeat the adjustment procedure.
ON-VEHICLE SERVICE
LTSM120029
LTSM120030
12
12–85Chery Automobile Co., Ltd.
