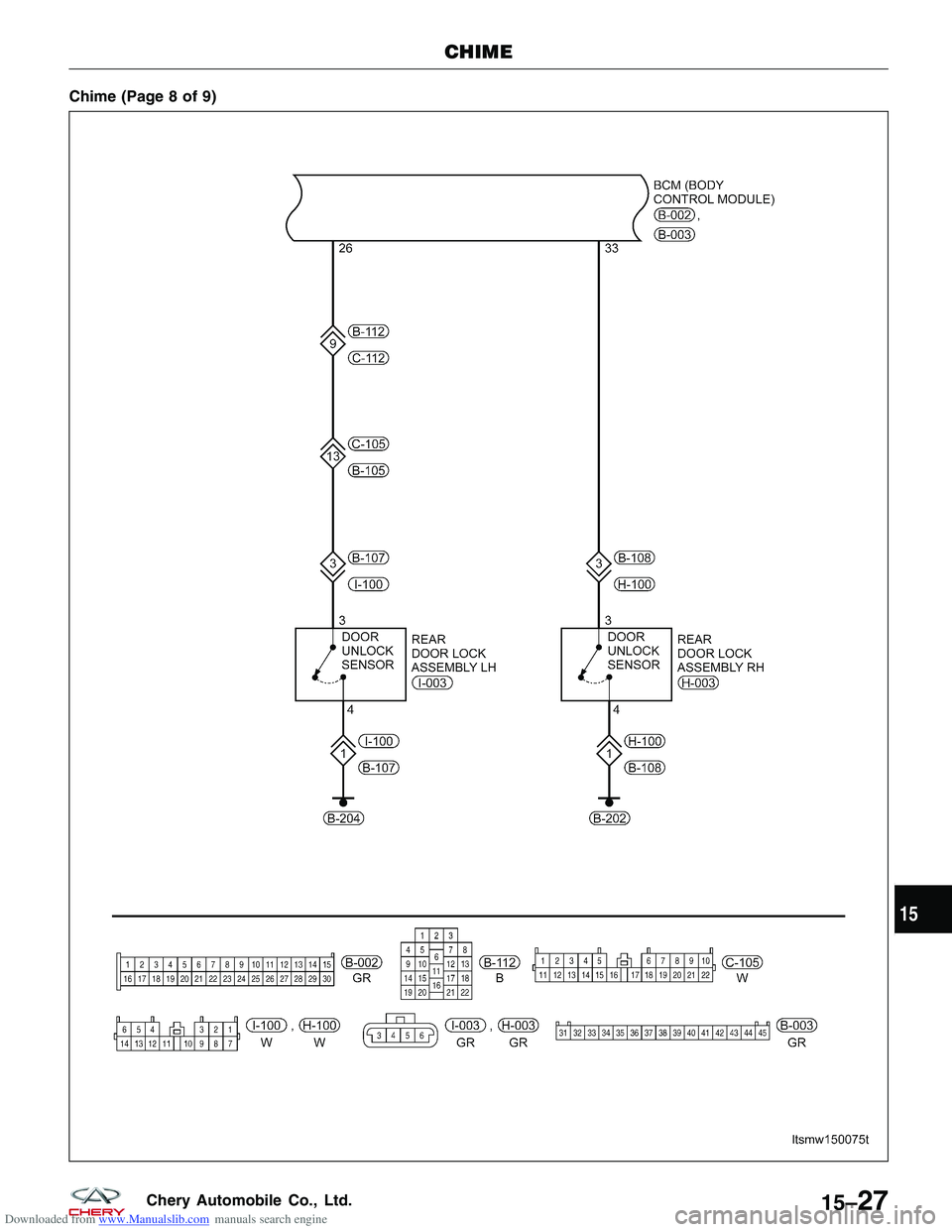

CHIME
LTSMW150075T
15
15–27Chery Automobile Co., Ltd.

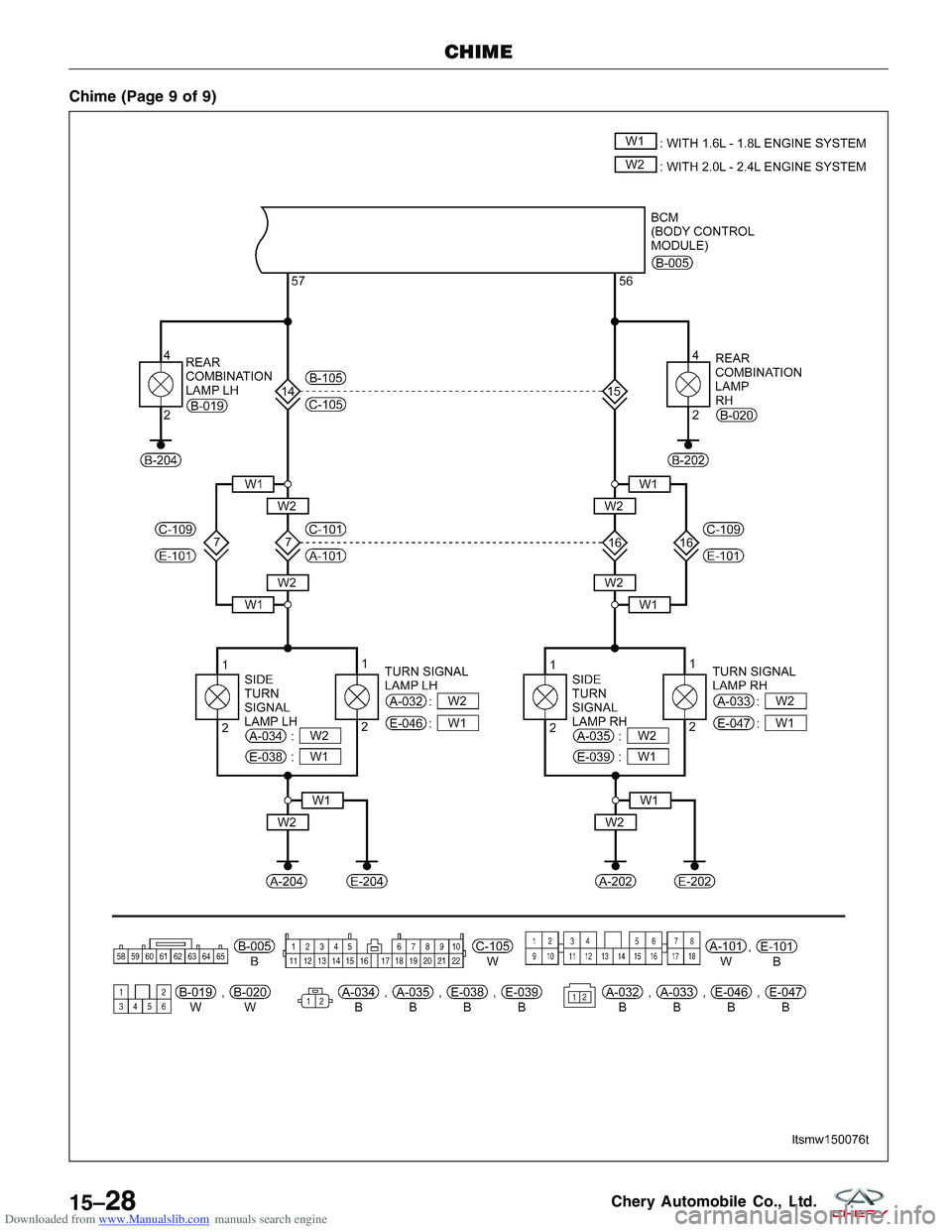

Downloaded from www.Manualslib.com manuals search engine Chime (Page 9 of 9)
CHIME
LTSMW150076T
15–28Chery Automobile Co., Ltd.

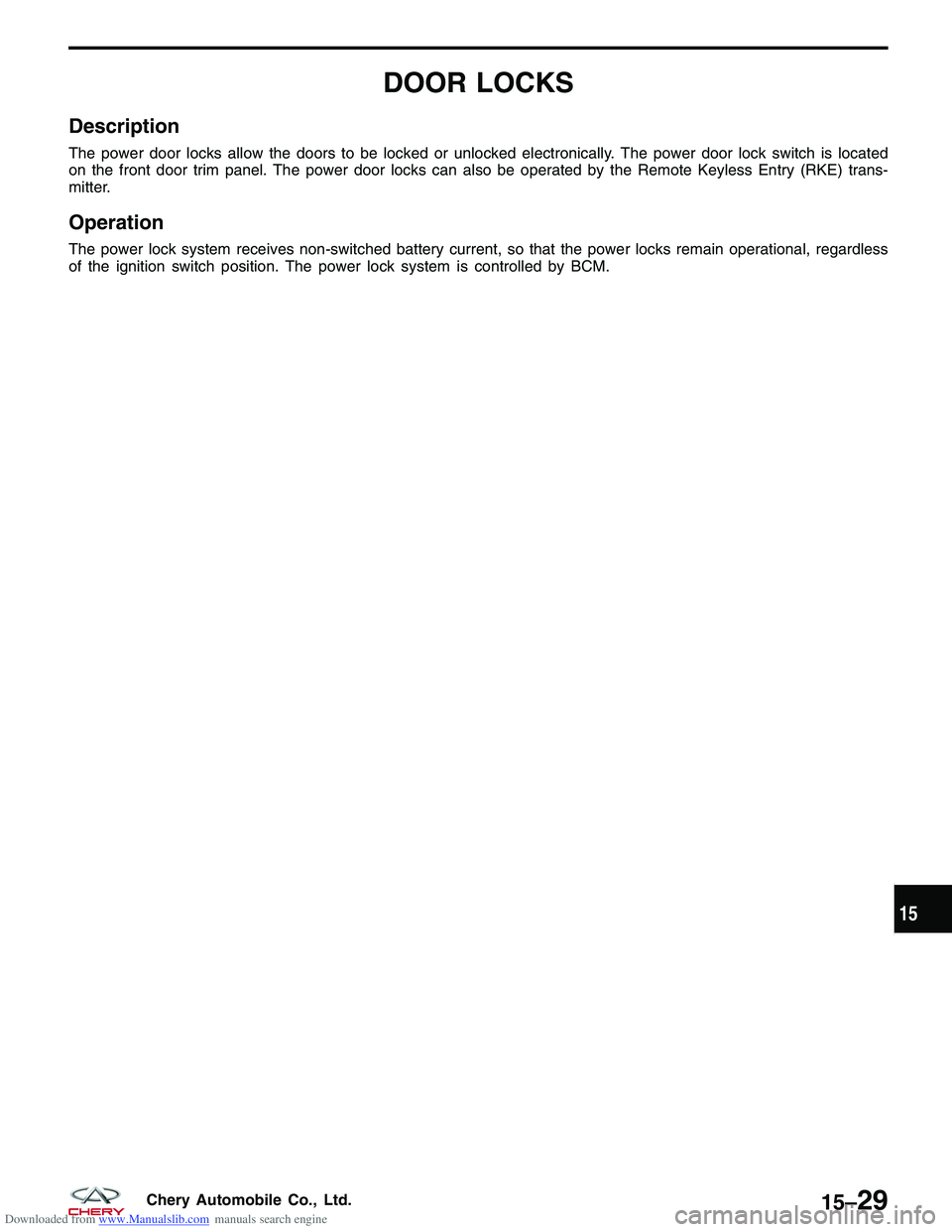

Downloaded from www.Manualslib.com manuals search engine DOOR LOCKS
Description
The power door locks allow the doors to be locked or unlocked electronically. The power door lock switch is located
on the front door trim panel. The power door locks can also be operated by the Remote Keyless Entry (RKE) trans-
mitter.
Operation
The power lock system receives non-switched battery current, so that the power locks remain operational, regardless
of the ignition switch position. The power lock system is controlled by BCM.
15
15–29Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics

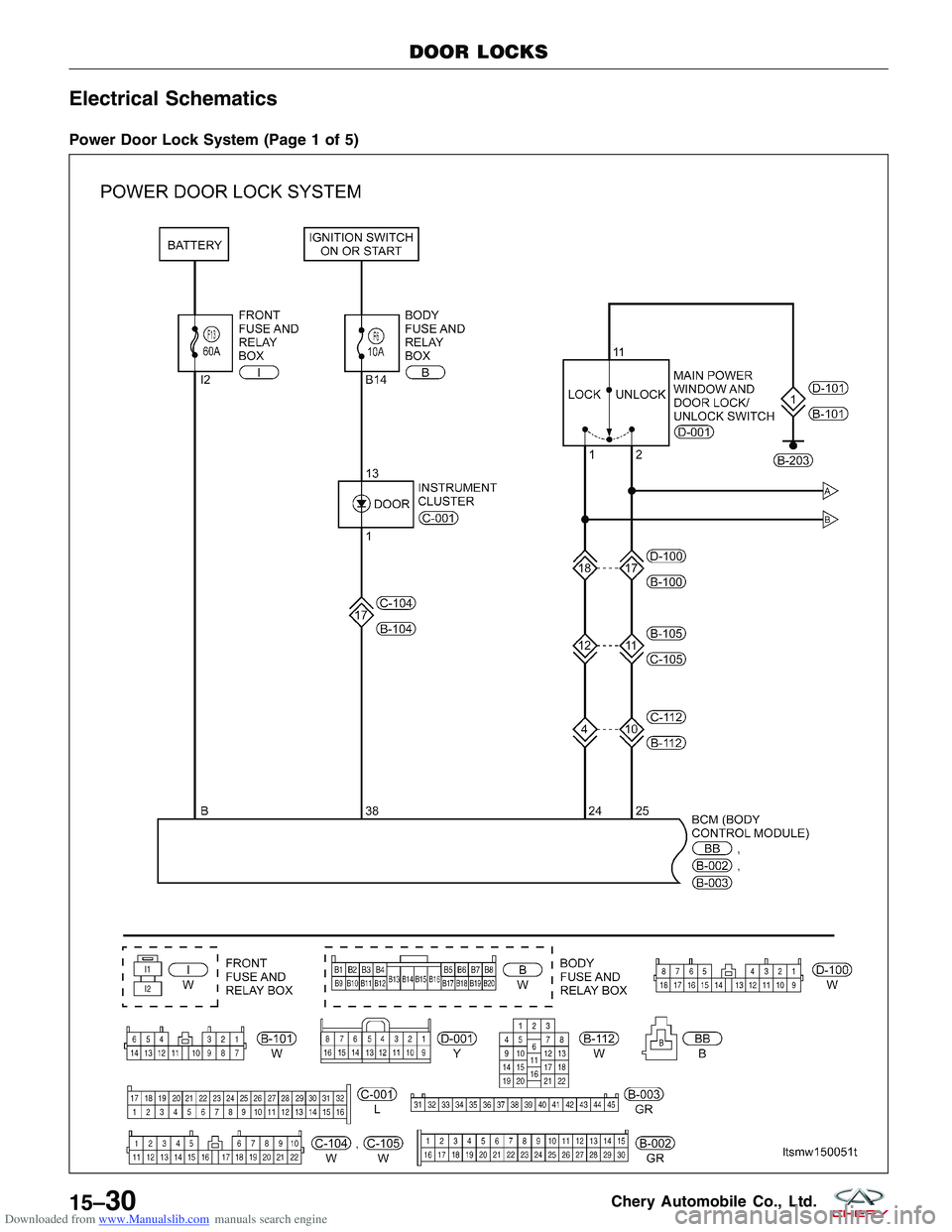

Power Door Lock System (Page 1 of 5)
DOOR LOCKS
LTSMW150051T
15–30Chery Automobile Co., Ltd.

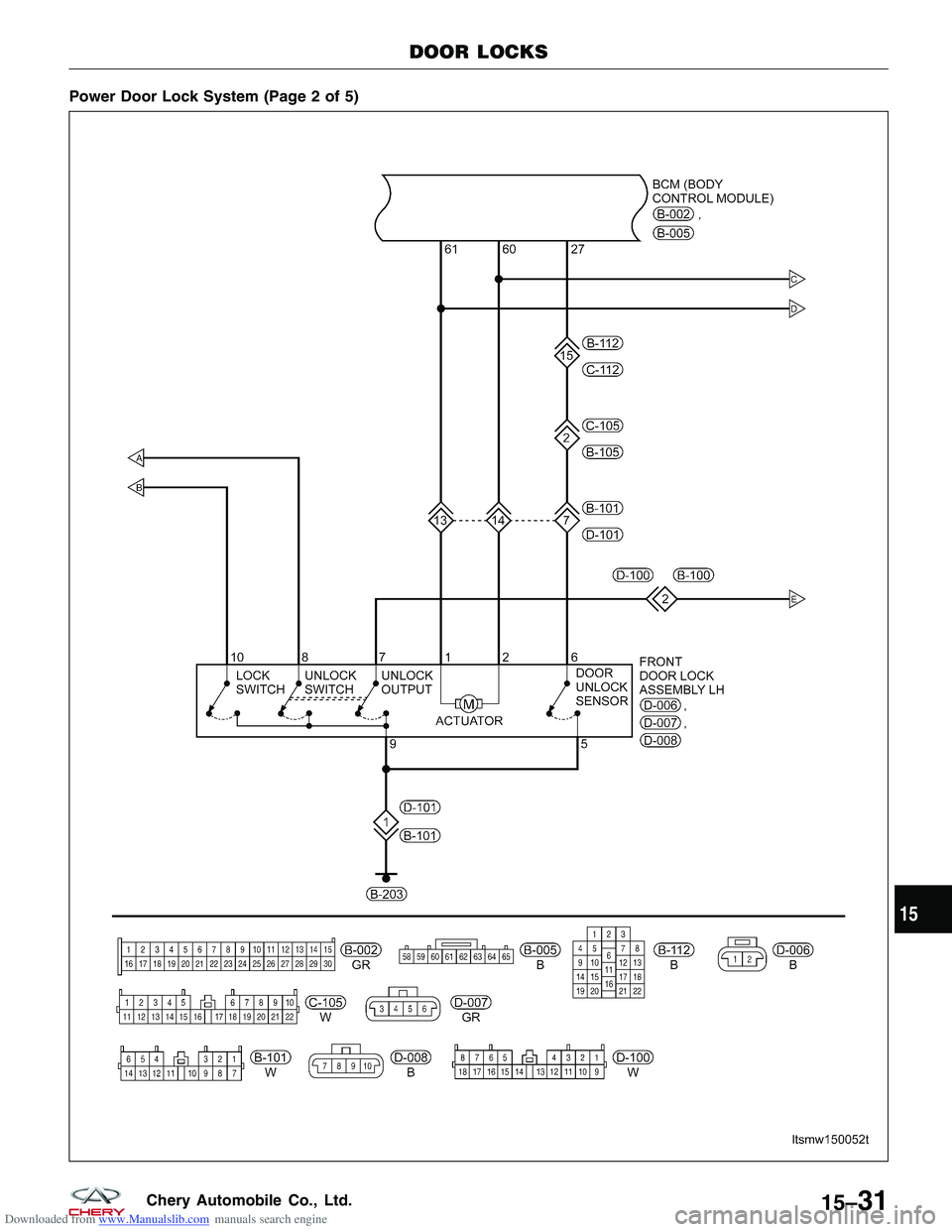

Downloaded from www.Manualslib.com manuals search engine Power Door Lock System (Page 2 of 5)
DOOR LOCKS
LTSMW150052T
15
15–31Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Power Door Lock System (Page 3 of 5)
DOOR LOCKS
LTSMW150053T
15–32Chery Automobile Co., Ltd.

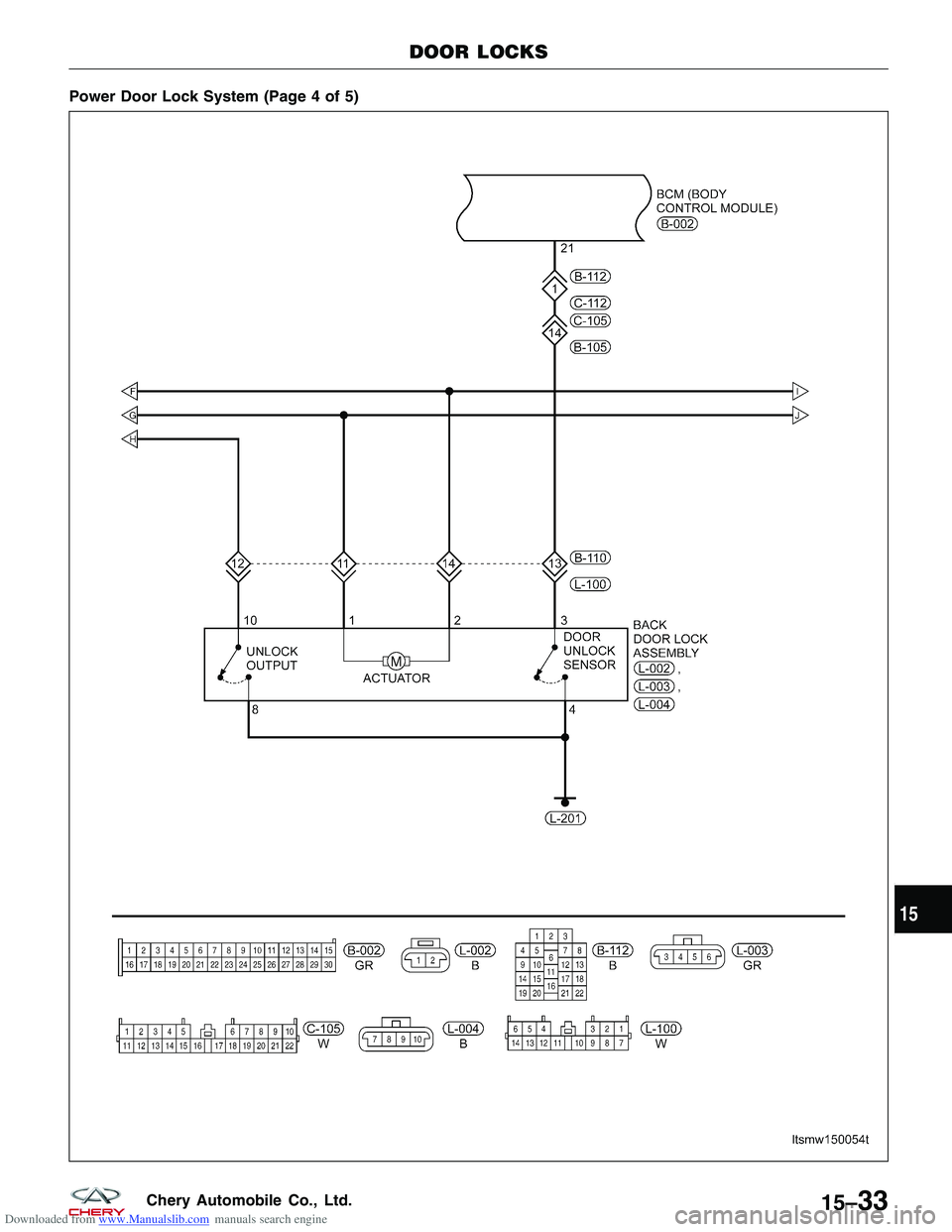

Downloaded from www.Manualslib.com manuals search engine Power Door Lock System (Page 4 of 5)
DOOR LOCKS
LTSMW150054T
15
15–33Chery Automobile Co., Ltd.

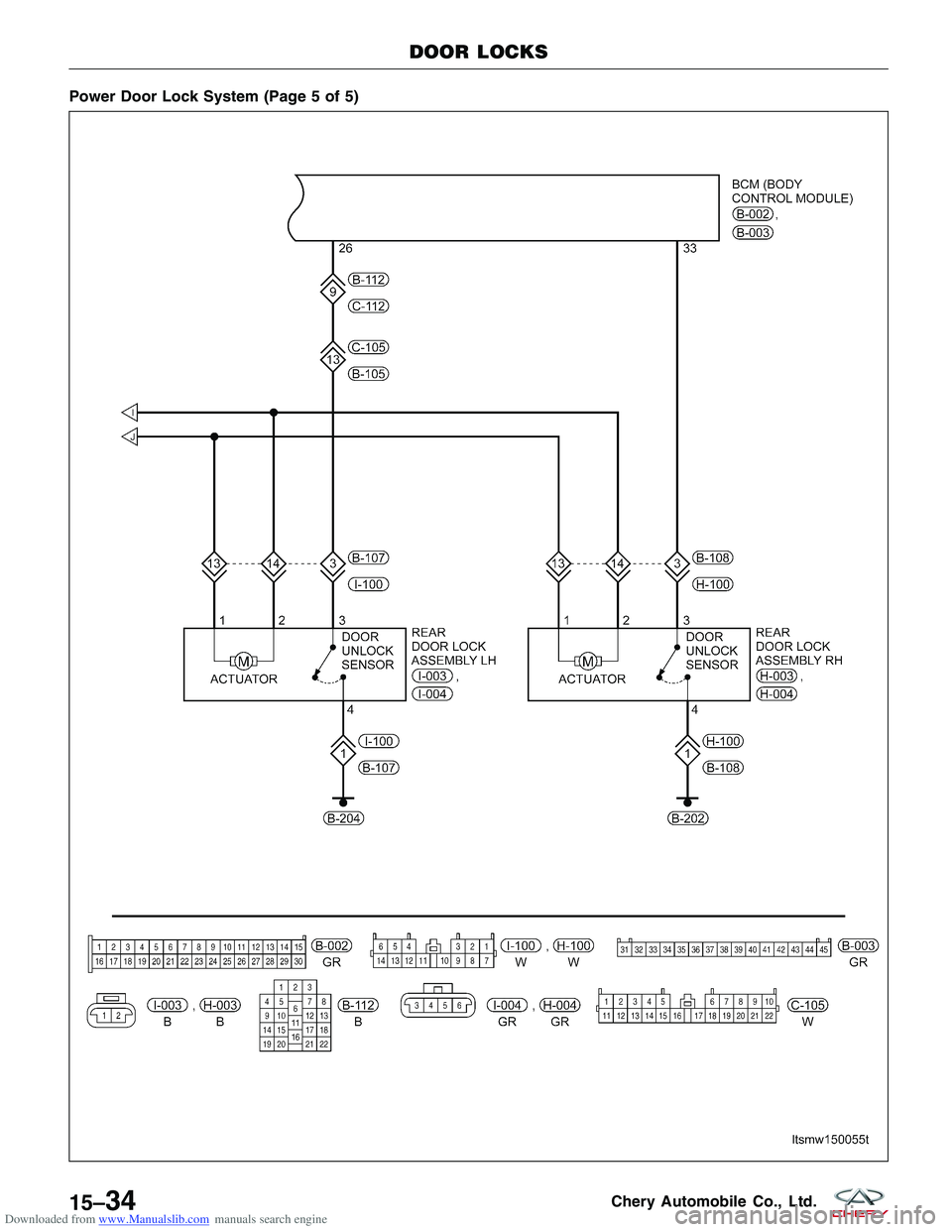

Downloaded from www.Manualslib.com manuals search engine Power Door Lock System (Page 5 of 5)
DOOR LOCKS
LTSMW150055T
15–34Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Door Lock Switch
Removal & Installation
1. Turn the ignition switch off.

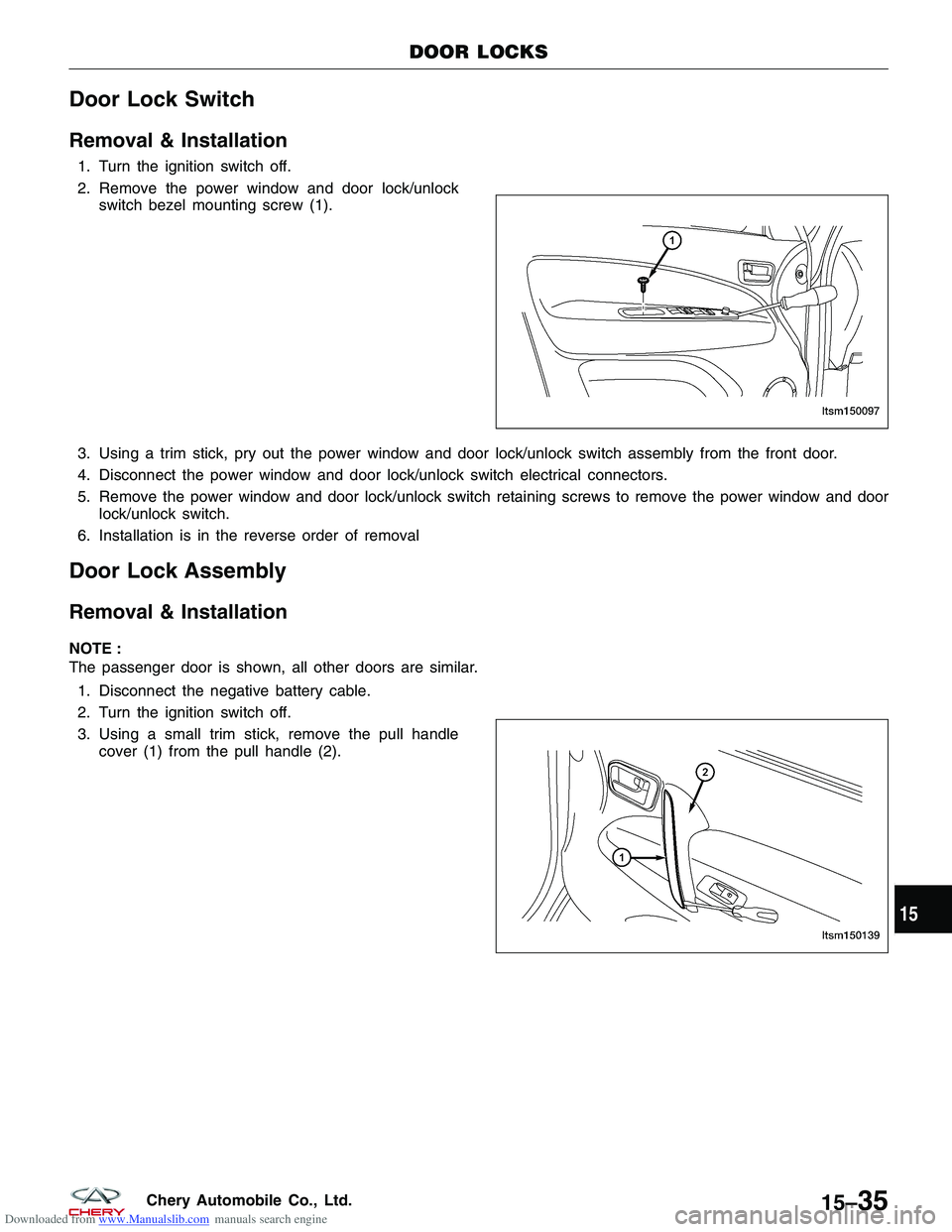

2. Remove the power window and door lock/unlockswitch bezel mounting screw (1).
3. Using a trim stick, pry out the power window and door lock/unlock switch assembly from the front door.
4. Disconnect the power window and door lock/unlock switch electrical connectors.
5. Remove the power window and door lock/unlock switch retaining screws to remove the power window and door lock/unlock switch.
6. Installation is in the reverse order of removal
Door Lock Assembly
Removal & Installation
NOTE :
The passenger door is shown, all other doors are similar.
1. Disconnect the negative battery cable.
2. Turn the ignition switch off.
3. Using a small trim stick, remove the pull handle cover (1) from the pull handle (2).
DOOR LOCKS
LTSM150097
LTSM150139
15
15–35Chery Automobile Co., Ltd.

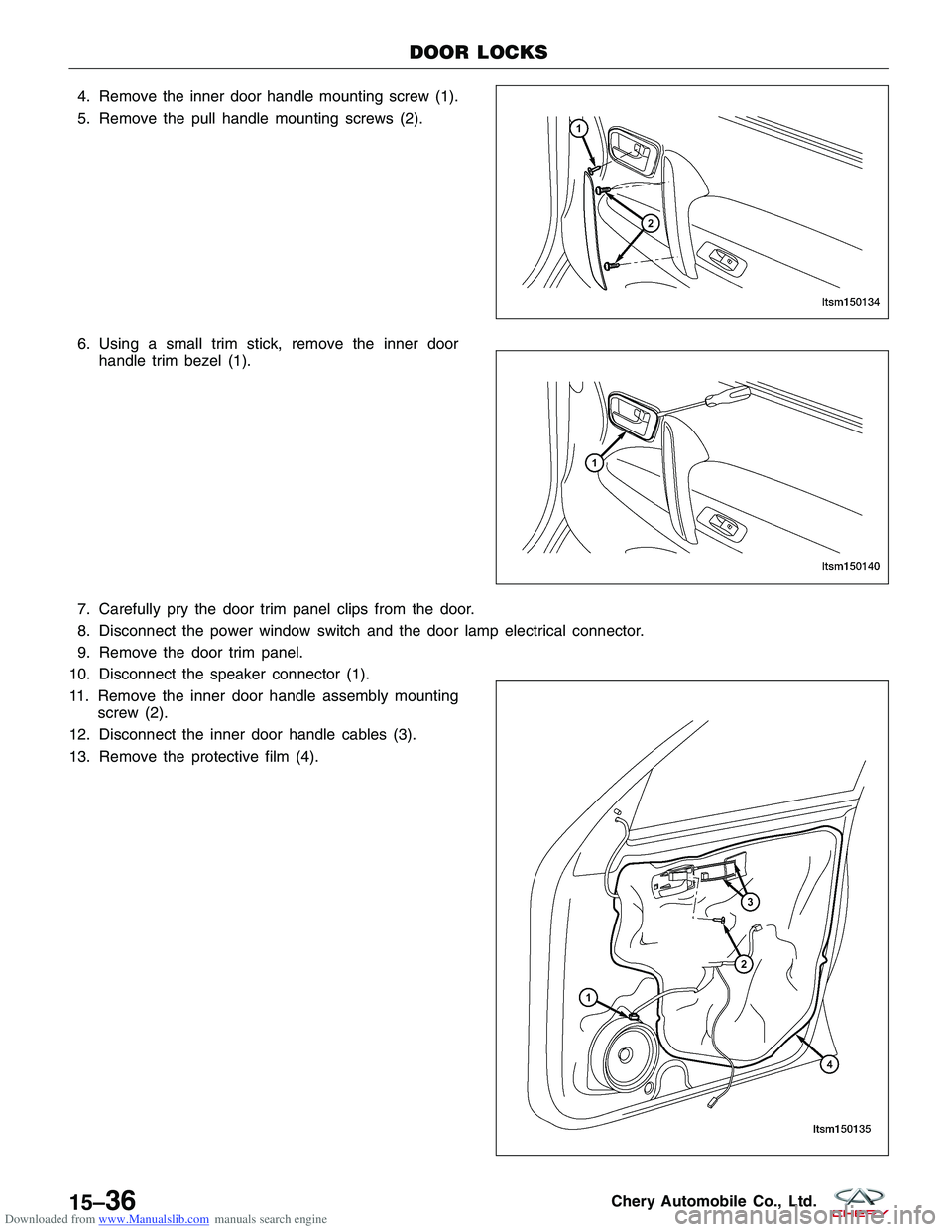

Downloaded from www.Manualslib.com manuals search engine 4. Remove the inner door handle mounting screw (1).
5. Remove the pull handle mounting screws (2).
6. Using a small trim stick, remove the inner doorhandle trim bezel (1).
7. Carefully pry the door trim panel clips from the door.
8. Disconnect the power window switch and the door lamp electrical connector.
9. Remove the door trim panel.
10. Disconnect the speaker connector (1).
11. Remove the inner door handle assembly mounting screw (2).
12. Disconnect the inner door handle cables (3).
13. Remove the protective film (4).
DOOR LOCKS
LTSM150134
LTSM150140
LTSM150135
