CHERY TIGGO 2009 Service Repair Manual

Downloaded from www.Manualslib.com manuals search engine Electronic Engine Controls (Page 9 of 11)

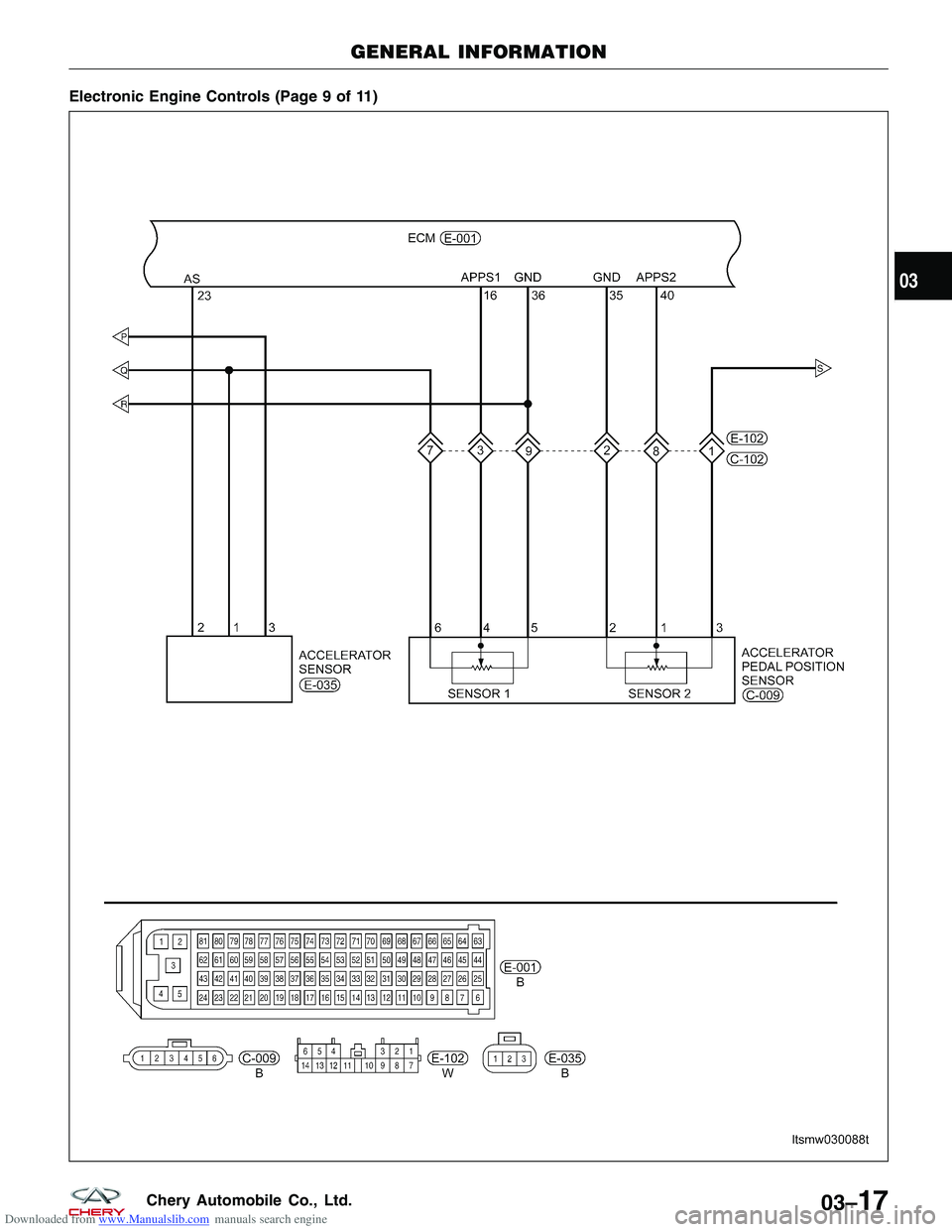

GENERAL INFORMATION
LTSMW030088T
03
03–17Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Electronic Engine Controls (Page 10 of 11)

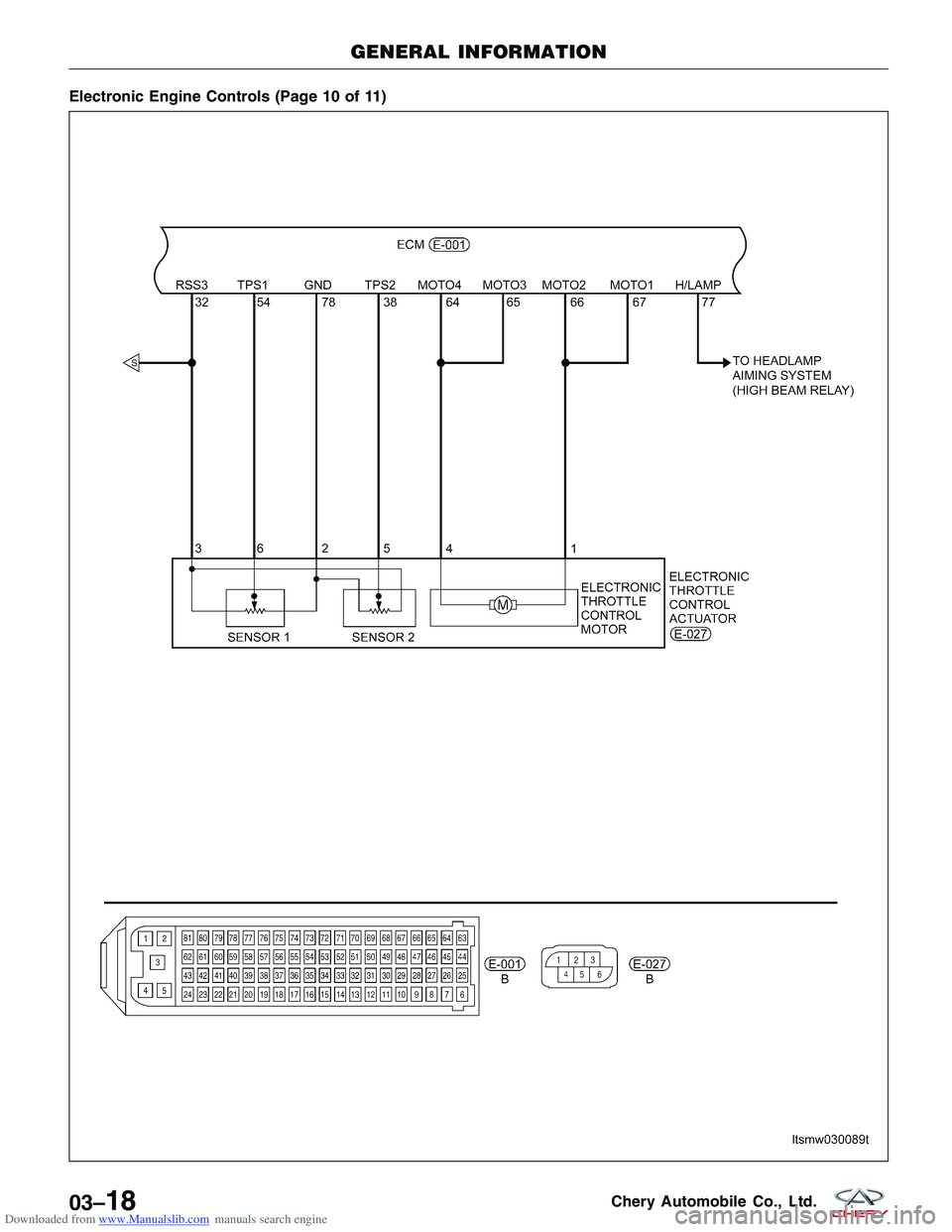

GENERAL INFORMATION
LTSMW030089T
03–18Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Electronic Engine Controls (Page 11 of 11)

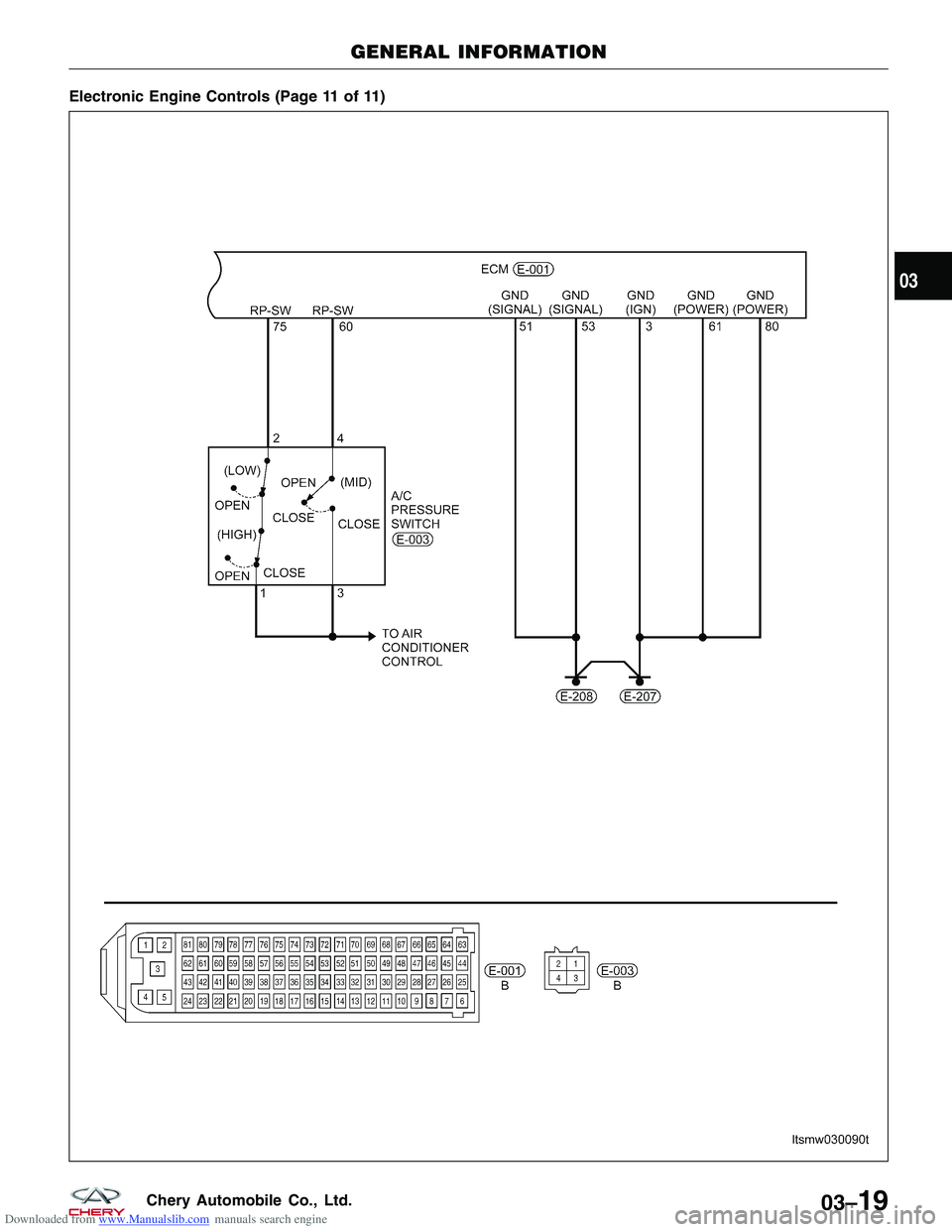

GENERAL INFORMATION
LTSMW030090T
03
03–19Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine ECM Connector Pin-Out Table
ECM PIN-OUT TABLE
PINCIRCUIT IDENTIFICATION PINCIRCUIT IDENTIFICATION
1 (With EOBD)
42Intake Air Temperature Sensor
Upstream Oxygen Sensor Heater
(Without EOBD)
2 Ignition Coil 2 43-
3 GND (Ignition) 44Switched Supply Voltage
4 (With EOBD)
45Switched Supply Voltage
Downstream Oxygen Sensor Heater
(Without EOBD)
5 Ignition Coil 1 46Canister Control Valve
6 Injector 2 47Injector 4
7 Injector 3 48Upstream Oxygen Sensor Heater (With
EOBD)
(Without EOBD)
8 Engine Speed Output 49-
9 Coolant Temperature Output 50Fan Relay Control
10 Fuel Consumption Output 51GND (Signal)
11 EPC Lamp 52-
12 Continuous Supply Voltage 53GND (Signal)
13 Ignition Switch 54 Electronic Throttle Control Actuator
14 EMS Relay (Main Relay) 55Downstream Oxygen Sensor
15 Crankshaft Position Sensor 56-
16 Accelerator Position Sensor 57-
17 Sensor (GND) 58Brake Switch
18 Upstream Oxygen Sensor 59Vehicle Speed Sensor
19 Knock Sensor 1 60A/C Middle Pressure Switch
20 Knock Sensor 2 61GND (Power)
21 Brake Switch 62-
22 -63Switched Supply Voltage
23 Accelerator Sensor 64 Electronic Throttle Control Actuator
24 -65 Electronic Throttle Control Actuator
25 -66 Electronic Throttle Control Actuator
26 -67 Electronic Throttle Control Actuator
27 Injector 1 68Fan Relay Control 2
28 Downstream Oxygen Sensor Heater
(With EOBD) 69Air Compressor Relay
(Without EOBD)
29 -70Fuel Pump Relay
30 -71Diagnostic Link K
31 MIL Lamp 72-
32 Regulated Sensor Supply 3 73Regulated Sensor Supply 2
33 Regulated Sensor Supply 1 74Clutch Pedal Switch
34 Crankshaft Position Sensor 75A/C Stand By
GENERAL INFORMATION
03–20Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine PINCIRCUIT IDENTIFICATION PINCIRCUIT IDENTIFICATION
35 Sensor (GND) 76Power Steering Switch
36 Sensor (GND) 77Headlamp Switch
37 Manifold Absolute Pressure Sensor (With
1.6L Engine) 78Sensor (GND)
Air Flow Sensor (With 1.8L Engine)
38 Electronic Throttle Control Actuator
(Position Sensor) 79
Camshaft Position Sensor
39 Engine Coolant Temperature Sensor 80 GND (Power)
40 Accelerator Pedal Position Sensor 81 -
41 -
GENERAL INFORMATION
03
03–21Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING
Diagnostic Help
1. The X-431 scan tool connects to the Data Link Connector (DLC) and communicates with the vehicle electronicmodules through the data network.
2. Confirm that the malfunction is current and carry-out the diagnostic tests and repair procedures.
3. If the Diagnostic Trouble Code (DTC) cannot be deleted, it is a current fault.
4. Use only a digital multimeter to perform voltage readings on electronic systems.
5. Refer to any Technical Bulletins that may apply to the failure.
6. Visually inspect the related wiring harness.
7. Inspect and clean all Engine Control Module (ECM) grounds that are related to the most current DTC.
8. If numerous trouble codes were set, use a wiring schematic and look for any common ground circuits or voltage supply circuits that may apply to the DTC.
Intermittent DTC Troubleshooting
If the failure is intermittent perform the following:
•Check for loose connectors.
• Look for any chafed, pierced, pinched, or partially broken wires.
• Monitor the scan tool data relative to this circuit.
• Wiggle the related wiring harness and connectors while looking for an interrupted signal on the affected circuit.
• If possible, try to duplicate the conditions under which the DTC set.
• Look for the data to change or for the DTC to reset during the wiggle test.
• Look for broken, bent, pushed out or corroded terminals.
• Inspect the sensor and mounting area for any condition that would result in an incorrect signal, such as dam-
age, or foreign material.
• A data recorder, and/or oscilloscope should be used to help diagnose intermittent conditions.
• Remove the Engine Control Module (ECM) from the troubled vehicle and install in a new vehicle and test. If
the DTC cannot be deleted, the ECM is malfunctioning. If the DTC can be deleted, return the ECM to the origi-
nal vehicle.
Ground Inspection
Ground connections are very important to the proper operation of electrical and electronic circuits. Ground connec-
tions are often exposed to moisture, dirt and other corrosive elements. The corrosion (rust) can become an unwanted
resistance. This added resistance can alter the way a circuit works.
Electronically controlled circuits are very sensitive to proper grounding. A loose or corroded ground can drastically
affect an electronically controlled circuit. A poor or corroded ground can effect the circuit. Perform the following when
inspecting a ground connection:
1. Remove the ground bolt or screw.
2. Inspect all mating surface for tarnish, dirt, rust, etc.
3. Clean as required to assure good contact.
4. Reinstall bolt or screw securely.
5. Inspect for add-onaccessories which may be interfering with the ground circuit.
6. If several wires are crimped into one ground eyelet terminal, check for proper crimps. Make sure all of the wires are clean, securely fastened and providing a good ground path. If multiple wires are crimped to one eyelet, make
sure no excess wire insulation has been crimped creating a bad ground.
03–22Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Electronic Throttle Control Actuator Self-Learning Operation Introduction
EPC Lamp Control Strategy
The Electronic Pedal Control (EPC) lamp will be on for a few seconds and turn off after the ignition switch is turned
on and the engine is not running. After the engine started, the EPC lamp will go off if the DTC is not existent in ECM.
If the internal self-check failed, the EPC lamp will continue to light.
Electronic Throttle Control Actuator Self-Learning Condition
•Engine stopped and the ignition switch on.
• Vehicle speed is 0 km/h.
• The Engine Coolant Temperature (ECT) is between 5.25°C and 100.5°C.
• The intake air temperature is more than 5.25°C.
• The accelerator pedal fully released.
• Battery voltage is more than 12 V.
Electronic Throttle Control Actuator Self-Learning Operating Procedure
Turn the ignition switch on for 10 seconds, then turn the ignition switch off. During the procedure, do not operate any
other components.
Self-Learning Components
Perform the self-learning process when the following repairs have been made:
•Replaced the ECM
• ECM which was disconnected and reconnected
• Replaced the Accelerator Pedal
• Replaced the Electronic Throttle Control Actuator
Self-Learning Operating Procedure
Turn the ignition switch on for 10 seconds, then turn the ignition switch off. During the procedure, do not operate any
other components.
Self-Learning Condition
The self-learning condition as the Electronic Throttle Control Actuator Self-Learning Condition.
CAUTION:
Ensure that the Electronic Throttle Control Actuator self-learning process lasts for at least 10 sec-
onds according to the Electronic Throttle Control Actuator self-learning condition. If the self-learn-
ing process fails, the engine can’t be started or the EPC lamp will be on. If this condition occurs,
perform the Self-Learning operating again after the DTCs be erased in ECM.
Diagnostic Trouble Code (DTC) List
DTC DTC DEFINITION
P000A ACamshaft Position Slow Response
P000B BCamshaft Position Slow Response
P0010 ACamshaft Position Actuator Circuit/Open
P0011 ACamshaft Position - Timing Over - Advanced or System Performance
P0012 ACamshaft Position - Timing Over - Retarded
P0013 BCamshaft Position - Actual Circuit/Open
P0014 BCamshaft Position - Timing Over - Advanced or System Performance
P0015 BCamshaft Position - Timing Over - Retarded
P0016 Crankshaft - Camshaft Position Correlation
P0030 O
2Sensor Heater Control Circuit (Bank 1 Sensor 1)
P0031 O
2Sensor Heater Control Circuit (Bank 1 Sensor 1) Low
DIAGNOSIS & TESTING
03
03–23Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DTCDTC DEFINITION
P0032 O
2Sensor Heater Control Circuit (Bank 1 Sensor 1) High
P0036 O
2Sensor Heater Control Circuit (Bank 1 Sensor 2)
P0037 O
2Sensor Heater Control Circuit (Bank 1 Sensor 2) Low
P0038 O
2Sensor Heater Control Circuit (Bank 1 Sensor 2) High
P0053 O
2Sensor Heater Resistance (Bank 1 Sensor 1)
P0054 O
2Sensor Heater Resistance (Bank 1 Sensor 2)
P0101 Mass or Volume Air Flow Circuit Range/Performance (1.8L)
P0102 Mass or Volume Air Flow Circuit Low Input (1.8L)
P0103 Mass or Volume Air Flow Circuit High Input (1.8L)
P0105 Manifold Absolute Pressure or Barometric Pressure Circuit (1.6L)
P0106 Manifold Absolute Pressure or Barometric Pressure Range/Performance (1.6L)
P0107 Manifold Absolute Pressure or Barometric Pressure Low Input (1.6L)
P0108 Manifold Absolute Pressure or Barometric Pressure High Input (1.6L)
P0112 Intake Air Temperature Circuit Low Input
P0113 Intake Air Temperature Circuit High Input
P0116 Engine Coolant Temperature Circuit Range/Performance
P0117 Engine Coolant Temperature Circuit Low Input
P0118 Engine Coolant Temperature Circuit High Input
P0121 Throttle/Pedal Position Sensor A Circuit Range/Performance
P0122 Throttle/Pedal Position Sensor A Circuit Low Input
P0123 Throttle/Pedal Position Sensor A Circuit High Input
P0130 O
2Sensor Circuit Bank 1 - Sensor 1 Malfunction
P0131 O
2Sensor Circuit Bank 1 - Sensor 1 Low Voltage
P0132 O
2Sensor Circuit Bank 1 - Sensor 1 High Voltage
P0133 O
2Sensor Circuit Bank 1 - Sensor 1 Slow Response
P0134 O
2Sensor Circuit Bank 1 - Sensor 1 No Activity Detected
P0136 O
2Sensor Circuit Bank 1 - Sensor 2 Malfunction
P0137 O
2Sensor Circuit Bank 1 - Sensor 2 Low Voltage
P0138 O
2Sensor Circuit Bank 1 - Sensor 2 High Voltage
P0140 O
2Sensor Circuit Bank 1 - Sensor 2 No Activity Detected
P0170 Fuel Trim, Bank 1 Malfunction
P0171 Fuel Trim, Bank 1 System too Lean
P0172 Fuel Trim, Bank 1 too Rich
P0201 Cylinder 1 - Injector Circuit
P0202 Cylinder 2 - Injector Circuit
P0203 Cylinder 3 - Injector Circuit
P0204 Cylinder 4 - Injector Circuit
P0219 Engine Overspeed Condition
P0221 Throttle/Pedal Position Sensor/Switch B Range/Performance
P0222 Throttle/Pedal Position Sensor/Switch B Low Input
P0223 Throttle/Pedal Position Sensor/Switch B High Input
P0261 Cylinder 1 - Injector Circuit Low
P0262 Cylinder 1 - Injector Circuit High
DIAGNOSIS & TESTING
03–24Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DTCDTC DEFINITION
P0264 Cylinder 2 - Injector Circuit Low
P0265 Cylinder 2 - Injector Circuit High
P0267 Cylinder 3 - Injector Circuit Low
P0268 Cylinder 3 - Injector Circuit High
P0270 Cylinder 4 - Injector Circuit Low
P0271 Cylinder 4 - Injector Circuit High
P0300 Random/Multiple Cylinder Misfire Detected
P0301 Cylinder 1 Misfire Detected
P0302 Cylinder 2 Misfire Detected
P0303 Cylinder 3 Misfire Detected
P0304 Cylinder 4 Misfire Detected
P0318 Rough Road SensorASignal Circuit
P0321 Ignition/Distributor Engine Speed Input Circuit Range/Performance
P0322 Ignition/Distributor Engine Speed Input Circuit No Signal
P0324 Knock Control System Error
P0327 Knock Sensor 1 Circuit Low Input
P0328 Knock Sensor 1 Circuit High Input
P0340 Camshaft Position Sensor Circuit
P0341 Camshaft Position Sensor Circuit Range/Performance
P0342 Camshaft Position Sensor Circuit Low Input
P0343 Camshaft Position Sensor Circuit High Input
P0444 Evaporative Emission System Purge Control Valve Circuit Open
P0458 Evaporative Emission System Purge Control Valve Circuit Low
P0459 Evaporative Emission System Purge Control Valve Circuit High
P0480 Cooling Fan 1 Control Circuit
P0481 Cooling Fan 2 Control Circuit
P0501 Vehicle Speed Sensor Range/Performance
P0506 Idle Control System RPM Lower than Expected
P0507 Idle Control System RPM High than Expected
P0508 Idle Air Control System Circuit Low
P0509 Idle Air Control System Circuit High
P0511 Idle Air Control Circuit
P0532 A/C Refrigerant Pressure Sensor Circuit Low Input
P0533 A/C Refrigerant Pressure Sensor Circuit High Input
P0537 A/C Evaporator Temperature Sensor Circuit Low
P0538 A/C Evaporator Temperature Sensor Circuit High
P0560 System Voltage Malfunction
P0562 System Voltage Low Voltage
P0563 System Voltage High Voltage
P0571 Brake SwitchACircuit
P0601 Internal Control Module EEPROM Error
P0602 Control Module Programming Error
P0604 Internal Control Module Random Access Memory (RAM) Error
DIAGNOSIS & TESTING
03
03–25Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DTCDTC DEFINITION
P0605 Internal Control Module ROM Test Error
P0606 ECM Processor
P0627 Fuel PumpAControl Circuit/Open
P0628 Fuel PumpAControl Circuit Low
P0629 Fuel PumpAControl Circuit High
P0645 A/C Clutch Relay Circuit
P0646 A/C Clutch Relay Control Circuit Low
P0647 A/C Clutch Relay Control Circuit High
P0650 Malfunction Indicator Lamp Control Circuit
P0688 EMC/ECM Power Relay Sense Circuit Open
P0691 Cooling Fan 1 Control Circuit Low
P0692 Cooling Fan 1 Control Circuit High
P0693 Cooling Fan 2 Control Circuit Low
P0694 Cooling Fan 2 Control Circuit High
P0700 Transmission Control System Malfunction
P0704 Clutch Switch Input Circuit
P1297 Manufacturer Controlled Computer And Auxiliary Outputs
P1336 Engine Torque Control Adaptation at Limit
P1545 Throttle Position Control Malfunction
P1558 Throttle Actuator Electrical Malfunction
P1559 Idle Speed Control Throttle Position Adaptation Malfunction
P1564 Idle Speed Control Throttle Position Low Voltage During Adaptation
P1565 Idle Speed Control Throttle Position Lower Limit not Attained
P1568 Idle Speed Control Throttle Position Mechanical Malfunction
P1579 Idle Speed Control Throttle Position Adaptation Not Started
P1604 Internal Control Module Driver Error
P1610 Manufacture Controlled Computer and Auxiliary Outputs
P1611 Manufacture Controlled Computer and Auxiliary Outputs
P1612 Manufacture Controlled Computer and Auxiliary Outputs
P1613 Manufacture Controlled Computer and Auxiliary Outputs
P1614 Manufacture Controlled Computer and Auxiliary Outputs
P1651 Manufacture Controlled Computer and Auxiliary Outputs
P2106 Throttle Actuator Control System Forced Limited Power
P2122 Throttle/Pedal Position Sensor/Switch D Circuit Low Input
P2123 Throttle/Pedal Position Sensor/Switch D Circuit High Input
P2127 Throttle/Pedal Position Sensor/Switch E Circuit Low Input
P2128 Throttle/Pedal Position Sensor/Switch E Circuit High Input
P2138 Accelerator Pedal Position Sensor Signal Correlation Error
P2177 System Too Lean off Idle
P2178 System Too Rich off Idle
P2187 System Too Lean at Idle
P2188 System Too Rich at Idle
P2195 O
2Sensor Signal Stuck Lean; Bank 1 Sensor 1
DIAGNOSIS & TESTING
03–26Chery Automobile Co., Ltd.
