CHERY TIGGO 2009 Service Repair Manual

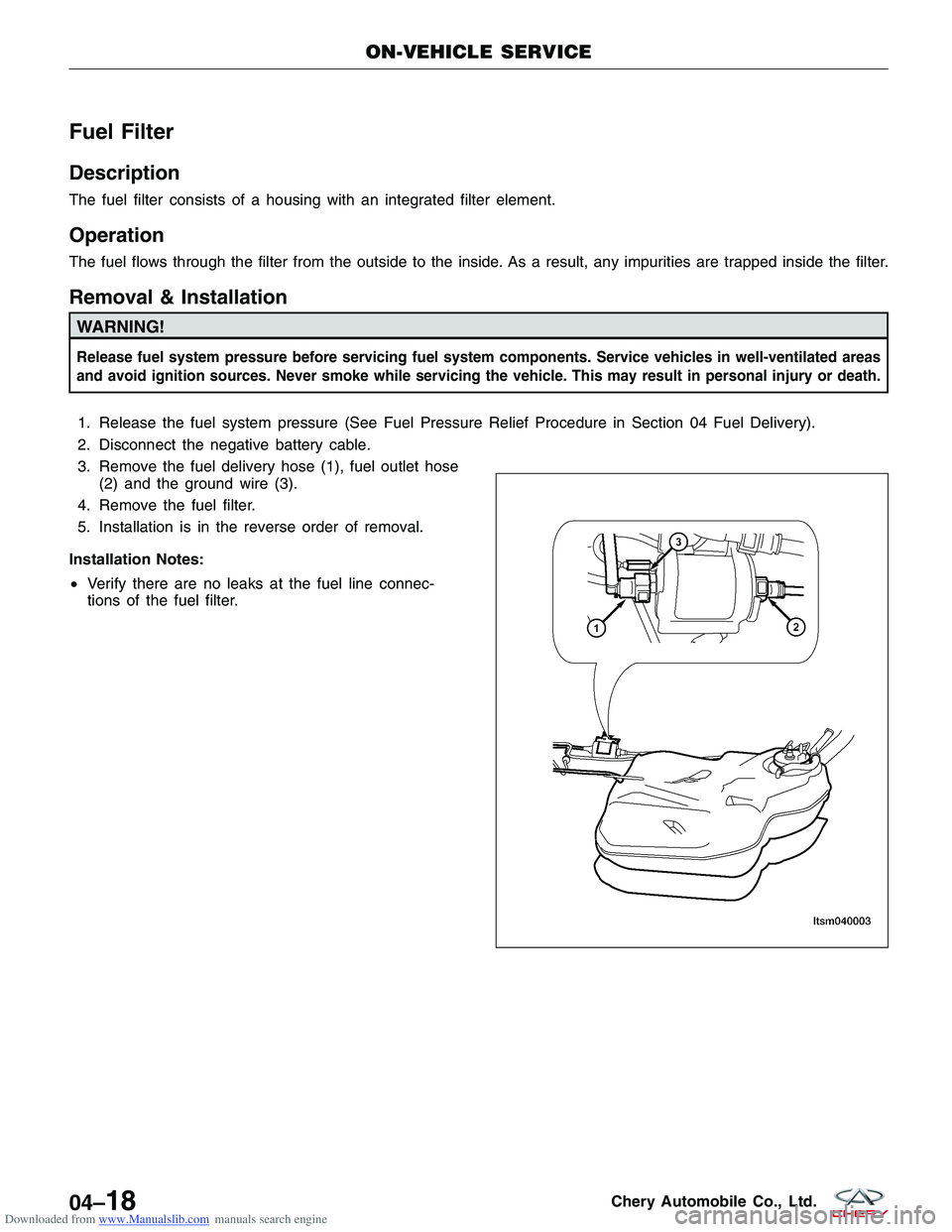

Downloaded from www.Manualslib.com manuals search engine Fuel Filter
Description
The fuel filter consists of a housing with an integrated filter element.
Operation
The fuel flows through the filter from the outside to the inside. As a result, any impurities are trapped inside the filter.
Removal & Installation
WARNING!
Release fuel system pressure before servicing fuel system components. Service vehicles in well-ventilated areas
and avoid ignition sources. Never smoke while servicing the vehicle. This may result in personal injury or death.
1. Release the fuel system pressure (See Fuel Pressure Relief Procedure in Section 04 Fuel Delivery).
2. Disconnect the negative battery cable.
3. Remove the fuel delivery hose (1), fuel outlet hose(2) and the ground wire (3).
4. Remove the fuel filter.
5. Installation is in the reverse order of removal.
Installation Notes:
• Verify there are no leaks at the fuel line connec-
tions of the fuel filter.
ON-VEHICLE SERVICE
LTSM040003
04–18Chery Automobile Co., Ltd.

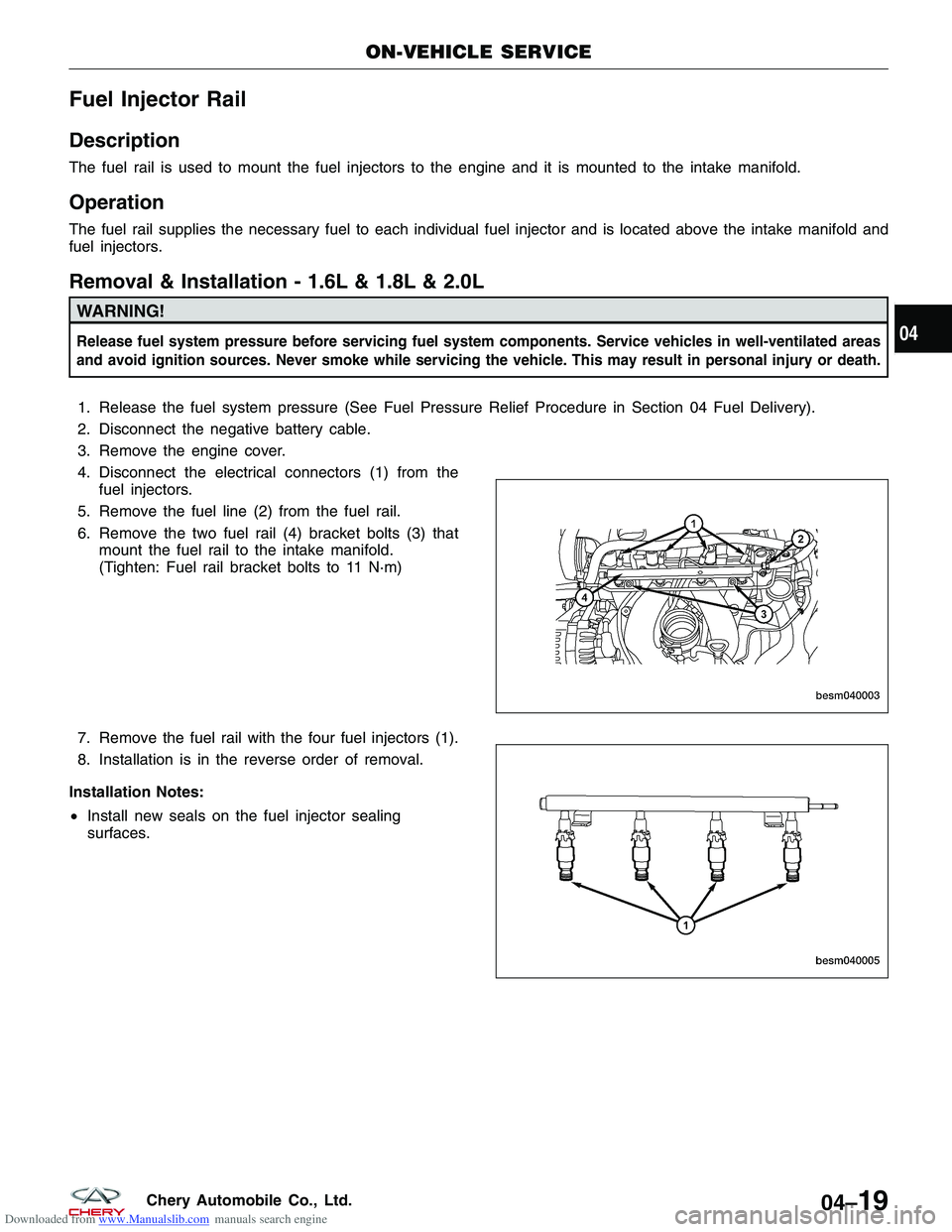

Downloaded from www.Manualslib.com manuals search engine Fuel Injector Rail
Description
The fuel rail is used to mount the fuel injectors to the engine and it is mounted to the intake manifold.
Operation
The fuel rail supplies the necessary fuel to each individual fuel injector and is located above the intake manifold and
fuel injectors.
Removal & Installation - 1.6L & 1.8L & 2.0L
WARNING!
Release fuel system pressure before servicing fuel system components. Service vehicles in well-ventilated areas
and avoid ignition sources. Never smoke while servicing the vehicle. This may result in personal injury or death.
1. Release the fuel system pressure (See Fuel Pressure Relief Procedure in Section 04 Fuel Delivery).
2. Disconnect the negative battery cable.
3. Remove the engine cover.
4. Disconnect the electrical connectors (1) from thefuel injectors.
5. Remove the fuel line (2) from the fuel rail.
6. Remove the two fuel rail (4) bracket bolts (3) that mount the fuel rail to the intake manifold.
(Tighten: Fuel rail bracket bolts to 11 N·m)
7. Remove the fuel rail with the four fuel injectors (1).
8. Installation is in the reverse order of removal.
Installation Notes:
• Install new seals on the fuel injector sealing
surfaces.
ON-VEHICLE SERVICE
BESM040003
BESM040005
04
04–19Chery Automobile Co., Ltd.

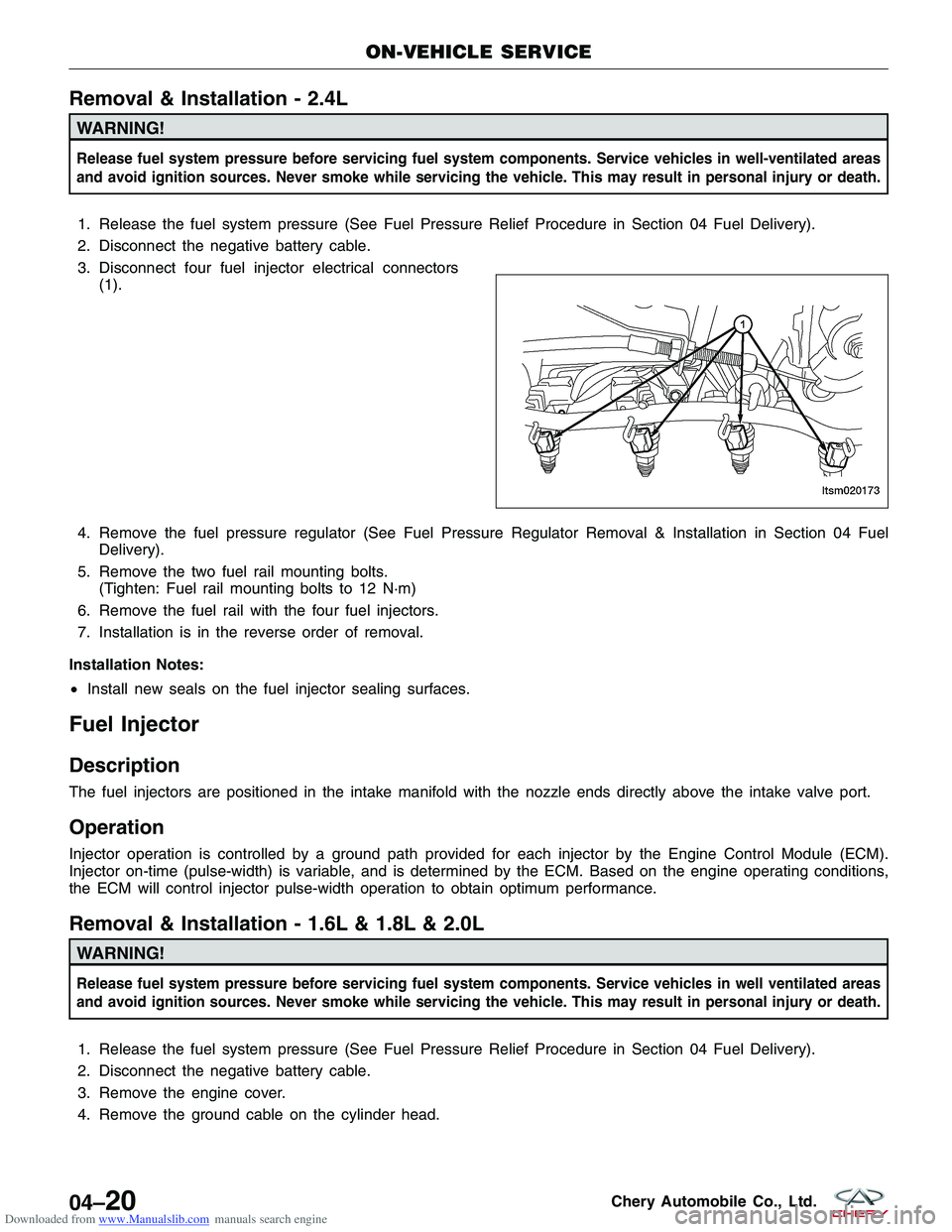

Downloaded from www.Manualslib.com manuals search engine Removal & Installation - 2.4L
WARNING!
Release fuel system pressure before servicing fuel system components. Service vehicles in well-ventilated areas
and avoid ignition sources. Never smoke while servicing the vehicle. This may result in personal injury or death.
1. Release the fuel system pressure (See Fuel Pressure Relief Procedure in Section 04 Fuel Delivery).
2. Disconnect the negative battery cable.
3. Disconnect four fuel injector electrical connectors(1).
4. Remove the fuel pressure regulator (See Fuel Pressure Regulator Removal & Installation in Section 04 Fuel Delivery).
5. Remove the two fuel rail mounting bolts. (Tighten: Fuel rail mounting bolts to 12 N·m)
6. Remove the fuel rail with the four fuel injectors.
7. Installation is in the reverse order of removal.
Installation Notes:
• Install new seals on the fuel injector sealing surfaces.
Fuel Injector
Description
The fuel injectors are positioned in the intake manifold with the nozzle ends directly above the intake valve port.
Operation
Injector operation is controlled by a ground path provided for each injector by the Engine Control Module (ECM).
Injector on-time (pulse-width) is variable, and is determined by the ECM. Based on the engine operating conditions,
the ECM will control injector pulse-width operation to obtain optimum performance.
Removal & Installation - 1.6L & 1.8L & 2.0L
WARNING!
Release fuel system pressure before servicing fuel system components. Service vehicles in well ventilated areas
and avoid ignition sources. Never smoke while servicing the vehicle. This may result in personal injury or death.
1. Release the fuel system pressure (See Fuel Pressure Relief Procedure in Section 04 Fuel Delivery).
2. Disconnect the negative battery cable.
3. Remove the engine cover.
4. Remove the ground cable on the cylinder head.
ON-VEHICLE SERVICE
LTSM020173
04–20Chery Automobile Co., Ltd.

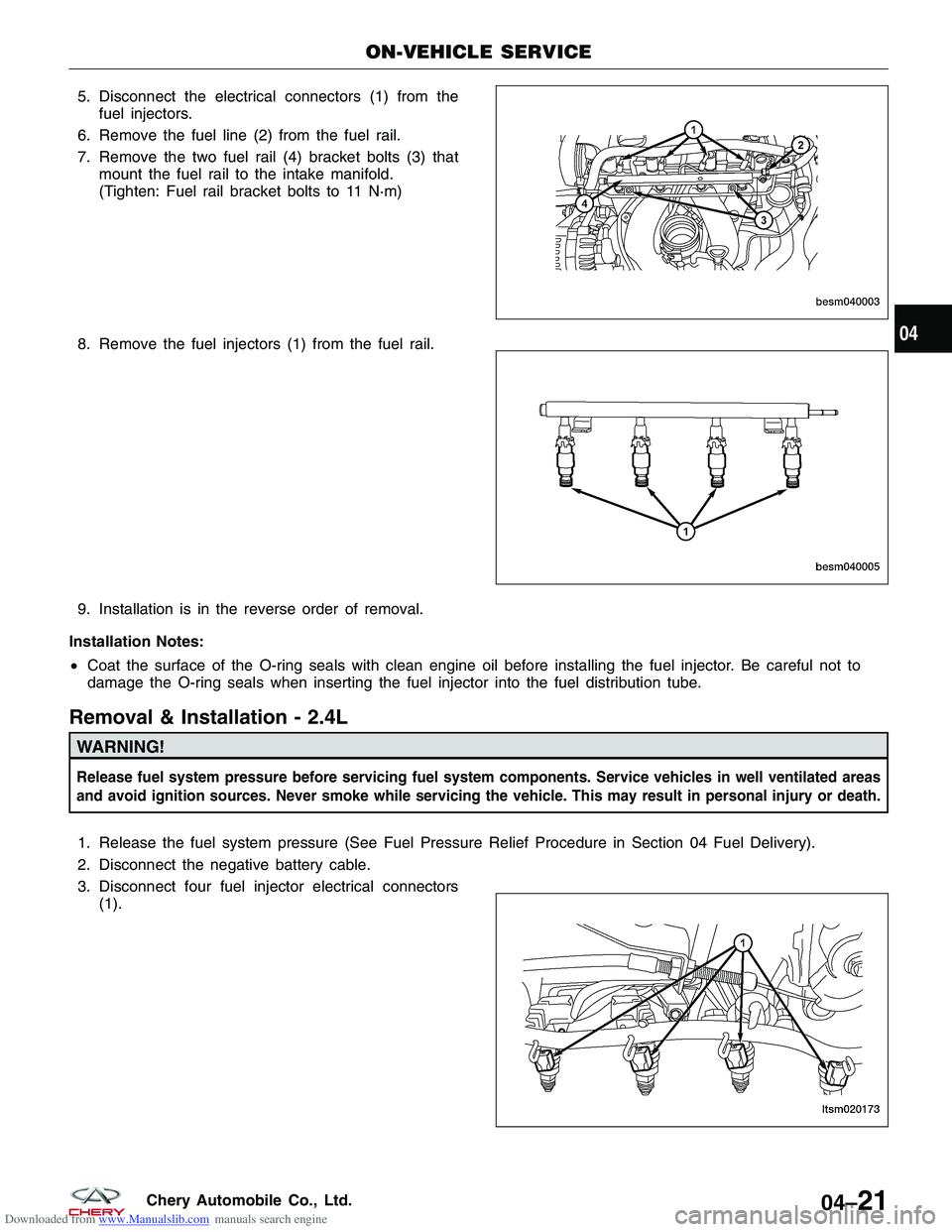

Downloaded from www.Manualslib.com manuals search engine 5. Disconnect the electrical connectors (1) from thefuel injectors.
6. Remove the fuel line (2) from the fuel rail.
7. Remove the two fuel rail (4) bracket bolts (3) that mount the fuel rail to the intake manifold.
(Tighten: Fuel rail bracket bolts to 11 N·m)
8. Remove the fuel injectors (1) from the fuel rail.
9. Installation is in the reverse order of removal.
Installation Notes:
• Coat the surface of the O-ring seals with clean engine oil before installing the fuel injector. Be careful not to
damage the O-ring seals when inserting the fuel injector into the fuel distribution tube.
Removal & Installation - 2.4L
WARNING!
Release fuel system pressure before servicing fuel system components. Service vehicles in well ventilated areas
and avoid ignition sources. Never smoke while servicing the vehicle. This may result in personal injury or death.
1. Release the fuel system pressure (See Fuel Pressure Relief Procedure in Section 04 Fuel Delivery).
2. Disconnect the negative battery cable.
3. Disconnect four fuel injector electrical connectors
(1).
ON-VEHICLE SERVICE
BESM040003
BESM040005
LTSM02017304
04–21Chery Automobile Co., Ltd.

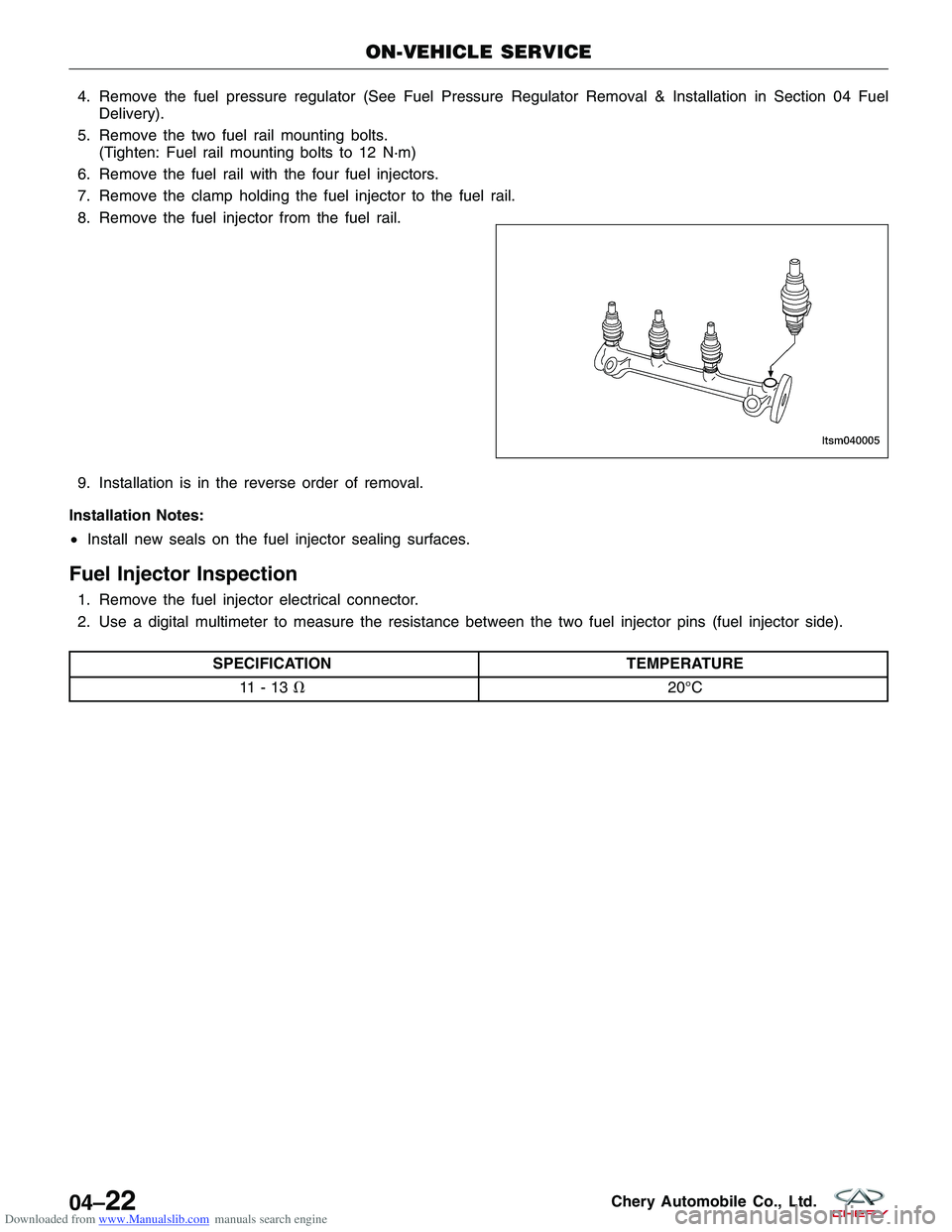

Downloaded from www.Manualslib.com manuals search engine 4. Remove the fuel pressure regulator (See Fuel Pressure Regulator Removal & Installation in Section 04 FuelDelivery).
5. Remove the two fuel rail mounting bolts. (Tighten: Fuel rail mounting bolts to 12 N·m)
6. Remove the fuel rail with the four fuel injectors.
7. Remove the clamp holding the fuel injector to the fuel rail.
8. Remove the fuel injector from the fuel rail.
9. Installation is in the reverse order of removal.
Installation Notes:
• Install new seals on the fuel injector sealing surfaces.
Fuel Injector Inspection
1. Remove the fuel injector electrical connector.
2. Use a digital multimeter to measure the resistance between the two fuel injector pins (fuel injector side).
SPECIFICATION TEMPERATURE
11 - 1 3  20°C
ON-VEHICLE SERVICE
LTSM040005
04–22Chery Automobile Co., Ltd.

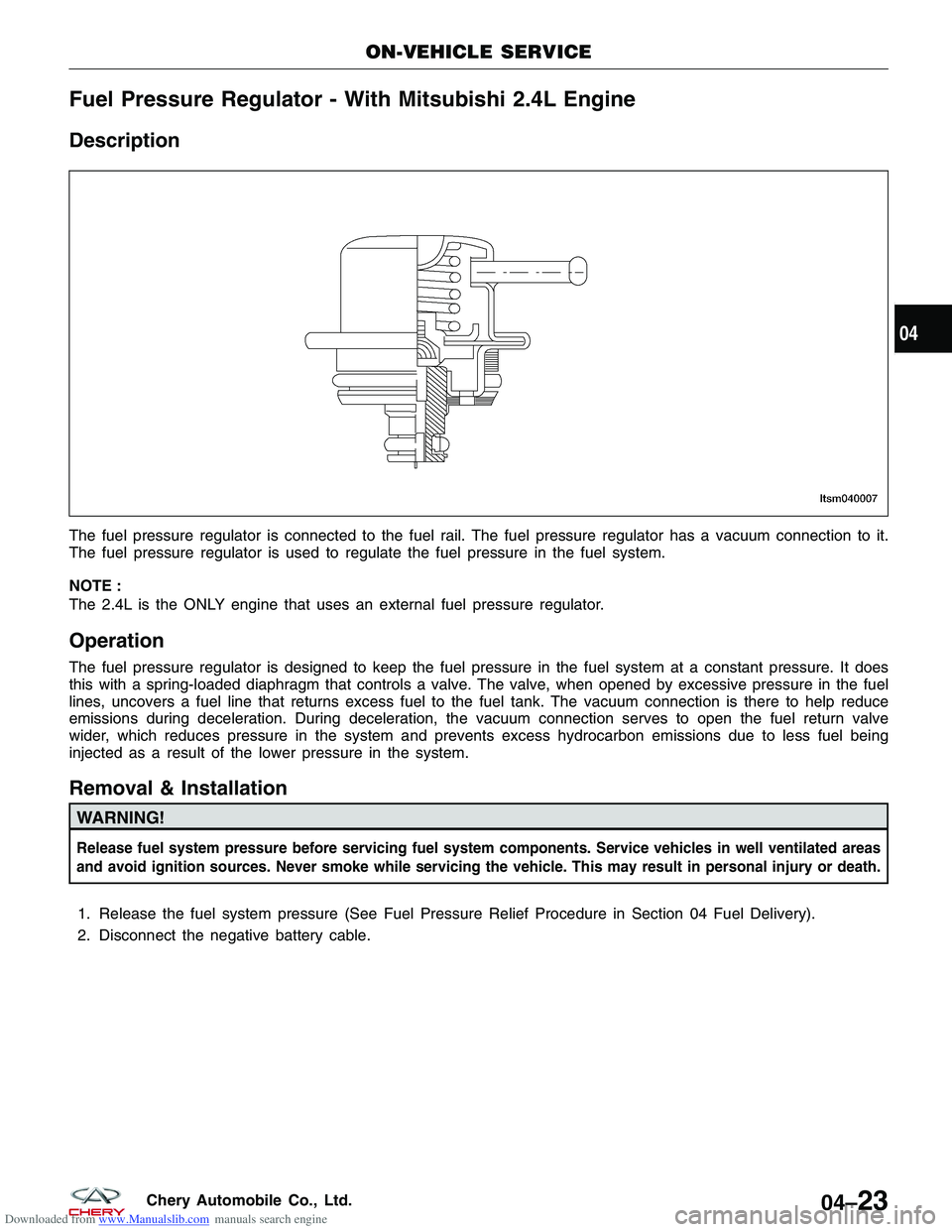

Downloaded from www.Manualslib.com manuals search engine Fuel Pressure Regulator - With Mitsubishi 2.4L Engine
Description
The fuel pressure regulator is connected to the fuel rail. The fuel pressure regulator has a vacuum connection to it.
The fuel pressure regulator is used to regulate the fuel pressure in the fuel system.
NOTE :
The 2.4L is the ONLY engine that uses an external fuel pressure regulator.
Operation
The fuel pressure regulator is designed to keep the fuel pressure in the fuel system at a constant pressure. It does
this with a spring-loaded diaphragm that controls a valve. The valve, when opened by excessive pressure in the fuel
lines, uncovers a fuel line that returns excess fuel to the fuel tank. The vacuum connection is there to help reduce
emissions during deceleration. During deceleration, the vacuum connection serves to open the fuel return valve
wider, which reduces pressure in the system and prevents excess hydrocarbon emissions due to less fuel being
injected as a result of the lower pressure in the system.
Removal & Installation
WARNING!
Release fuel system pressure before servicing fuel system components. Service vehicles in well ventilated areas
and avoid ignition sources. Never smoke while servicing the vehicle. This may result in personal injury or death.
1. Release the fuel system pressure (See Fuel Pressure Relief Procedure in Section 04 Fuel Delivery).
2. Disconnect the negative battery cable.
ON-VEHICLE SERVICE
LTSM040007
04
04–23Chery Automobile Co., Ltd.

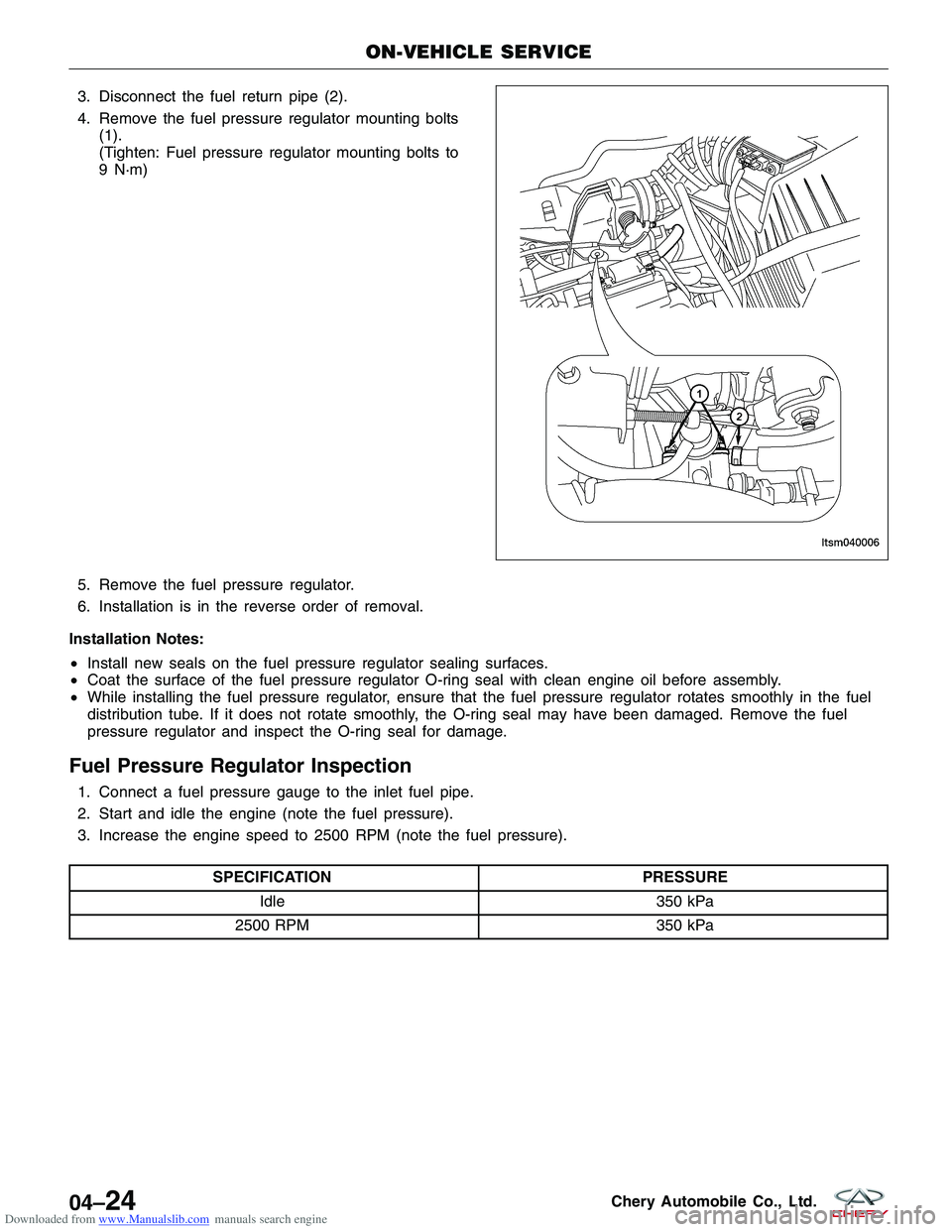

Downloaded from www.Manualslib.com manuals search engine 3. Disconnect the fuel return pipe (2).
4. Remove the fuel pressure regulator mounting bolts(1).
(Tighten: Fuel pressure regulator mounting bolts to
9 N·m)
5. Remove the fuel pressure regulator.
6. Installation is in the reverse order of removal.
Installation Notes:
• Install new seals on the fuel pressure regulator sealing surfaces.
• Coat the surface of the fuel pressure regulator O-ring seal with clean engine oil before assembly.
• While installing the fuel pressure regulator, ensure that the fuel pressure regulator rotates smoothly in the fuel
distribution tube. If it does not rotate smoothly, the O-ring seal may have been damaged. Remove the fuel
pressure regulator and inspect the O-ring seal for damage.
Fuel Pressure Regulator Inspection
1. Connect a fuel pressure gauge to the inlet fuel pipe.
2. Start and idle the engine (note the fuel pressure).
3. Increase the engine speed to 2500 RPM (note the fuel pressure).
SPECIFICATION PRESSURE
Idle 350 kPa
2500 RPM 350 kPa
ON-VEHICLE SERVICE
LTSM040006
04–24Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine STARTING & CHARGING
05
CONTENTSpage
Starting System ...................................................................... 05-1
Charging System .................................................................... 05-11
STARTING SYSTEM
GENERAL INFORMATION05-2
Description 05-2
Operation 05-3
Specifications 05-3
Special Tools 05-3
Electrical Schematics 05-4
DIAGNOSIS AND TESTING05-6
Starter Motor Bench Test 05-6
Starter Solenoid Test 05-6
ON-VEHICLE SERVICE05-7
Battery 05-7
Description 05-7
Operation 05-7
Removal & Installation 05-7 Positive Battery Cable
05-8
Removal & Installation 05-8
Negative Battery Cable 05-8
Removal & Installation 05-8
Battery Hold Down 05-8
Removal & Installation 05-8
Battery Tray 05-9
Removal & Installation 05-9
Starter Motor Assembly 05-9
Description 05-9
Operation 05-9
Removal & Installation - 1.6L & 1.8L &
2.0L 05-9
Removal & Installation - 2.4L 05-10
05
05–1Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Description
The starting system consists of the following components:
•Starter motor (including an integral starter solenoid)
• Battery
• Battery cables
• Ignition switch and key lock cylinder
• Wire harnesses and connections
• Starter relay and fuse
• Charge fuse
1.6L & 1.8L & 2.0L
2.4L
LTSM050007T
LTSM050006T
05–2Chery Automobile Co., Ltd.

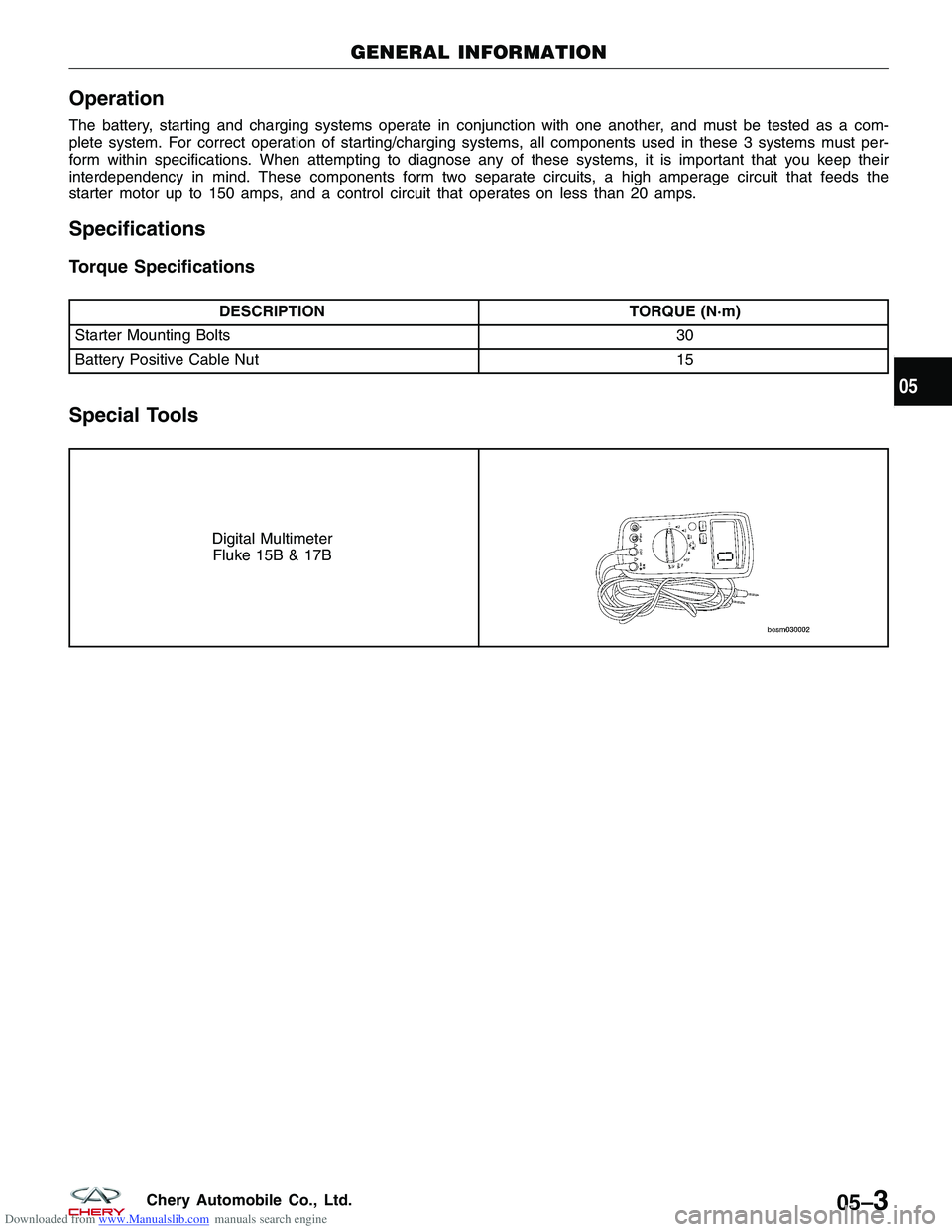

Downloaded from www.Manualslib.com manuals search engine Operation
The battery, starting and charging systems operate in conjunction with one another, and must be tested as a com-
plete system. For correct operation of starting/charging systems, all components used in these 3 systems must per-
form within specifications. When attempting to diagnose any of these systems, it is important that you keep their
interdependency in mind. These components form two separate circuits, a high amperage circuit that feeds the
starter motor up to 150 amps, and a control circuit that operates on less than 20 amps.
Specifications
Torque Specifications
DESCRIPTIONTORQUE (N·m)
Starter Mounting Bolts 30
Battery Positive Cable Nut 15
Special Tools
Digital Multimeter
Fluke 15B & 17B
GENERAL INFORMATION
05
05–3Chery Automobile Co., Ltd.
