ELECTRICAL-BODY AND CHASSIS 12-29

Fig.
43b - Speed Warning Device

TEMPERATURE AND/OR OIL PRESSURE

GAUGE

1.
Disconnect battery ground cable.

2.
Remove ash tray and ash tray retainer.

3.
Disconnect A/C hose from the distributor duct.

4.
Disconnect wiring connectors and lamp bulbs from

rear of gauge.

5. Disconnect oil pressure pipe fitting from rear of oil

pressure gauge.

6. Remove (3) screws retaining gauge assembly to

cluster cover and disengage unit from cover.

7. Remove (4) retaining nuts and remove gauge from

template.

8. To install, reverse removal procedure.

INDICATOR LIGHT REPLACEMENT

To replace any indicator or cluster bulb, unsnap the

proper socket from rear of instrument cluster, remove

and replace bulb, and reinsert unit into rear of cluster

housing.
OIL PRESSURE INDICATOR

If the light does not come on when the ignition switch is

turned on, or if the light comes on and remains on after

the engine is started, one or more the following condi-

tions is indicated:

• Low oil pressure

• Defective wiring or switch

• High engine temperature

Switch Replacement

1.
Disconnect wiring harness connector from sender

unit terminal (located in block above starter on L-6

engines and at left front of distributor on V-8

engines).

2.
Remove sender unit using Tool J-21757, replace with

new unit, and check operation.

GENERATOR INDICATOR

Ignition on, Engine not Running and

Telltale Light Off

1.
Indicator bulb burned out, replace bulb.

2.
Open circuit or loose connection in the telltale light

circuit.

Telltale Light Stays on after Engine is Started

If indicator light does not go out at engine idle speed,

refer to' Charging Systems under Engine Electrical,

Section 6Y.

TEMPERATURE
(COOLING
SYSTEM)
INDICATOR

The temperature indicator circuit, consists of two re-

motely located units, indicator gauge and engine sender

unit. The indicator gauge on all models uses a single

red light to indicate an overheated engine condition.

Engine Sender Unit Replacement

1.
Drain engine cooling system to a level below unit.

2.
Remove sender unit (located in the inlet manifold

near water pump housing on V-8 engines and in the

cylinder head near an exhaust port on L-6 engines)

and replace with new unit.

3.
Refill cooling system and check operation of unit.

CHEVROLET CHASSIS SERVICE MANUAL

VIEW
A

VIEW
B

(13700-800)

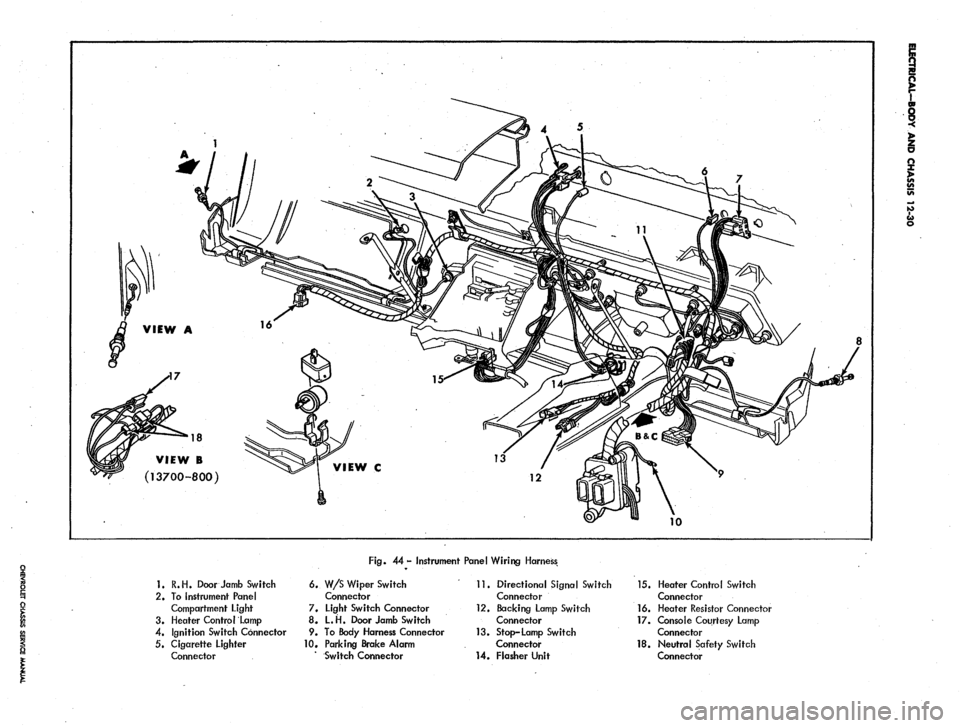

Fig. 44
-
Instrument Panel Wiring Harness

1.
R.H. Door Jamb Switch

2.
To Instrument Panel

Compartment Light

3. Heater Control Lamp

4.
Ignition Switch Connector

5. Cigarette Lighter

Connector
6. W/S Wiper Switch

Connector

7. Light Switch Connector

8.
L.H.
Door Jamb Switch

9.
To
Body Harness Connector

10.
Parking Brake Alarm

Switch Connector
11.
Directional Signal Switch

Connector

12.
Backing Lamp Switch

Connector

13.
Stop-Lamp Switch

Connector

14.
Flasher Unit
15.
Heater Control Switch

Connector

16.
Heater Resistor Connector

17.
Console Courtesy Lamp

Connector

18.
Neutral Safety Switch

Connector

ELECTRICAL-BODY
AND
CHASSIS
12-31

CHEVY II INSTRUMENTS AND GAUGES

INDEX

Page
Page

General Description -.....
12-31

Service Operations.
12-31

Instrument Panel
. 12-31

Instrument Cluster
12-31

Fuel Gauge
12-32

12-32
Clock,
Speedometer
12-34

Speedometer Catte
12-34

Indicator Lights
12-34

Oil Pressure Indicator
12-34

Generator Indicator
12-34

Temperature Indicator
12-34

GENERAL DESCRIPTION

The Chevy
n
instrument cluster assembly consists
of:

a speedometer;
a
fuel gauge;
a
generator, temperature

and
oil
pressure indicator lamps, and includes
a
clock
on

deluxe models. Except
for the
speedometer,
all of the

cluster lamps, instruments and gauges
of
the cluster
may

be serviced without removing
the
instrument cluster
as-

sembly from
the
console.

In addition
to the
instrument indicator lamps,
a
brake

warning lamp
is
included
in the
cluster
as
standard

equipment.
The
indicator
is
connected
to
thfc parking

brake and brake pressure differential switches andserves
a dual function.
It
lights when
the
parking brake
is ap-

plied
and
also when
the
brake pedal
is
applied,
if a mal-

function should occur
in the
brake system
due to a
loss
of

hydraulic pressure. Servicing
of the
hydraulic pressure

differential switch
is
covered
in
Section
5 of
this manaul.

Regular maintenance
is not
required on
the
instrument

cluster
or its
components other than r^Mfitftl^i^g clean

and tight electrical connections, replacing defective parts

and keeping
the
speedometer cable properly lubricated.

SERVICE OPERATIONS

INSTRUMENT PANEL

INSTRUMENT CLUSTER

Removal
and
Installation {Figs.
45
thru
48)

1.
Disconnect battery ground cable.

2.
Remove mast jacket upper support clamp (refer
to

Steering, Section
9, for
complete procedure
on low-

ering jacket) and lower steering column.

NOTE:
Apply protective material
to the
mast

jacket
to
prevent damage
to the
painted surfaces.
3.
Disconnect retaining collar securing speedometer

cable
to
speedometer head.

4.
Remove screws retaining cluster
to
console.

5. Pull cluster forward
of
console opening and discon-

nect
all
wiring
and
lamp connections. Remove

cluster from vehicle.

CAUTION:
Do not
pull cluster outward further

than slack
in
wiring harness will allow, other-

Fig.
45-
Instrument Cluster Installation
—
Chevy
II

Fig.
46 -
Speed Warning Device

CHEVtOtET CHASSIS SERVICE MANUAL

ELECTRICAL-BODY AND CHASSIS 12-32

Fig.
47-
Instrument Clyster Wiring

1.
Instrument Cluster Bulb

2.
R.H. Directional Indicator

3. Bright Indicator

4.
Gen Indicator
5. Temp Indicator

6. Oil Indicator

7. L.H. Directional Indicator
8. Fuel Gauge Connector

9. Instrument Panel Wiring

Harness
10.
Clock Assembly (11700-800)

11.
Cover (exc. 11700-800)

12.
Plate (exc. 11700-800)

13.
Brake Alarm
indicator

wise wiring and lamp connections may be

damaged."~ ' ""

6. To install, position cluster to console opening and

connect all wiring and lamp connections.

7. Position cluster in console and attach speedometer

cable to the speedometer head.

8. Install eight screws retaining cluster to console.

9. Install mast jack upper clamp assembly.

10.
Connect battery ground cable and check operation of

instruments and gauges.

FUEL GAUGE REPLACEMENT

1.
Disconnect battery ground cable.

2.
Disconnect cluster lamp and wiring harness connec-
5.
tions at rear of gauge.

Remove two screws retaining gauge to rear of

cluster housing and remove gauge from housing.

Remove terminal nuts attaching gauge unit to cover

plate and remove unit, from plate.

To install, reverse the removal procedure*

CLOCK REPLACEMENT

1.
Disconnect battery ground cable.

2.
Remove clock set shaft, knob retaining screw and

knob from set shaft.

3.
Disconnect wiring and lamp connections "from rear

o£ clock.

4.
Remove two screws attaching clock to rear of hous-

ing and remove clock from cluster housing.

CHevnou-r ousst

Fig.
48 - Instrument Panel Wiring Hamess

1.
To Instrument Panel

Compartment light

2.
Heater Control Bulb

3. To Heater Switch

4.
To Directional Signal Flasher
5.

6.

7.

a
To Heater Resistor

To Blower Motor

Connector

To Cigarette Lighter

To Ignition Switch
9.

10.

11.

12.
To Wiper Switch

To Light Switch

To Fisher Body Connector

To Directional Signal

Connector
13.
To Stop Lamp Switch

14.
To Backing Lamp

15.
Fuse Panel

16.
To Dimmer Switch

ELECTRICAL-BODY AND CHASSIS 12-34

5. To replace, reverse the removal procedure.

SPEEDOMETER REPLACEMENT

1.
Remove instrument cluster as previously described

in this section.

2.
Remove clock set shaft knob.

3.
Remove eight screws securing cluster housing to

bezel trim panel. Separate parts carefully observing

stack up of parts.

4.
Remove two screws securing speedometer head to

rear of cluster housing.

NOTE:
Servicing of the speedometer head

should be performed by an authorized AC Speed-

ometer Service Station.

5. To install, reverse the removal procedure..

SPEEDOMETER CABLE

Replacement or Lubricatibn

1.
Disconnect the speedometer cable from the speed-

ometer head. Remove the old cable by pulling it out

from speedometer end of conduit.

NOTE:
If old cable is broken it may be neces-

sary to remove lower piece from transmission

end of conduit.

2.
Lubricate the lower 3/4 of cable with speedometer

cable lubricant and push the cable into the conduit.

Connect the upper end to the speedometer head and

road test vehicle for proper speedometer operation.

INDICATOR LIGHT REPLACEMENT

To replace any indicator or cluster bulb, unsnap the

proper socket from rear of instrument cluster, remove

and replace bulb, and reinsert unit into rear of cluster

housing.

OIL PRESSURE INDICATOR

If the light does not come on when the ignition switch
is turned on, or if the light comes on and remains on

after the engine is started, one or more of the following

conditions is indicated:

• Low oil pressure

• High engine temperature

• Defective wiring or switch

Switch Replacement

1.
Disconnect wiring harness connector from sender

unit terminal (located in block above starter on

L-6 engines and at left front of distributor on V-8

engines).

2.
Remove sender unit, replace with new unit, and

; check operation.

GENERATOR INDICATOR

1.
Ignition on, engine not running and telltale light off.

a. Indicator bulb burned out, replace bulb.

b.
Open circuit or loose connection in the telltale

light circuit.

2.
Telltale light stays on after engine is started.

a. If indicator light does not go out at engine idle

speed, refer to Charging Systems under Engine

Electrical, Section 6Y.

TEMPERATURE (COOLING SYSTEM) INDICATOR

The temperature indicator circuit consists of two re-

motely located units, indicator gauge and engine sender

unit. The indicator gauge on all models uses a single

red light to indicate an overheated engine condition.

Engine Sender Unit Replacement

1.
Drain engine cooling system to a level below unit.

2.
Remove sender unit (located in the inlet manifold

near water pump housing on V-8 engines and in the

cylinder head near an exhaust port on L-6 engines)

and replace with new unit.

3.
Refill cooling system and check operation of unit.

CORVETTE INSTRUMENTS AND GAUGES

INDEX

Page

General Description ., 12-34

Service Operations . 12-35

Instrument Cluster ., 12-35

Fuel Gauge 12-35
Speedometer/Tachometer Service. 12-35

Temperature Gauge 12-35

Ammeter/Oil Pressure Gauges 12-35

GENERAL DESCRIPTION

All Corvette instruments and gauges are conveniently

located in the dash-mounted cluster. The entire cluster

is removable to permit servicing of the various instru-

ments and gauges. The indicator and cluster illuminating

bulbs may be replaced without removing the cluster from

the panel.
Regular maintenance is not required on the instrument

cluster or its components other than maintaining clean

and keeping the speedometer and tachometer cables

properly lubricated.

CHEVROLET CHASSIS SERVICE MANUAL

ELECTRICAL-BODY AND CHASSIS 12-35

SERVICE OPERATIONS

INSTRUMENT CLUSTER

REMOVAL AND INSTALLATION (Fig. 49)

1.
Remove mast jacket assembly. Refer to Section 9

for removal procedures.

2.
Disconnect tachometer drive cable at distributor.

3.
Disconnect the headlamp panel control switch from

instrument cluster.

4.
Remove lighting switch as outlined in this section.

10 10-A 1112 13

14
15 16 17 18 19

Fig.
49- Instrument Cluster Connections

1.
Cluster Illuminating

Bulbs

2.
Direction Signal Indicator

Bulb L.H.

3. Direction Signal Indicator

BulbR.H.

4.
Headlamp Actuating Motor

Indicator

5. Headlamp Hi Beam

Indicator

6. Parking Brake Alarm

Indicator

7. Ground Lead Attaching

Point

8. Temperature Indicator
"1"

Terminal
9.

10.

10A.

11.

12.

13.

14.

]5.

16.

17.

18.

19.

20.

21.
Temperature Indicator "S"

Terminal

Ignition Switch Receptacle

ignition Switch Illuminating

Bulb

Oil Pressure Indicator

Tachometer

Lighter Receptacle

Trip Odometer

Wiper Switch Receptacle

Speedometer

Ammeter "Gen" Terminal

Ammeter "Battery" Terminal

Lighting Switch Receptacle

Fuel Gauge
"1"
Terminal

Fuel Gauge "S" Terminal

5. Remove the ignition switch. Refer to Section 6Y

for removal procedure. Then disconnect ignition

switch lamp support at instrument panel.

6. Disconnect oil pressure line at oil pressure gauge

then remove the lead wires from ammeter, wiper

switch and cigarette lighter. Disconnect trip odom-

eter at mast jacket support.

7. Remove the instrument cluster-to-dash retaining

screws and pull cluster assembly slightly forward

to obtain clearance for removal of speedometer

cable, tachometer cable, cluster ground wire, fuel

gauge lead wires and remaining indicator and cluster

illuminating lamps.

8. To install cluster in dash panel, reverse removal

procedure.

FUEL GAUGE

The gasoline fuel gauge circuit consists of an electri-
cal indicator in the instrument cluster and a float-

controlled rheostat in the fuel tank.

Since the fuel gauge consists of two remotely located

units and connecting wires, it is sometimes difficult to

determine which unit is at fault when the gauge fails to

operate properly. Cluster removal is necessary to re-

place the fuel gauge.

NOTE:
Be sure to check gas gauge fuse in fuse

panel before attempting to trouble shoot for

inoperative gauge or tank sending unit.

SPEEDOMETER AND/OR TACHOMETER

Removal and Installation

Cluster must be removed from vehicle to service

speedometer head assembly (see Cluster Removal pro-

cedure)
.
With cluster removed from vehicle:

1.
Remove five screws securing cluster back panel to

cluster assembly; separate the parts carefully.

CAUTION: Care must be used to avoid marring

instrument cluster face.

2.
Remove two screws securing speedometer or ta-

chometer head to cluster back panel; carefully re-

move speedometer or tachometer head.

NOTE:
Servicing of speedometer or tachom-

eter head should be performed by an authorized

AC service station.

3.
Reverse above procedure to install speedometer.

Cable Replacement or Lubrication

1.
Disconnect the. cable from the speedometer or ta-

chometer head. Remove the old cable by pulling it

out from speedometer end of conduit.

NOTE:
If old cable is broken it may be nec-

essary to remove lower piece from transmission

or distributor end of conduit as applicable.

2.
Lubricate the lower 3/4 of cable with
AC
speedom-

eter cable lubricant and push the cable into the con-

duit. Connect the upper end to the speedometer or

tachometer head and road test vehicle for proper

operation.

TEMPERATURE GAUGE

The temperature indicator requires very little service

other than testing for malfunctioning and replacing de-

fective units. Cluster must be removed to service tem-

perature gauge.

Do not attempt to repair either the engine unit or the

gauge. When installing new engine unit, do not use

thread compound on unit threads, as this will increase

electrical resistance of unit and cause faulty reading

on gauge.

AMMETER OR OIL PRESSURE GAUGE

The ammeter or oil pressure gauge requires very

little attention other than keeping ammeter terminals

clean and tight. If the oil pressure control line should

become restricted it should be blown out or replaced.

Cluster must be removed to service these gauges.

HftVKI MANUAL

ELECTRICAL-BODY
AND
CHASSIS
12-36

CAMARO INSTRUMENTS AND GAUGES

INDEX

Page

General Description
12-36

Service Operations
12-36

Instrument Cluster
. . . 12-36

Instrument Lamps
12-36

Printed Circuit
12-36

Fuel Gauge
12-37

Tachometer
. . 12-37

Seat Separator Instrument Console
12-37
Page

Fuel Gauge
12-37

Ammeter
12-37

Temperature Gauge
12-37

Oil Pressure Gauge
. 12-37

Fuel Warning Unit
12-37

Clock.
... 12-37

Oil Pressure Indicator
12-37

Generator Indicator
12-38

Temperature Indicator
12-38

GENERAL DESCRIPTION

The standard Camaro instrument cluster assembly con-

sists
of two
circular units which house
the
speedometer

and fuel gauge assemblies.
The oil
pressure, left-hand

directional
and
brake warning indicators
are
located
in

the face
of the
speedometer bezel while generator,
tem-

perature
and
right-hand directional indicators are grouped

with
the
fuel gauge unit.
The
high beam indicator
is

located between
the
cluster bezels.

A special instrumentation package
is
available with
the

eight-cylinder engine
and
center floor console combina-

tion.
The
special cluster includes:
a
clock; coolant

temperature,
oil
pressure, fuel
and
ammeter gauges,

mounted forward
on the
seat separator console;
a ta-

chometer
in the
right circular housing
of the
dash
in-

strument cluster; and
a low
fuel level indicator replacing

the
oil
pressure indicator lamp
in the
instrument cluster.

The instruments
and
gauges,
may be
serviced only

after
the
instrument cluster
is
removed from
the
vehicle.

Indicator
and
cluster lamps except
for the
high beam

indicator
may be
replaced without removing
the
cluster

assembly. Partial cluster removal
is
necessary when

replacing
the
high beam indicator due
to its
proximity
to
the upper brace
rod
anchor plate.
The
bulbs
are in-

stalled
in
plastic sockets which lock into
the
cluster

housing and make contact with
the
printed circuit.

A
low
level fuel warning system
is a
special feature

available with
the
floor console gauge pack. This
sys-

tem includes
an
indicator lamp
in the
dash cluster and
a

semi-conductor unit senses
the
change
in
electrical
re-

sistance
of the
fuel system circuitry
as
variations
in

fuel level occur.
The
sensing device
is
replaced
as a

unit
if
found defective.

The brake warning light serves
a
dual purpose.
It

functions
as an
indicator when
the
parking brake
is ap-

plied
and
also
if
there
is a
malfunction (loss
of
hydraulic

pressure)
in the
brake system. Switches which provide

the signal
to
operate
the
light
are
located
at the
parking

brake assembly
and at the
brake master cylinder
in the

hydraulic lines. Service
of the
brake pressure differ-

ential switch unit
is
covered
in
Section
5 of
this manual.

Regular maintenance
is not
required on
the
instrument

cluster
or its
components other than maintaining clean,

tight electrical connections, replacing defective parts

and keeping
the
speedometer properly lubricated.

SERVICE OPERATIONS

INSTRUMENT CLUSTER (Figs.
50
thru
53)

Removal
and
Installation

1.
Disconnect battery ground cable.

2.
Remove mast jacket lower support screws
at toe
pan.

3.
Remove mast jacket upper support bolts
and
allow

steering wheel
to
rest
on
seat cushion.

CAUTION: Both supports must
be
detached
to

prevent distortion
of
mast jacket.

4.
Remove cluster attaching screws from face
of
panel

and partially remove assembly from console opening.

5. Reaching behind cluster assembly, disconnect speed-

ometer cable, speed warning device
(if so
equipped
-

Fig.
51) and
chassis harness connector
at
rear
of

panel.

6. Remove assembly from console opening to
a
suitable

bench area
for
required service operations.

7.
To
install, reverse removal procedure.

INSTRUMENT CLUSTER LAMP REPLACEMENT

1.
Turn bulb holder counterclockwise
and
pull
out to

remove from
the
cluster housing.
2.
Pull bulb straight out
to
remove from socket.

3.
Press replacement bulb inward
to
lock
in
socket.

4.
Insert lamp assembly into housing, with lugs
on

holder entering notches
in
housing,
and
turn clock-

wise
to
lock
in
place.

PRINTED CIRCUIT REPLACEMENT

1.
Remove instrument cluster
as
previously described

in this section.

2.
Remove
all
cluster illuminating and indicator lamps

from housing.

3.
Remove fuel gauge terminal nuts
or
tachometer
re-

taining nuts securing printed circuit
to
housing.

4.
Remove four
hex
head screws retaining printed
cir-

cuit
to the
cluster housing
and
remove circuit from

housing.

5.
To
install, reverse removal procedure.

CAUTION:
The
retaining screws
are
part
of

the grounding circuit
and
must
be
installed
to

provide proper connections
for the
printed
eir-

cuit.

CHEVROLET CHASSIS SERVICE MANUAL

ELECTRICAL-BODY AND CHASSIS 12-37

Fig.
50 - Instrument Cluster Installation — Camaro

FUEL GAUGE REPLACEMENT

1.
Remove instrument cluster assembly as previously

described.

2.
Remove cluster lamps from gauge cover plate,

ground screw and terminal nuts attaching printed

circuit to fuel gauge.

3.
Remove three screws retaining gauge assembly to

cluster housing.

4.
Carefully move printed circuit away from gauge and

remove gauge assembly from cluster housing.

5. Remove terminal nuts securing gauge to cover plate,

and detach gauge unit.

6. To install, reverse removal procedure.

TACHOMETER

NOTE:
The tachometer is a self-contained, all

transistor unit requiring very little service

other than keeping the terminal nuts clean and

tight. The unit is not serviceable and must be

replaced, if defective.

1.
Remove instrument cluster as previously described

in this section.

2.
Remove cluster lamps from rear of gauge cover and

disconnect harness wiring connections from gauge

terminals.

3.
Remove three screws retaining gauge to cluster

housing.

4.
Move printed circuit away from gauge area and re-

move gauge unit from housing.

5. Remove terminal nuts securing gauge to cover

detach unit.

6. To install, reverse removal procedure.

SEAT SEPARATOR INSTRUMENT CONSOLE

(Fig.
54)
(Fuel,
Ammeter, Temperature, Oil Pressure Gauges,

Low Fuel Warning Unit, and Clock)

1.
Disconnect battery ground cable.

2.
Remove clock shaft knob from face of cluster.

3.
Remove cover retaining screws (4) and cover from

cluster assembly.

NOTE:
Use an alien wrench to remove the two

screws located in the top of the cover below the

instrument console.

4.
Remove four screws retaining gauge mounting plate

to cluster housing.

5. Carefully disengage gauge plate from housing and

disconnect oil pipe and all electrical connections at

rear of gauges.

NOTE:
At this point, with gauge package re-

moval from housing all gauges including the low

fuel warning system may easily be serviced.

6. To install assembly, use reverse of removal

procedure.

OIL PRESSURE INDICATOR

If the light does not come on when the ignition switch

is turned on, or if the light comes on and remains on

after the engine is started, one or more of the following

conditions is indicated.

• Low oil pressure

• Defective wiring or switch

Sending Unit Replacement

1.
Disconnect wiring harness connector from sender

unit terminal (located in block above starter on L-6

engines and at left front of distributor on V-8

engines).

Fig.
51 - Speed Warning Device

CHEVROLET CHASSIS SERVICE MANUAL

ELECTRICAL-BODY AND CHASSIS 12-38

Fig.
52 - Instrument Cluster Lighting

1
• Cluster Lamp

2.
* High Beam Indicator

3. Oil Pressure Indicator

4.
L.H. Directional Indicator

5. Generator indicator
6. R.H. Directional indicator

7. Temperature Indicator

8. Printed Circuit

9. Chassis Harness Connector

10,
Brake Warning Indicator

2.
Remove sender unit.

3.
Replace with new unit and check operation.

GENERATOR INDICATOR

1.
Ignition on, engine not running and indicator light off:

•Indicator bulb is burned out, replace bulb.

•Open circuit or loose connection in the indicator

light circuit.
2.
Indicator light stays on after engine is started:

•Ti indicator light does not go out at engine idle

speed, refer to Charging System Tests in Section

6Y, Engine Electrical.

TEMPERATURE (COOLING SYSTEM) INDICATOR

The temperature indicator circuit consists of two re-

motely located units, indicator lamp and sending unit.

The "indicator lamp, located in the instrument cluster

CHfVROtEr CHASM SfXVICf
